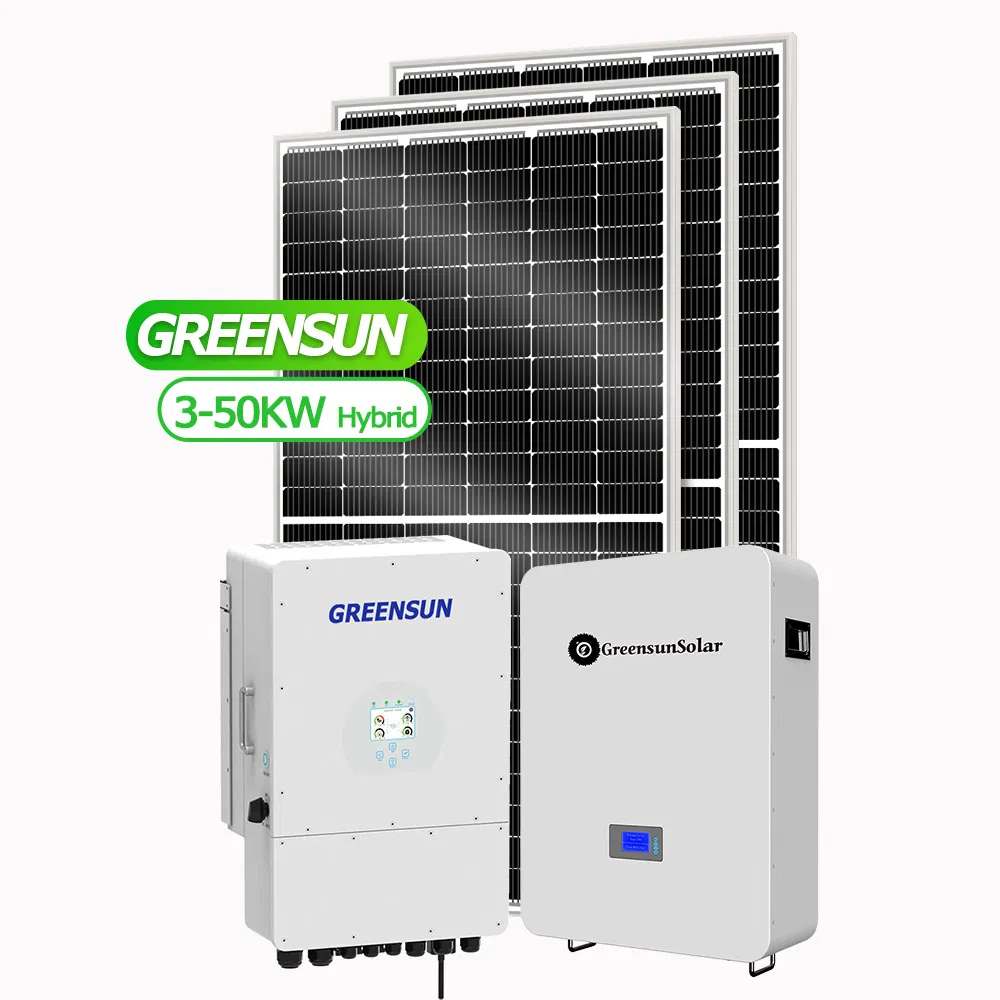

Solar Panel System for Home Complete Kit Photovoltaic 5kw 10kw 15kw Household off Grid Hybrid Lithium Battery Energy Power
Solar Panel System for Home Complete Kit Photovoltaic 5kw 10kw 15kw Household off Grid Hybrid Lithium Battery Energy Power
Solar Panel System for Home Complete Kit Photovoltaic 5kw 10kw 15kw Household off Grid Hybrid Lithium Battery Energy Power
Solar Panel System for Home Complete Kit Photovoltaic 5kw 10kw 15kw Household off Grid Hybrid Lithium Battery Energy Power
Solar Panel System for Home Complete Kit Photovoltaic 5kw 10kw 15kw Household off Grid Hybrid Lithium Battery Energy Power
1 / 5
Solar Panel System for Home Complete Kit Photovoltaic 5kw 10kw 15kw Household off Grid Hybrid Lithium Battery Energy Power
Solar Panel System for Home Complete Kit Photovoltaic 5kw 10kw 15kw Household off Grid Hybrid Lithium Battery Energy Power
Solar Panel System for Home Complete Kit Photovoltaic 5kw 10kw 15kw Household off Grid Hybrid Lithium Battery Energy Power
Solar Panel System for Home Complete Kit Photovoltaic 5kw 10kw 15kw Household off Grid Hybrid Lithium Battery Energy Power
Solar Panel System for Home Complete Kit Photovoltaic 5kw 10kw 15kw Household off Grid Hybrid Lithium Battery Energy Power

Solar Panel System for Home Complete Kit Photovoltaic 5kw 10kw 15kw Household off Grid Hybrid Lithium Battery Energy Power

Customization: Available
After-sales Service: Yes
Warranty: 10 Years Warranty Time
Send Inquiry

Product Description

📊

Overview - Basic Information

Model NO.
GS-10KW-HY
Condition
New
Certification
ISO, CE
Application
Home
Specification
Normal, solar power system
Controller Type
MPPT
Load Power (W)
10kw
Output Frequency
50/60Hz
OEM Service
Acceptable
Inverter
Single Phase/Split Phase/3phase
Work Time (H)
24 Hours
Output Voltage (V)
120/240V; 220/230/240VAC, 380/400V, 208/220V
System Life Span
25 Years
Monitoring
WiFi/GPRS
Mounting Type
Ground, Roof, Carport Mounting
Efficiency
99.8%
Solar Panel
Mono; Poly
Battery
Lithium Battery; Lead Acid Battery
HS Code
8501610000
Production Capacity
100sets Per Week
💡

Product Description

Hybrid Solar System
Solar hybrid power systems are hybrid power systems that combine solar power from a photovoltaic system with another power generating energy source. A common type is a photovoltaic diesel hybrid system, combining photovoltaics (PV) and diesel generators, or diesel gensets, as PV has hardly any marginal cost and is treated with priority on the grid. The diesel gensets are used to constantly fill in the gap between the present load and the actual generated power by the PV system.

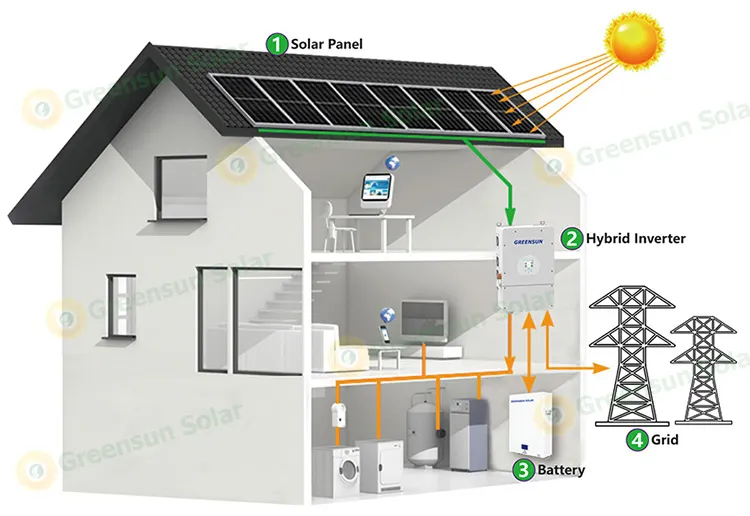

Hybrid System Diagram
⚙️

Product Parameters

Hybrid Storage Solar Power System 3-10KW

Components 3KW-HY 5KW-HY 8KW-HY 10KW-HY
AC Voltage220~240Vac Single Phase220~240Vac Single / 120/240Vac Split220~240Vac Single / 120/240Vac Split / 3Phase220~240Vac Single / 120/240Vac Split / 3Phase
Mono 460W Solar Panel7 pcs10 pcs16-18 pcs21-22 pcs
Hybrid Inverter3KW5KW8KW8KW/10KW
BatteryLead Acid / Lithium Battery
PV Cable 4mm2100m100m100m100m
MC4 Connector4pcs6pcs10pcs12pcs

Hybrid Storage Solar Power System 15-50KW

Components 15KW-HY 20KW-HY 30KW-HY 50KW-HY
AC Voltage220~240Vac / 120/240Vac / 380-415Vac220~240Vac / 120/240Vac / 380-415Vac220~240Vac / 120/240Vac / 380-415Vac208/480Vac 3Phase (US) / 380-415Vac 3Phase (EU)
Mono 460W Solar Panel32 pcs44 pcs64 pcs108 pcs
Hybrid Inverter2 Units 8KW2 Units 10KW30KW50KW
BatteryLead Acid / Lithium Battery
PV Cable 4mm2100m200m300m500m
MC4 Connector18 pcs25 pcs35 pcs28 pcs
📦

System Components

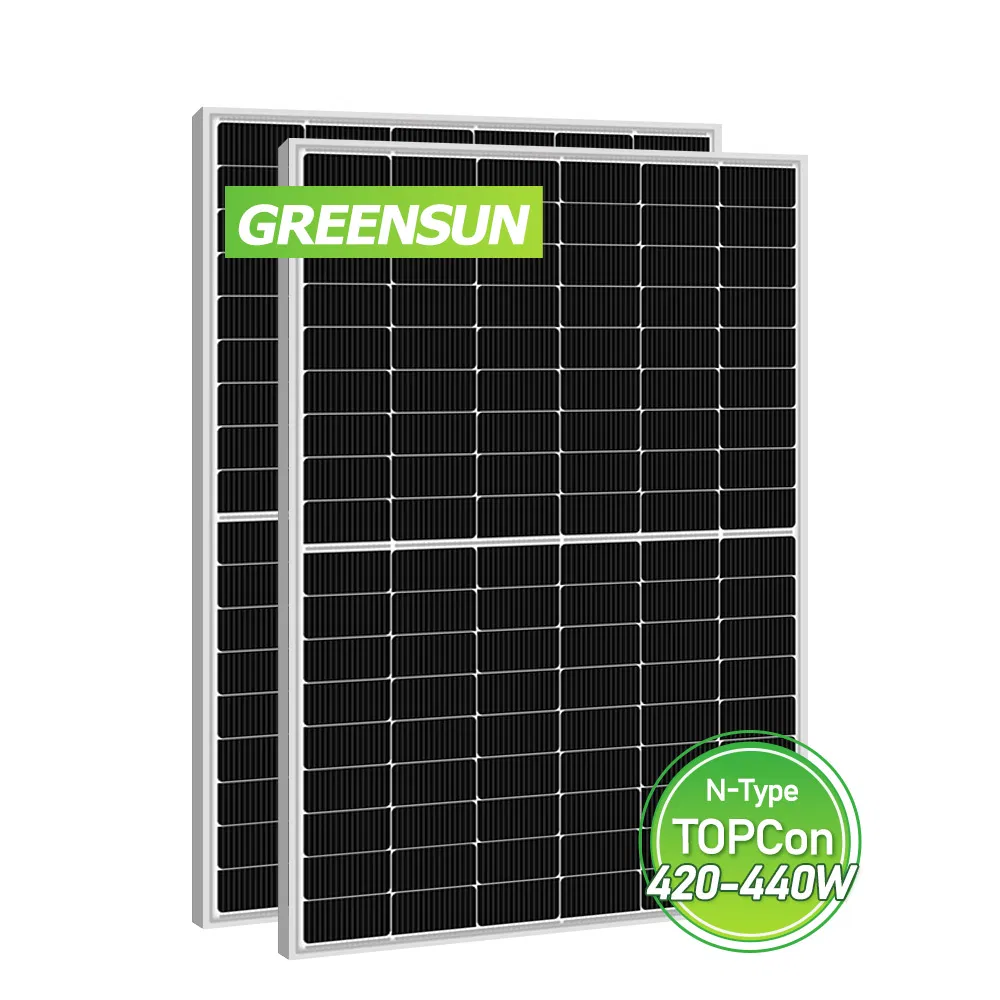

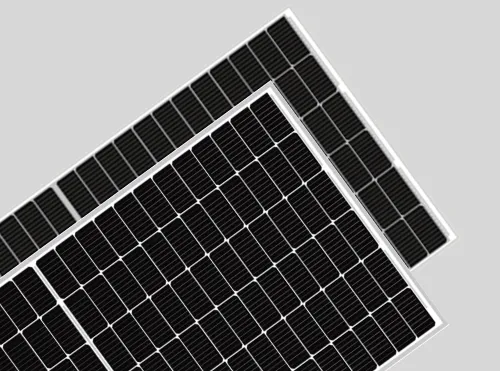

Solar Panel

Solar Panel

Poly, Mono, PERC/N-type HJT Solar Panels Available.
PID free PV module, 0-5W positive power tolerance.
100% full EL inspection with superior quality control.
25 years warranty.

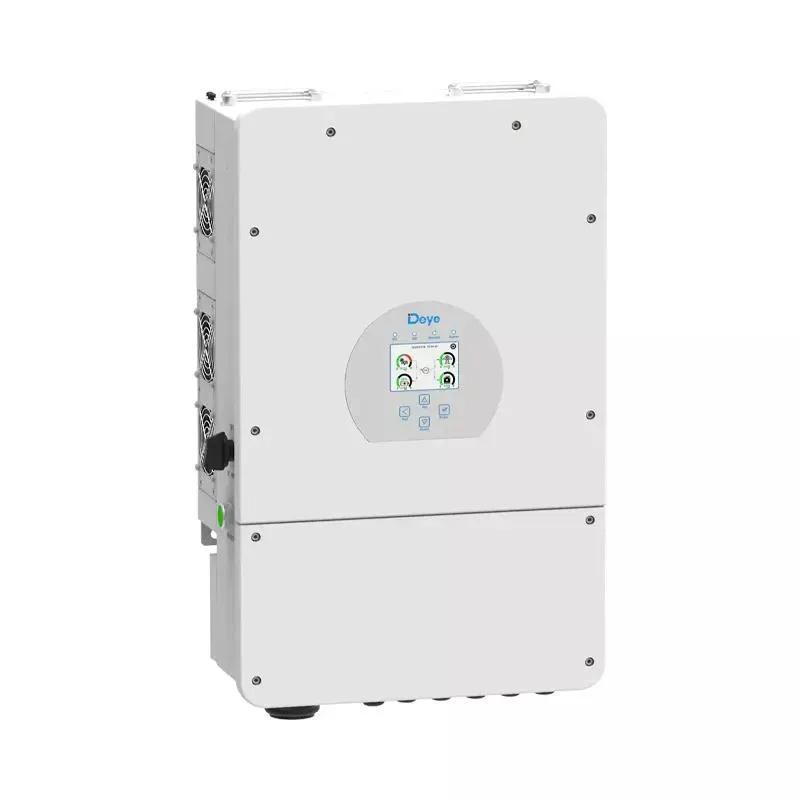

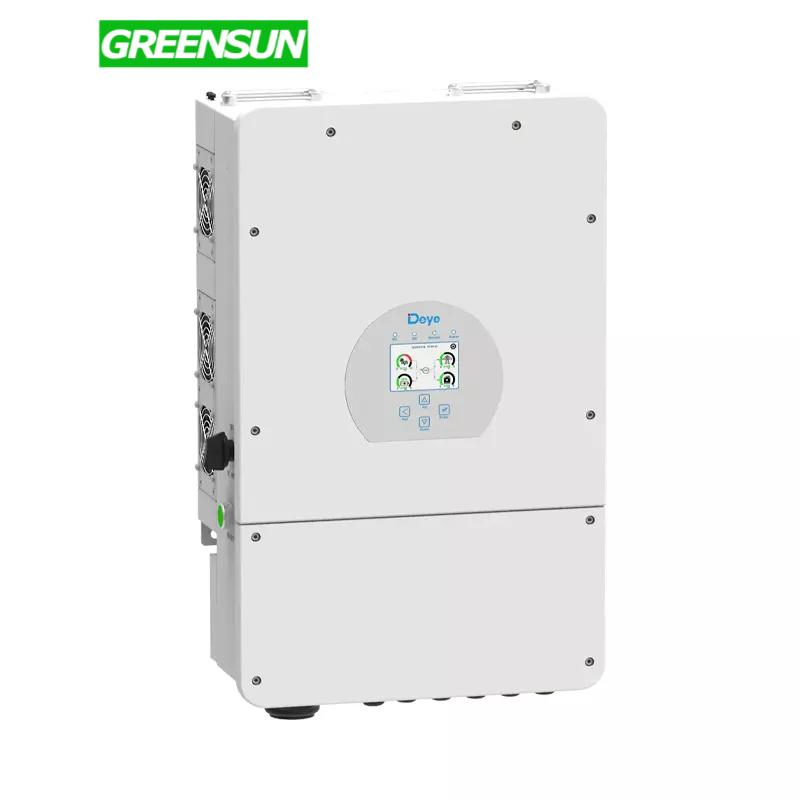

Hybrid Storage Inverter

Single Phase/Split Phase Output (110/120/220/230/240Vac, 50/60HZ).
Wifi Monitoring & Touch LCD interface.
Off-grid, On-grid, and On-grid with battery backup modes.
10 years warranty.

Inverter

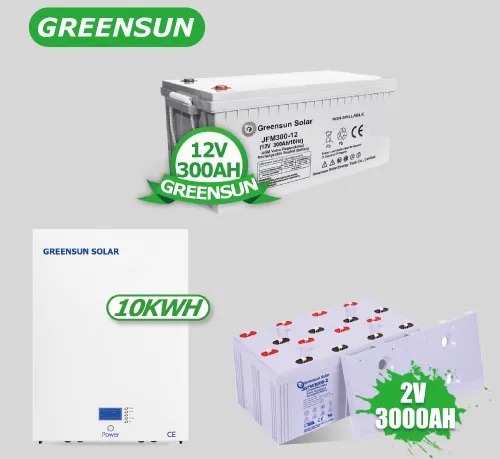

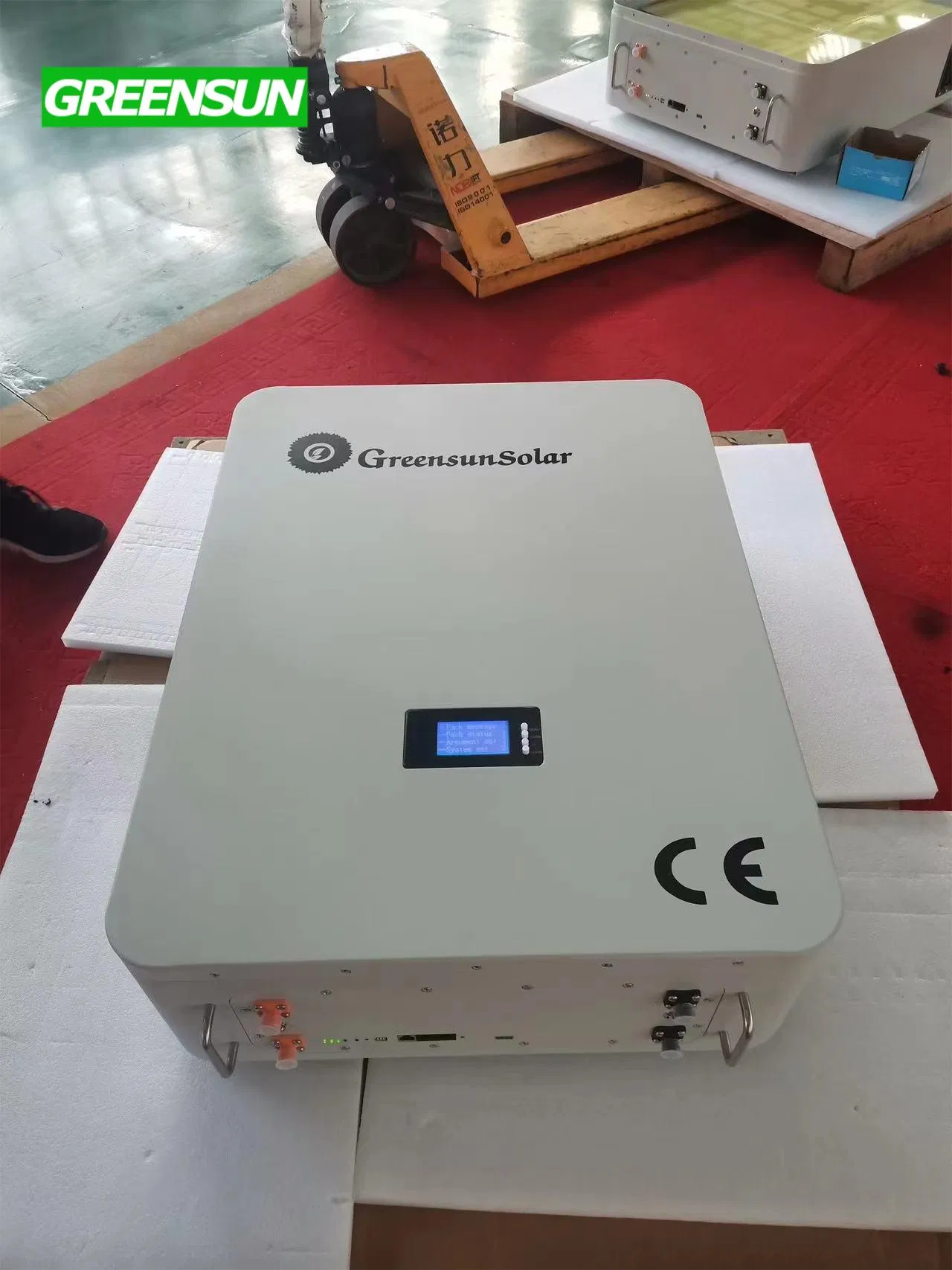

Lithium Battery

LiFePO4 Lithium Battery

Powerwall or Rack Mount available. Parallel connection support.
In-built BMS, 6000 Cycles life.
12V/2V AGM/GEL Deep Cycle options available. Free maintenance.

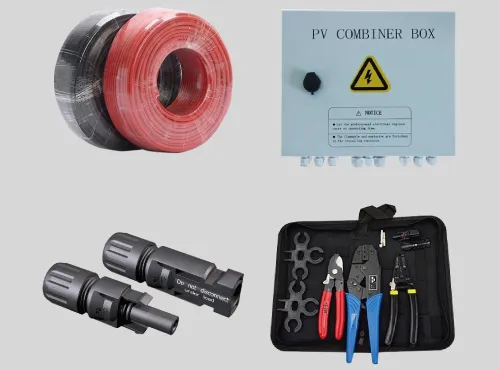

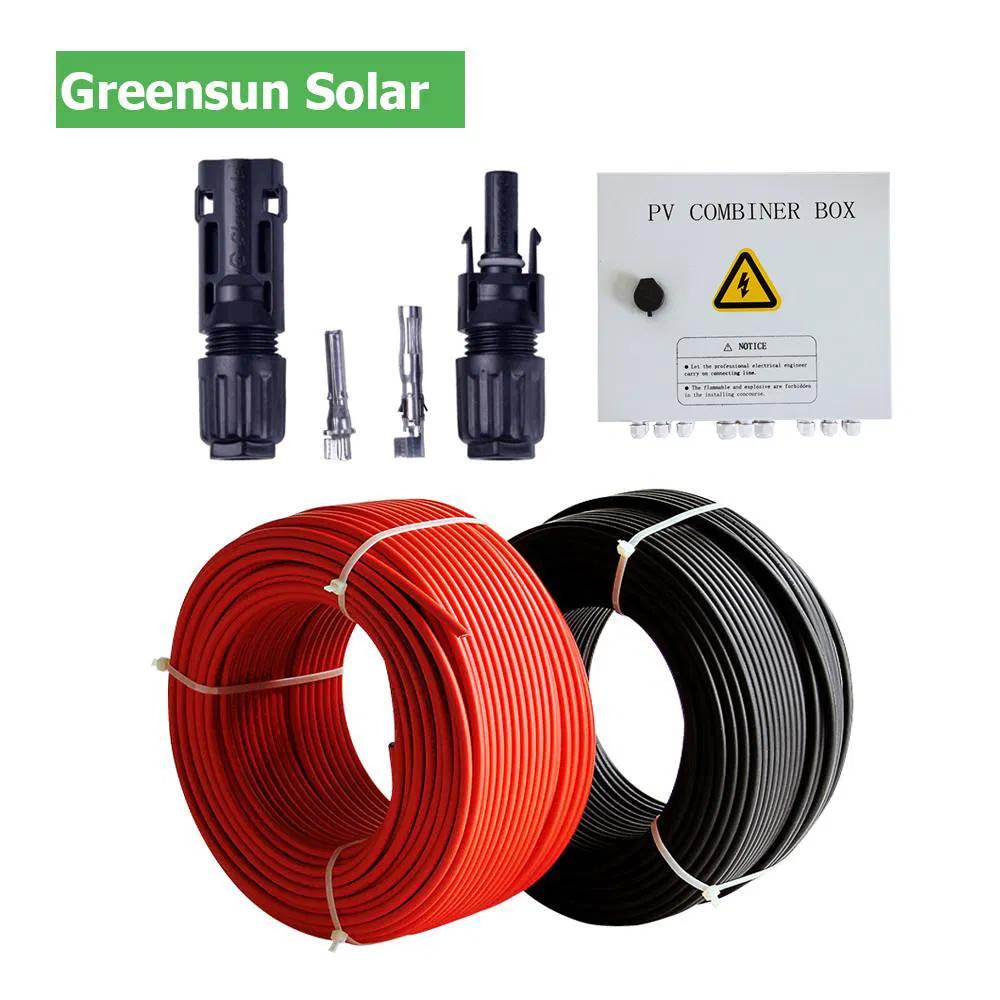

System Accessories & Brackets

PV Combiner Box with Lightning Arrester, DC Breaker, Fuse, and SPD (IP65).
PV Cable: 4mm2 - 25mm2 options available.
Mounting Structures for Pitched Roof, Flat Roof, Ground, Ballast, and Carport.

Accessories
🏢

Manufacturing & Projects

Factory View

Packaging & Shipping

Shipping 1
Shipping 2
Shipping 3

Our Global Projects

Project 1

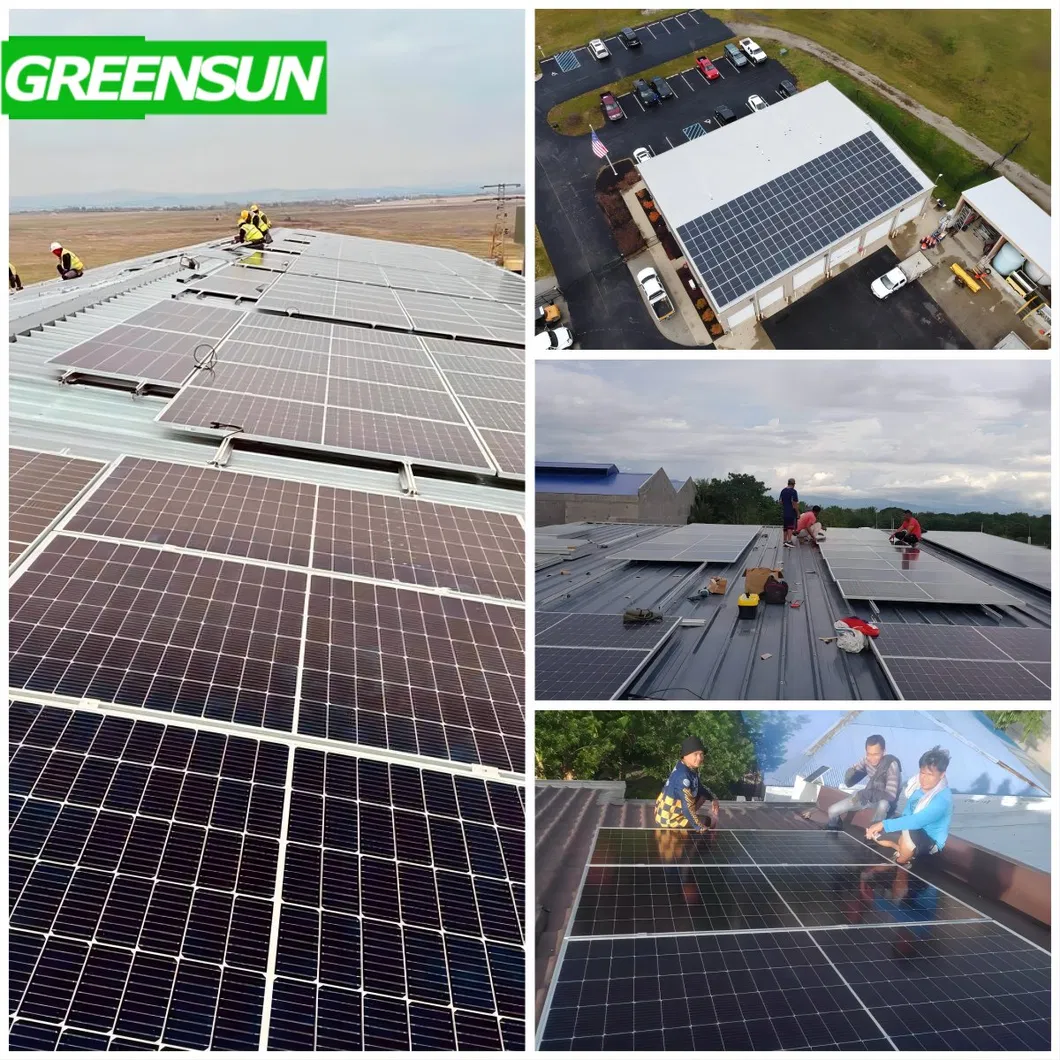

Project 2
❓

Frequently Asked Questions

What is a hybrid solar power system?
A hybrid solar system combines solar energy from PV panels with another power source, such as the utility grid or a diesel generator, and includes battery storage to ensure continuous power supply even during outages.
How long do the solar panels and the system last?
The solar panels come with a 25-year warranty, and the overall system is designed for a lifespan of at least 25 years with proper maintenance.
Can I monitor the system performance remotely?
Yes, the hybrid inverters support WiFi and GPRS monitoring, allowing you to track energy production and battery status via a smartphone or computer.
What is the difference between Lead-acid and Lithium batteries for this system?
Lithium (LiFePO4) batteries offer a longer lifespan (up to 6000 cycles), higher efficiency, and compact size, while Lead-acid/GEL batteries are a more traditional, cost-effective option for specific budget requirements.
Is the system compatible with my local grid voltage?
Yes, the system is highly customizable. We support various output voltages including 120/240V split phase (US standard), 220/230/240V single phase, and 380/400/415V three-phase (EU standard).
What mounting options are available for the solar panels?
We provide versatile mounting structures suitable for pitched roofs, flat roofs, ground installation, carports, and even ballast-type setups for non-penetrative mounting.
