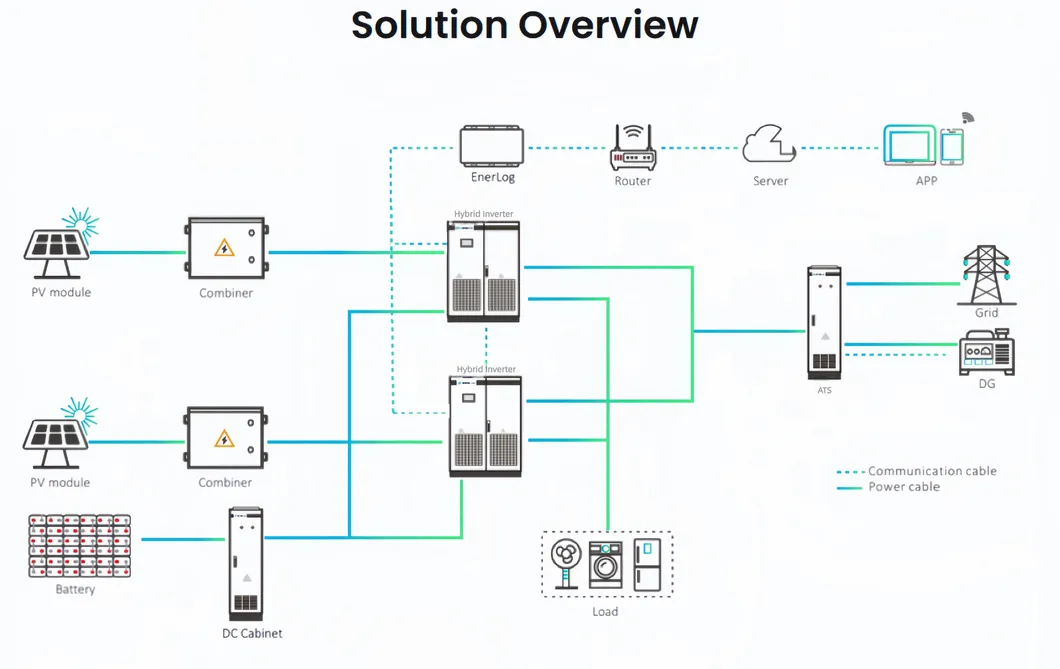

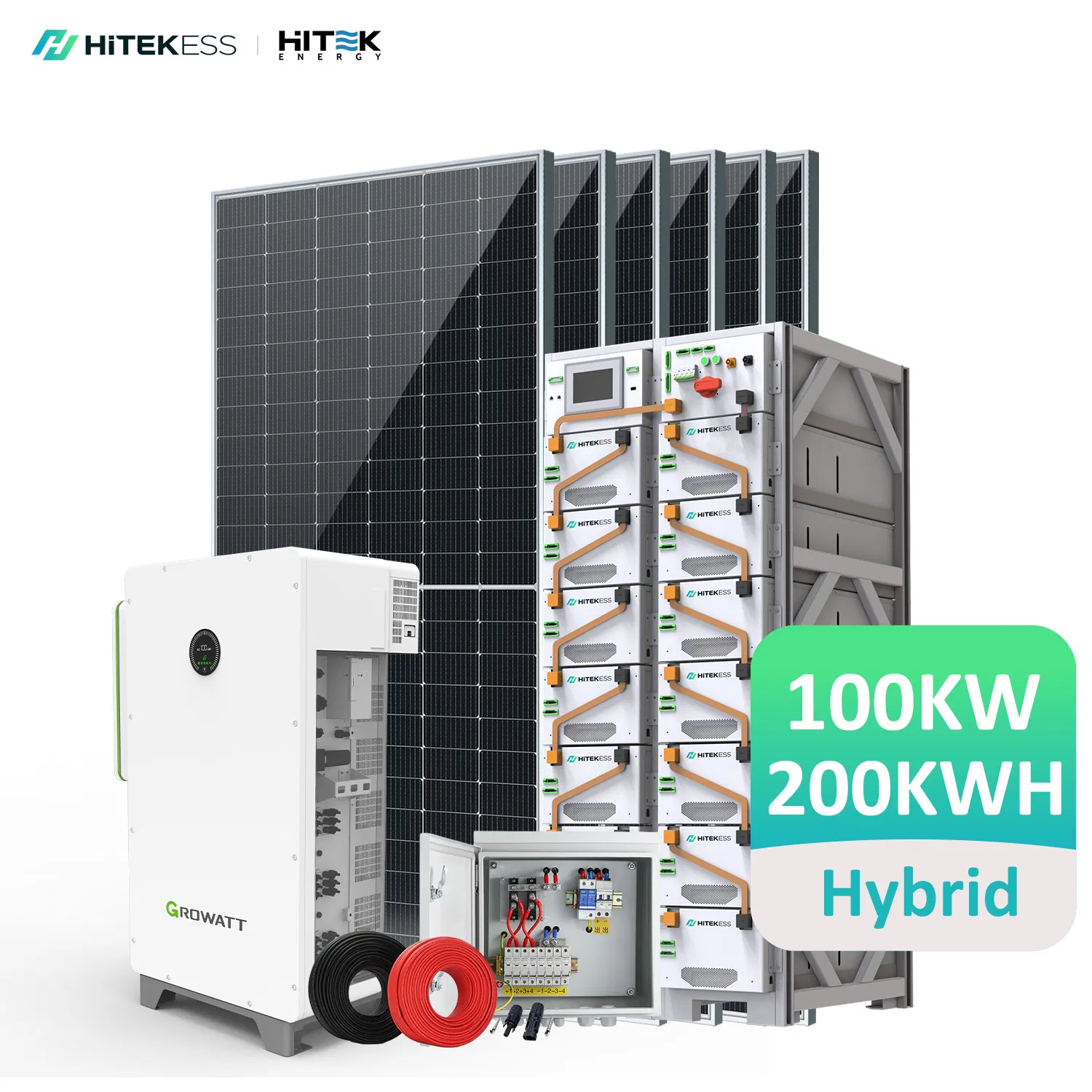

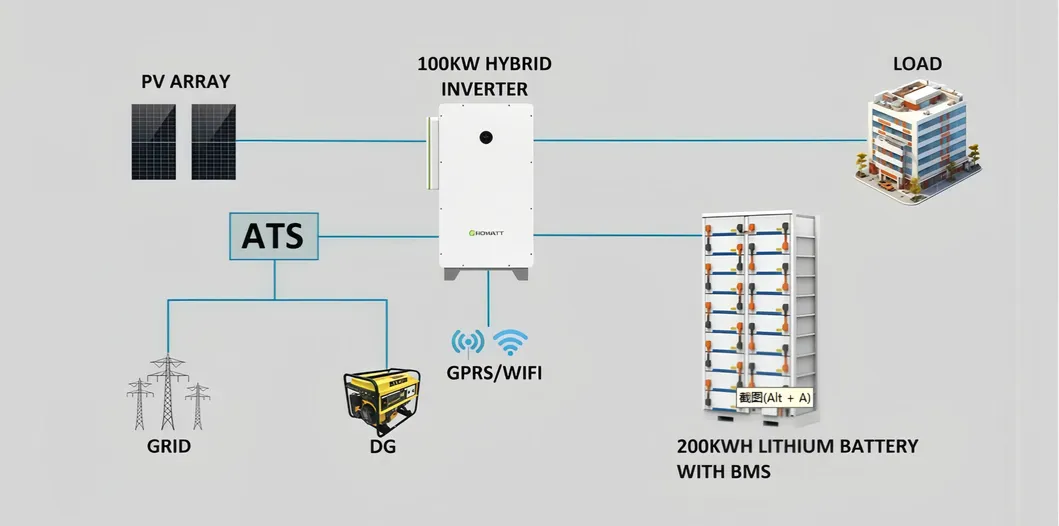

The hybrid solar system is a renewable energy system that is grid-tied and includes battery storage. The system uses solar panels to produce energy during the day, while the batteries store excess energy for use later at night. These systems have both on-grid and off-grid capabilities, allowing you to continue running on solar power even if the grid goes dark.
| Specifications | 30KW System | 50KW System | 100KW System | 150KW System | 250KW System | 500KW System |
|---|---|---|---|---|---|---|
| AC Rated Power | 30KW | 50KW | 100KW | 150KW | 250KW | 500KW |
| Max. Output (KVA) | 33 | 55 | 110 | 165 | 275 | 550 |
| Solar Panel Qty | 54PCS | 85PCS | 170PCS | 255PCS | 425PCS | 850PCS |
| Total PV Power | 32.4kW | 51kW | 102kW | 153KW | 255KW | 510KW |
| Battery Capacity | 40.96KWH | 100.352KWH | 200.704KWH | 315.392KWH | 401.408KWH | 1003.52KWH |
| Operation Temp | -35~50ºC (>40ºC derating) | |||||

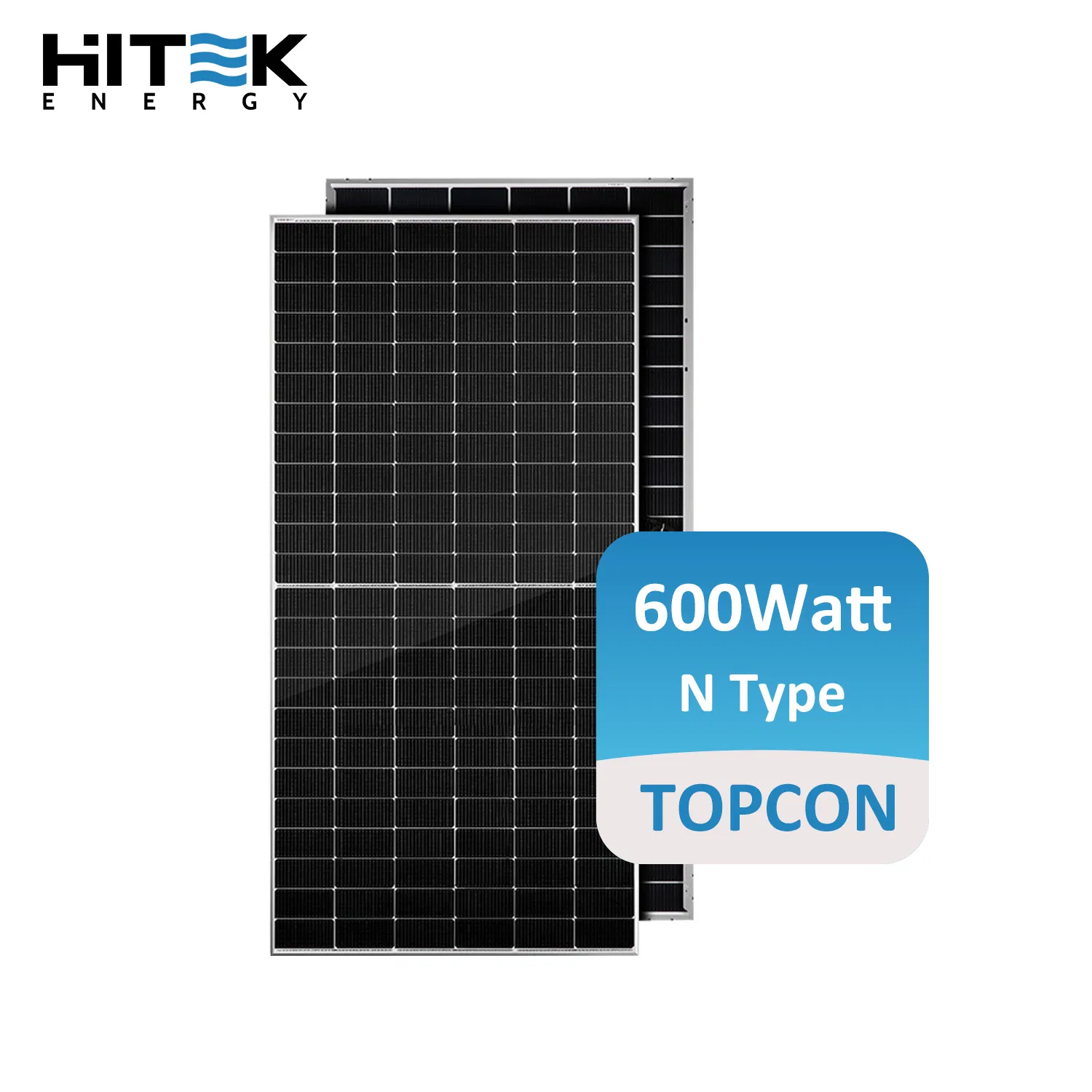

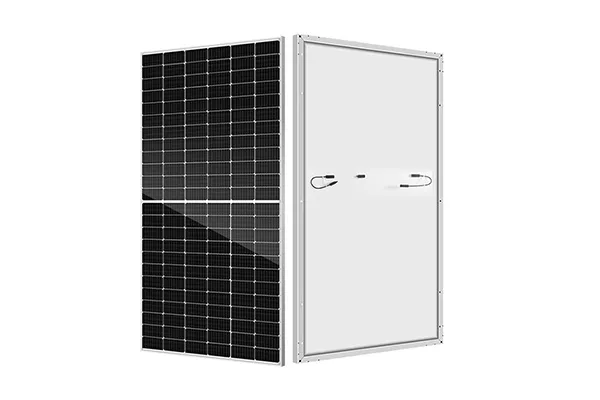

600Wp Peak Power, High efficiency N-Type cells with 2279*1134*30mm dimensions.

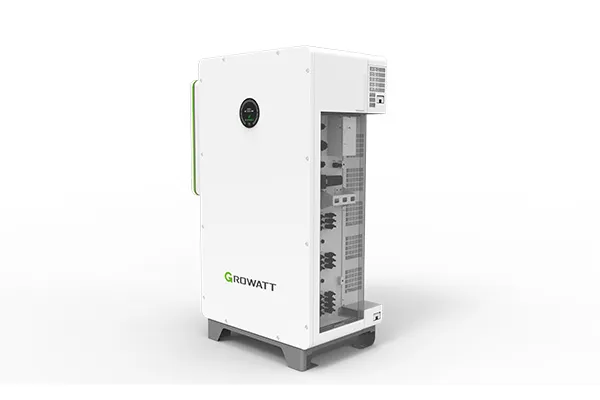

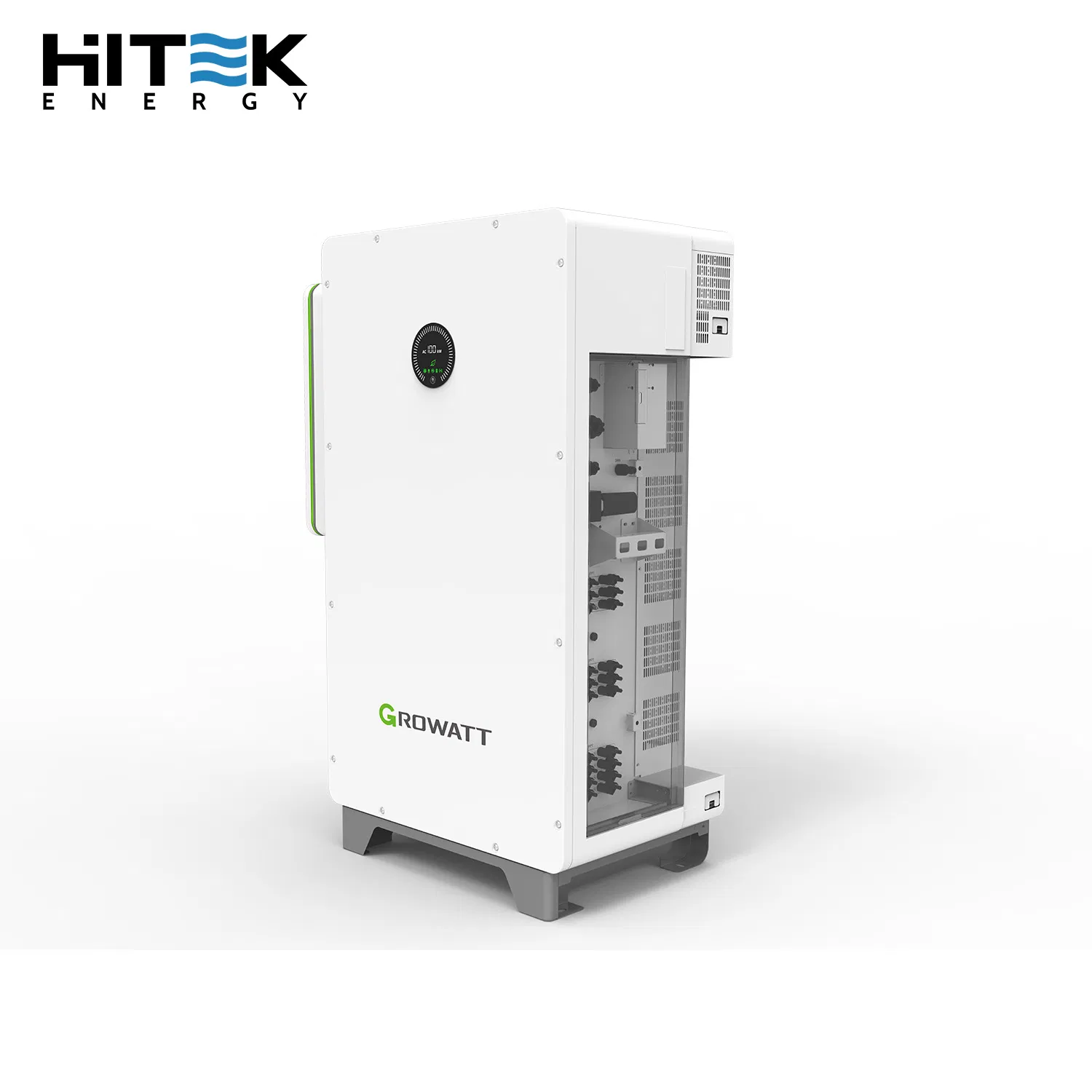

Scalable configuration, UPS function, black start support, and 110% continuous AC overloading capacity.
Real-time data storage, traceable logs, and safe operation via WiFi/GPRS.

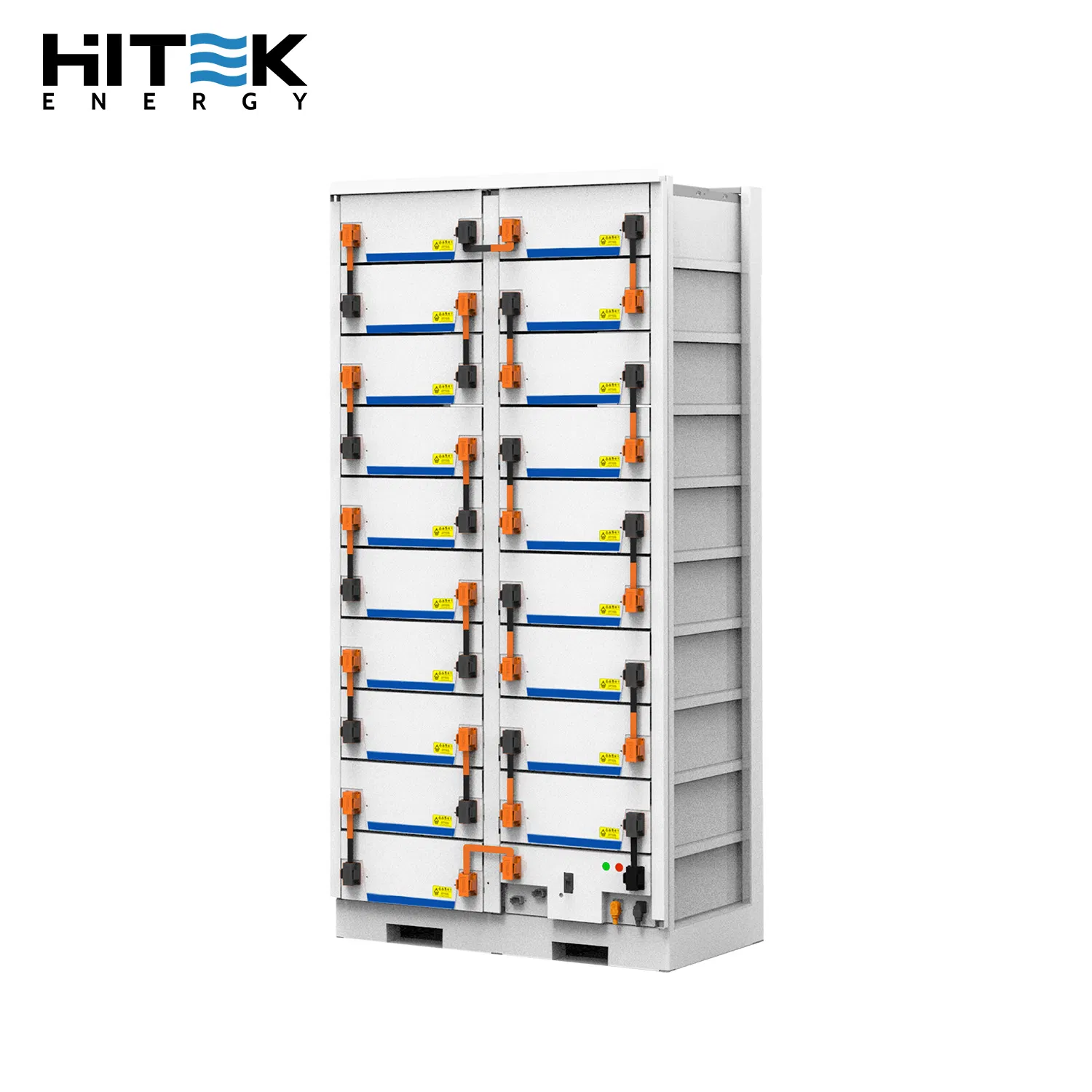

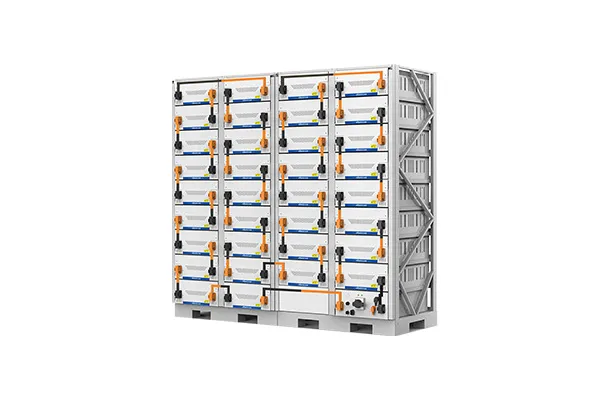

Rack mounted LiFePO4 batteries with 6000+ cycle life and 90% DOD.

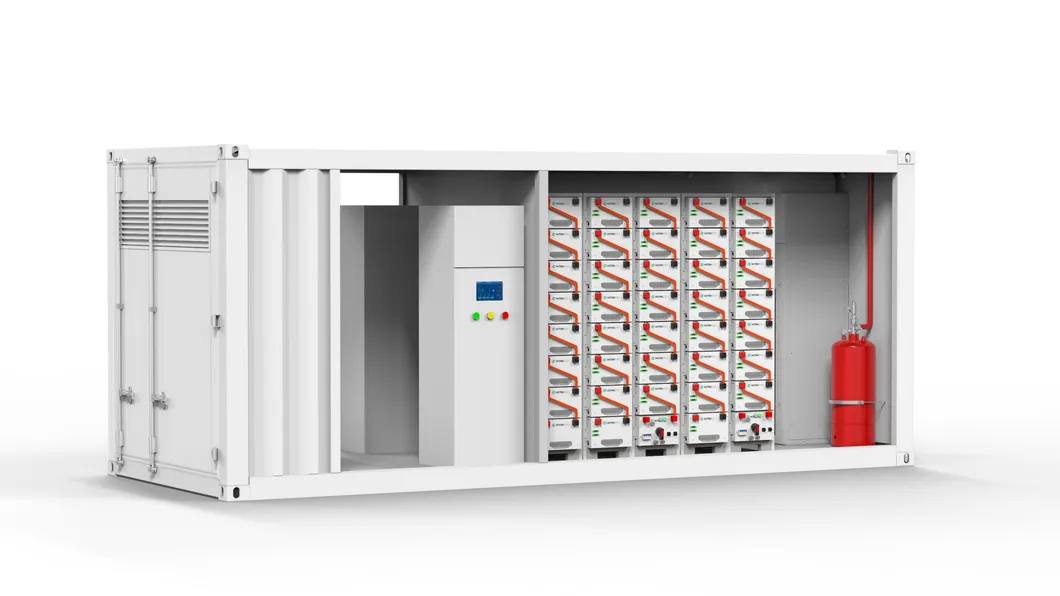

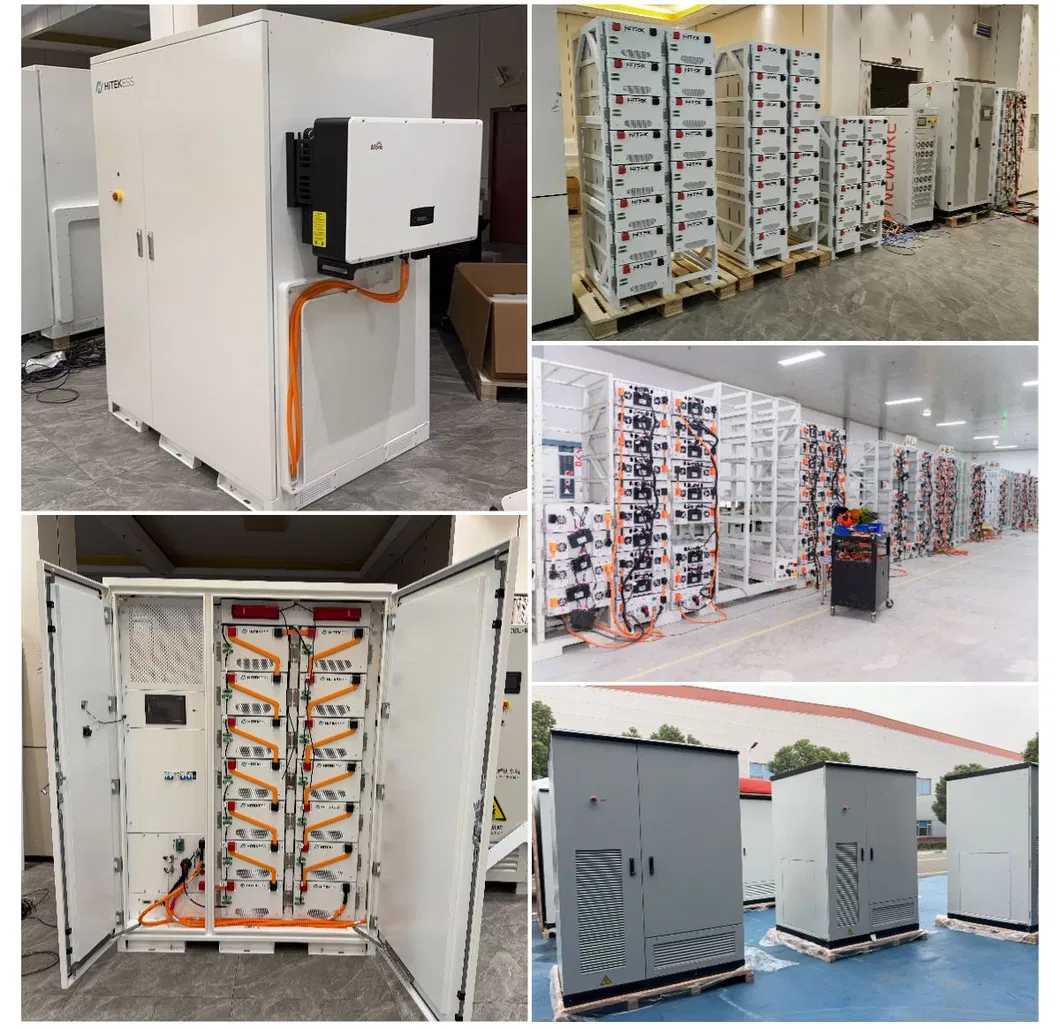

Containerised solution for large-scale projects including climate control and lighting systems.
Complete professional technical guidance for installation and system optimization.
