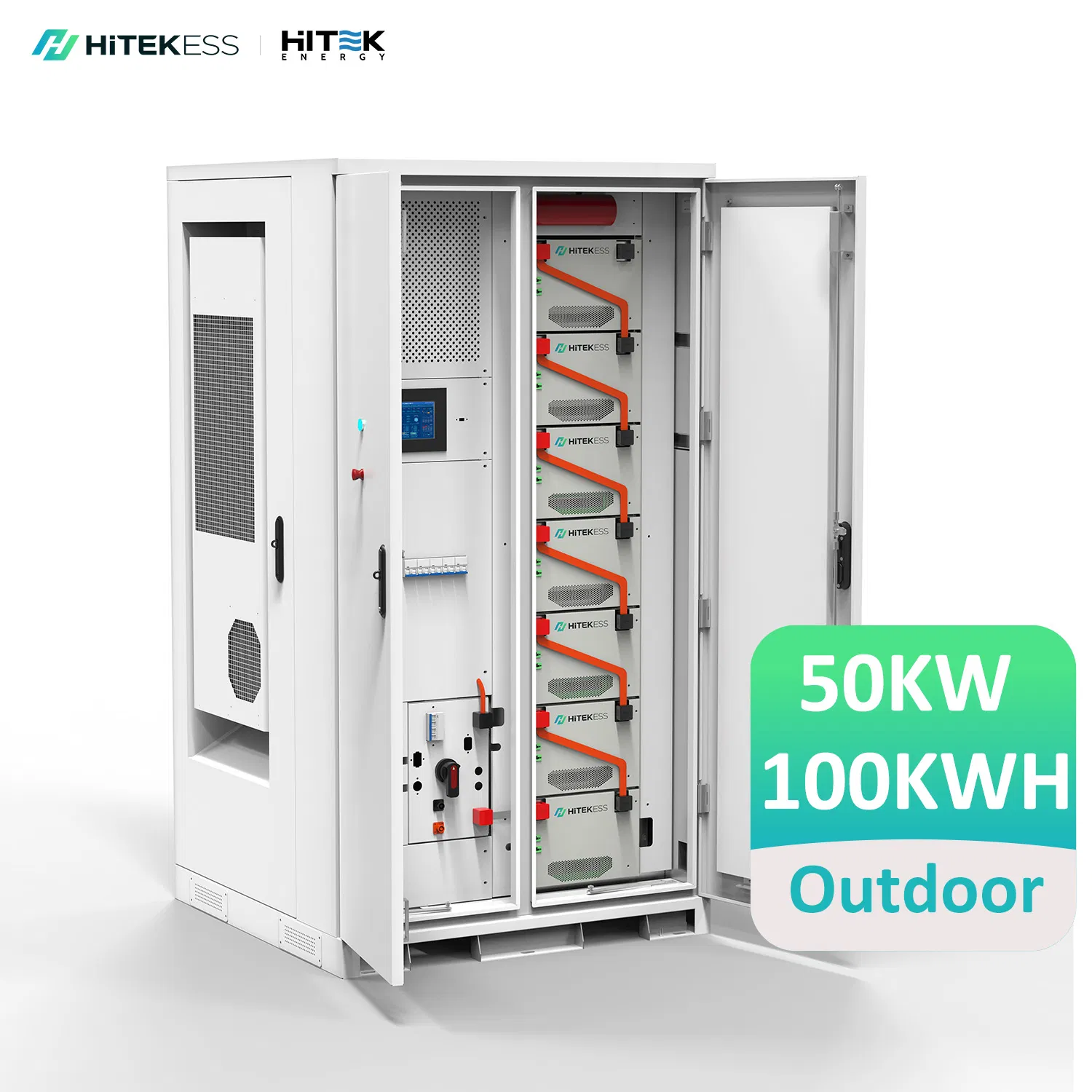

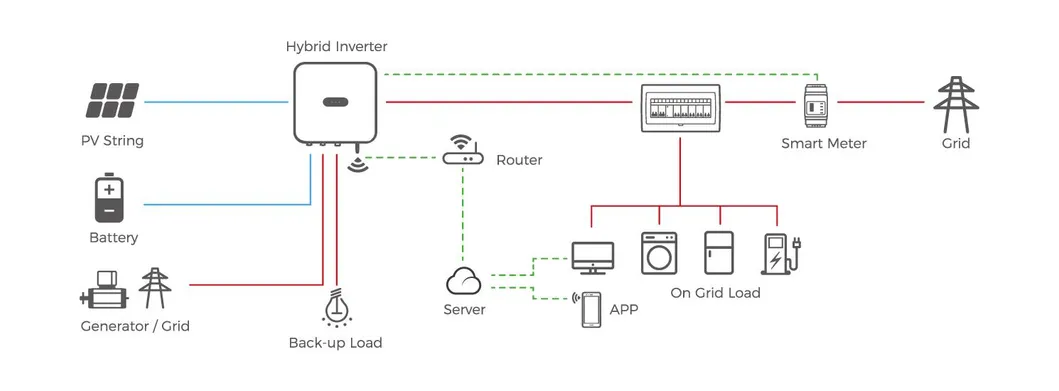

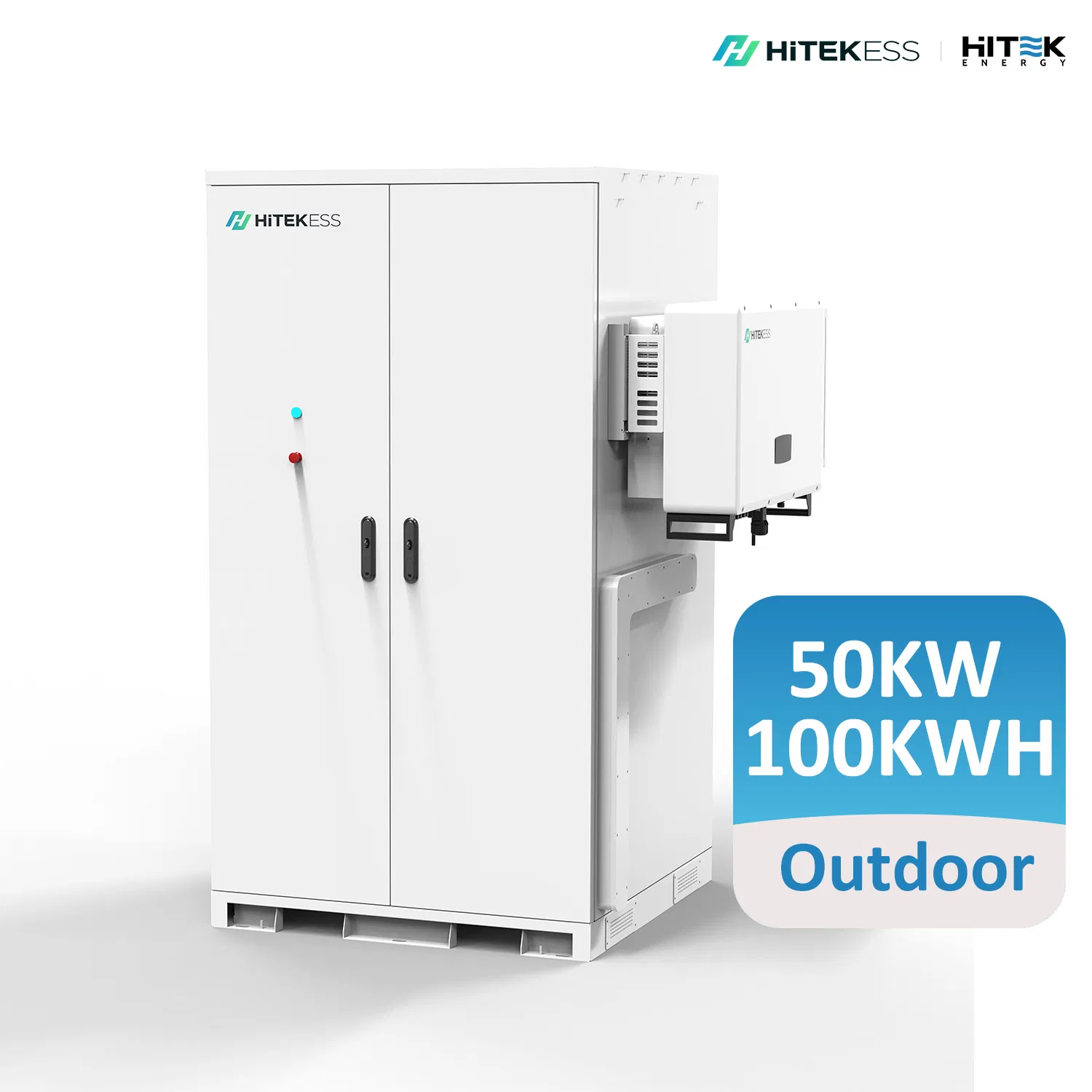

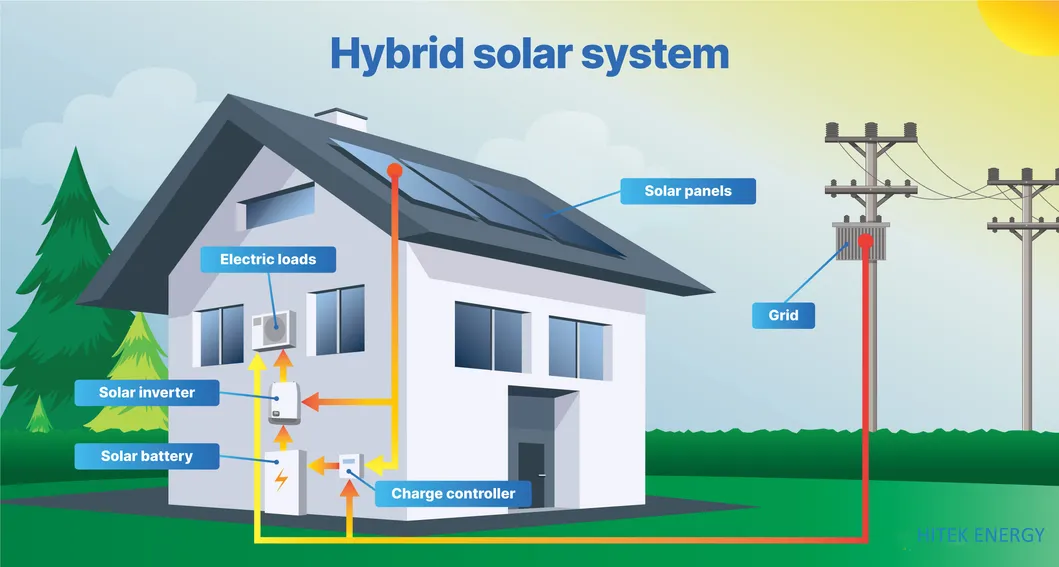

This hybrid system is a combination of solar energy storage with grid connection. It features battery backup to store power and the ability to feed surplus electricity into the main grid. Our outdoor Energy Storage cabinet systems provide instant backup power to protect against unplanned outages.
| No. | Product Name | Specification | Unit | Qty | Remark |
|---|---|---|---|---|---|
| 1 | Solar Module | BSM560M10-72HPH | pcs | 96 | Total 53.76KW |
| 2 | PV Combiner Box | 6 input and 6 output | pc | 1 | 1000V circuit voltage |

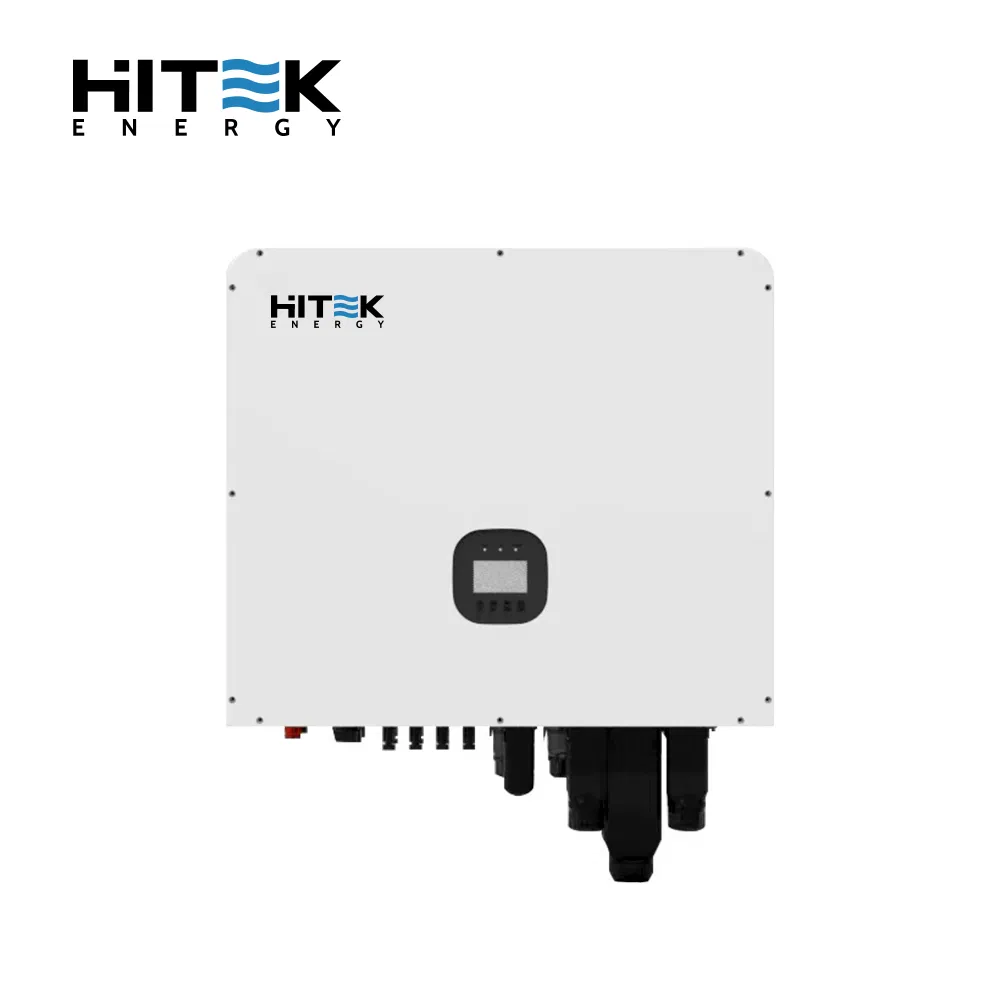

| 3 | Hybrid Inverter | BSE50KH3 | pc | 1 | 3 Phase 400V 50Hz |
| 4 | Lithium Battery | 51.2V 280Ah | pack | 7 | Total 100.352kWh |
| 5 | HV Control Box | Standard | piece | 1 | - |
| 6 | Battery Rack | High-density | set | 1 | - |
| 7 | Remote Monitoring | WiFi Monitoring | set | 1 | Equipped |
| 8 | PV Cable | PV1-F 1*4mm² | meter | 600 | - |
| 9 | Mounting Kits | Customized | set | 1 | Roof/Ground |

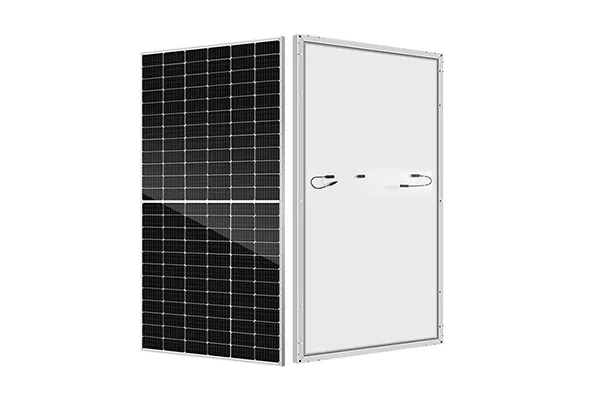

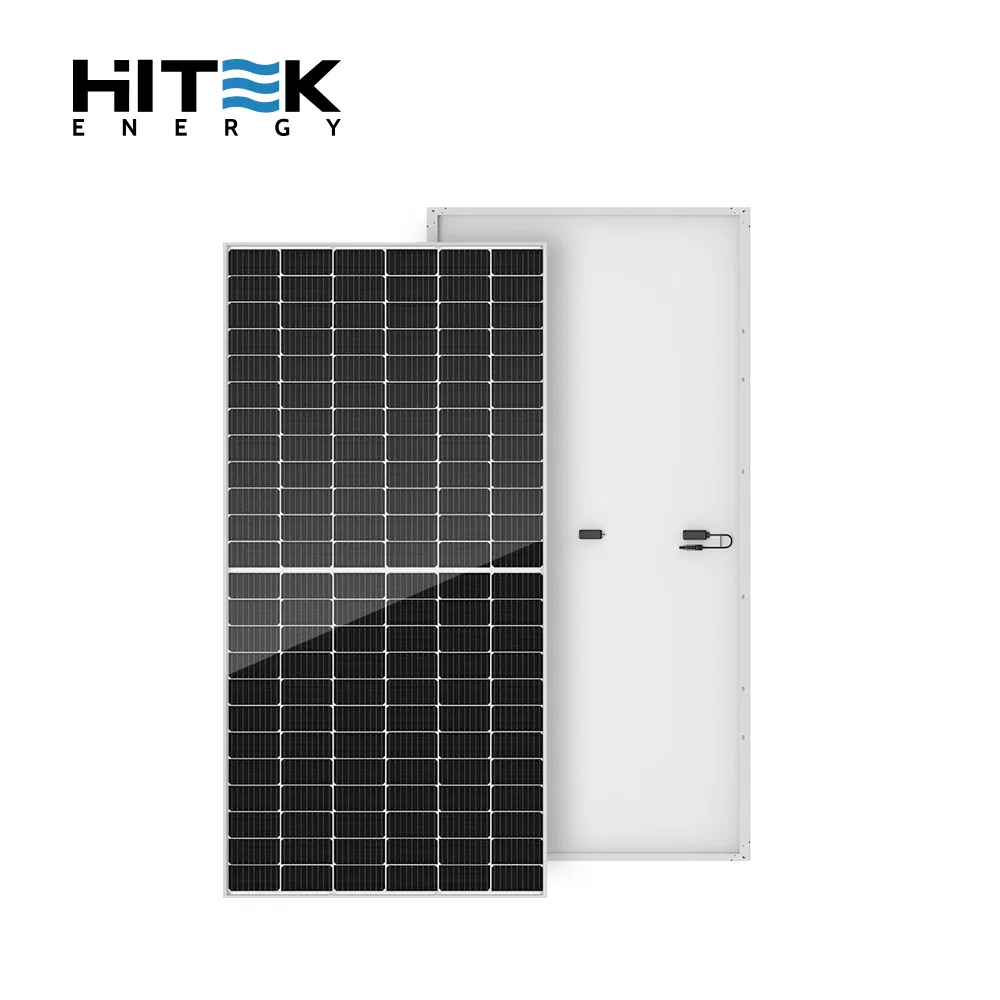

Peak Power: 560Wp
Open Circuit Voltage: 49.84V
Maximum Power Voltage: 41.08V
Dimensions: 2279*1134*35mm
Weight: 28.0kg

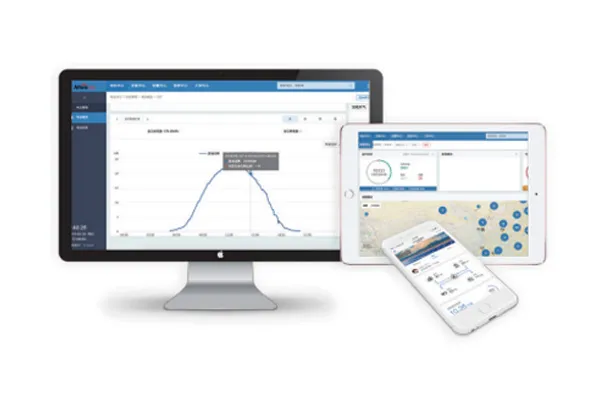

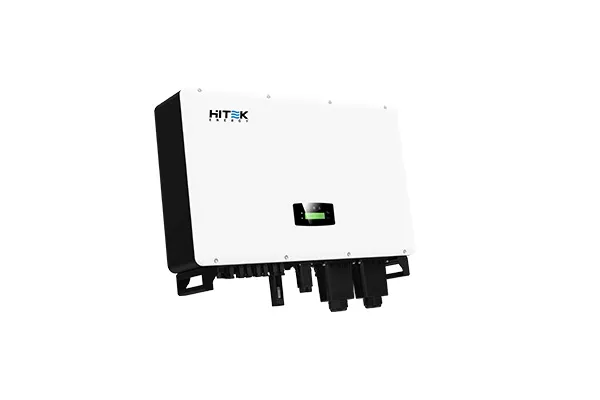

Smart Monitoring & Remote Upgrade
Built-in Anti-feed-in Function
AFCI & Rapid Shutdown Ready
Configurable Operation Modes
One-click installation and registration. Real-time safe operation tracking, traceable logs, and full lifecycle data security.

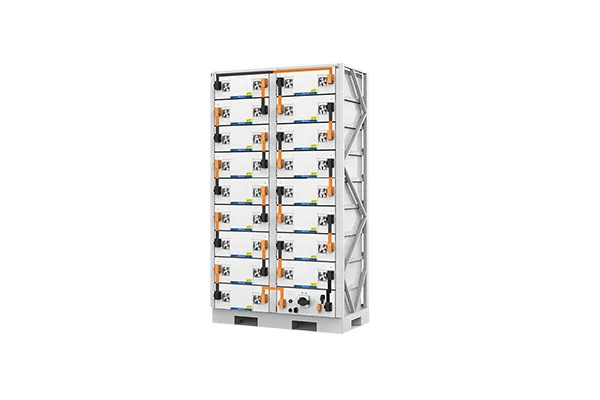

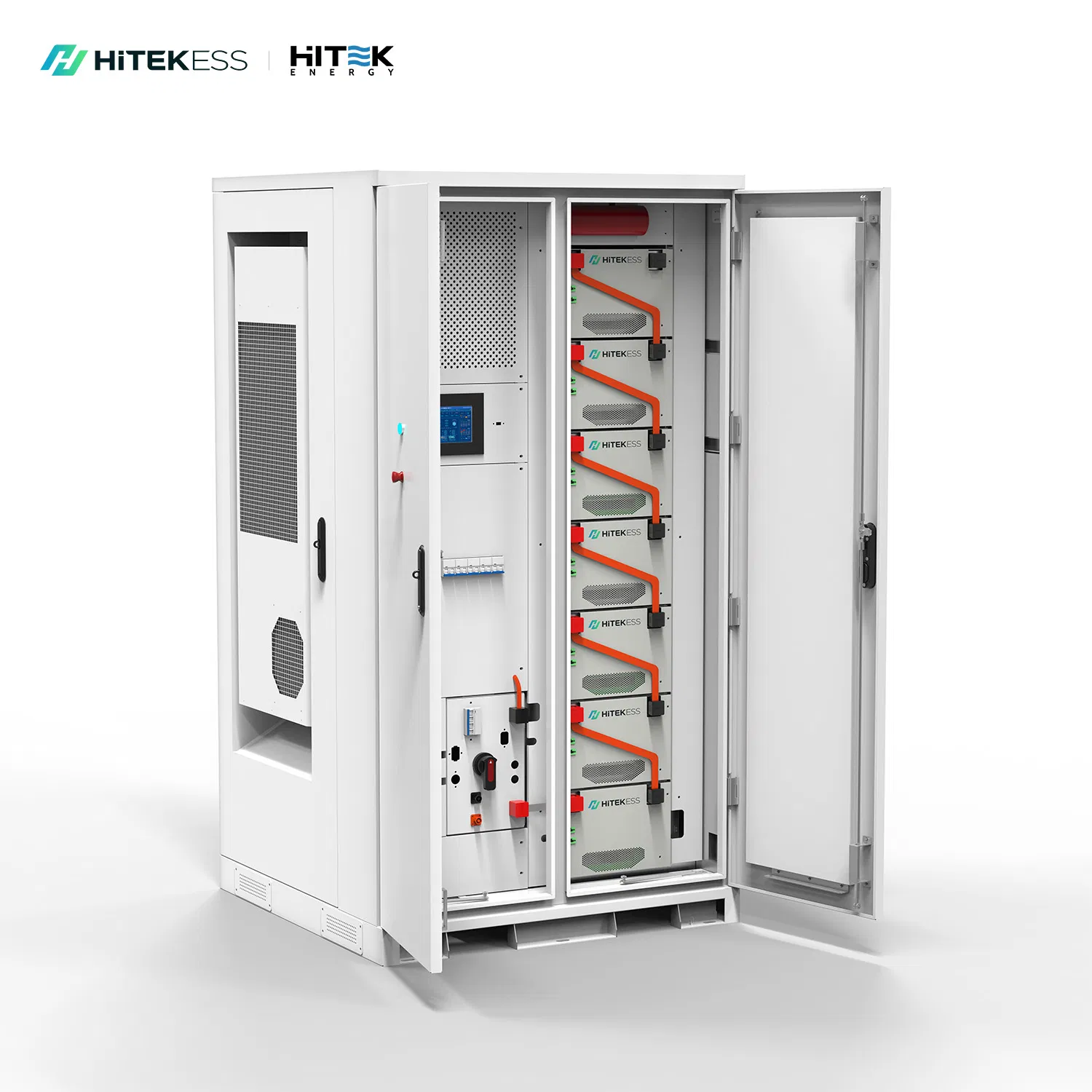

Deep Cycle long lifespan (6000+ times). High discharge performance, up to 90% DOD. Easy installation and maintenance-free.
Founded in 2018, our manufacturer is dedicated to providing sustainable energy solutions for homes, businesses, and factories. We provide tailored solar solutions for backup and commercial needs, prioritizing satisfaction through reliable equipment.
