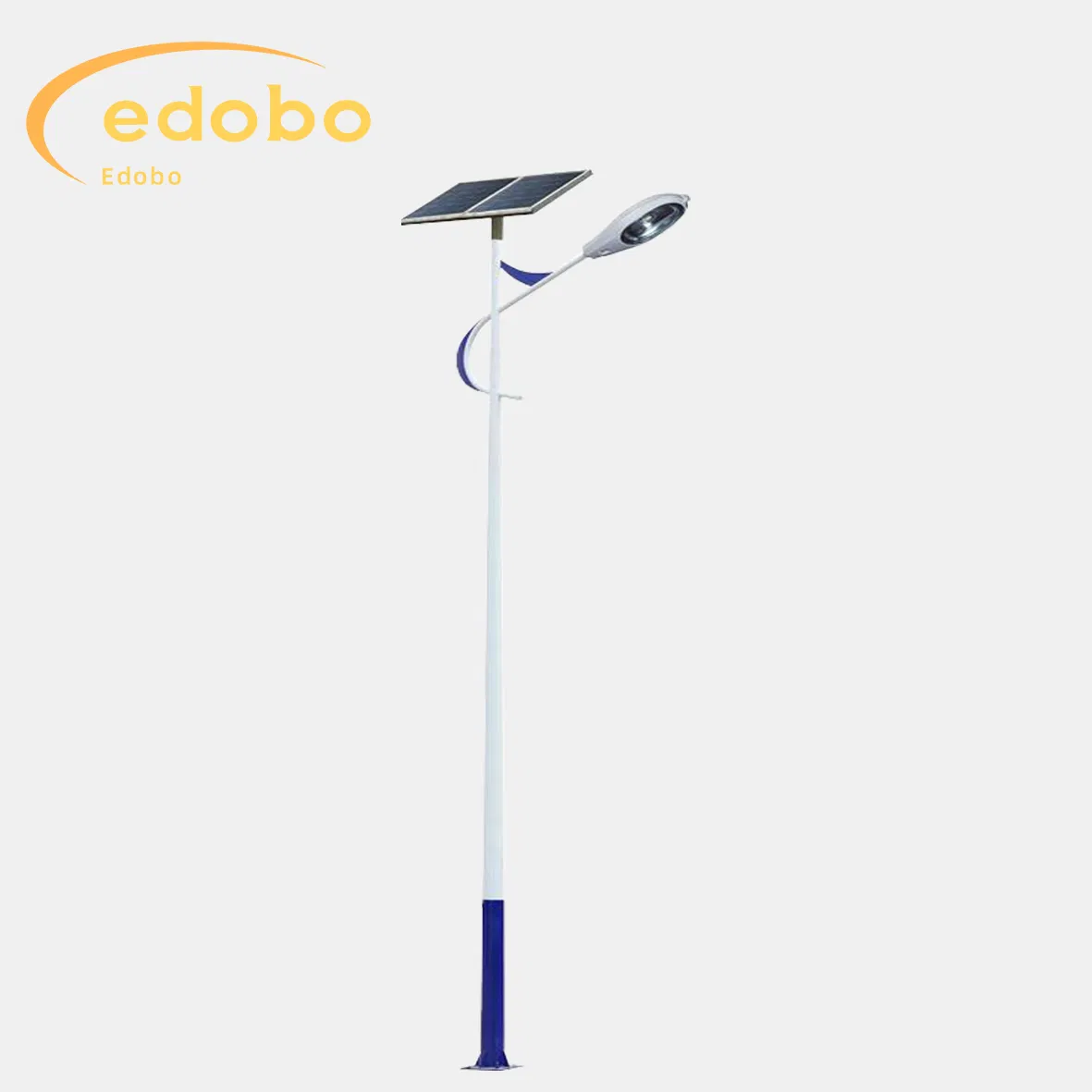

High Efficiency Solar LED Street Light 120W Split Type with Lithium Battery

1 / 5

High Efficiency Solar LED Street Light 120W Split Type with Lithium Battery

Customization:	Available
Power Supply:	Solar
Color Temperature:	3000K-5000K

Send Inquiry

Product Description

Basic Overview

Model NO.

ED-street light

Lamp Body Material

Aluminum

Power

60-100W

Application

Square, Highway, Garden, Road

IP Rating

IP66

Lumen Efficiency

190lm/W

Solar Panel

Mono Solar Panel

Voltage

DC 12V

Product Description

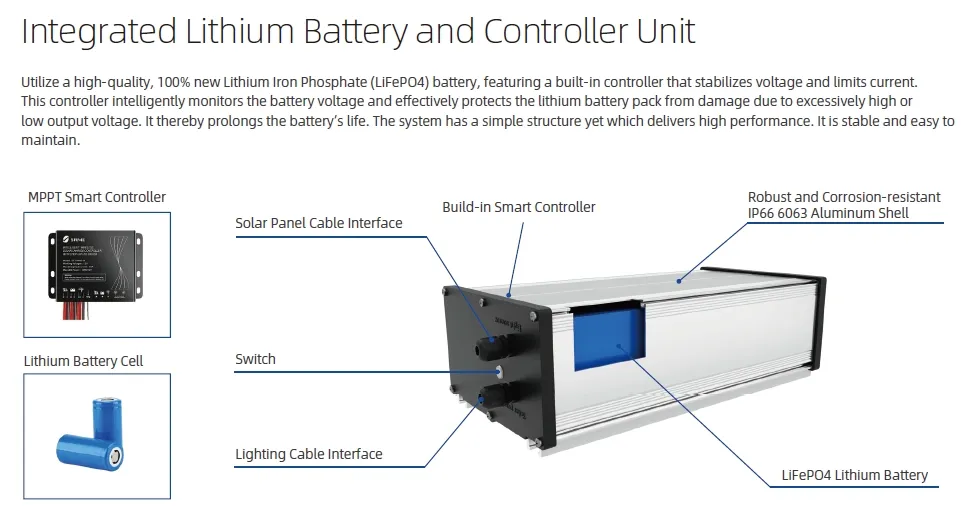

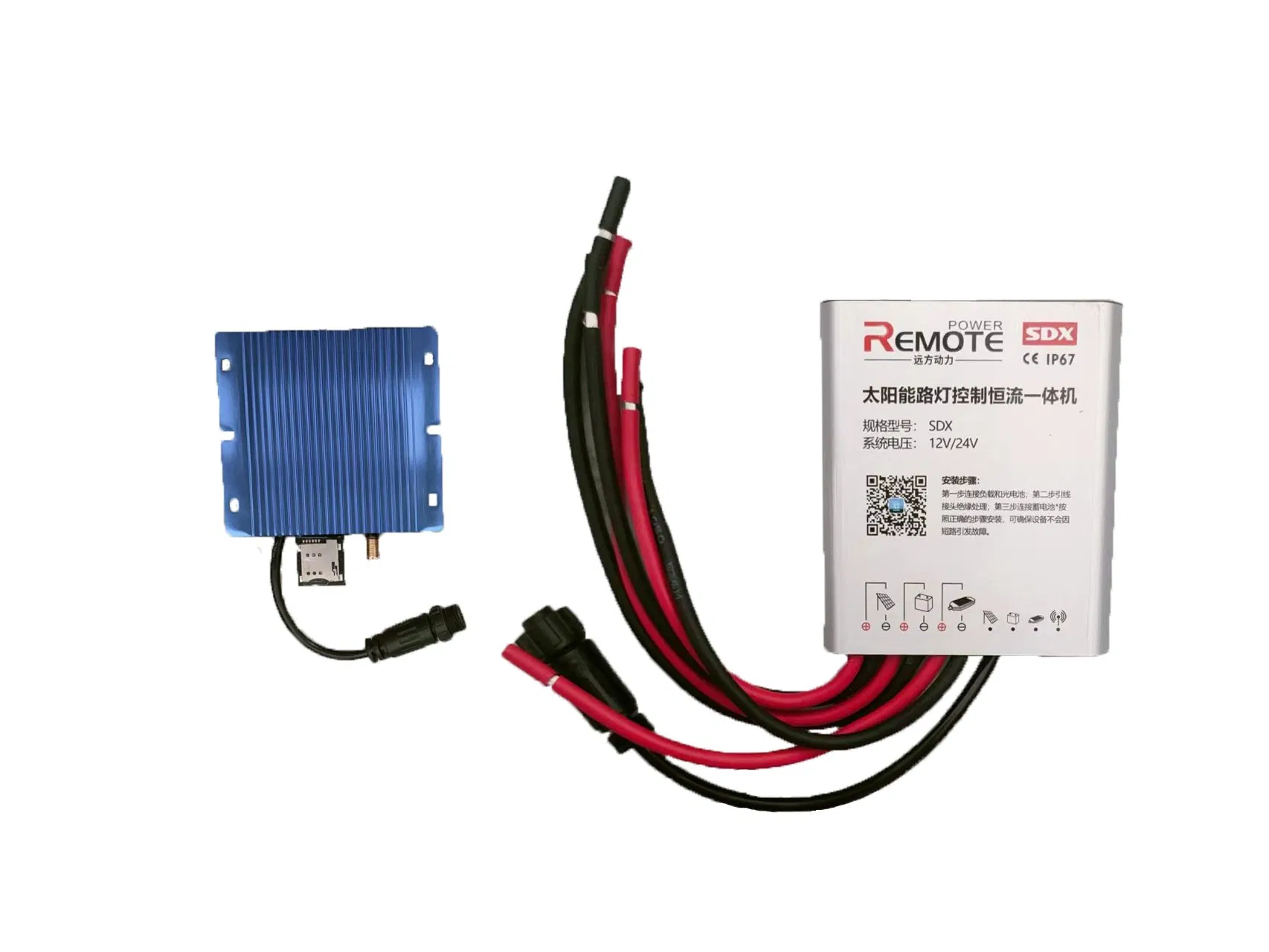

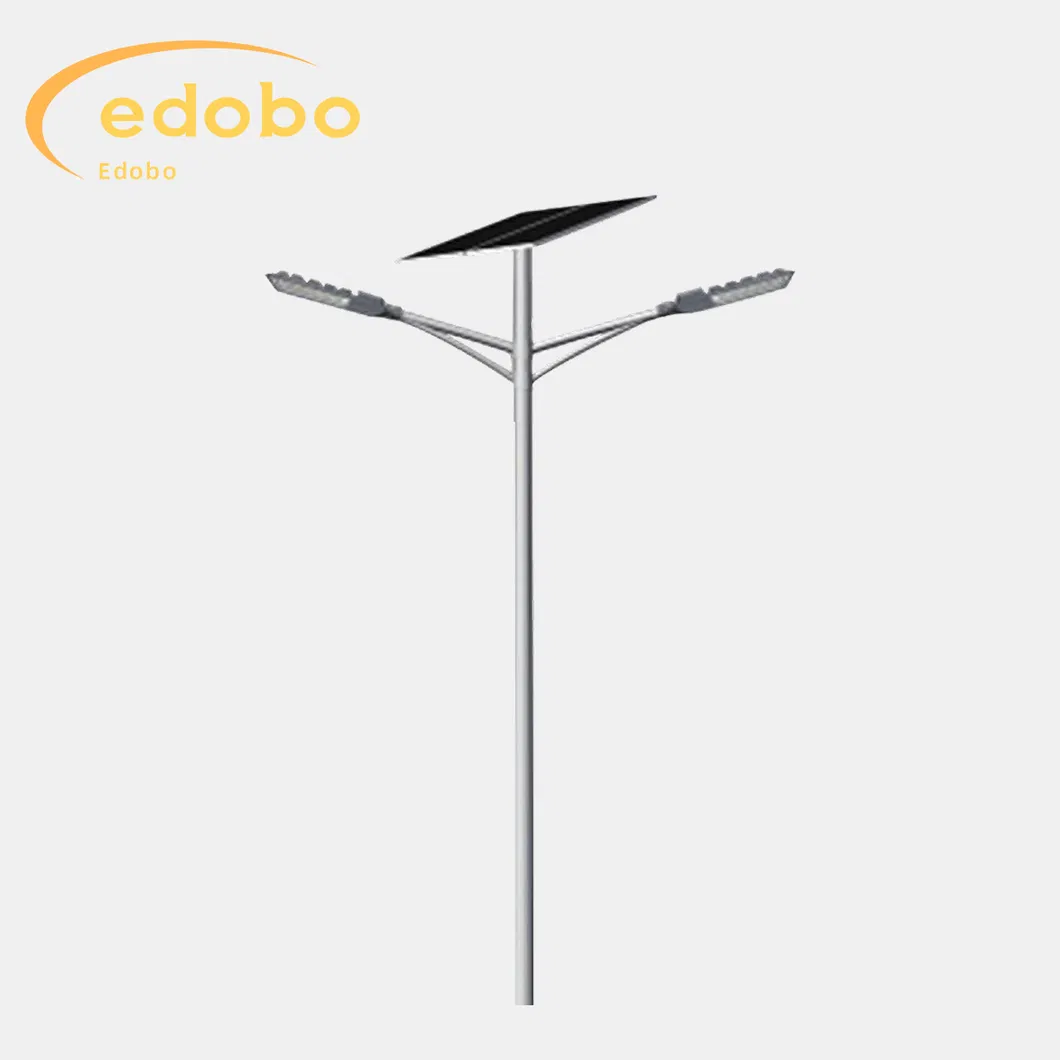

Unique Integration Design Easy to transport, install and maintain. Rotating Lamp Bracket Lamp bracket can be adjusted in vertical and horizontal direction. Charge and Discharge Management Protect battery by software and hardware, supporting battery charge at 0V. Light Efficiency Management High efficiency led chip, up to 200lm/w. Infrared Sensor More intelligent and energy-saving. Battery Program Updated Embedded single string control technology, more stable and longer lifespan.

Featuring advanced solar panel technology, our street lights harness the power of the sun to generate clean and renewable energy. During the day, the solar panels absorb sunlight and convert it into electricity, which is stored in the integrated battery system. As the sun sets, the street lights automatically turn on, providing continuous illumination throughout the night.

Constructed with high-quality materials, they can withstand harsh weather conditions, including rain, snow, and extreme temperatures. This ensures long-lasting performance and minimal maintenance requirements.

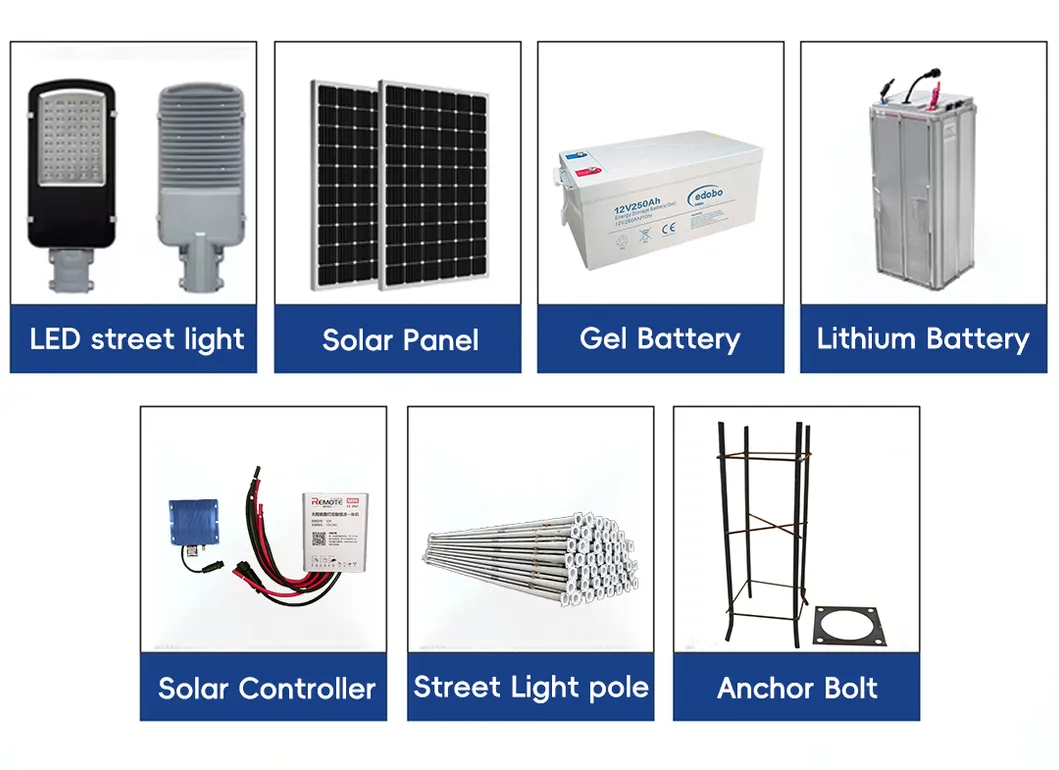

Product Parameters

Component	6M 30W	8M 60W	10M 80W	12M 100W
LED Street Light	Power: 30W*2 Lumen: 130 Lm/W Voltage: DC12V	Power: 60W*2 Lumen: 130 Lm/W Voltage: DC24V	Power: 80W*2 Lumen: 130 Lm/W Voltage: DC24V	Power: 100W*2 Lumen: 130 Lm/W Voltage: DC24V
Solar Panel	120W*2 Mono Efficiency: 18%	120W*2 Mono Efficiency: 18%	150W*2 Mono Efficiency: 18%	200W*4 Mono Efficiency: 18%

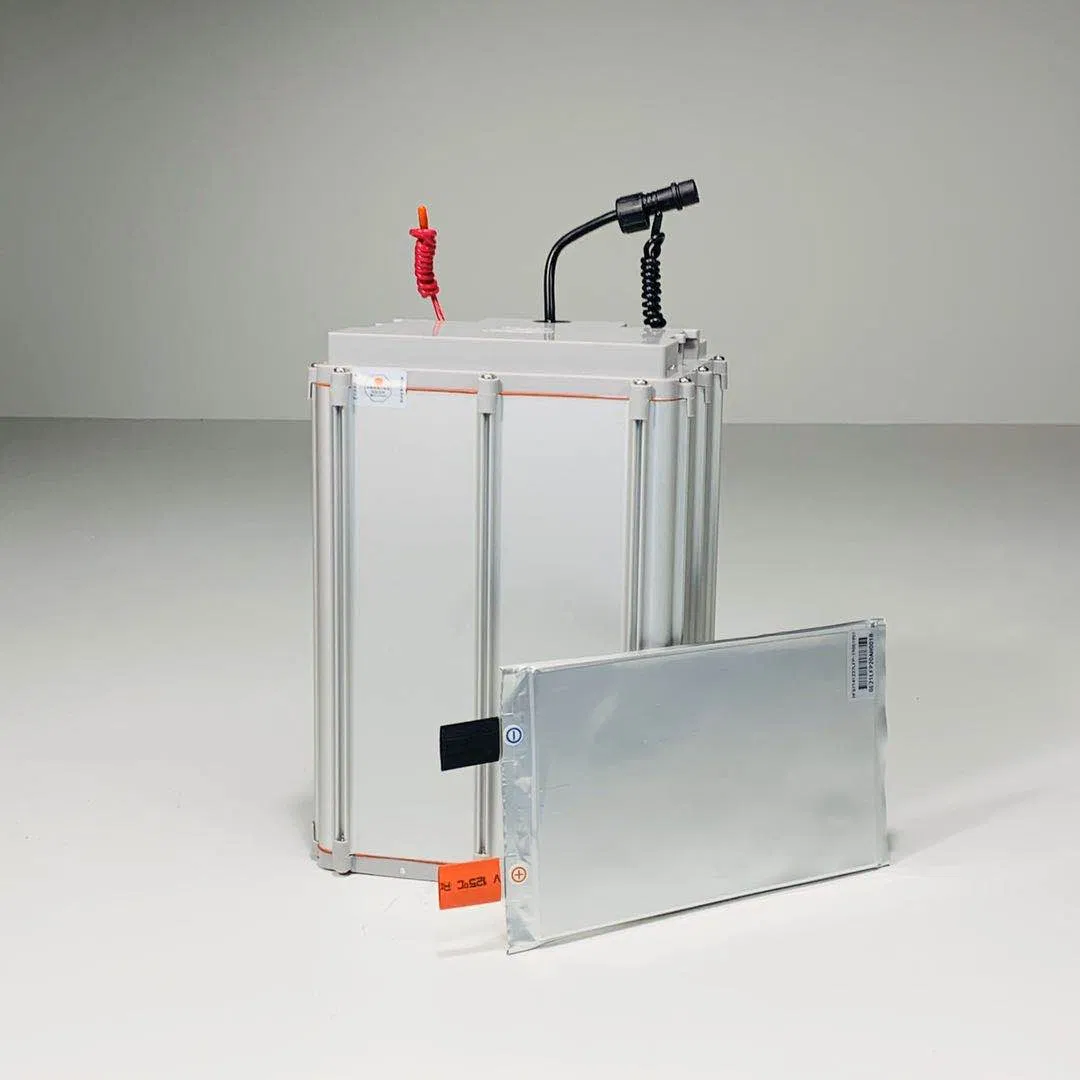

Lithium Battery	72AH / 25.6V LiFePO4	144AH / 25.6V LiFePO4	168AH / 25.6V LiFePO4	204AH / 25.6V LiFePO4

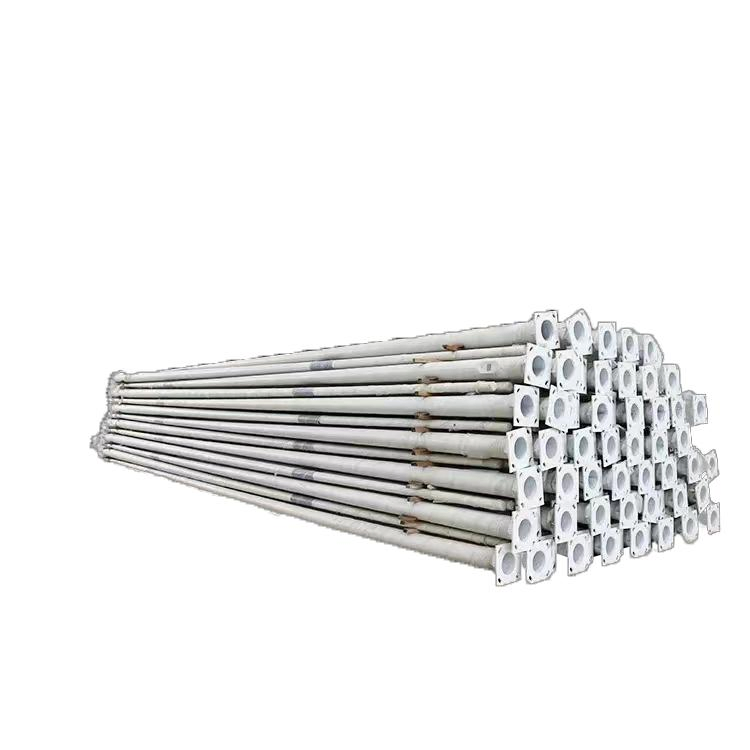

Pole Height	6m (Thickness 3.5mm)	8m (Thickness 4.0mm)	10m (Thickness 4.5mm)	12m (Thickness 5.0mm)

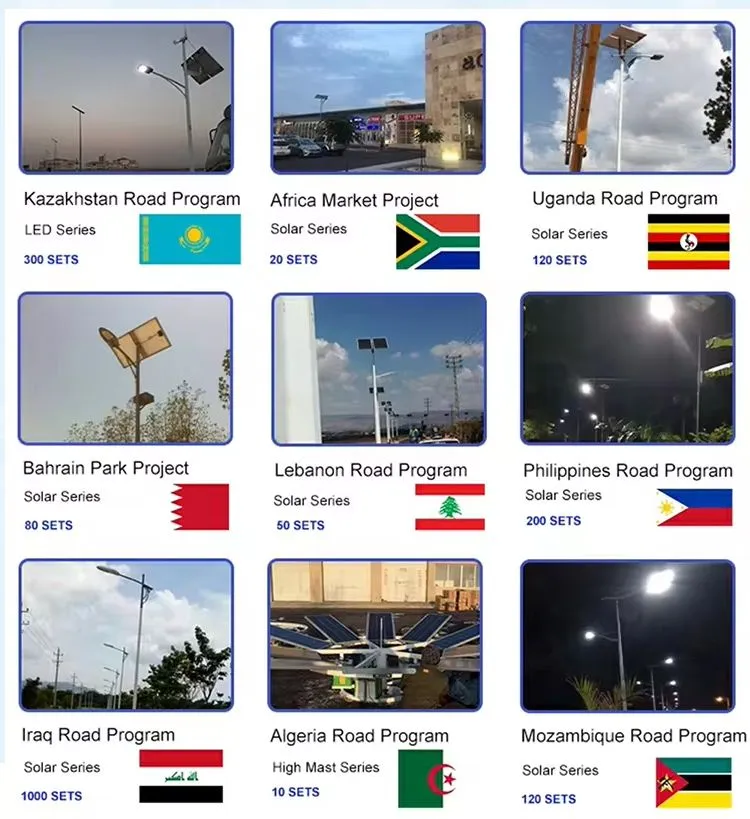

Projects & Shipping

Shipping Policy: We ship worldwide using reliable air, sea, or express courier services. Items typically ship within 2-7 business days after payment confirmation.

Warranty: 3-5 years manufacturer's limited warranty is provided for all lighting products. All items are strictly tested before dispatch.

Frequently Asked Questions

How long does the solar street light stay on at night?

The lighting duration depends on the battery capacity and sunlight absorption. Typically, it provides 10-12 hours of illumination per night and can last for 3-5 rainy days when fully charged.

What is the advantage of the split-type design?

The split design allows for larger solar panels and batteries compared to all-in-one models, making it suitable for high-power requirements and taller mounting heights like 8m-12m.

Is the rotating bracket adjustable for all directions?

Yes, the rotating lamp bracket can be adjusted both vertically and horizontally to maximize solar absorption and direct light precisely where it is needed.

What kind of maintenance is required?

Our solar street lights are designed to be virtually maintenance-free. We recommend periodic cleaning of the solar panel surface to ensure maximum charging efficiency.

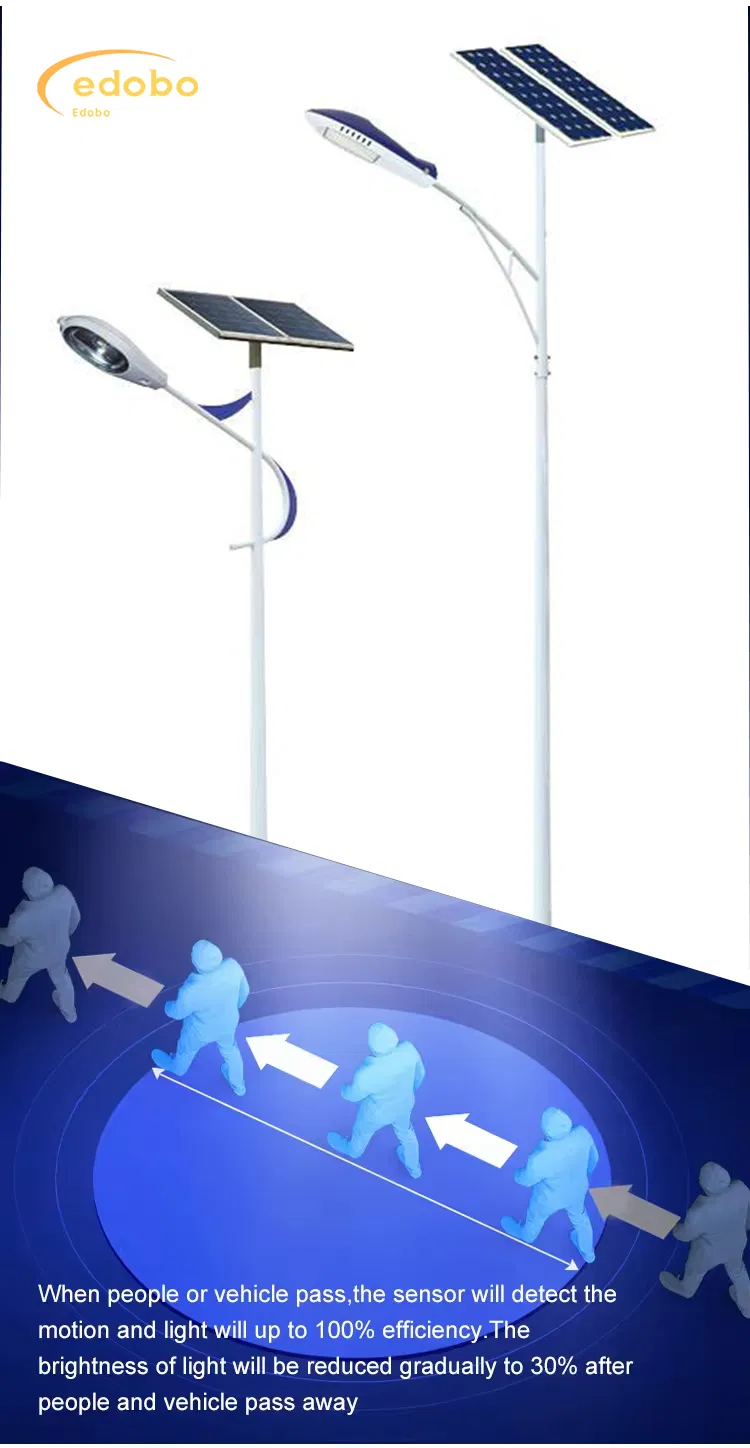

Does the light come with a motion sensor?

Yes, it features an intelligent infrared sensor that adjusts brightness based on activity, which significantly helps in energy saving and extending battery life.

How durable is the battery in extreme temperatures?

We use high-quality LiFePO4 batteries which are known for their thermal stability and long cycle life (up to 2500 cycles), performing reliably in both hot and cold climates.
