Farming Farmland Irrigation System, Solar Irrigation System

Customization:	Available
Usage:	Irrigation
Type:	Irrigation System

Send Inquiry

Product Description

💡 Basic Information

Model NO.:DYP 40-1000m

Power Source:Electricity

Irrigation Mode:Sprinkler Irrigation

Pump Type:Centrifugal Pump

Material:Metal

Certification:ISO9001:2008, CCC, CE, QS, GMP

Application Field:Agriculture

Qty of Spans:1-16

Surface:Hot DIP Galvanization

Tire Size:14.9X24

📘 Product Introduction

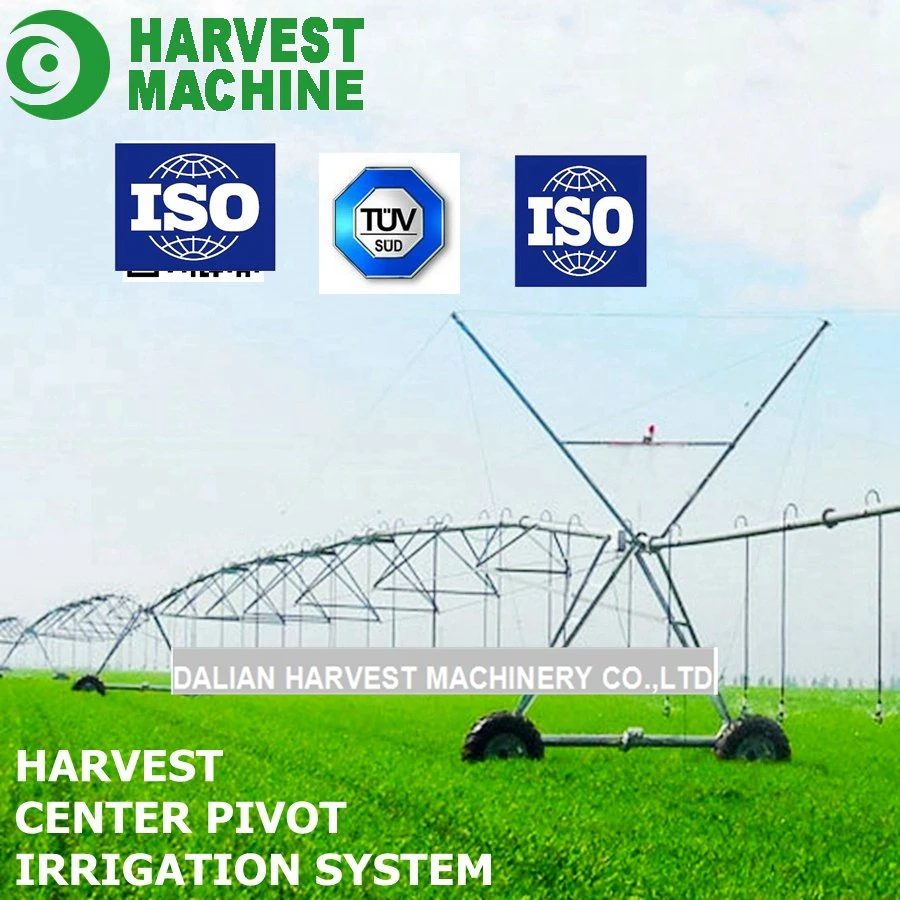

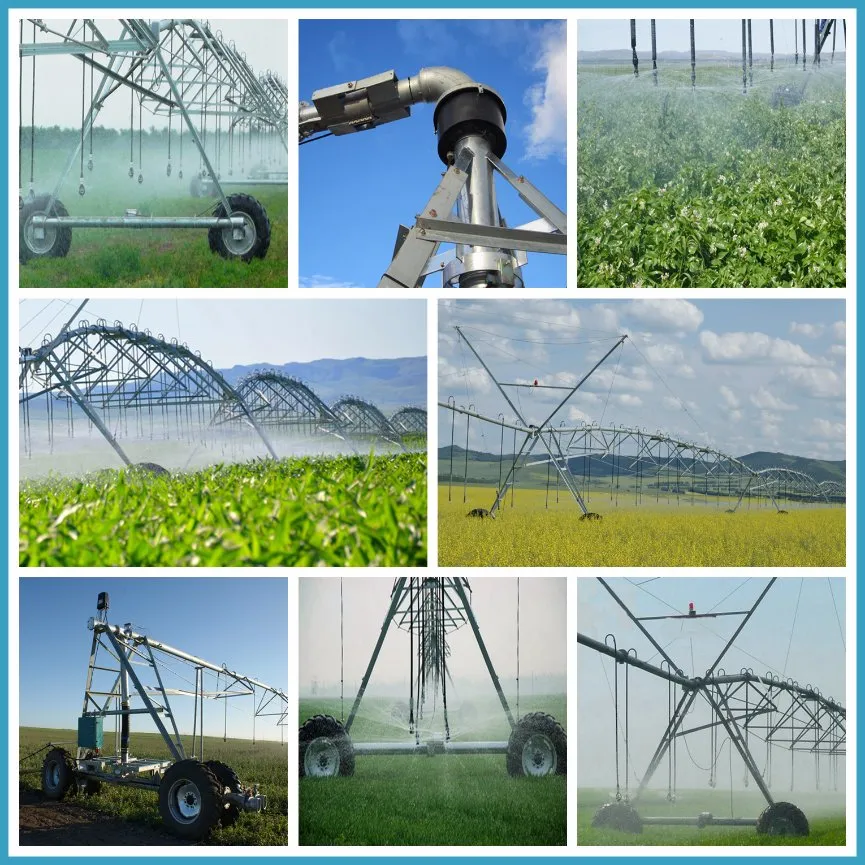

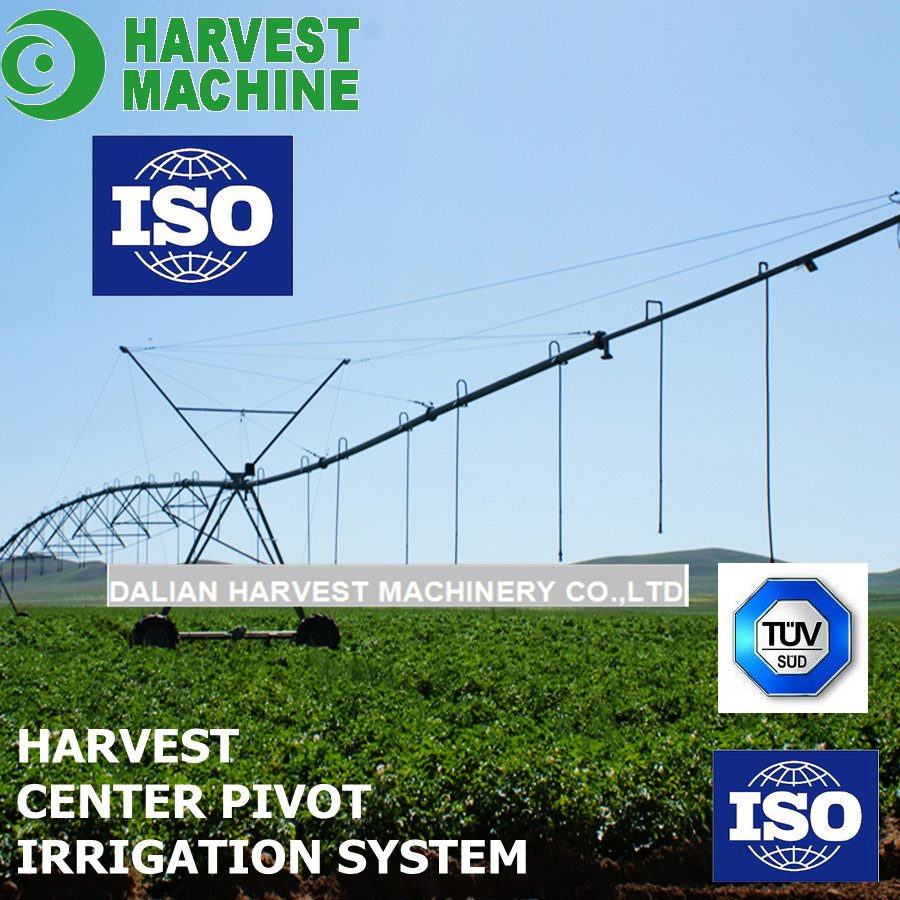

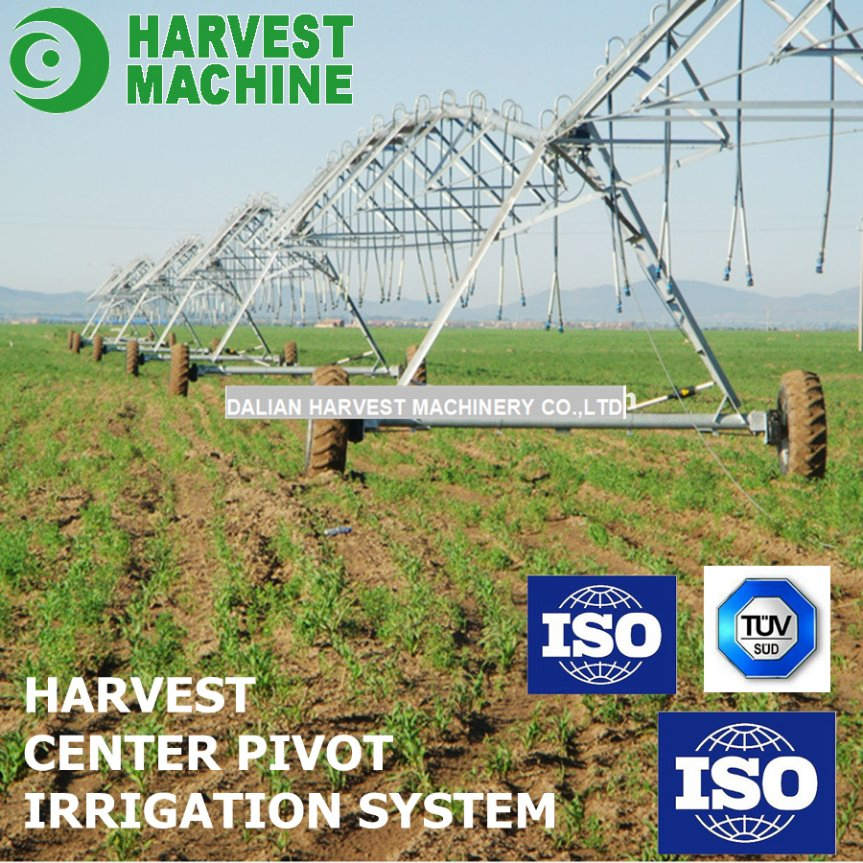

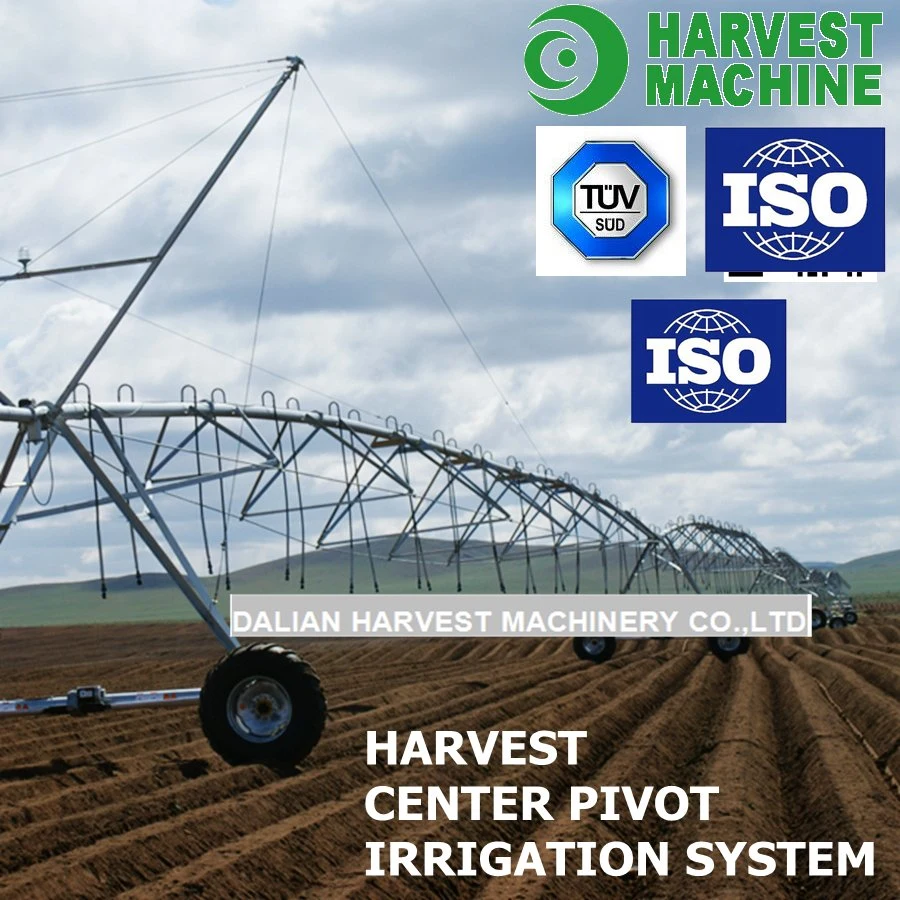

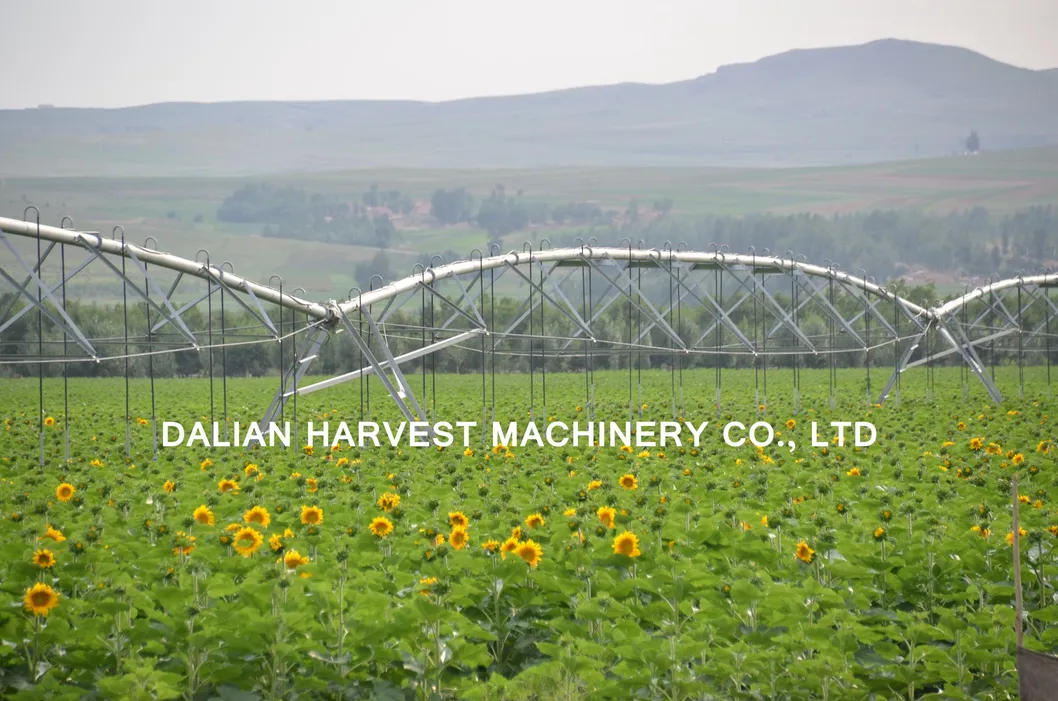

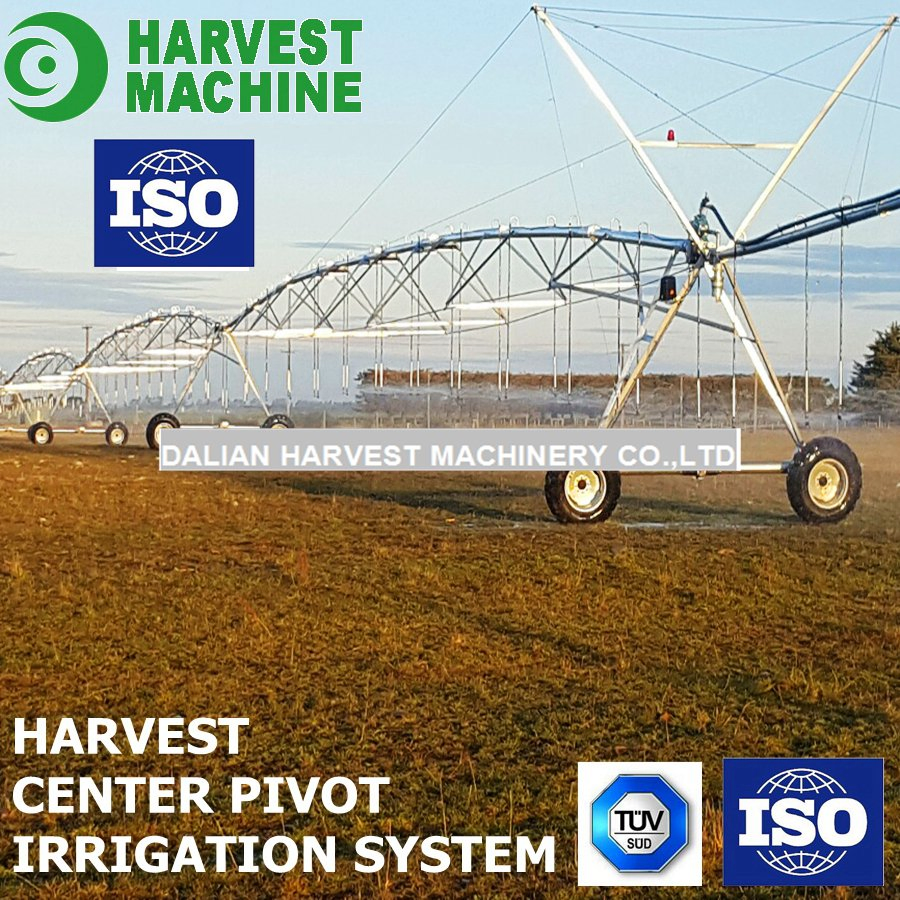

The DYP series center pivot irrigation system is composed of a center trestle table, trestle-tower vehicle, sprinkler truss, endmost, cantilever, and a synchronous system controlled by electric components. This automated system is specifically designed for large-scale irrigation of potatoes, sugarcanes, watermelons, legumes, economic crops, and pasture.

Key Advantages:

High efficiency with spraying uniformity coefficient up to 85%.
Significant power and water savings at an economical cost.
Capable of operating on uneven fields with slopes up to 25%.
Rust-free durability for 15 years through professional zinc coating treatment.
Fault detection system: Malfunction positions are displayed on the main control panel.

River and bore wells can serve as water resources. Water transports through main pipes and sprinklers to cover 13-130 hectares from a single feeding point. The heavy-duty steel structure is designed to withstand windstorms and can extend to more than 11 spans (650m).

📊 Technical Specifications

Items	Specification	Items	Specification
Pivot length	41.1-791.2m	Land covered	0.53-196.7ha
Qty. of spans	1-16	Span length choice	41.1/47.8/54.4/61.3m
Overhang length	6.7/13.4/20.1/26.8m	Pivot clearance	2.91-3.75m
Span dia.	141/168/203mm	Flow rate	15-1080m³/hr
Max speed	142m/hr	Water pressure	1-7.5Bar
Gear box	50:1 heavy duty	Gear motor	3/4HP 40:1 Ratio

⚙️ System Features

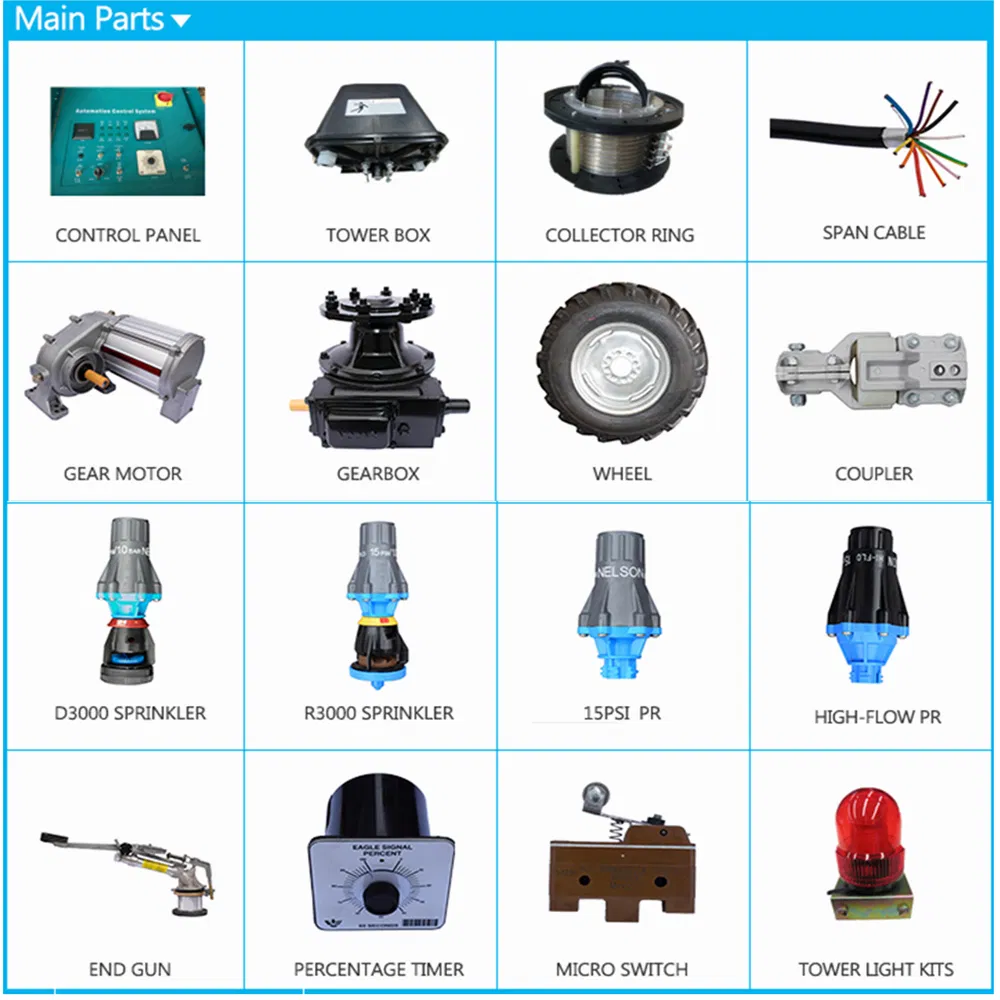

Structural Excellence:

Metallic zinc-coated spans with rubber-band union.
Intermediate towers each equipped with two wheels.
Axles drive unit from electric geared motor.
Electronic block with equalization and monitoring.
Fused disconnect in panel rated 600V at 30 Amps.

Heavy Duty Gearbox:

Enhanced casing design to reduce wear and tear.
Special seals to prevent dust and humidity.
Load capacity enhanced by 55%.
High-strength cast iron big gear design.

📦 Logistics & Service

Payment Terms:

Wire transfer: 30% advance, 70% before shipment.
Irrevocable Letter of Credit (L/C) at sight.
Western Union for fast processing.

Our Service:

24-hour professional response.
Timely production updates.
Customized manufacturing options.
Full technical documentation provided.

❓ Frequently Asked Questions

1. What types of crops are best suited for center pivot irrigation? The system is highly effective for a wide range of crops including potatoes, sugarcanes, watermelons, legumes, and various pasture grasses.

2. Can this system operate on hilly or uneven terrain? Yes, the DYP series is designed to handle uneven fields with slopes of up to 25%, making it versatile for different geographical landscapes.

3. How long will the steel structure last against rust? All parts undergo a hot-dip galvanization treatment (zinc coating), which ensures the structure remains rust-free for at least 15 years.

4. What are the available water resources for the pivot system? The system can utilize water from both rivers and bore wells as its primary water resource.

5. What happens if the system encounters a malfunction? The system features automated monitoring; when a malfunction or interruption occurs, the fault position is immediately displayed on the main control panel for quick troubleshooting.

6. Is the irrigation system customizable in length? Yes, we offer various span lengths (41.1m to 61.3m) and can configure the system with 1 to 16 spans to fit your specific land size.
