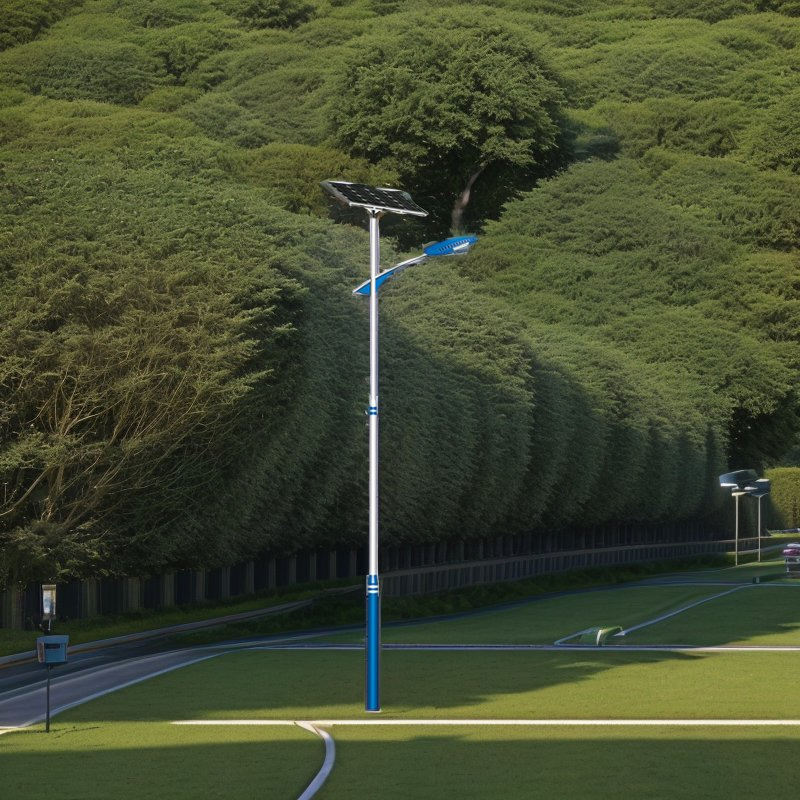

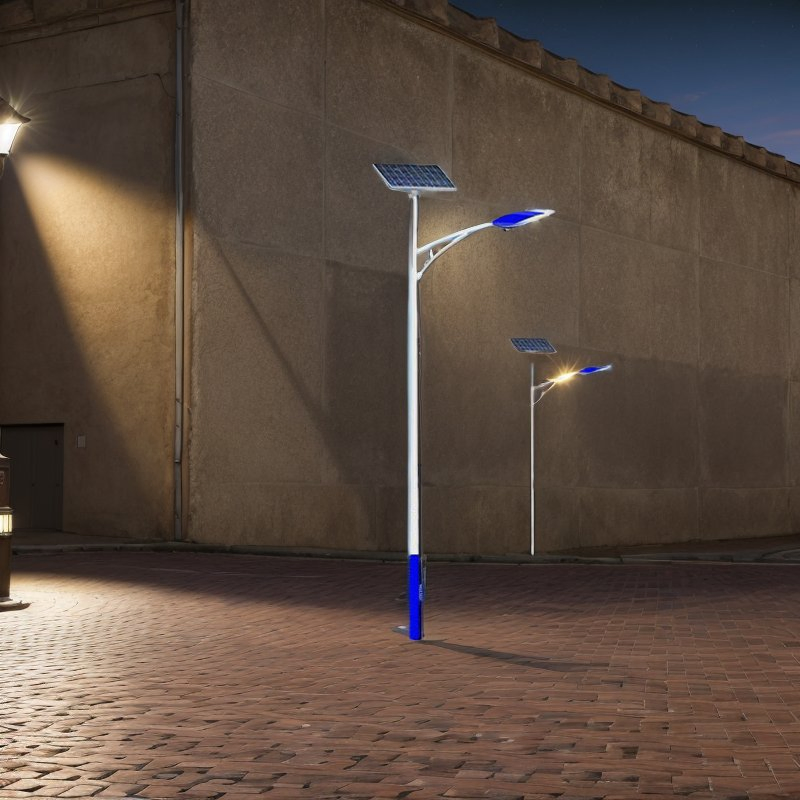

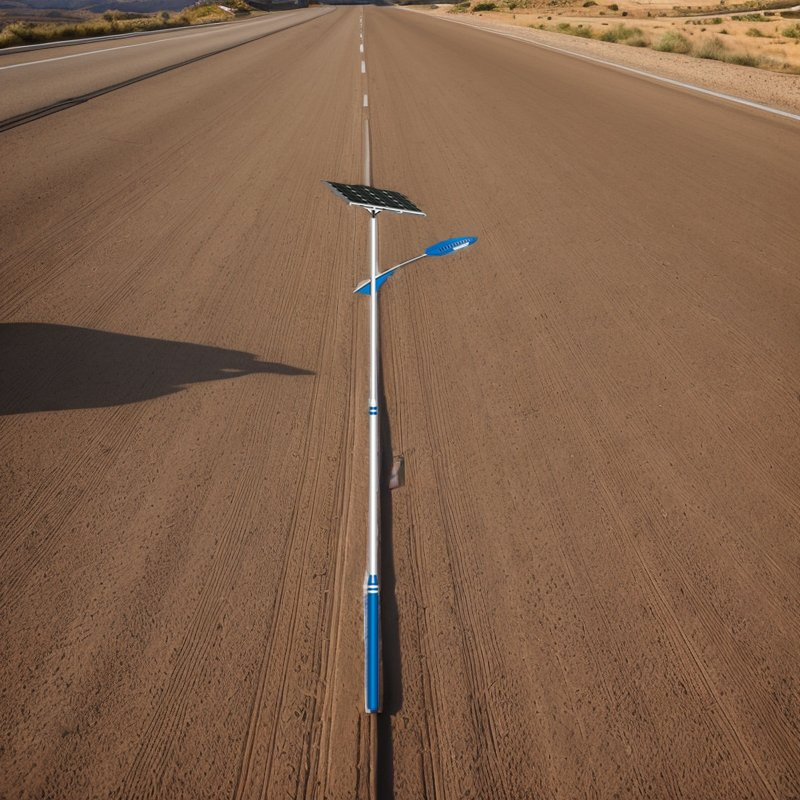

Energy Efficient Solar Street Lighting System

1 / 5

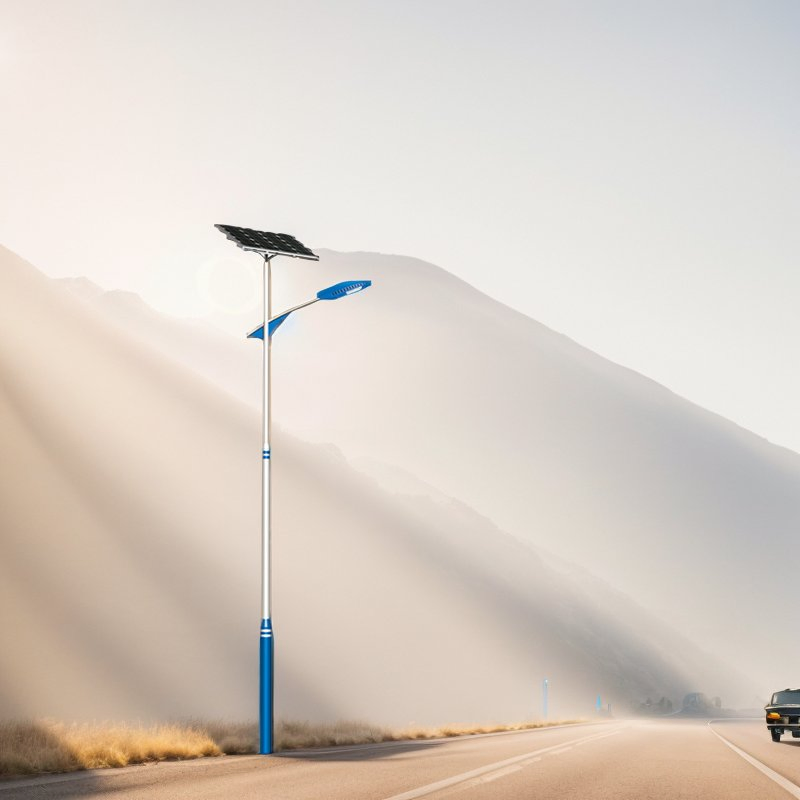

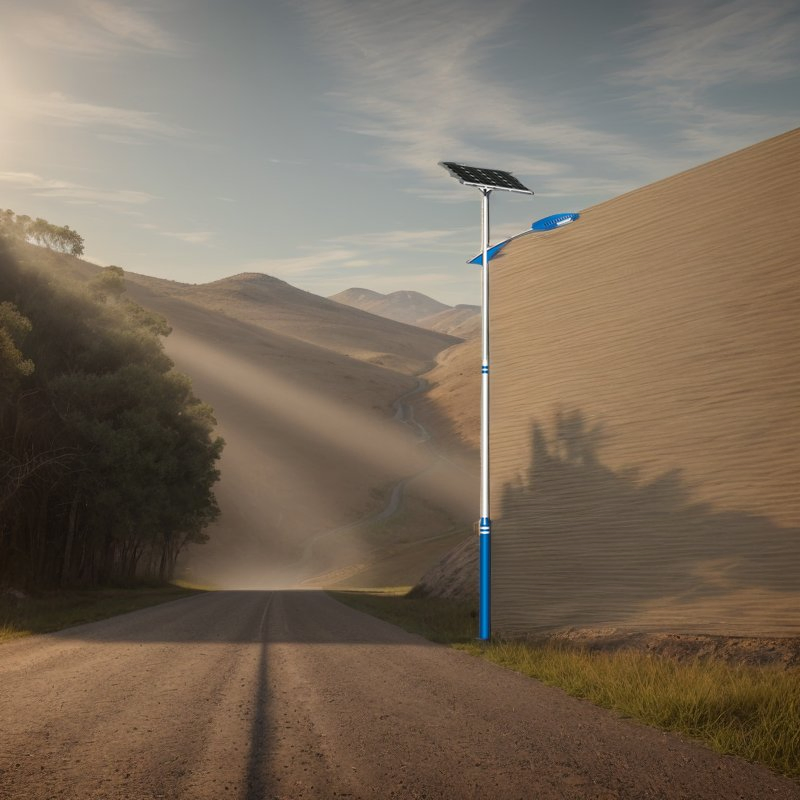

Energy Efficient Solar Street Lighting System

Customization:	Available
Certification:	ISO, CE
Application:	Highway

Send Inquiry

Product Description

Basic Specifications

Model NO.

YD-TYND

Material

Steel Q235

Type

Round / Conical

Design Standard

EN 40-5

Welding Standard

EN 1011 / CWB

Galvanizing

EN ISO 1461

Shaft Thickness

3-12mm

Wind Speed

30m/S

Height Range

3M - 45M

Capacity

5000 Pieces/Month

Product Features

Premium Material: Fabricated from Q235 high quality mild steel for durability and strength.
Versatile Pole Shapes: Available in Round conical, Octagonal conical, Straight square, Tubular stepped, and Polygonal configurations.
Precision Welding: Longitudinal welding performed by automatic arc welding machines, confirming to CWB international standards.
Corrosion Protection: Average 80-100 µm hot-dip galvanization provides superior resistance to atmospheric corrosion.
Flexible Mounting: Options for both base plate mounting with slotted holes for anchor bolts and ground buried mounting.
Advanced Coating: Electrostatic powder coating finish for outstanding weatherability, chip, and scratch resistance.

Octagonal Poles Specifications

Height (m)	Top Dia (mm)	Bottom Dia (mm)	Thick (mm)	Base Plate (mm)	J-Bolt (mm)	Bolt Length (mm)
3	70	130	3	20020012	4-M16	450
6	70	130	3	22022012	4-M20	600
8	70	135	3	22522516	4-M20	750
10	70	175	3	27527520	4-M24	750
12	90	240	3	32032020	4-M24	850

Conical Poles Specifications

Height (m)	Top Dia (mm)	Bottom Dia (mm)	Thick (mm)	Base Plate (mm)	J-Bolt (mm)	Bolt Length (mm)
3	75	105	3	20020012	4-M16	450
6	75	135	3	22522512	4-M20	600
8	75	155	3	24024014	4-M20	750
10	75	175	3	27527516	4-M24	850
12	96	216	3	32032016	4-M24	850

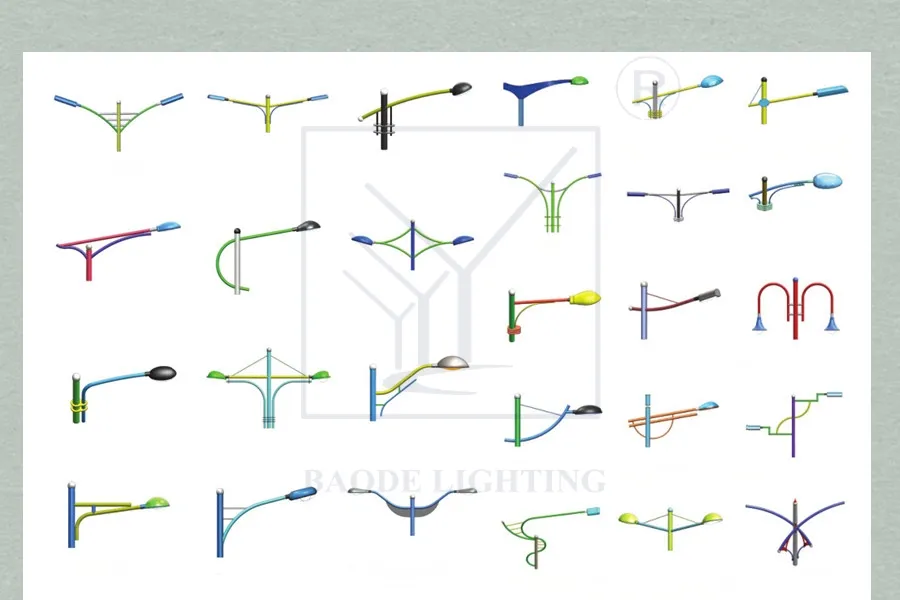

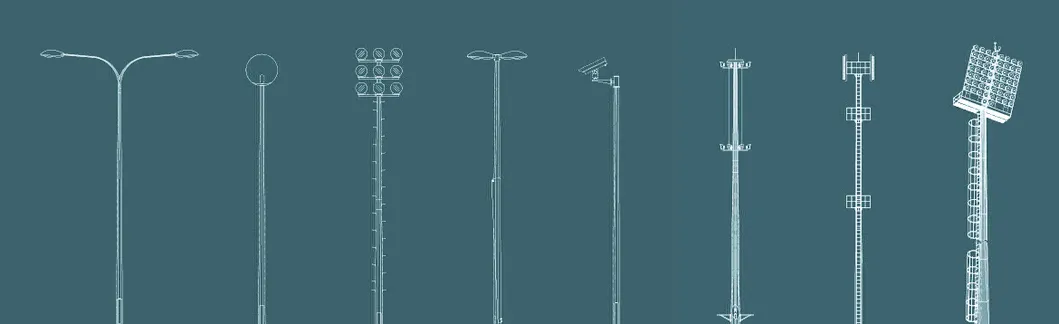

Gallery & Brackets

Various lamp bracket shapes are available, including single and double arm designs to suit specific lighting requirements.

Service Advantages

One-stop Solution

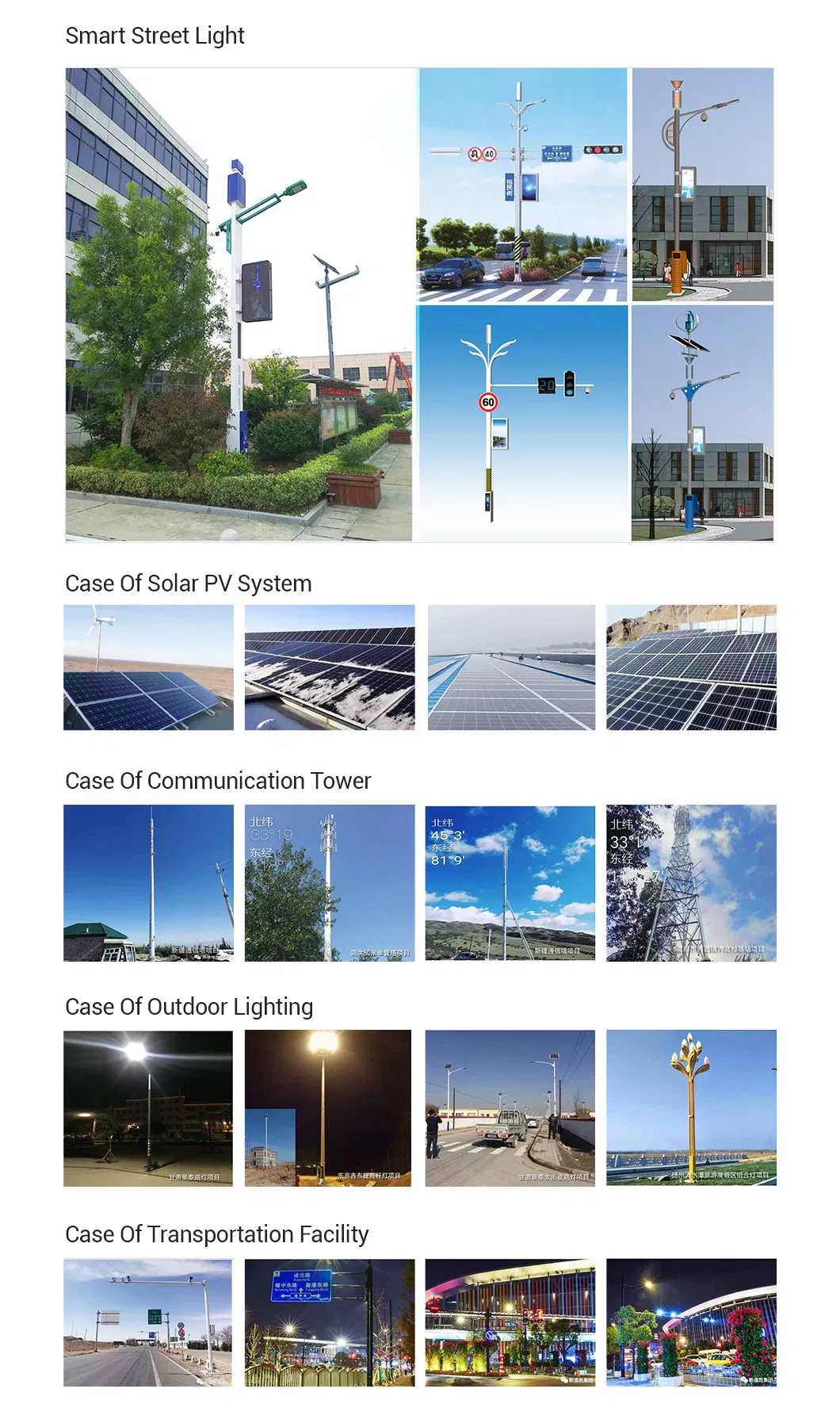

Complete solutions for street, landscape, traffic, and commercial lighting.

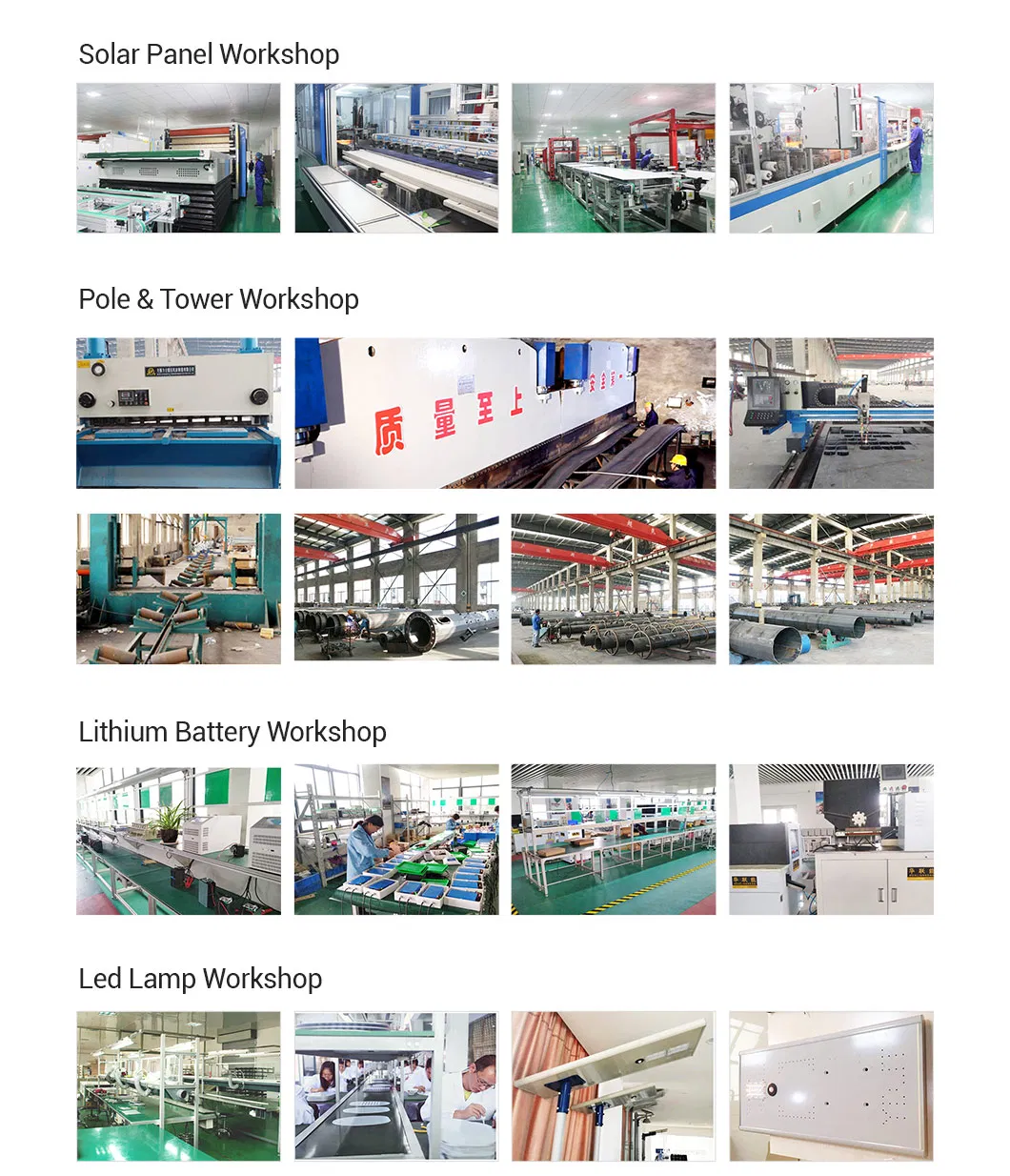

Integrated Production

Manufacturing of main components including LED fixtures, solar panels, and poles to ensure cost efficiency.

Proven Experience

Over 15 years of industry experience in outdoor lighting manufacturing and design.

Advanced Technology

Continuous R&D resulting in over 20 national patents for outdoor lighting products.

Frequently Asked Questions

What materials are used for the lighting poles?

The poles are manufactured using Q235 high-quality mild steel, which is folded into shape and longitudinally welded.

How is the steel protected against rust?

We use a dual protection process: first, hot-dip galvanization (80-100 µm thickness), followed by an electrostatic powder coating finish for maximum durability.

What pole shapes can I choose from?

Options include round tapered, octagonal tapered, straight square, square conical, and polygonal shapes.

What are the standard mounting heights available?

Our standard mounting heights range from 3 meters to 12 meters, but we can provide specifications for poles up to 45 meters.

Are the poles resistant to high winds?

Yes, the standard design accounts for wind speeds of up to 30m/S, ensuring stability in various weather conditions.

Can the lamp brackets be customized?

Absolutely. We offer customized single or double brackets in various shapes and dimensions according to client requirements.
