| 30HP Solar Water Pump System | |||
|---|---|---|---|
| Item Name | Description | Unit | Quantity |
| Solar panel | 260W / 31.2V poly | pc | 136 |

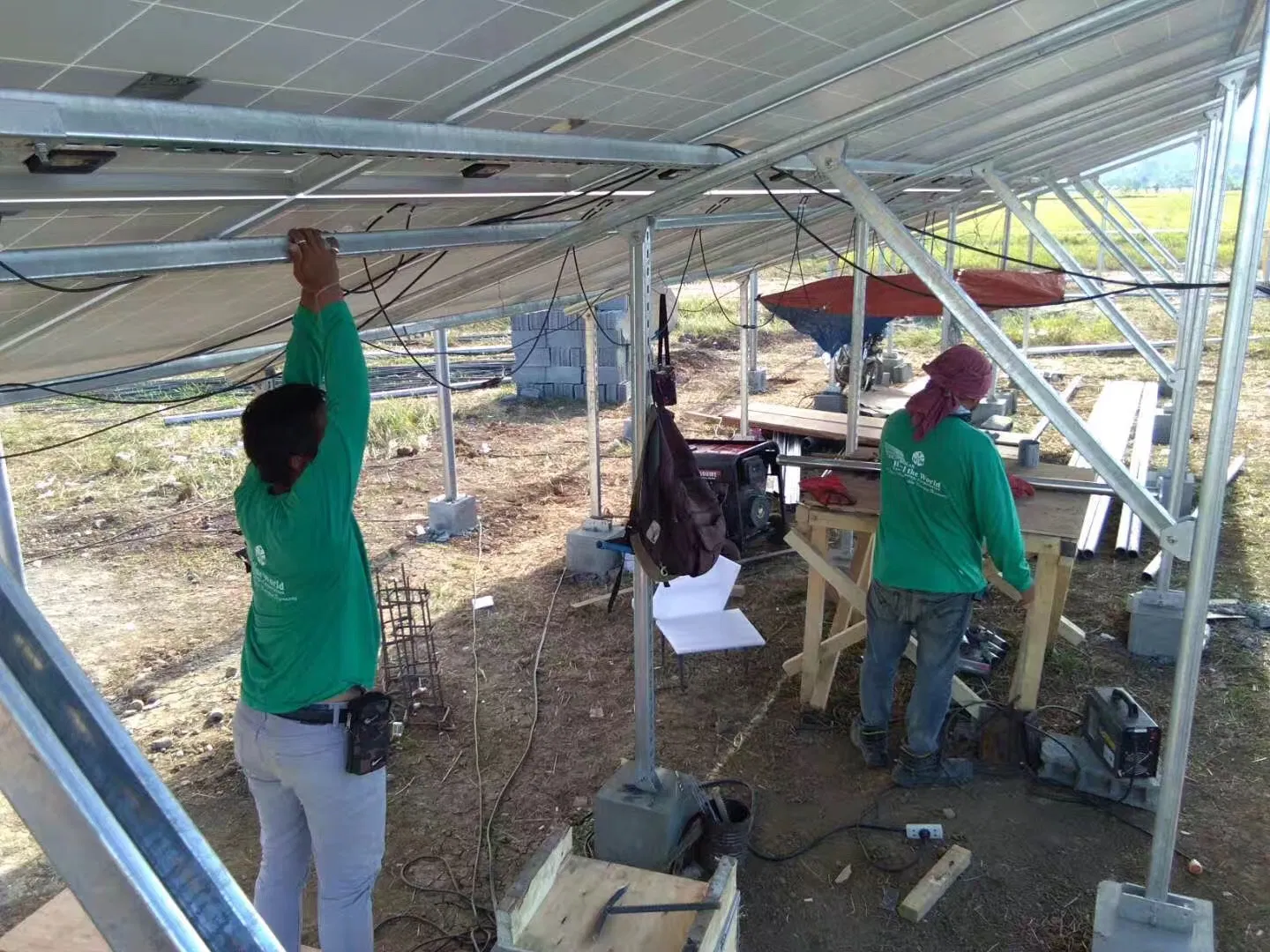

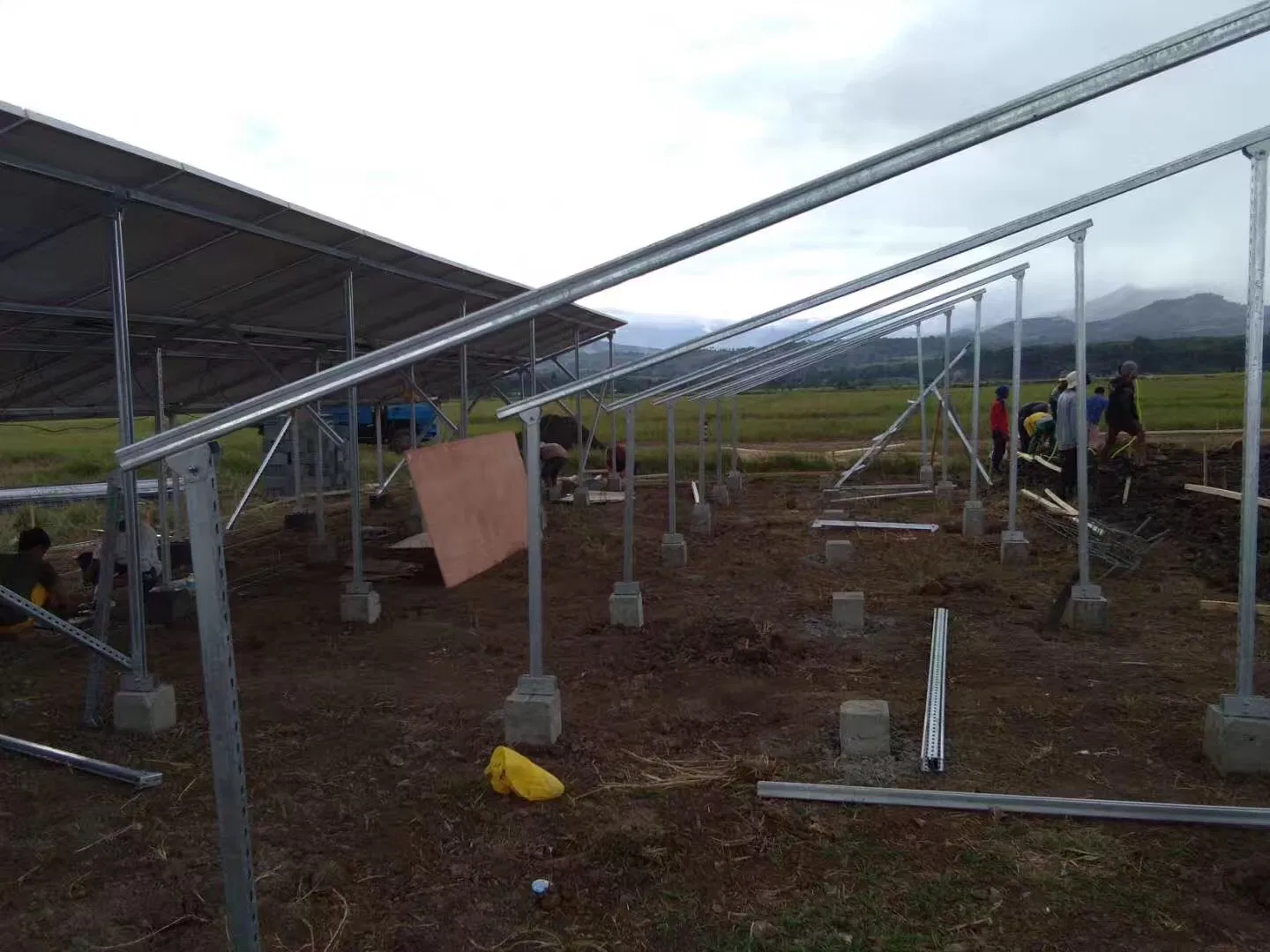

| mounting structure | Q235 material, Hot-dip zinc | set | 1 |
| PV cables | 4mm2, 400m | set | 1 |
| pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |
| Safety rope | Pump Depth * 2 | pc | 1 |
| Check Value | check value with connector | set | 1 |
| Other accessories | Raw material tape, M C4 connector, etc | set | 1 |

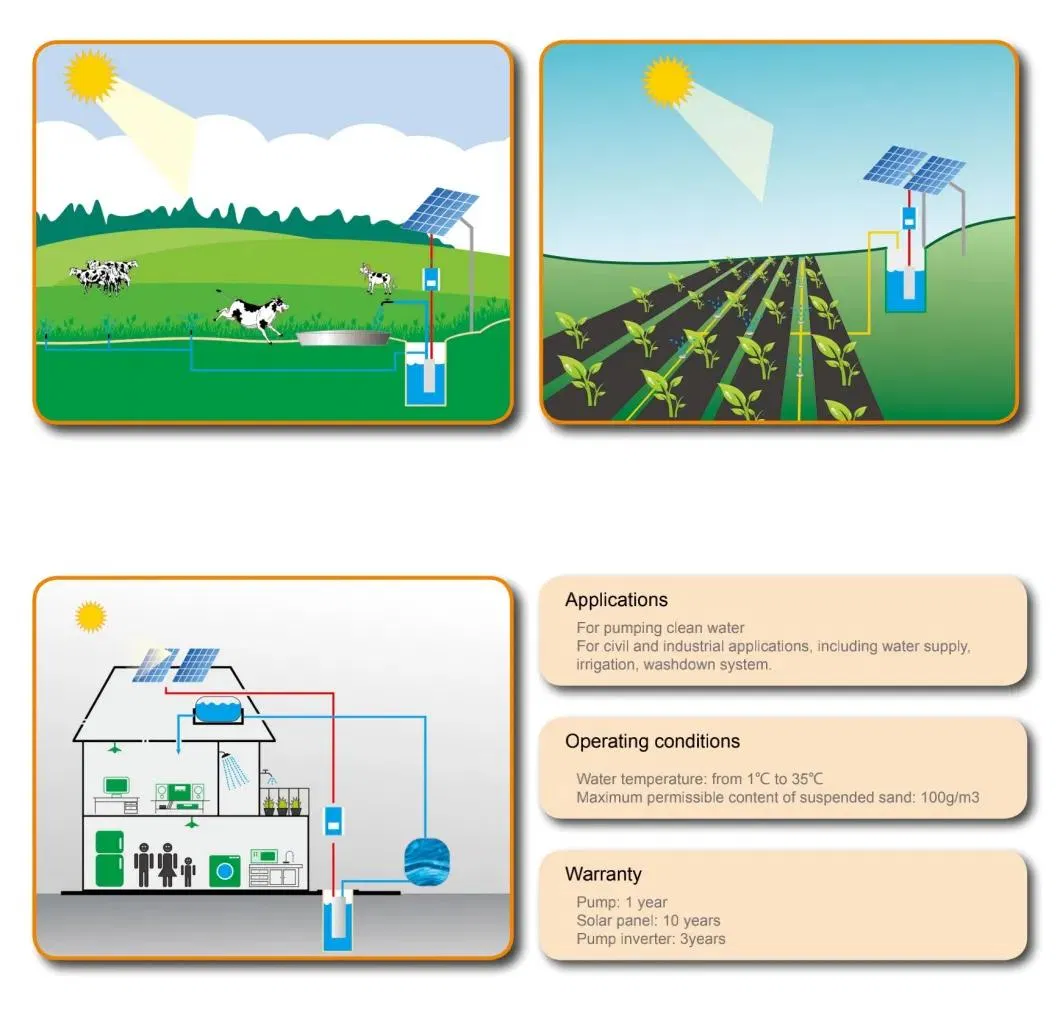

Solar power systems have a wide range of applications, such as offering domestic water, helping agricultural and forestry irrigation, and desertification control. It can also supply water to sea islands, animal husbandry, and water treatment projects.
Solar pump systems are high-quality products designed for drinking water supply, livestock watering, and irrigation without pollution. No grid infrastructure is required, though optional grid backup is available for 24/7 operation.

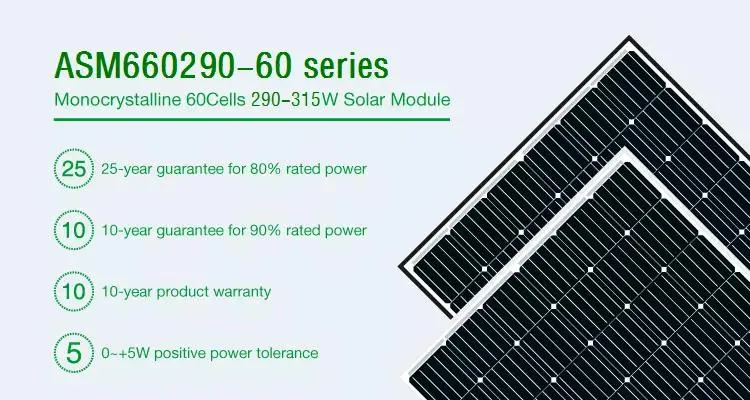

Peak Power Watts: 290W
Maximum Power Voltage: 32.2V
Dimensions: 1640×992×35 mm
Weight: 18.6 kg

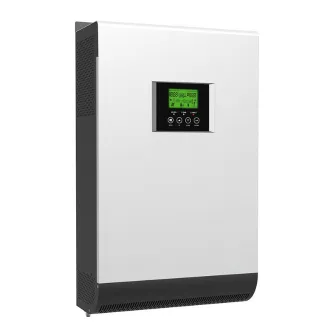

Max. DC Input Power: 8.5KW
Max. DC Input Voltage: 600V
MPPT Voltage Range: 90-520V
Warranty: 5-10 Years

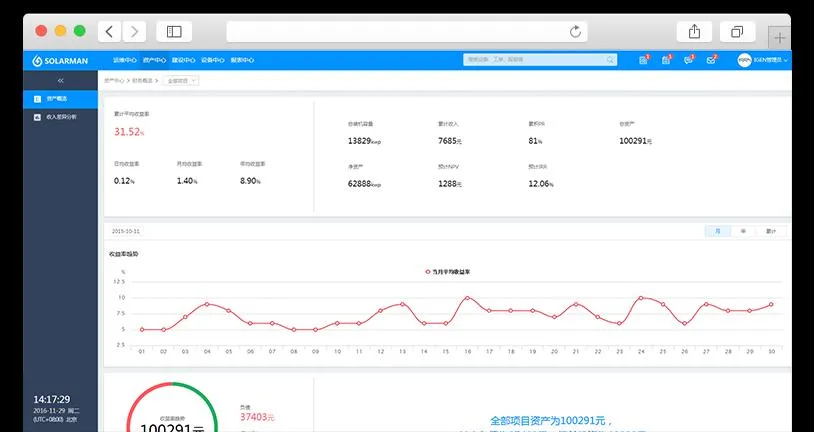

Data Logging Stick for real-time PV system status and atmosphere conditions via Wi-Fi, Lan, or GPRS. App available for PC, iOS, and Android.
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt. Mid & End Clamps: 35-50mm. L Foot Asphalt Shingle Mount and Ground Clip options.

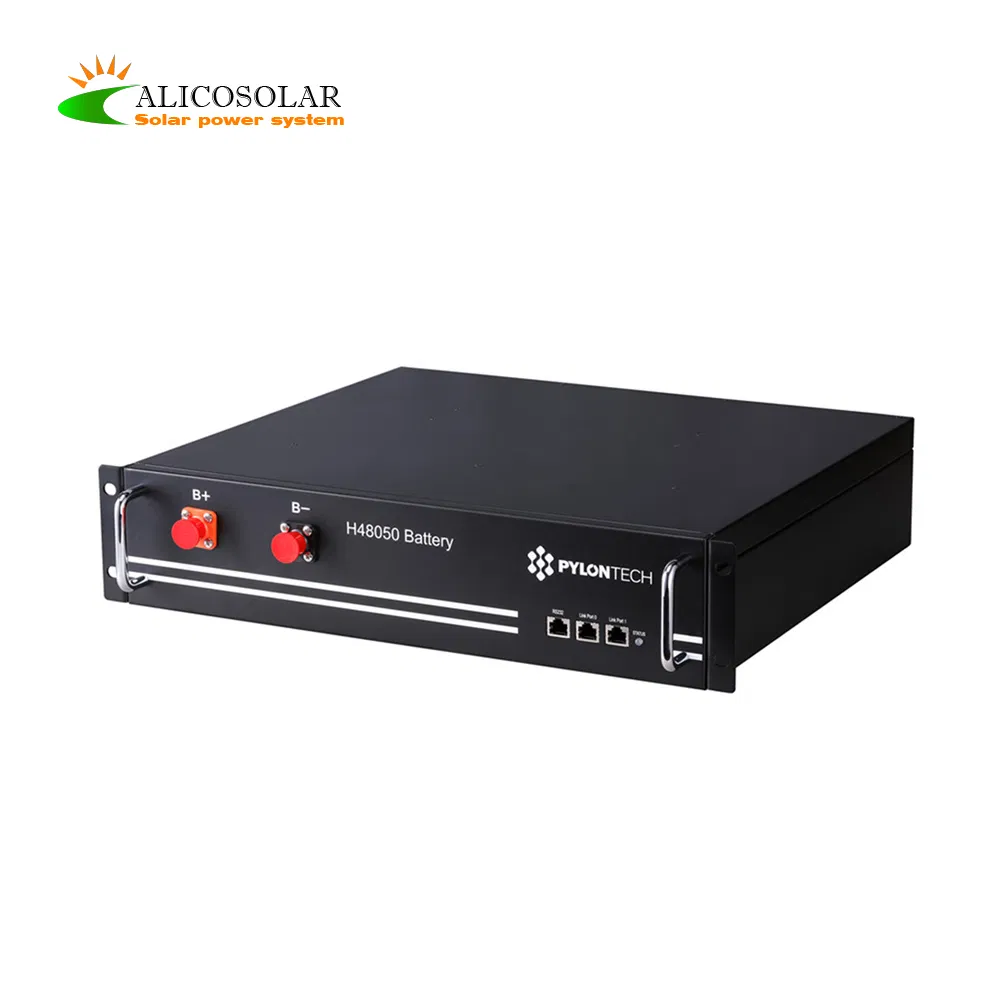

Spec: 48V 100Ah
Dimension: 4-5U Standard Rack Size
