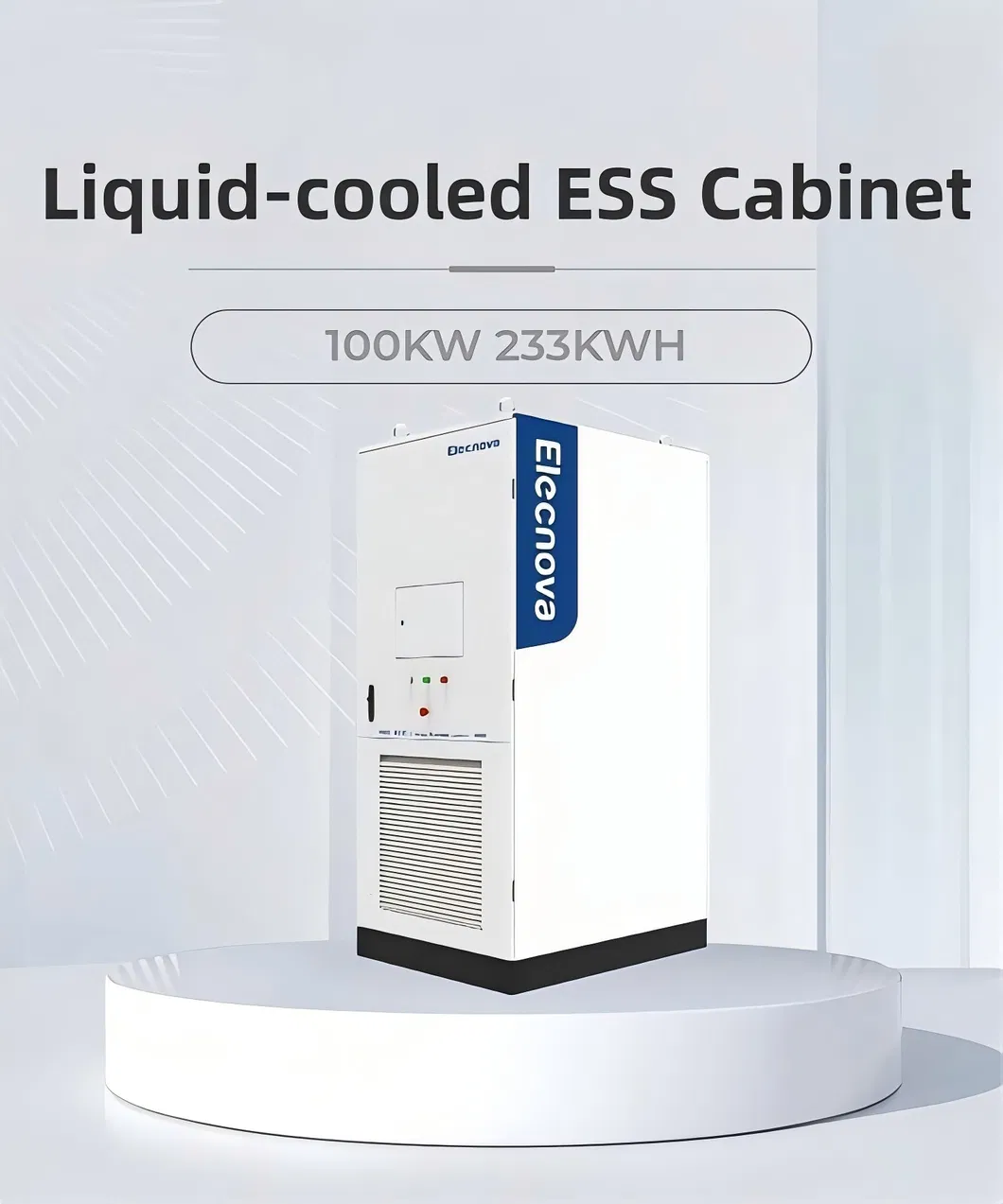

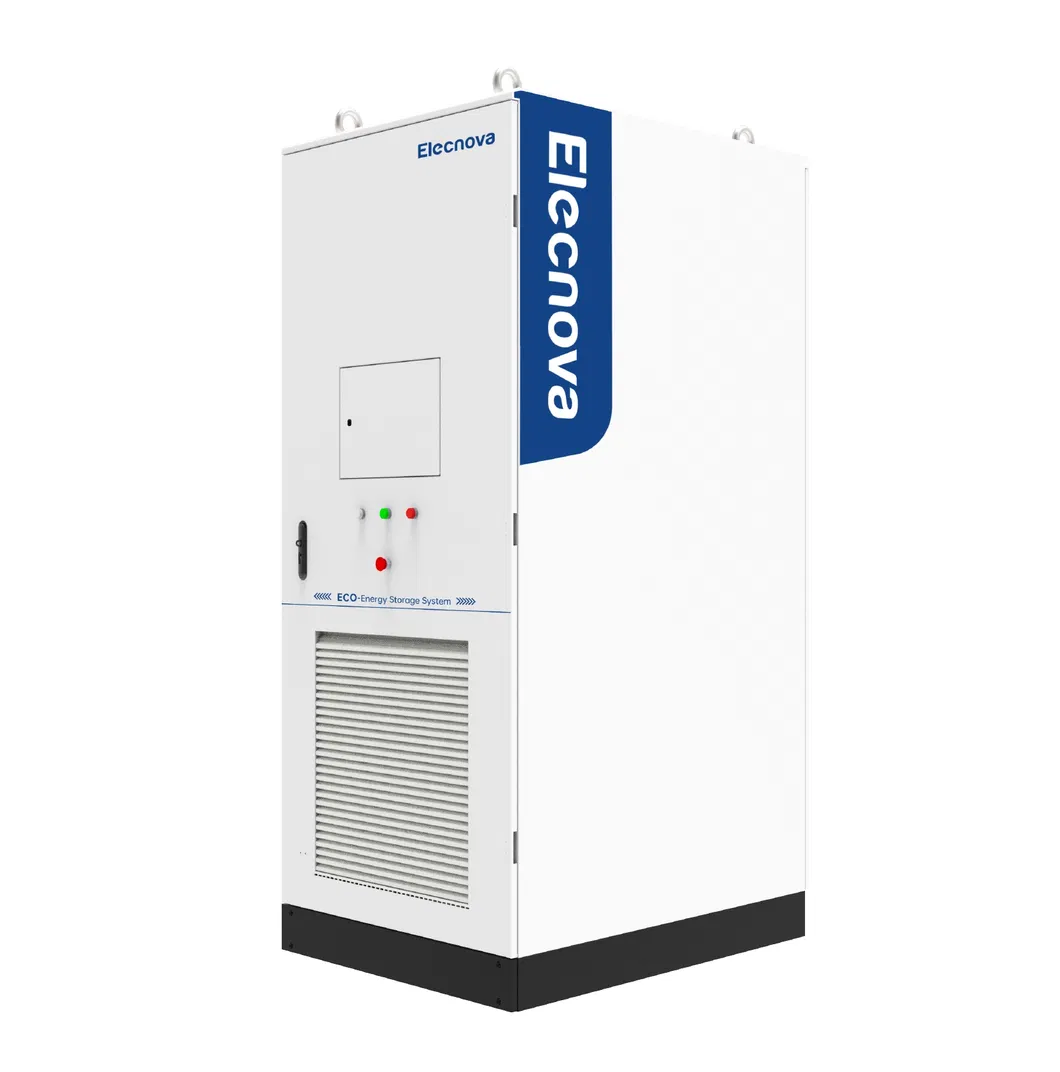

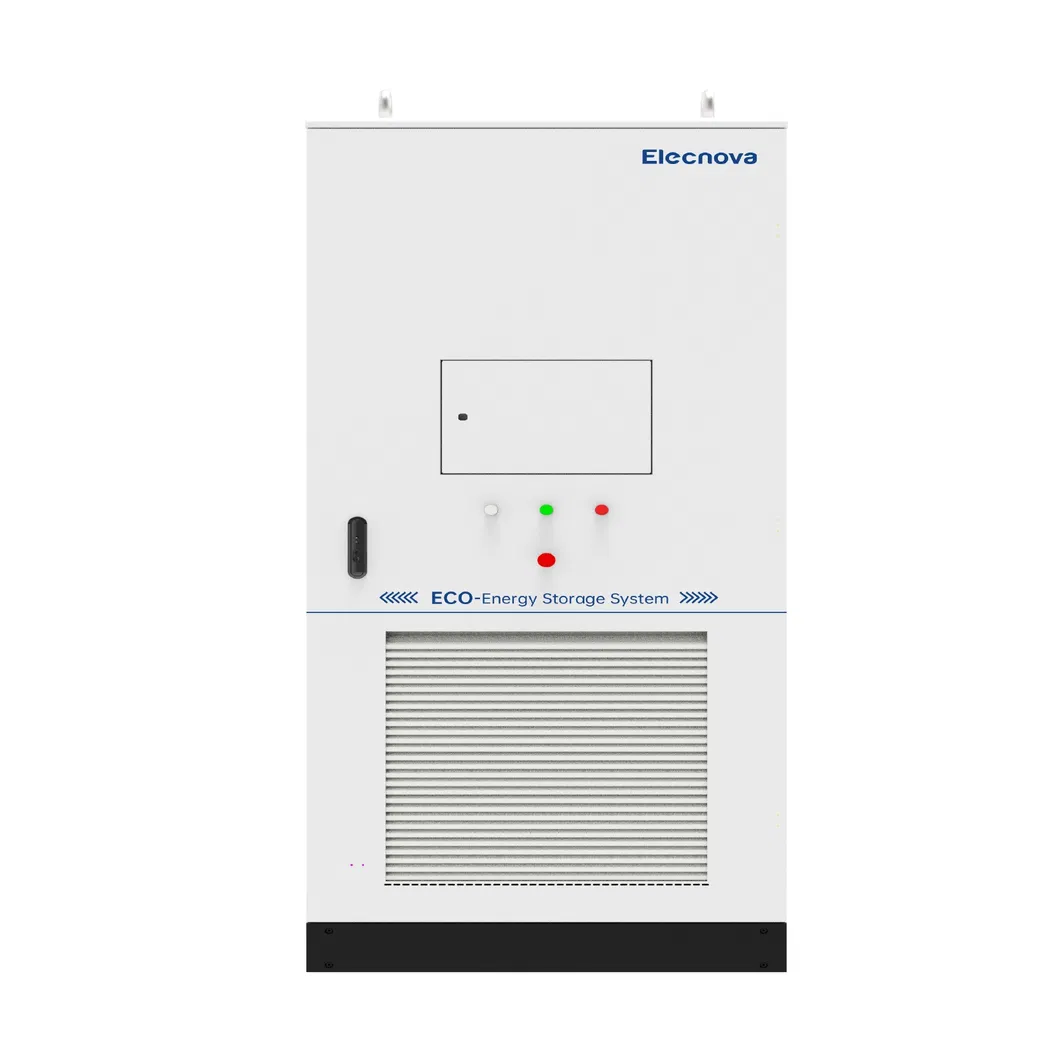

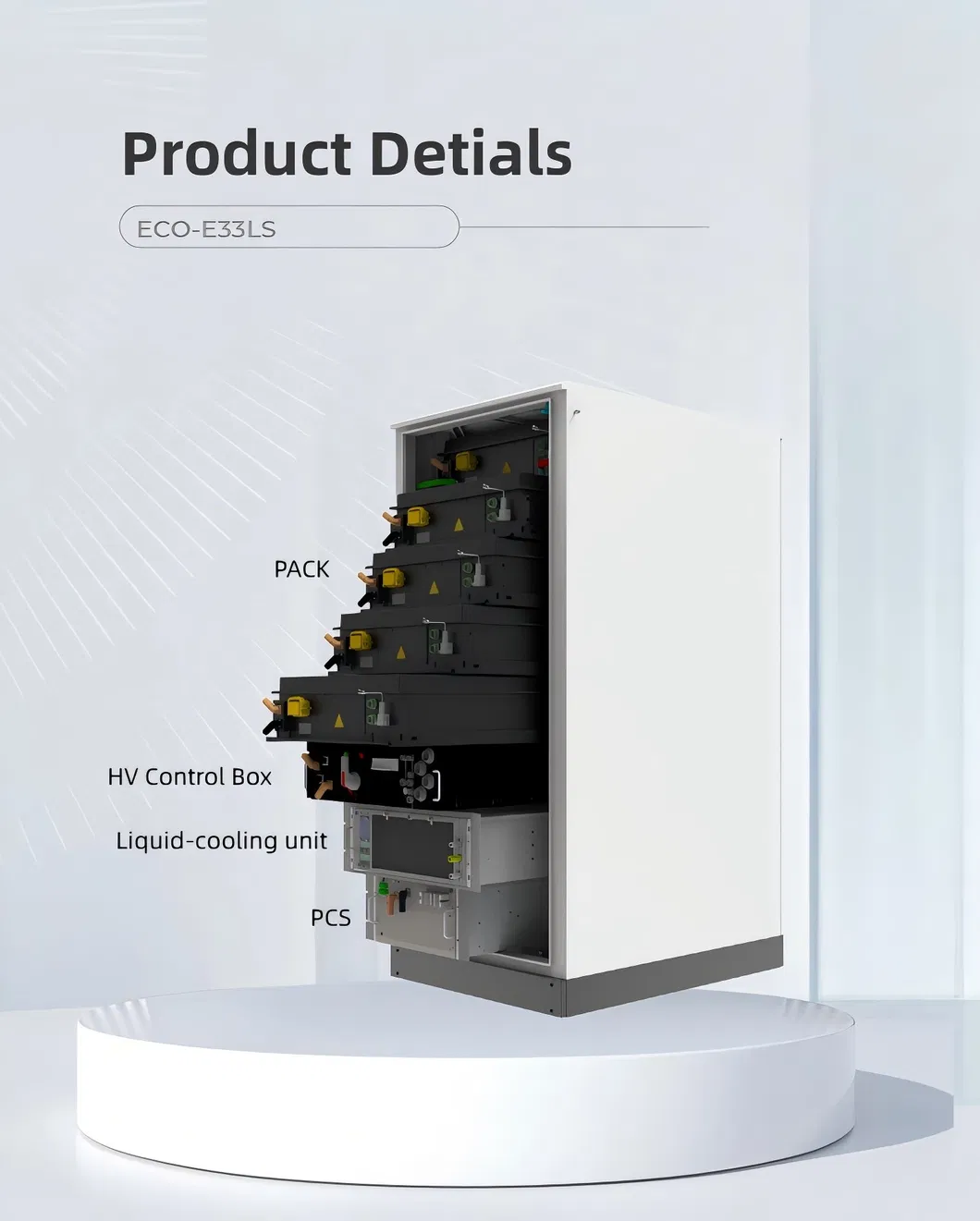

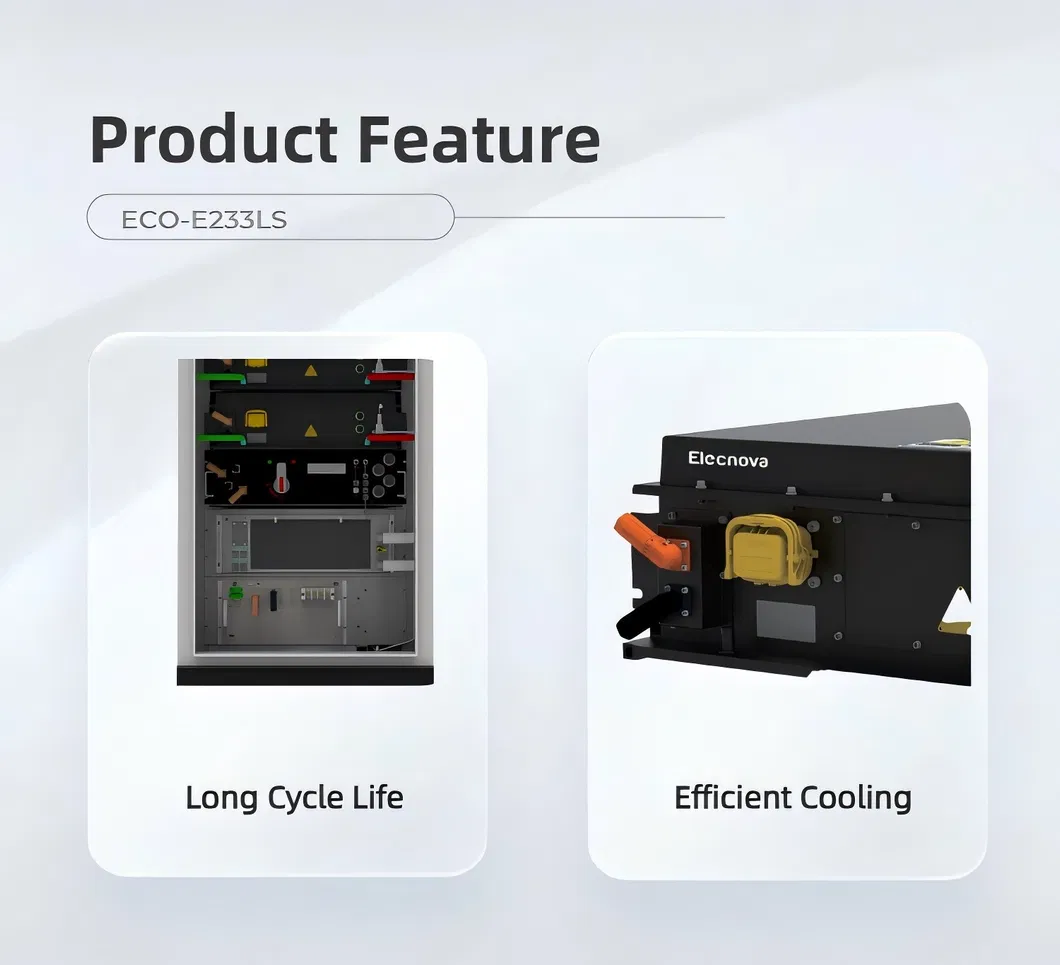

This 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, improving the economy, safety and construction convenience of ESS projects.
| DC Side Specifications | |
|---|---|

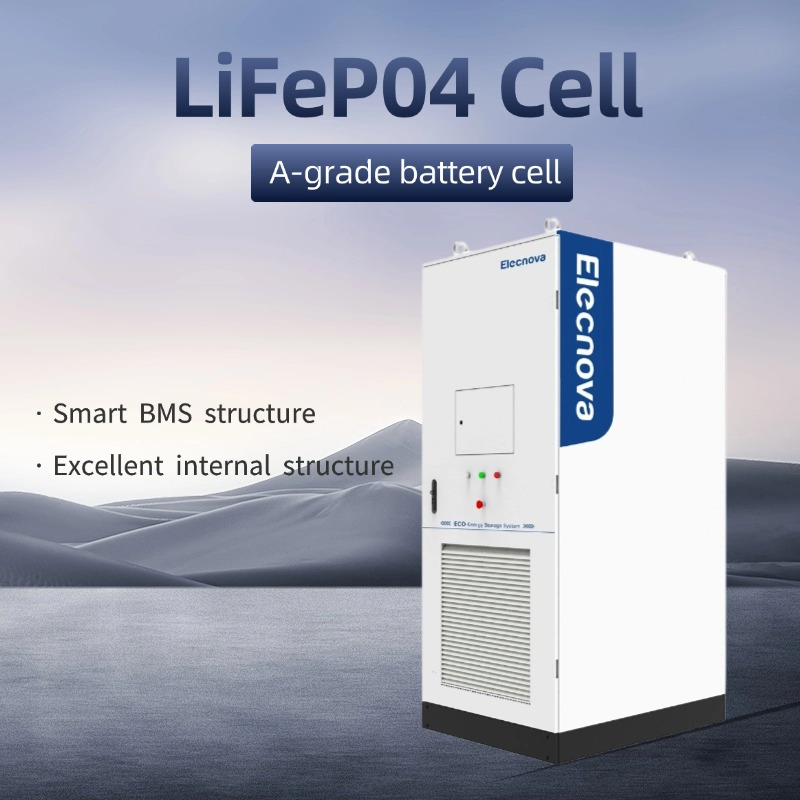

| Cell Type | LFP 280Ah |

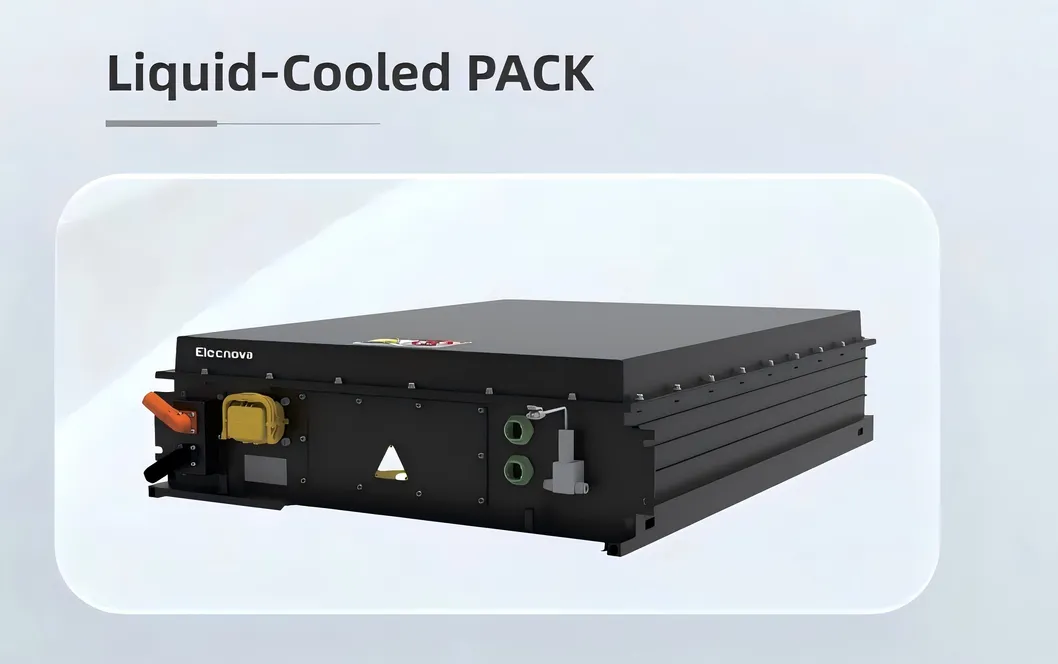

| PACK Capacity | 46.592kWh / 1P52S |
| Battery System | 232.96kWh / 1P260S |
| Voltage Range | 728~936Vdc |
| AC Side Specifications | |
| Rated Power | 100kW |
| Nominal Voltage | 400Vac / 3P+N+PE |
| Frequency | 50/60 Hz |
| General System Data | |

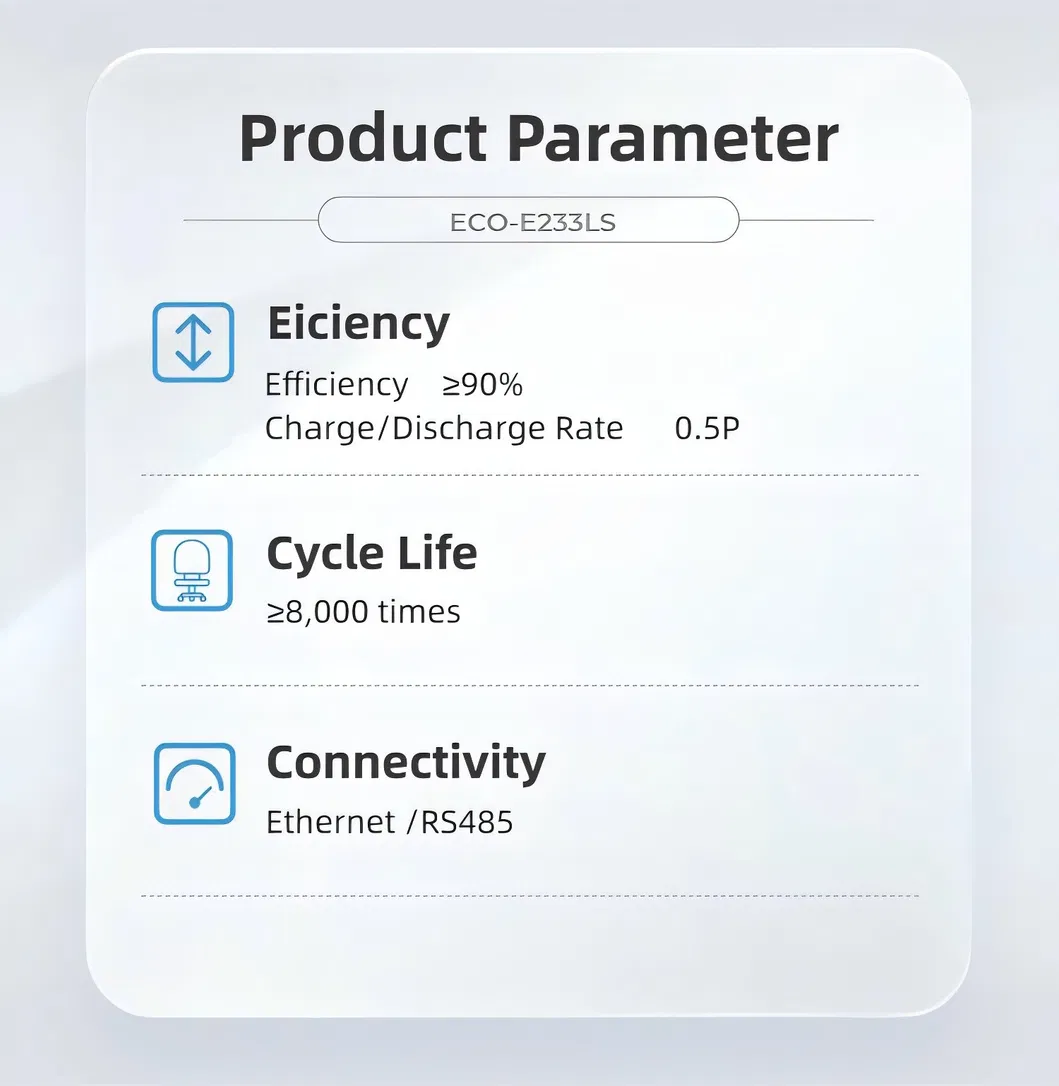

| System Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |
| Cooling Type | Active Liquid Cooling |
| Operating Temp | -25ºC ~ 55ºC |
| Dimensions (W*D*H) | 1,050*1,350*2,400 (mm) |

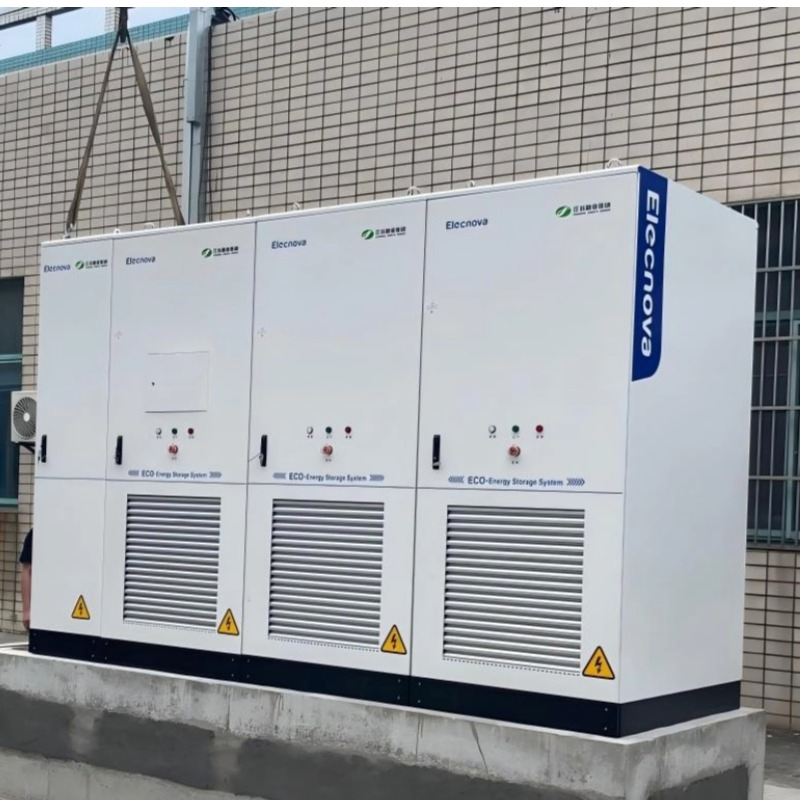

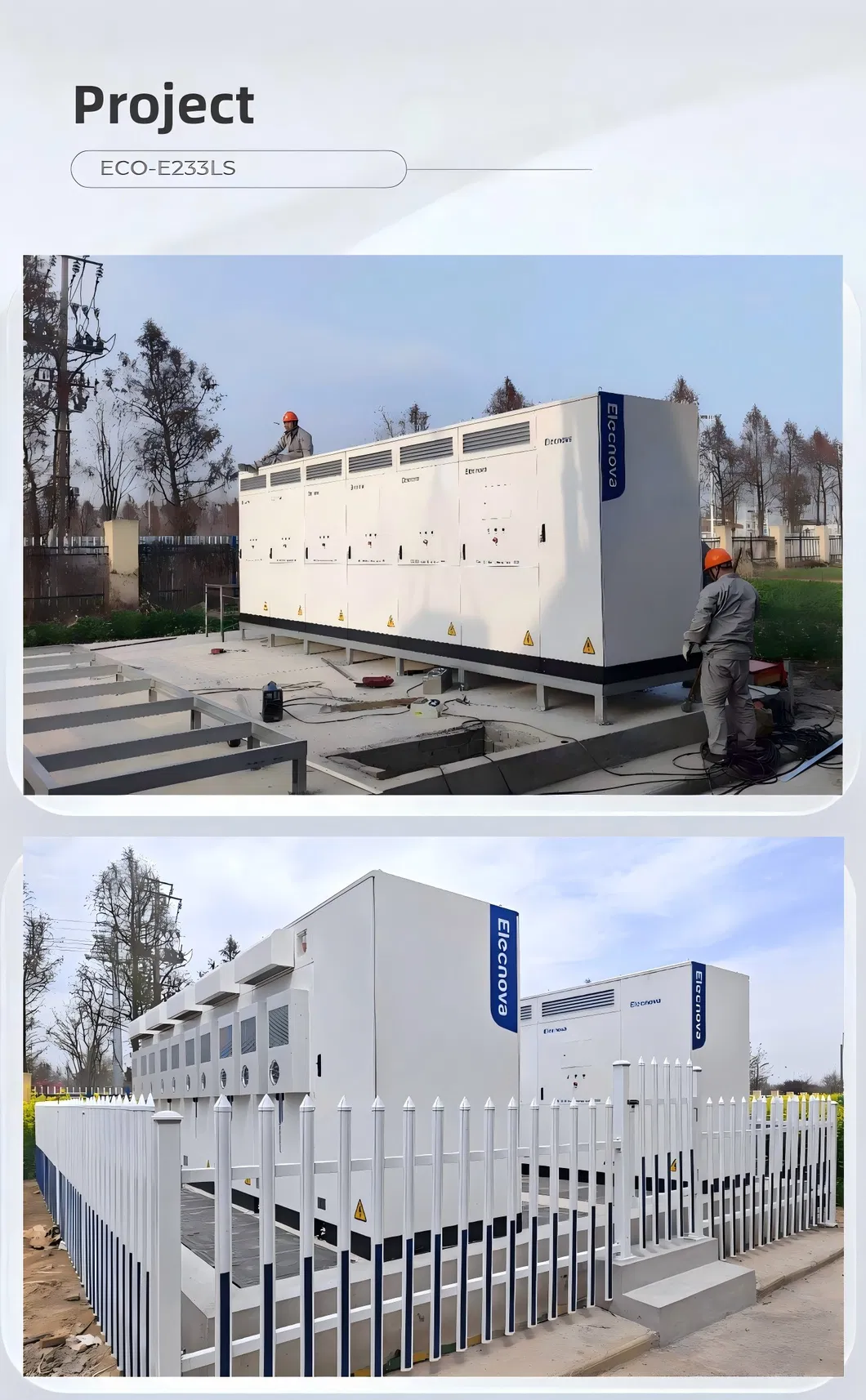

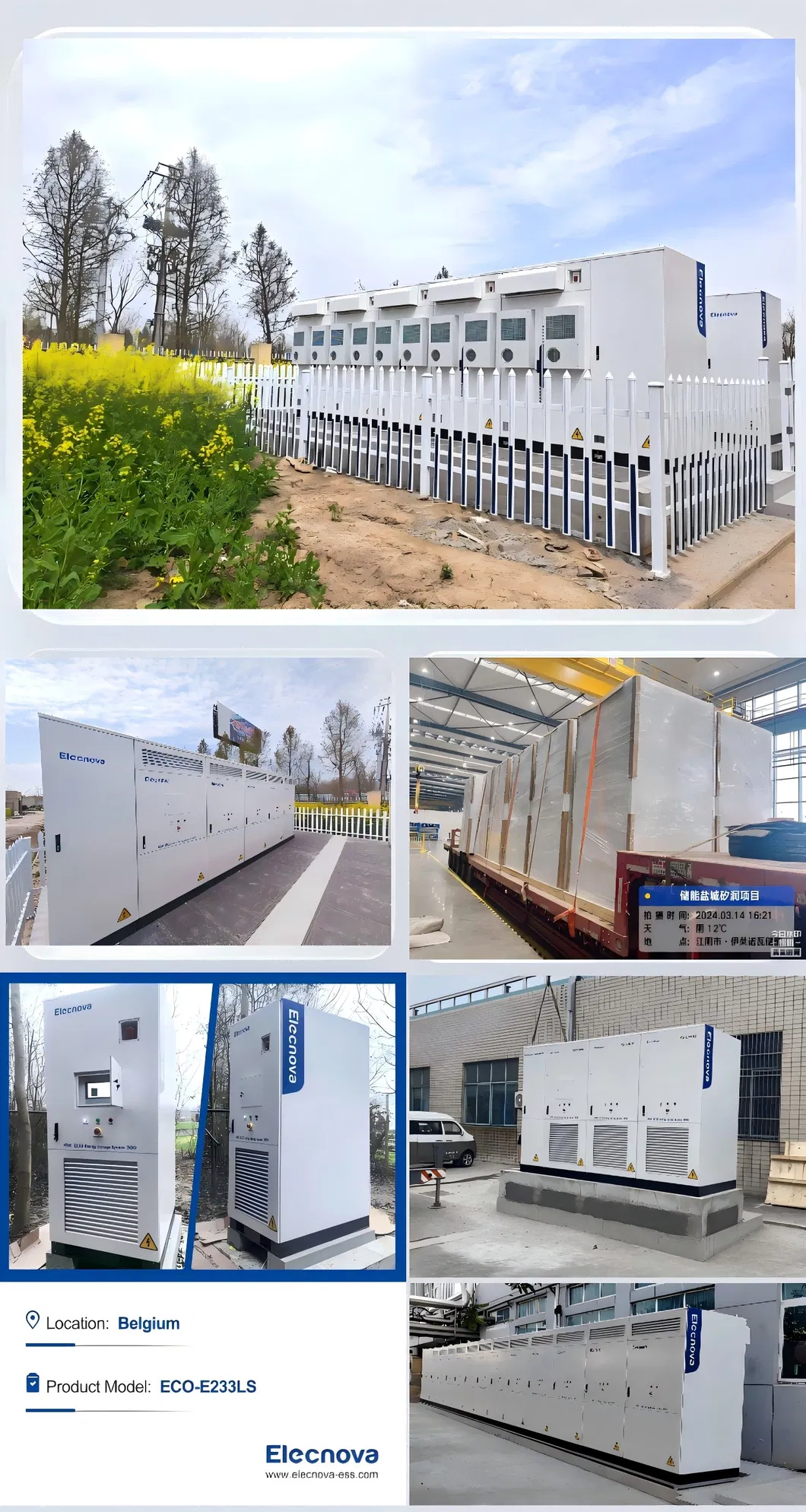

Our energy storage projects are successfully connected to grids worldwide, providing high efficiency, stability, and safety. Ideal for industrial parks, microgrids, and PV-plus-storage scenarios.

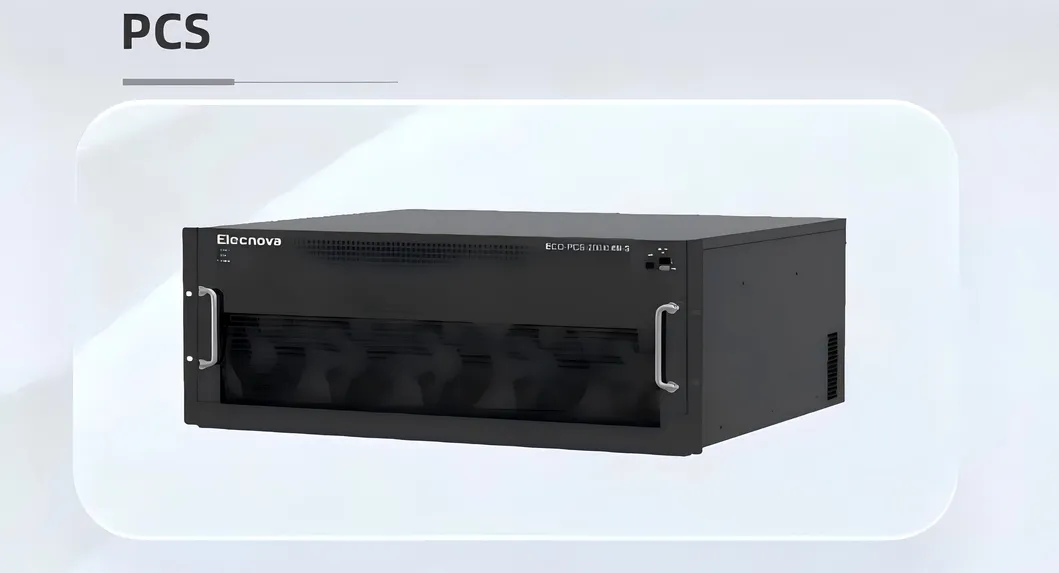

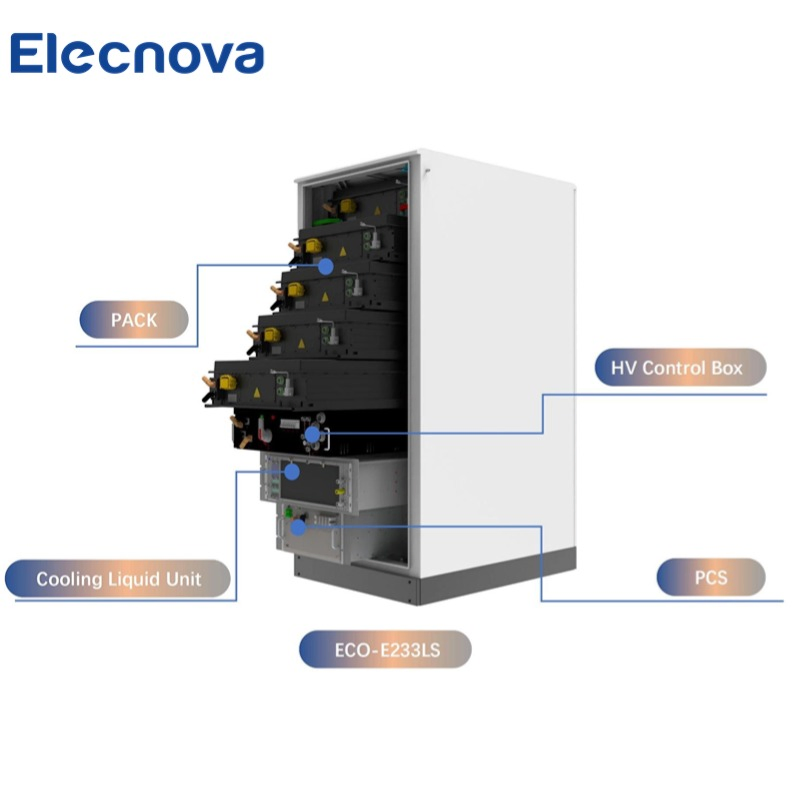

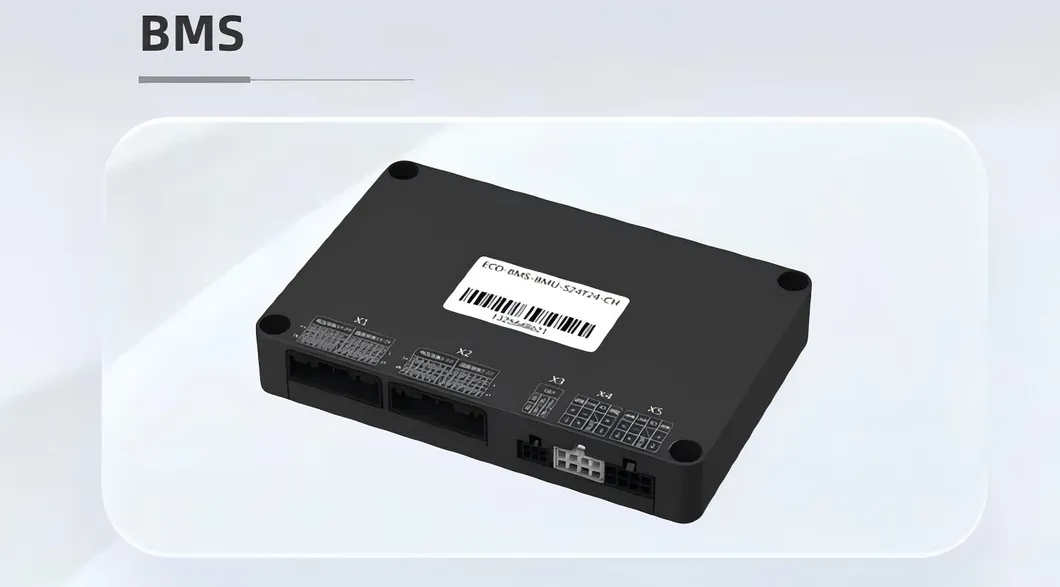

Focusing on overall solutions for energy storage systems, we maintain comprehensive supporting capabilities for the system integration of PACK, PCS, and BMS. Our commitment is to provide high-quality customized products for diverse energy consumption scenarios.
