Efficient Irrigation Solar Pumping System by Glgw for Agriculture

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

2JC2-40-D24/250

Max.Head

40-150m

Max.Capacity

<50 L/min

Driving Type

Brushless DC Drive

Material

Stainless Steel

Structure

Screw Pump

Power

Solar Energy

Industry

Agricultural Irrigation

Media

Clean Water

Theory

Centrifugal Pump

Product Description

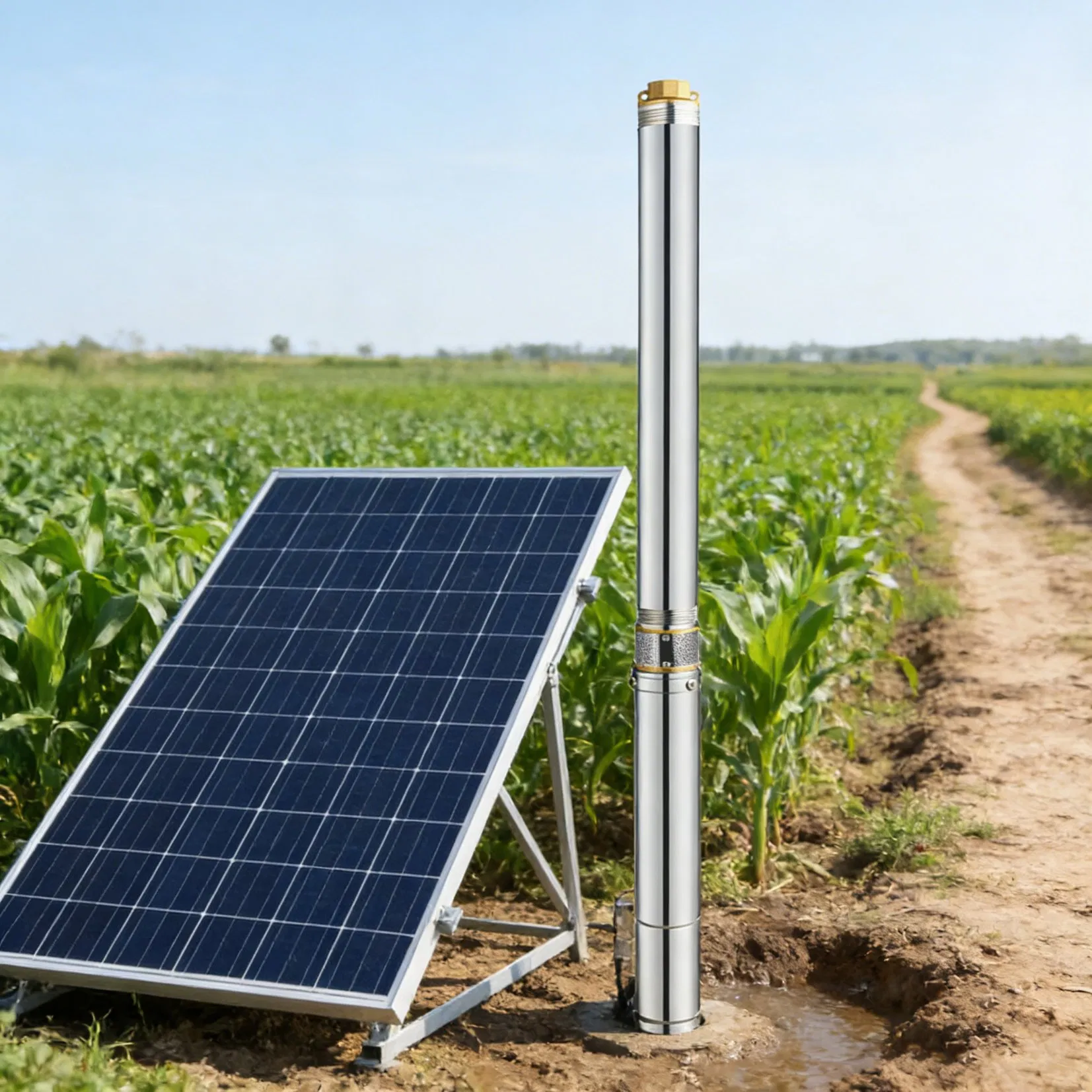

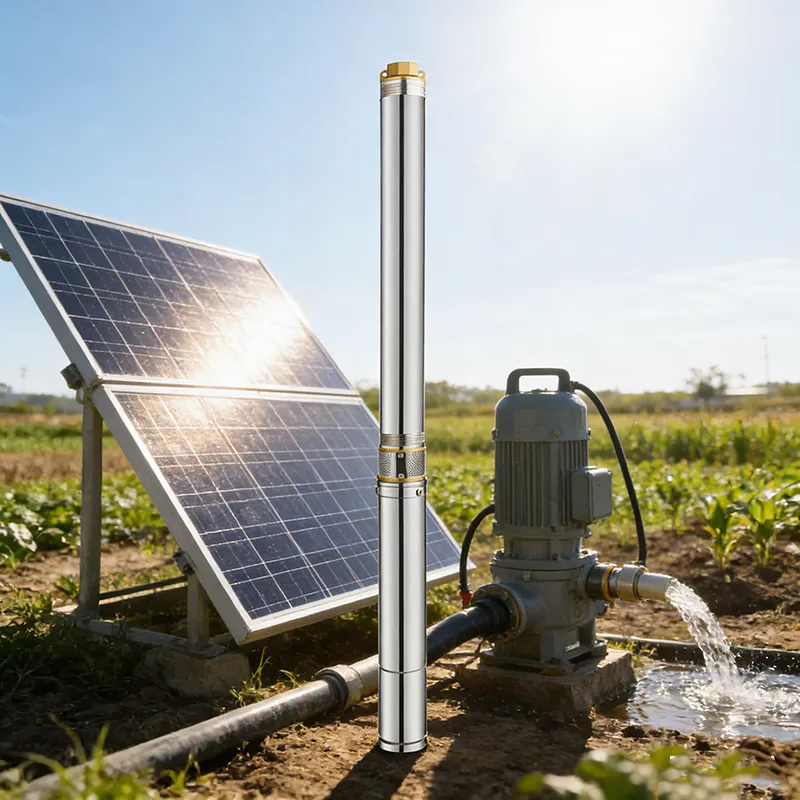

Durable DC 2JC Solar Water Pump System for Efficient Irrigation

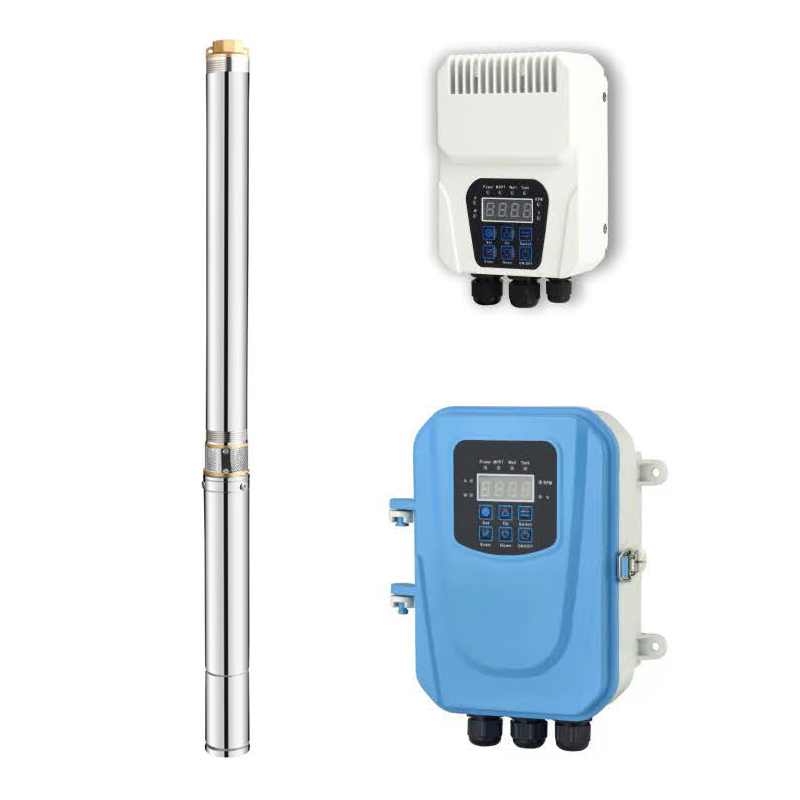

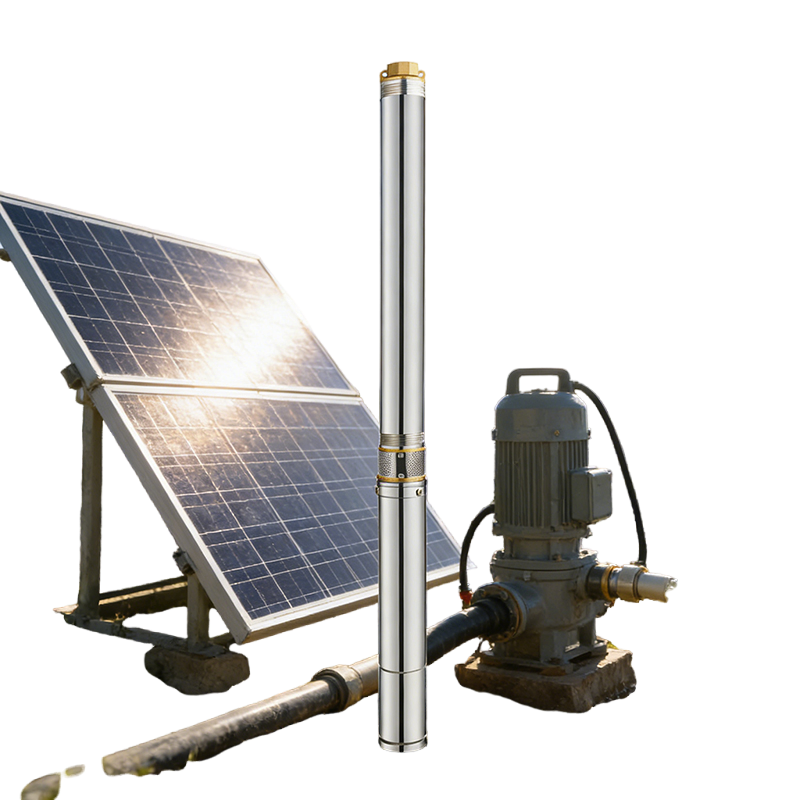

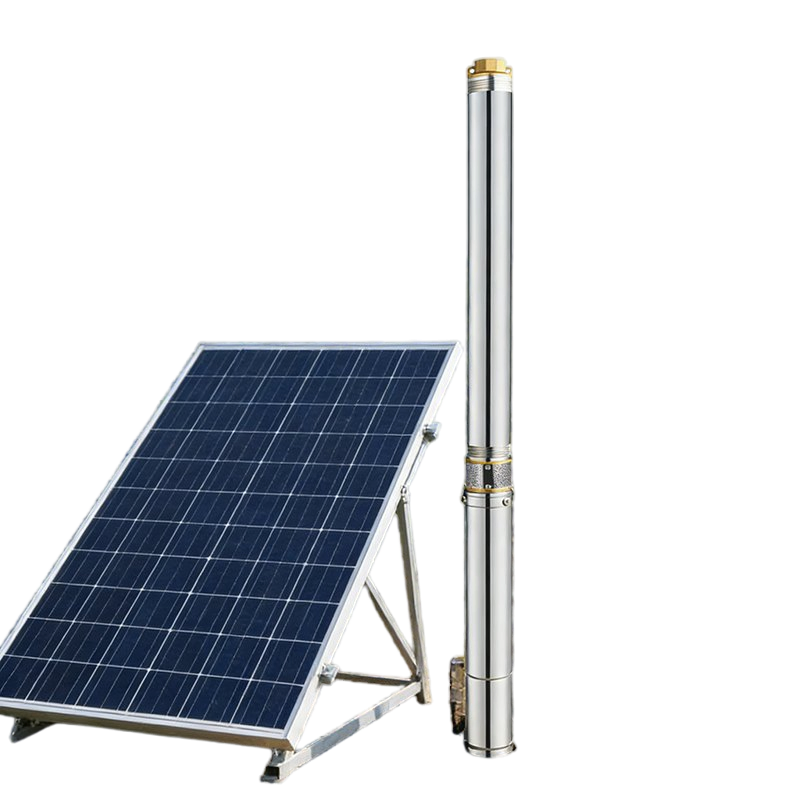

Efficient Irrigation Solar Pumping System Components

Solar Pump: Eco-Power for Smart Water Solutions

🚀 Energy-Saving & High-Efficiency: 85% motor efficiency + MPPT tech, beats traditional AC pumps by 18-22%.
🛠️ Durable & Low-Maintenance: Stainless steel build, corrosion-resistant, no frequent upkeep.

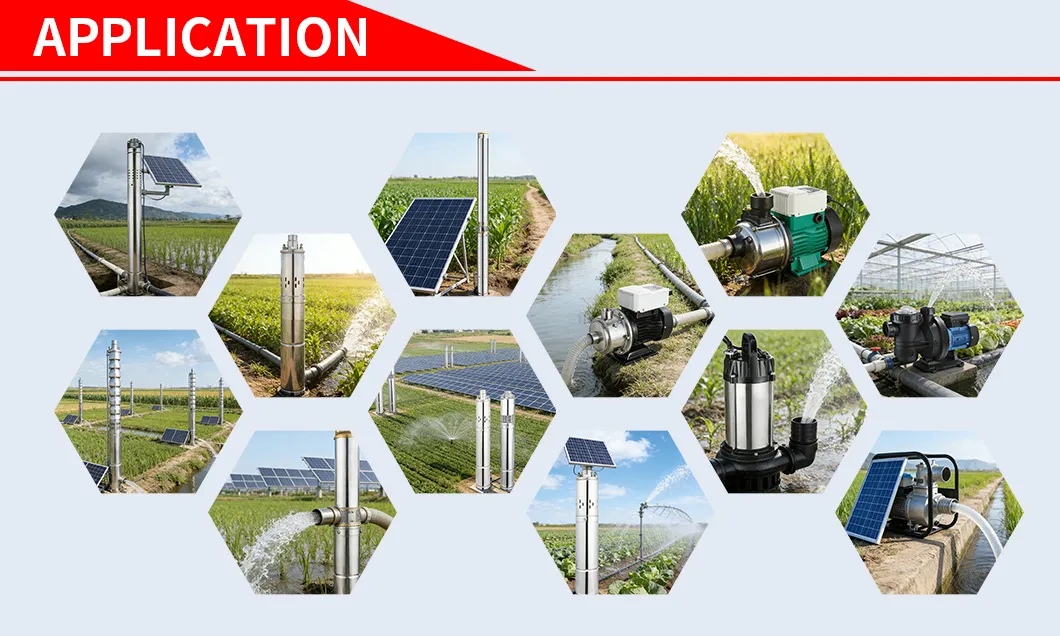

🌍 Versatile Applications: Perfect for deep well extraction, garden irrigation, fountain supply.
🛡️ Safe & Reliable: IP65 waterproof + multi-protection (under-voltage/overload/waterless), 1-year warranty.

Eco-friendly, cost-effective, and tailored for both daily use & remote areas!

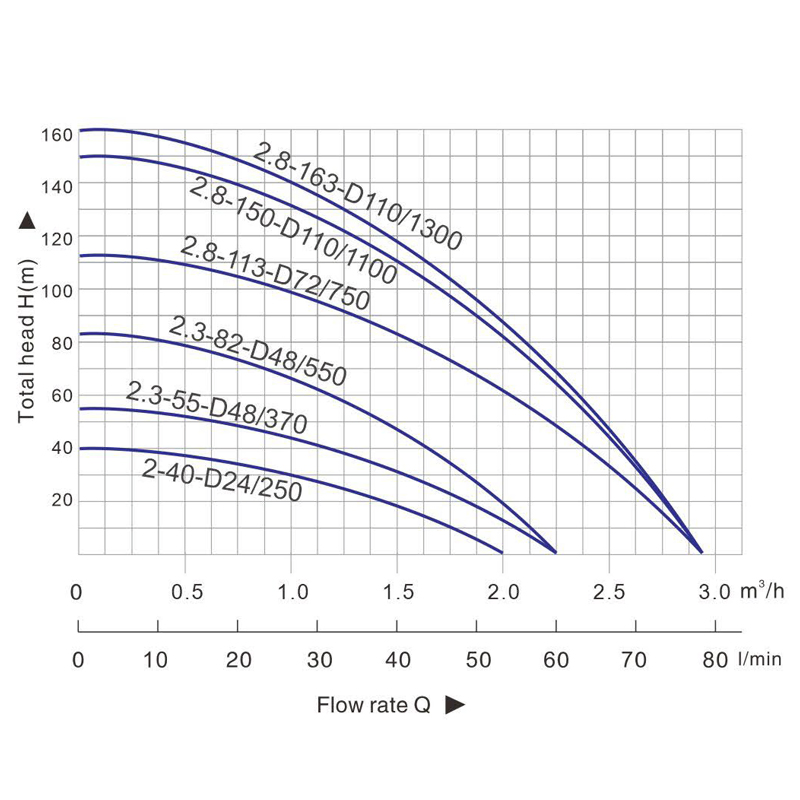

Model	Impeller	Solar array Voltage(V)	Solar array Power(W)	Best input voltage(DC)	Max Flow (m²/h)	Max Head (m)	Outlet (inch)	VOC
2JC2-40-D24/250	Plastic impeller	36	400	30-48	2	40	0.5"	<100V
2JC2.3-55-D48/370		72	520	60-90	2.3	55	0.5"	<100V
2JC2.3-82-D48/550		72	825	60-90	2.3	82	0.5"	<100V
2JC2.8-113-D72/750		108	1125	90-120	2.8	113	0.5"	<150V
2JC2.8-150-D110/1100		144	1650	90-120	2.8	150	0.5"	<200V
2JC2.8-163-D110/1300		144	1950	90-120	2.8	163	0.5"	<200V

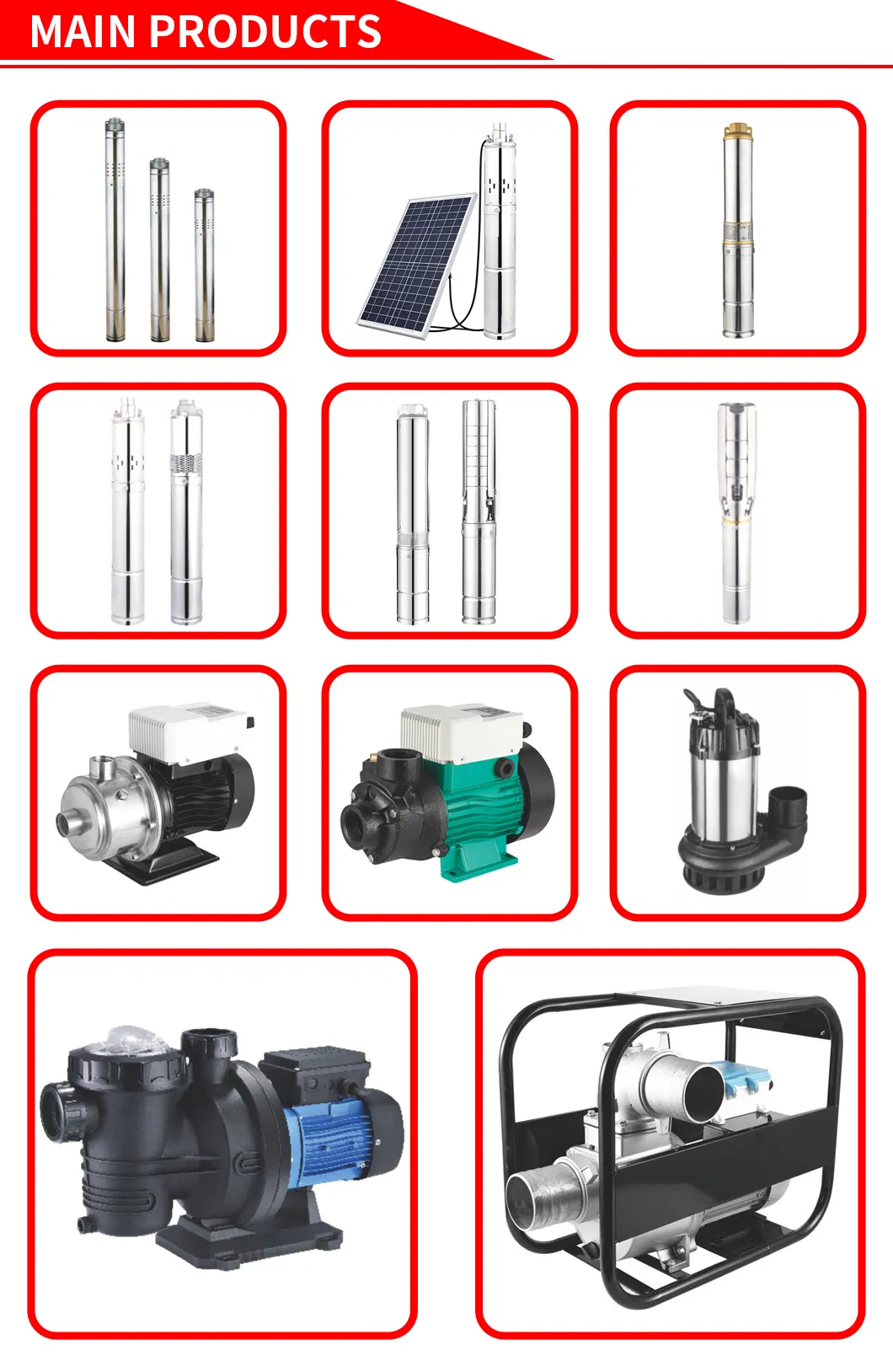

Main Product Range

Production Overview

Our group currently has more than 20 wholly-owned subsidiaries and over 100 business divisions at all levels, supported by a refined service team of approximately 1,500 people. Our service network has achieved in-depth coverage across major domestic cities and expanded overseas to various international regions, providing high-quality water solution technologies globally.

Quality Certifications

Packaging & Shipping

Frequently Asked Questions

How efficient is the motor in this solar pump system?

The motor boasts an 85% efficiency rate. When combined with MPPT technology, it is approximately 18-22% more efficient than traditional AC pumps.

What materials are used to ensure the pump's durability?

The pump is constructed using high-quality stainless steel, making it highly resistant to corrosion and suitable for long-term use in clean water media.

Is this pump suitable for deep well water extraction?

Yes, this DC solar pump is specifically designed for versatile applications including deep well extraction, garden irrigation, and fountain supply.

What kind of protection features are included?

The system includes an IP65 waterproof rating and multiple safety protections, such as under-voltage, overload, and waterless operation protection.

What is the warranty period for the solar pump?

We provide a 1-year warranty to ensure the reliability and safety of the system for your daily or agricultural water needs.

Can this pump operate in remote areas without an electrical grid?

Absolutely. As it is powered by solar energy, it is the perfect solution for providing water in remote areas where traditional power sources are unavailable.
