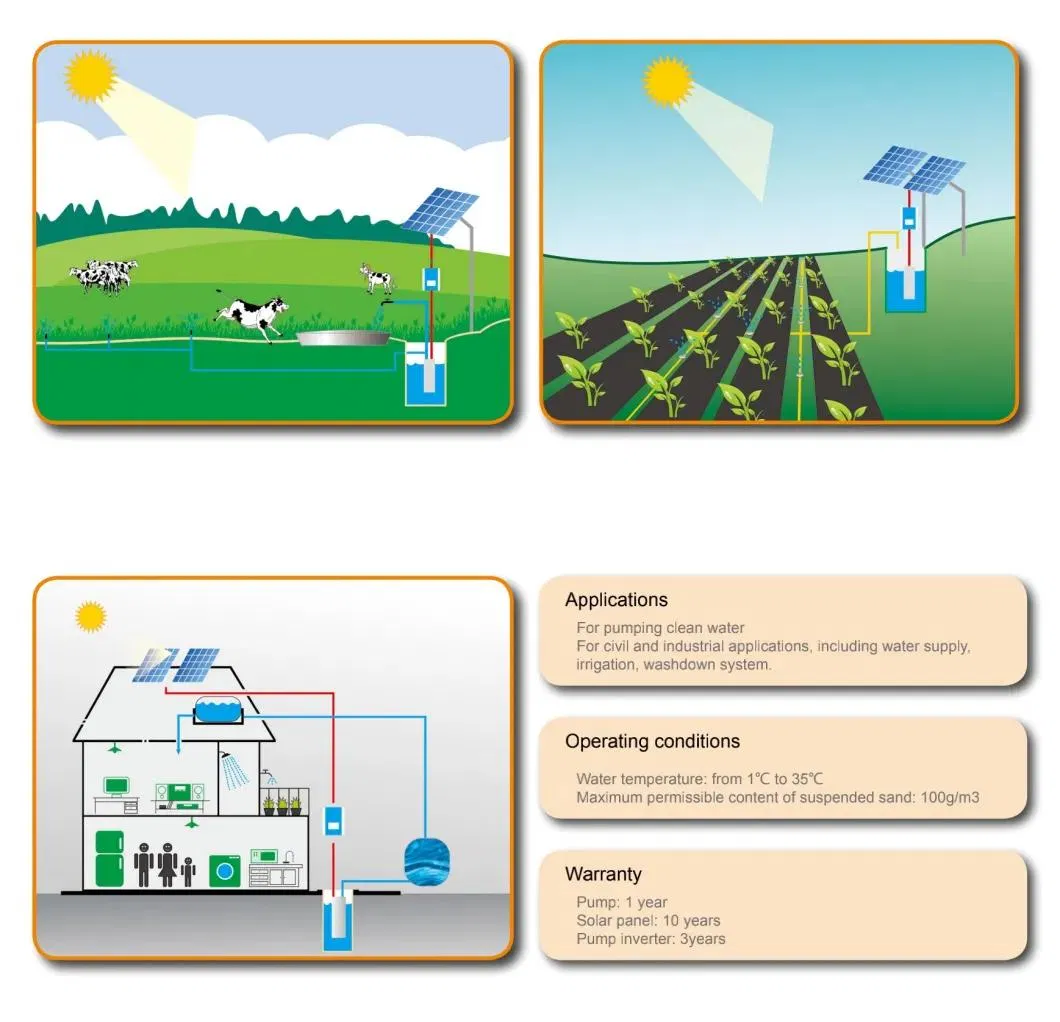

Solar power system has a wide range of applications, offering domestic water, helping agricultural and forestry irrigation, and desertification control. It can also supply water to sea islands, animal husbandry, and water treatment projects.
With the promotion of new energy utilization, the usage of solar water pump is increasing in government projects, landscape architectures, and fountains of city squares, parks, tourist attractions, hotels, and residential areas.
| 30HP Solar Water Pump System Items List | |||
|---|---|---|---|
| Item Name | Description | Unit | Quantity |
| Solar panel | 260W / 31.2V poly | pc | 136 |

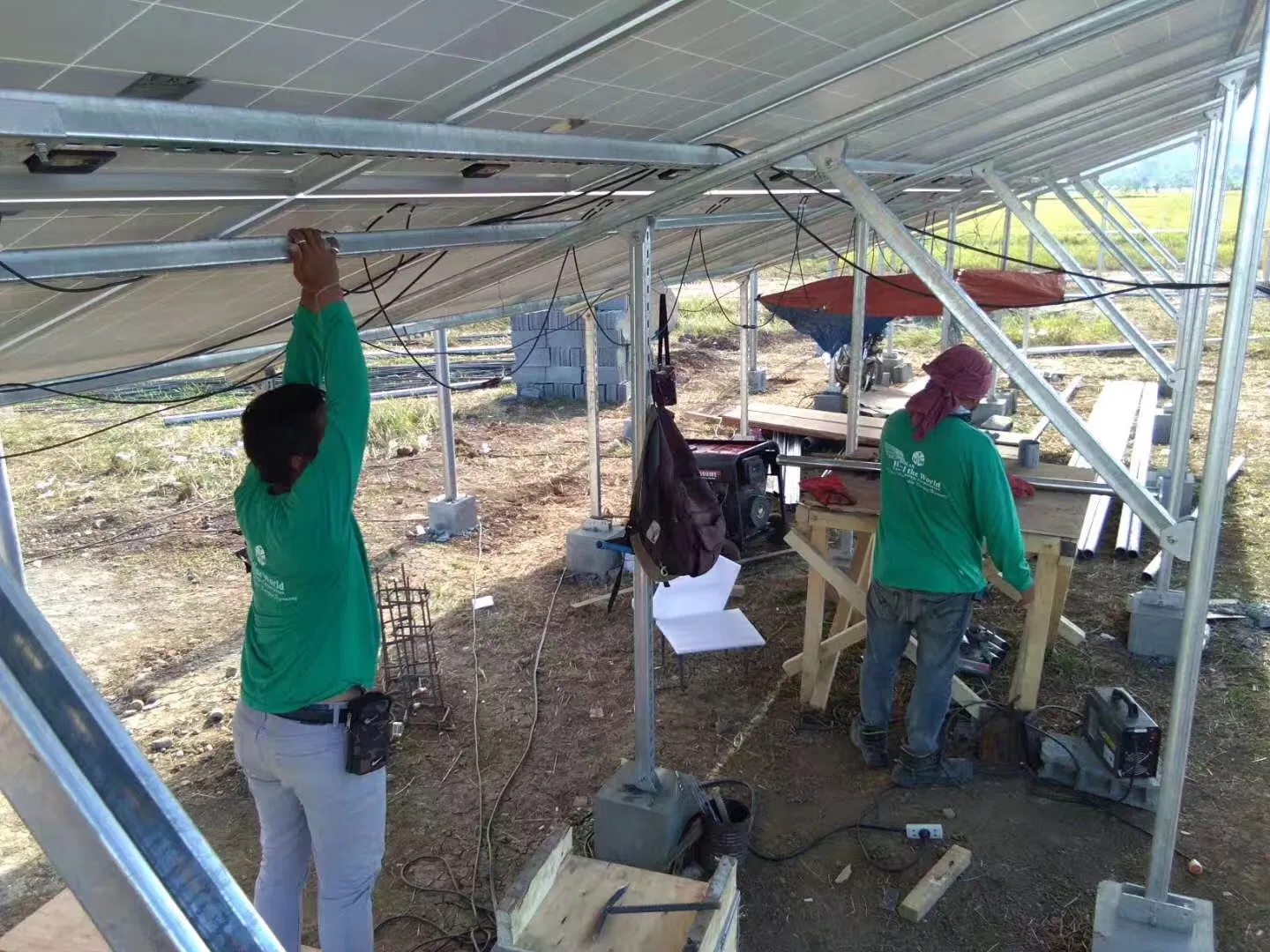

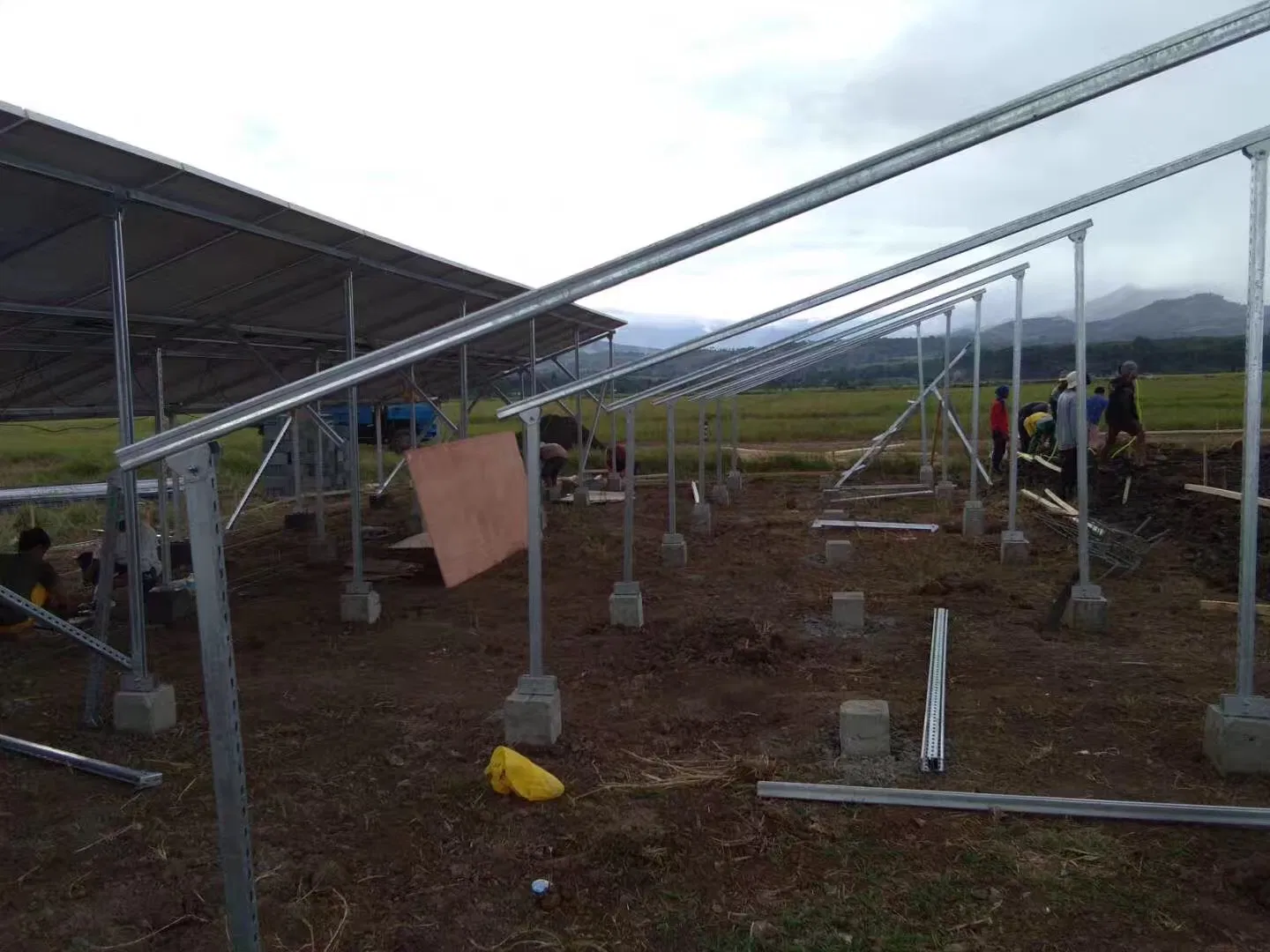

| Mounting structure | Q235 material, Hot-dip zinc | set | 1 |
| PV cables | 4mm2, 400m | set | 1 |
| Pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |
| Safety rope | Pump Depth * 2 | pc | 1 |

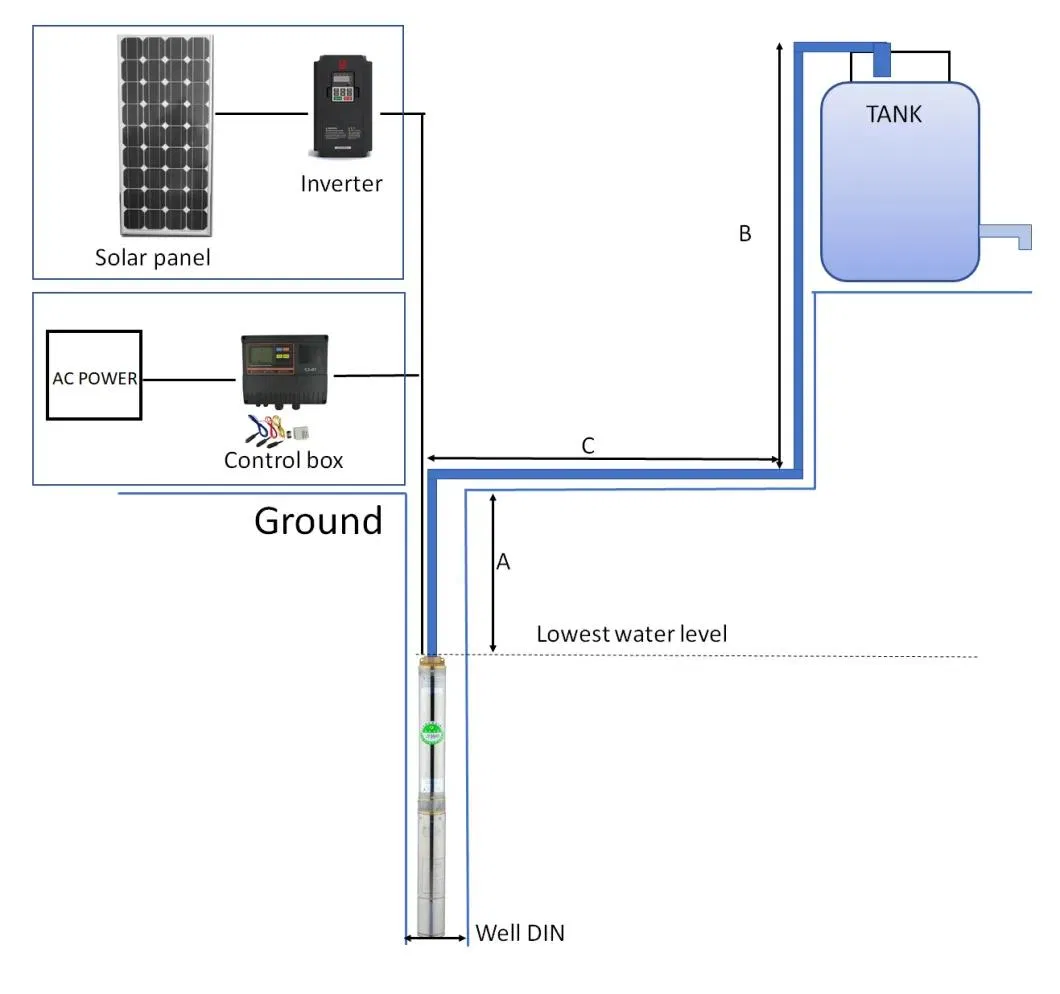

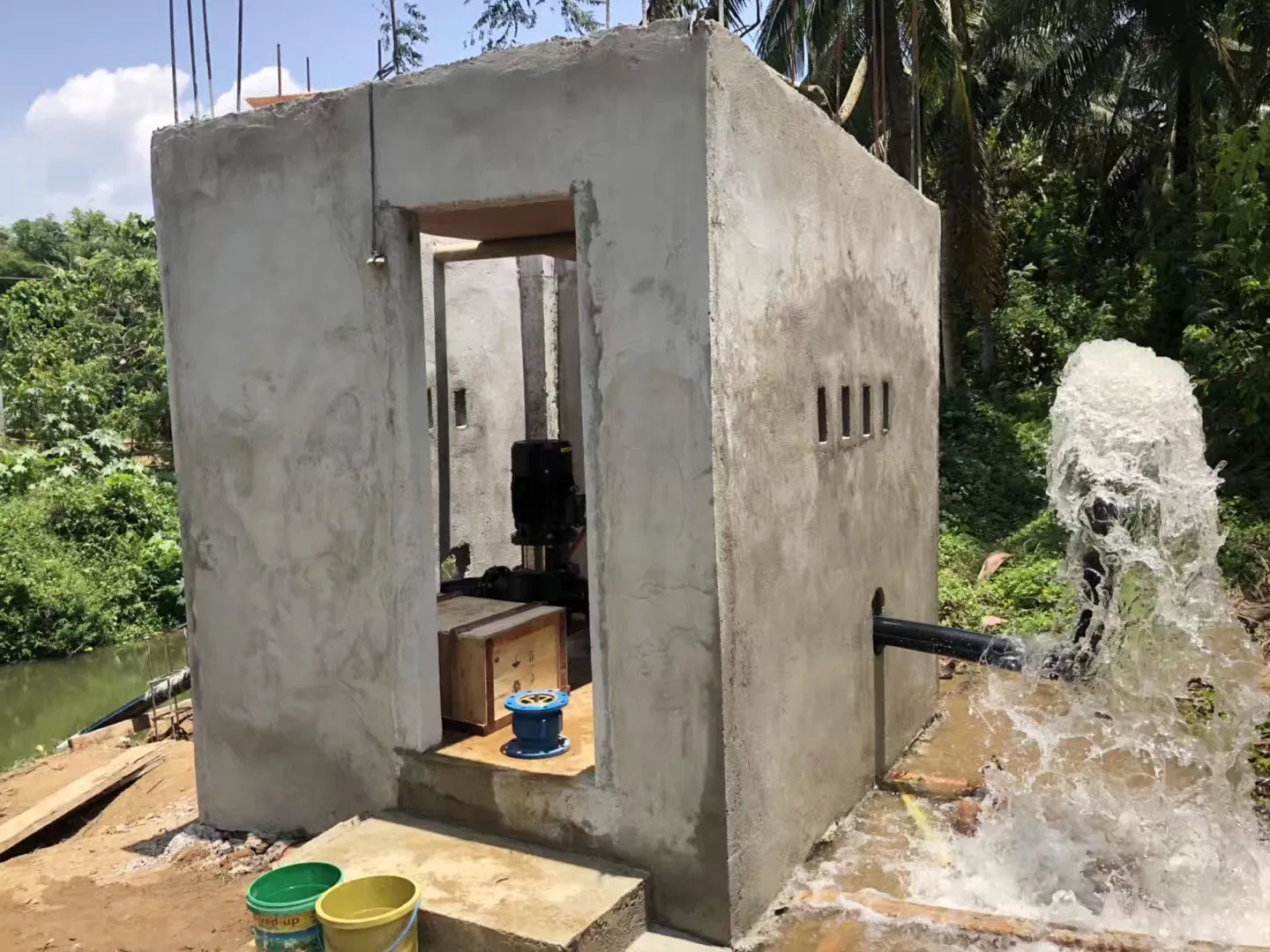

Solar pump systems are specially designed to use solar power directly. No grid infrastructure is required for site selection. Modular design ensures simple installation and accessible operation.
1. Solar Panel Power: Power of pump x 1.3.
2. Battery Capacity: Use hours ÷ 0.6 x (Machine power ÷ Battery voltage).
Example: 200W machine, 12V battery, 3.6 hours use = 100AH.

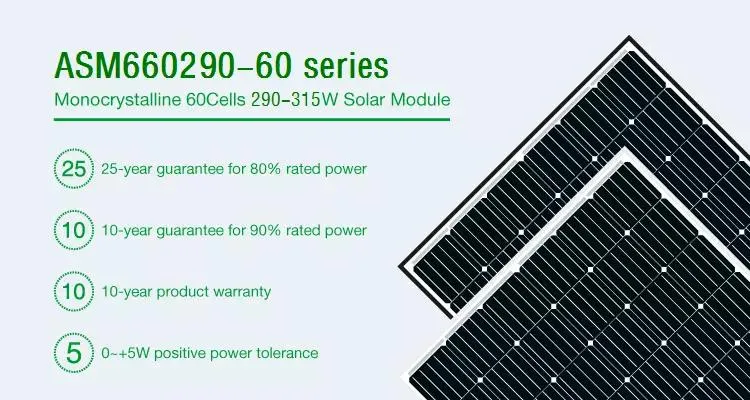

Peak Power: 290W
Max Voltage: 32.2V
Max Current: 9.02A
Dimensions: 1640×992×35 mm
Weight: 18.6 kg

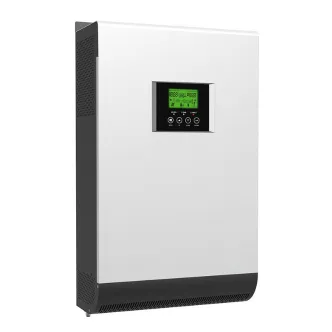

Max. DC Input: 8.5KW
Max. Input Voltage: 600V
MPPT Range: 90-520V
Warranty: 5-10 Years
Monitoring: WiFi/GPRS Optional

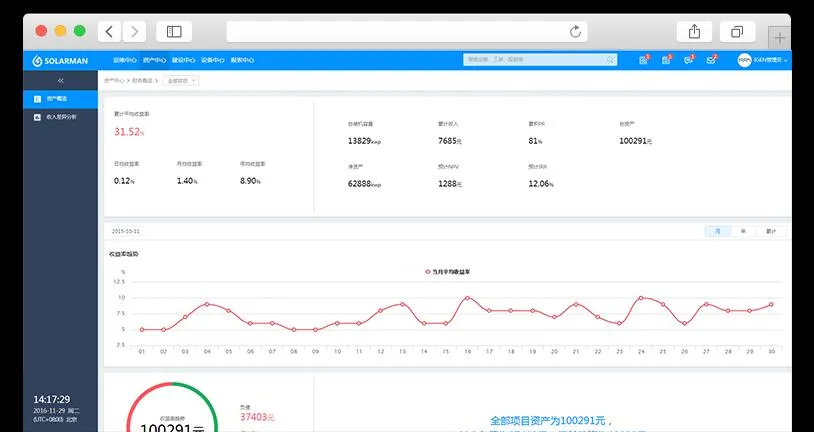

Real-time data logging via web server. Compatible with PC, iOS, and Android for atmospheric and PV system monitoring anywhere.
Specification: 48V 100Ah
Dimension: 4-5U standard rack size.
