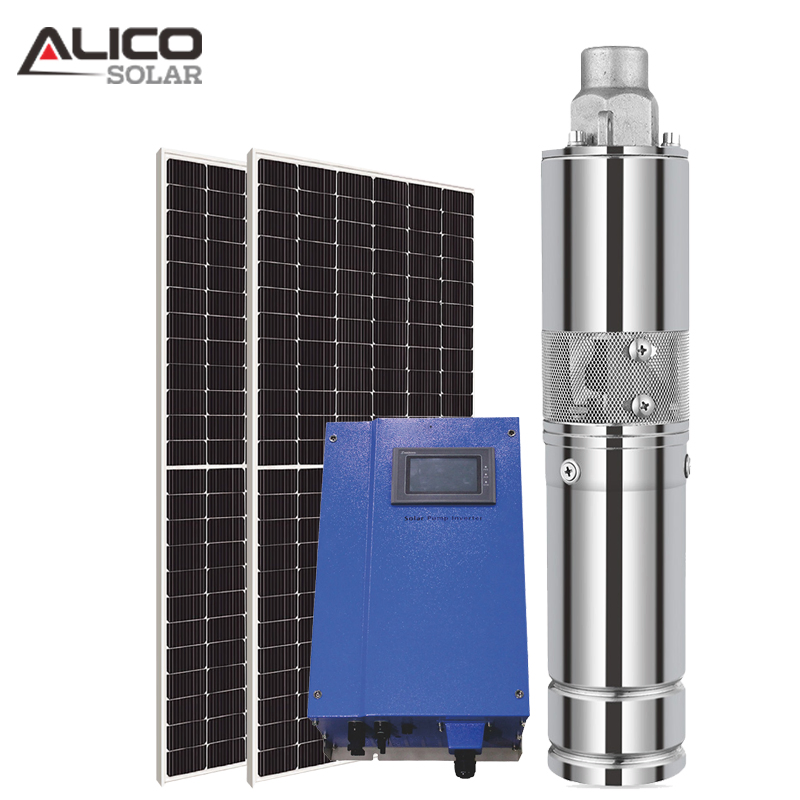

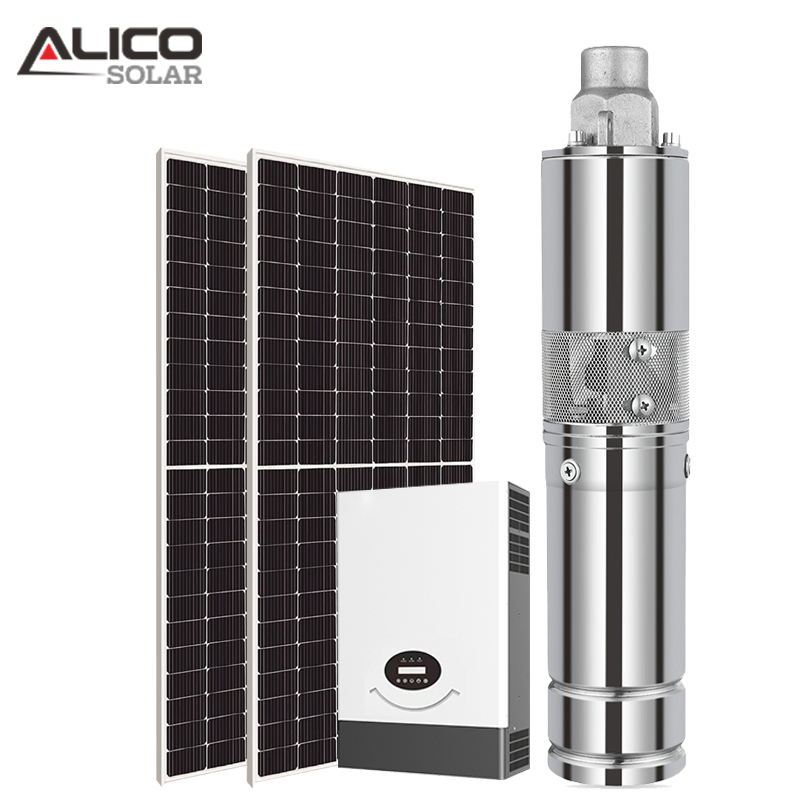

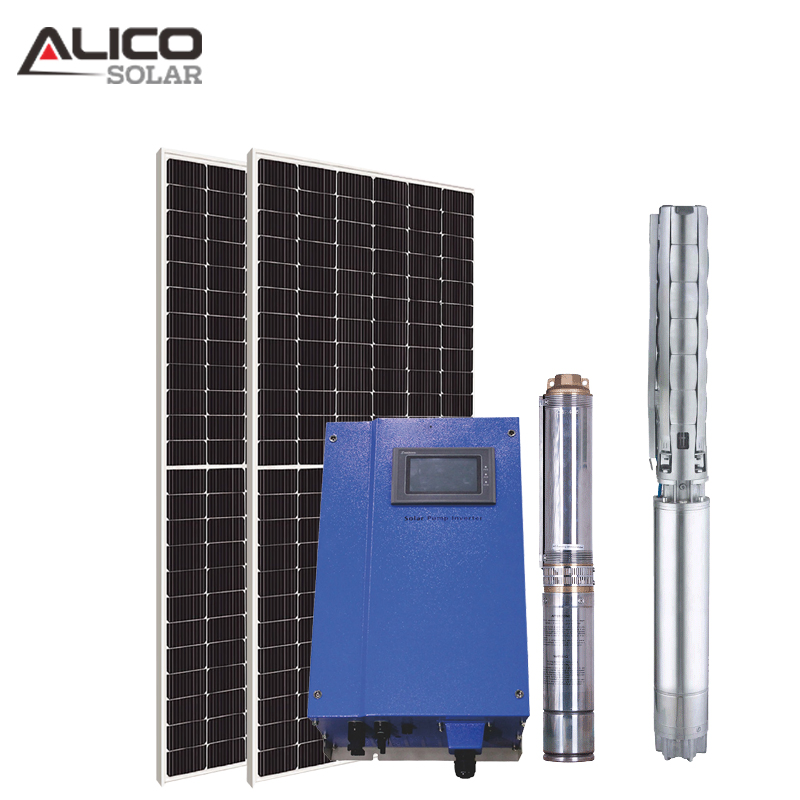

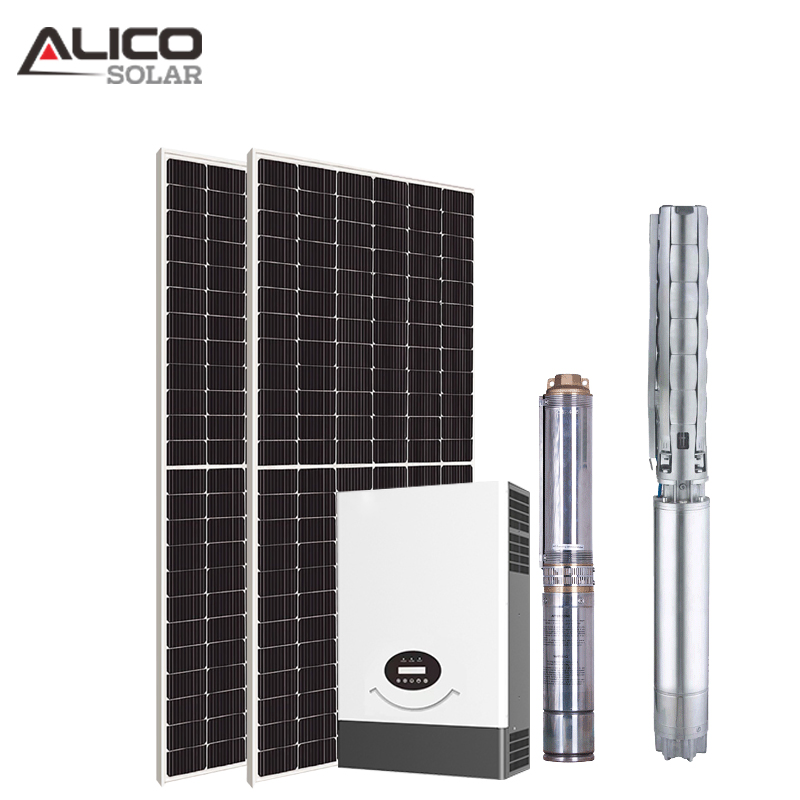

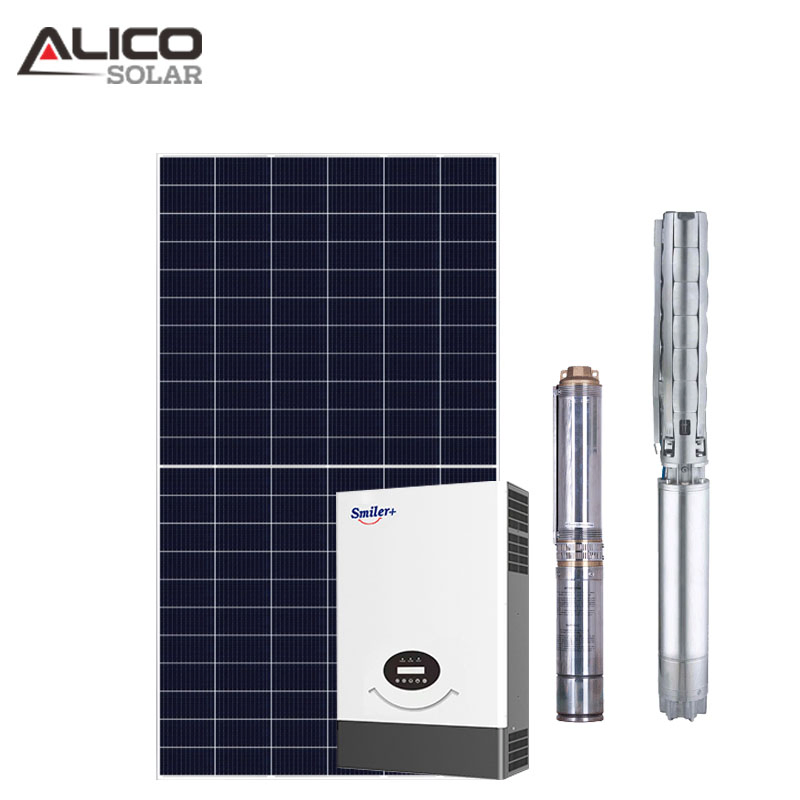

DC AC Solar Pump system for Farm Irrigation
| MODEL | VOLTAGE (V) | RATE POWER (W) | MAX FLOW (m3/h) | MAX HEAD (M) | OUTLET (in) | DIAMETER (mm) |
|---|---|---|---|---|---|---|
| JS3-0.9-32 | 24 | 100 | 0.9 | 32 | 3/4" | 76 |
| JS3-1.8-80 | 24 | 210 | 1.8 | 80 | 3/4" | 76 |
| JC3-4.2-54 | 48 | 600 | 4.2 | 54 | 1" | 76 |
| JS4-4.0-100 | 72 | 1000 | 4 | 100 | 1" | 100 |
| JCS4-25-96 | 288 | 4000 | 25 | 96 | 2" | 100 |
| JCS6-70-33 | 288V | 4000 | 70 | 33 | 4" | 150 |
| JETS-4.2-60 | 72 | 750 | 4.2 | 60 | 1"*1" | Surface |
| Item Name | Description | Unit | Quantity |
|---|---|---|---|
| Solar panel | 260W / 31.2V poly | pc | 136 |
| Mounting structure | Q235 material, Hot-dip zinc | set | 1 |
| Pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |

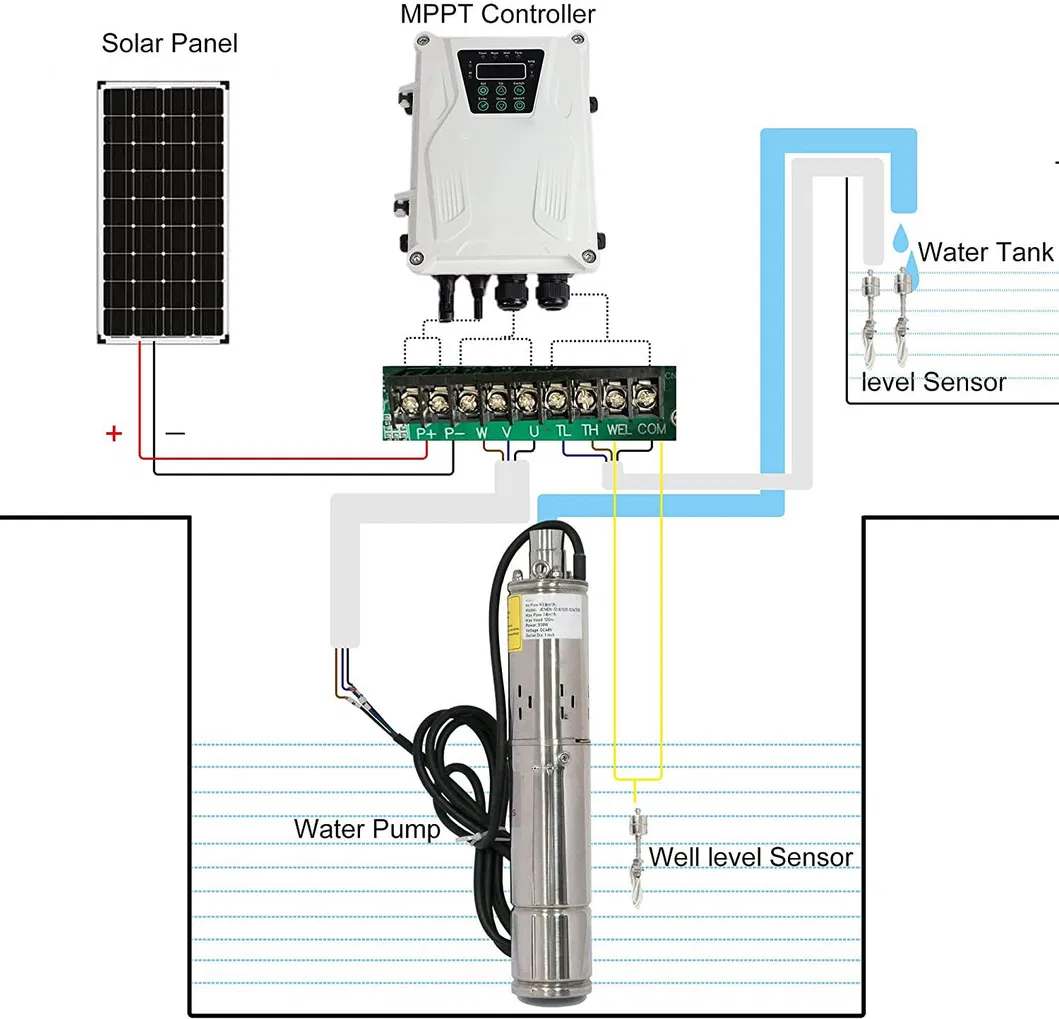

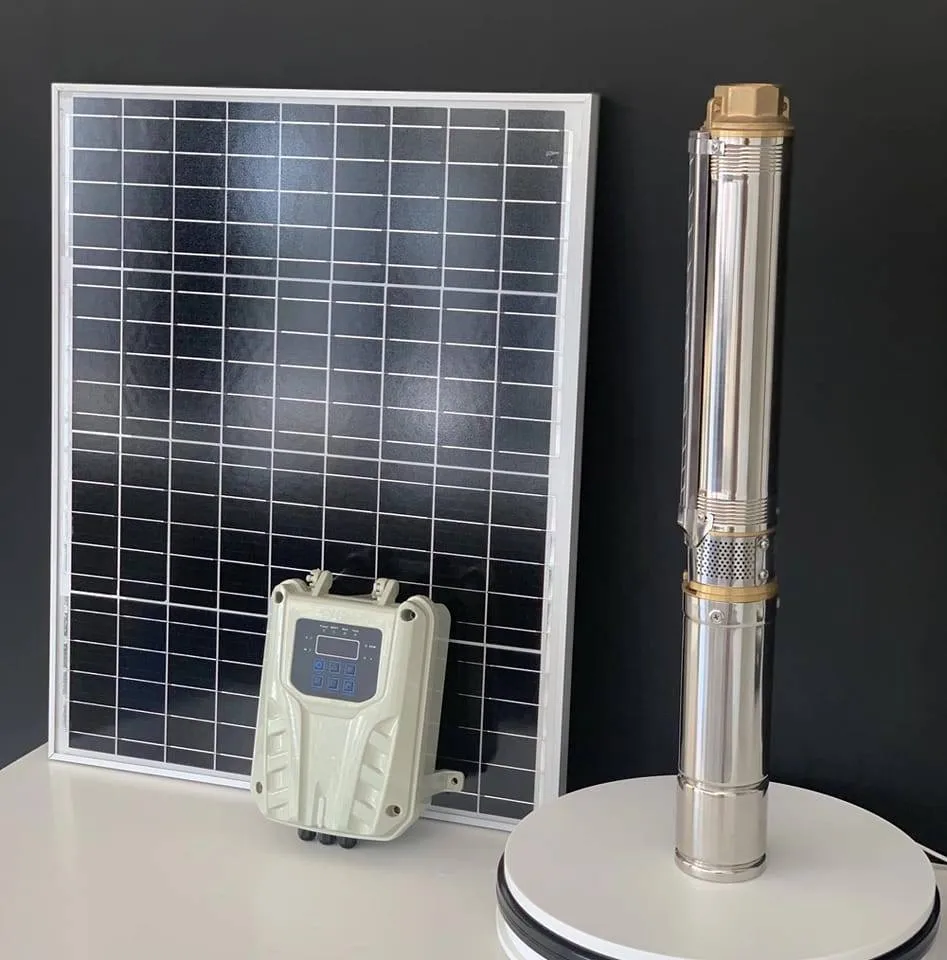

Solar pump systems are high quality products designed for drinking water supply, livestock watering and small irrigation applications without any pollution. No grid infrastructure is required for site selection.

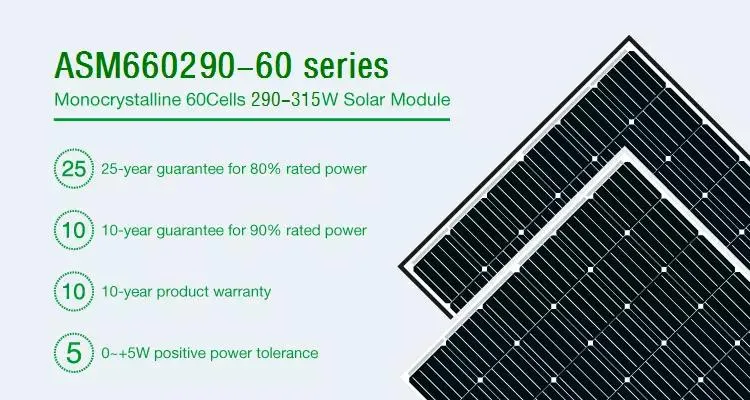

Peak Power: 290W | Max Voltage: 32.2V
Dimensions: 1640×992×35 mm
High efficiency cells for stable power output.

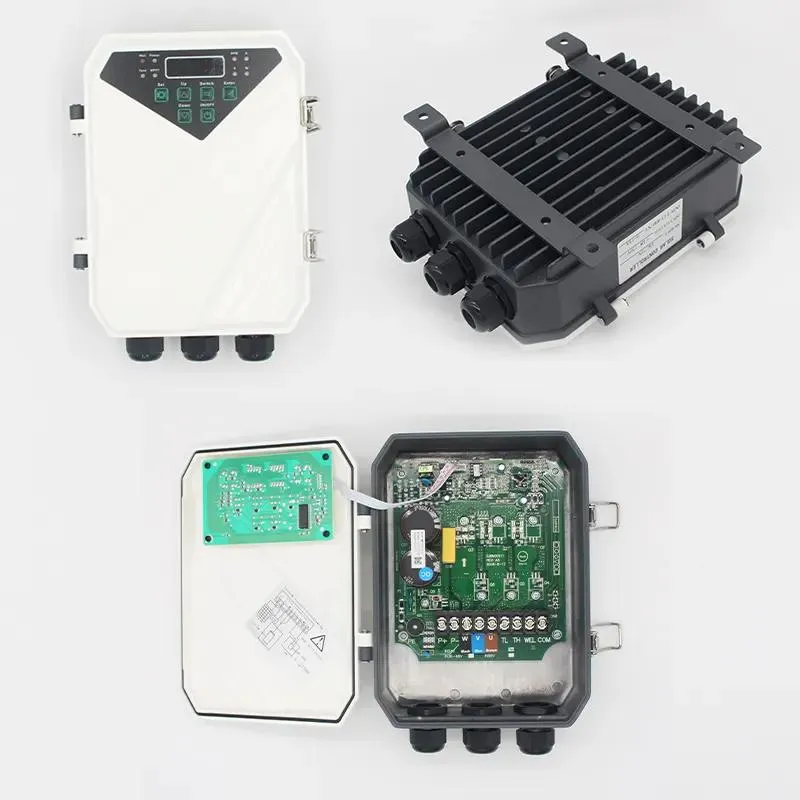

Max DC Input: 8.5KW | Max Voltage: 600V
MPPT Voltage Range: 90-520V
Wifi/GPRS monitoring optional.
Material: 304/316 Stainless Steel
Power Type: DC or AC/DC Option
Motor: BLDC Brushless Motor
