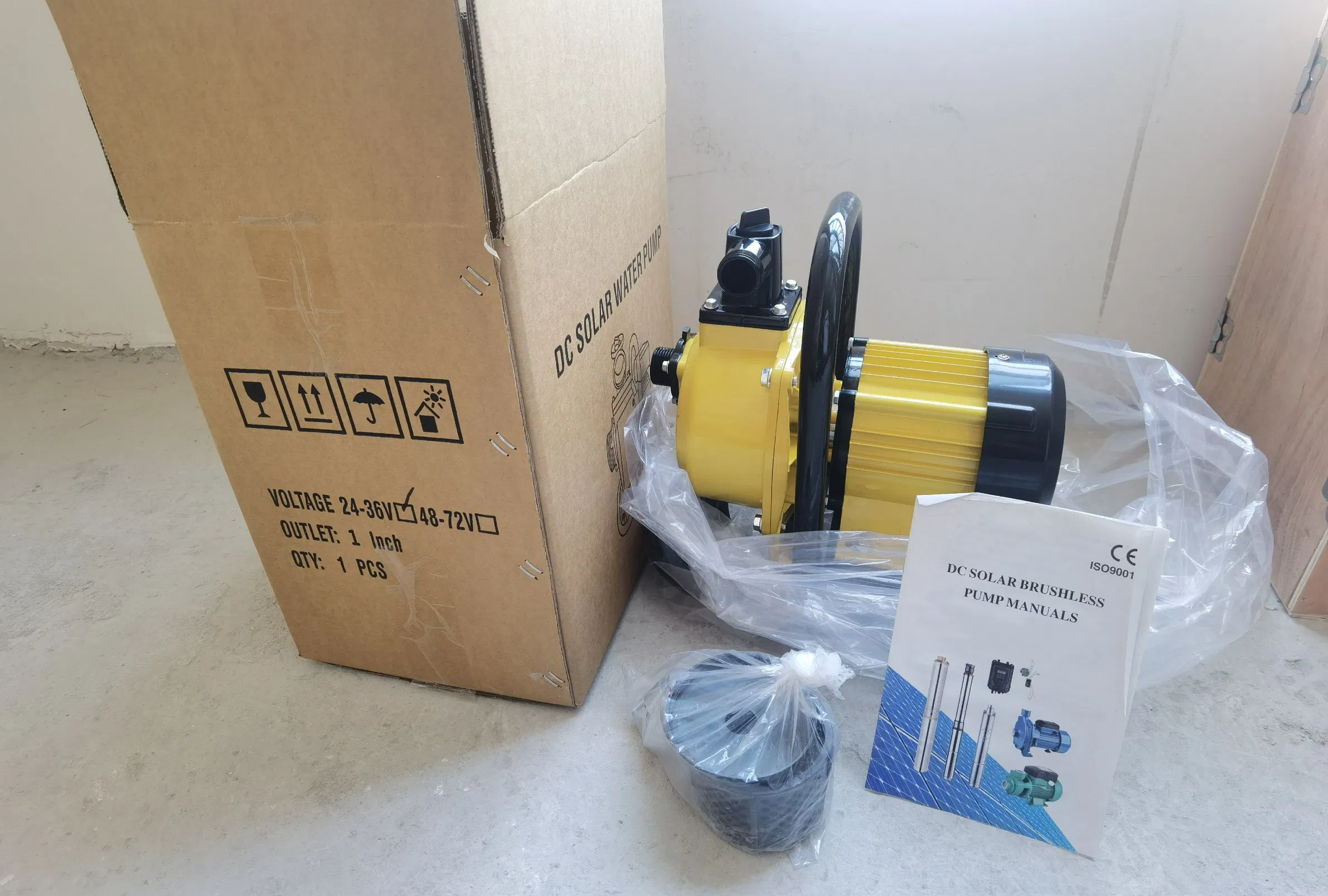

1HP DC Solar Powered Surface Centrifugal Water Pump OEM Irrigation System MPPT

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
LXXP-25
Product Name
DC Brushless Solar Self-Priming Booster Pump
Voltage
DC48/60/72V (Voc 40-96V)
Power
750W (1HP)
Max Flow
6m³/H
Max Head
25m
Suction
8 Meters
Certification
CE
Motor Type
DC Brushless 100% Copper Motor
Power Source
Solar Power / DC Battery

Product Overview

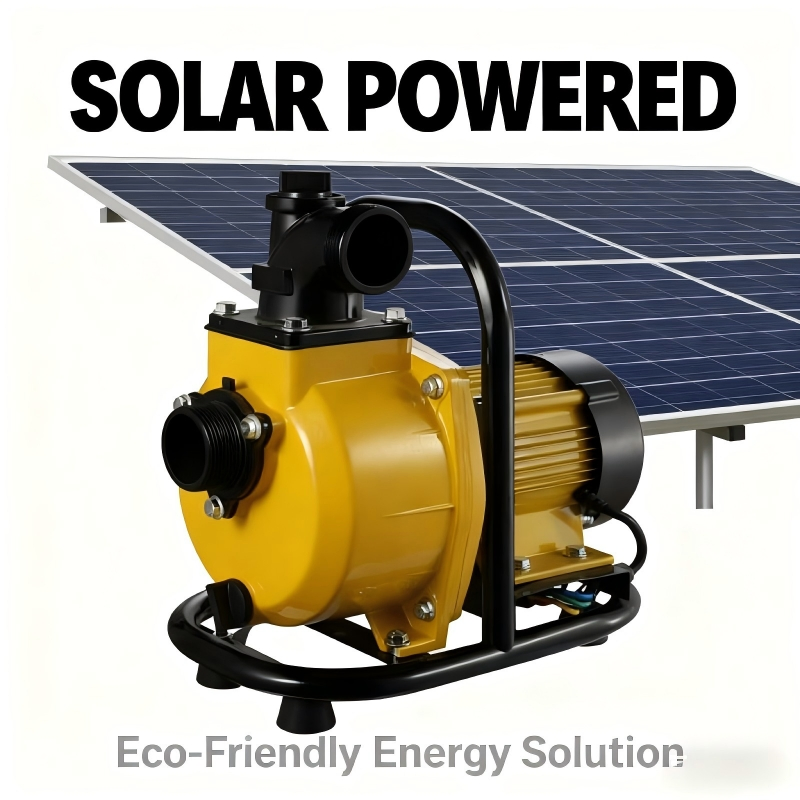

1HP DC Solar Powered Surface Centrifugal Water Pump Irrigation System MPPT

Feature Details
Outlet Size25mm (1 inch)
Horsepower1HP
Voltage RangeDC 48/60/72V
ApplicationWastewater treatment, Family Homes, Irrigation and Agriculture

Product Gallery

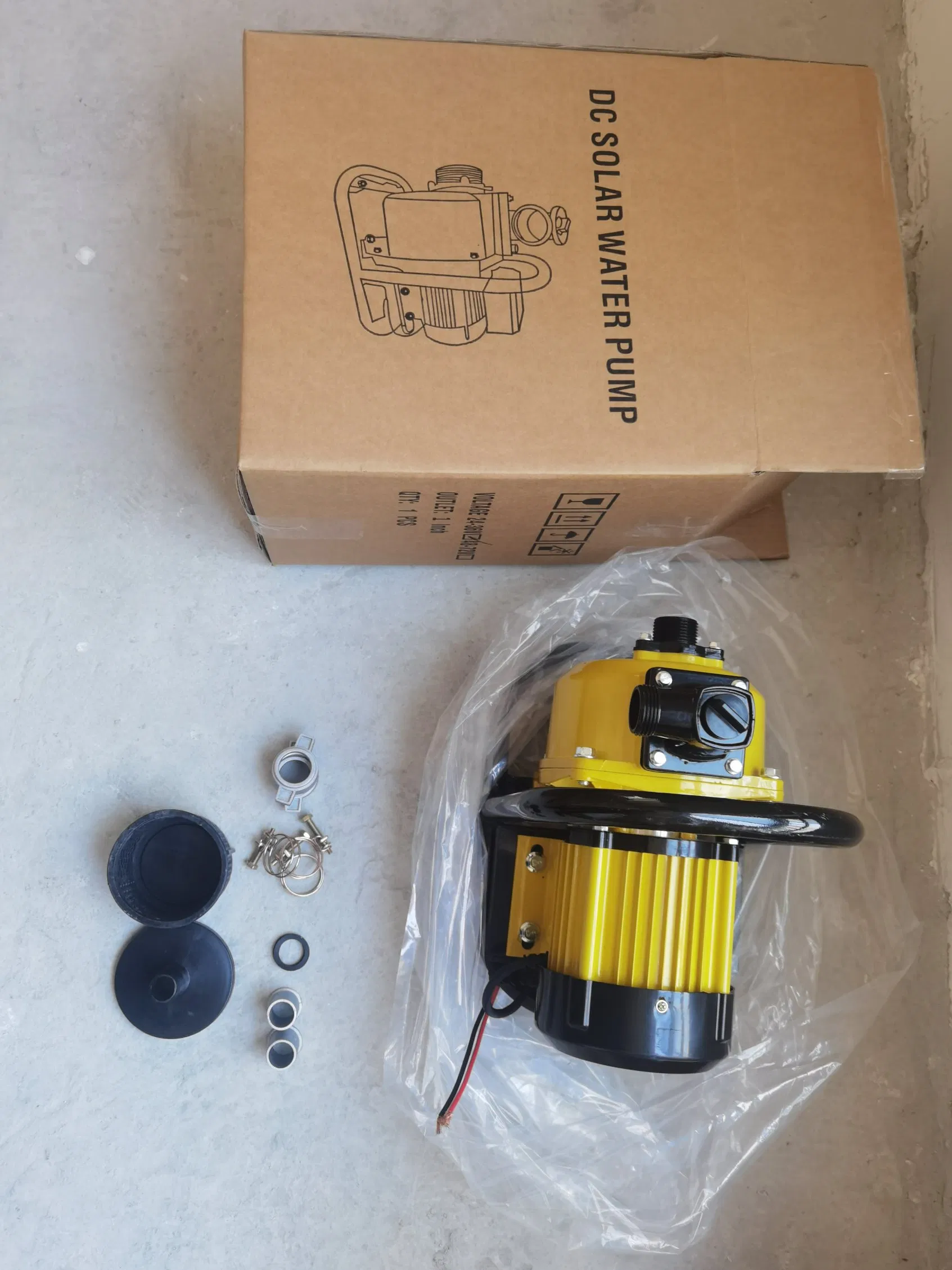

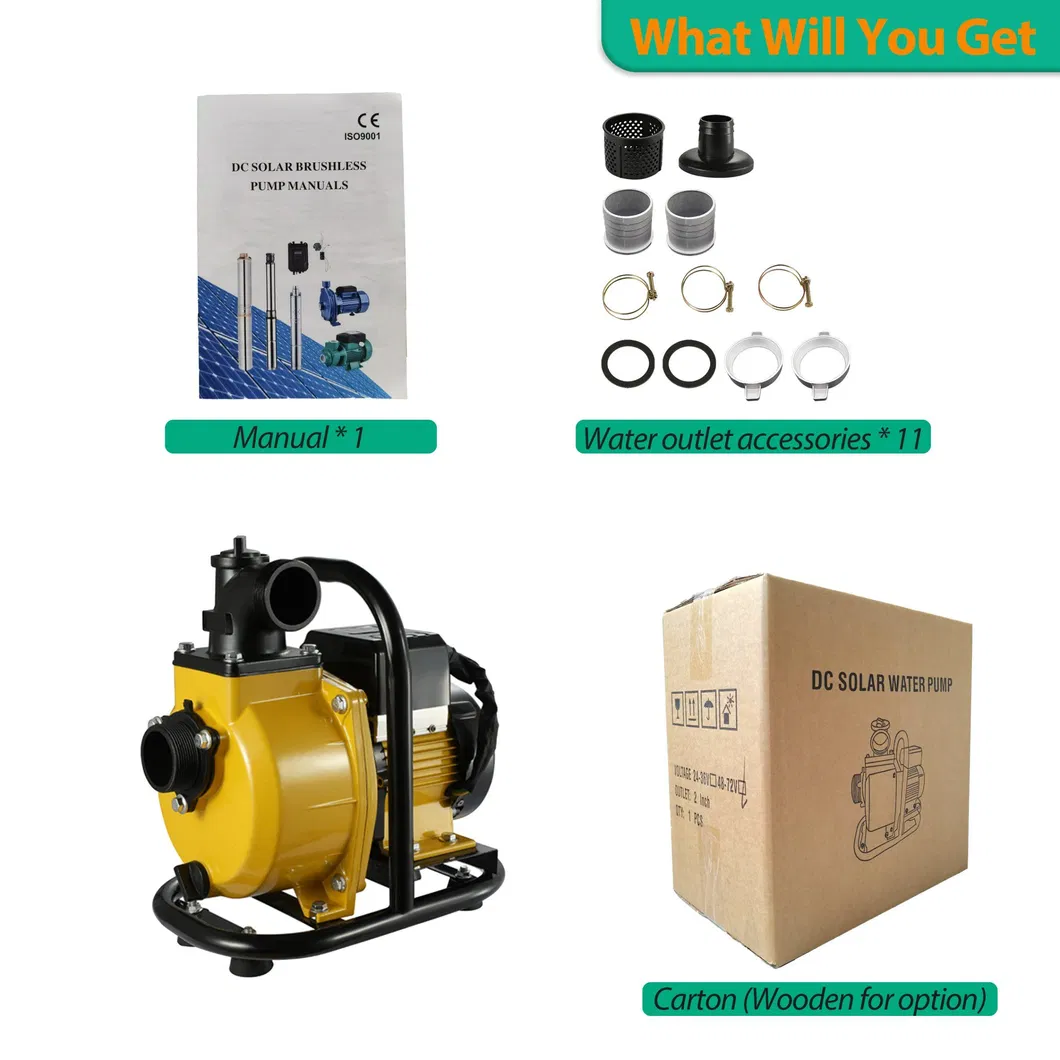

Solar Pump System 1

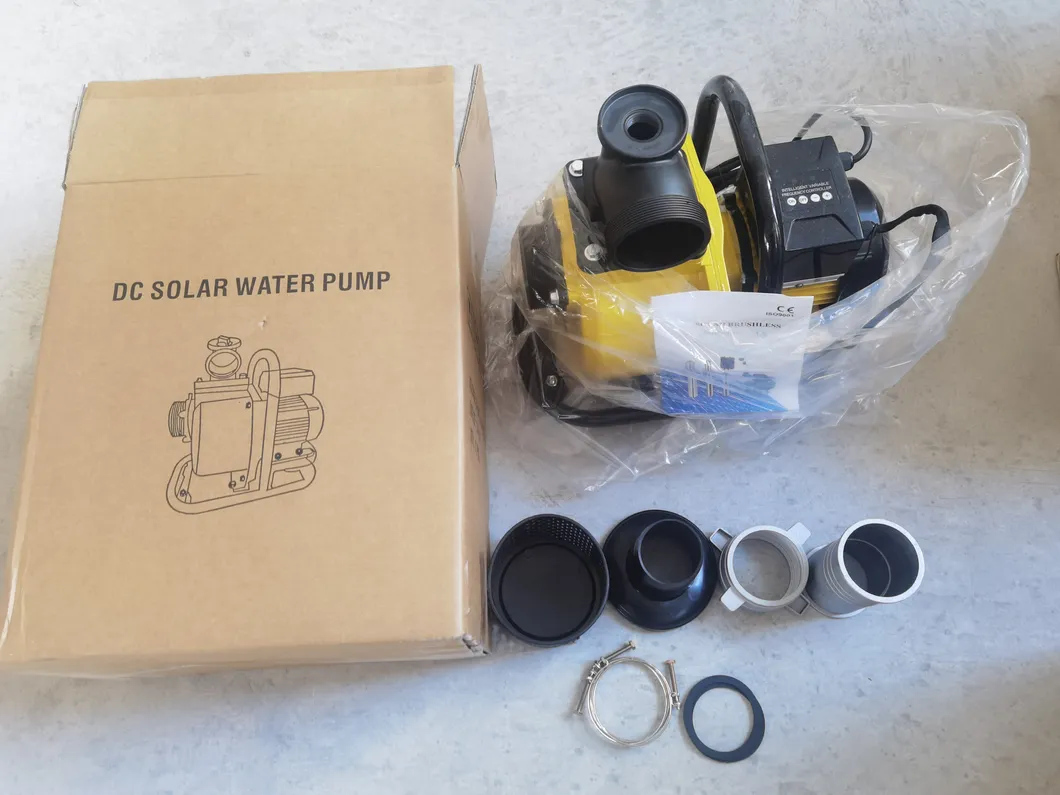

Solar Pump System 2

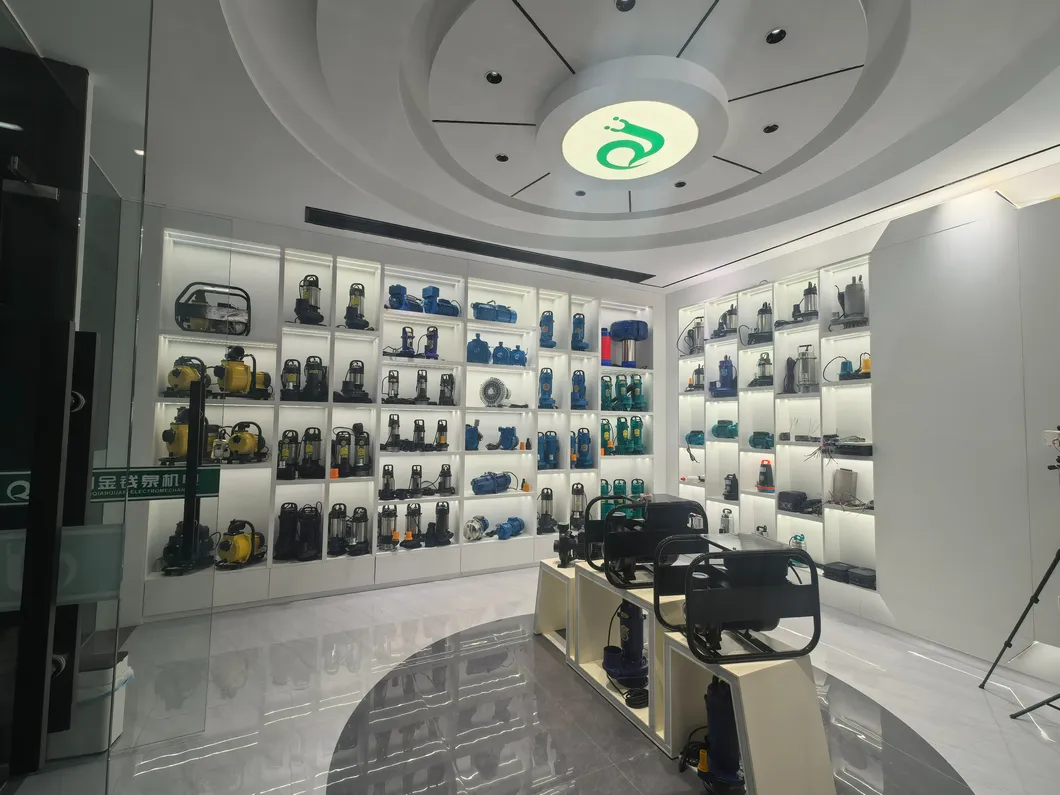

Sample Room

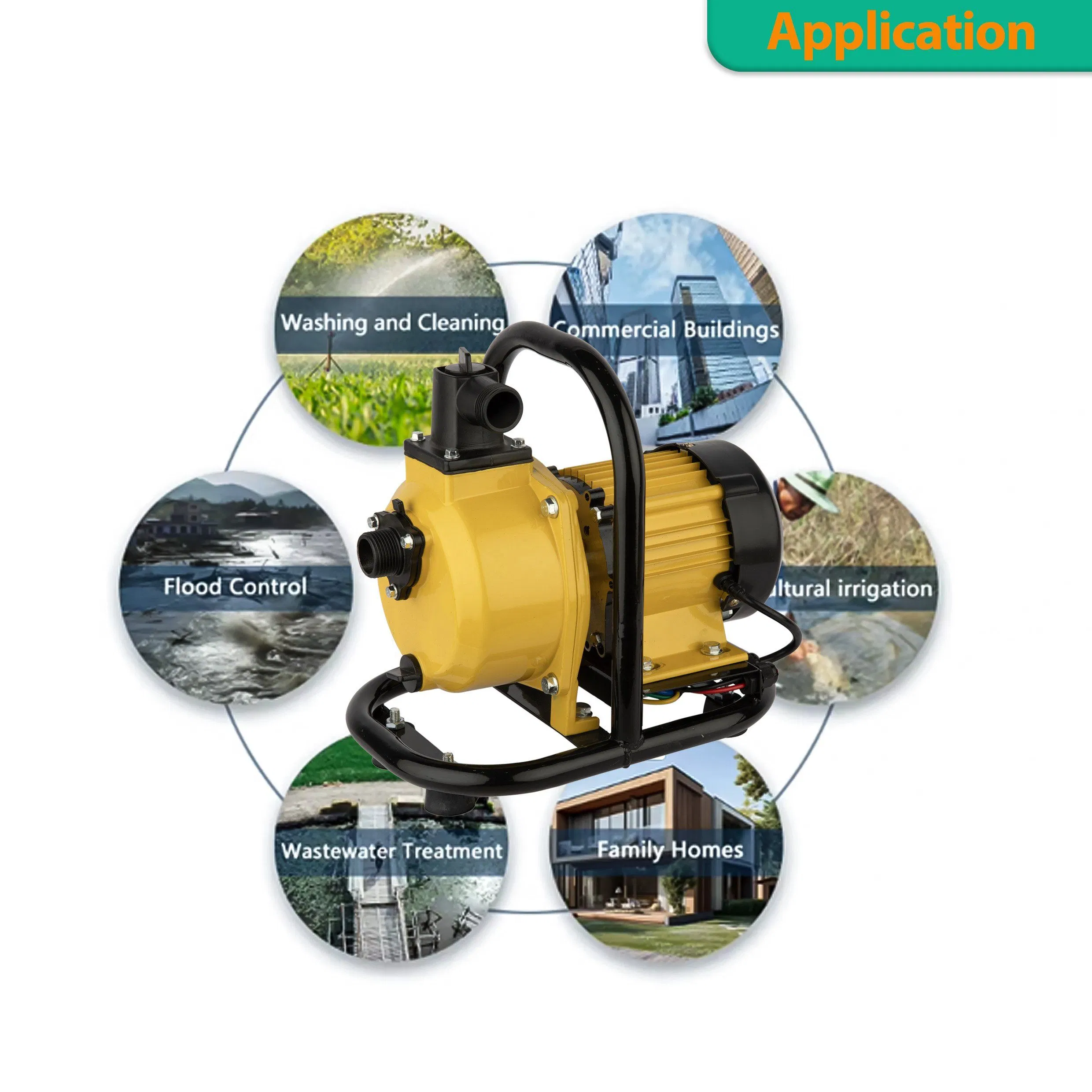

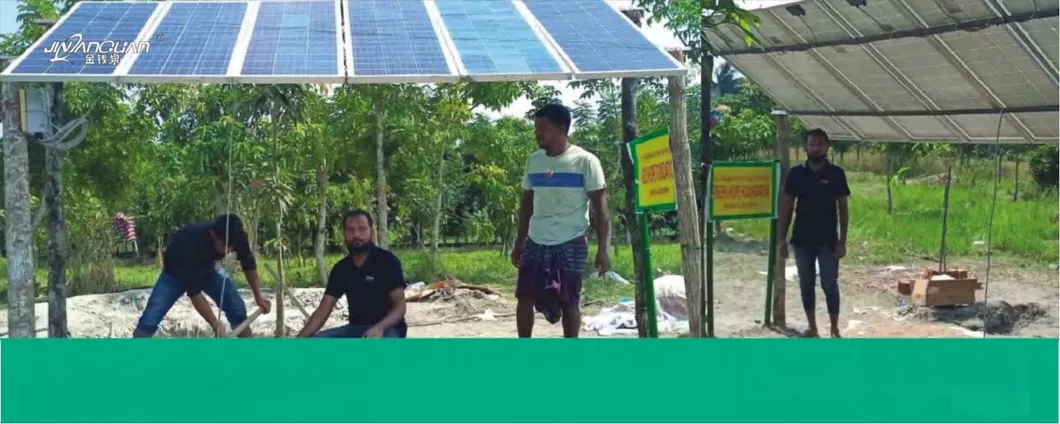

Application View

Product Advantages

1
Intelligent Technology: Brushless inverter DC solar self-priming booster pump for stable performance.
2
Premium Motor: Equipped with a DC brushless 100% copper motor for long-lasting durability.
3
Energy Efficient: Significantly safer and more energy-efficient than conventional AC pumps.
4
Flexible Connectivity: Directly connects to solar panels or DC batteries; AC connection possible with a power converter.
5
High Performance: 1-inch outlet with high head capability, perfect for agriculture and irrigation.

Professional Capability

Manufacturing

Specializing in DC brushless solar water pumps, including submersible, sewage, and self-priming variants. With over 20 years of manufacturing experience, our products feature advanced designs, high-quality materials, and durable construction.

Our range is widely used in domestic water supply, agricultural irrigation, and industrial drainage. We prioritize quality and reputation in every product we manufacture.

Customization Services

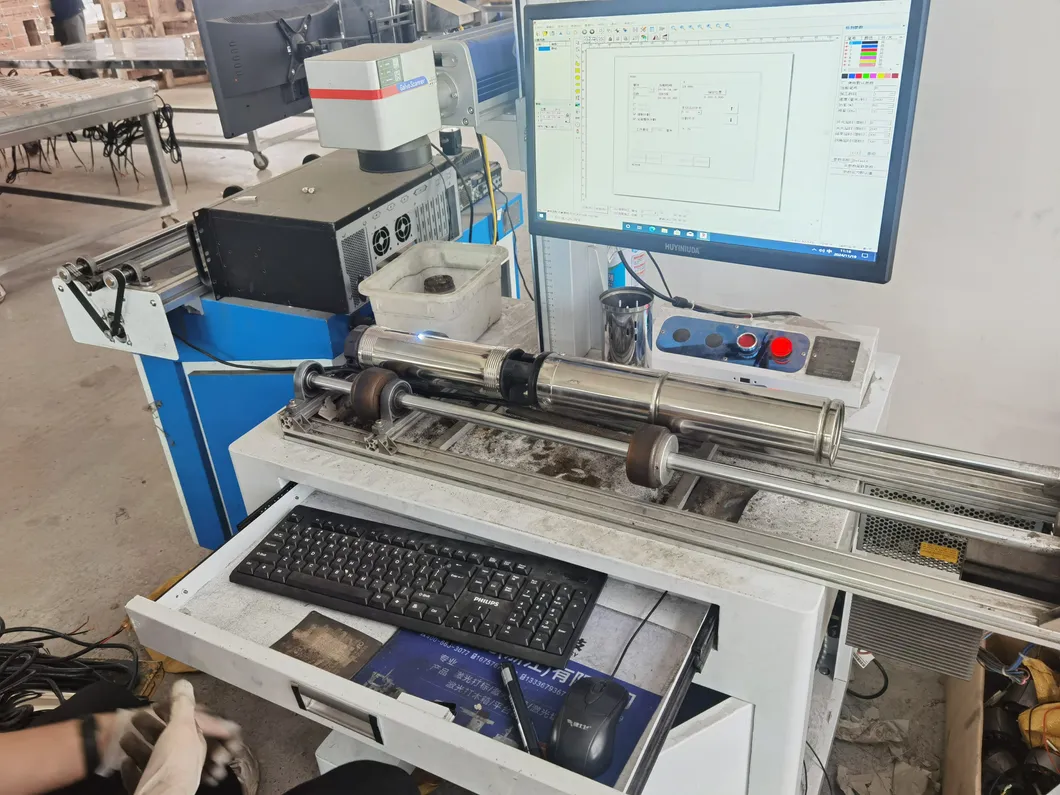

Customization

We support OEM and ODM customization for bulk orders. Tailored options include:

  • Custom Logos & Trademarks
  • Packaging Design & Patterns
  • Adjustable Cable Lengths
  • Pump Color Customization

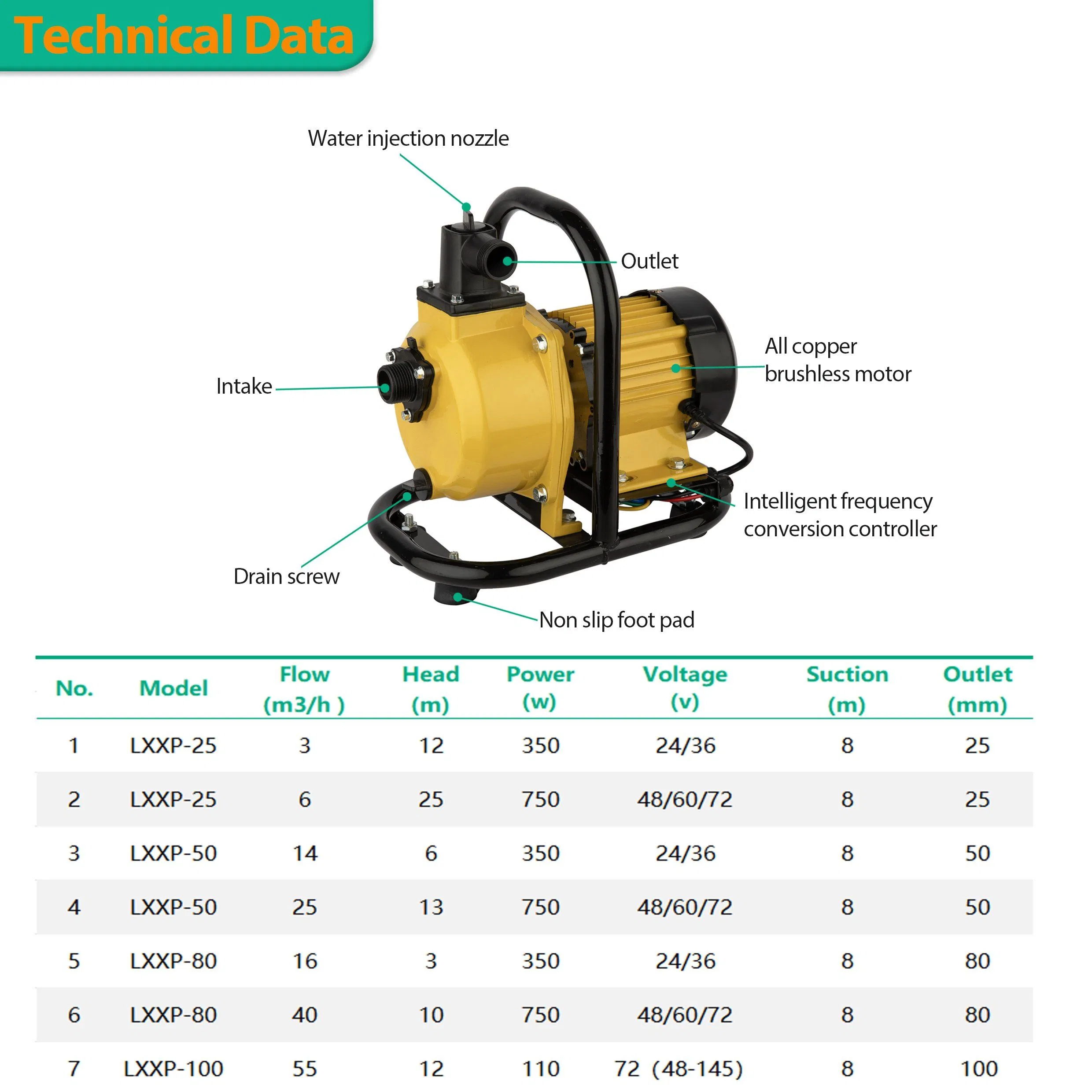

Detailed Specs 1
Detailed Specs 2
Technical Info

Frequently Asked Questions

1. What power sources can be used with this solar pump?
This pump is designed for DC power. It can be directly connected to solar panels (Voc 40-96V) or DC batteries. With a conversion power supply, it can also be connected to household AC power.
2. What is the maximum lift and flow rate?
The pump features a maximum head (lift) of 25 meters and a maximum flow rate of 6 cubic meters per hour (6m³/h).
3. Is the motor durable for long-term agricultural use?
Yes, it uses a 100% copper brushless DC motor, which is more durable, efficient, and requires less maintenance than traditional brushed motors.
4. Can I customize the cable length or pump color?
Yes, we support OEM and ODM customization, including custom logos, cable lengths, pump colors, and specific packaging once a minimum order quantity is reached.
5. What applications is this pump suitable for?
It is ideal for places with strong sunlight and water shortages, such as family agricultural use, garden irrigation, and pumping water from wells or ponds.
6. What is included in the packaging?
The standard packaging is a secure carton box. Each pump weighs approximately 10kg, and we typically pack four pieces into a larger carton for bulk shipments.
