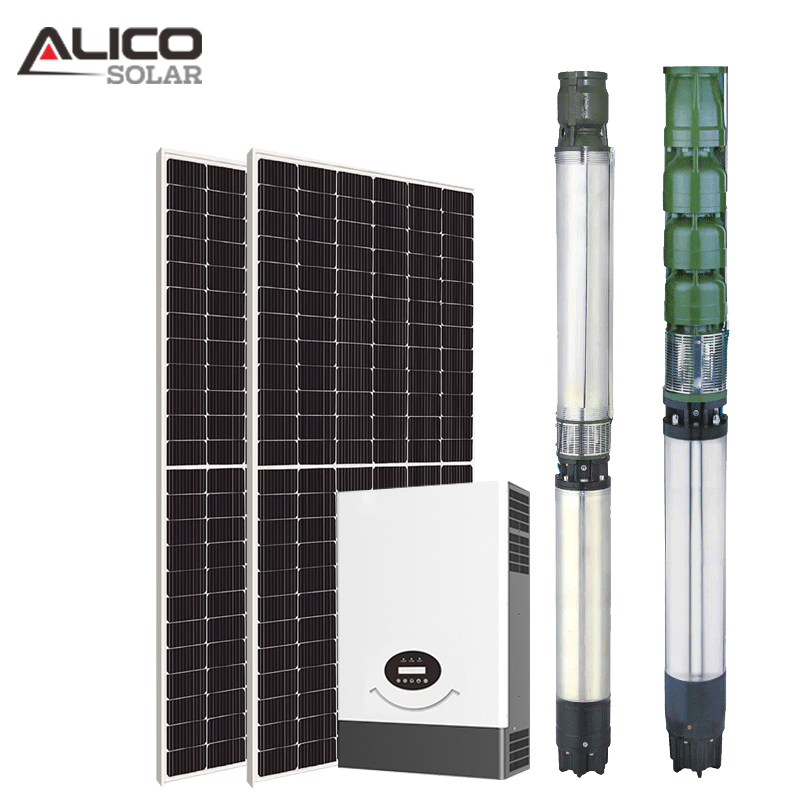

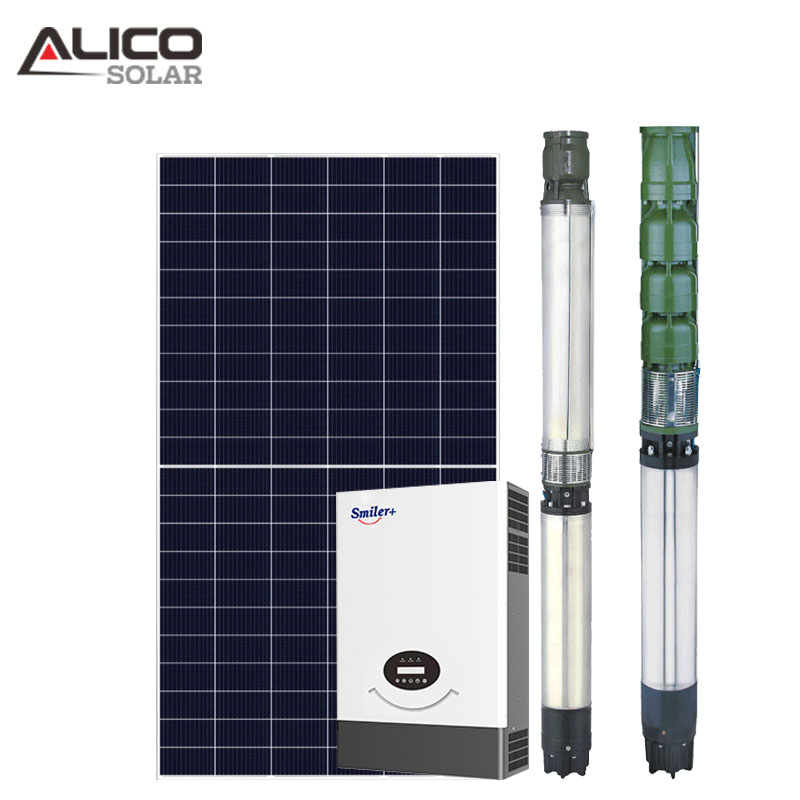

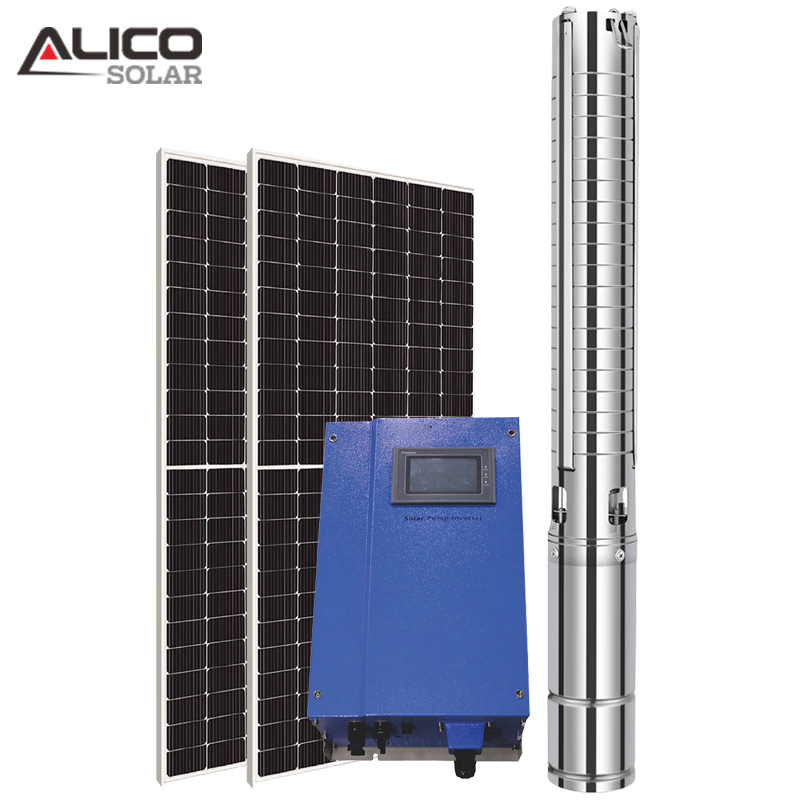

DC DC/AC for Irrigation Fish Pond Booster Borehole Solar Water Pump System OEM

1 / 5

DC DC/AC for Irrigation Fish Pond Booster Borehole Solar Water Pump System OEM

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋Basic Information

Model NO.

pump

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, OEM

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

off-Grid Inverter

System Type

Home Solar Power System

Power

Electric

Type

Positive-Displacement Pump

Theory

Centrifugal Pump

Media

Sea Water Pump

HS Code

8501610000

📦Packaging & Delivery

Package Size

110.00cm * 80.00cm * 55.00cm

Gross Weight

50.000kg

Transport Package

Carton/Wooden Box

Production Capacity

1.2 Gw/Year

🚀Product Description

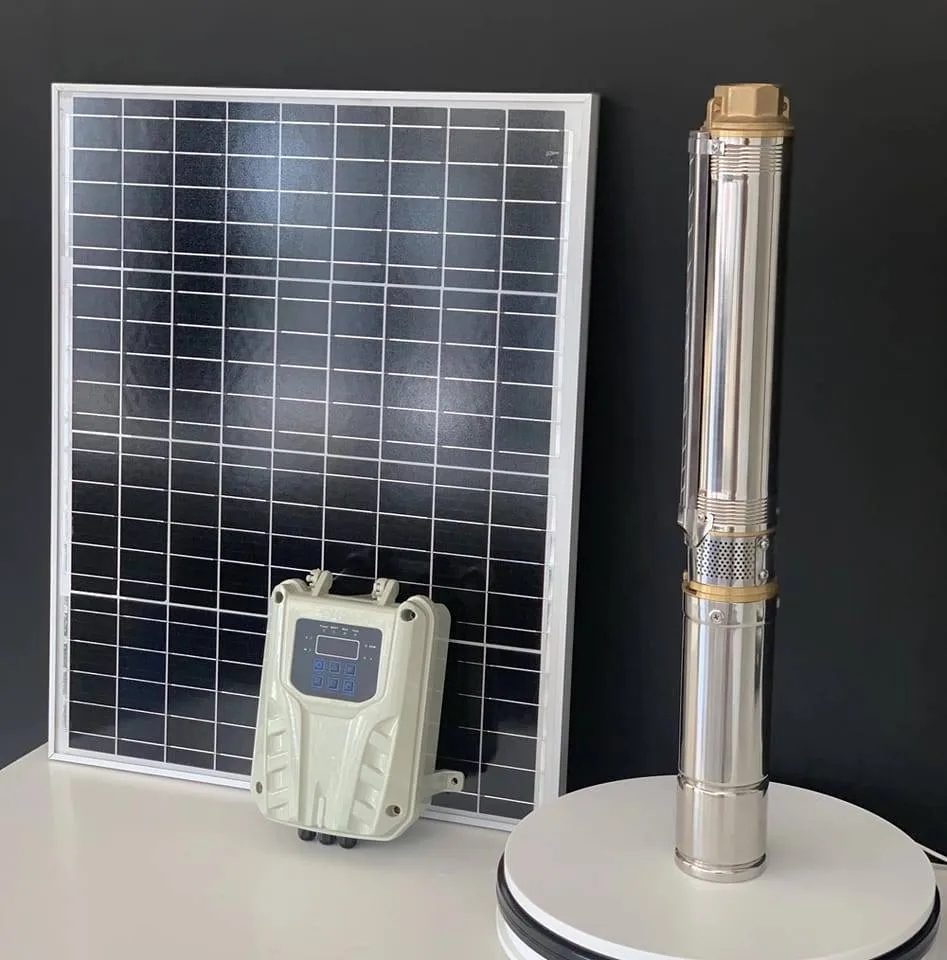

DC AC Solar Pump system for Farm

Model	VOLTAGE (V)	RATE POWER (W)	MAX FLOW (m3/h)	MAX HEAD (M)	OUTLET (in)	DIAMETER (mm)
JS3-0.9-32	24	100	0.9	32	3/4"	76
JS3-2.1-120	48	540	2.1	120	3/4"	76
JC3-4.2-54	48	600	4.2	54	1"	76
JS4-4.0-100	72	1000	4	100	1"	100
JC4-14.0-33	72	1000	14	33	2"	100
JCS4-25-96	288	4000	25	96	2"	100
JCS6-70-33	288V	4000	70	33	4"	150

📊30HP Solar Water Pump System Parameters

Item Name	Description	Unit	Quantity
Solar panel	260W / 31.2V poly	pc	136
mounting structure	Q235 material, Hot-dip zinc	set	1
PV cables	4mm2, 400m	set	1
pump inverter	Model 30000H	pc	1
Water pump	30HP	pc	1
Pump cables	3*16mm2, 200m	set	1

AGRICULTURAL IRRIGATION
ANIMAL HUSBANDRY
DESERTIFICATION CONTROL

Solar pump systems are high quality products designed for drinking water supply, livestock watering and irrigation applications without pollution. No infrastructure or grid is required for site selection. Optional grid can be back-up to meet day and night running.

⚙️Technical Components

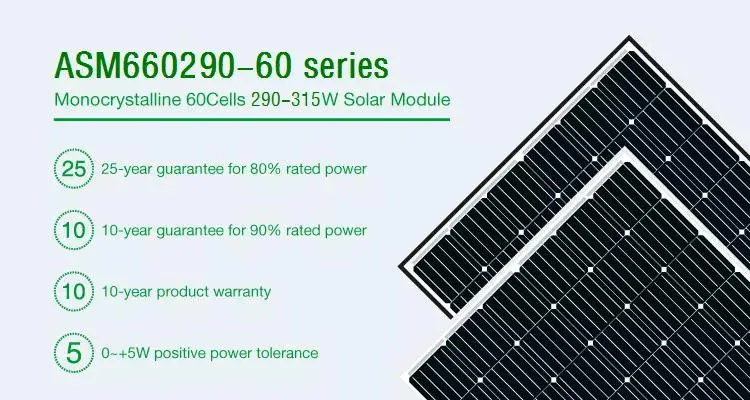

Mono Solar Panels

Peak Power: 290W
Max Power Voltage: 32.2V
Max Power Current: 9.02A
Dimensions: 1640×992×35 mm
Weight: 18.6 kg

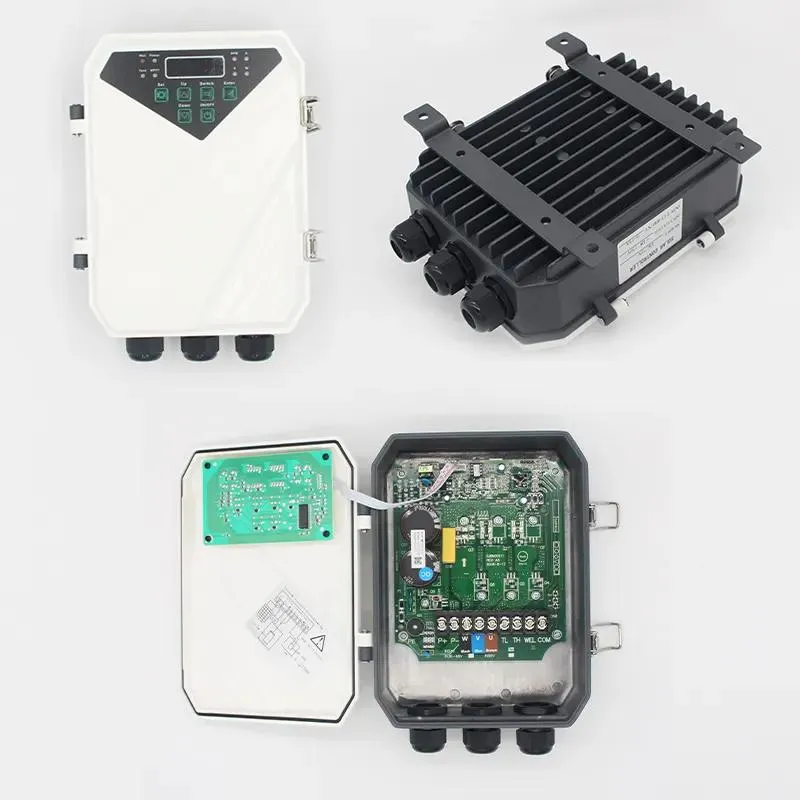

Pump Controller

Max.DC Input Power: 8.5KW
Max. DC Input Voltage: 600V
MPPT Voltage Range: 90-520V
Wifi Stick For STD, Lan & GPRS Optional.

Submersible Solar Pump

Power type: DC, AC/DC option
Moto type: BLDC
Diameter: 1-6 inch
Pump body: Stainless steel 304
Application: Irrigation, Water supply

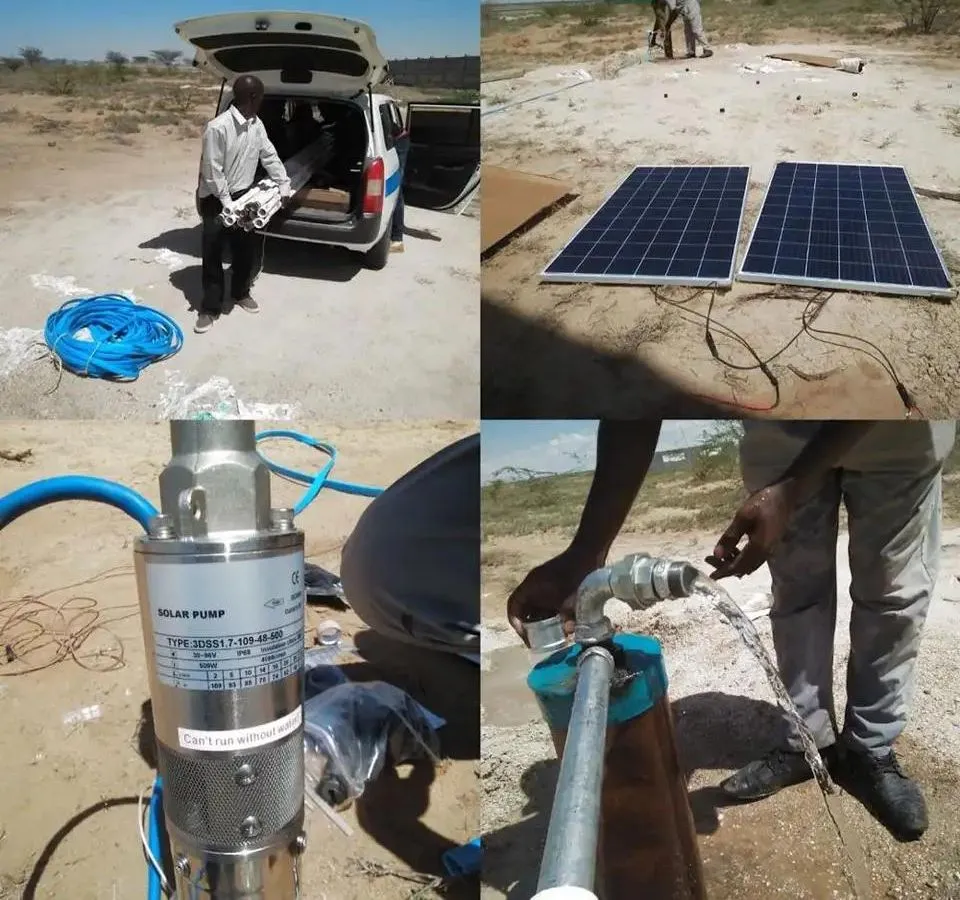

🖼️Projects Shown

📦Packaging & Shipping

❓Frequently Asked Questions

Are your inverters pure sine wave output?

Yes, all are true pure sine wave.

What's the difference between pure sine wave and modified sine wave?

Pure sine wave output is as good as the public power grid, if not better. It has a low repair rate, long lifespan, and protects appliances. Modified sine wave can have a negative impact on inductive loads like air conditioners and refrigerators.

What appliances can your inverters load?

Our inverters can be used for household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, and water pumps.

Do I need a power inverter for a solar system?

It is the only component not absolutely required if you only need DC power. However, to use normal AC appliances (220V or 230V), an inverter is necessary.

How do I choose the right inverter voltage (12, 24, or 48V)?

This refers to the battery bank input. Higher voltages allow for smaller wires between the panels and batteries due to less current. Your panels, inverter, and battery bank must all use the same voltage.

What should I do if a product is faulty?

If any product is faulty, you can provide a picture or video. We will study the issue and provide necessary spare parts like PCB boards for after-sales service.
