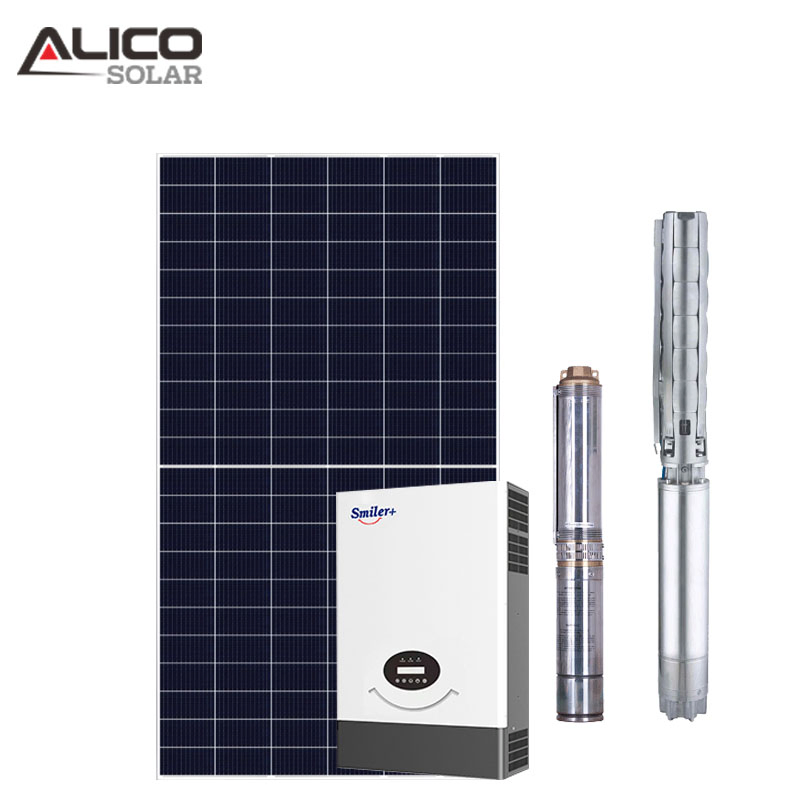

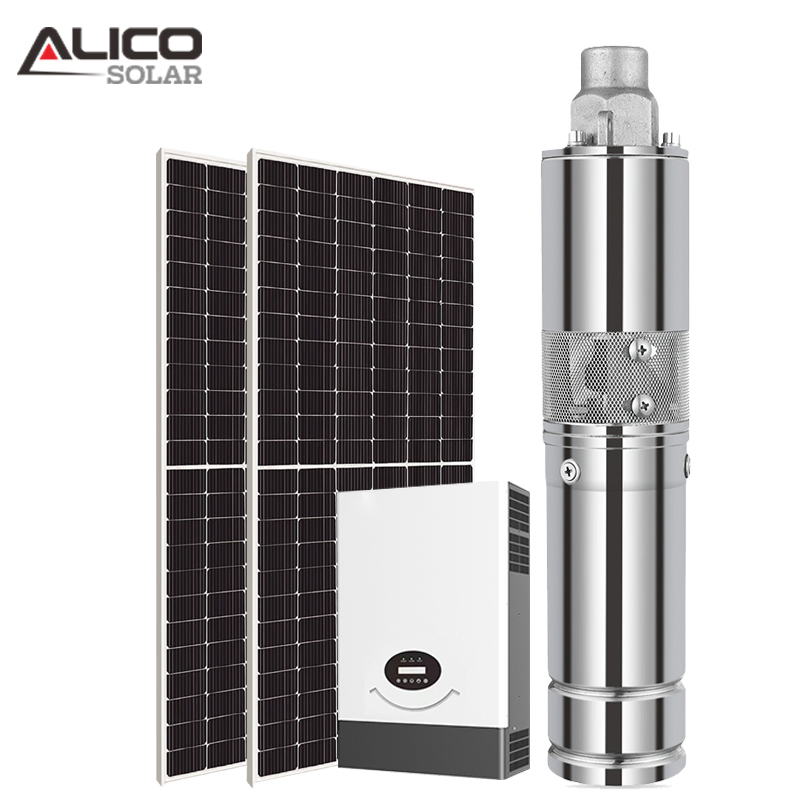

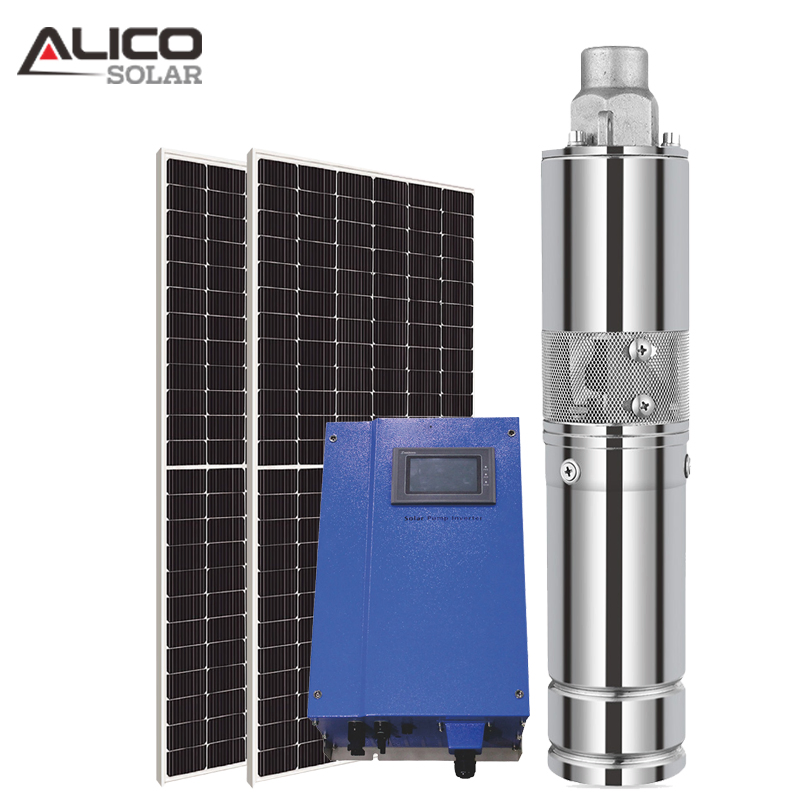

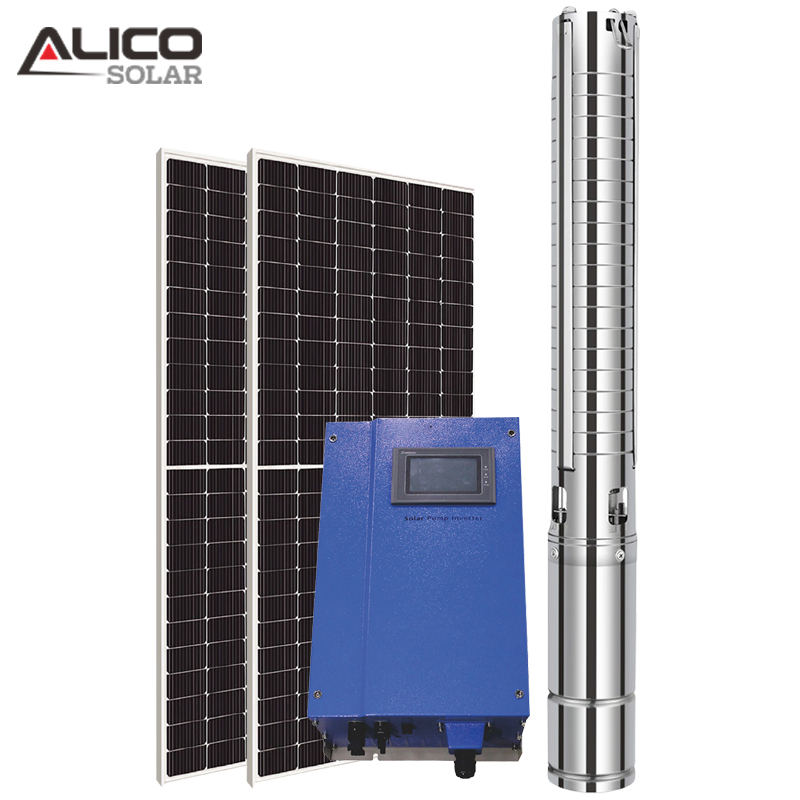

DC AC Solar Pump system designed for agricultural irrigation and drinking water supply. High-efficiency solutions with submersible and surface options.
| Model | Voltage (V) | Rated Power (W) | Max Flow (m3/h) | Max Head (M) | Outlet (in) | Diameter (mm) |
|---|---|---|---|---|---|---|
| JS3-0.9-32 | 24 | 100 | 0.9 | 32 | 3/4" | 76 |
| JS3-1.8-100 | 24 | 270 | 1.8 | 100 | 3/4" | 76 |
| JC3-4.2-54 | 48 | 600 | 4.2 | 54 | 1" | 76 |
| JS4-4.0-100 | 72 | 1000 | 4 | 100 | 1" | 100 |
| JCS4-25-96 | 288 | 4000 | 25 | 96 | 2" | 100 |
| JCS6-70-33 | 288V | 4000 | 70 | 33 | 4" | 150 |
| Item Name | Description | Unit | Quantity |
|---|---|---|---|
| Solar Panel | 260W / 31.2V Poly | pc | 136 |
| Mounting Structure | Q235 material, Hot-dip zinc | set | 1 |

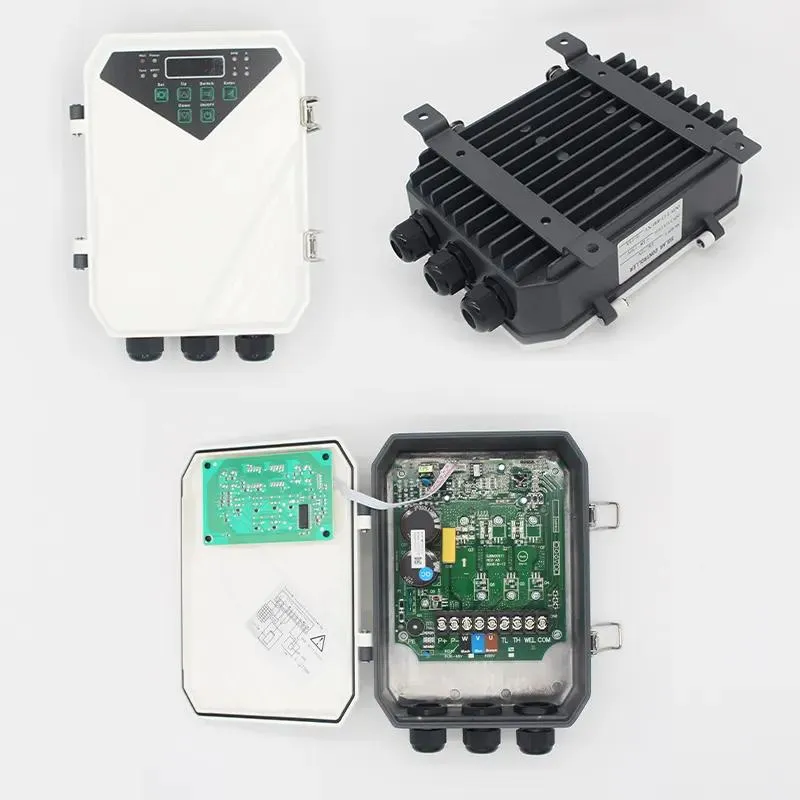

| Pump Inverter | Model 30000H | pc | 1 |
| Water Pump | 30HP High Efficiency | pc | 1 |
| Cables & Accessories | PV cables, Pump cables, MC4, Safety rope | set | 1 |

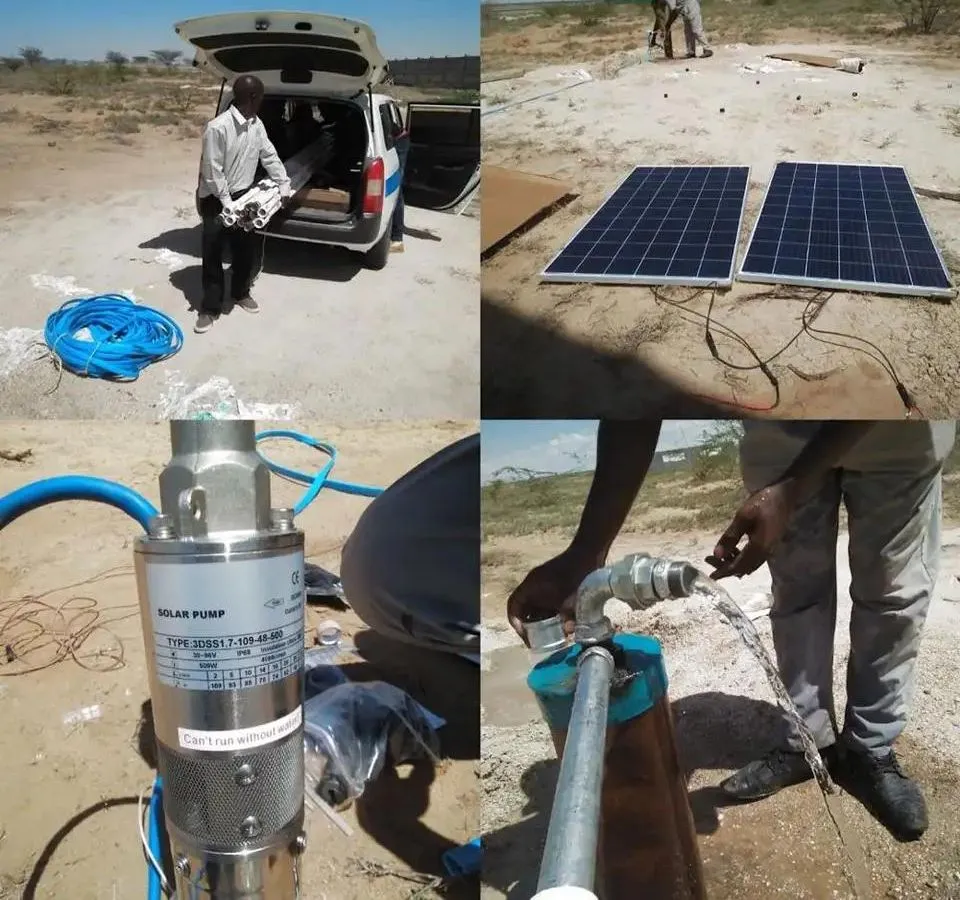

Solar pump systems are high-quality products designed for clean water supply without pollution. No infrastructure or grid is required, making them ideal for remote sites.
Power of solar panel = Pump Power X 1.3
Voltage of solar panel should match the pump voltage.
Use hours = Battery Capacity ÷ (Machine Power ÷ Battery Voltage) X 0.6
