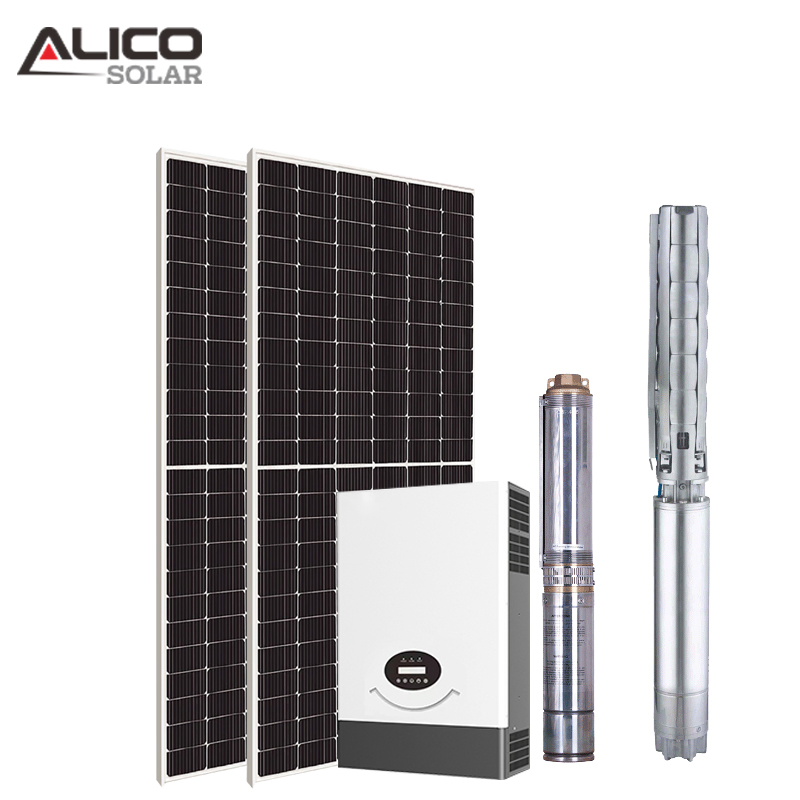

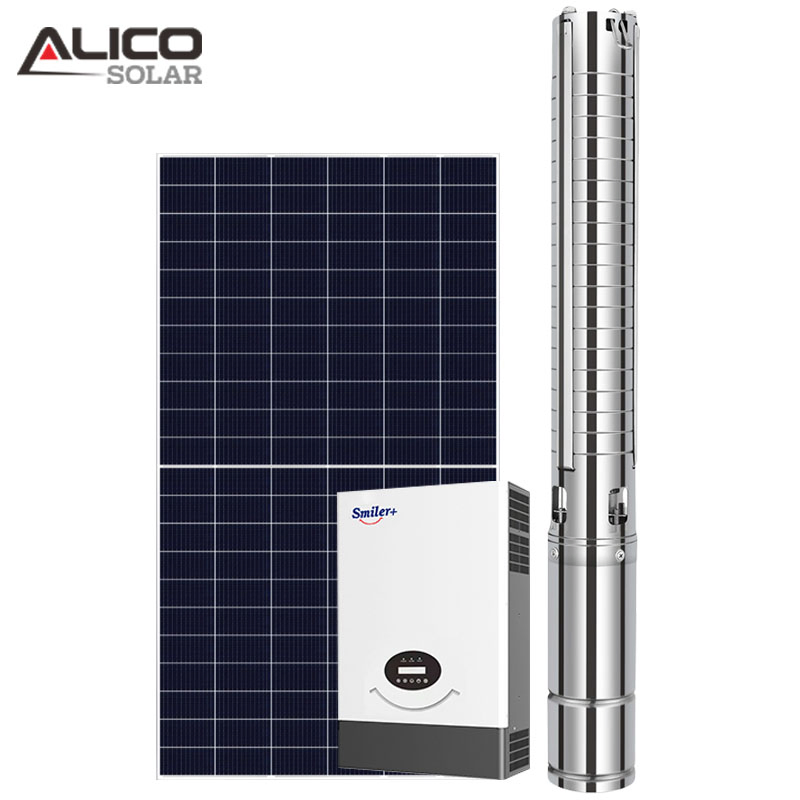

DC DC/AC 12V System Irrigation Solar Pumps Water Pump with Good Service

1 / 5

DC DC/AC 12V System Irrigation Solar Pumps Water Pump with Good Service

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

⚙️

Basic Information

Model NO.

pump

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, OEM

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

off-Grid Inverter

System Type

Home Solar Power System

Power

Electric

Type

Positive-Displacement Pump

Theory

Centrifugal Pump

Origin

Jiangsu, China

Capacity

1.2 Gw/Year

💧

Product Description

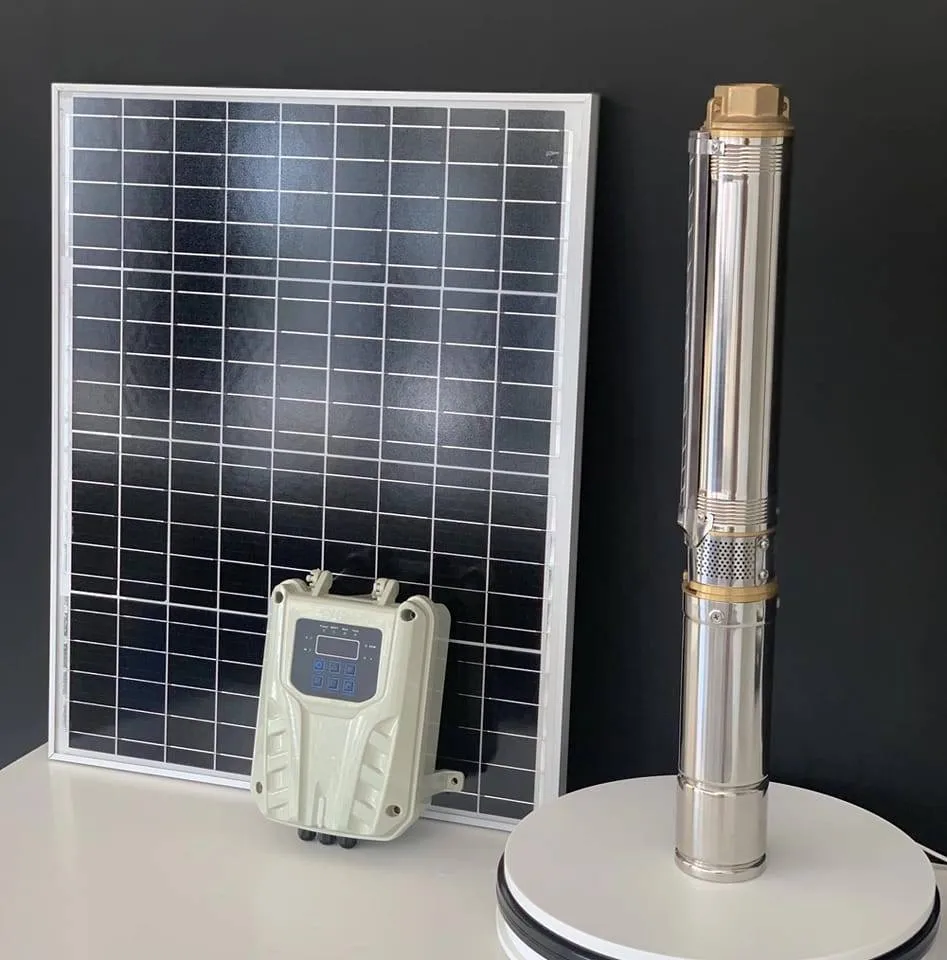

DC AC Solar Pump system for Farm Irrigation and drinking water supply. High-efficiency solar-powered water solutions designed for remote areas.

MODEL	VOLTAGE (V)	POWER (W)	MAX FLOW (m³/h)	MAX HEAD (M)	OUTLET (in)
JS3-0.9-32	24	100	0.9	32	3/4"
JS3-1.8-100	24	270	1.8	100	3/4"
JC3-4.2-54	48	600	4.2	54	1"
JS4-4.0-100	72	1000	4	100	1"
JC4-14.0-33	72	1000	14	33	2"
JCS4-25-96	288	4000	25	96	2"

📊

30HP Solar Water Pump System Parameters

Item Name	Description	Unit	Quantity
Solar panel	260W / 31.2V poly	pc	136
Mounting structure	Q235 material, Hot-dip zinc	set	1
PV cables	4mm2, 400m	set	1
Pump inverter	Model 30000H	pc	1
Water pump	30HP	pc	1
Pump cables	3*16mm2, 200m	set	1

Wide Range of Applications

✓ AGRICULTURAL IRRIGATION

✓ ANIMAL HUSBANDRY

✓ DESERTIFICATION CONTROL

✓ DOMESTIC WATER SUPPLY

🛠️

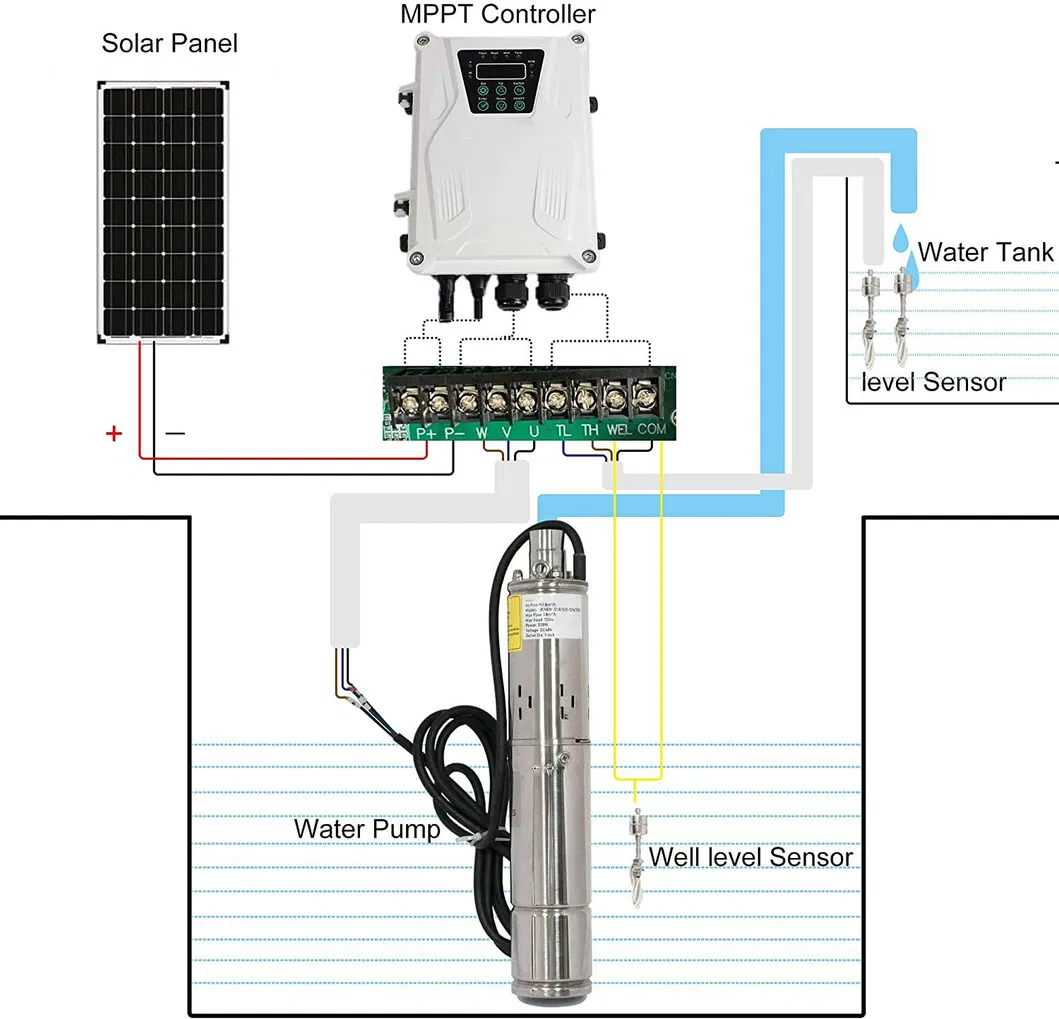

System Components

Mono Solar Panels

Peak Power: 290W
Max Voltage: 32.2V
Lifetime: ≤25 Years

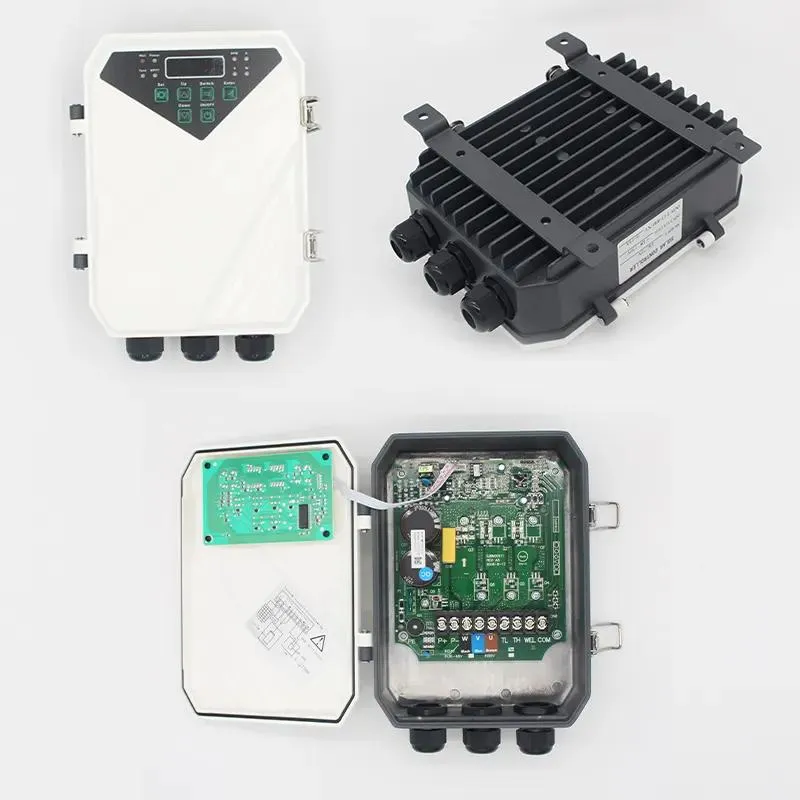

Pump Controller

Max DC Input: 8.5KW
Voltage Range: 90-520V
MPPT Efficiency High

Submersible Pump

Material: SS304/316
Horsepower: 0.3-5HP
Type: BLDC Motor

📦

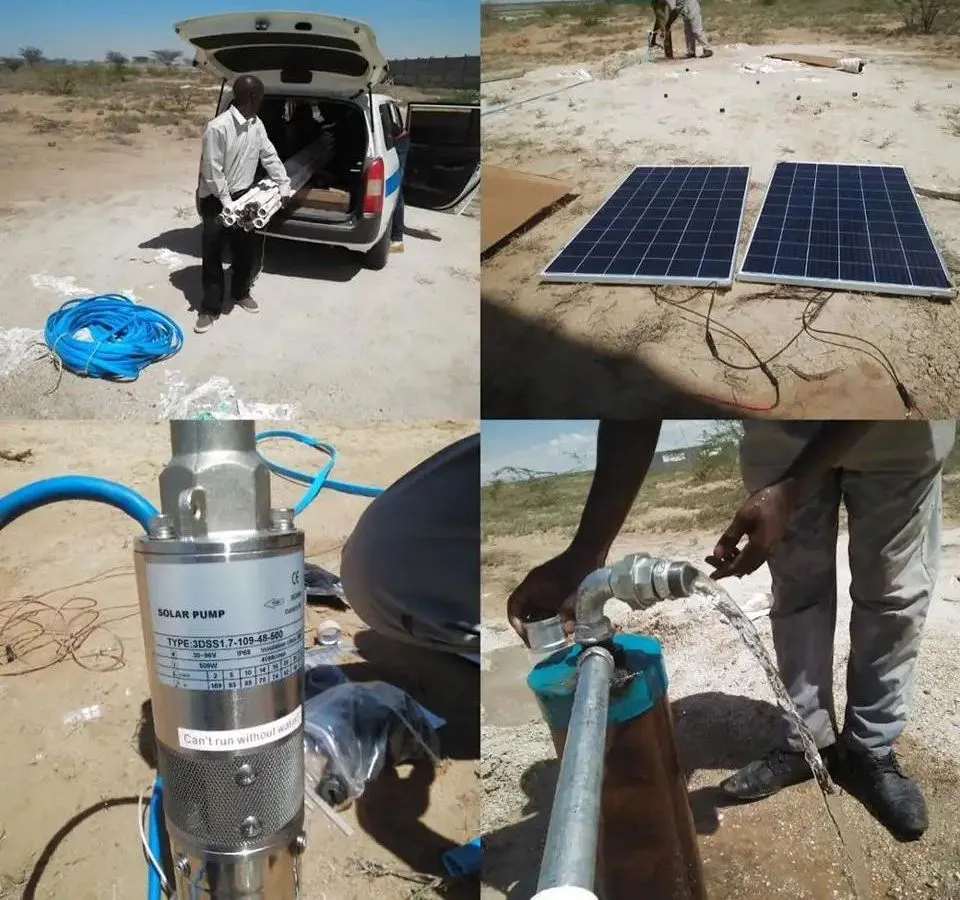

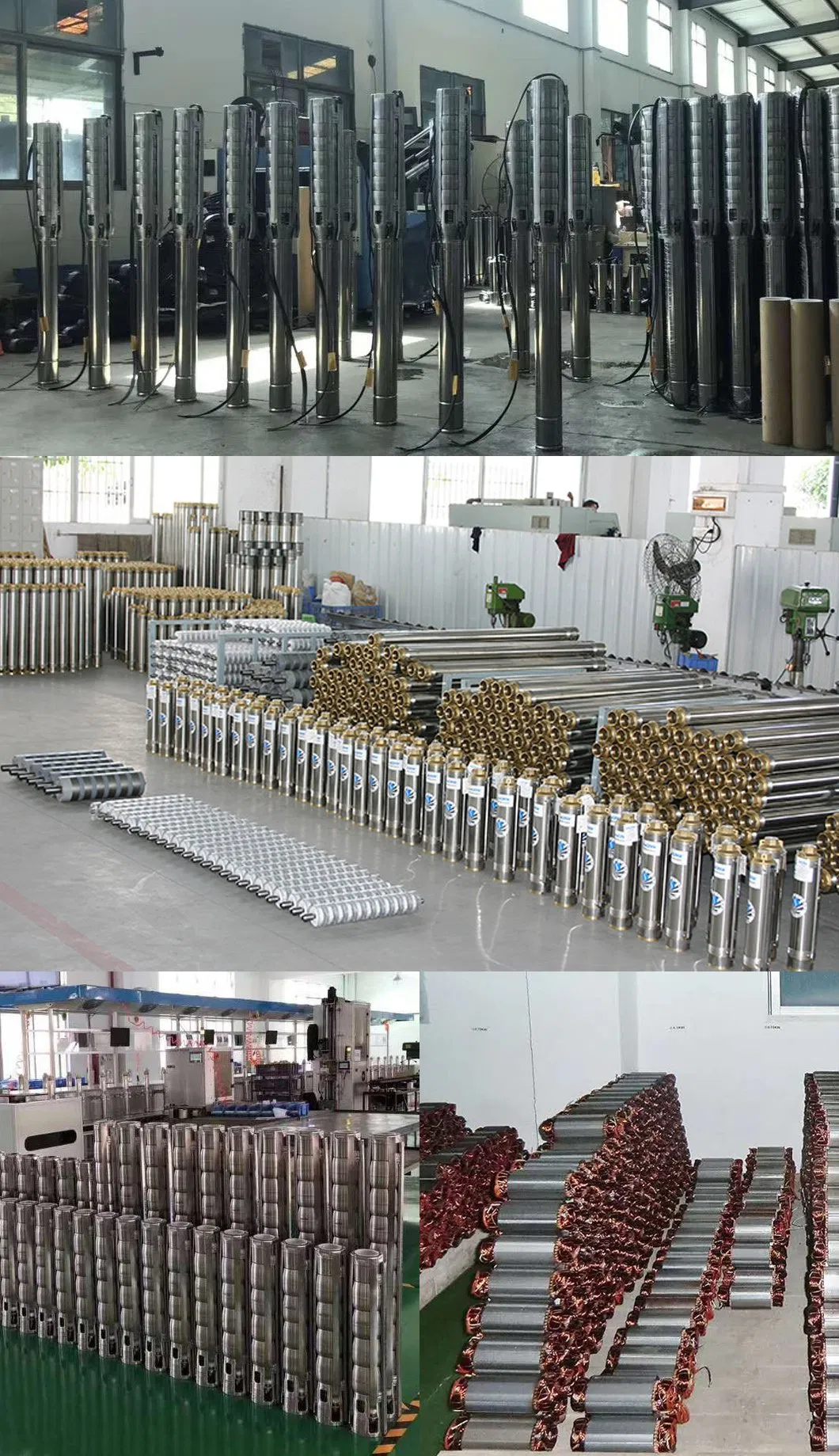

Projects & Packaging

❓

Frequently Asked Questions

Q: Are your inverters pure sine wave output?

A: Yes, all our inverters provide true pure sine wave output, which is as good as or better than the public power grid.

Q: What's the difference between pure sine wave and modified sine wave inverters?

A: Pure sine wave inverters are environmentally friendly, protect appliances, and have a long lifespan. Modified sine wave inverters can negatively impact inductive loads like refrigerators and air conditioners.

Q: What appliances can your inverters load?

A: Our inverters can be used for household, office, and agricultural appliances, including inductive loads like water pumps and air conditioners.

Q: How do I choose the right inverter for my system?

A: You should match the inverter to your total load demand and system voltage (12V, 24V, or 48V). Our technical team can recommend the most suitable model based on your requirements.

Q: What's the difference between 12, 24, and 48 volt inverters?

A: This refers to the input voltage from the battery bank. Higher voltages allow for lower current, meaning you can use smaller wires between the panels and batteries.

Q: What should I do if the product is broken?

A: If any product is faulty, please provide pictures or video. We will analyze the issue and supply spare parts such as PCB boards for after-sales service.
