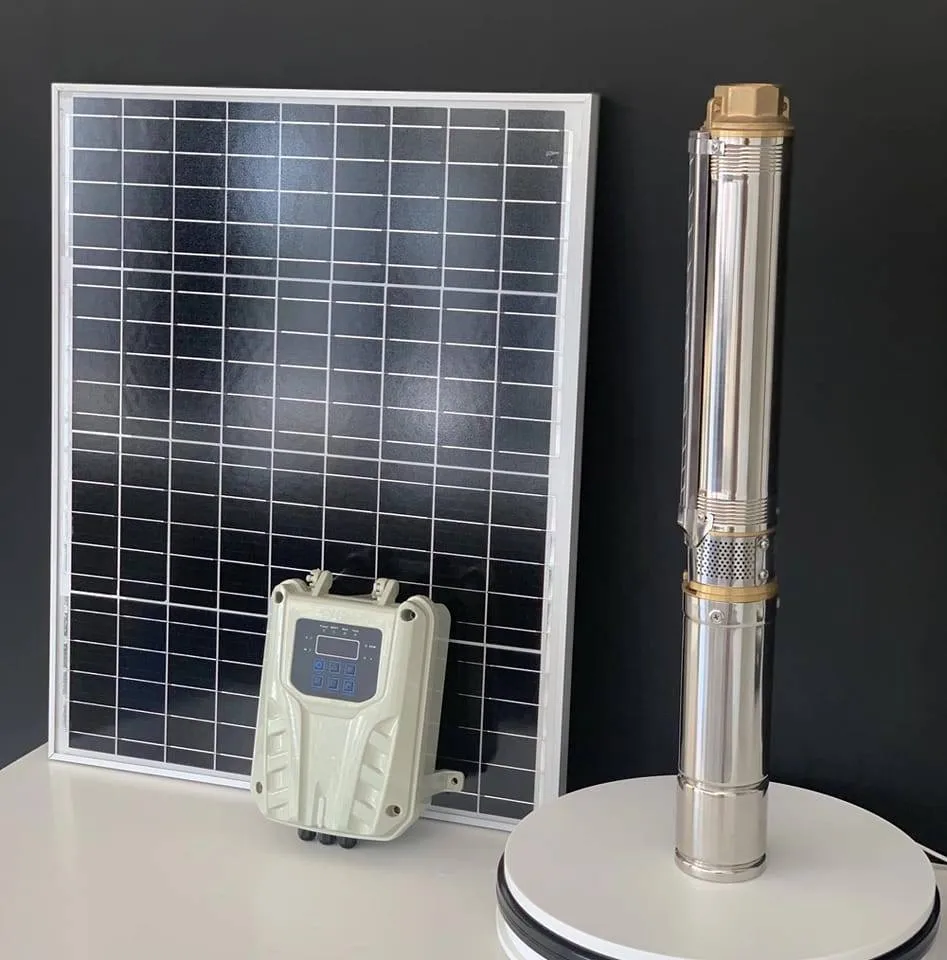

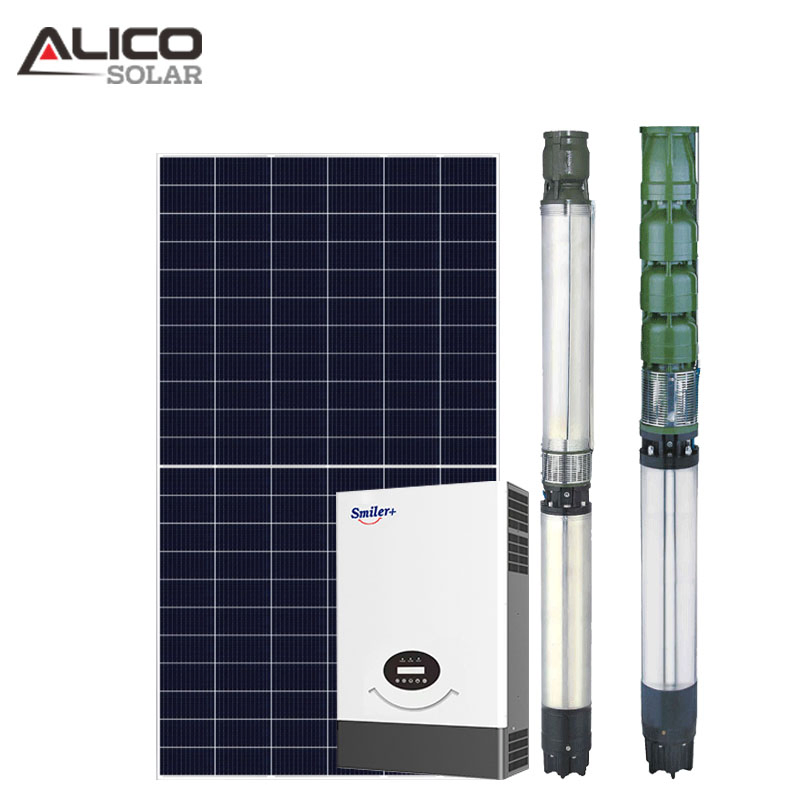

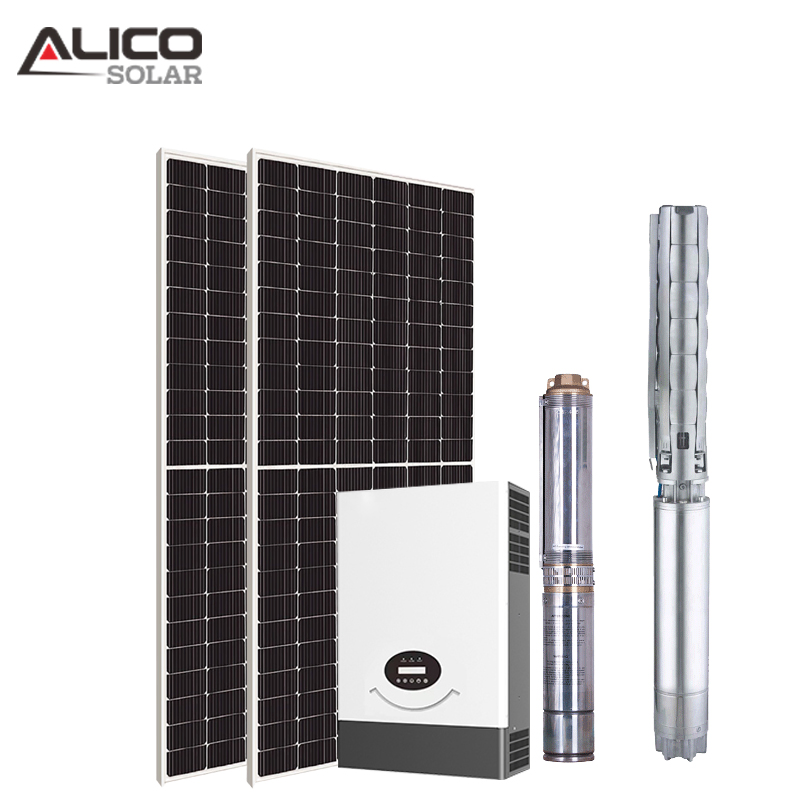

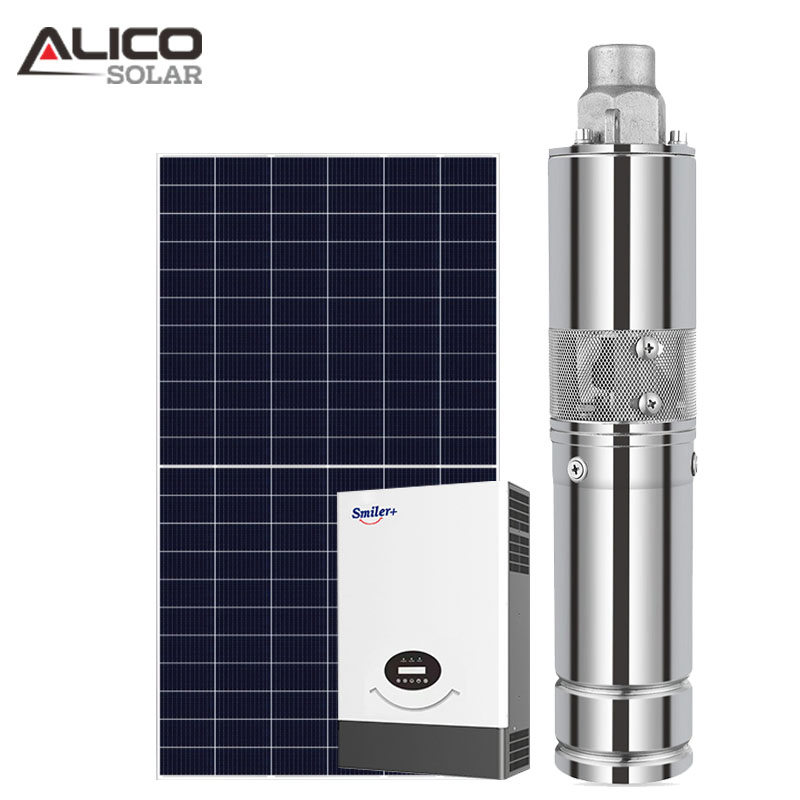

DC AC Solar Pump System for Farm: High-efficiency water solution for agricultural needs, designed for deep well and surface water extraction using sustainable solar energy.
| Model | Voltage (V) | Rate Power (W) | Max Flow (m3/h) | Max Head (M) | Outlet (in) | Diameter (mm) |
|---|---|---|---|---|---|---|
| JS3-0.9-32 | 24 | 100 | 0.9 | 32 | 3/4" | 76 |
| JS3-1.8-100 | 24 | 270 | 1.8 | 100 | 3/4" | 76 |
| JS3-2.1-120 | 48 | 540 | 2.1 | 120 | 3/4" | 76 |
| JC3-4.2-54 | 48 | 600 | 4.2 | 54 | 1" | 76 |
| JC3-3.2-115 | 72 | 1000 | 3.2 | 115 | 1" | 76 |
| JS4-4.0-100 | 72 | 1000 | 4 | 100 | 1" | 100 |
| JC4-14.0-33 | 72 | 1000 | 14 | 33 | 2" | 100 |
| JCS4-25-96 | 288 | 4000 | 25 | 96 | 2" | 100 |
| JCS6-70-33 | 288V | 4000 | 70 | 33 | 4" | 150 |
| Item Name | Description | Unit | Quantity |
|---|---|---|---|
| Solar panel | 260W / 31.2V poly | pc | 136 |
| Mounting structure | Q235 material, Hot-dip zinc | set | 1 |
| PV cables | 4mm2, 400m | set | 1 |

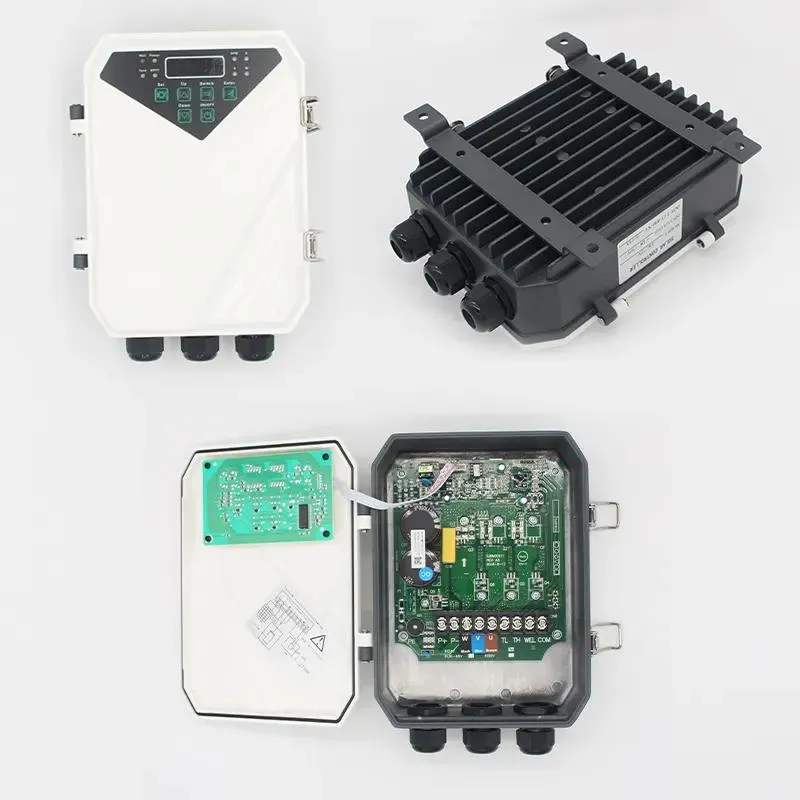

| Pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |
Main Applications:

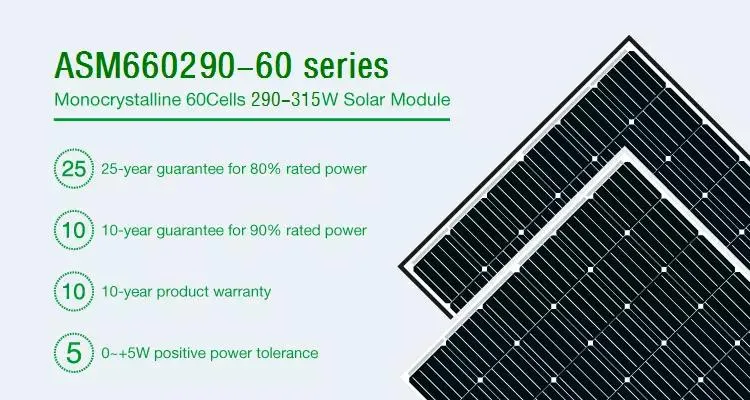

Peak Power: 290W
Max Power Voltage: 32.2V
Max Power Current: 9.02A
Dimensions: 1640×992×35 mm
Weight: 18.6 kg
Max DC Input: 8.5KW
Max Input Voltage: 600V
MPPT Voltage Range: 90-520V
Rated Grid Voltage: 230V
Standard Wifi Monitoring
Motor: BLDC / AC-DC Option
Body Material: Stainless Steel 304
Diameter: 1-6 inch
Warranty: 2 Years
Horsepower: 0.3-5HP

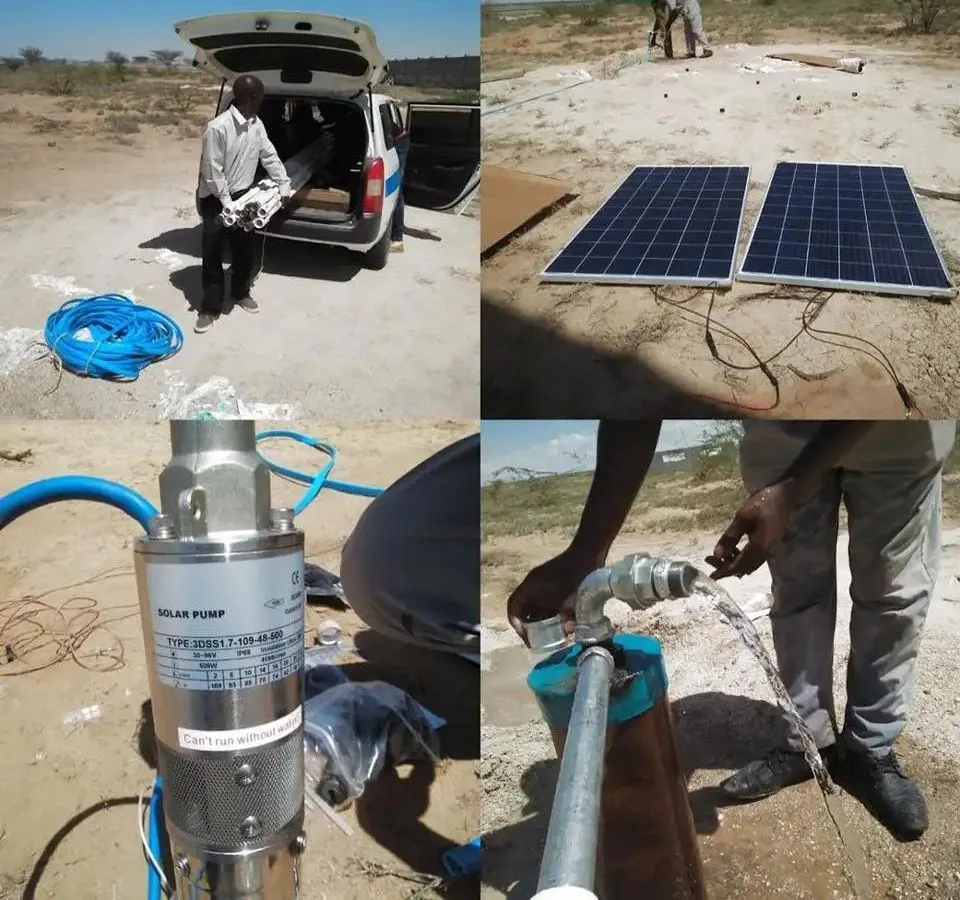

Real-world applications showing the versatility of our solar pumping systems in various environments.

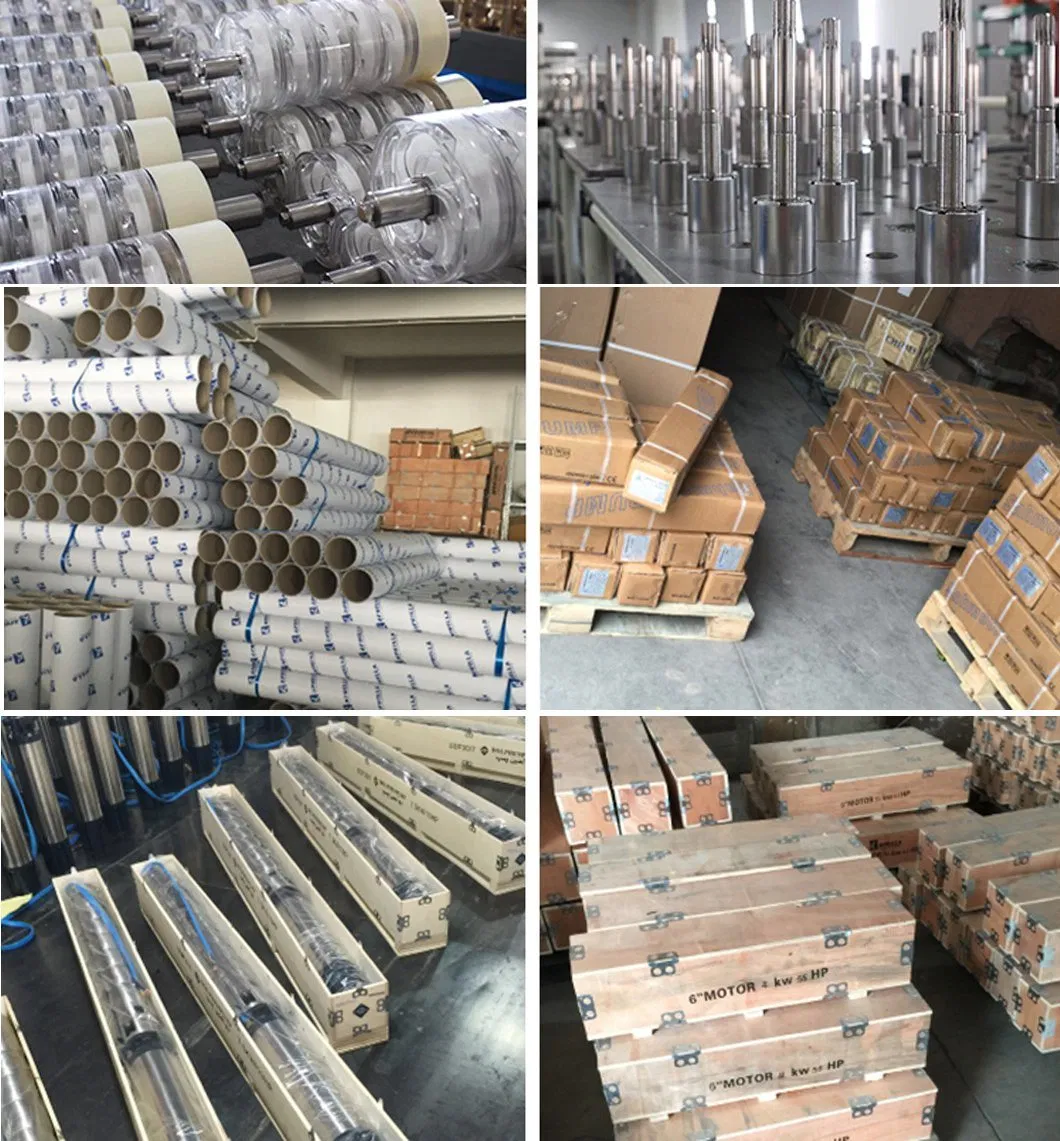

Professional packaging ensuring safe delivery globally via carton or wooden boxes.
