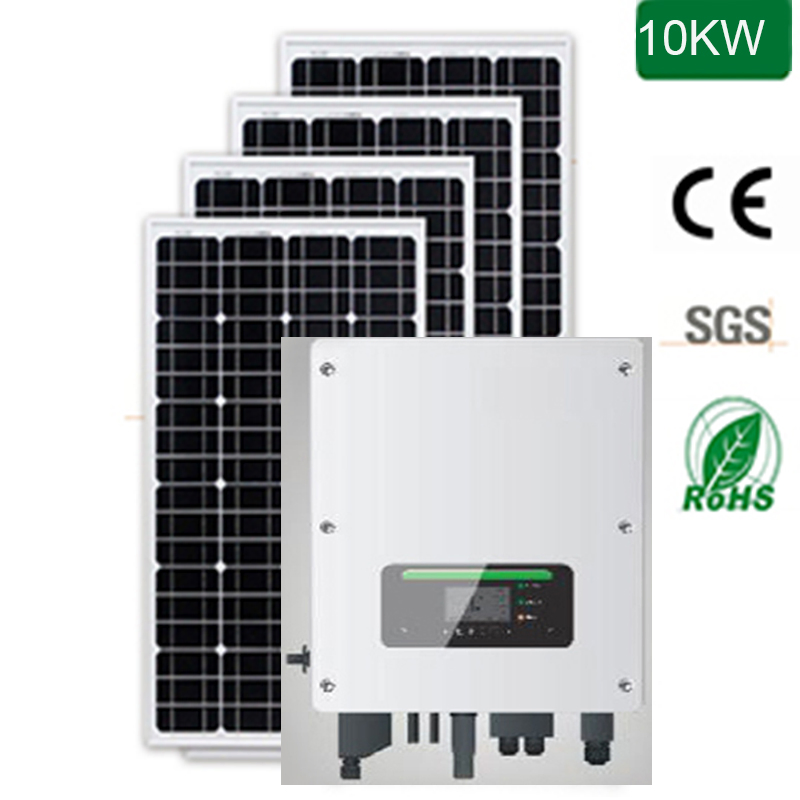

Complete Set Solar Panel Power System (10Kw to 500kw)
Residential Hybrid Solar Energy Solution

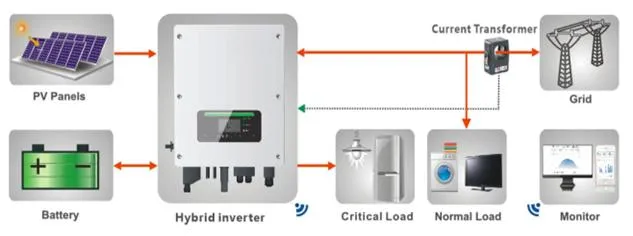

Power Conversion: The inverter transfers solar panel DC current to AC current to run loads directly. Excess power automatically charges the battery. When the battery is full, the inverter exports excess power to the grid.
Low Solar Generation: During periods of low solar output, the system automatically switches to grid power to maintain the load supply.
Grid Outage Protection: If the grid fails, the system switches to off-grid status, converting solar and battery power to AC to ensure continuous operation.
| Model | Description | Advantage | Qty |
|---|---|---|---|
| Mono 500W Panel | 39V / 23.9KG / 2090*1106*35mm | 22% Efficiency / 25Y Warranty | 10 PCS |

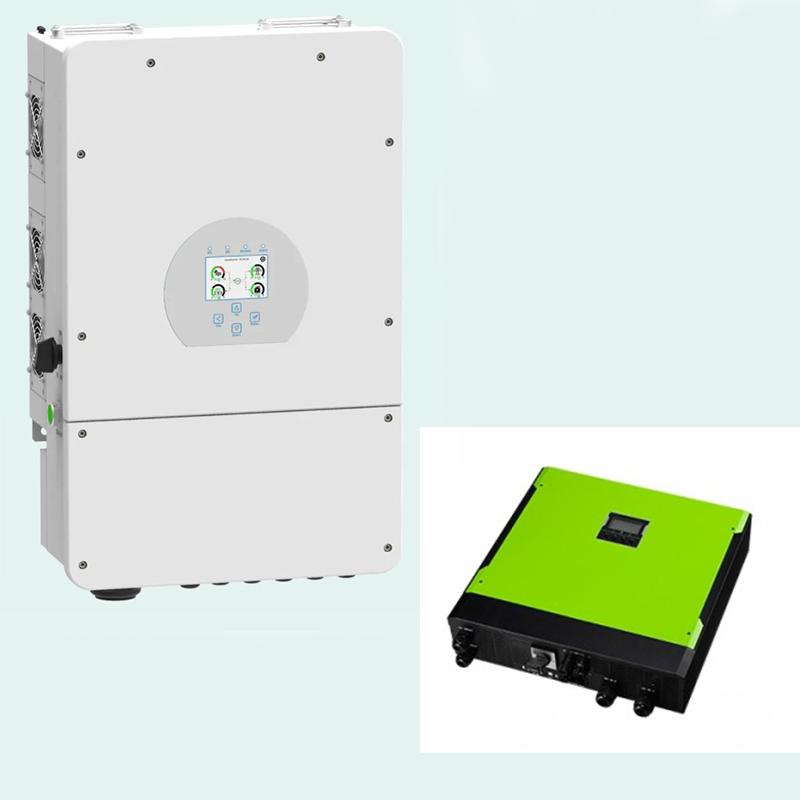

| Hybrid Inverter | 5KW / 48V DC / 220V Single Phase | LCD Display / AC Charger Built-in | 1 PCS |
| Lithium Battery | 51.2V 200AH (LiFePO4) | BMS Included / 10-12Y Life | 1 PCS |
| Gel Battery (Opt) | 12V 200AH / 522*240*219mm | Maintenance-Free Gel | 4 PCS |
| Bracket & Cables | Rooftop/Ground Mount + PV Cables | Professional Grade / 10Y Warranty | 1 SET |
| System Size | Daily Consumption Target | Max Load Capacity | Key Components |
|---|---|---|---|
| Medium Residential & Small Commercial | |||
| 10KW System | 66 KWH | 10 KW | 22x 500W Panels / 2x 5KW Inverters |
| 15KW System | 90 KWH | 15 KW | 30x 500W Panels / 3x 5KW Inverters |
| 20KW System | 132 KWH | 20 KW | 44x 500W Panels / 4x 5KW Inverters |
| Large Industrial Solutions | |||
| 30KW System | 180 KWH | 30 KW (3-Phase) | 60x 500W Panels / 3x 10KW Hybrid Inverters |
| 50KW System | 300 KWH | 50 KW (3-Phase) | 100x 500W Panels / 5x 10KW Hybrid Inverters |
| 500KW System | 3000 KWH | 500 KW (3-Phase) | 1000x 500W Panels / 50x 10KW Hybrid Inverters |
