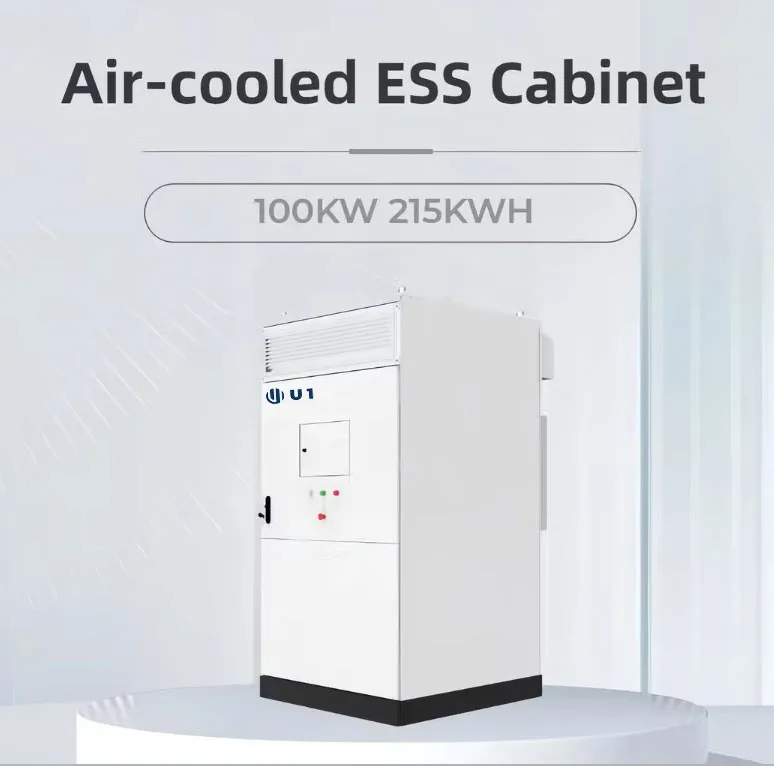

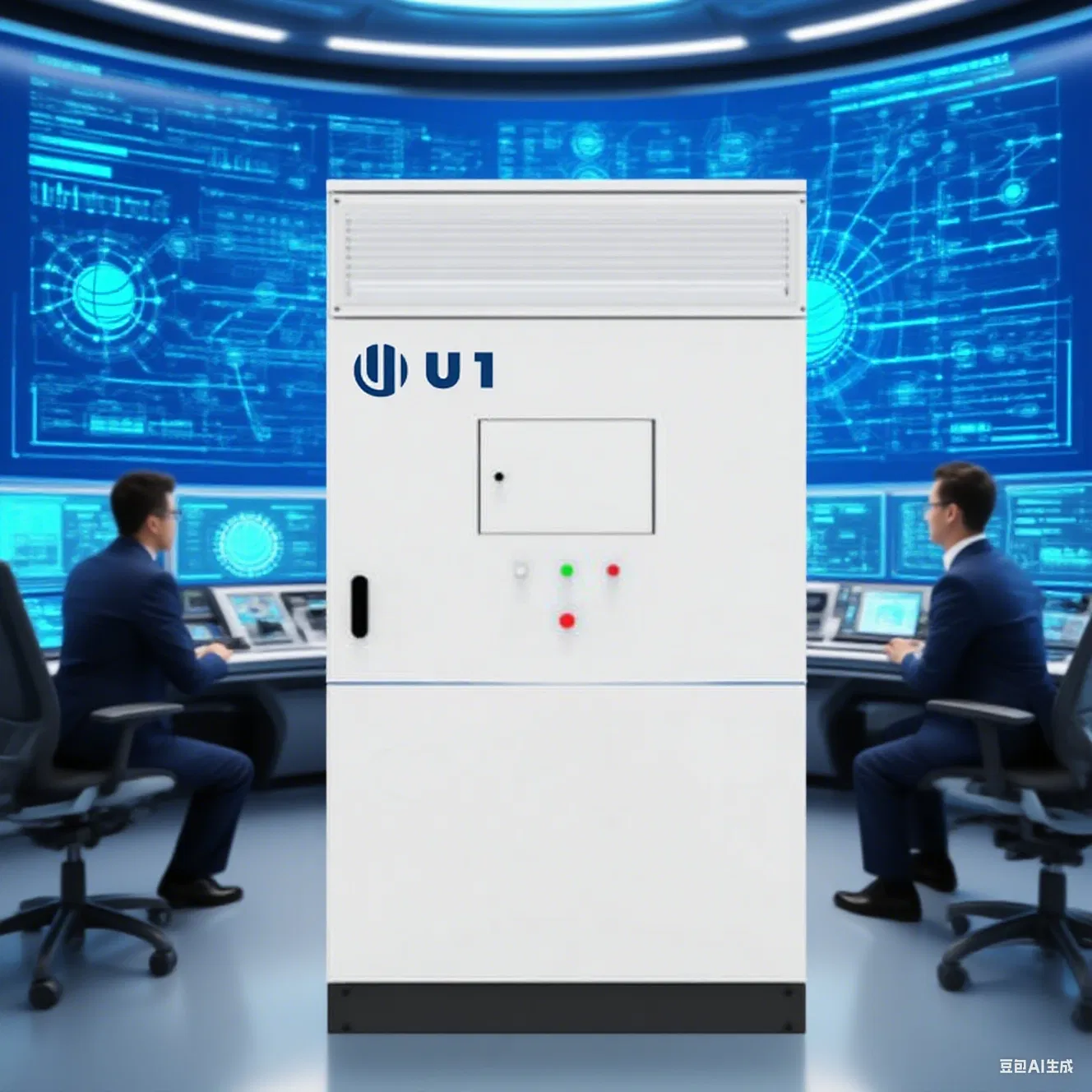

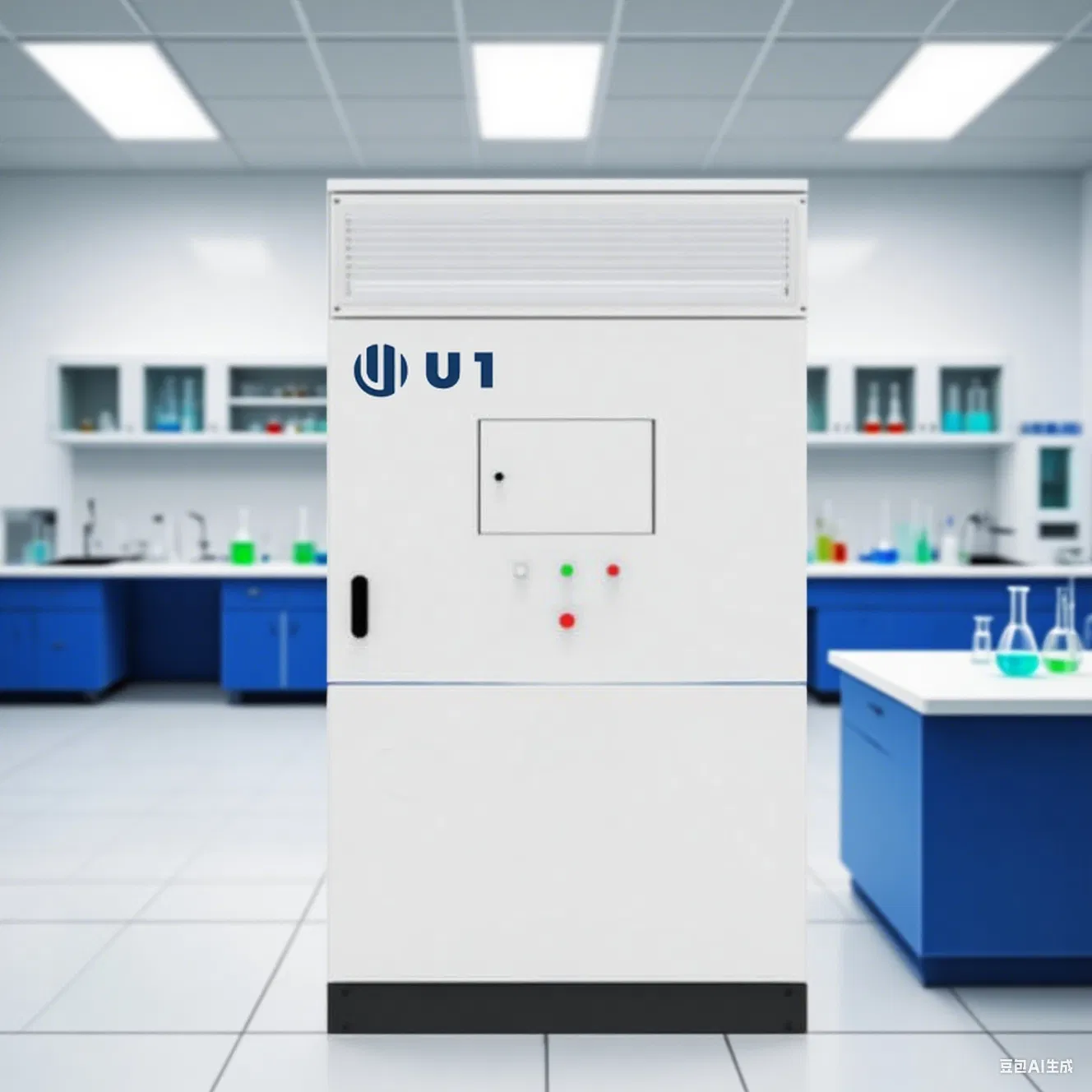

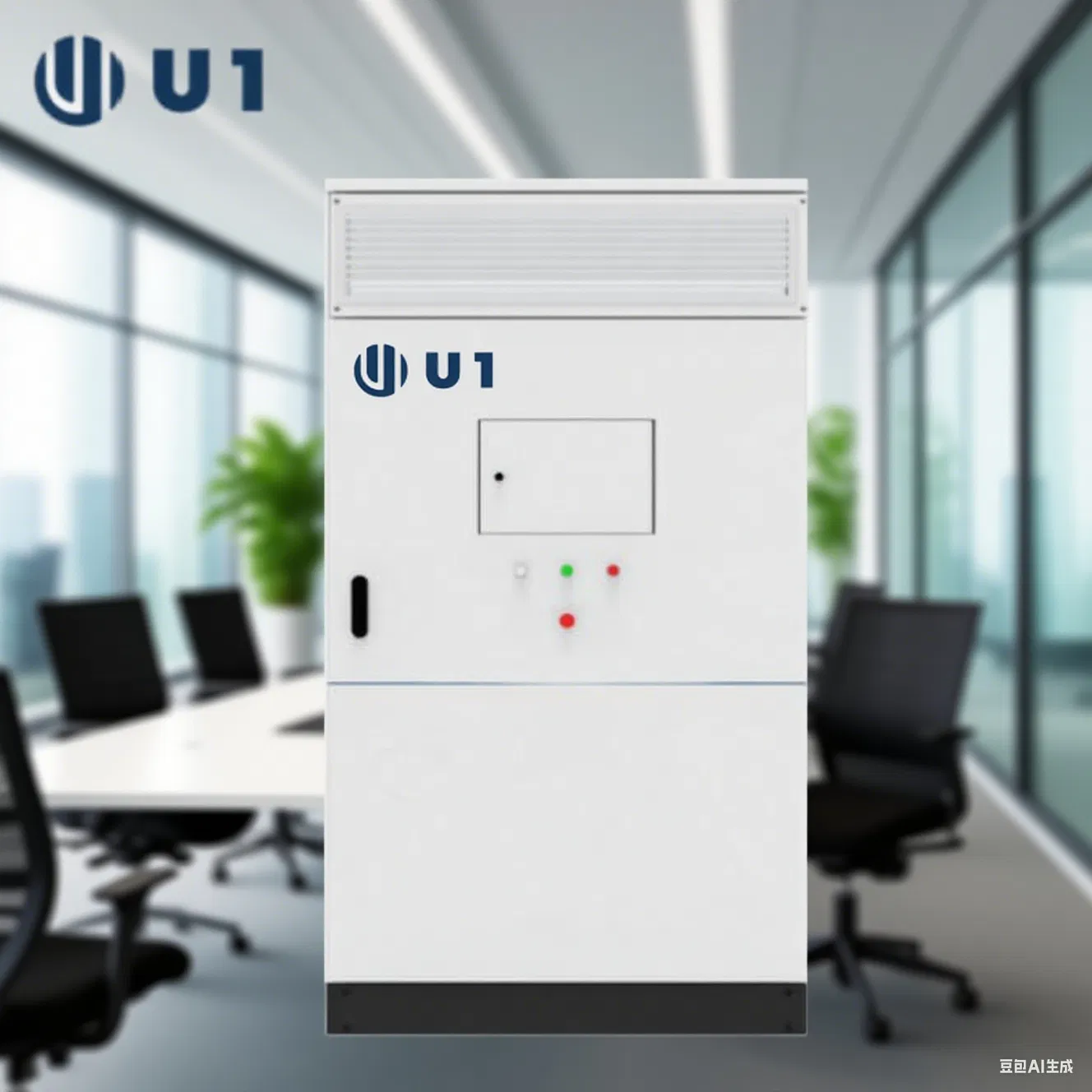

Commercial Bess LiFePO4 Scalable Battery Solar Energy Storage System - ISO9001 Certified Power Solution

1 / 5

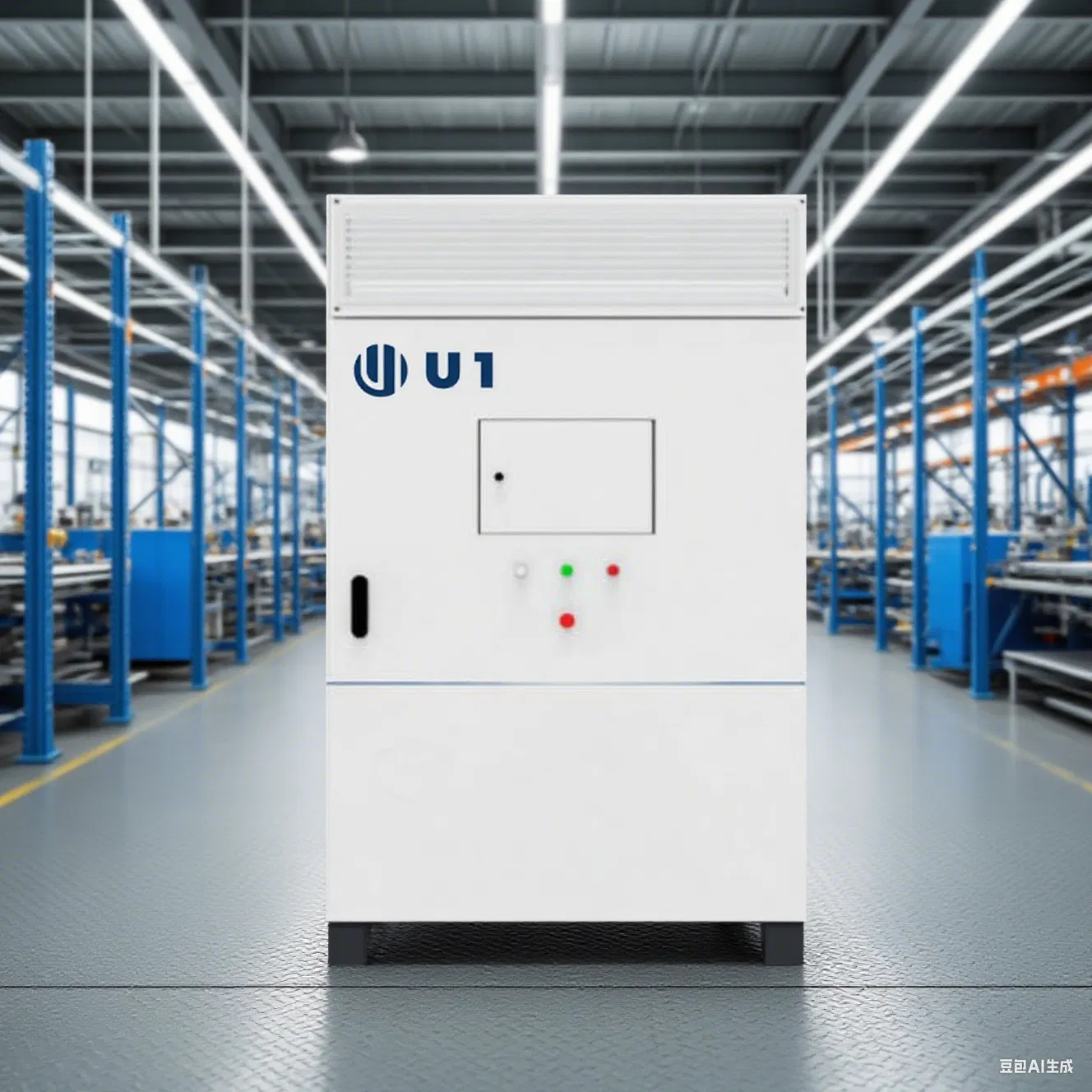

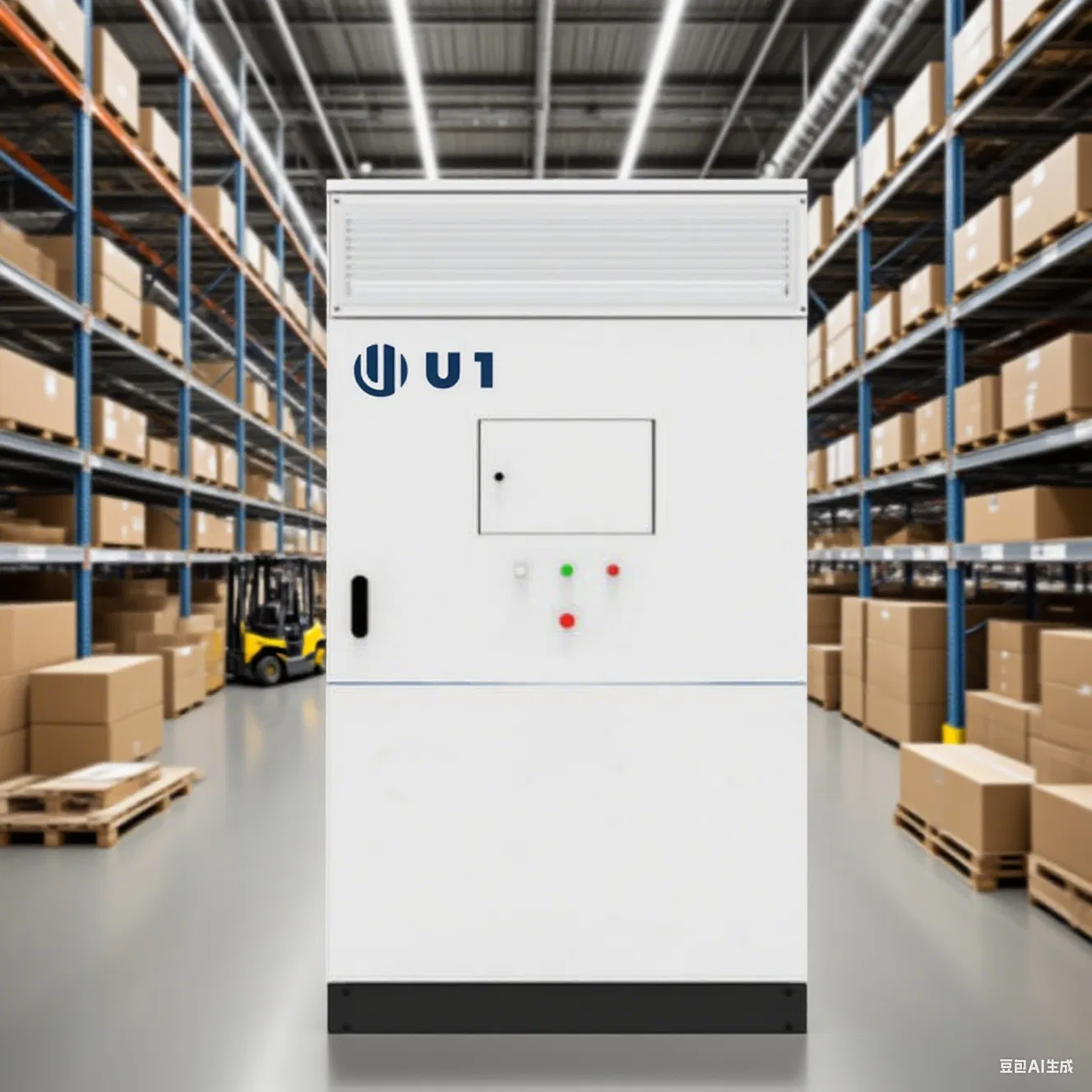

Commercial Bess LiFePO4 Scalable Battery Solar Energy Storage System - ISO9001 Certified Power Solution

Customization:	Available
Weight:	2.6t
Warranty:	2 Years

Send Inquiry

Product Description

📋 Basic Information

Model NO.	U1-03-215 / U1-AC-215	Cycle Life	8000 times
Nominal Capacity	215kWh	Battery Type	LiFePO4 Power Battery
Certification	ISO9001:2000	Protection Grade	IP65 / IP55
System Voltage	768V DC (High Voltage)	Operation Range	600~876V DC
Dimensions	125013002350 mm	Weight	2,500kg / 2.6t
Cooling Method	Forced Air Cooling	Application	Power Plants / C&I Energy Storage

🚀 Product Description

The U1 215KWH commercial & industrial energy storage system leverages cutting-edge cabinet-level liquid cooling and temperature balancing strategies. With a cell temperature variation kept under 3°C, this ensures enhanced cell temperature uniformity and prolongs battery longevity. Its modular configuration offers unparalleled flexibility in parallel solutions, coupled with increased energy density, dramatically boosting the economic viability, safety, and ease of construction for ESS projects.

Compact: Requires only a 1.4m² footprint, ensuring seamless transportation and rapid installation.

High Integration: Boasting 233kWh of energy in a single, robust cabinet.

Efficient Cooling: Optimized in-PACK duct design achieving top-tier cooling efficiency.

Ultimate Safety: Equipped with in-PACK fire warning and protection (Aerosol/Active Warning).

⚙️ Technical Specifications

AC Side Parameters
AC Rated Power	100kW
AC Maximum Power	110kW (continuous for 1min)
Grid Rated Voltage	400V AC
Rated Grid Frequency	50Hz
System Performance
Energy Efficiency	≥90%
Discharge Depth	95% DOD
Switching Time	<100ms
Operating Temp	-25~55ºC

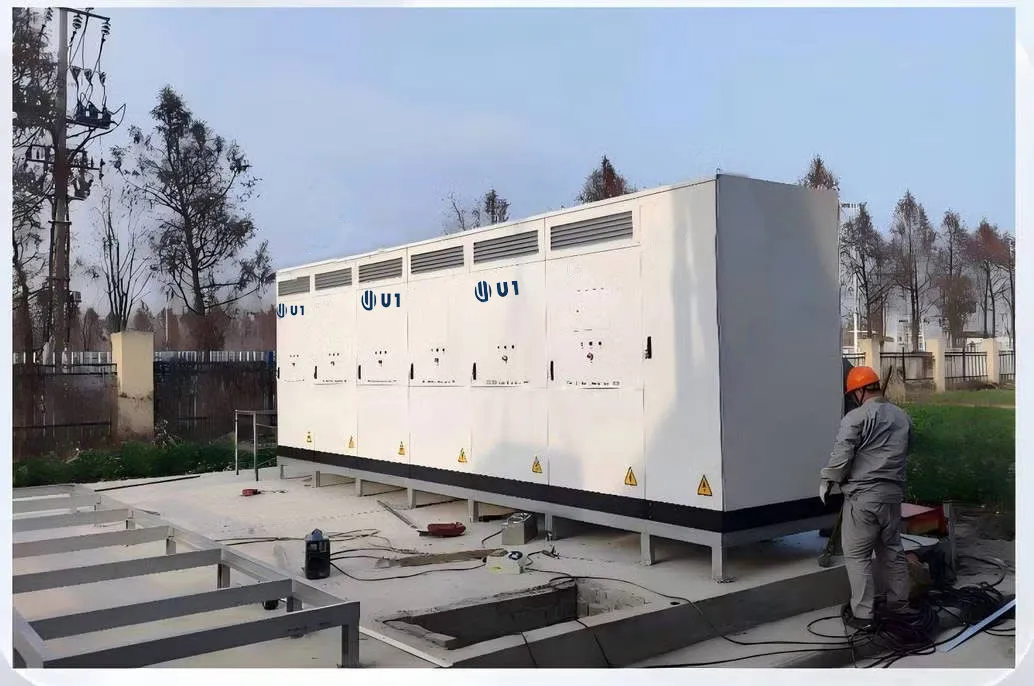

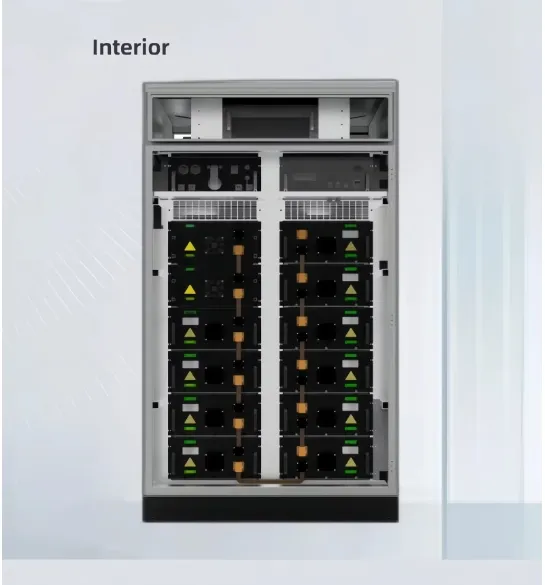

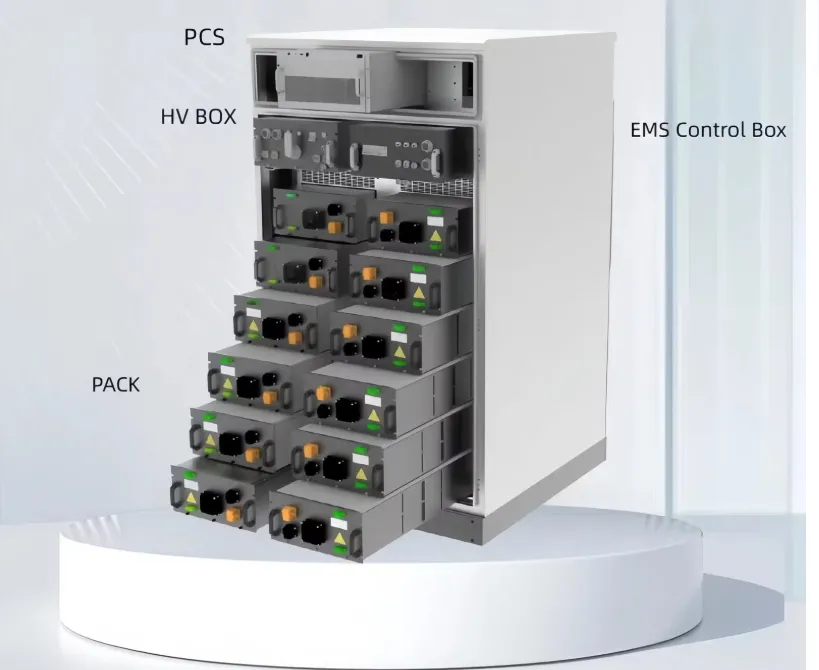

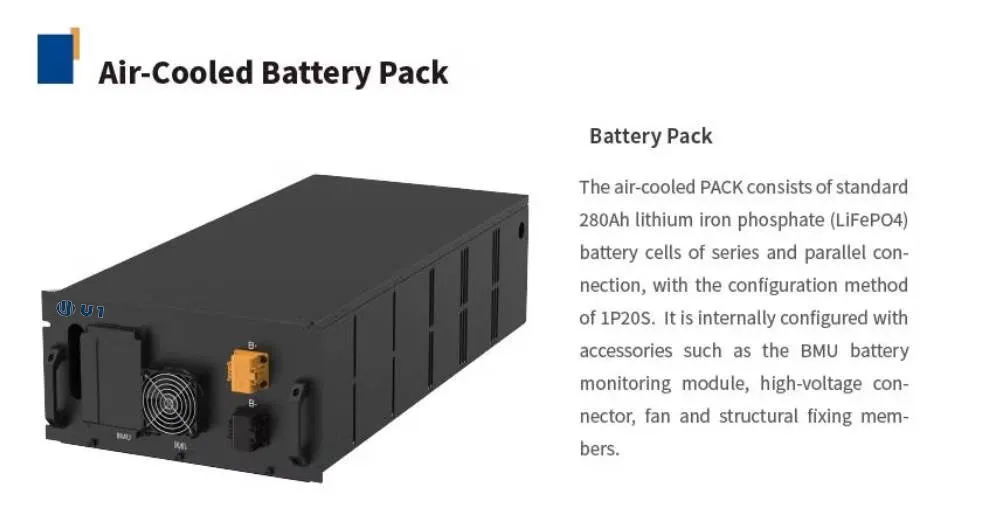

📸 Detailed Photos

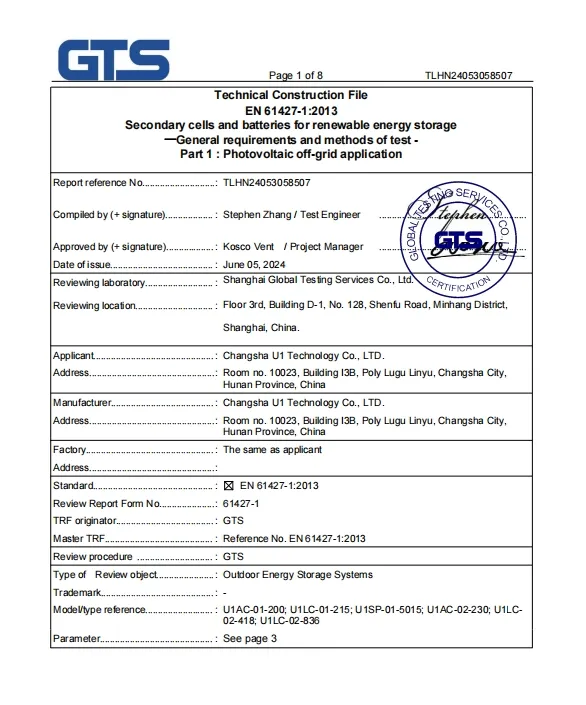

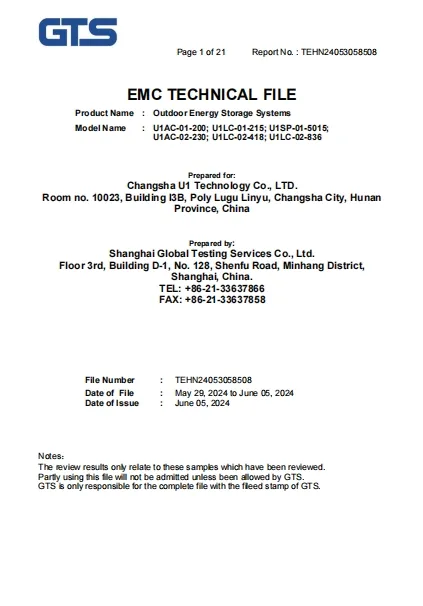

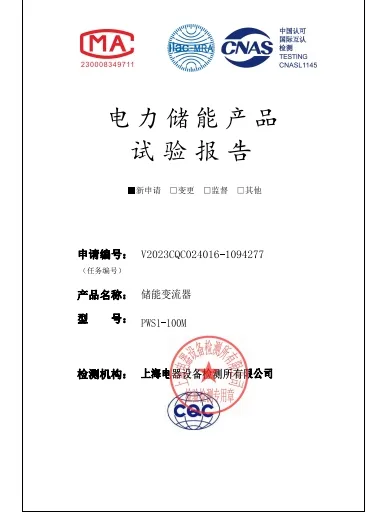

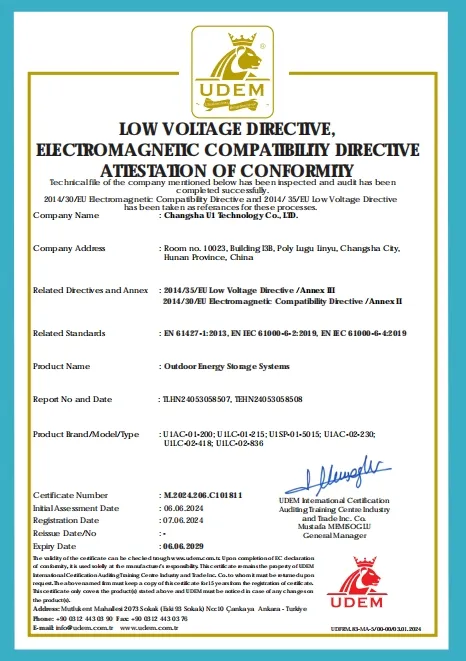

📜 Certifications

❓ Frequently Asked Questions

Are you a trading company or manufacturer?

We are a professional manufacturer with our own factory.

Does your company provide customized manufacturing?

Yes, we provide OEM/ODM services. Our experienced R&D team provides efficient, customized solutions tailored to customer requirements.

How long is the delivery time?

For items in stock, the delivery time is typically 1 month.

Do you provide samples? Is it free or extra?

Samples are available; however, you will need to pay for the sample cost and the freight charges.

What are your terms of payment?

For orders less than $3000, 100% payment is required before shipment. For orders above $3000, a 30% deposit is required, with the remaining 70% paid before shipment, or as negotiated.

What safety features are included in the ESS?

The system is equipped with an in-PACK fire warning and protection system using Aerosol + Active Warning technology to ensure maximum safety.
