Cheers 48V High Quality Solar Power System for Surface Water

Customization:	Available
Application:	Home
Solarpanel:	Solar Water Pump Submersible

⚡ Basic Information

Model NO.

JCPS-6.6-34

Solar Power (W)

1000W

Max. Head

34 meters

Load Power (W)

750 watts

Voltage

72V

Work Time (H)

24 Hours

Main Material

Cast Iron or Stainless Steel 304

Output Voltage (V)

48V

Max. Flow Rate

6.6m³/Hour

Specification

Normal

🛡️ Warranty Commitment

📋 Coverage Details:

Solar water pump: 3 years

MPPT controller: 3 years

Solar panels: 25 years

If the controller or motor is damaged within 3 years, a new replacement will be provided. Damaged impellers within the 3-year period will also be replaced with new spare parts.

🔍 Product Introduction

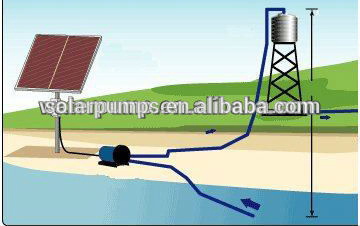

Solar surface water pump system consists of solar generating systems, photovoltaic water pump controller system and pump. Solar arrays are in series-parallel of solar modules, absorbing solar radiation energy and converting it to electricity to supply power for the entire system.

The photovoltaic water pump controller regulates the running system, turning instable DC of solar array into stable DC to drive the DC pump. It regulates the output current in accordance with sunlight intensity to achieve Maximum Power Point Tracking (MPPT), maximizing the use of solar energy.

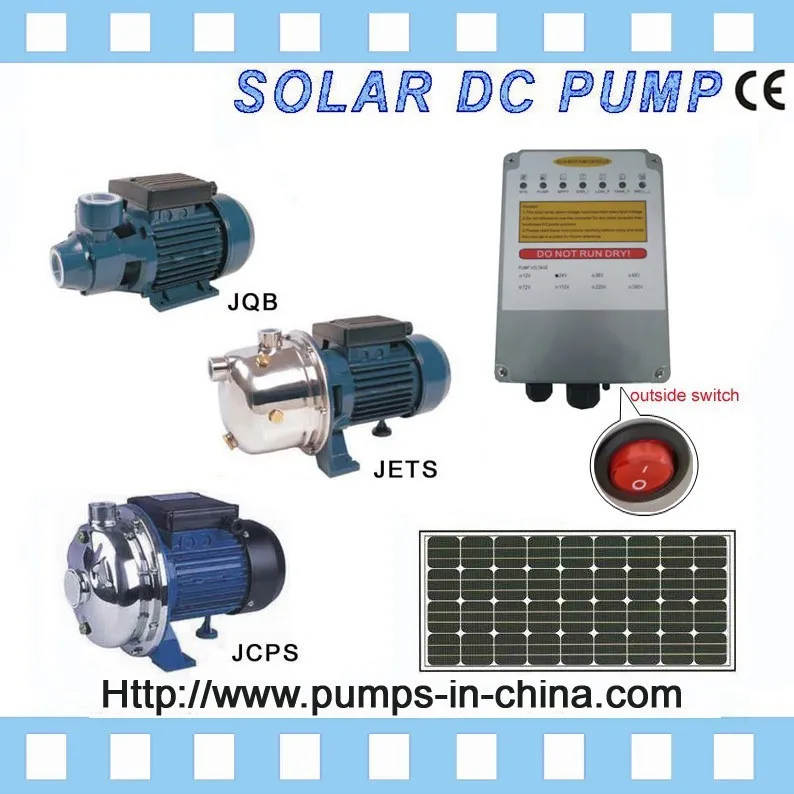

📦 Product Details & Components

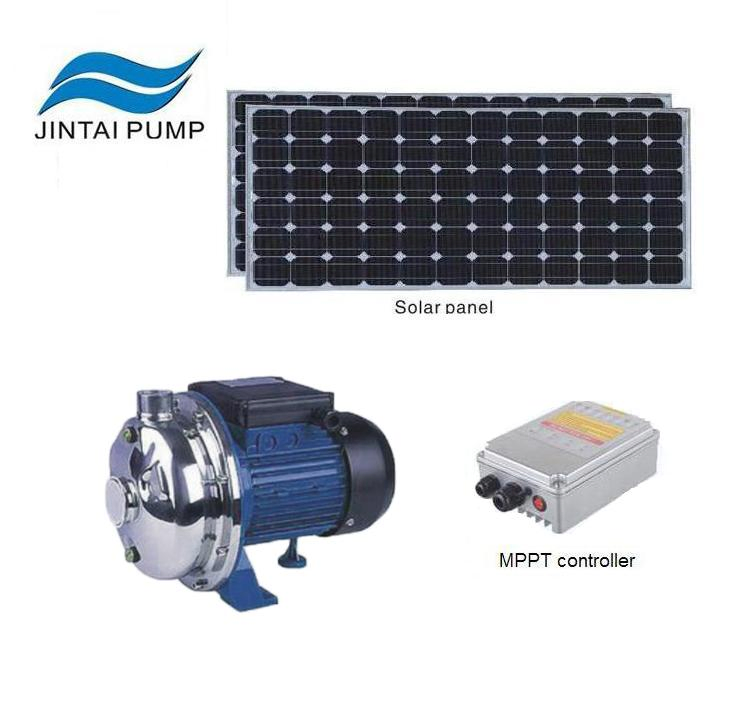

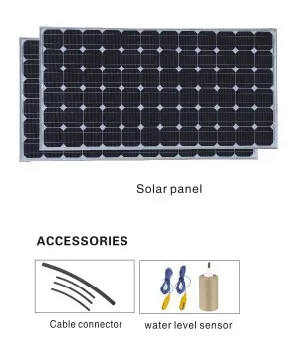

The Finished Products include:

Solar pump with 3m cable (longer cable available)
MPPT Controller
Cable for solar panel (6m, longer cable available)
Cable connector
Solar panels (optional)
Rope to hang the pump
Installation Manual

⚙️ Technical Innovation

🚀 Application Innovation

Compared with traditional alternating current machines, efficiency is improved by 25% through permanent magnetism, direct current, brushless, and non-sensor motor technology.

🛠️ Technics Innovation

Adopts double plastic package for rotor and stator. Motor insulation ≥300MΩ, significantly improving motor security.

🏗️ Structure Innovation

Oil filling design for convenient installation and environmental protection.

💎 Material of Parts

Pump body: Cast iron or Stainless steel 304

Impeller: Brass

Motor housing: Aluminum L-2521

Motor stator: 100% copper wiring

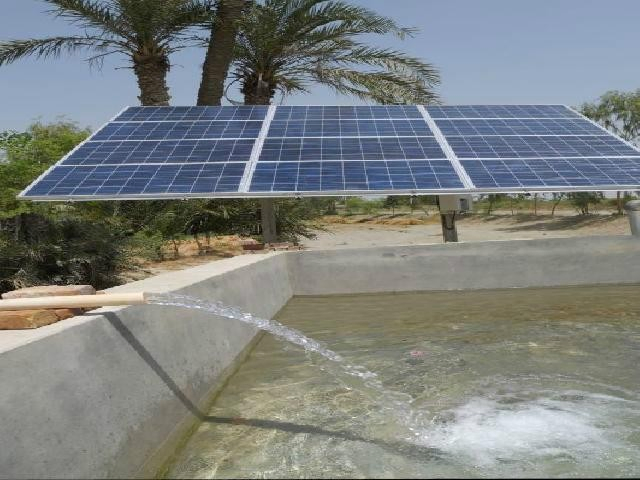

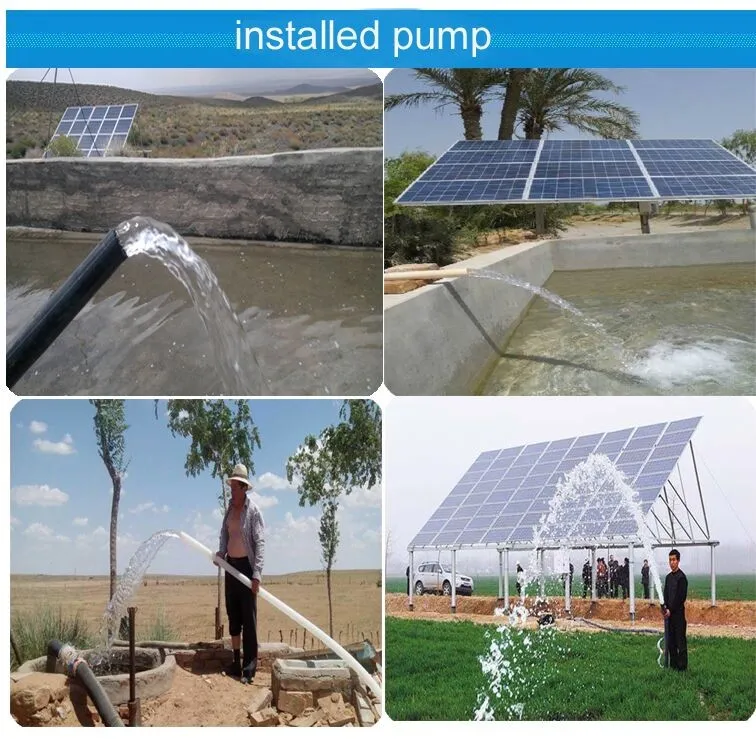

🔧 Installation & Performance

Controller equipped with battery backup function for enhanced reliability.

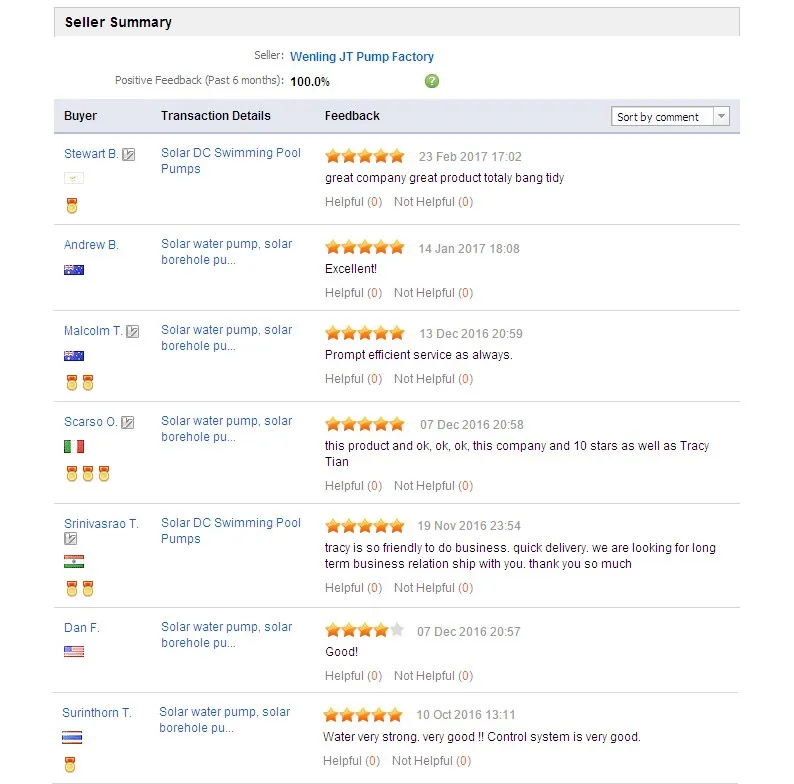

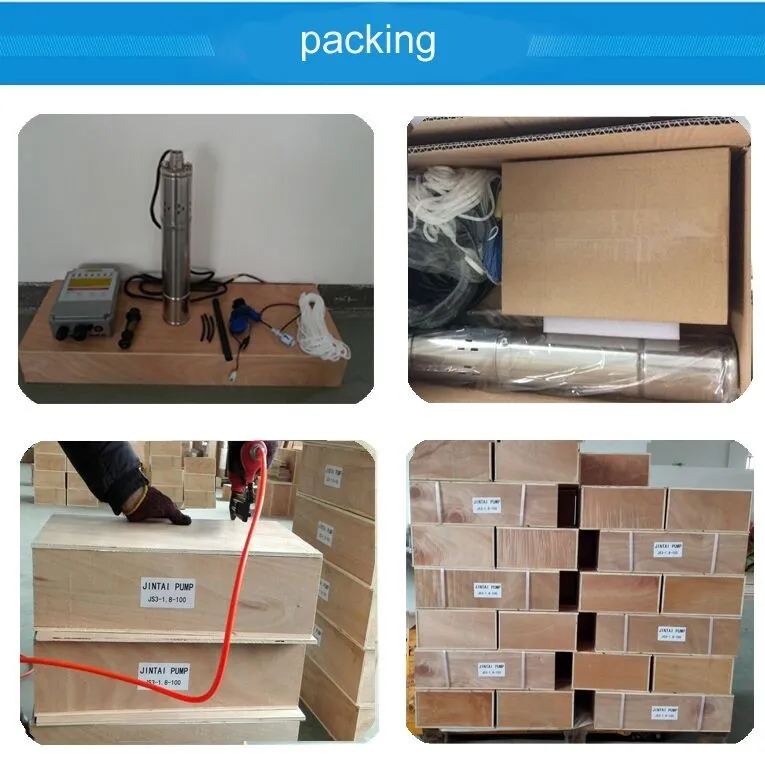

🌟 Buyer Feedback & Packing

❓ Frequently Asked Questions

1. What is the delivery time for samples and batch orders?

Samples can be sent within 3-5 days. Batch orders are typically shipped within 5-15 days after order confirmation.

2. What makes the brushless motor better than traditional motors?

The permanent magnetism brushless DC motor improves efficiency by approximately 25% compared to traditional AC machines.

3. Can I purchase the pump and controller without solar panels?

Yes, you can choose to buy only the solar water pump and controller, or the complete system including solar panels.

4. What materials are used to ensure the pump's durability?

The pump body is made of cast iron or high-grade stainless steel 304, featuring 100% copper wiring in the stator and a brass impeller.

5. How does the MPPT controller benefit the system?

The MPPT (Maximum Power Point Tracking) controller optimizes the output current based on sunlight intensity, ensuring the system captures the maximum possible energy at all times.

6. Is there a warranty for the motor and controller?

Yes, both the solar water pump motor and the MPPT controller come with a 3-year warranty, while solar panels carry a 25-year warranty.
