If the controller or motor is damaged within 3 years, a new replacement will be provided with free shipping. If the impeller is damaged within 3 years, spare impellers will be sent for replacement, shipping free.

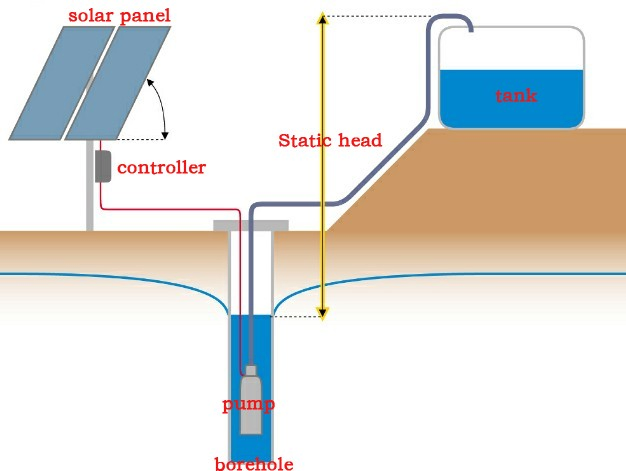

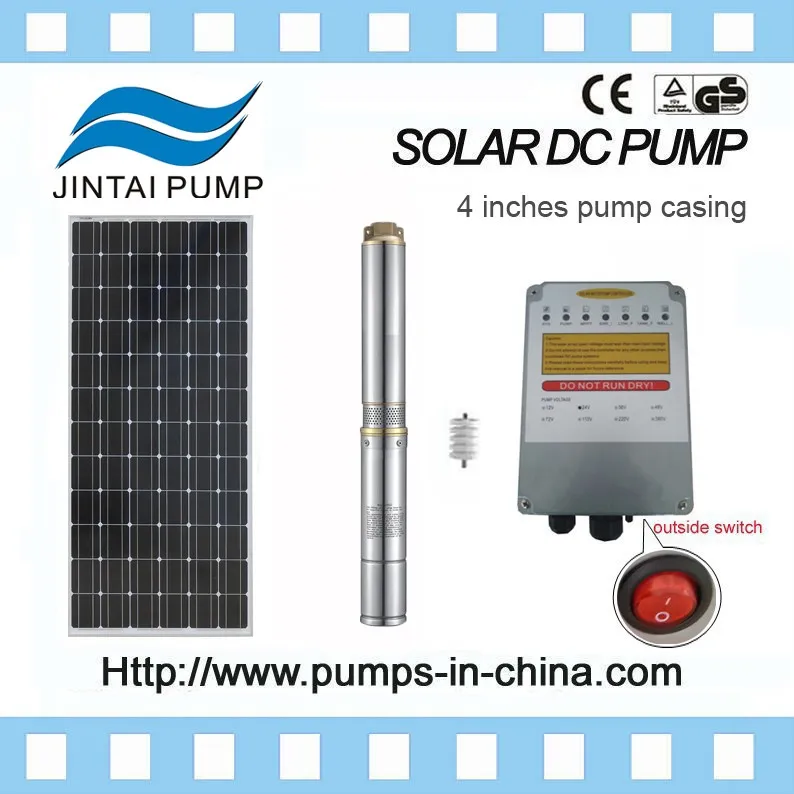

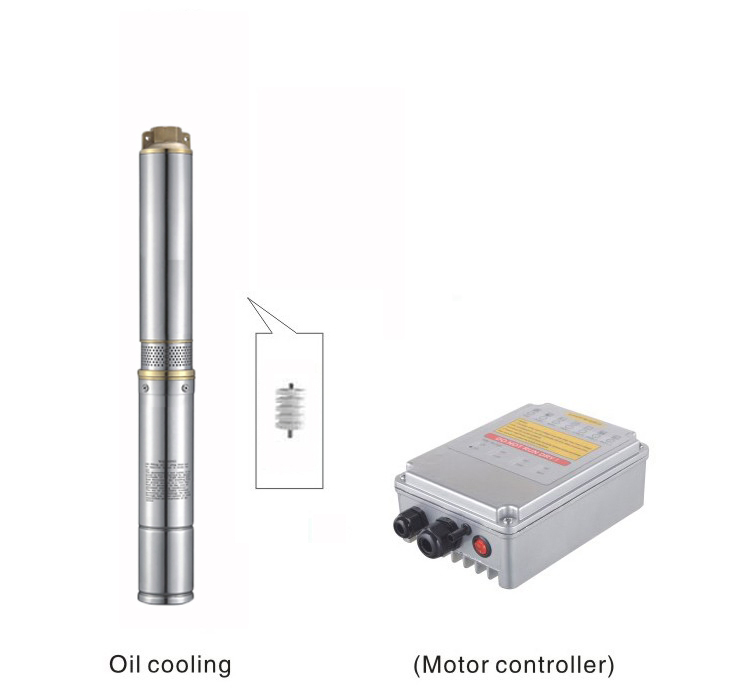

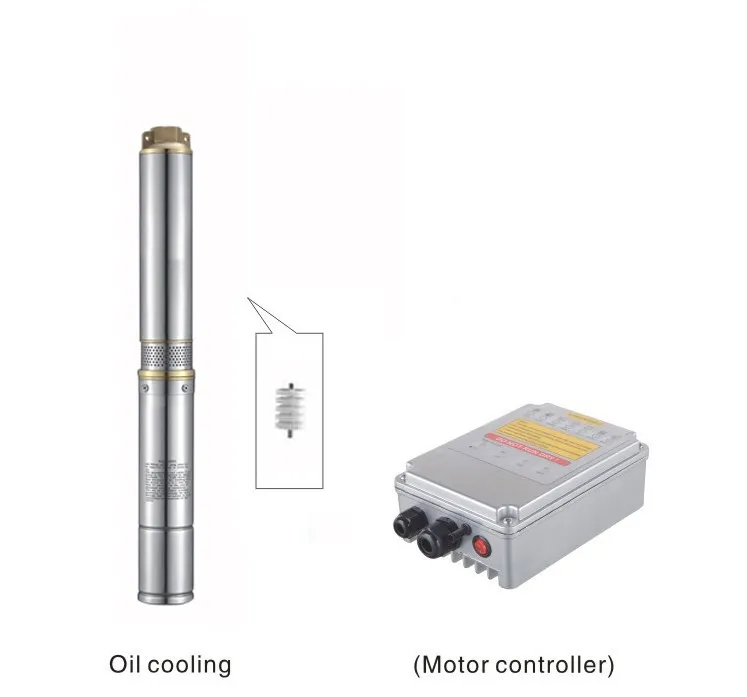

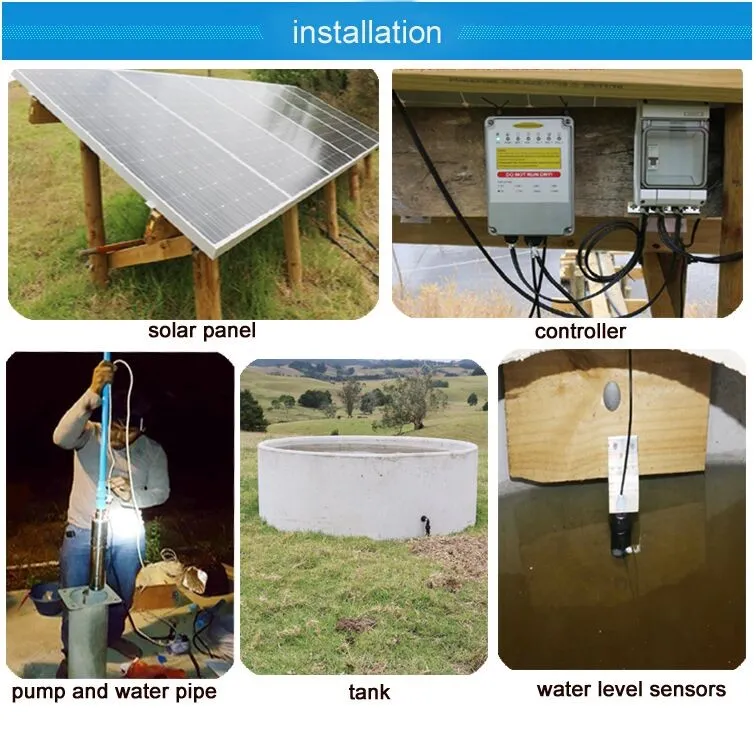

The solar submersible pump is designed to be immersed into water, connecting the motor with the pump directly. The system consists of a submersible pump, high-efficiency motor, MPPT controller, water pipes, cables, and solar panels.

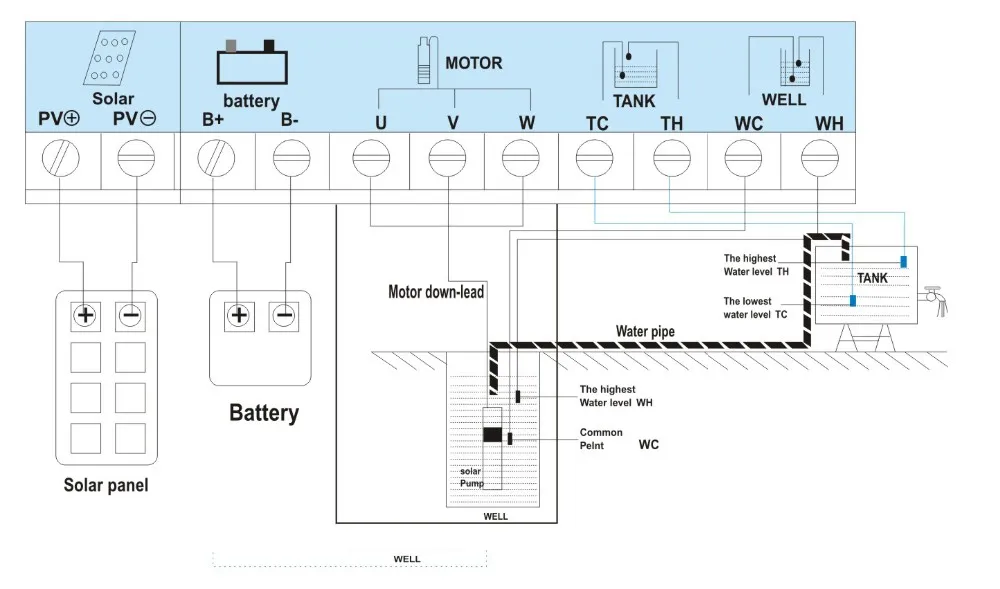

Solar panels convert solar energy into electrical energy to power the dedicated low-voltage solar pump. The system operates automatically under sunlight and can run continuously via battery or grid electric during low sunshine periods.
| TYPE | VOLTAGE (V) | POWER (W) | WATER OUTPUT DAILY (L/day) | LIFT HEAD (M) | OUTLET (Inch) | DIAMETER (mm) |
|---|---|---|---|---|---|---|
| JC4-5.5-32 | 36 | 360 | 12,000-24,000 | 5 to 25m | 1.25 | 100 |
| JC4-5.8-43 | 36 | 500 | 12,000-24,000 | 5 to 35m | 1.25 | 100 |
| JS4-3.1-66 | 36 | 500 | 8,000-16,000 | 5 to 50m | 1.25 | 100 |
| JC4-4.0-60 | 48 | 720 | 10,000-16,000 | 5 to 45m | 1.25 | 100 |
| JC4-6.8-60 | 72 | 1000 | 15,000-28,000 | 5 to 45m | 1.25 | 100 |
| JC4-6.0-88 | 72 | 1000 | 13,000-26,000 | 5 to 60m | 1.25 | 100 |
| JC4-8.0-55 | 72 | 1000 | 18,000-35,000 | 5 to 40m | 1.5 | 100 |
| JC4-10.0-45 | 72 | 1000 | 23,000-45,000 | 5 to 30m | 2 | 100 |
| JC4-14.0-33 | 72 | 1000 | 32,000-60,000 | 5 to 25m | 2 | 100 |
Solar Panel Selection: Power of solar panel = Power of pump X 1.3. The voltage of the panel must match the pump voltage.
Battery Calculation: Battery Use Hours = Capacity ÷ (Power ÷ Voltage) X 0.6.
