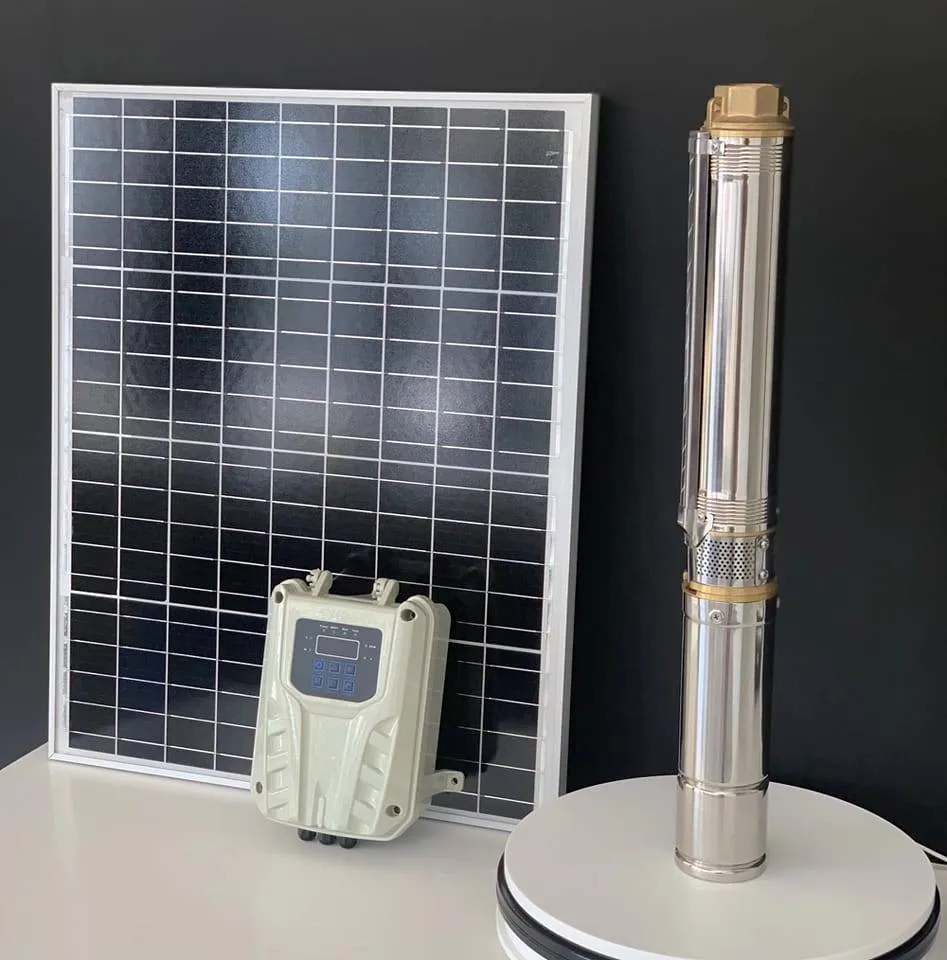

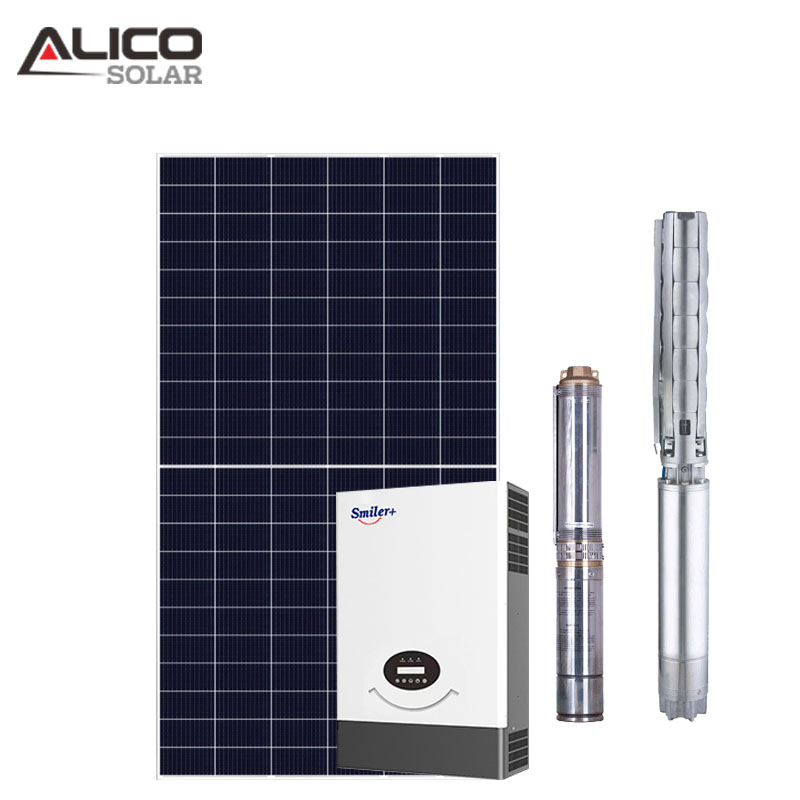

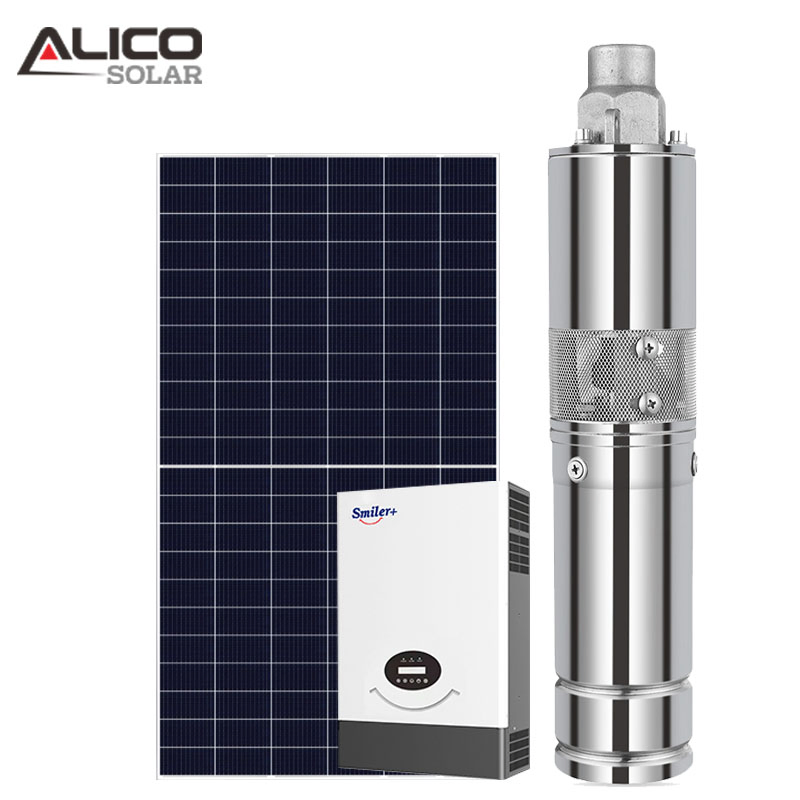

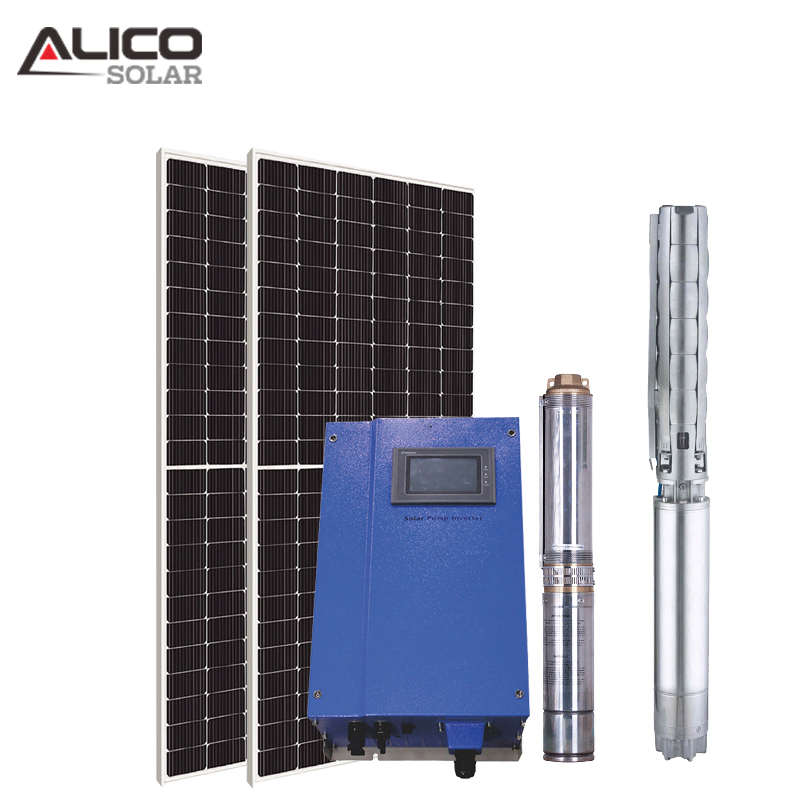

DC AC Solar Pump system for Farm
| Model | Voltage (V) | Rate Power (W) | Max Flow (m3/h) | Max Head (M) | Outlet (in) | Diameter (mm) |
|---|---|---|---|---|---|---|
| JS3-0.9-32 | 24 | 100 | 0.9 | 32 | 3/4" | 76 |
| JS3-1.8-100 | 24 | 270 | 1.8 | 100 | 3/4" | 76 |
| JC3-4.2-54 | 48 | 600 | 4.2 | 54 | 1" | 76 |
| JS4-4.0-100 | 72 | 1000 | 4 | 100 | 1" | 100 |
| JC4-14.0-33 | 72 | 1000 | 14 | 33 | 2" | 100 |
| JCS4-25-96 | 288 | 4000 | 25 | 96 | 2" | 100 |
| JCS6-70-33 | 288V | 4000 | 70 | 33 | 4" | 150 |
| Item Name | Description | Unit | Quantity |
|---|---|---|---|
| Solar panel | 260W / 31.2V poly | pc | 136 |
| Mounting structure | Q235 material, Hot-dip zinc | set | 1 |
| PV cables | 4mm2, 400m | set | 1 |
| Pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |
| Safety rope | Pump Depth * 2 | pc | 1 |
Solar power system has a wide range of applications, such as offering domestic water, helping agricultural and forestry irrigation, and desertification control. It can also supply water to sea islands, animal husbandry, and water treatment projects.

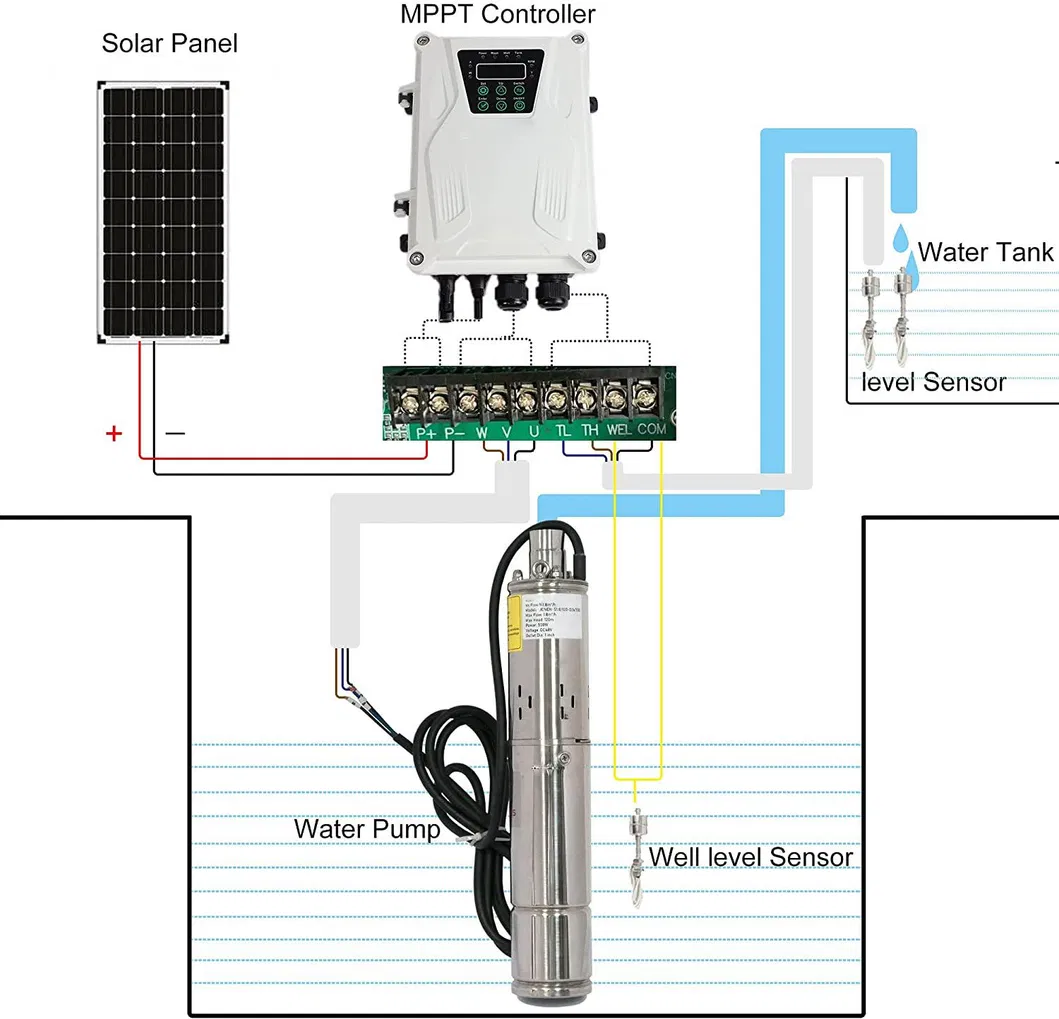

Solar pump systems are high quality products designed and installed for drinking water supply, livestock watering and smaller irrigation applications without any pollution.

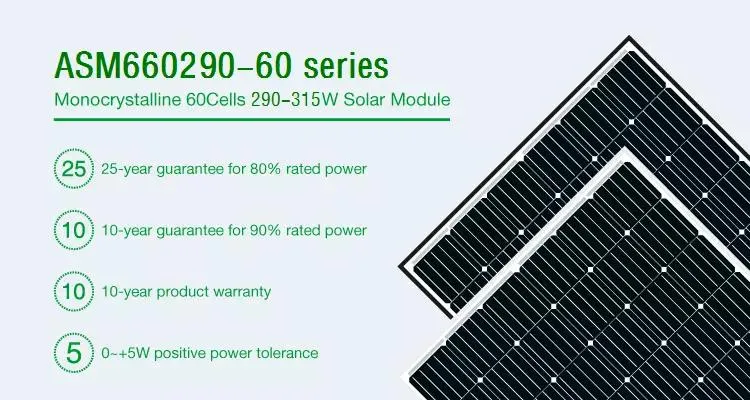

Peak Power Watts: 290W
Maximum Power Voltage: 32.2V
Maximum Power Current: 9.02A
Dimensions: 1640×992×35 mm
Weight: 18.6 kg

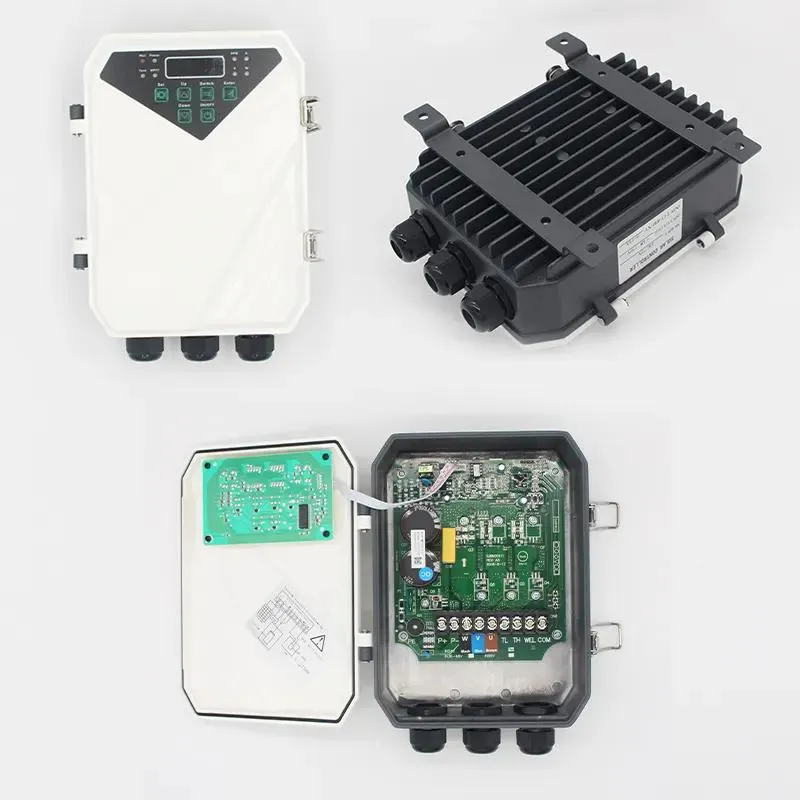

Max. DC Input Power: 8.5KW
Max. DC Input Voltage: 600V
MPPT Voltage Range: 90-520V
Rated Grid Voltage: 230V(EU)
Wifi Stick For STD, Lan & GPRS Optional.
Power type: DC, AC/DC option
Motor type: BLDC
Diameter: 1-6 inch
Pump body: Stainless Steel 304
Warranty: 2 years
Application: Irrigation, Water Supply, Deep Well
