Bedford Solar Pumping Irrigation System for 380VAC Submersible Pump

1 / 5

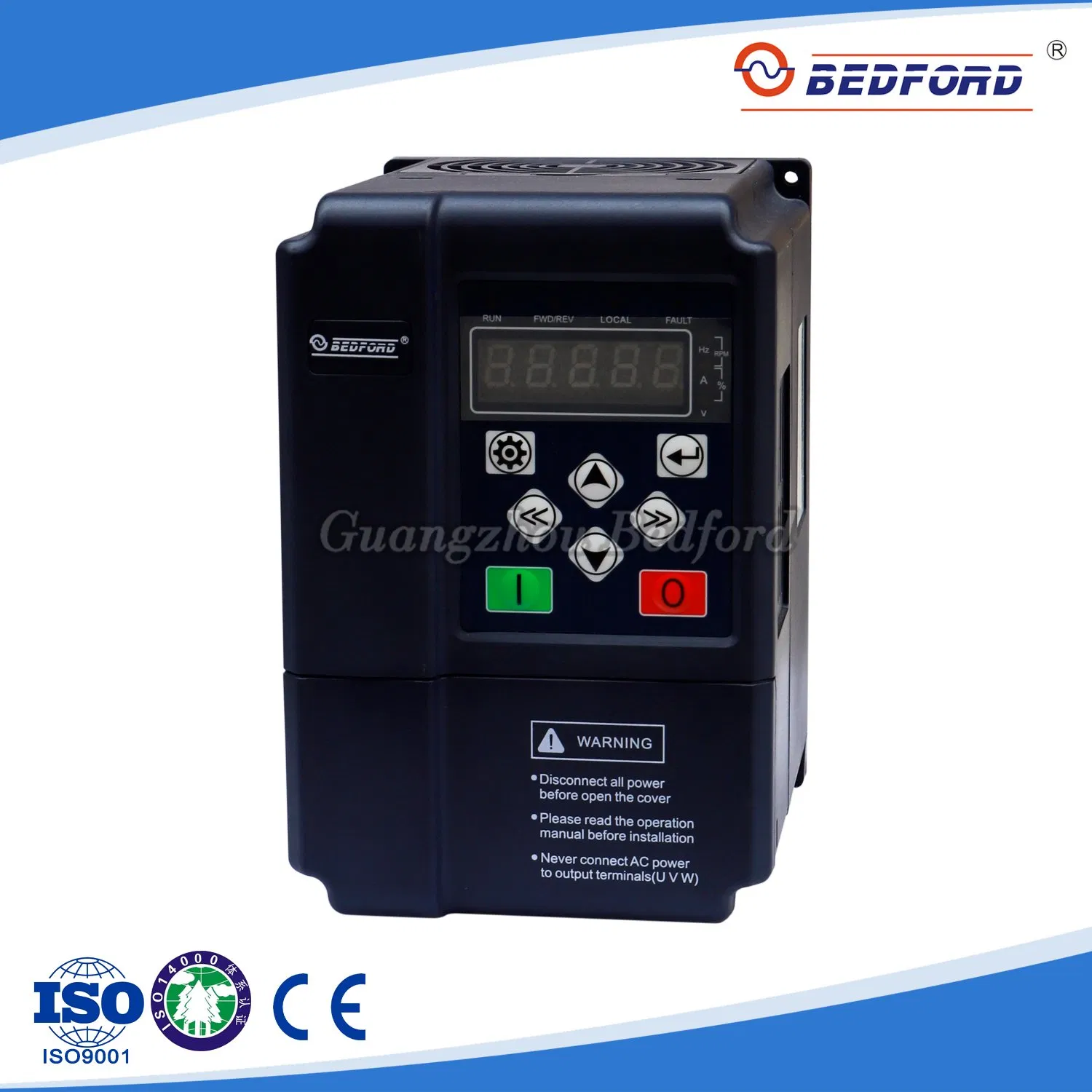

Bedford Solar Pumping Irrigation System for 380VAC Submersible Pump

Customization:	Available
Nature of Source Flow:	Passive inverter
Phase:	Three

Send Inquiry

Product Description

Basic Info.

Model NO.

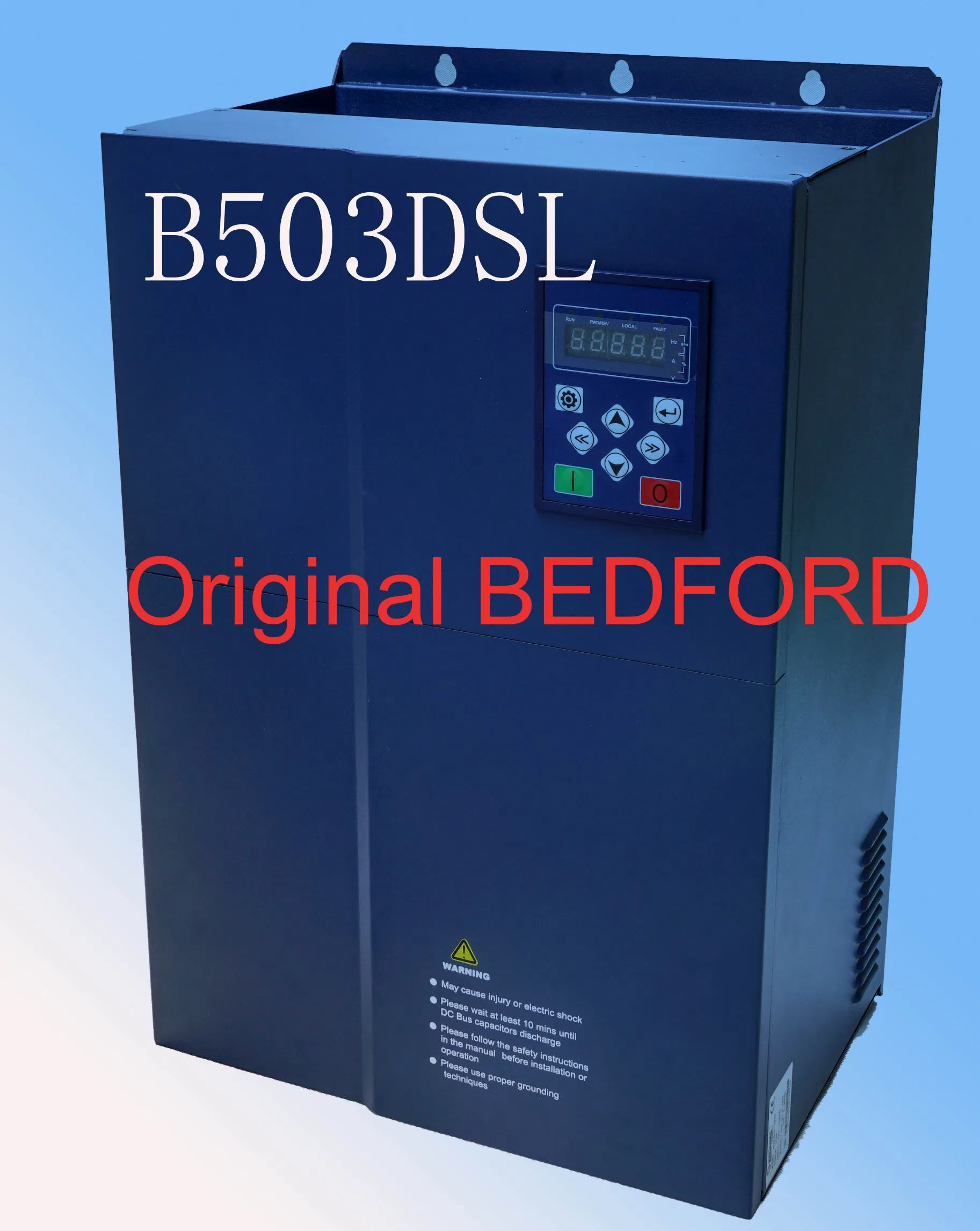

B503DSL

Output Power

0.75kw-315kw

Certification

CE, ISO9001, ISO14001, ISO45001

Type

DC/AC Inverters

Power Source

Solar Power, City Power

Circuit Topologies

Full-Bridge Type

Nature of Wave String

Sine Wave Inverter

Warranty

12 Months

Application

Solar Pumping System, Irrigation

Protection

Over Voltage, Over Heat, Over Load and Dry-Run

Display

LED Digital

Output Current

2.5A-600A

Frequency

50/60Hz

Input DC Voltage

420-720VDC

Input AC Voltage

380VAC

Output Voltage

Three Phase 380VAC

Features

High-Accuracy MPPT Technology

Production Capacity

500 Per Week

★

Product Description

Solar Pumping Irrigation System for 380VAC Submersible Pump

Introduction:

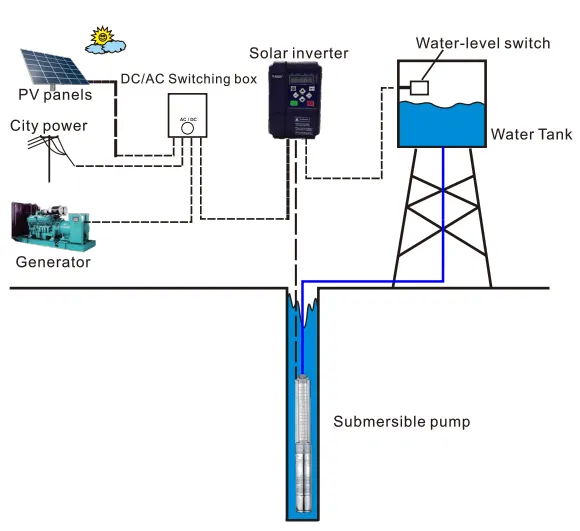

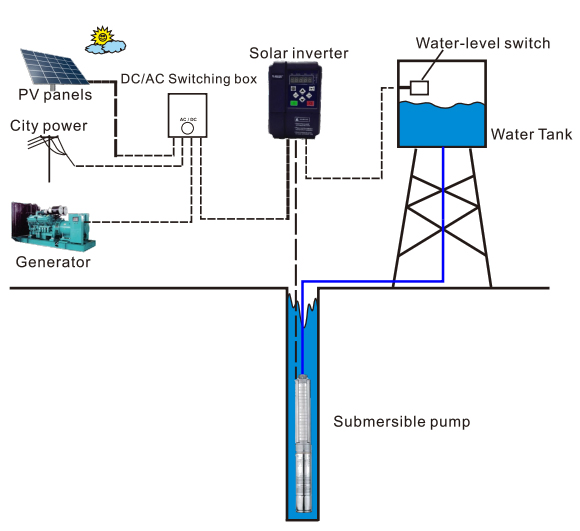

This product is suitable for solar photovoltaic pump system, aimed at environmental and economy market, to replace battery with retain water and without any battery components. Photovoltaic Pump Controller receives the DC which produced by Solar Modules and then transform into AC to drive all kinds of pump directly.

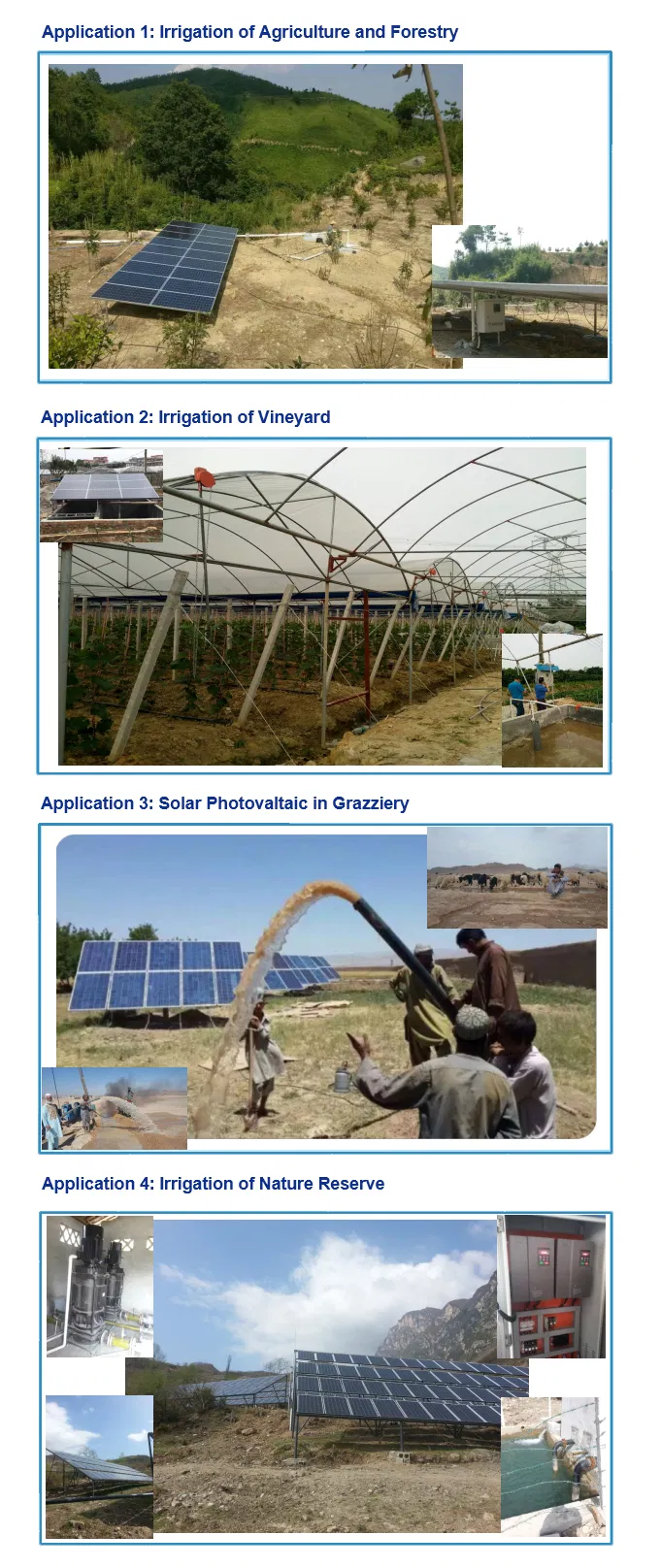

Application:

Ground Water lowering
Irrigation systems
Tank/cistern filling
Drip irrigation & sprinkler
Wildlife refuge
Rural water supply for ranches

Features:

High-accuracy MPPT technology
Automatic regulation of pump flow
Automatic water level control
Compatible DC/AC input
Remote control by mobile
Overload, overheat and dry-run protection

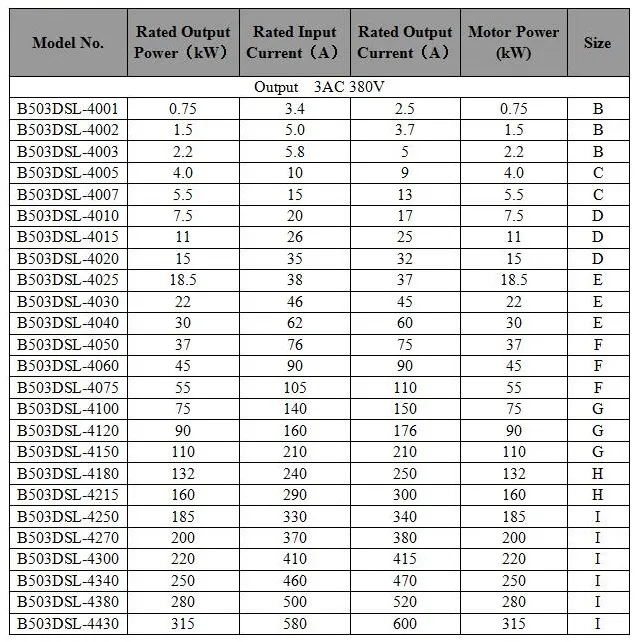

Model List:

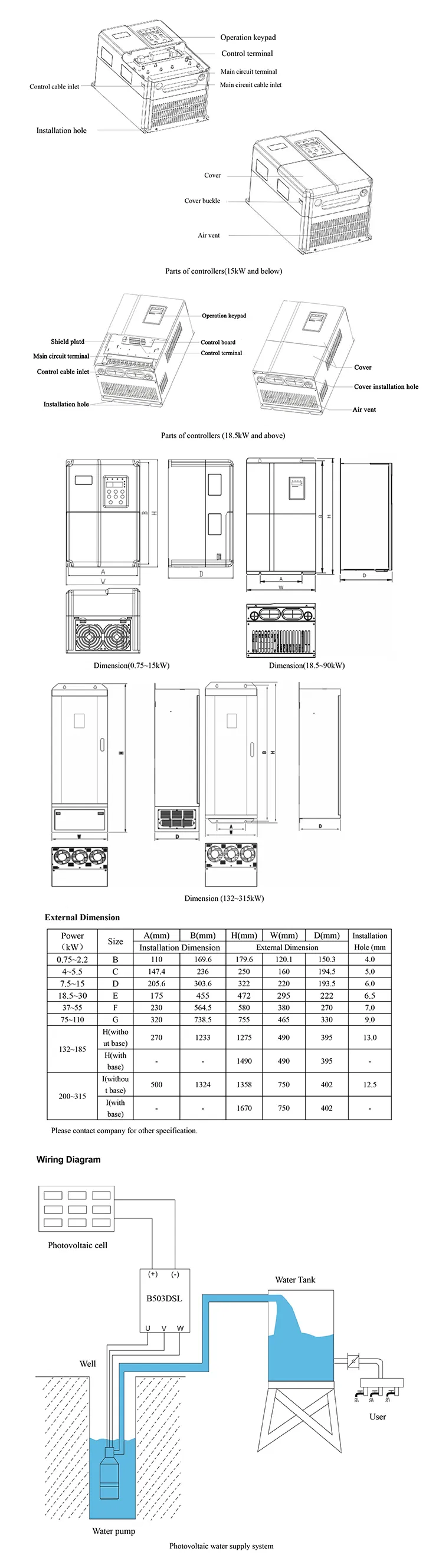

Parts Description:

Frequently Asked Questions

What is the main function of this solar pump controller?

The controller converts DC power from solar modules into AC power to drive various pumps directly, eliminating the need for expensive battery storage.

Can this system work with both solar and grid power?

Yes, the B503DSL series supports compatible DC/AC input, allowing it to utilize both solar power and city power as required.

How does the system maximize solar efficiency?

It utilizes high-accuracy MPPT (Maximum Power Point Tracking) technology to ensure the pump receives the maximum possible power from the solar panels at all times.

What safety protections are integrated into the device?

The system features built-in protection against over-voltage, overload, overheating, and dry-run motor conditions to ensure long-term reliability.

Is remote monitoring available for this pumping system?

Yes, the system supports remote control and monitoring through mobile devices, allowing for easy management of irrigation and water supply.
