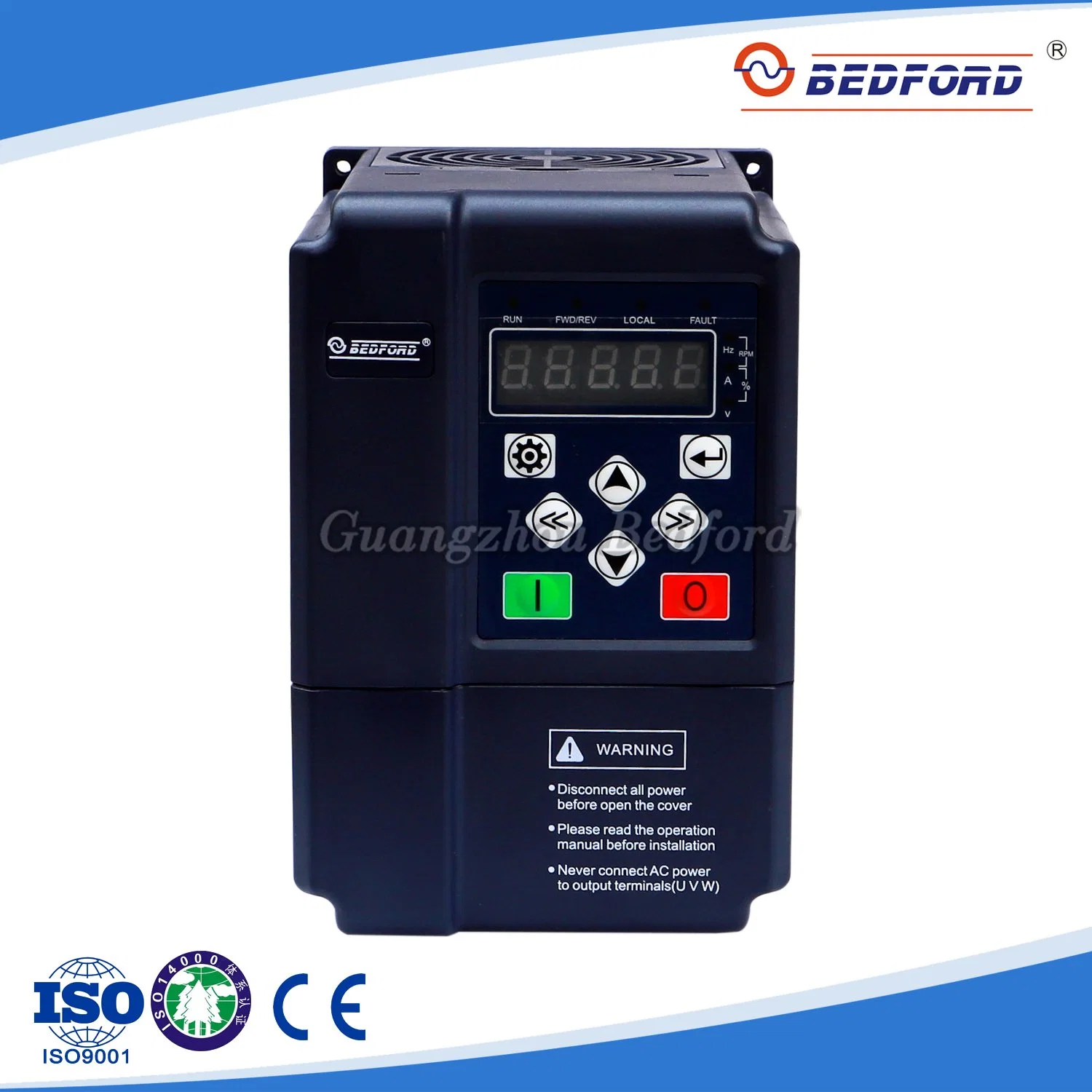

Bedford MPPT Solar Powered Automatic Pumping Irrigation System Without Battery

1 / 5

Bedford MPPT Solar Powered Automatic Pumping Irrigation System Without Battery

Customization:	Available
After-sales Service:	Easy to Install
Warranty:	12 Months

Send Inquiry

Product Description

ℹ

Basic Info.

Model NO.

B503DSL

Nature of Source

Passive inverter

Phase

Three

Output Power

>1000W

Certification

CE, ROHS

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Push-pull Type

Wave String

Sine Wave Inverter

Application

Solar Pumping System, Irrigation

Display

LED Digital

Output Current

2.5A-600A

Frequency

50/60Hz

Input DC Voltage

420-720VDC, 220-370VDC

Input AC Voltage

380VAC, 220VAC

Output Voltage

Three Phase 380VAC, 220VAC

HS Code

9032899090

Capacity

500 Per Week

★

Introduction

Solar Powered Automatic Pumping Irrigation System

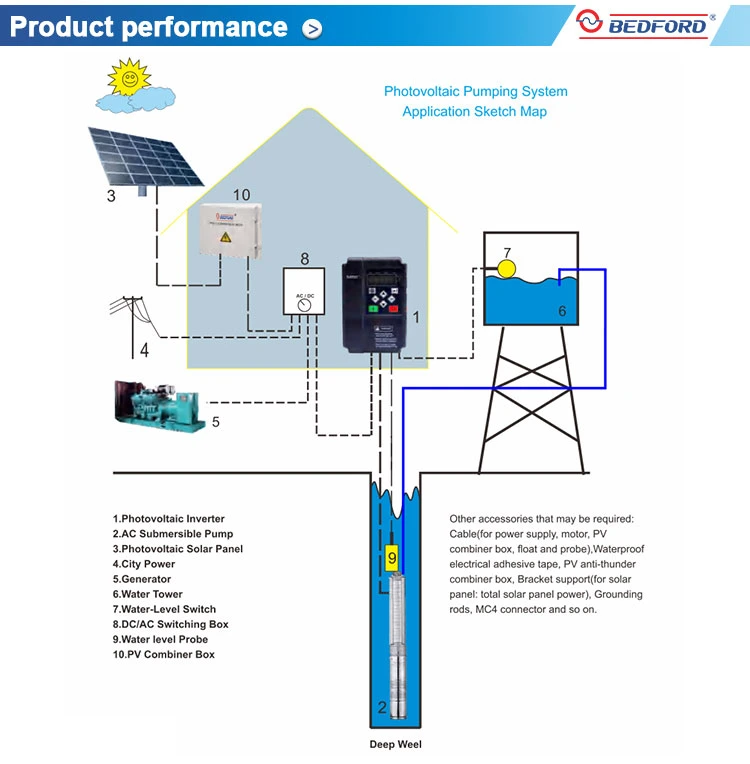

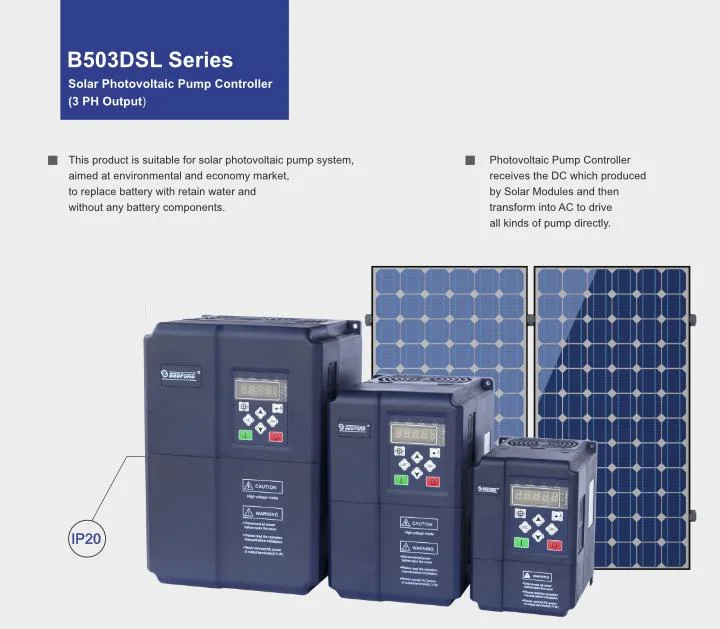

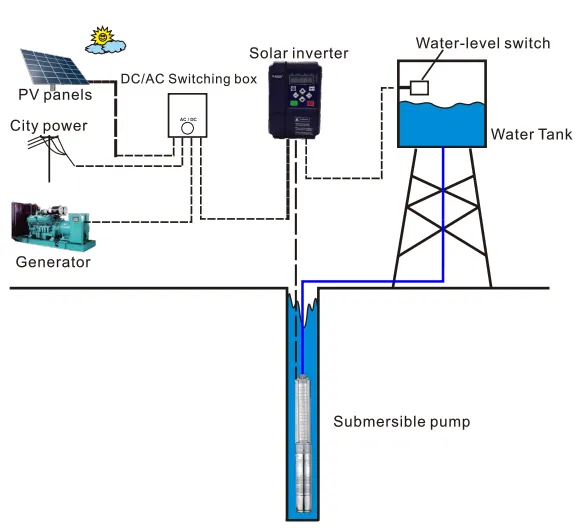

This product is suitable for solar photovoltaic pump systems, aimed at environmental and economy markets, to replace batteries with retained water. The Photovoltaic Pump Controller receives the DC produced by Solar Modules and then transforms it into AC to drive all kinds of pumps directly.

⚙

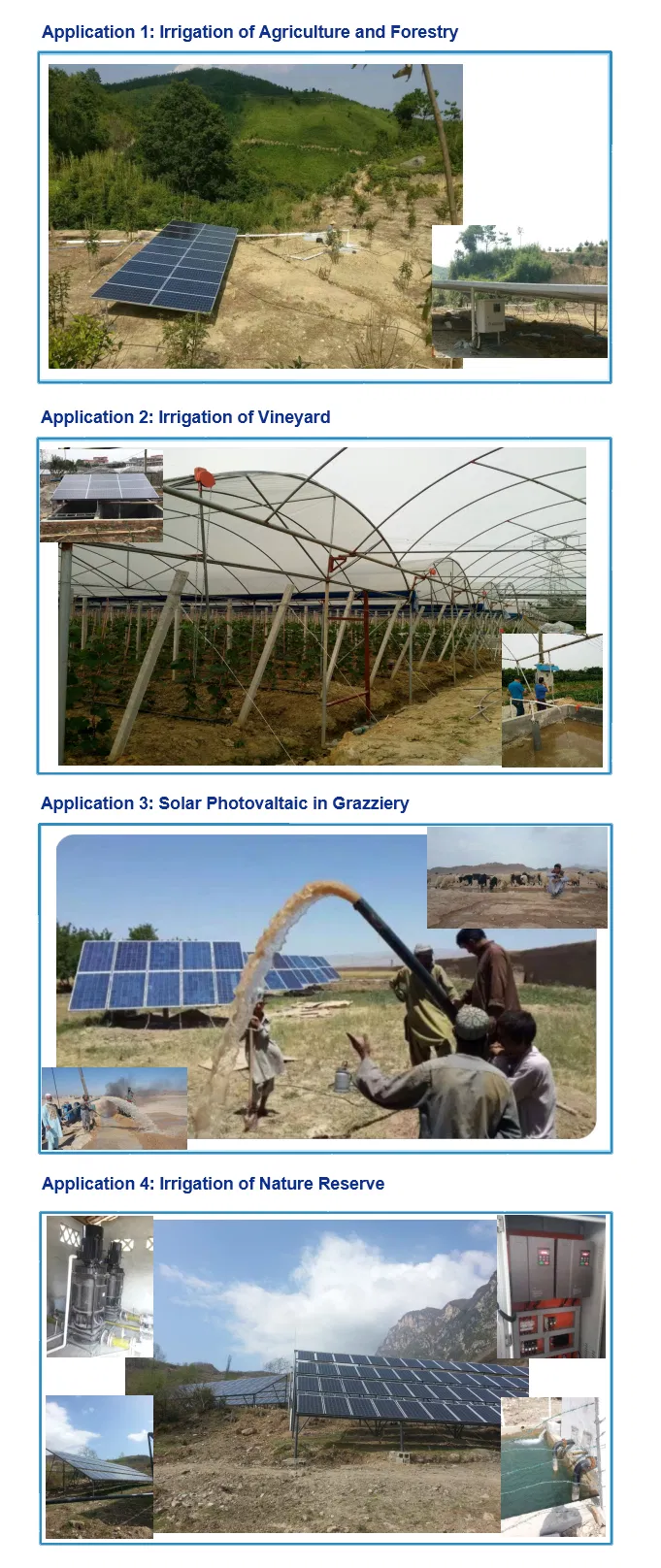

Application

Ground Water lowering
Irrigation systems
Tank/cistern filling
Drip irrigation & sprinkler
Wildlife refuge
Cabins and cottages
Rural water supply for ranches

✔

Key Features

High-accuracy MPPT technology
Automatic regulation of pump flow
Automatic water level control
Compatible DC/AC input
Remote control by mobile
Built-in over voltage, overload, overheat and dry-run motor protection

📋

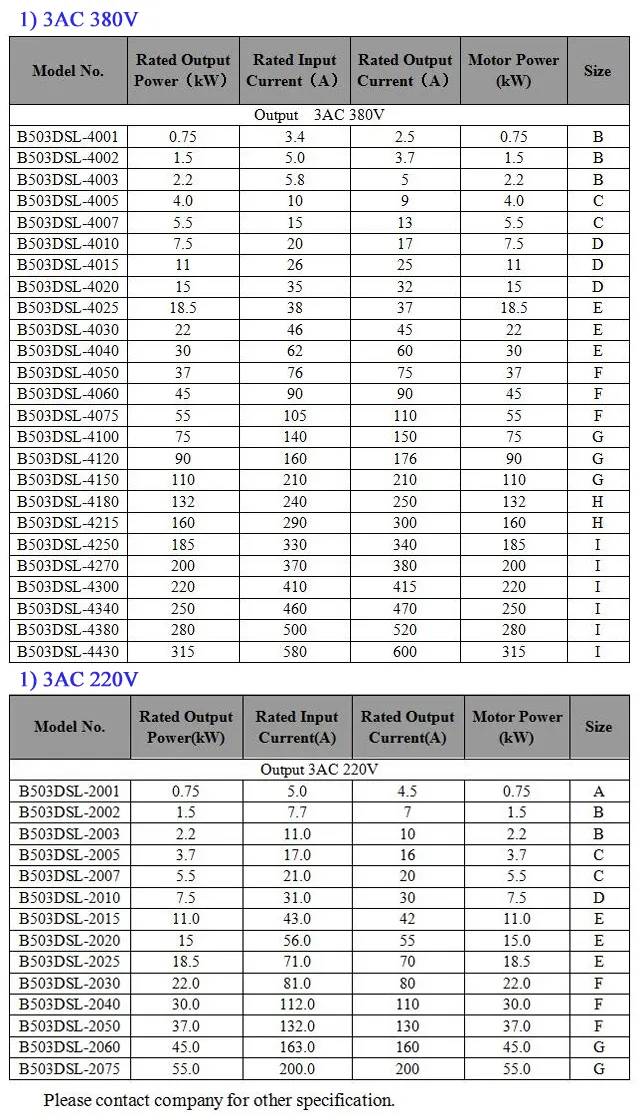

Model List & Specifications

🧩

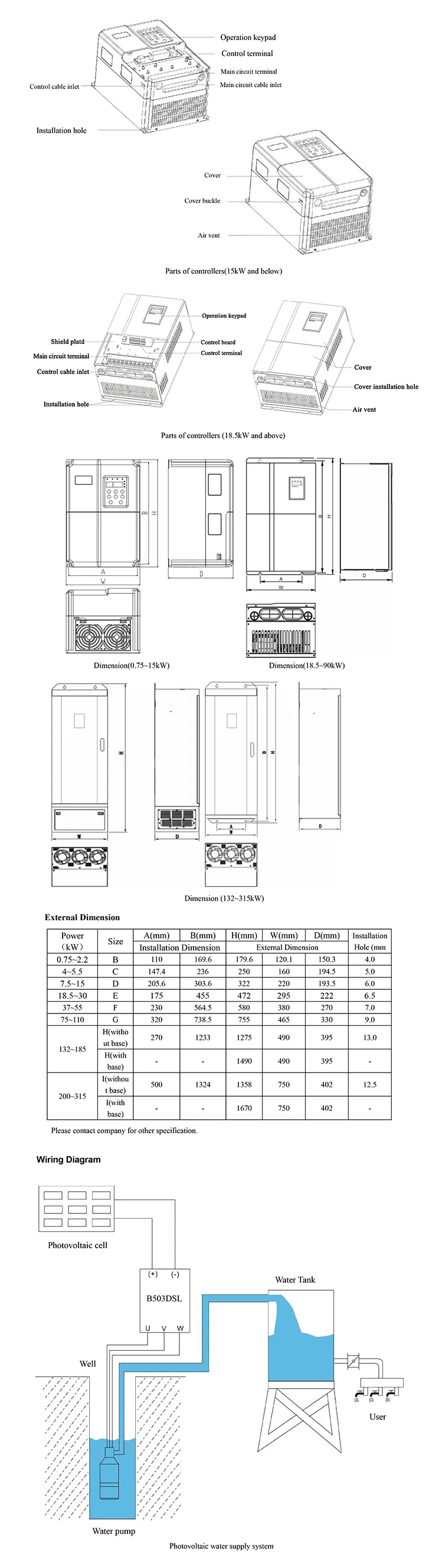

Parts Description

Frequently Asked Questions

1. Does this solar pumping system require batteries?

No, this system is designed to replace expensive battery components by retaining water in tanks or cisterns, making it more economical and eco-friendly.

2. Can the controller handle both AC and DC power?

Yes, the controller features compatible DC and AC inputs, allowing for flexible power sourcing from solar panels or the grid.

3. What is the benefit of MPPT technology in this inverter?

High-accuracy Maximum Power Point Tracking (MPPT) ensures the system extracts the maximum possible power from the solar panels to optimize pump performance.

4. How does the system protect the pump motor?

The system includes built-in protections for over-voltage, overload, over-heat, and dry-run, ensuring the longevity of your pumping equipment.

5. Can I monitor the system remotely?

Yes, the system supports remote control and monitoring via mobile devices for easier management in rural or remote locations.

6. What applications are best suited for this controller?

It is ideal for agricultural irrigation, groundwater lowering, rural water supply for ranches, and tank filling for cabins or wildlife refuges.
