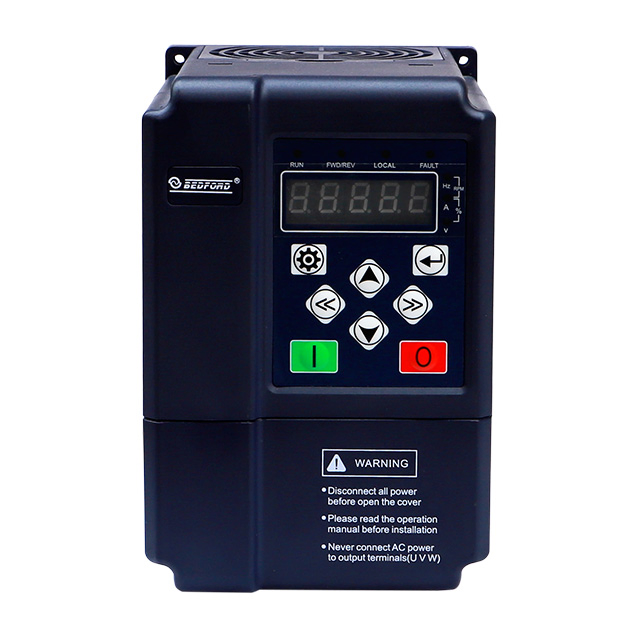

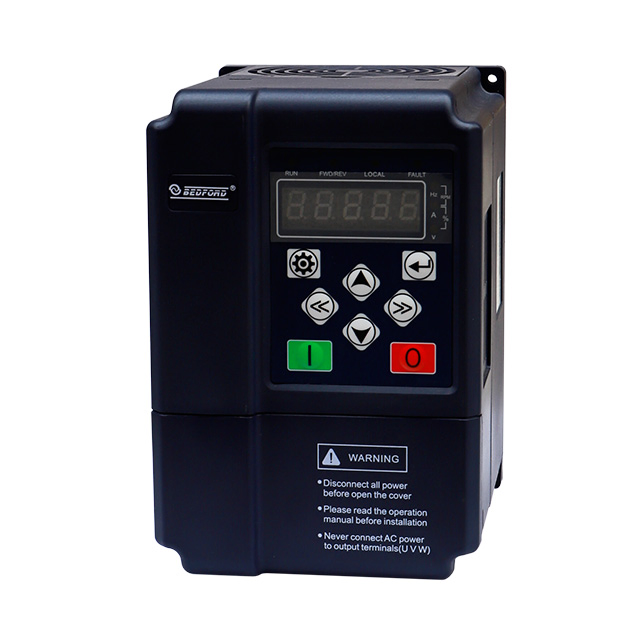

Bedford 0.75kw Solar Powered Pumping System for Agriculture Irrigation Without Battery

Customization:	Available
Warranty:	12 Months
Nature of Source Flow:	Active Inverter

Send Inquiry

Product Description

Basic Specifications

Model NO.

B503DSL

Phase

Multiple

Output Power

0.75 - 315kw

Certification

CE, ISO9001, ISO14001

Type

AC/AC Inverter

Power Source

Solar Power

Circuit Topologies

Full-Bridge Type

Wave String

Sine Wave Inverter

Production Capacity

5000 pieces/Month

Product Description

Solar Powered Pumping System for Agriculture Irrigation

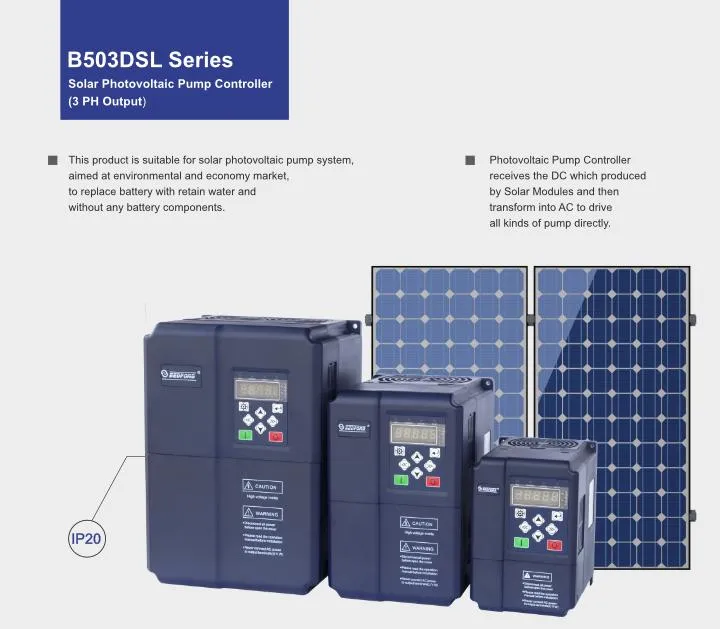

The B503DSL series products are designed for solar photovoltaic water pump systems, providing an environmentally friendly and economical solution. By replacing traditional electricity storage with water storage, this system eliminates the need for battery components. The direct current (DC) generated by solar modules is processed by the controller, converted into alternating current (AC), and used to directly drive various water pumps.

Power (kw)	Size	Installation Dim. (mm)		External Dim. (mm)			Inst.
Power (kw)	Size	A	B	H	W	D	(mm)
0.75~2.2	B	110	169.6	179.6	120.1	150.3	4
4~5.5	C	147.4	236	250	160	194.5	5
7.5~15	D	205.6	303.6	320	220	193.5	6
18.5~30	E	175	455	472	295	222	6.5
37~55	F	230	564.5	580	380	270	7
75~110	G	320	738.5	755	465	330	9
132~185	H	270	1233	1275	490	395	13
200~315	I	500	1324	1358	750	402	12.5

Product Advantages

✦

Advanced MPPT Technology: Maximizes the power generation efficiency of the solar cell array.

✦

Automatic Adjustment: Motor speed and water output adjust automatically based on sunlight intensity.

✦

Intelligent Water Control: Automatically sleeps when the reservoir is full and restarts when water levels are low.

✦

Dry Pumping Prevention: Protects the pump from running without water when the source is dry.

✦

Auto Sleep/Wake: Enters sleep mode at sunset and wakes at sunrise automatically.

Features

✔

Energy saving and environmental protection.

✔

High-durability plastic and sheet metal shell design options.

Frequently Asked Questions

How does the solar pumping system work without a battery?

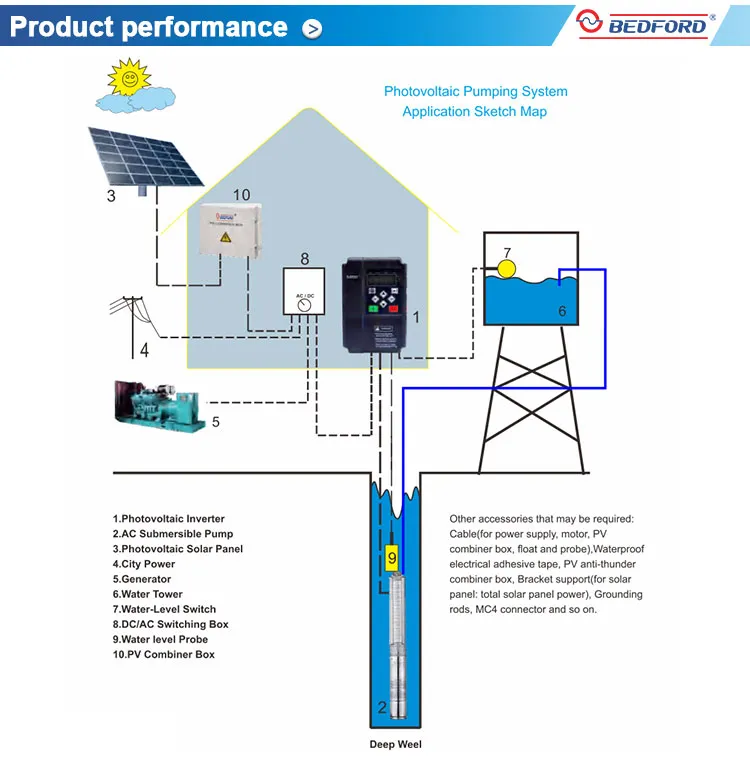

The system uses water storage instead of electricity storage. The inverter converts solar DC power directly to AC power to drive the pump, storing water in tanks or reservoirs for later use.

What is MPPT technology in this inverter?

Maximum Power Point Tracking (MPPT) ensures the inverter extracts the maximum possible power from the solar panels at all times, even during cloudy weather.

Will the system stop automatically when the tank is full?

Yes, the B503DSL series includes intelligent level control that puts the inverter into sleep mode when the high-water level is reached.

Can this inverter protect the pump from dry running?

Absolutely. The controller features dry-run protection to prevent damage to the pump if the water source runs dry.

What types of pumps can be driven by this solar inverter?

It is designed to drive various standard AC water pumps, commonly used in agricultural irrigation and residential water supply.

Does the system require manual operation every day?

No, the system is fully automatic. It starts at sunrise and goes into sleep mode at sunset without manual intervention.
