Alicosolar DC Solar Panel Pumping System Powered Underground Water Pump for Agriculture Irrigation

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

⚙️ Basic Information

Model NO.: AS-Solar Pump System

Condition: New

Certification: ISO, CE

Application: Home, Industrial, Commercial

Specification: Normal, OEM

System Type: Solar Power System

Industry: Air Conditioning / Water Transfer

Theory: Centrifugal Pump

Capacity: 1.2 Gw/Year

HS Code: 8501610000

📊 Product Parameters

30HP Solar Water Pump System
Item Name	Description	Unit	Quantity
Solar panel	260W / 31.2V poly	pc	136
Mounting structure	Q235 material, Hot-dip zinc	set	1
PV cables	4mm2, 400m	set	1
Pump inverter	Model 30000H	pc	1
Water pump	30HP	pc	1
Pump cables	3*16mm2, 200m	set	1
Safety rope	Pump Depth * 2	pc	1

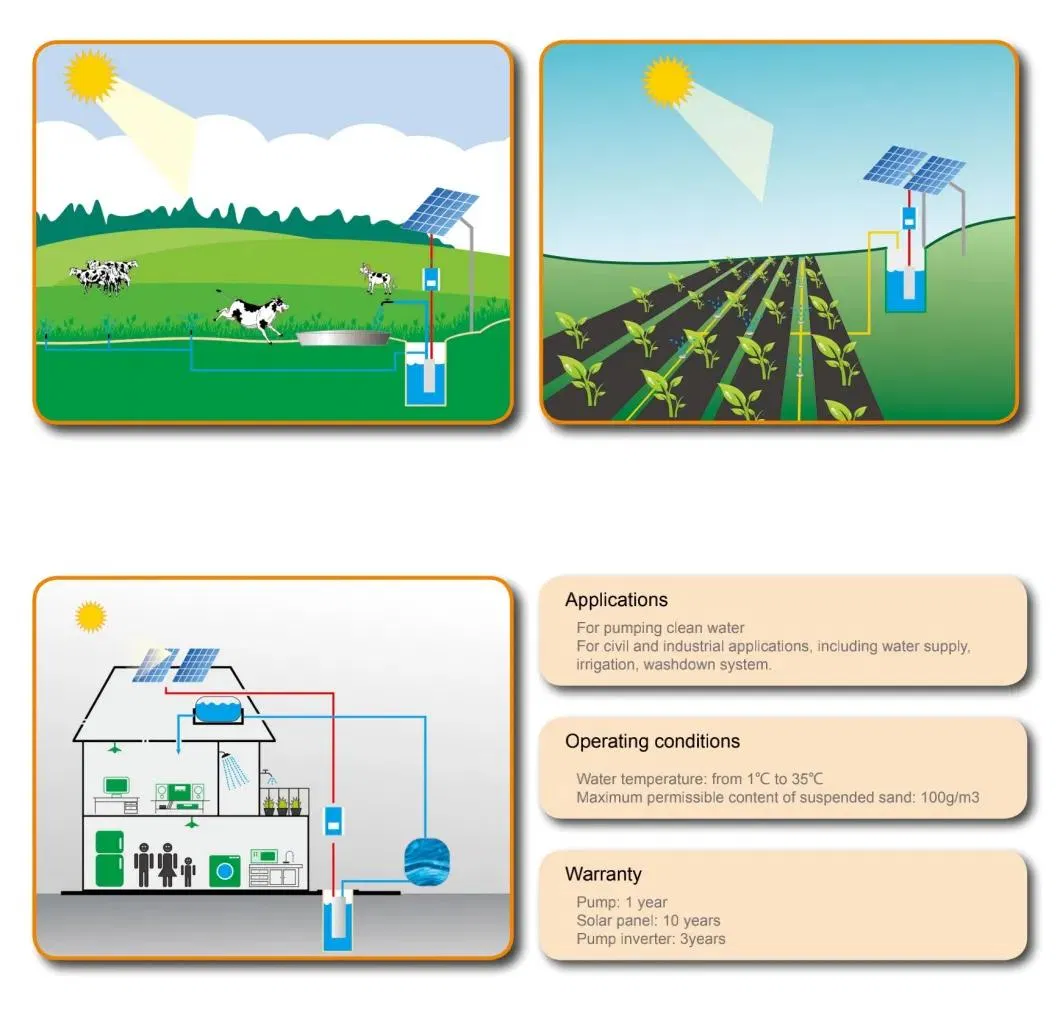

💡 System Features & Applications

Solar power systems have a wide range of applications, such as offering domestic water, helping agricultural and forestry irrigation, and desertification control. It can also supply water to sea islands, animal husbandry, and water treatment projects.

AGRICULTURAL IRRIGATION - Efficient water supply for crops.
ANIMAL HUSBANDRY - Stable drinking water for livestock.
DESERTIFICATION CONTROL - Environmental restoration projects.

Solar pump systems are high-quality products designed for drinking water supply, livestock watering, and smaller irrigation applications without any pollution. No infrastructure or grid is required for site selection. Optional grid can be back-up to meet day and night running without disturbance.

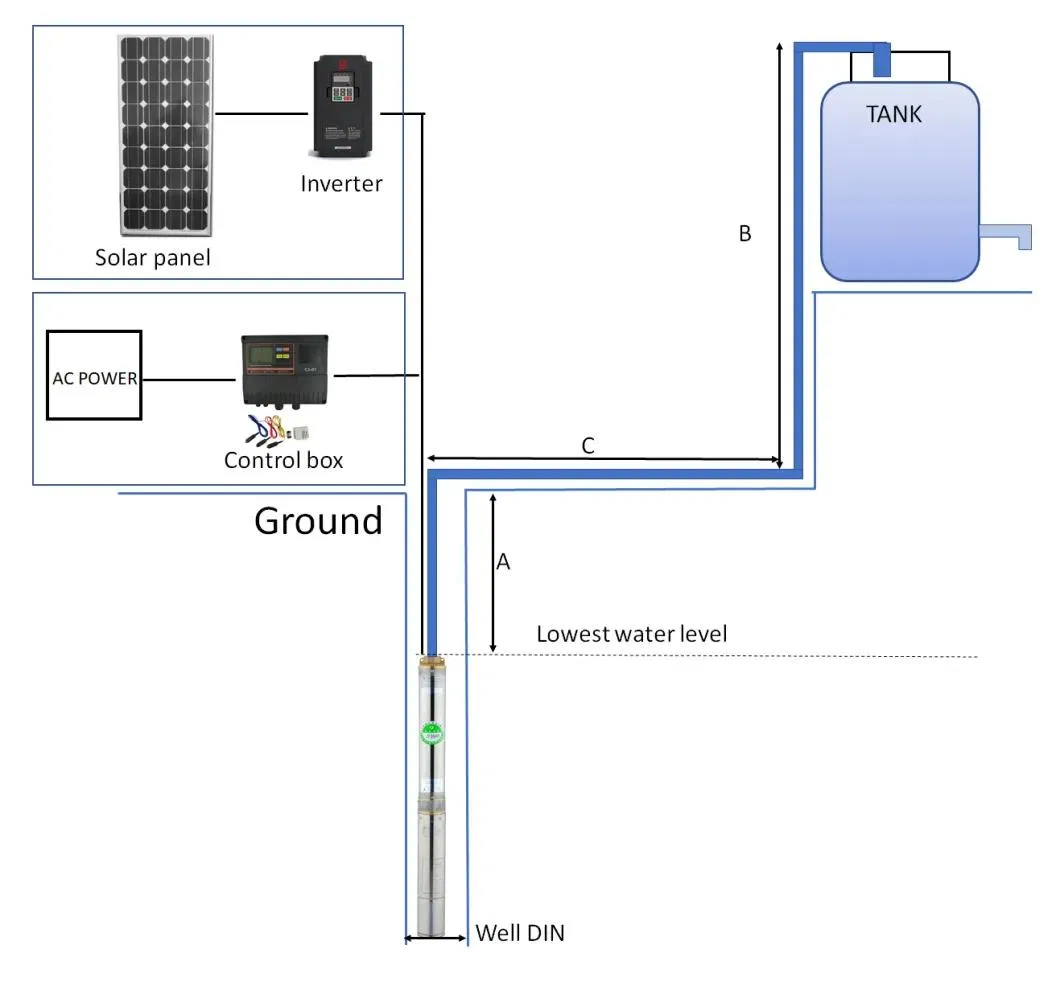

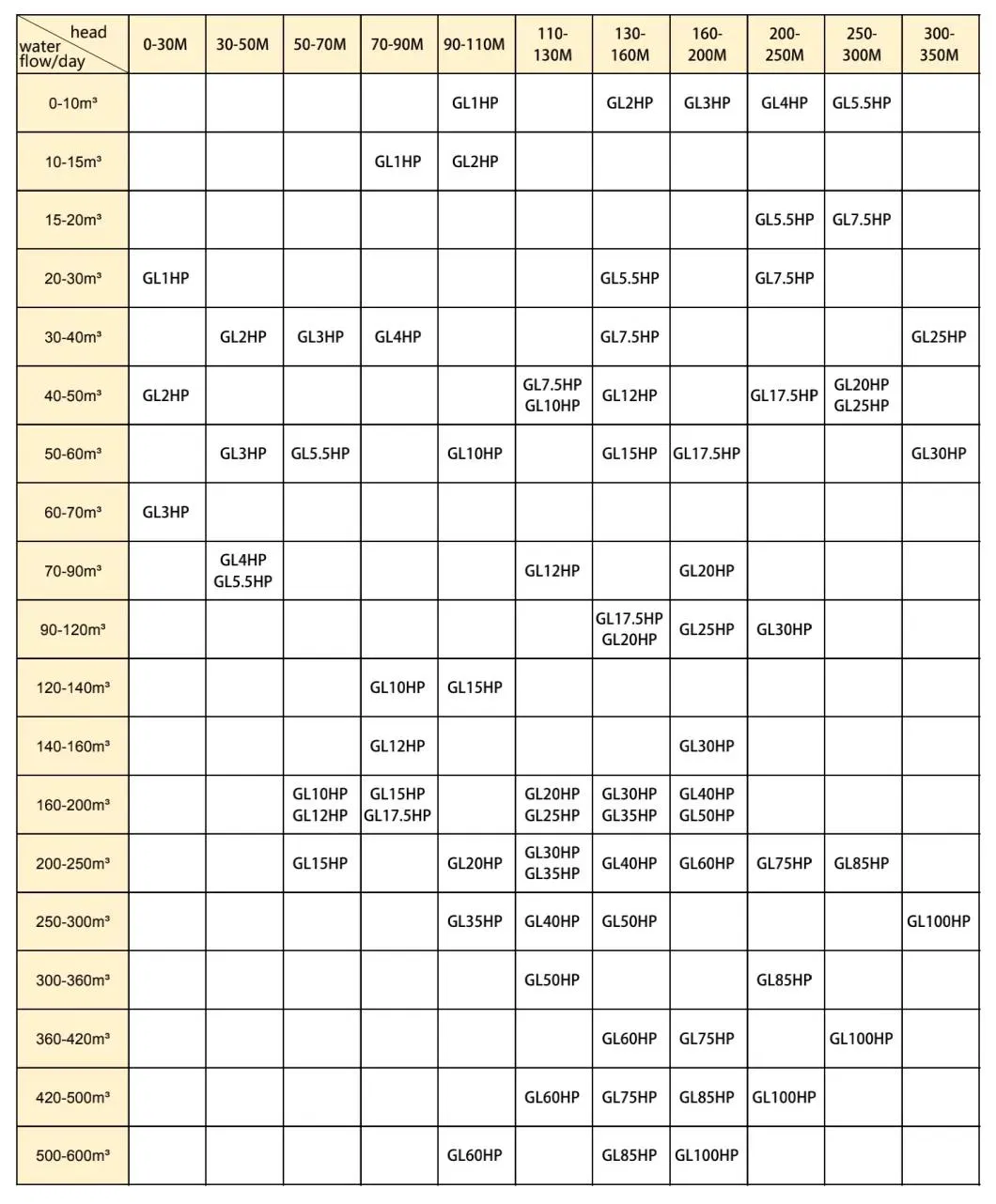

📝 Pump Selection Guide

Please consider the following factors to select the right pump:

Where will the pump be used?
How much water discharge (liters/gallons/m3) is required per day or per hour?
Do you need a submersible pump or a surface pump?
The depth of the borehole (deep well)?
The pipe distance (slope or horizontal) from the source to the destination tank?
The height of the storage tank?

🔍 Component Details

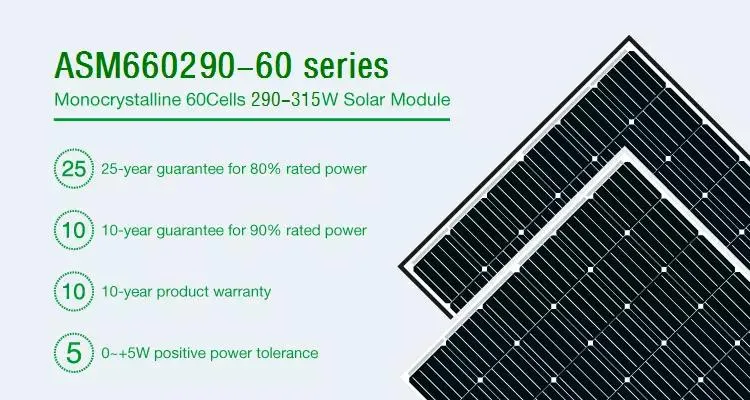

Mono Solar Panels

Peak Power Watts: 290W
Maximum Power Voltage: 32.2V
Maximum Power Current: 9.02A
Dimensions: 1640×992×35 mm
Weight: 18.6 kg

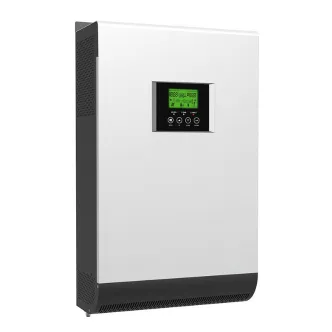

Off-Grid Inverter

Max. DC Input Power: 8.5KW
Max. DC Input Voltage: 600V
MPPT Voltage Range: 90-520V
Rated Grid Voltage: 208/240V/230V
Wifi, Lan & GPRS Optional monitoring.

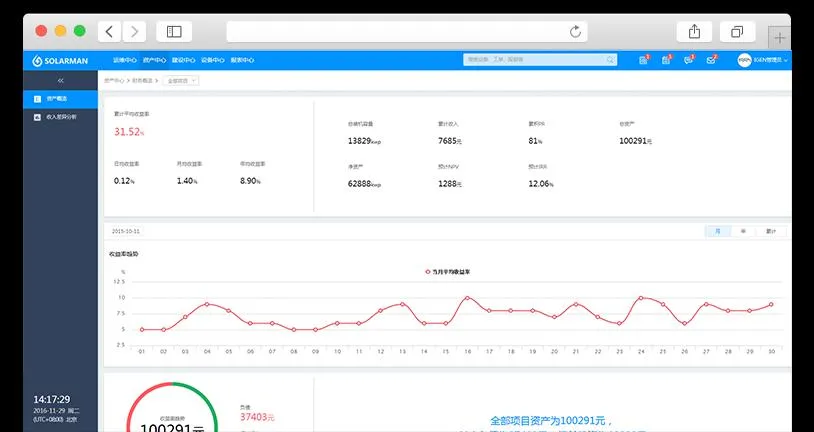

Remote Monitoring System

Data Logging Stick allows you to receive information from your solar power system via web server (Wi-Fi, Lan, or GPRS). App available for PC, iOS & Android.

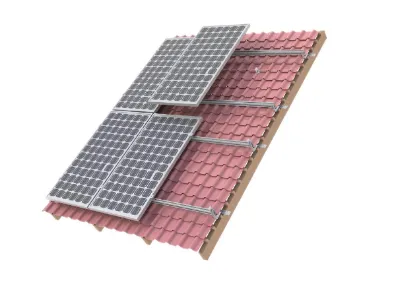

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt. Mid & End Clamps (35-50mm). L Foot, Asphalt Shingle Mount & Hanger Bolt Optional.

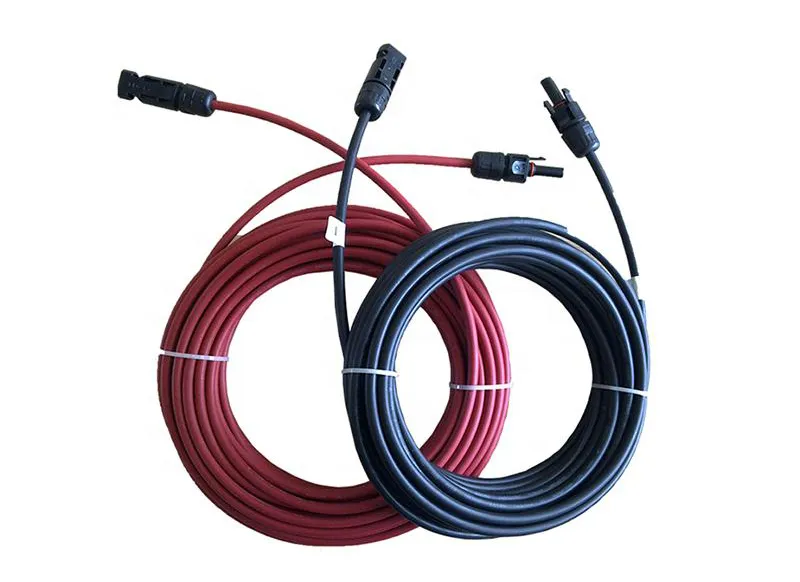

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional. Rated Voltage: 600VDC/1000VDC. Rated Current: 55A/70A. Lifetime: ≤25 Years.

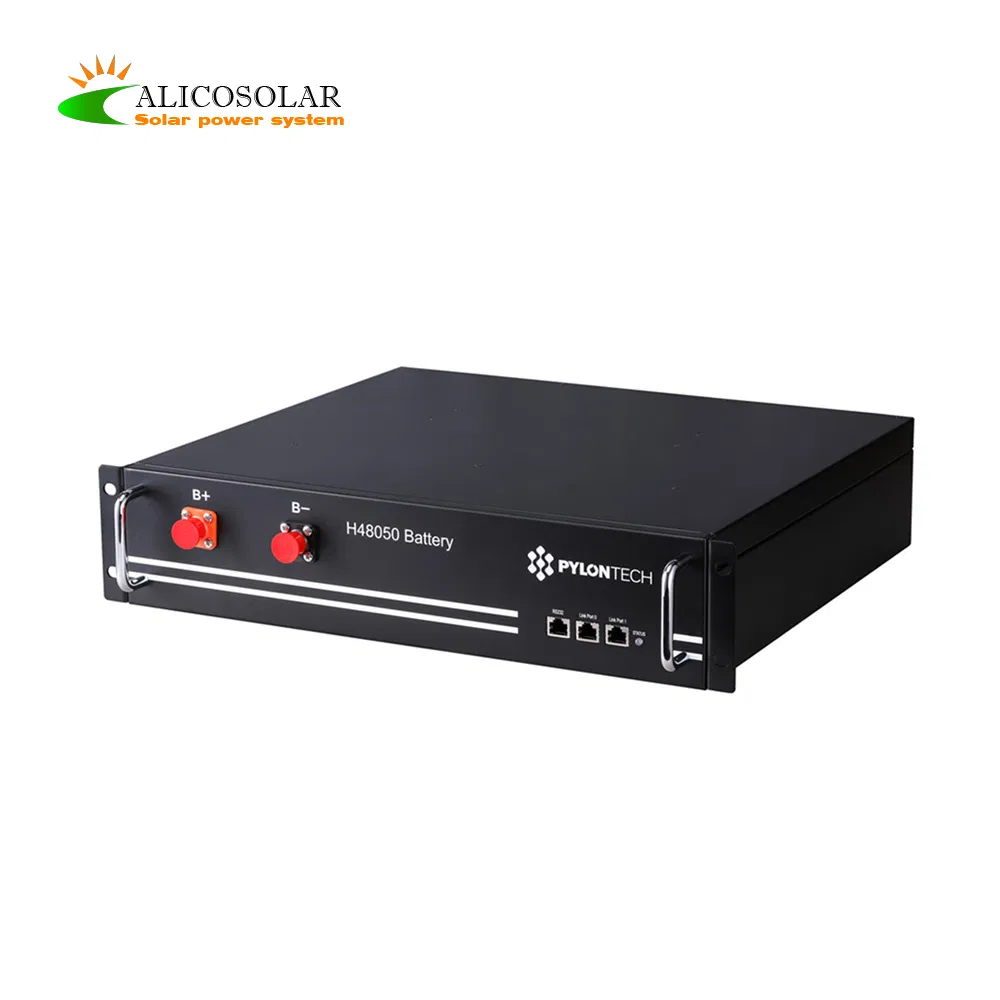

Lithium Battery

Specification: 48V 100Ah. Standard dimension: 4-5U. High efficiency storage for night-time or low-sunlight operation.

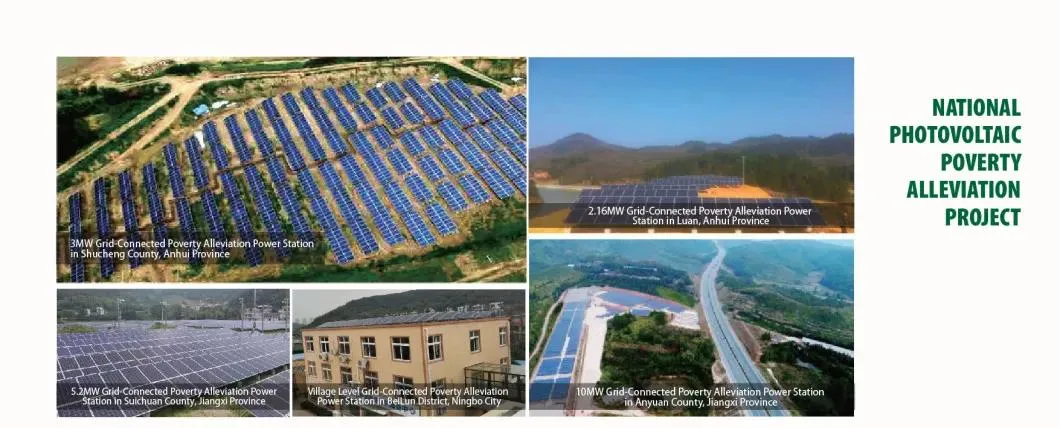

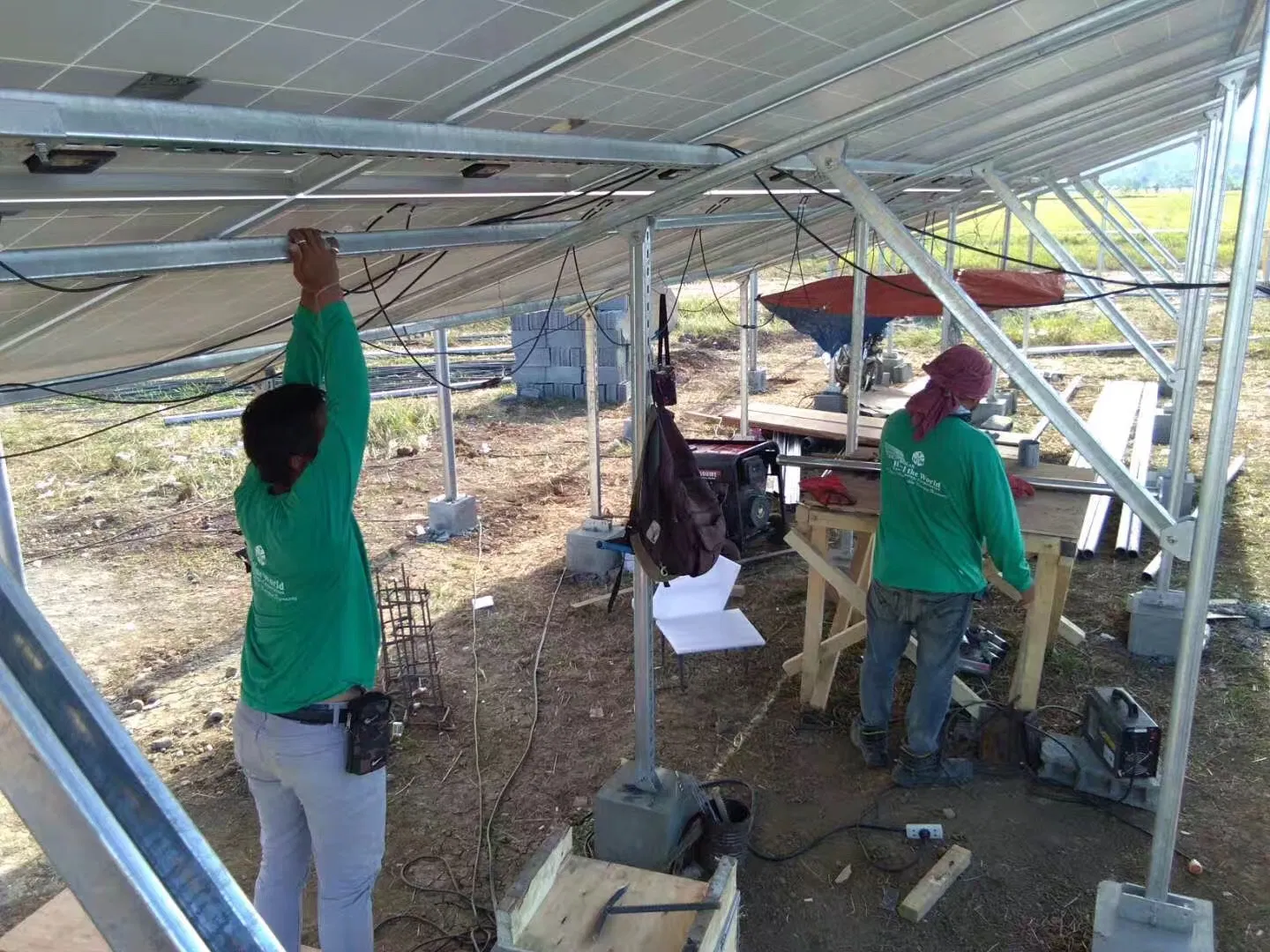

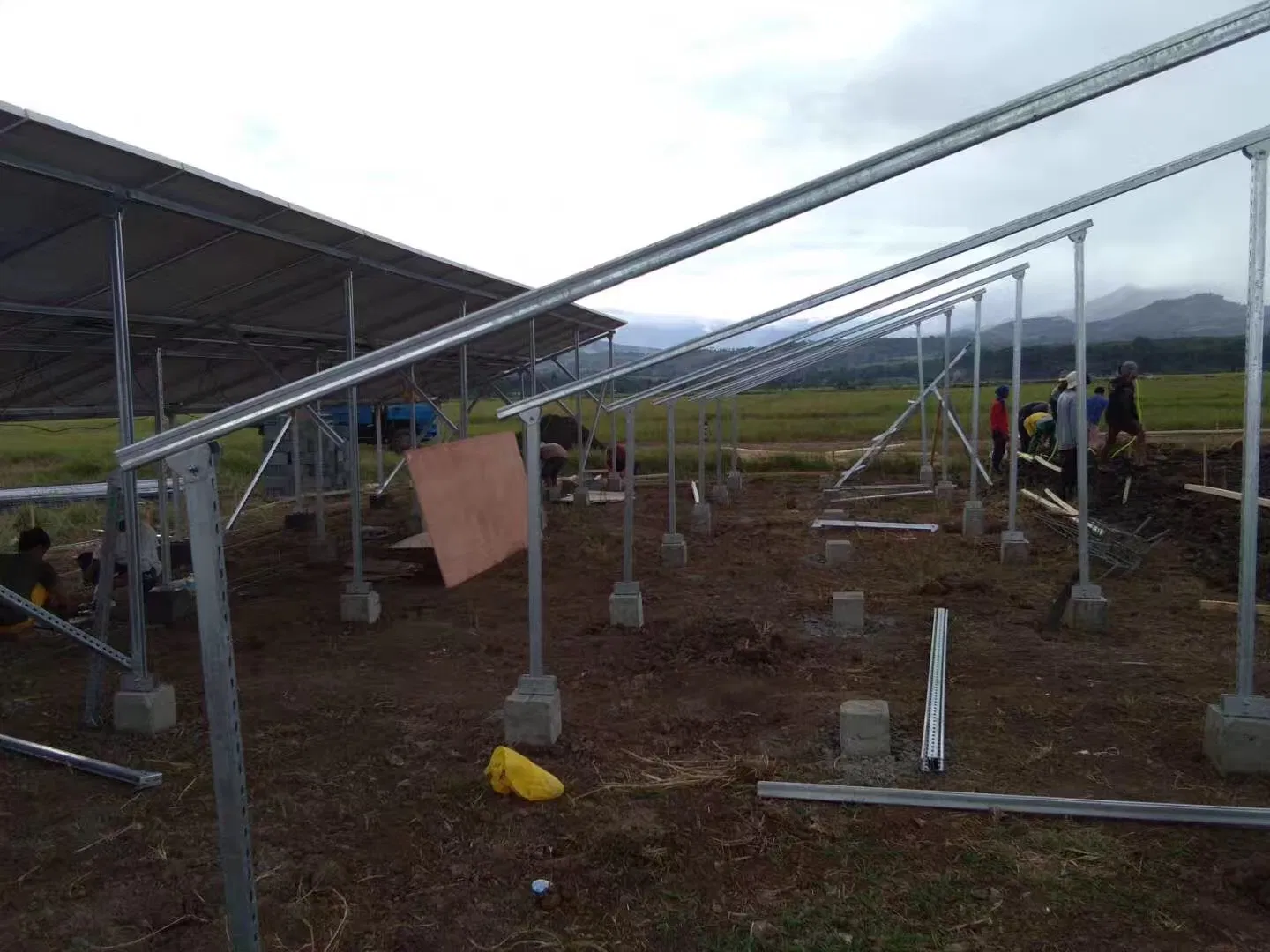

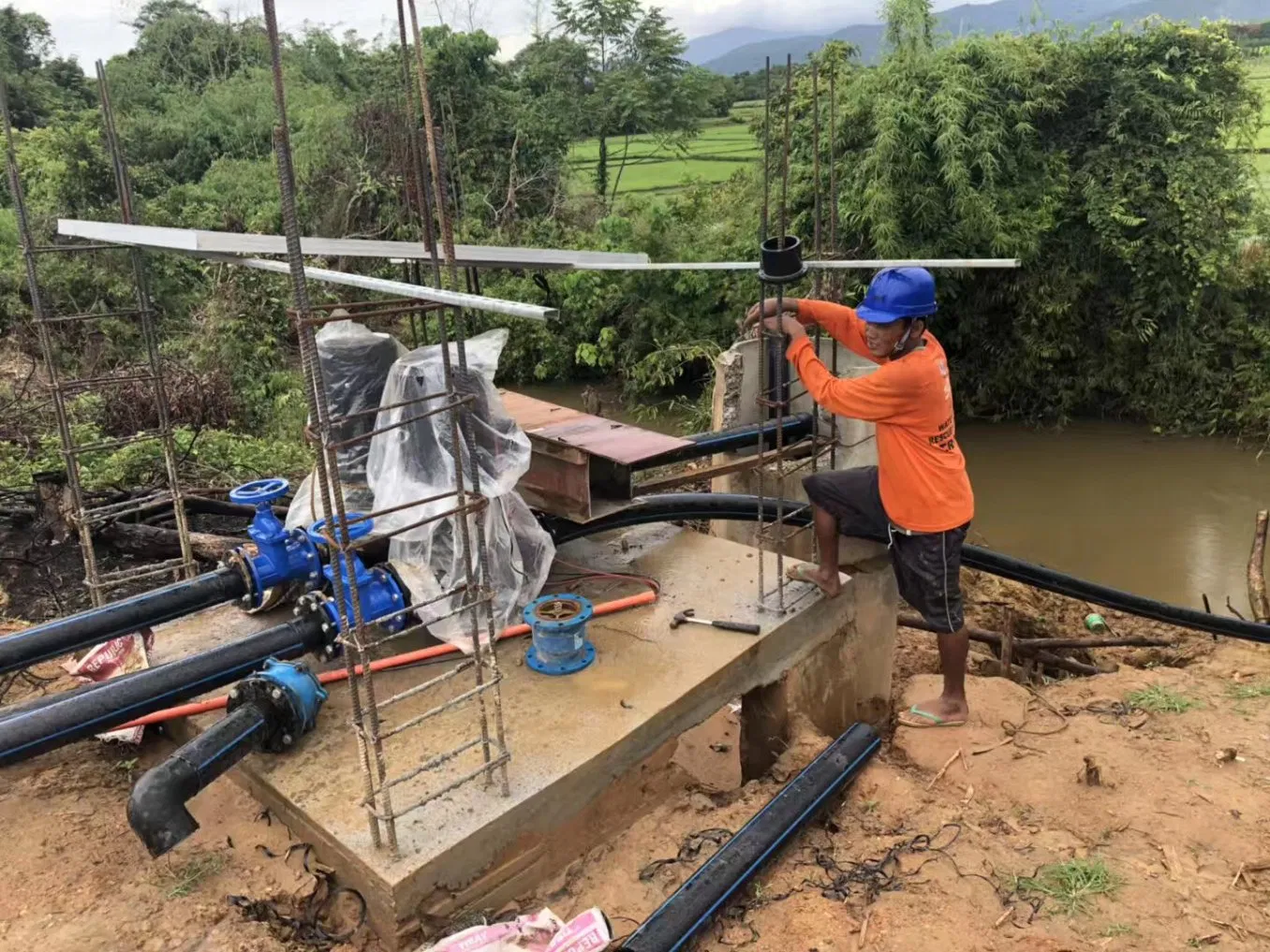

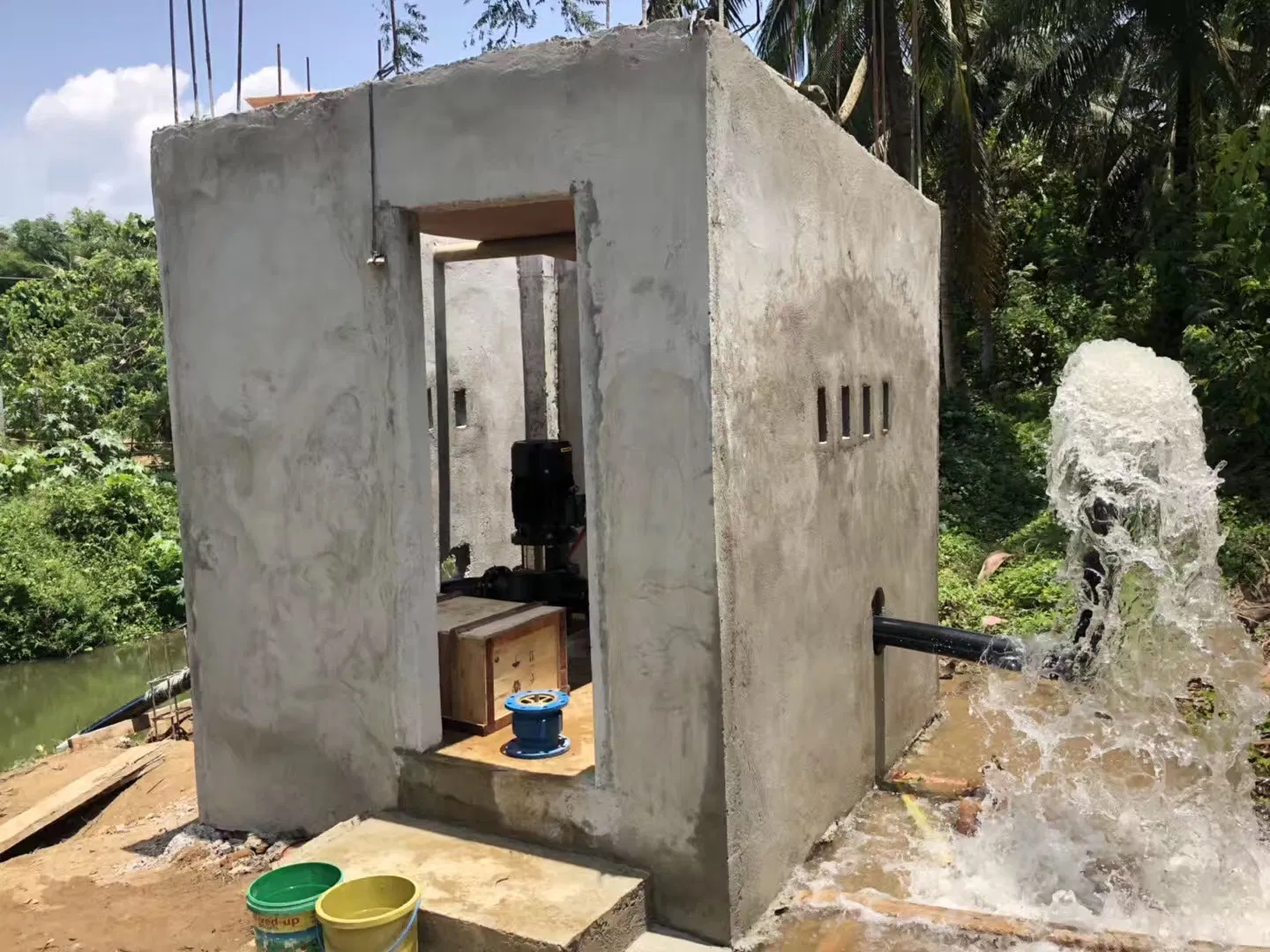

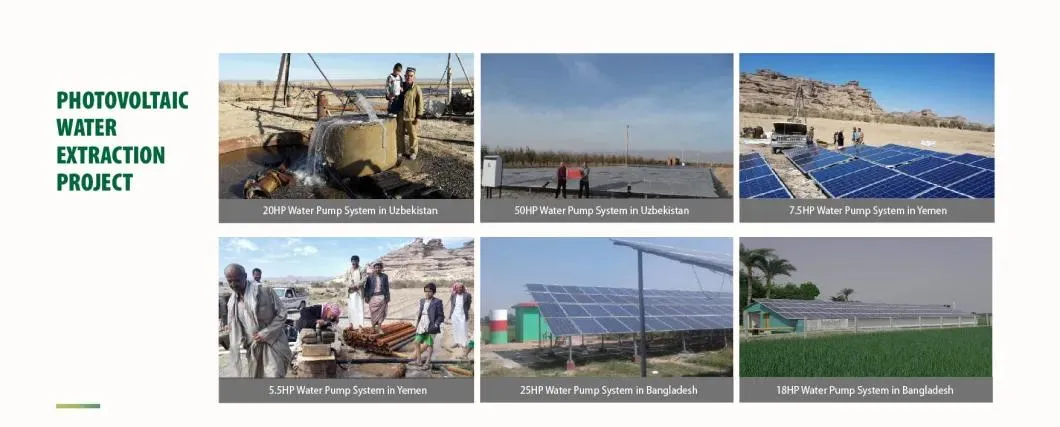

🏗️ Projects Shown

❓ Frequently Asked Questions

Q1: How do I calculate the required power for my solar panels? A: As a general rule, the power of the solar panel array should be approximately 1.3 times the power of the pump. The voltage of the panels must match the pump's requirements.

Q2: Can the solar pump system work at night? A: Yes, by adding an optional battery bank (like our 48V Lithium Battery) or by using a hybrid inverter that connects to the local power grid, the system can operate 24/7.

Q3: Is the system suitable for deep well pumping? A: Absolutely. Our 30HP system is designed for both surface and deep borehole applications, providing high head and discharge capacity for agriculture.

Q4: How do I monitor the performance of my solar pump? A: Each system includes a remote monitoring system with a data logging stick. You can access performance data via PC or mobile app (iOS/Android) using Wi-Fi or GPRS.

Q5: What determines the battery capacity I need? A: Battery capacity = (Desired Use Hours ÷ 0.6) x (Machine Power ÷ Battery Voltage). For example, a 200W machine requiring 3.6 hours of backup at 12V needs a 100AH battery.

Q6: Are the mounting structures durable for outdoor use? A: Yes, our mounting systems are made from Q235 material with hot-dip galvanization to ensure long-term corrosion resistance in harsh environments.
