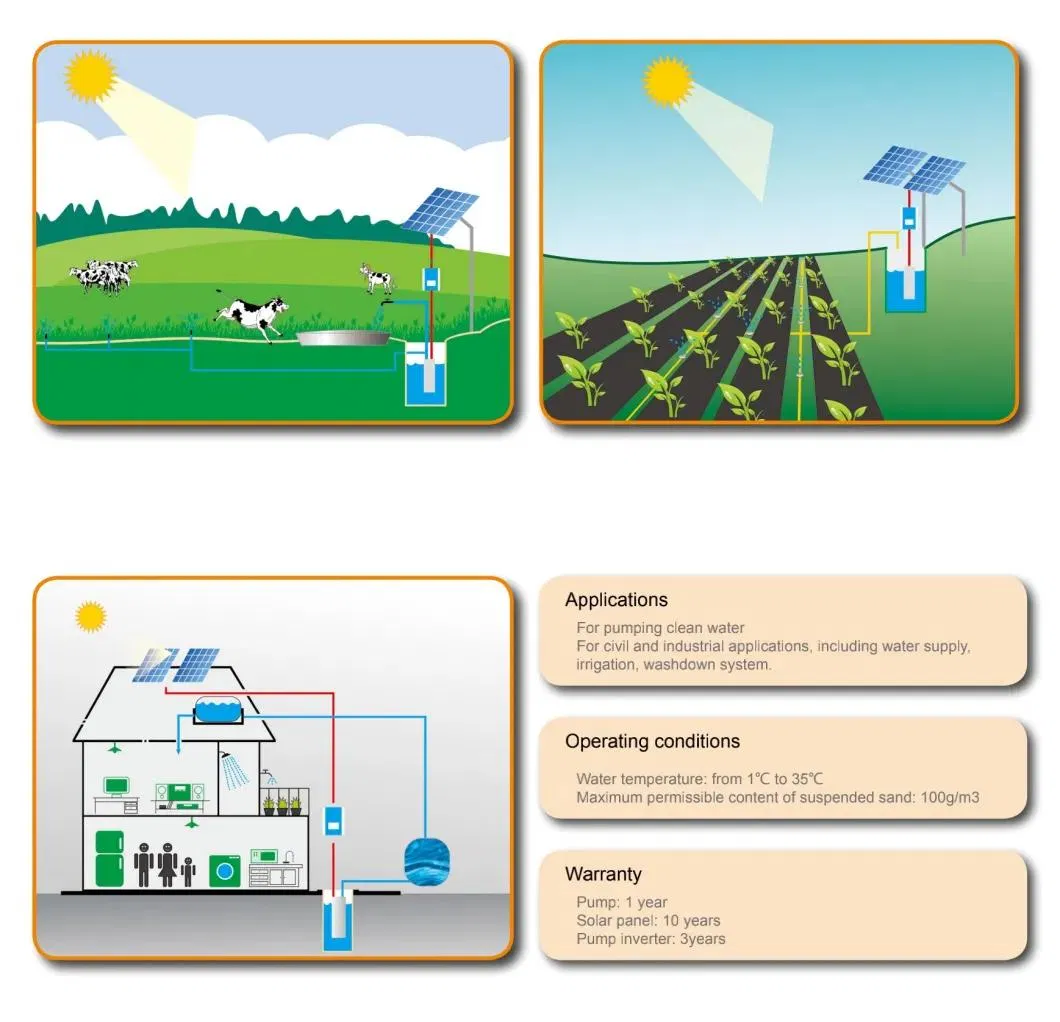

The solar power system has a wide range of applications, offering domestic water supply, agricultural and forestry irrigation, and desertification control. It is also ideal for supplying water to sea islands, animal husbandry, and various water treatment projects.

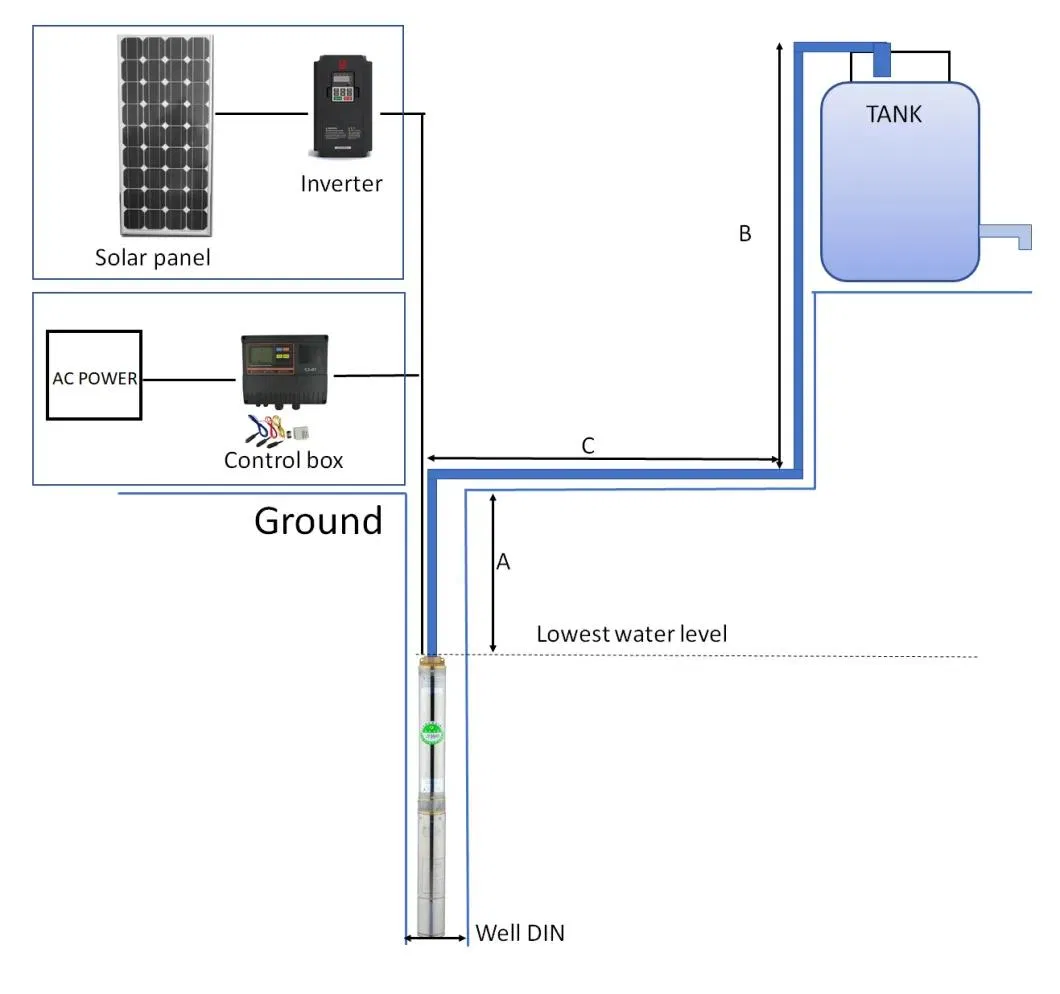

Solar pump systems are high-quality solutions designed for clean water supply without pollution. They use solar power directly, requiring no grid infrastructure. An optional grid back-up can be integrated to ensure 24/7 operation if needed.
| Item Name | Description | Unit | Quantity |
|---|---|---|---|
| Solar panel | 260W / 31.2V poly | pc | 136 |

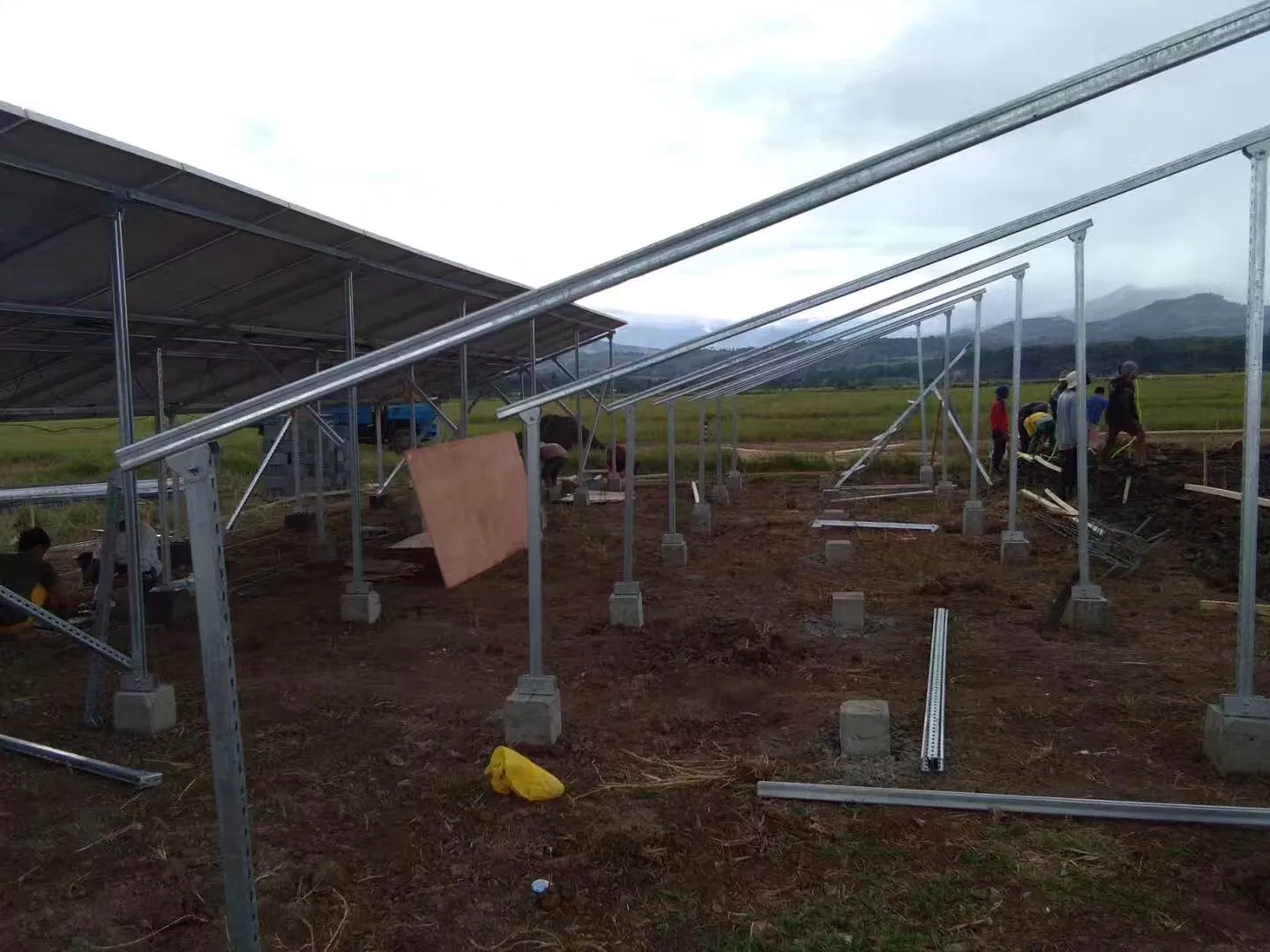

| Mounting structure | Q235 material, Hot-dip zinc | set | 1 |
| PV cables | 4mm2, 400m | set | 1 |
| Pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |
| Safety rope | Pump Depth * 2 | pc | 1 |
| Check Valve | Check valve with connector | set | 1 |
Solar Panel Power: Pump Power × 1.3
Battery Use Time: Capacity ÷ (Machine Power ÷ Voltage) × 0.6
Required Battery Capacity: (Use Hours ÷ 0.6) × (Machine Power ÷ Voltage)
Peak Power: 290W
Max Voltage: 32.2V
Dimensions: 1640×992×35 mm
Weight: 18.6 kg

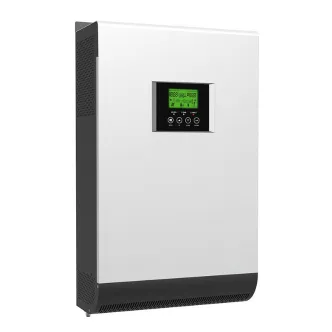

Max. DC Input: 8.5KW
Voltage Range: 90-520V
WiFi/GPRS Monitoring Optional
Reliable power conversion for pump motor.

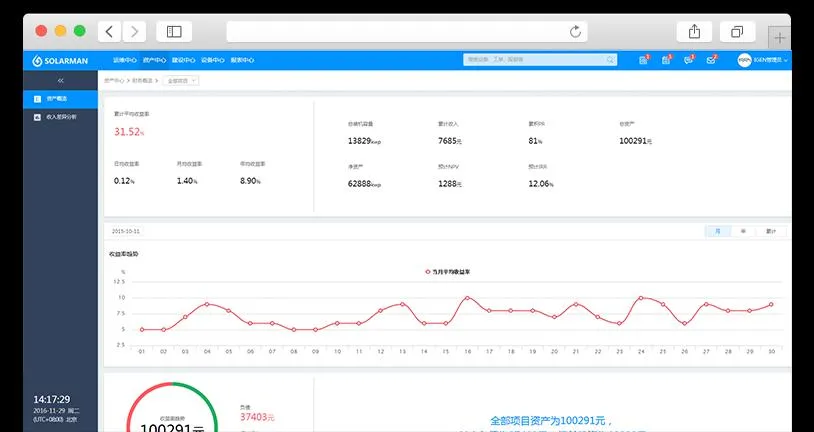

Data Logging Stick for real-time PV system info. Accessible via Web, iOS, and Android everywhere and every time.

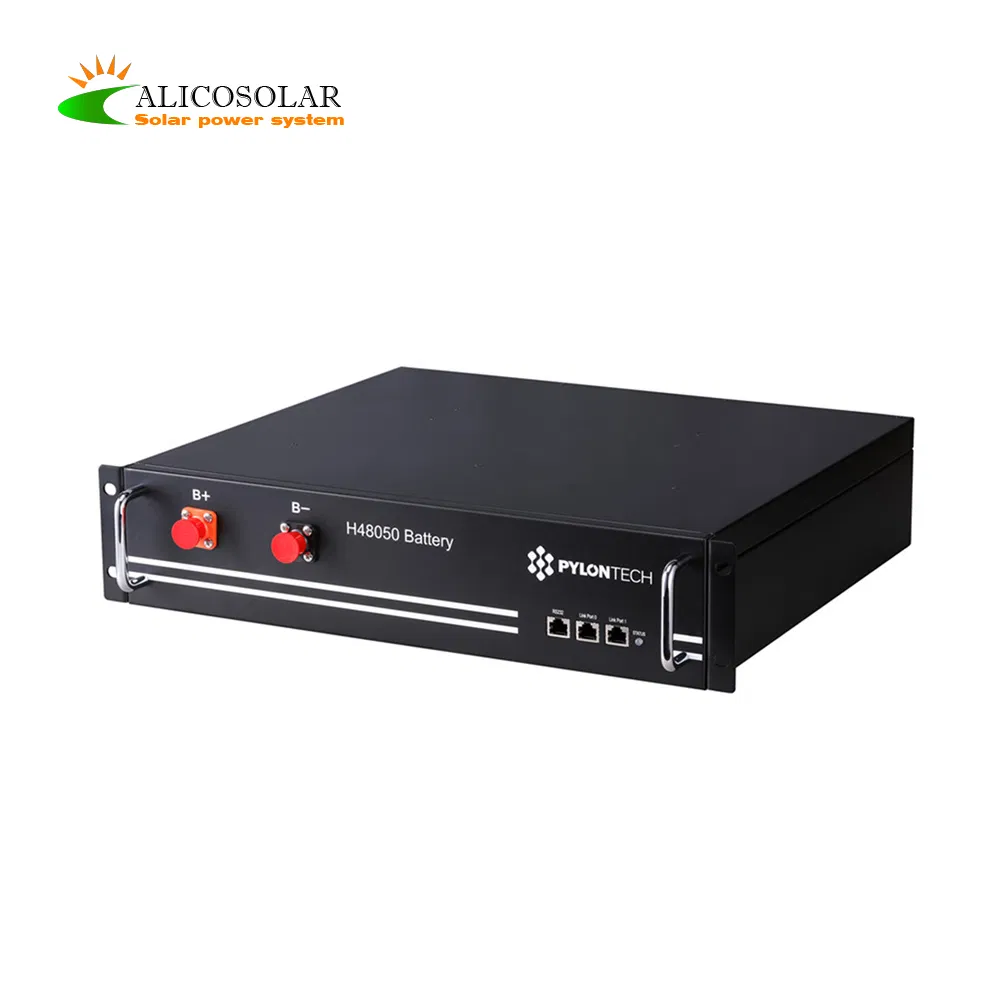

48V 100Ah Lithium solution.
Standard 4U-5U dimension.
Long cycle life for energy storage.
