80W Solar Street Lighting System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.6-8-10M-S3

ApplicationHighway, Garden, City Center

IP RatingIP65 / IP68

CertificationCE, RoHS, FCC, CCC, SASO

Input Voltage24V

LED BrandEpistar

Lighting EffectEqual to 350W HPS Lamp

Capacity5000PC/Month

Product Description

⚡ High Performance 80W LED System

This 80W LED Solar Street Lighting System is designed for high-efficiency outdoor illumination. It provides lighting effects equal to a 350W High Pressure Sodium lamp, supported by a 10-meter high-strength pole.

Pole: 10M height, 3.75mm thickness, HDG plastic coated (Wind resistant: 150KM/H).
Light Source: 80W LED, 9600LM, Lifespan >80,000 Hrs.
PV Module: 160W*2PC High-efficiency monocrystalline/polycrystalline.
Battery: 180Ah*2PC Gelled battery, deep cycle, maintenance-free.
Controller: 15A/24V Intelligent microcomputer automatic control.

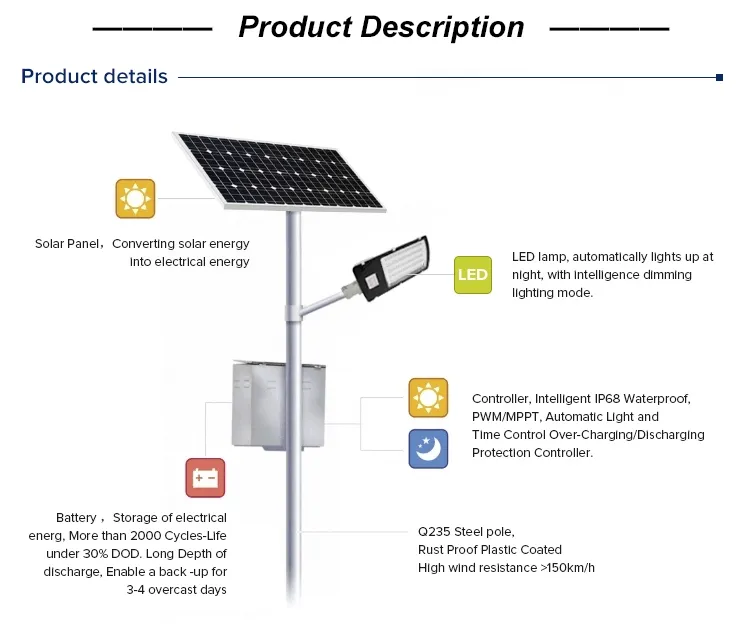

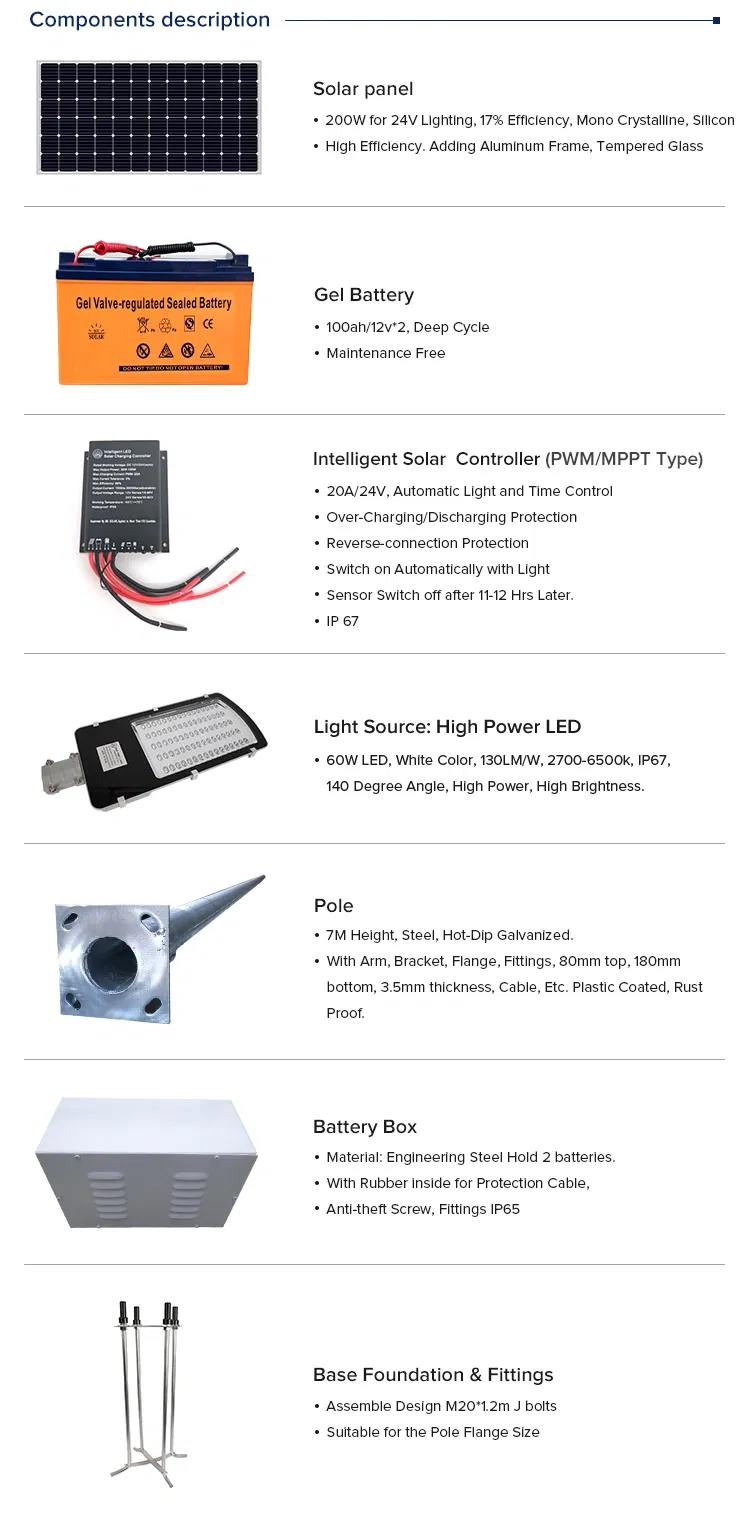

Technical Specifications

Component	Detailed Specification
Solar Panel (20-25 years lifespan)	160W*2PC Polycrystalline, High Efficiency A-class, Tempered Glass.
Gelled Battery (5-8 years lifespan)	180Ah/12V*2PC, Gelled type, Sealed, Deep cycle, Maintenance-free.
Intelligent Controller (5-10 years lifespan)	15A/24V, IP65. Automatic Light/Time Control, Over-charge/discharge protection.
LED Light Source (>80,000 Hrs lifespan)	80W LED, Cree Chip, 9600LM, 6500K, IP65 High Brightness.
GI Pole System (>20 years lifespan)	10M Height, Hot-Dip Galvanized, Rust Proof, Wind resistance ≥150KM/H.

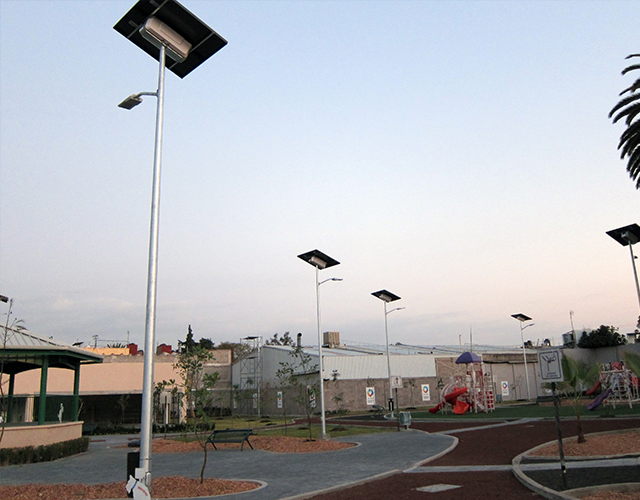

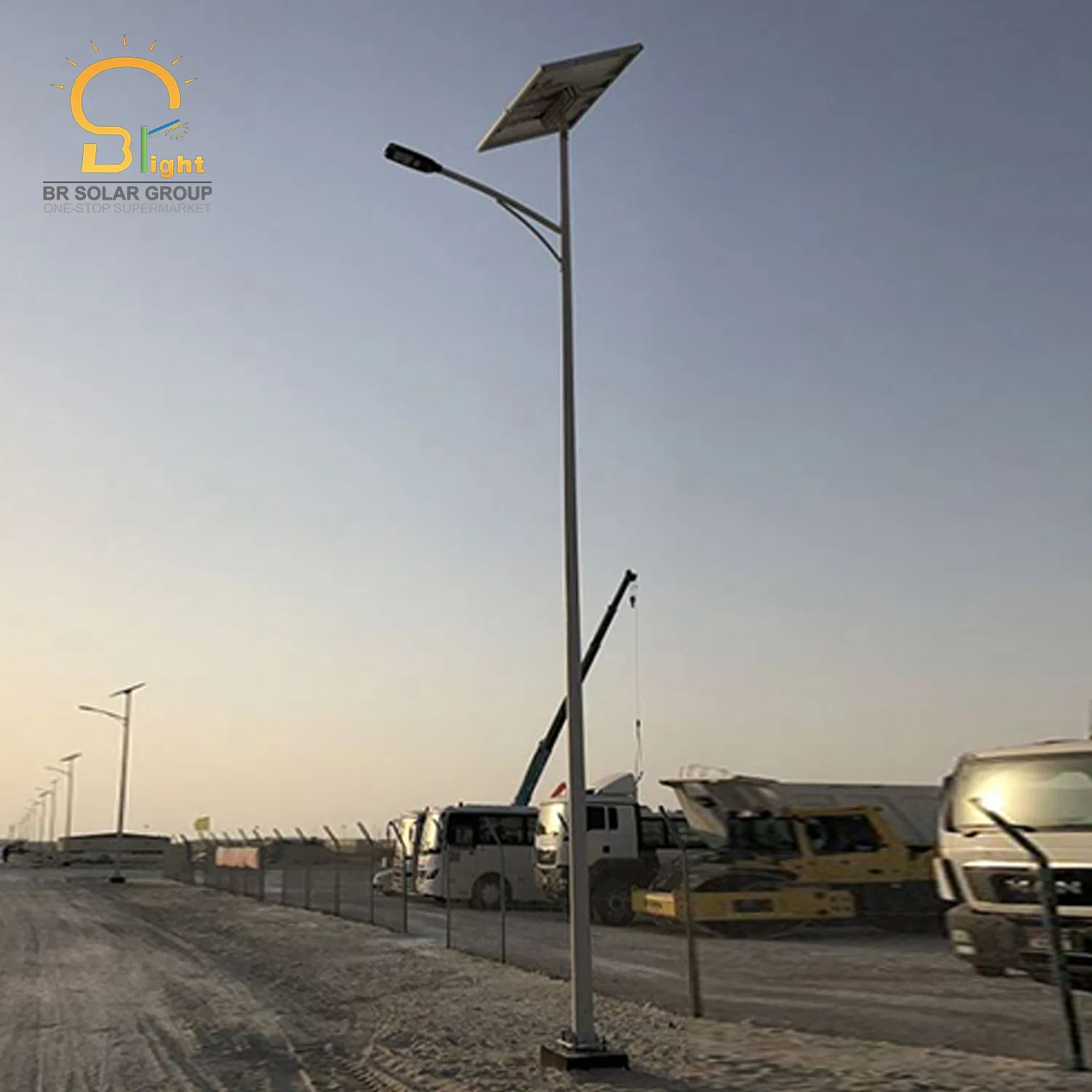

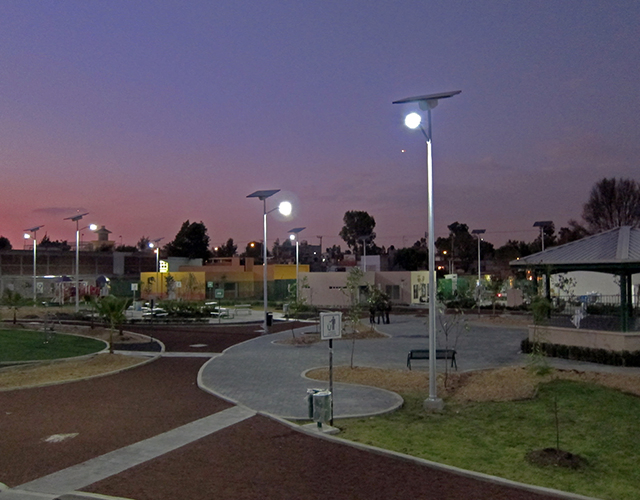

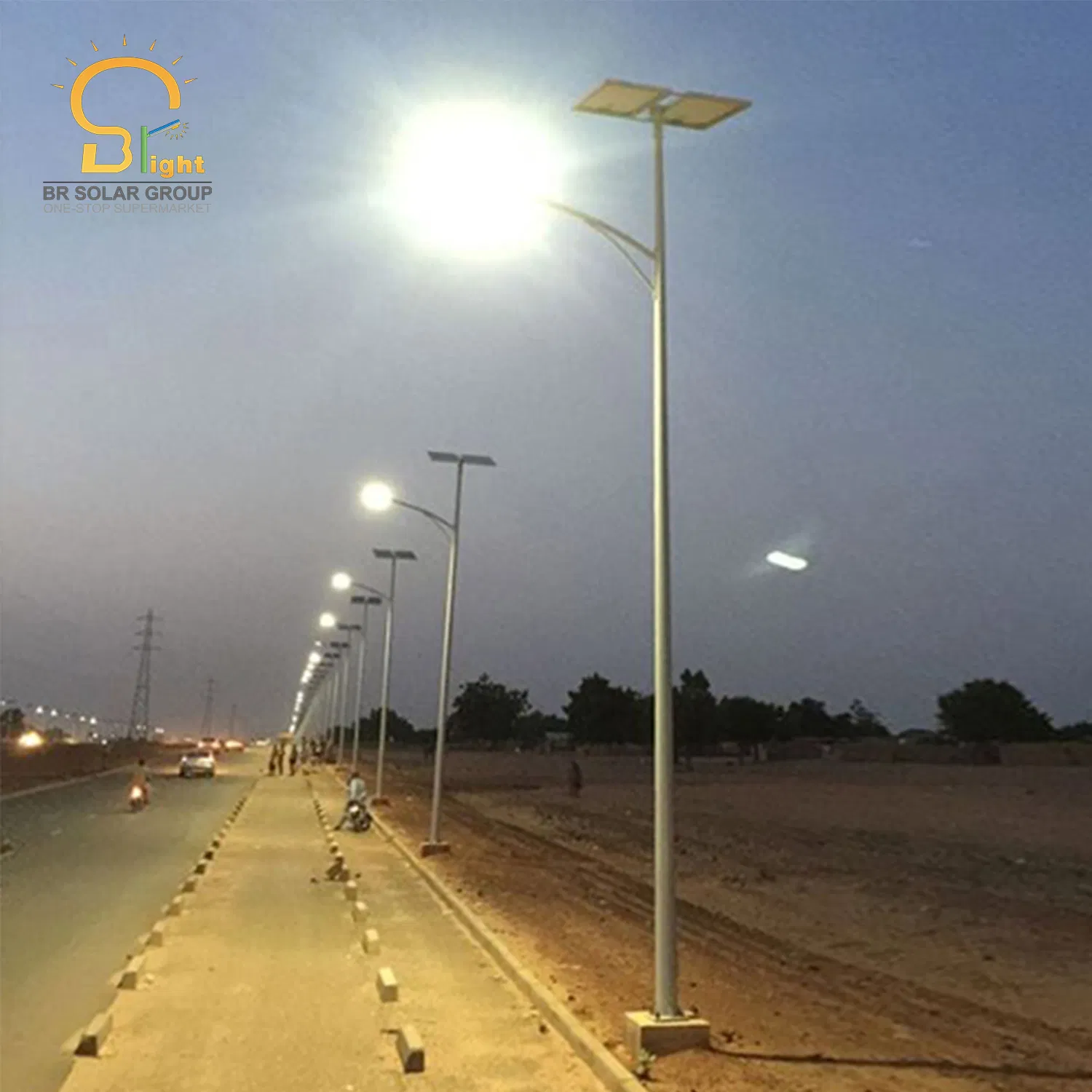

Applications

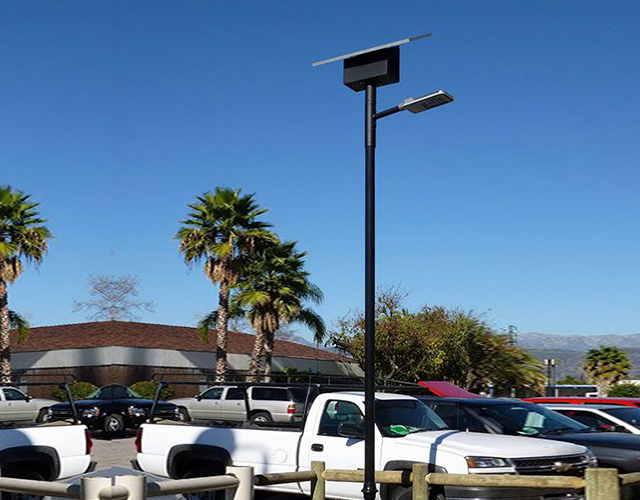

Solar Street Lights Highway Lighting Outdoor Security Military Bases Remote Area Lighting Pedestrian Streets Parking Lots

Frequently Asked Questions

How long can the system operate during rainy or overcast days?

The system is designed with a backup capacity to provide continuous lighting for 3 to 5 overcast or rainy days.

What is the brightness equivalent of the 80W LED?

The 80W LED light source provides a high lumen output of 9600LM, which is equivalent to a traditional 350W High Pressure Sodium (HPS) lamp.

Is the pole resistant to extreme weather?

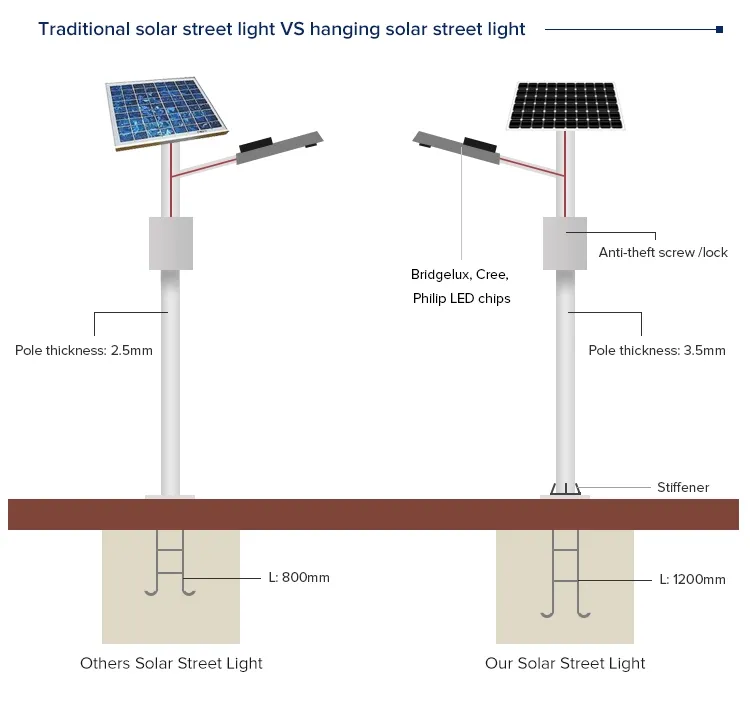

Yes, the 10-meter steel pole is hot-dip galvanized and plastic-coated for rust prevention, with a wind resistance rating of ≥150KM/H.

What is the expected lifespan of the main components?

Solar panels last 20-25 years, the LED light source exceeds 80,000 hours, and the gelled batteries typically last 5-8 years depending on usage.

How is the battery protected from theft and weather?

The system uses an engineering plastic battery box that is buried underground, providing both waterproof protection and security against theft.

Does the light turn on and off automatically?

Yes, the intelligent solar controller features a light sensor that automatically switches the light on at dusk and off after the pre-programmed hours (usually 11-12 hours).
