Product Description

i

Basic Information

Model NO.
BR=SA-63
Light Type
Solar
Color Temperature
Cool White
Power
80W
Illumination Time
8h
Cell Type
Gelled or Lead-Acid
Usage
Garden, Street, Highway
IP Rating
IP65 / IP68
Voltage
24V
Warranty
3 Years
Overcast Days
3-4 Days
LED Chip
Original Bridgelux Chip
Pole Height
8m Steel, Q235
Origin
China

Product Description

High Efficiency Solar Panel with 80W LED Outdoor Light

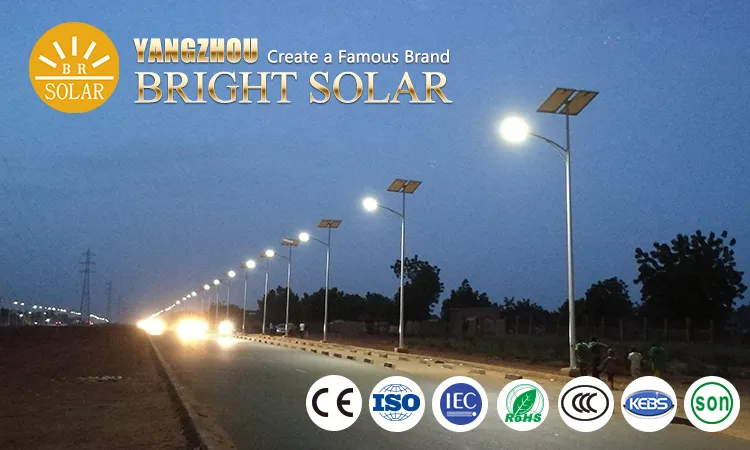

Solar LED Outdoor Lighting

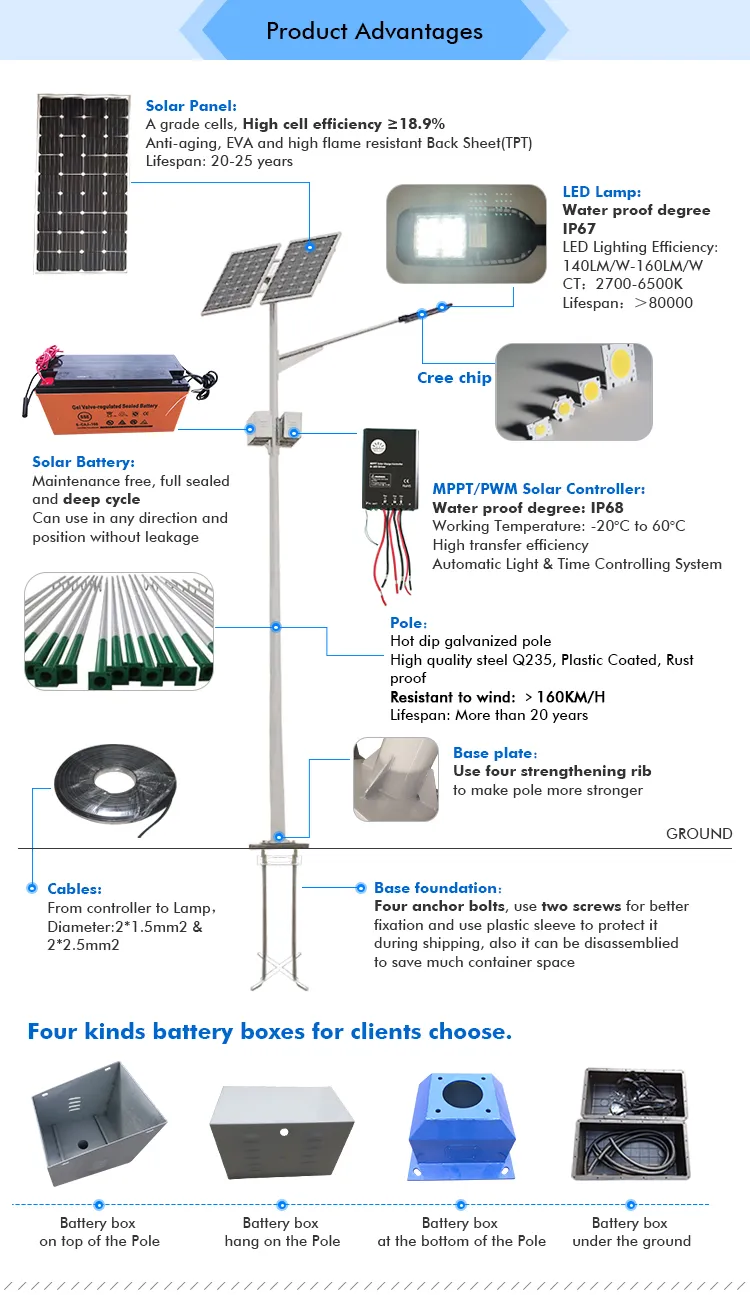

Solar LED System Drawing
5.0KWH Design, Lighting Time: 11-12 Hours/Nights * 3-5 Overcast Weather
Feature Option 1 Option 2 Option 3 Option 4
Pole height 6M 6M 8M 8M
LED Lamps 30W 40W 60W 80W

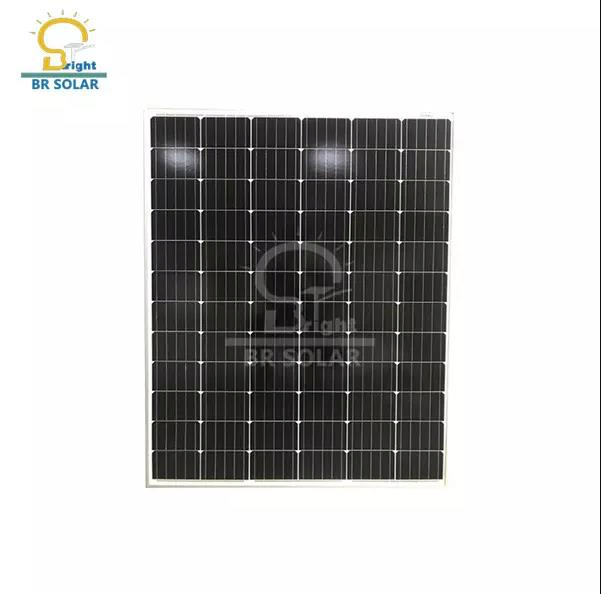

Solar Panel Mono 80W*1 Mono 100W*1 Mono 80W*2 Mono 100W*2
Solar Battery 100Ah/12V*1 120Ah/12V*1 100Ah/12V*2 120Ah/12V*2
Solar Controller 15A/12V 15A/12V 20A/24V 20A/24V

Working Mode & Logistics

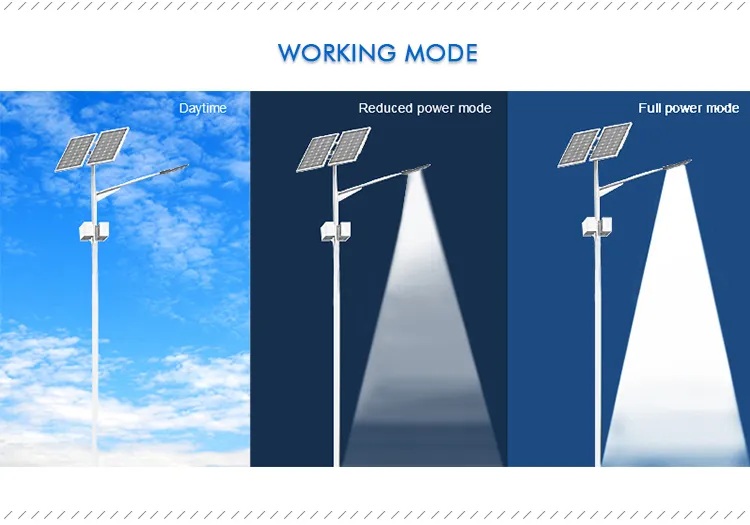

Working Mode
Packing and Shipping 1
Packing and Shipping 2
Packing and Shipping 3
Packing and Shipping 4
Packing and Shipping 5
Packing and Shipping 6
?

Frequently Asked Questions

How long does the 80W solar street light operate at night?
The system is designed to provide 11-12 hours of lighting per night under normal conditions.
Can the light function during cloudy or rainy weather?
Yes, the system is designed with a backup capacity to support 3-5 consecutive overcast or rainy days.
What is the waterproof rating for this outdoor lighting system?

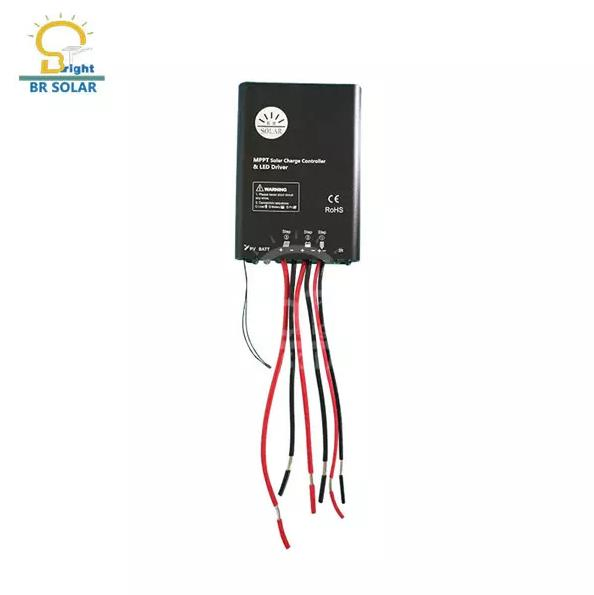

The system features an IP65 rating for the overall unit and an IP68 waterproof rating for the charge controller, ensuring protection against heavy rainstorms.
What type of batteries are used in this solar system?
The system typically utilizes high-performance Gelled or Lead-Acid solar batteries, which can be hung on the pole for better protection.
What is the warranty period for the solar street lighting system?
We provide a 3-year warranty for the complete solar street lighting system.
Is the light source included in the package?

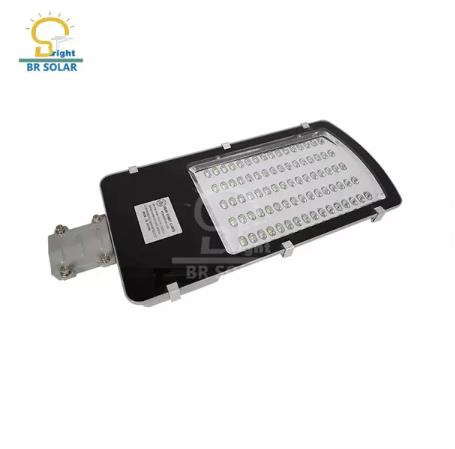

Yes, the system comes complete with a high-power 80W LED source utilizing original Bridgelux chips.
