| Type | Height (m) | Bottom Dia (mm) | Top Dia (mm) | Wall Thickness (mm) | Arm Length (mm) |
|---|---|---|---|---|---|
| Conical Pole | 4~6 | 100~140 | 40~70 | 2.0~3.0 | 600~1000 |
| Conical Pole | 6~8 | 140~180 | 50~80 | 2.75~4.0 | 600~1300 |
| Conical Pole | 8~10 | 180~220 | 80~100 | 4.0~5.0 | 1200~1500 |
| Conical Pole | 10~12 | 220~240 | 85~110 | 4.0~5.0 | 1300~1800 |

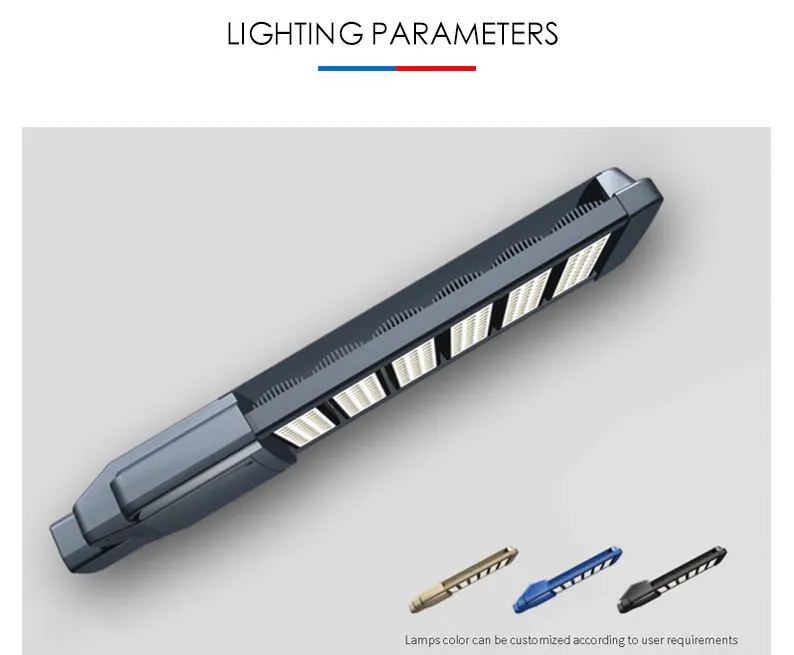

| Item | Specification |
|---|---|
| Rated Power | 50W / 100W / 150W / 200W / 250W |
| LED Type | Cree 3030 |
| CCT | 3000K - 6500K |
| Input Voltage | AC 110-305V / DC 12-24V |
| Protection Grade | IP66 |
| Working Temp | -40ºC ~ 55ºC |

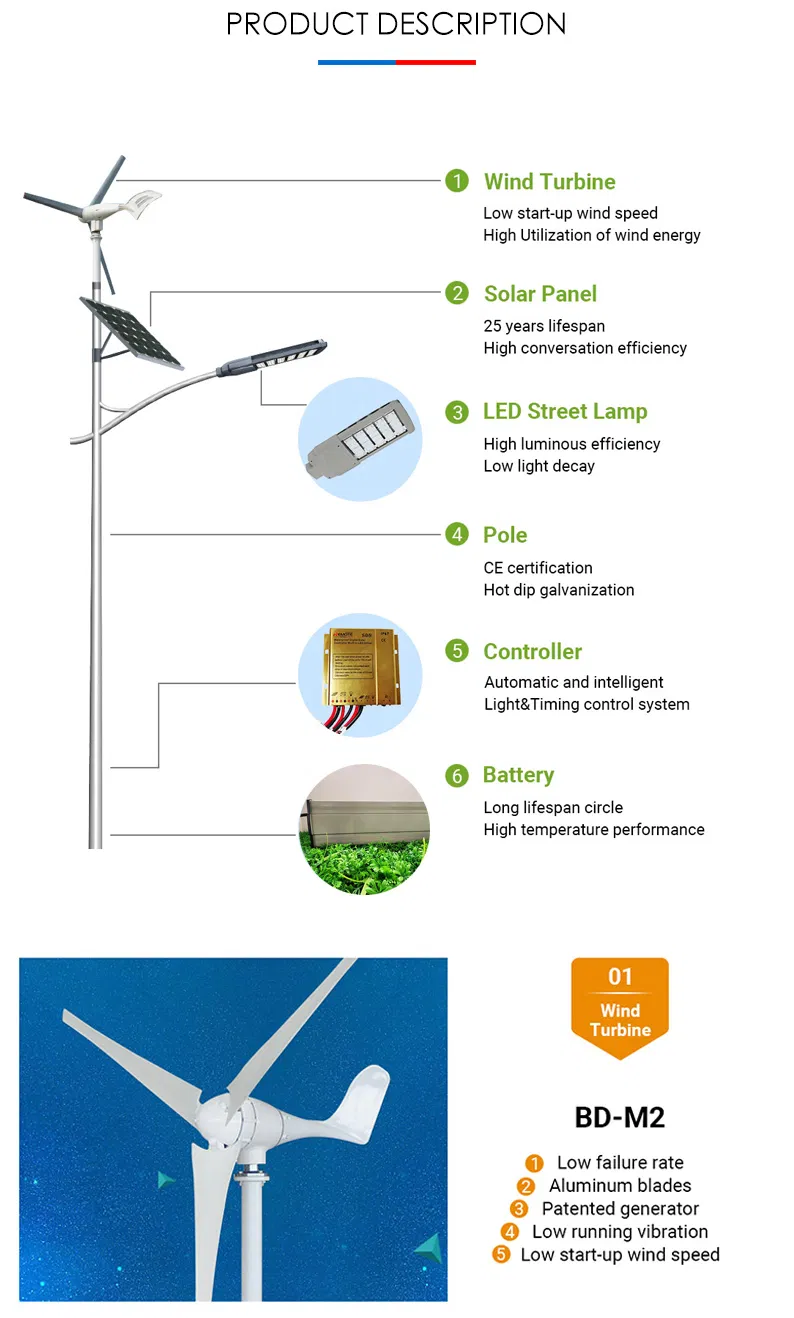

| Rated Power | 400W | Start-up Wind Speed | 2.5m/s |
| Nominal Voltage | 12/24V | Rated Wind Speed | 11.5m/s |
| Blade Material | Nylon Fiber | Safe Wind Speed | 50m/s |
| Generator Type | Permanent magnet synchronous three-phase AC | ||
Comprehensive solutions for outdoor lighting, including street, square, landscape, and commercial lighting.

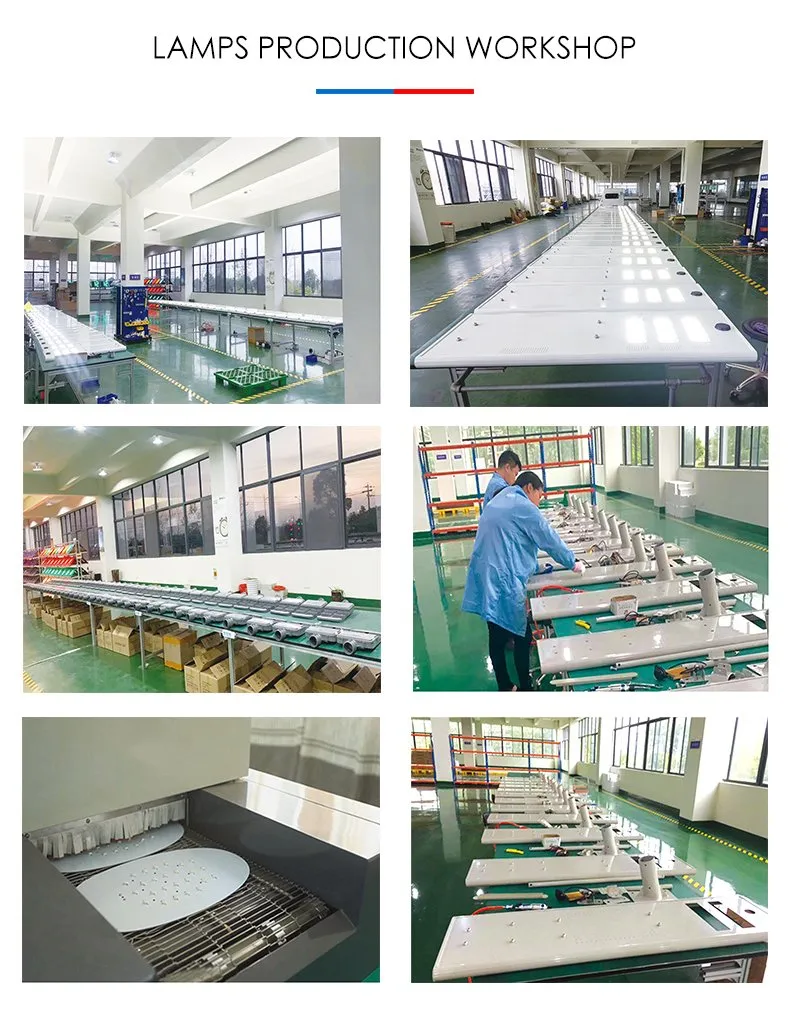

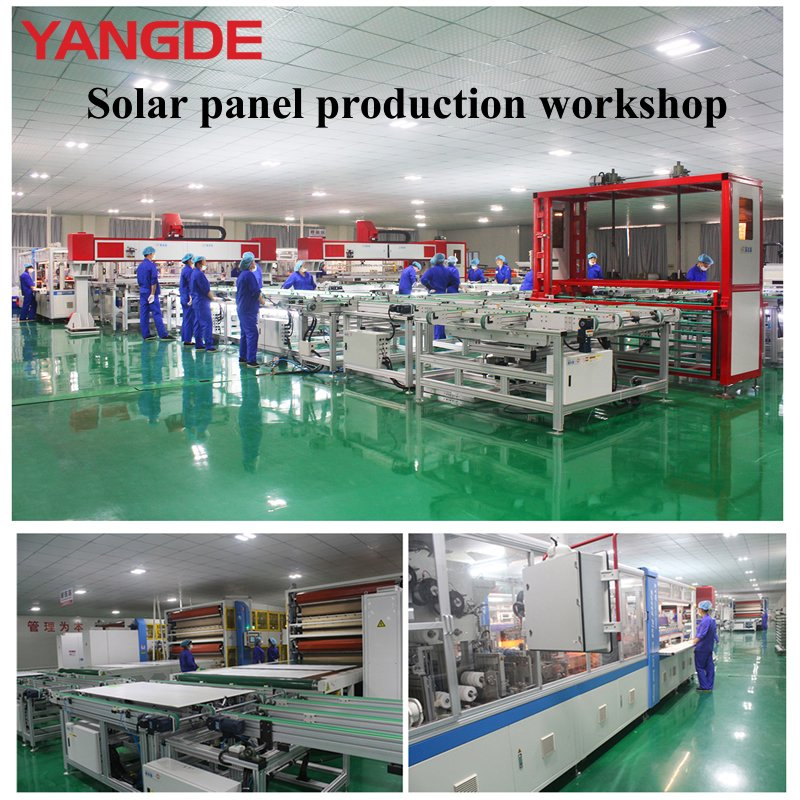

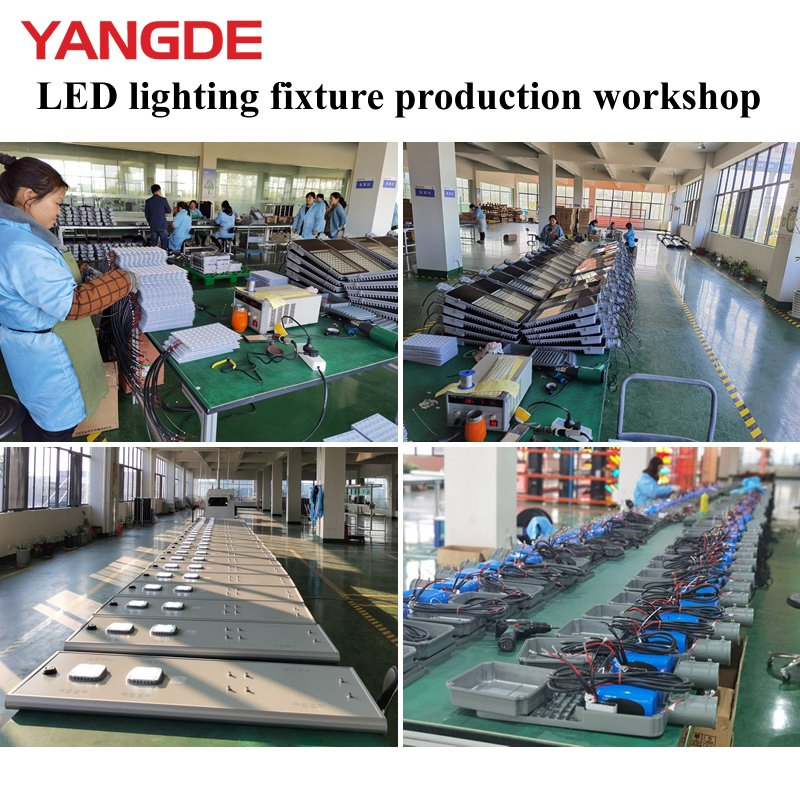

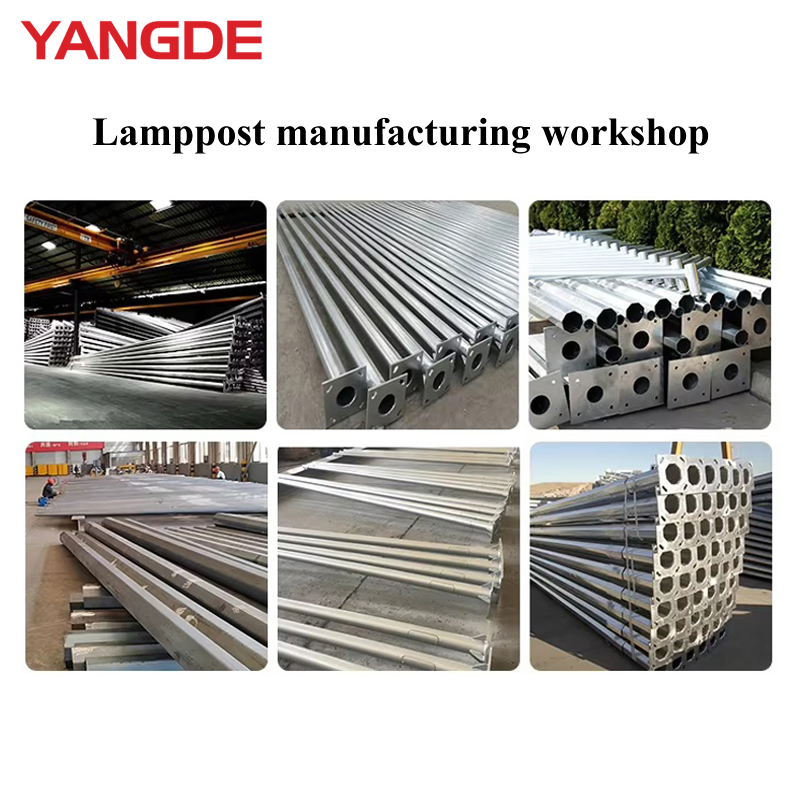

In-house manufacturing of LED sources, fixtures, solar panels, and poles to ensure strict quality and cost control.
Experienced team providing advanced R&D and over 20 national patents in lighting technology.
2-year comprehensive warranty and lifetime technical guidance for all products.
