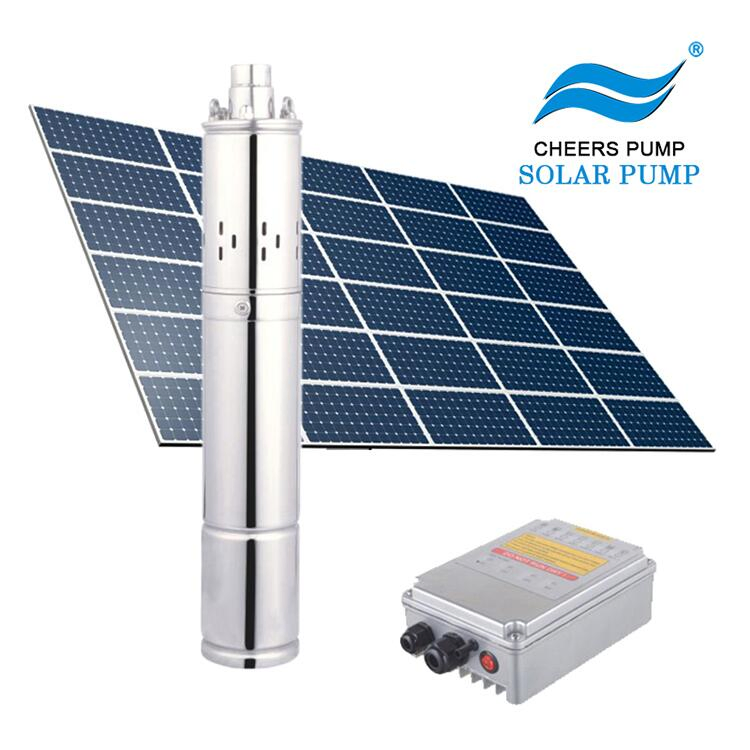

5HP AC Pond Solar Water Pump System Complete Set

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Technical Specifications

Model NO.

JS3-2.1-100

Max. Head

100m

Max. Capacity

2.1m3/H

Material

Stainless Steel 304

Power Source

Solar Energy / Electric

Driving Type

Motor

Voltage

48V

Outlet Size

3/4"

Structure

Multistage Submersible Pump

Application

Submersible Pump, Family Homes

Product Introduction

The solar submersible pump is designed to be immersed into water, connecting the motor with the pump directly. It provides an efficient and sustainable solution for water extraction using renewable energy.

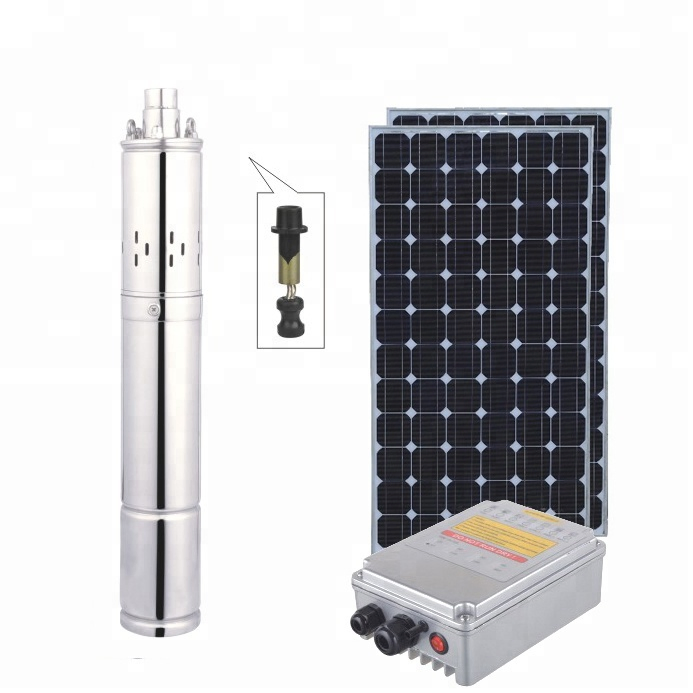

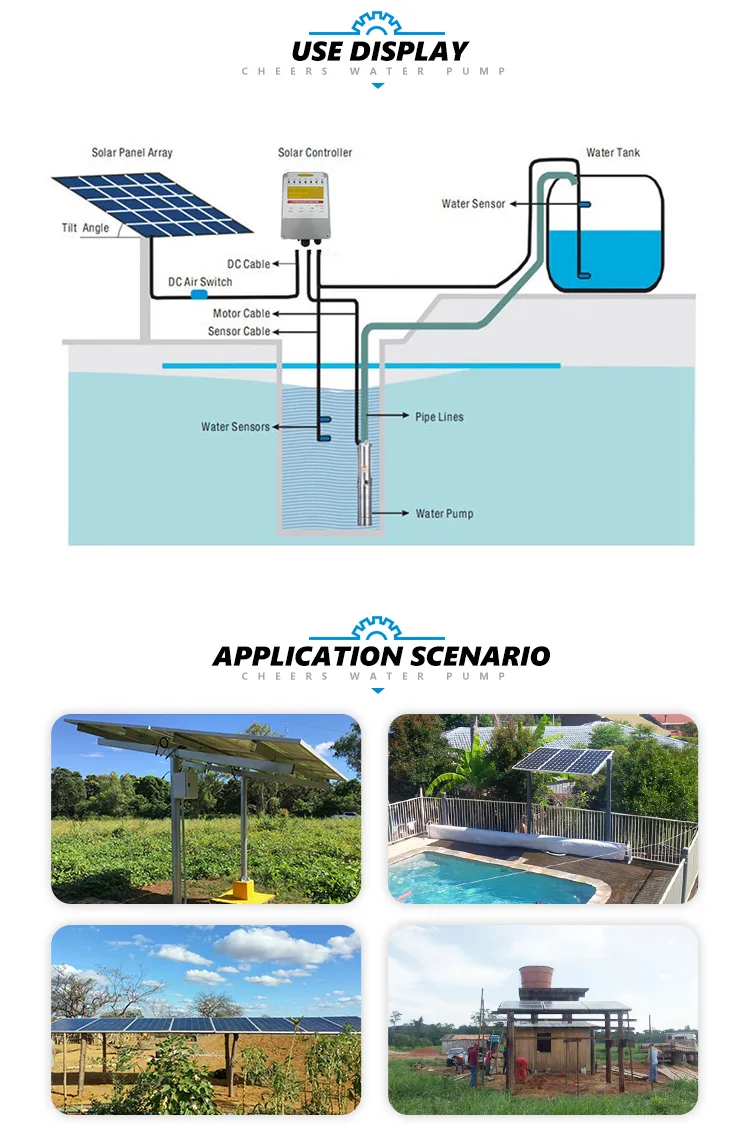

The system consists of a submersible pump, high-efficiency motor, MPPT controller, water pipes, cables, and solar panels. Solar panels convert solar energy into electrical energy to power the dedicated low-voltage solar pump. It runs automatically under the sun and can operate continuously via battery or grid electric during low sunshine periods.

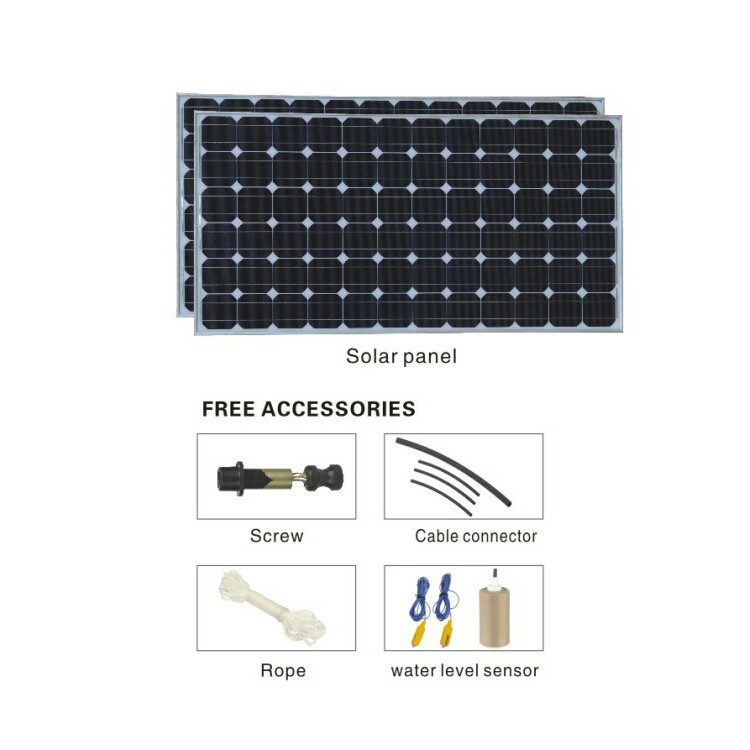

Complete System Components

Solar pump with 3m cable (custom lengths available)
Advanced MPPT Controller
Water level sensor or float switch with 10m cable
Cable for solar panel (6m standard)
Waterproof cable connectors
Hanging rope and Installation Manual
Solar panels (optional accessory)

Advanced Technology

Application Innovation

Efficiency is improved by 25% compared to traditional AC machines using permanent magnetism, brushless DC non-sensor motors.

Technics Innovation

Features double plastic packaging for both rotor and stator. Motor insulation ≥300MΩ, significantly enhancing operational security.

Structure Innovation

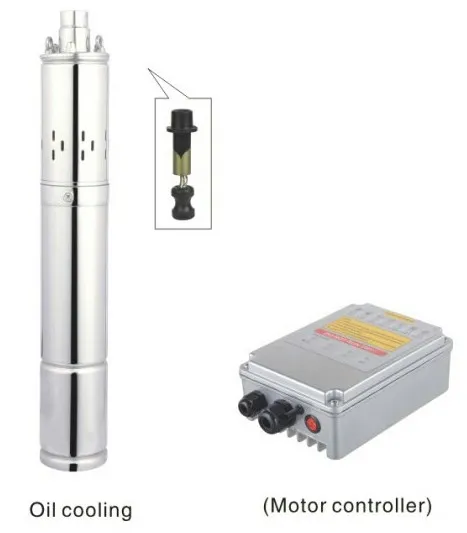

Oil-filled design for convenient installation and superior environmental protection.

Premium Material Construction

Outlet/Body

Stainless Steel

Motor Casing

Stainless Steel

Motor Stator

100% Copper Wiring

Motor Rotor

Permanent Magnetism

Bearings

NSK

Screws

Stainless Steel

Product Performance & Details

Frequently Asked Questions

What materials are used for the pump body and components?

The outlet, pump body, motor casing, and screws are all made of high-quality stainless steel 304. The motor stator uses 100% copper wiring, and the rotor uses permanent magnetism.

How does the permanent magnet motor improve performance?

By utilizing permanent magnetism and a brushless DC non-sensor motor, the efficiency is improved by 25% compared to traditional AC machines.

Is the system fully automatic?

Yes, the solar pump runs automatically in the sun. With the MPPT controller, it optimizes energy harvest and can also be connected to batteries or grid power for continuous operation.

What is the insulation rating of the motor?

The motor utilizes a double plastic package for the rotor and stator, achieving an insulation resistance of ≥300MΩ for enhanced safety.

Can I get a sample before placing a batch order?

Yes, sample orders are accepted. Samples can typically be sent within 3-5 days, while batch orders take between 5-15 days after confirmation.

Are solar panels included in the standard set?

The solar panels are an optional part of the kit. The standard set includes the pump, MPPT controller, sensors, and necessary cables.
