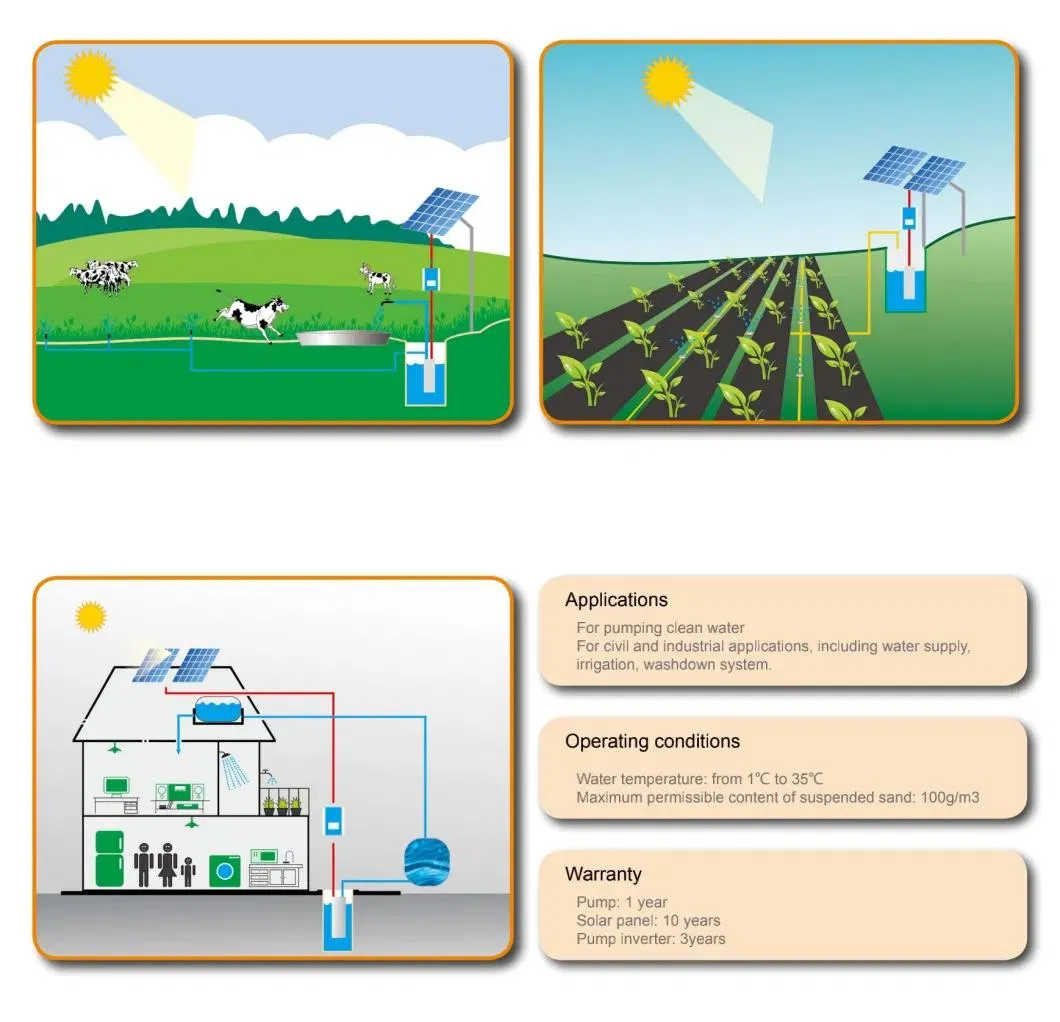

Solar power system has a wide range of applications, such offering domestic water, helping agricultural and forestry irrigation, and desertification control. It can also supply water to sea island, animal husbandry, and water treatment projects.
With the promotion of new energy utilization, recently the usage of solar water pump is increasing. You can find them in government projects, landscape architectures and fountains of city squares, parks tourist attractions, hotels and residential areas.
| Item Name | Description | Unit | Quantity |
|---|---|---|---|
| Solar panel | 260W / 31.2V poly | pc | 136 |

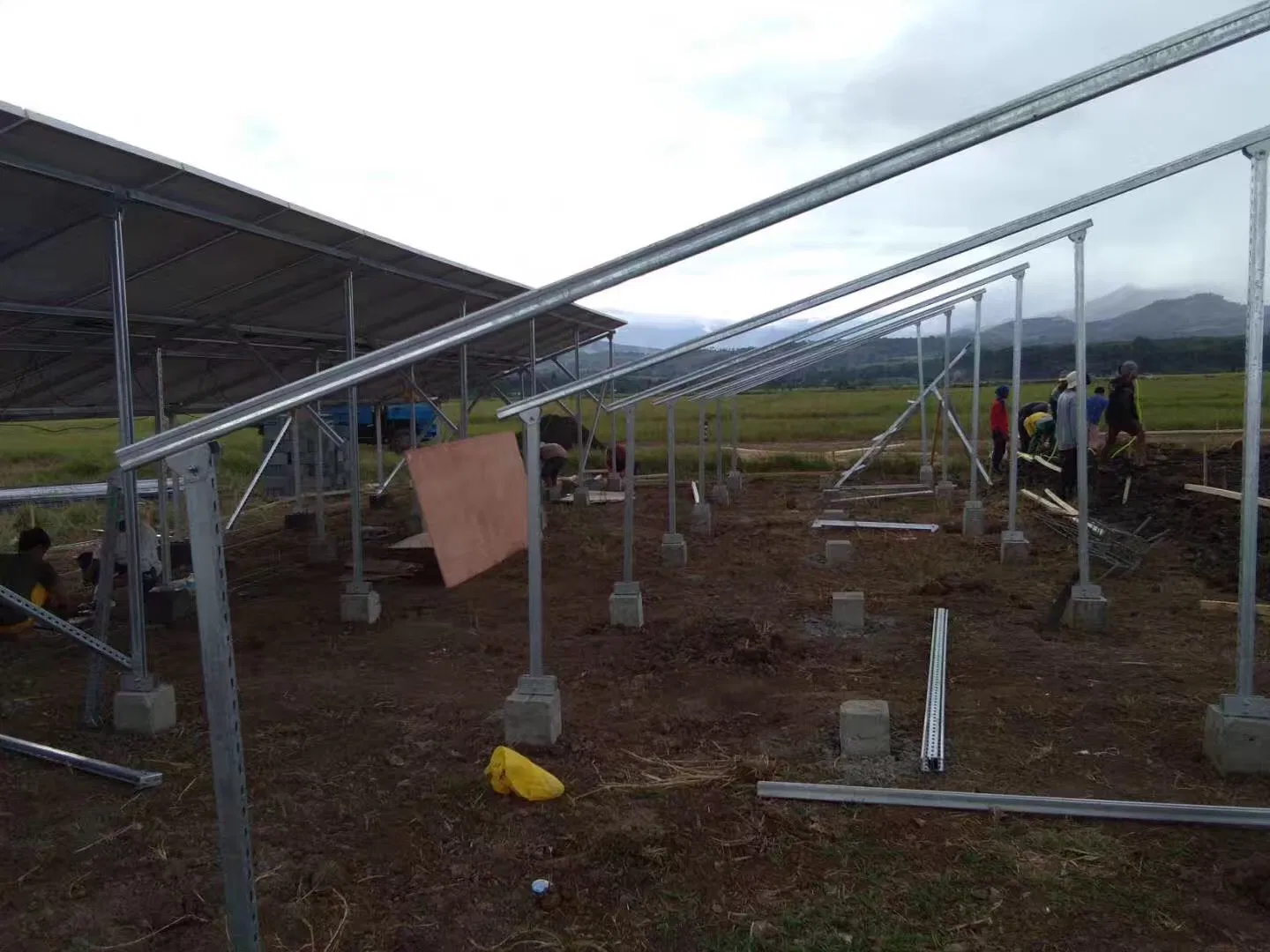

| Mounting structure | Q235 material, Hot-dip zinc | set | 1 |
| PV cables | 4mm2, 400m | set | 1 |
| Pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |
| Safety rope | Pump Depth * 2 | pc | 1 |
| Check Value | Check value with connector | set | 1 |
| Other accessories | Raw material tape, MC4 connector, etc. | set | 1 |
To select the right pump, please provide the following details:
Solar Panel Power: Power of solar panel = Power of pump X 1.3.
Battery Use Hour: Battery capacity ÷ (Machine power ÷ Battery voltage) X 0.6.
Required Battery Capacity: Use hour ÷ 0.6 X (Machine power ÷ Battery voltage).

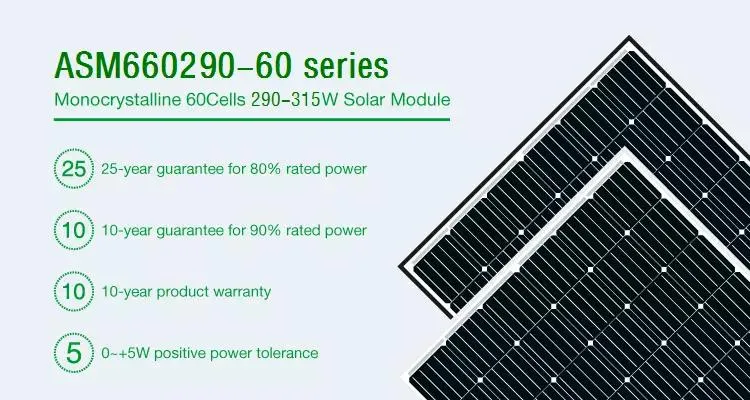

Peak Power: 290W | Max Voltage: 32.2V | Max Current: 9.02A
Dimensions: 1640×992×35 mm | Weight: 18.6 kg

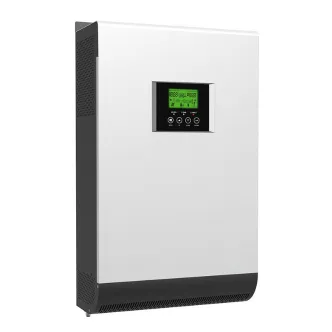

Max. DC Input: 8.5KW | Max. Input Voltage: 600V | MPPT Range: 90-520V
Rated Grid Voltage: 208/240V/230V | Optional Wifi/GPRS Stick.

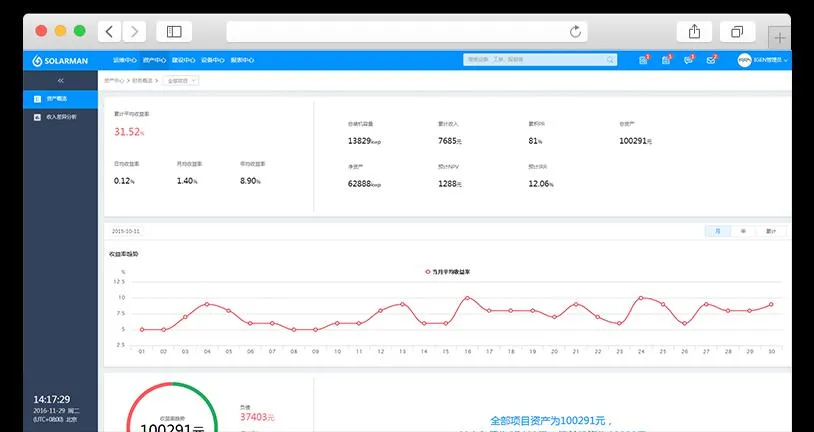

Data logging stick for real-time PV system status and atmosphere conditions via Web, Wi-Fi, Lan or GPRS. Apps available for PC, iOS & Android.

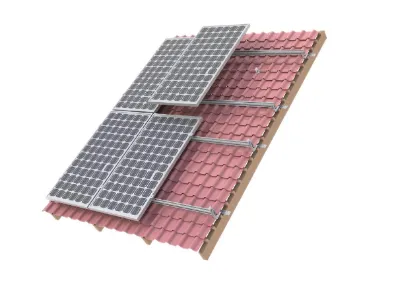

Mounting Rail & Splice Kit (AI6005 & SUS304). Clamps: 35-50mm. Options for Asphalt Shingle Mount, Hanger Bolts, and Ground Clips.

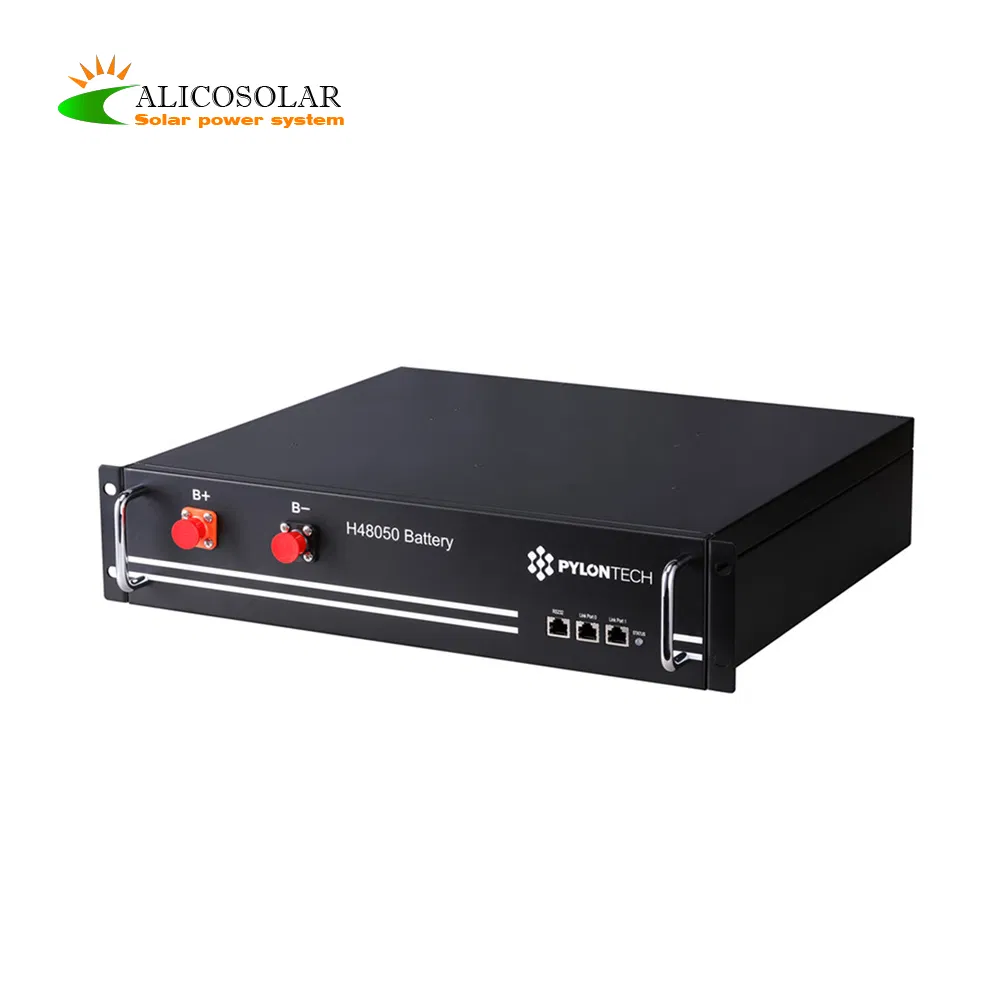

Specification: 48V 100Ah
Dimension: Standard 4-5U rack mountable structure.
