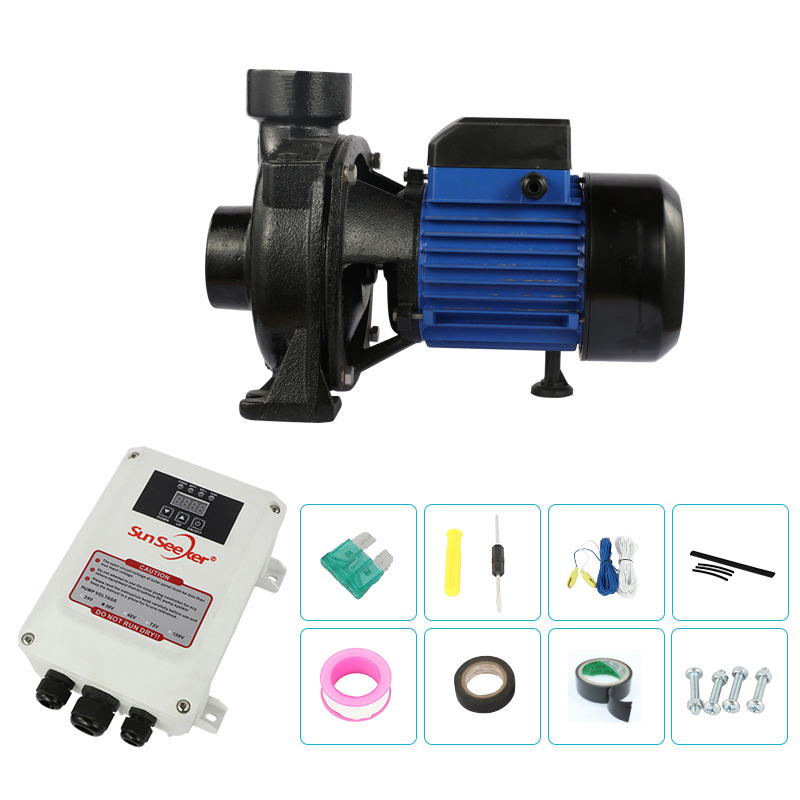

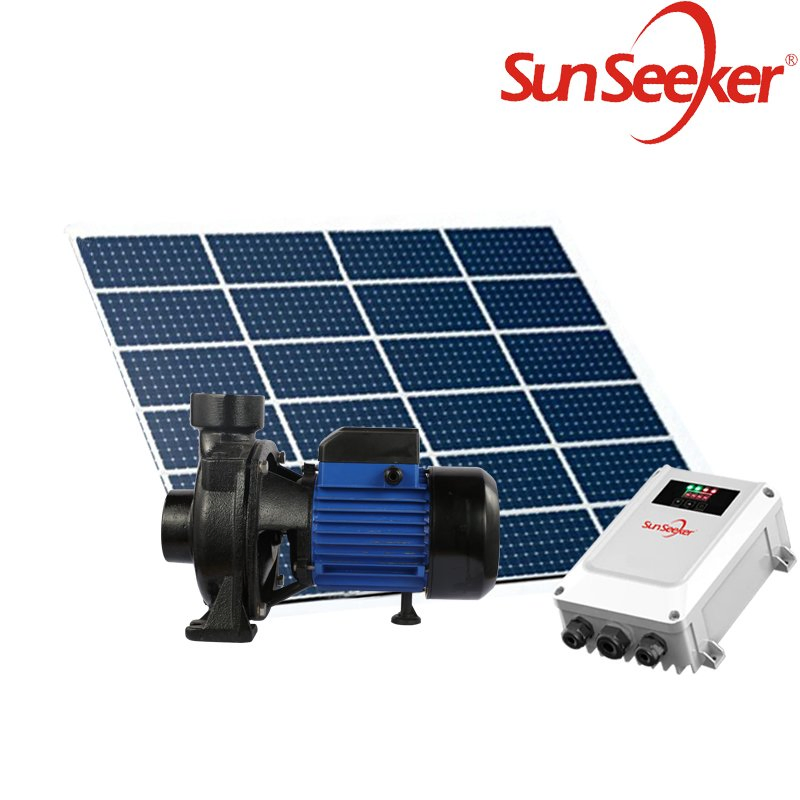

48V 550W 6m3/H 30m 1.2 Watt Domestic Solar Surface Pump Power Bank Et Meter/Solar System Designing for 7.5HP Submersible Pump

Customization:	Available
Max.Head:	10-30m
Max.Capacity:	100-200 L/min

Basic Information

Model NO.

ZCPM

Material

Stainless Steel

Structure

Screw Pump

Power

Solar

Type

Solar Centrifugal Pump

Application

Submersible Pump

Theory

Solar Pump

HS Code

8413709190

Production Capacity

5000PCS/Month

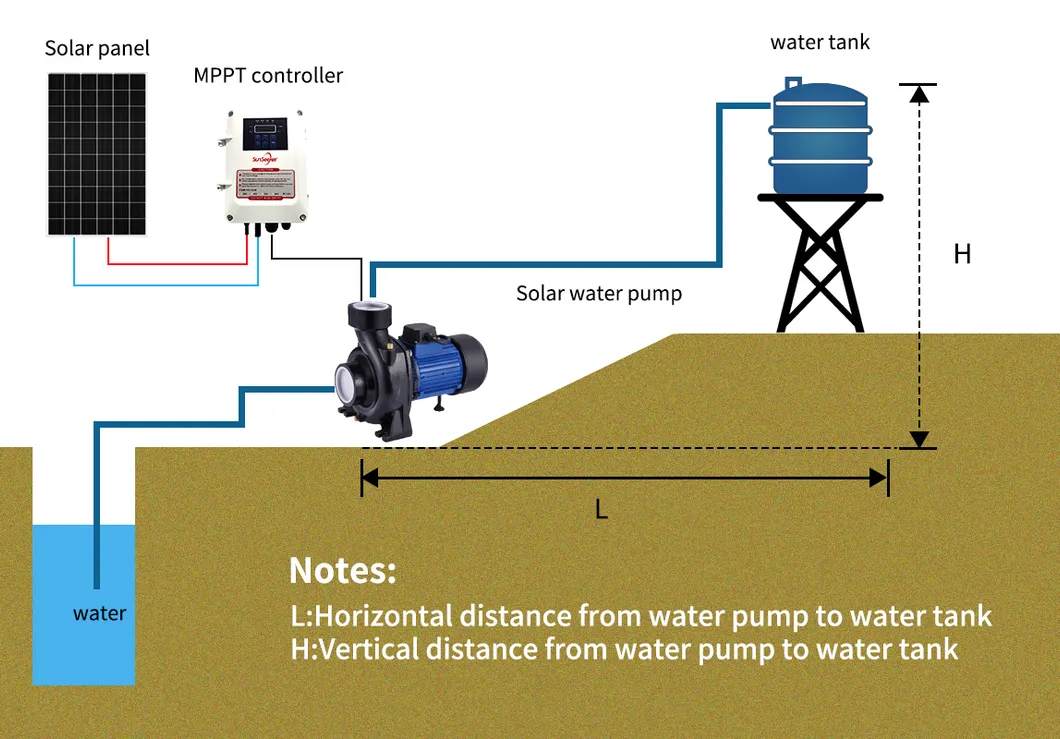

How to Choose the Right Pump

Calculation of Pump Head:
1) L: Horizontal distance from pump to tank
2) H: Vertical distance from pump to tank
3) Total Head = H + (L * 10%)

Calculation of Pump Flow:
1) Working Time: ~5 hours (estimated solar peak)
2) Daily Consumption: Total volume needed (m³)
3) Actual Flow Required: Daily consumption / Time (m³/h)

Please confirm the following for a customized selection:

Usage location and application.
Required daily water discharge (liters/m³).
Preference for submersible or surface pump.
Borehole depth (if applicable).
Distance and slope from source to destination.

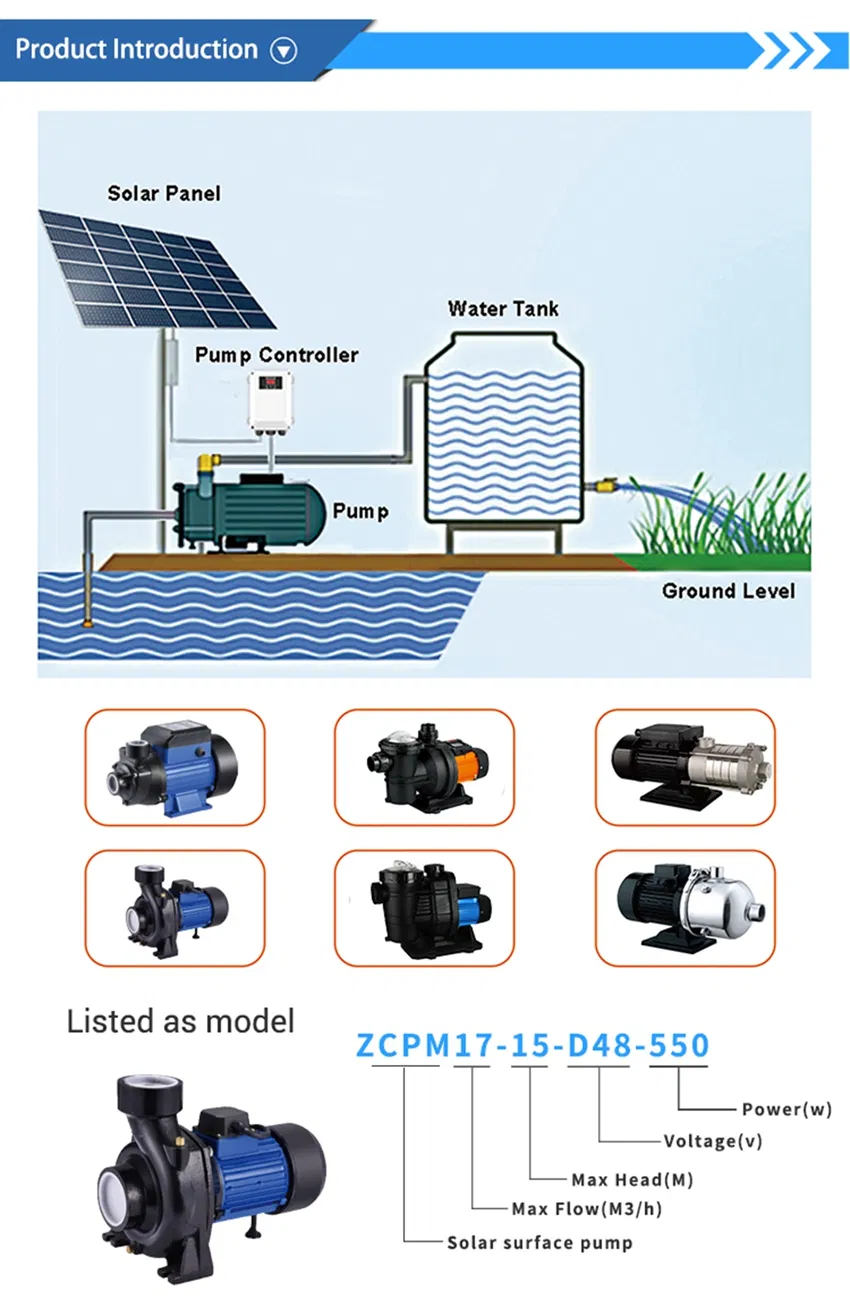

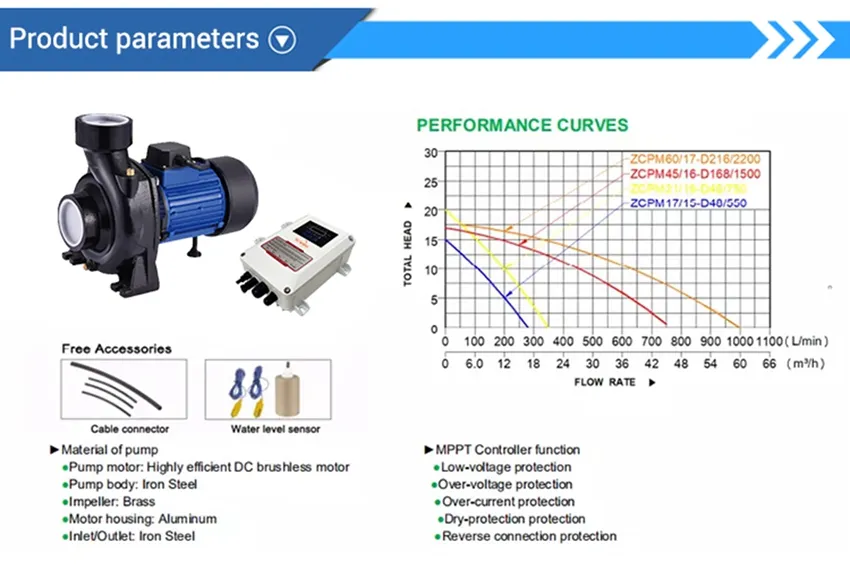

Recommended Products Specification

Model	Impeller	Voltage (V)	Power (W/HP)	Max Flow (m³/h)	Max Head (M)	Inlet/Outlet	Solar Panel (W)
ZCPM17-15-D48-550	Brass	48	500W / 0.75HP	17	15	2"x2"	800
ZCPM21-19-D72-750	Brass	72	750W / 1.0HP	21	19	2"x2"	1050
ZCPM26-15-D72-1100	Brass	72	1100W / 1.5HP	26	15	2"x2"	1650
ZCPM50-17-D96-1500	Brass	96	1500W / 2.0HP	50	17	3"x3"	2200

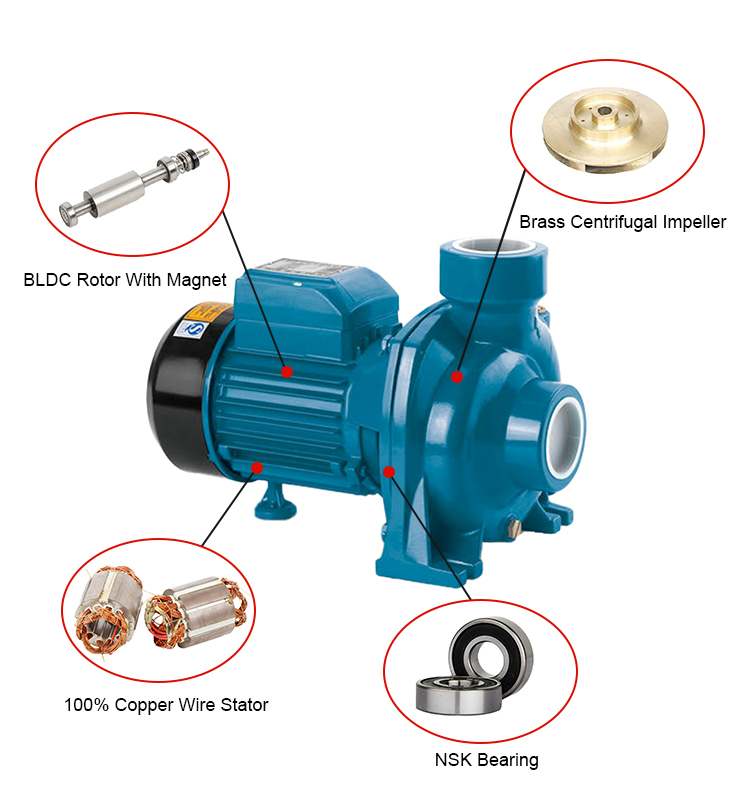

Key Features & Technology

Efficiency improved by 25% via permanent magnetism brushless DC non-sensor motor.
Double plastic package for rotor and stator (Insulation ≥300MΩ).
100% Copper wire and DW-300 cold-rolled silicon steel sheet.
Stainless steel 304 & 316 shaft and motor body.

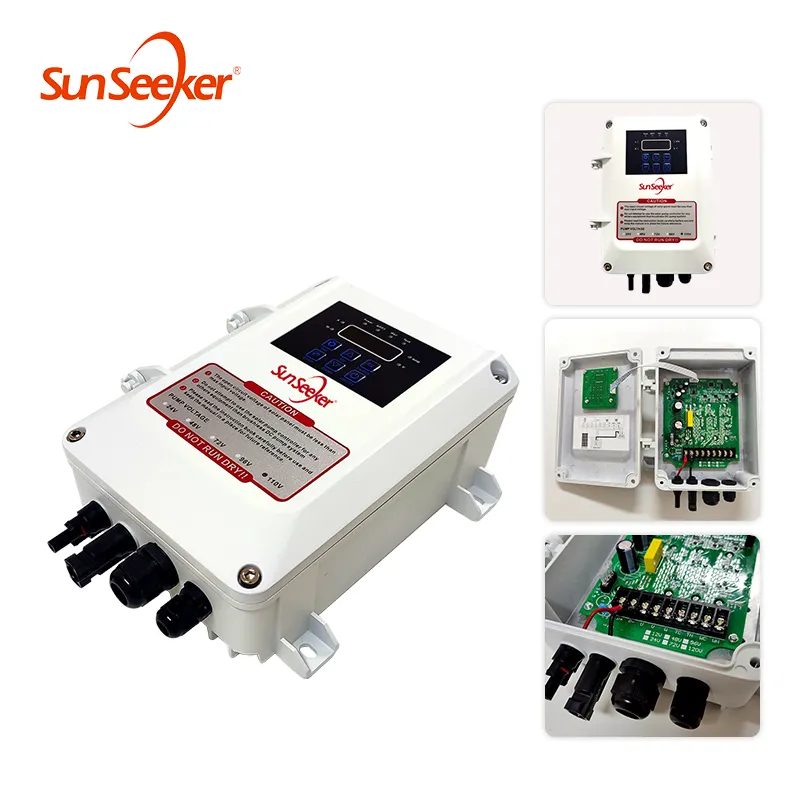

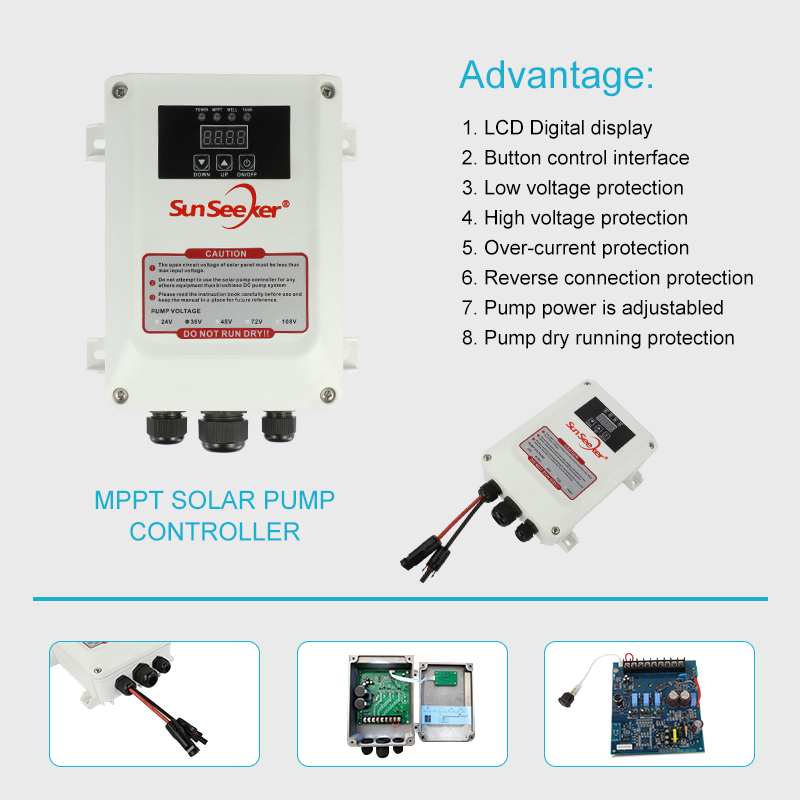

MPPT Controller Functions:

Low-voltage & Over-voltage protection
Over-current & Dry-run protection
Reverse connection protection
Soft start & Lack of water protection

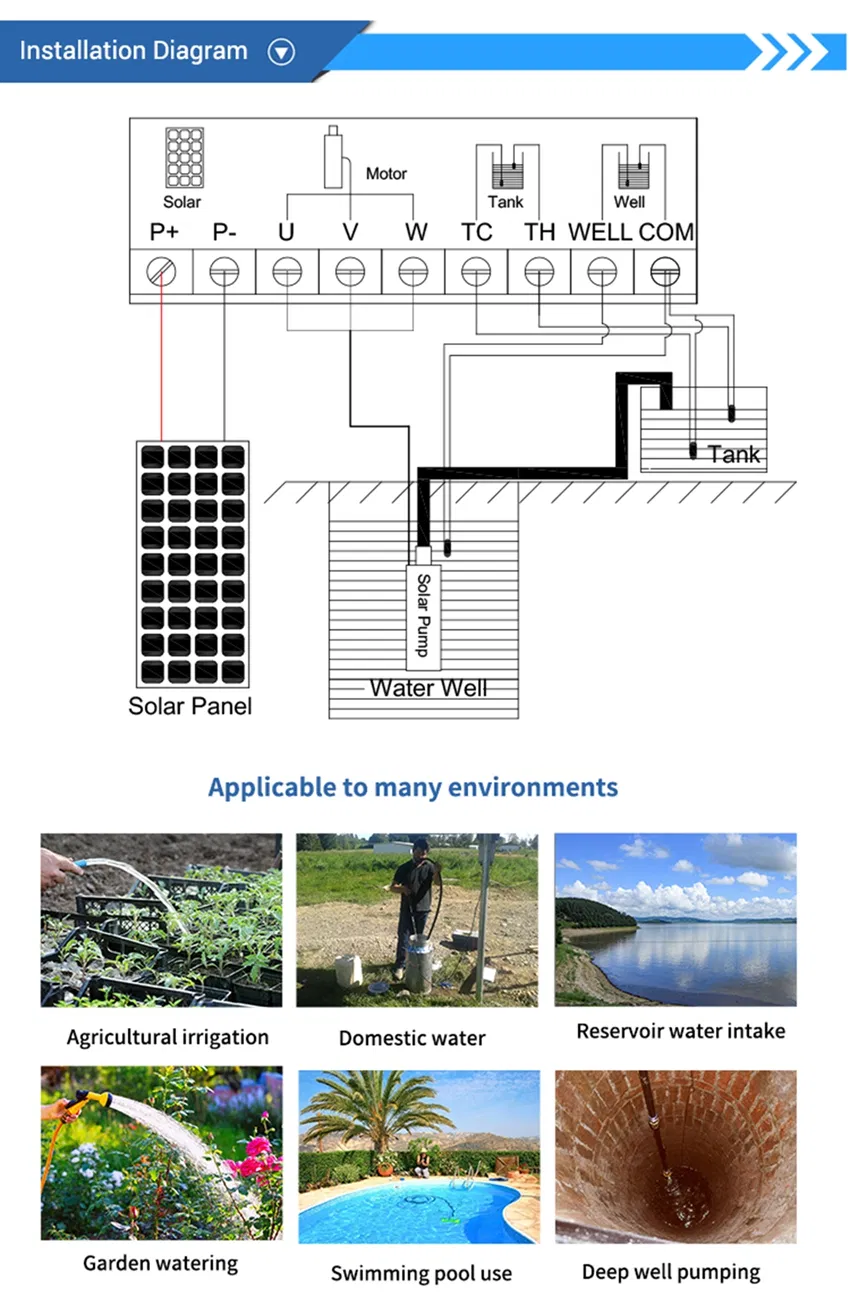

Installation Diagram

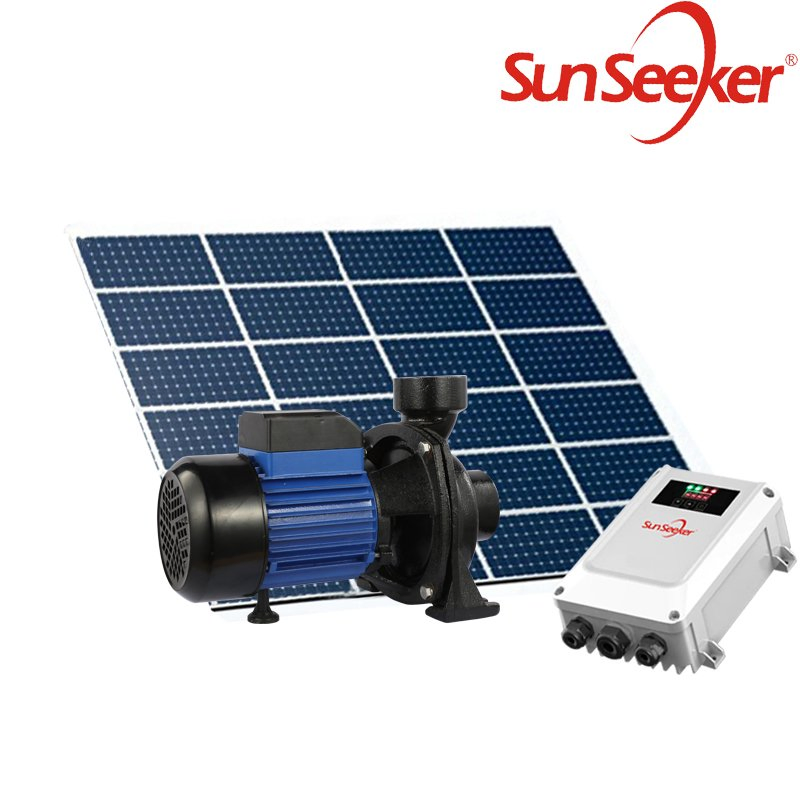

Solar panels convert sunlight to DC electrical energy. The MPPT controller stabilizes the voltage and drives the pump motor. Even on cloudy days, it can achieve significant flow. Recommended solar panel power = Pump Power * (1.2 - 1.5).
