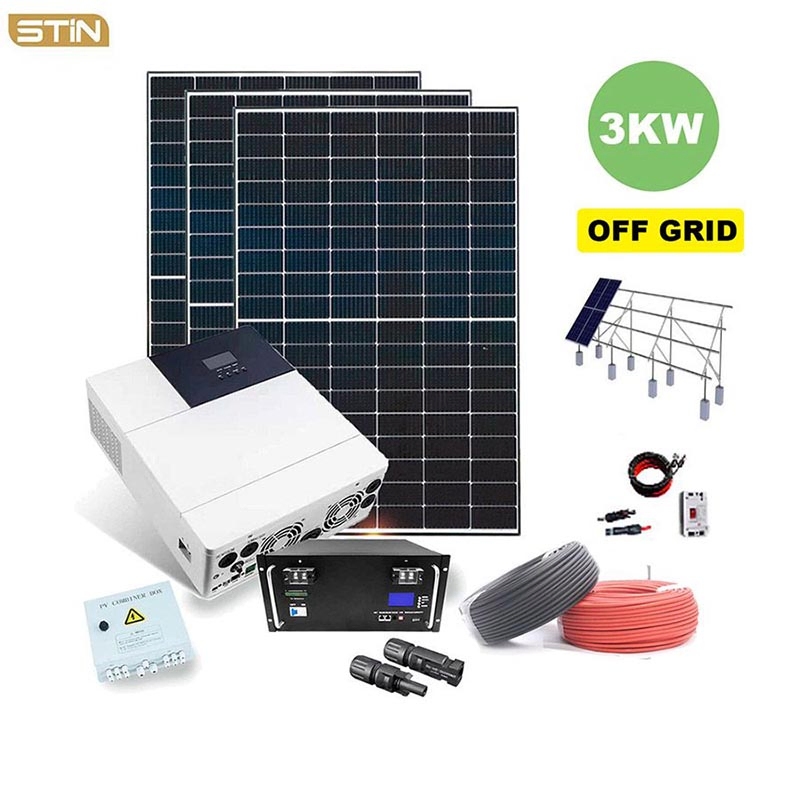

3kw Full House Residential Solar Energy System with Batteries Kits

1 / 5

3kw Full House Residential Solar Energy System with Batteries Kits

Customization:	Available
After-sales Service:	Yes
Warranty:	25 Years

Send Inquiry

Product Description

Basic Information

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Products

Off-Grid Solar Power System

Output Frequency

50/60Hz

Controller Type

MPPT, PWM

Battery Type

Lead Acid/LiFePO4 Lithium Battery

Inverter

Pure Sine Wave

Origin

China

Capacity

1000 sets/Month

Product Overview

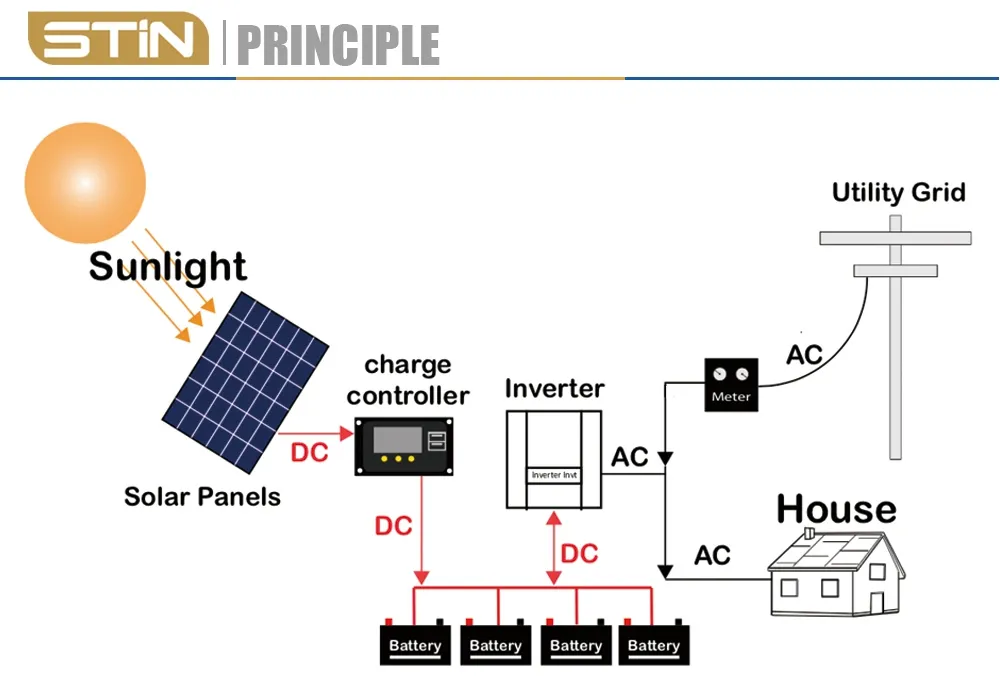

What is an Off-Grid System?

Off-grid solar energy systems, also known as stand-alone solar systems, operate independently of the public electricity grid. They are ideal for remote areas where grid power is unavailable or unstable. These systems are versatile and suitable for residential, commercial, and industrial applications.

Available configurations include: 1kW, 2kW, 3kW, 5kW, 10kW, up to 200kW or customized solutions to meet specific power needs.

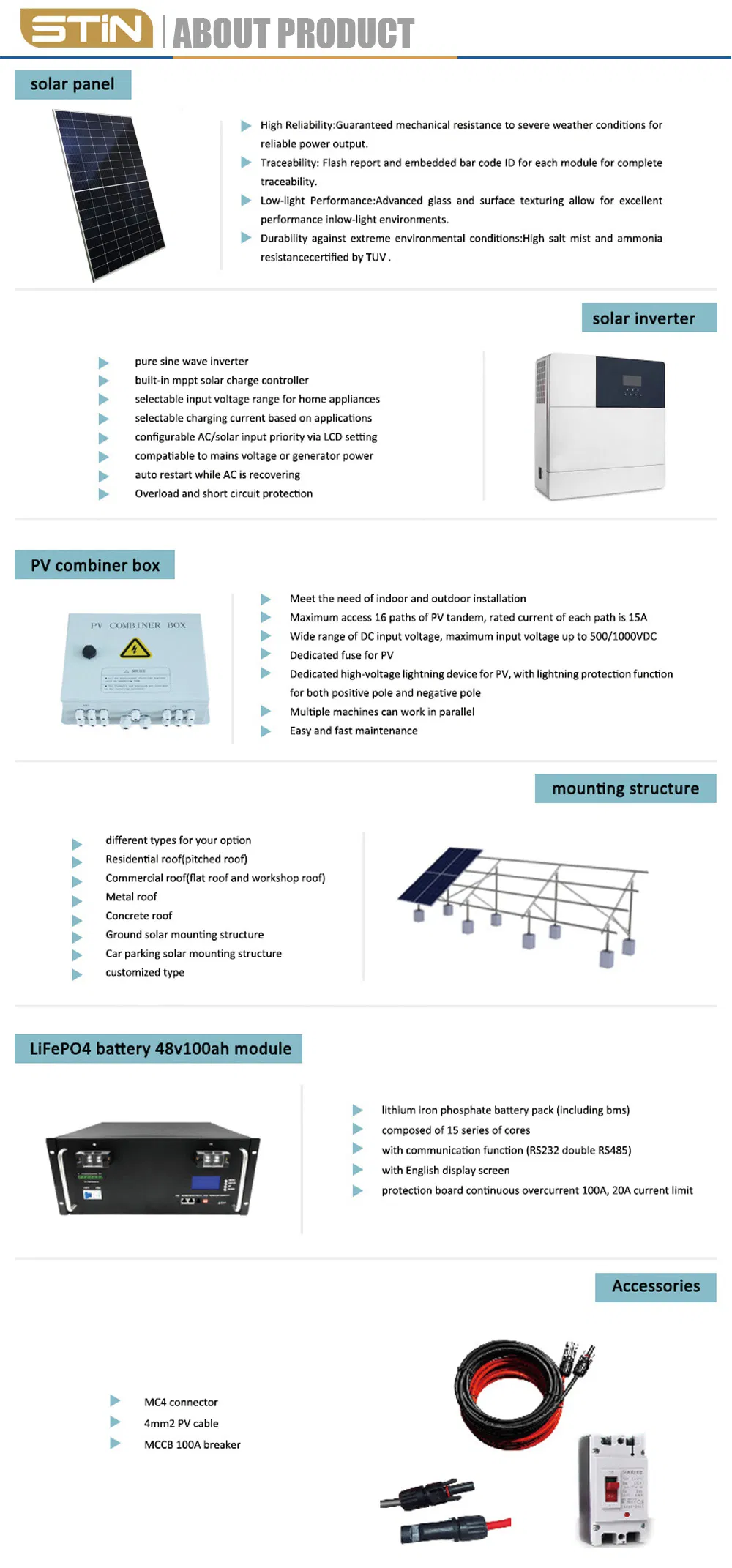

System Configuration (3000W Example)

Item	Part	Specification	Quantity	Remarks
1	Solar Panel	Mono 410W	4 PCS	2 strings in parallel
2	PV Combiner Box	2 inputs, 1 output	1 SET	-
3	Bracket	C-shaped steel	1 SET	Hot-dip zinc
4	Inverter with MPPT	3000W Pure Sine Wave	1 SET	Built-in 60A Controller
5	LiFePo4 Battery	48V-100AH	1 PC	Deep cycle
6	PV Cables	4mm²	200M	Red & Black

The battery can support a 1000W load for approximately 4 hours.

Max peak load should not exceed 3000W (including inductive loads like AC or refrigerators).

Batteries can be fully charged in about 3 hours under standard sunshine conditions.

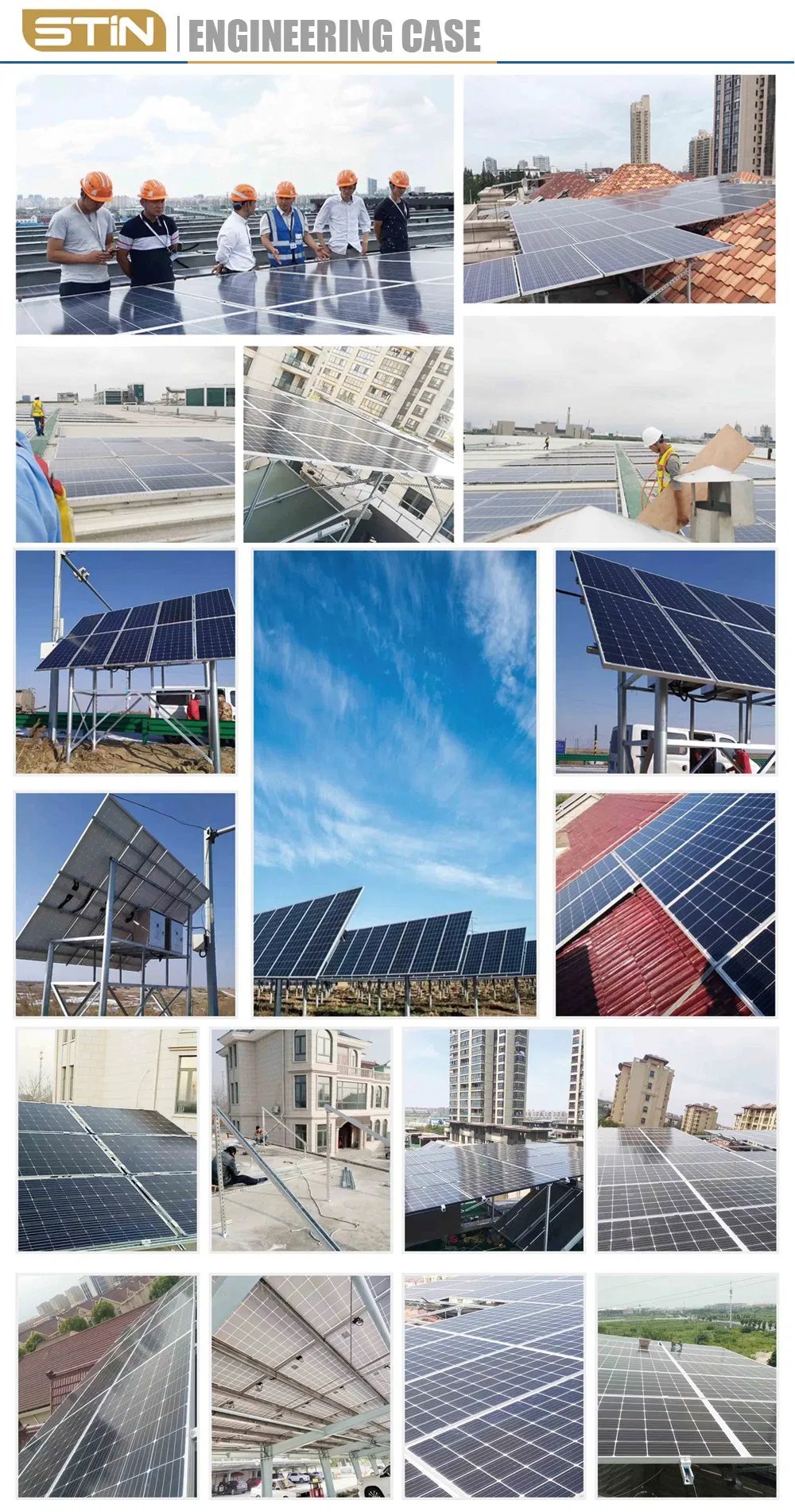

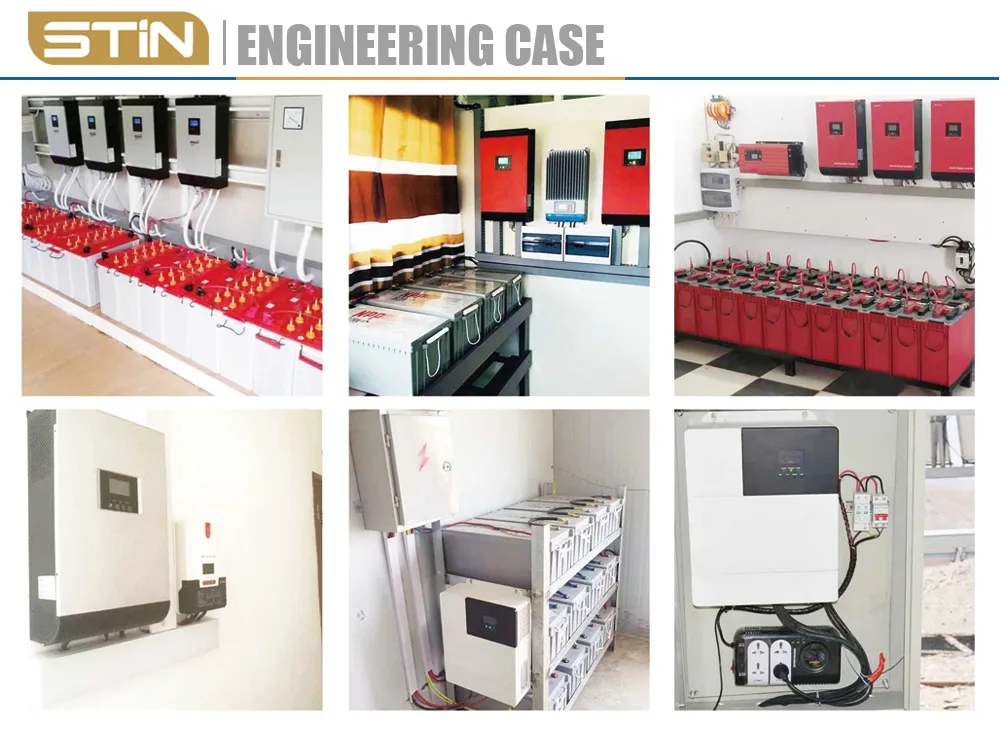

Detailed Photos & Projects

Frequently Asked Questions

What are the main products available?

We provide Mono/Poly solar panels, lithium-ion and gel batteries, on-grid and off-grid solar systems, and MPPT/PWM solar charge controllers.

What is the advantage of your solar solutions?

With over 10 years of industry experience and global technical support, we offer complete services from system design to installation guidance.

Can I request samples?

Sample availability depends on the product type. Generally, sample fees are credited back upon placing a bulk order.

How are shipping costs and times calculated?

Shipping is based on quantity and preferred method (Sea, Air, or Express). Once confirmed, we provide detailed cost and transit time estimates to your destination.

What is the Minimum Order Quantity (MOQ)?

Our MOQ starts from 1 piece for standard systems.

Which payment methods are accepted?

We accept T/T, L/C, PayPal, and Western Union for your convenience.
