| Model NO. | AS-Pump System | Application | Home, Industrial, Commercial |
| Specification | Normal, OEM | Mounting Support | Roof or Ground Solar Mount Bracket |
| Solar Inverter | Off-Grid Inverter | Warranty | 25 Years Service Life |
| System Type | Home Solar Power System | Production Capacity | 1.2 Gw/Year |
| HS Code | 8501610000 | Transport Package | Carton/Wooden Box |

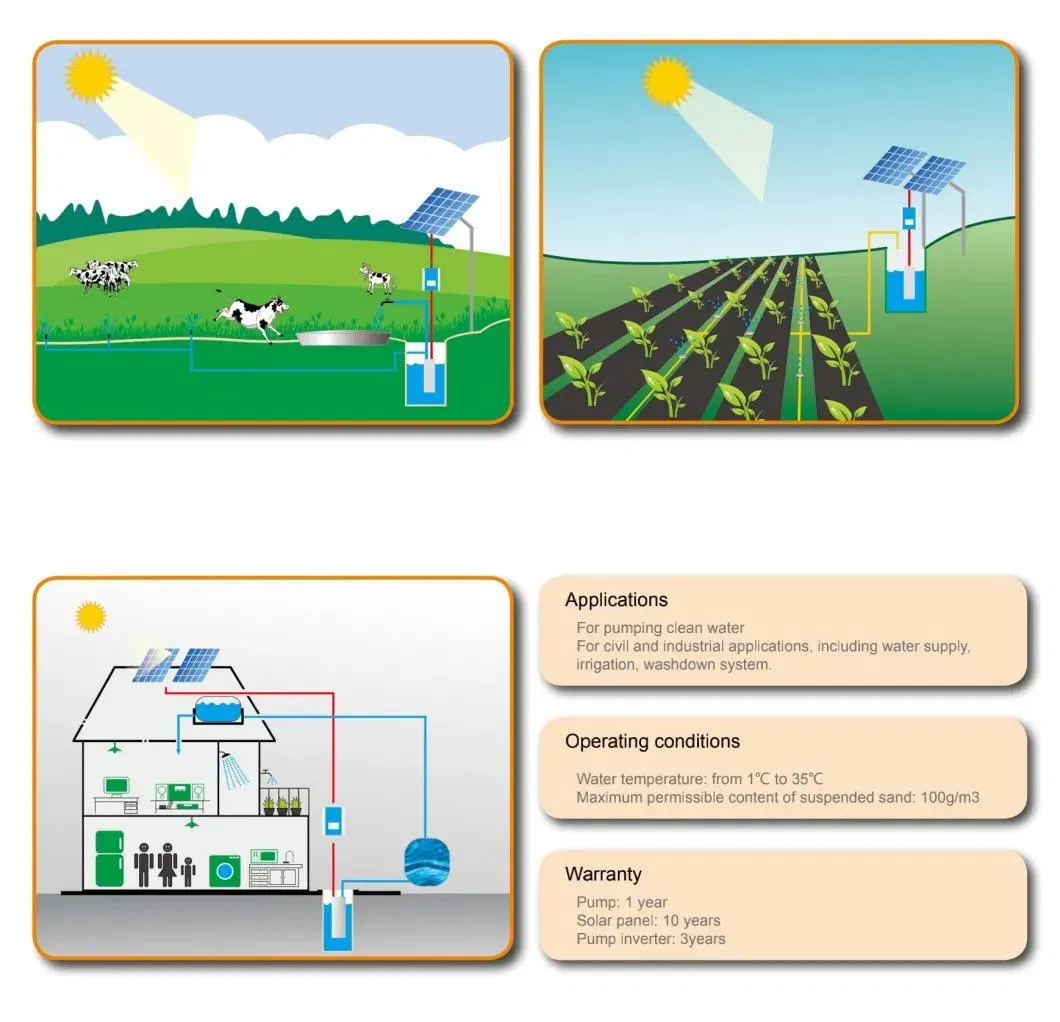

Solar power systems have a wide range of applications, such as offering domestic water, helping agricultural and forestry irrigation, and desertification control. It can also supply water to sea islands, animal husbandry, and water treatment projects.
With the promotion of new energy utilization, the usage of solar water pumps is increasing. These systems are commonly utilized in government projects, landscape architectures, and fountains for city squares, parks, tourist attractions, hotels, and residential areas.
Solar pump systems are high-quality products designed for drinking water supply, livestock watering, and smaller irrigation applications without pollution. These systems are specially designed to use solar power directly, requiring no grid infrastructure. An optional grid can be a back-up to meet day and night running requirements.
| Item Name | Description | Unit | Quantity |
|---|---|---|---|
| Solar panel | 260W / 31.2V poly | pc | 136 |
| Mounting structure | Q235 material, Hot-dip zinc | set | 1 |
| PV cables | 4mm2, 400m | set | 1 |
| Pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |
| Safety rope | Pump Depth * 2 | pc | 1 |
| Check Value | Check value with connector | set | 1 |
| Other accessories | Raw material tape, MC4, cable connectors | set | 1 |

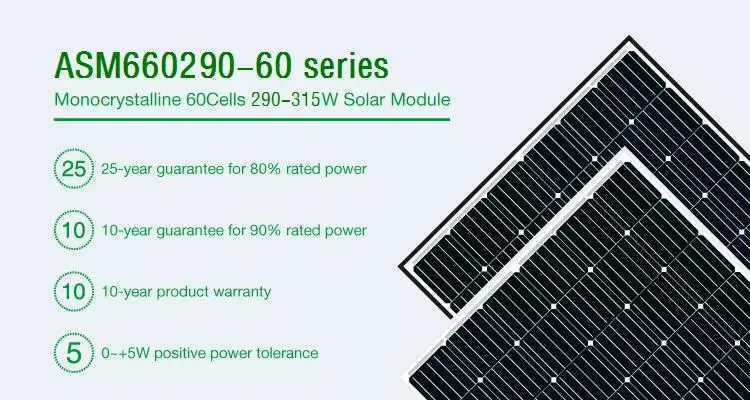

Peak Power Watts: 290W (ASM660290)
Maximum Power Voltage: 32.2V
Maximum Power Current: 9.02A
Open Circuit Voltage: 39.5V
Dimensions: 1640×992×35 mm
Weight: 18.6 kg

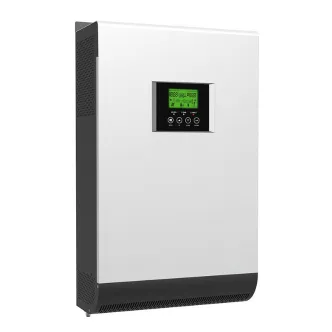

Max. DC Input Power: 8.5KW
Max. DC Input Voltage: 600V
MPPT Voltage Range: 90-520V
Rated Grid Voltage: 208/240V(US); 230V(EU)
Wifi Stick included for monitoring.

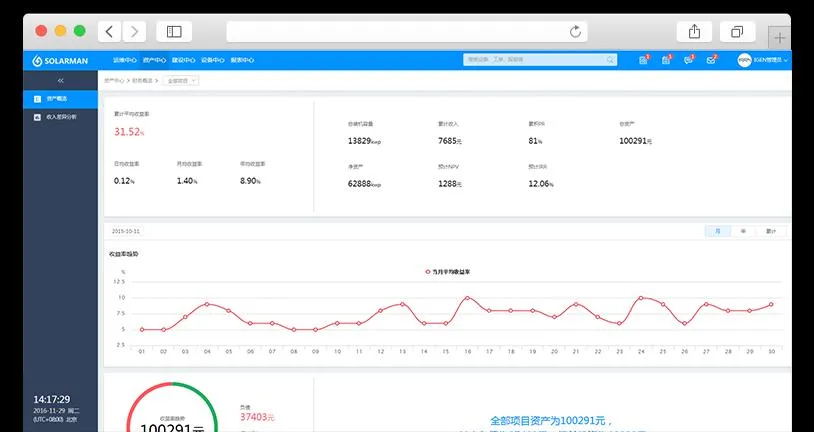

Data Logging Stick allows you to receive information via Wi-Fi, Lan or GPRS. App Available for PC, IOS & Android to keep you informed about system performance and atmospheric conditions.
Mounting: AI6005 & SUS304 Bolt, Mid & End Clamps (35-50mm).

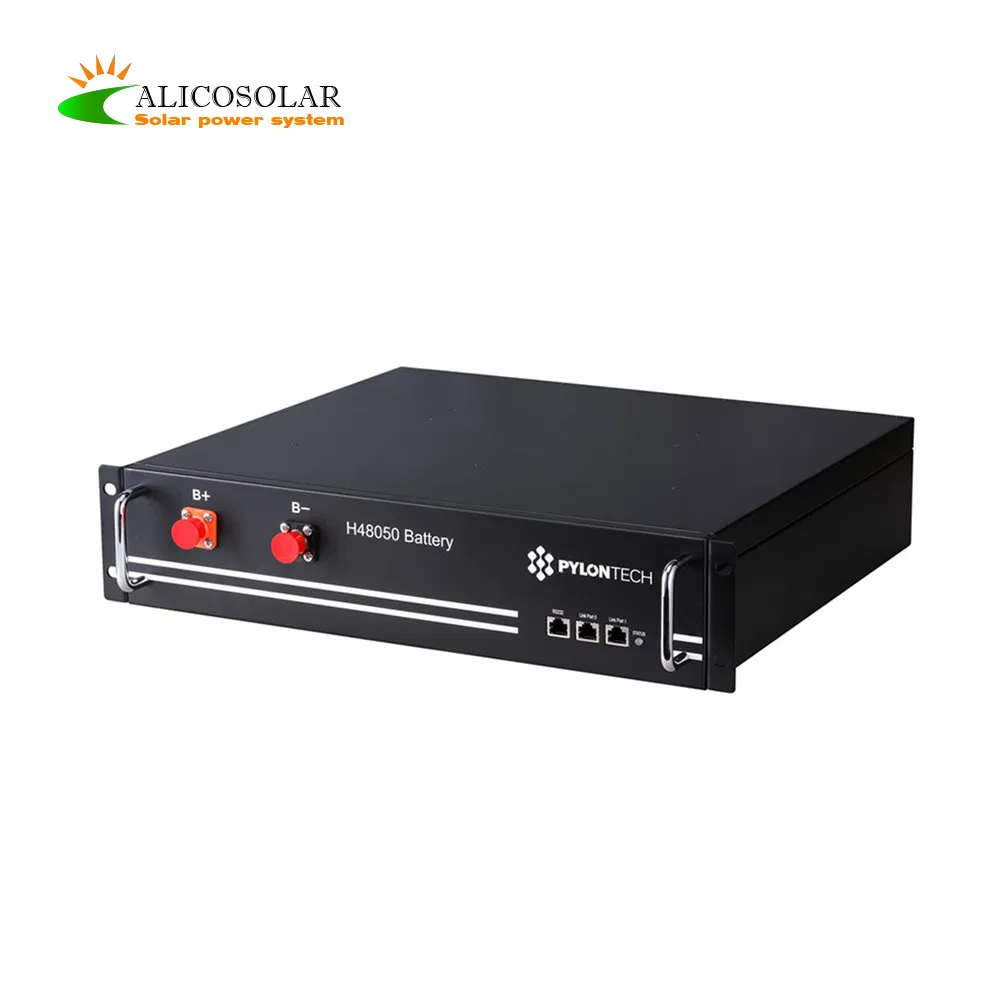

Lithium battery: 48V 100Ah, Dimension: 4-5U.
The system uses PV panels to convert sunlight into DC electricity, which the solar inverter then converts to drive the water pump motor directly.
Yes, the 30HP system is powerful enough for deep well extraction and large-scale agricultural irrigation projects.
The solar panels are designed for a 25-year service life with high-quality mono/poly cells.
Yes, it comes with a data logging stick and is compatible with iOS, Android, and PC via Wi-Fi or GPRS.
For night operation, the system can be integrated with lithium batteries or switched to an optional AC grid back-up.

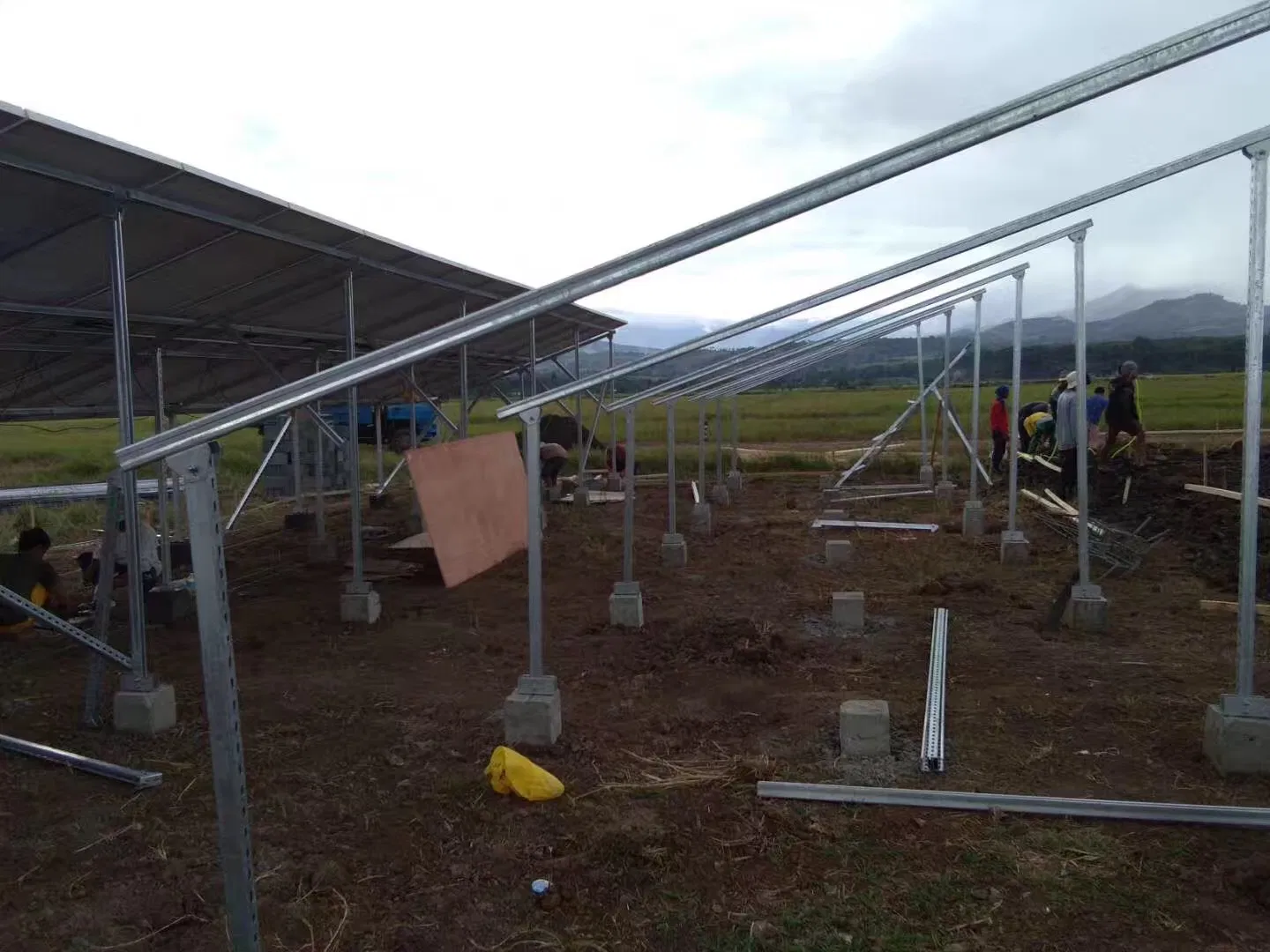

Yes, we use Q235 material with hot-dip zinc coating to ensure corrosion resistance for outdoor installations.
