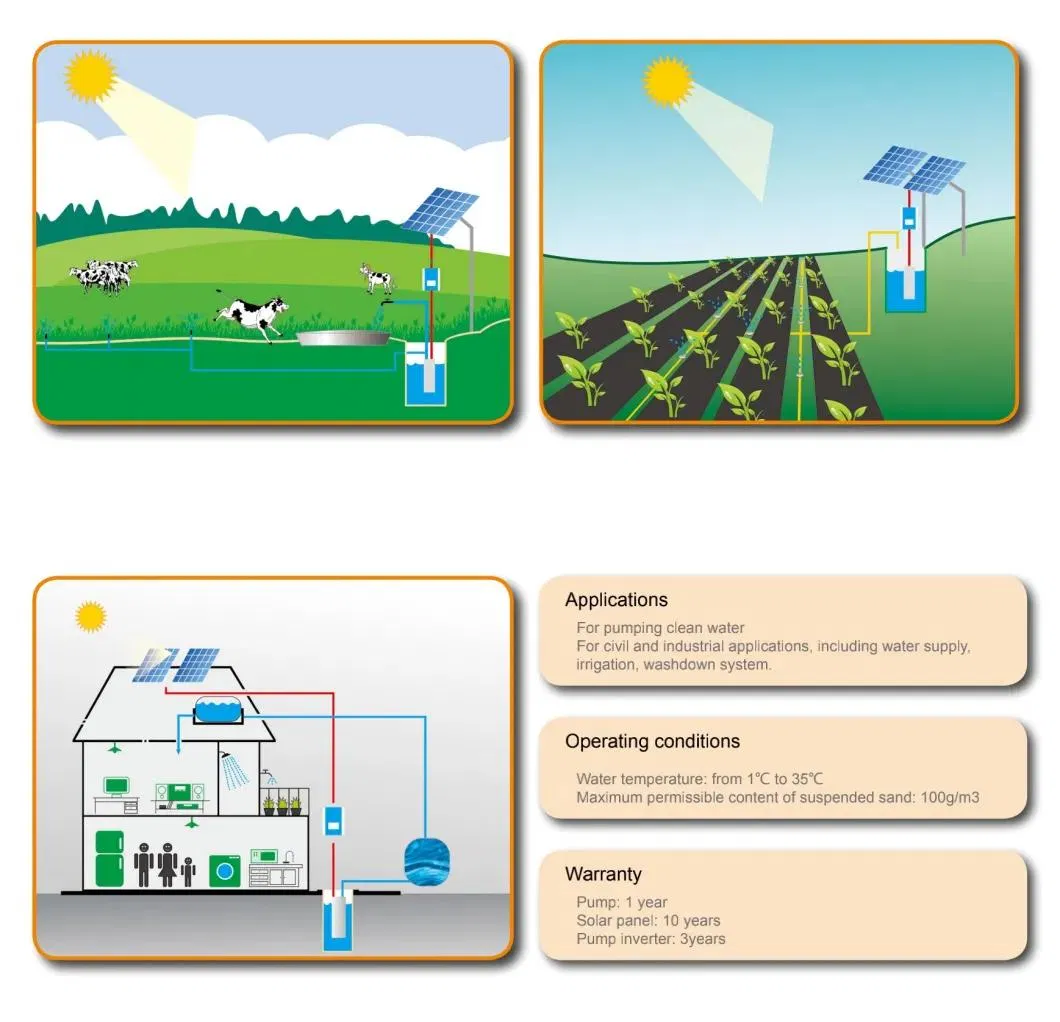

Solar pump systems are high-quality products designed for drinking water supply, livestock watering, and small irrigation applications without pollution. These systems are specifically manufactured to utilize solar power directly, requiring no existing infrastructure or grid connection.
| 30HP Solar Water Pump System Items List | |||
|---|---|---|---|
| Item Name | Description | Unit | Quantity |
| Solar panel | 260W / 31.2V poly | pc | 136 |
| Mounting structure | Q235 material, Hot-dip zinc | set | 1 |
| PV cables | 4mm2, 400m | set | 1 |
| Pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |
| Safety rope | Pump Depth * 2 | pc | 1 |
| Check Value | Check value with connector | set | 1 |
| Other accessories | Raw material tape, MC4 connector, pump cable connector, etc | set | 1 |
Peak Power Watts: 290W (ASM660290)
Maximum Power Voltage: 32.2V
Maximum Power Current: 9.02A
Dimensions: 1640×992×35 mm
Weight: 18.6 kg

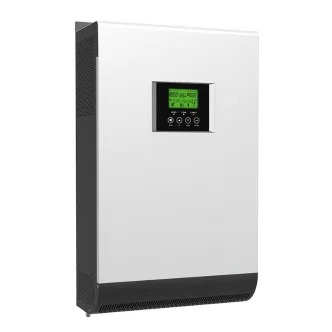

Max. DC Input Power: 8.5KW
Max. DC Input Voltage: 600V
MPPT Voltage Range: 90-520V
Rated Grid Voltage: 208/240V(US); 230V(EU)
Wifi Stick For STD, Lan & GPRS Optional.

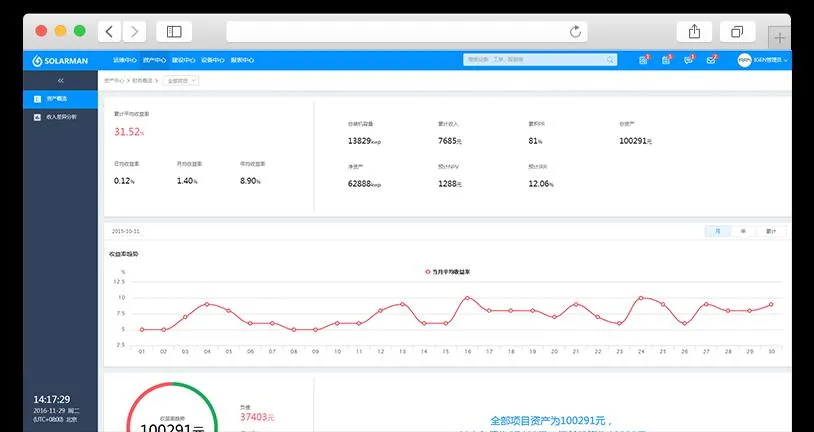

Data Logging Stick allows real-time monitoring via web server. Accessible via Wi-Fi, Lan, or GPRS. Apps available for PC, iOS, and Android.

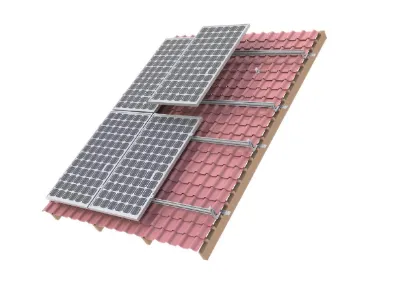

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt. Mid & End Clamps for various sizes. Grounding clips and lugs optional.

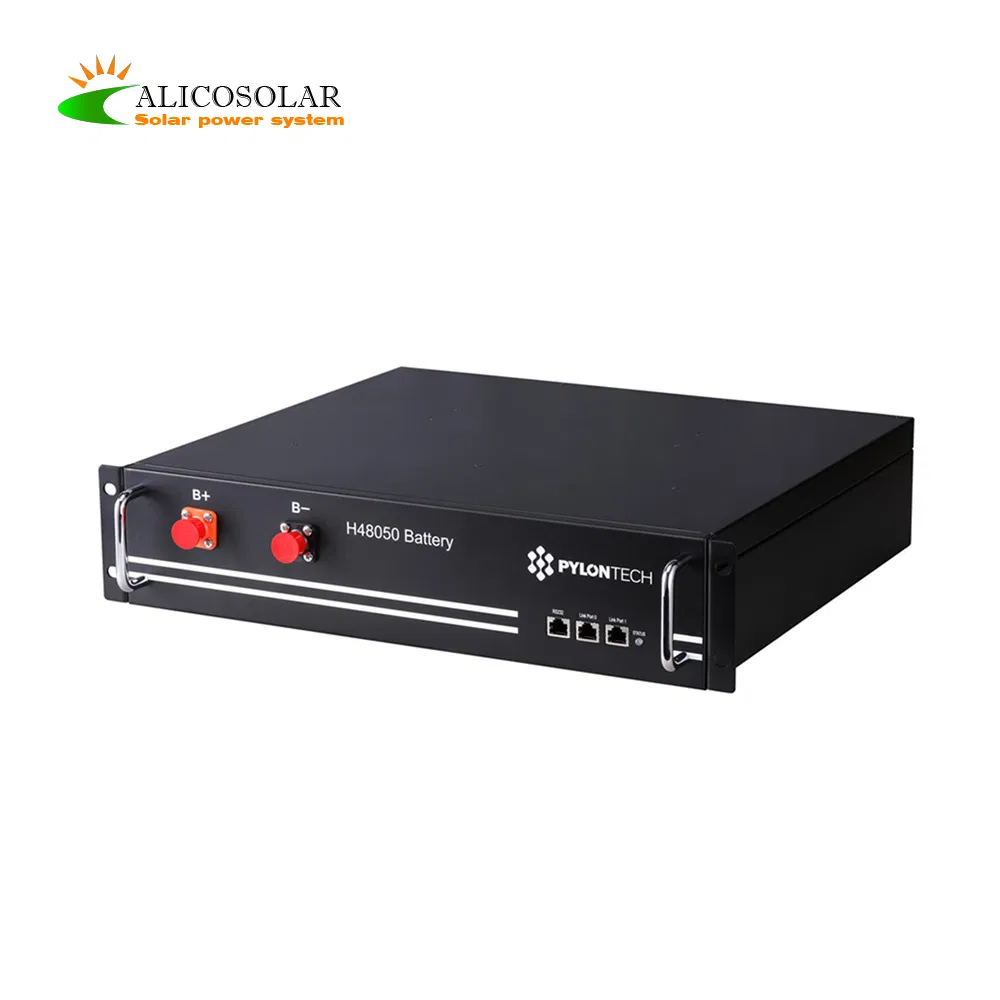

Voltage: 48V | Capacity: 100Ah
Dimension: 4-5U standard rack size.
