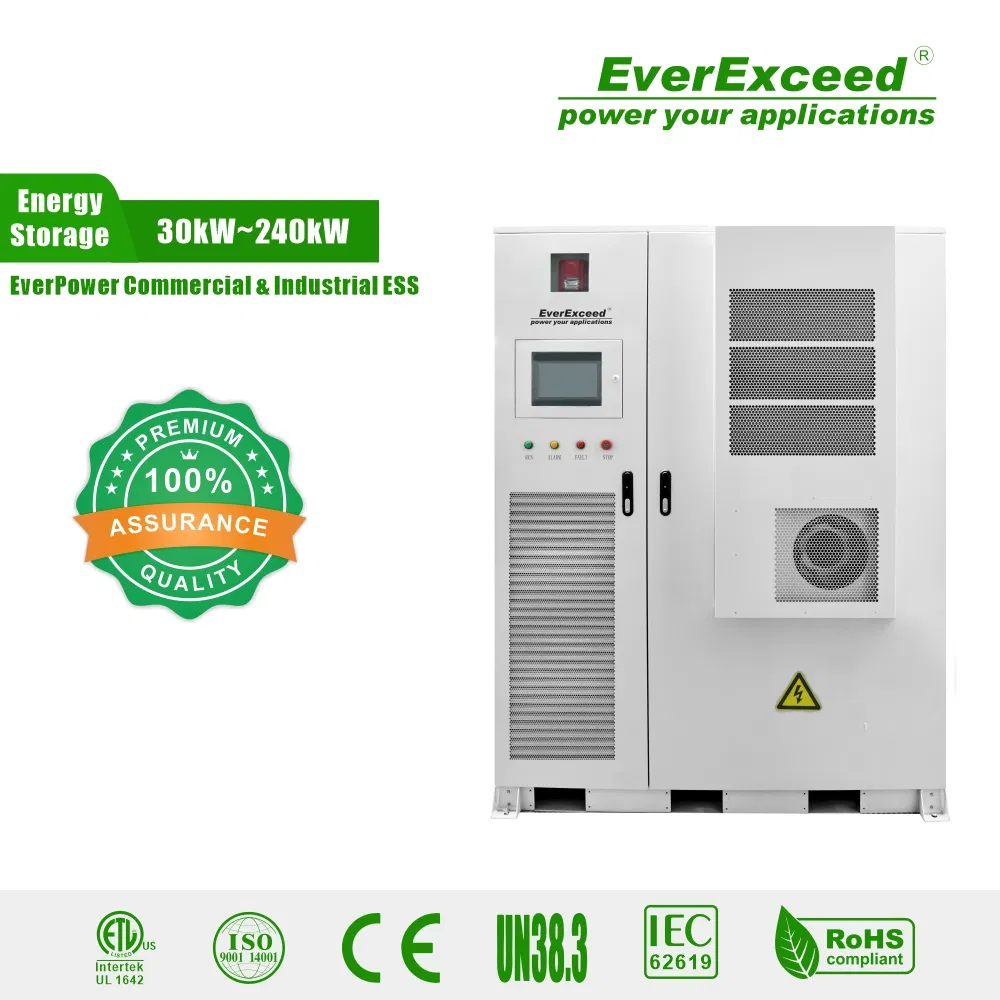

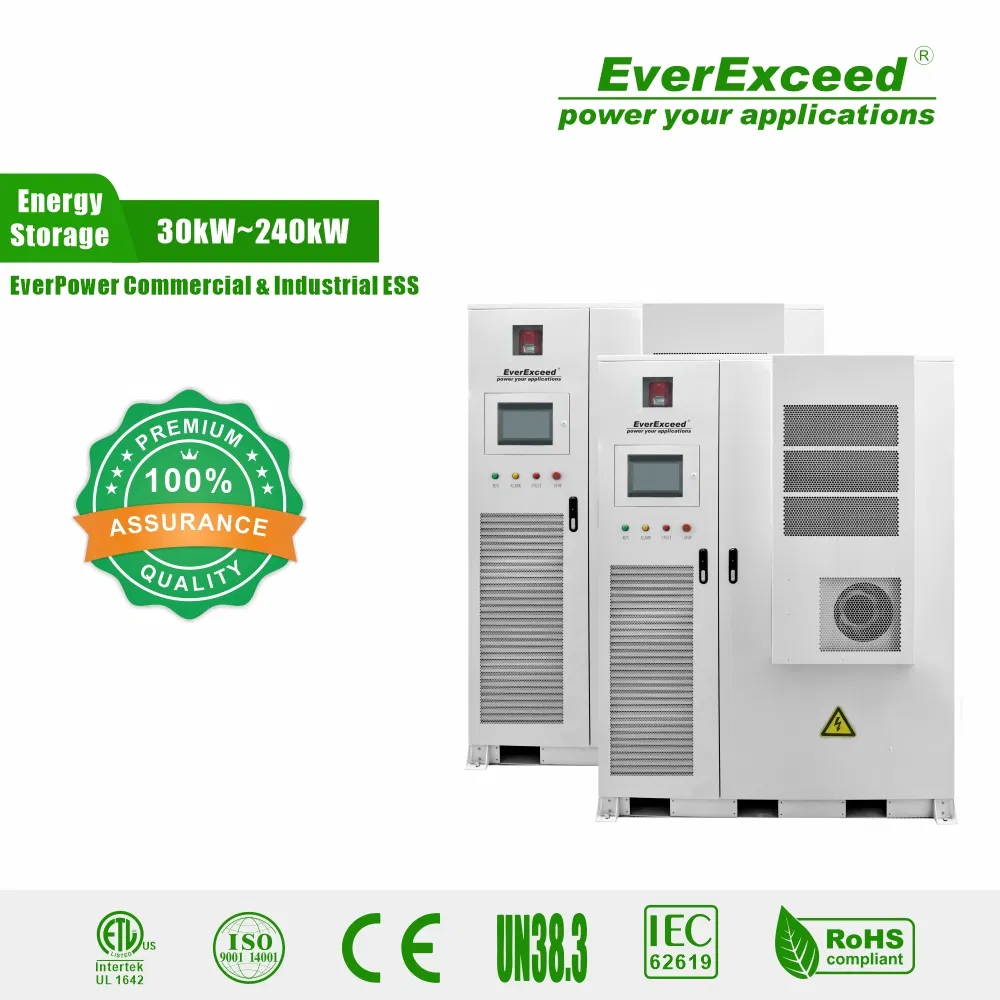

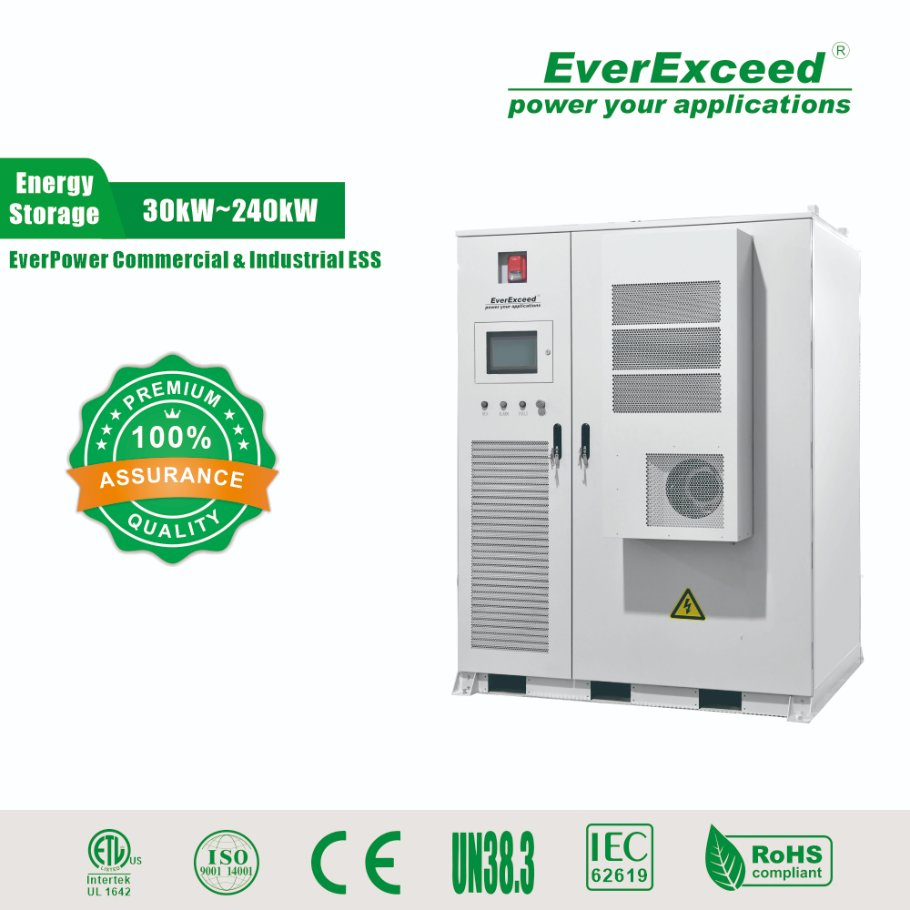

Industrial and Commercial Air BESS Solar Energy Storage Lithium Ion Battery System Solution Container

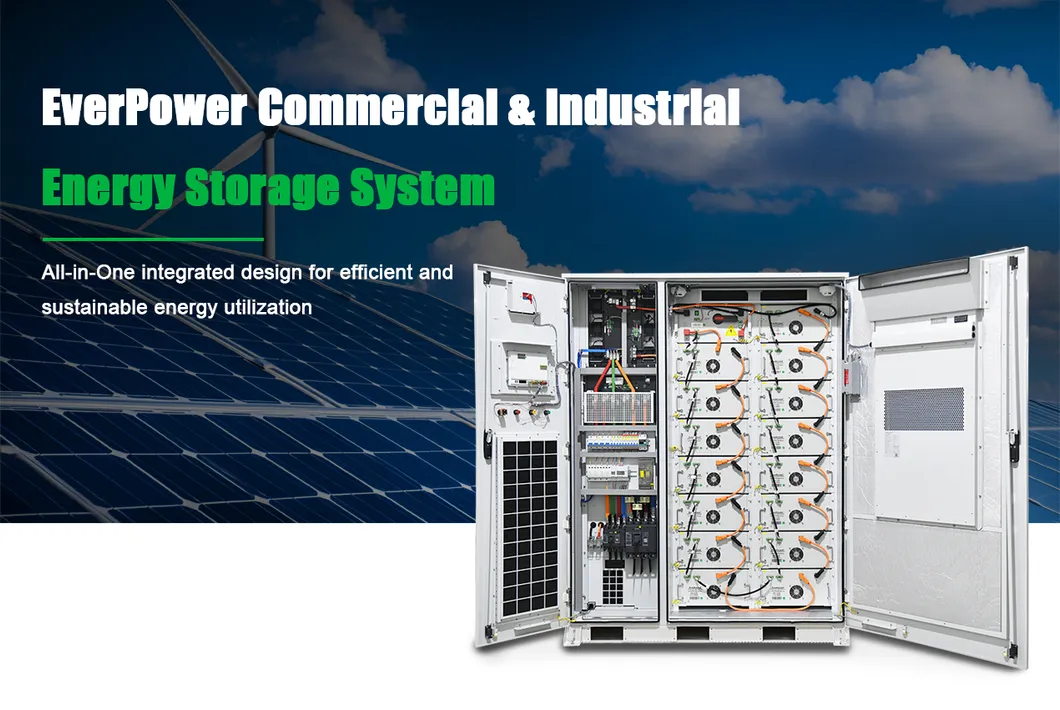

The All-in-one Industrial & Commercial ESS highly integrates PCS, LiFePO4 batteries, BMS, EMS, fire-fighting system, and heat dissipation system within a single cabinet. It is a high-power backup solution designed for commercial, industrial, and grid-level applications. This high-voltage energy storage system offers maximum flexibility for both rack-mounted and cabinet-based constructions, providing a "Safer, Smarter, Simpler" solution for substations, microgrids, factories, and solar charging stations.
Wide battery voltage range compatible with various operation environments; supports both lead acid & lithium-ion batteries.
Off-grid cold start capability with support for multi-machine parallel operation.
Comprehensive protection: overcharge, over discharge, overload, short-circuit, and temperature extremes.
AC and DC dual power backup ensures continuous operation of the control system.
Advanced power density with peak efficiency reaching up to 97.5%.
Flexible communication interfaces including RS485 and CAN for real-time BMS interaction.
| Product Model | CO25K-50E | CO50K-100E | CO100K-215E | CO150K-300E |
|---|---|---|---|---|
| Electrical Parameters | ||||
| Nominal AC power | 25 kW | 50 kW | 100 kW | 150 kW |
| Nominal grid voltage | 400 Vac (360 Vac - 440 Vac) | |||
| Rated AC output current | 36.2 A | 72 A | 152 A | 200 A |
| Battery Parameters | ||||
| Cell Chemistry | Lithium Iron Phosphate (LFP) | |||
| Battery energy capacity | 51.2 kWh | 100 kWh | 215 kWh | 315 kWh |
| Cycle Life | 6000+ cycles | 10000+ cycles | 10000+ cycles | 10000+ cycles |
| Mechanical Parameters | ||||
| Cooling method | Air-conditioner | |||
| Dimensions (W*D*H) | 800x1200x2100 mm | 1000x1450x2100 mm | 1738x1250x2330 mm | Customized |
