215kwh Commercial/Industrial Energy Storage System All in One 215kw Hybrid Solar Energy System with Lithium Ion Battery

1 / 5

215kwh Commercial/Industrial Energy Storage System All in One 215kw Hybrid Solar Energy System with Lithium Ion Battery

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

SWS-215kWh

Nominal Voltage

768V

Nominal Capacity

215 Kwh

Cycle Life

> 8000 cycles

Protection Degree

IP 55

Communication Port

RS485

Grid Connection

Hybrid Grid

Cooling

Air Cooling

Dod

95%

OEM/ODM

Acceptable

Rated Frequency

50/60 Hz

Specification

Lithium Ion

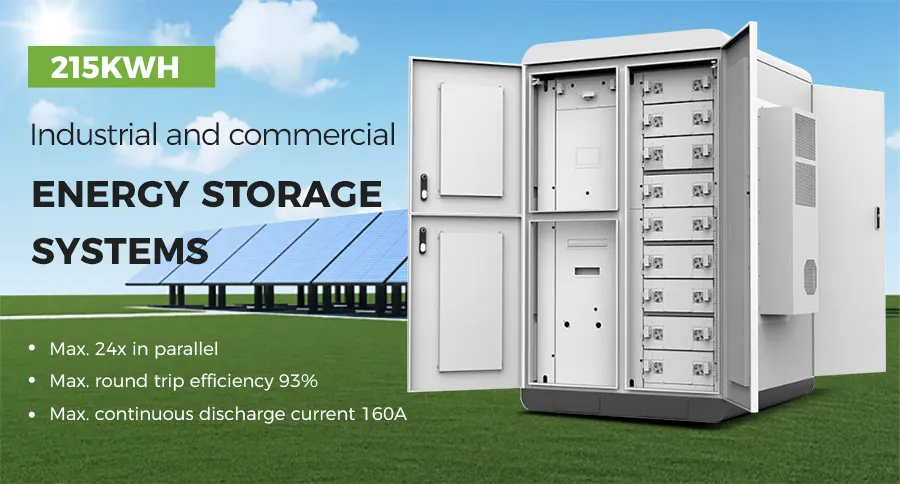

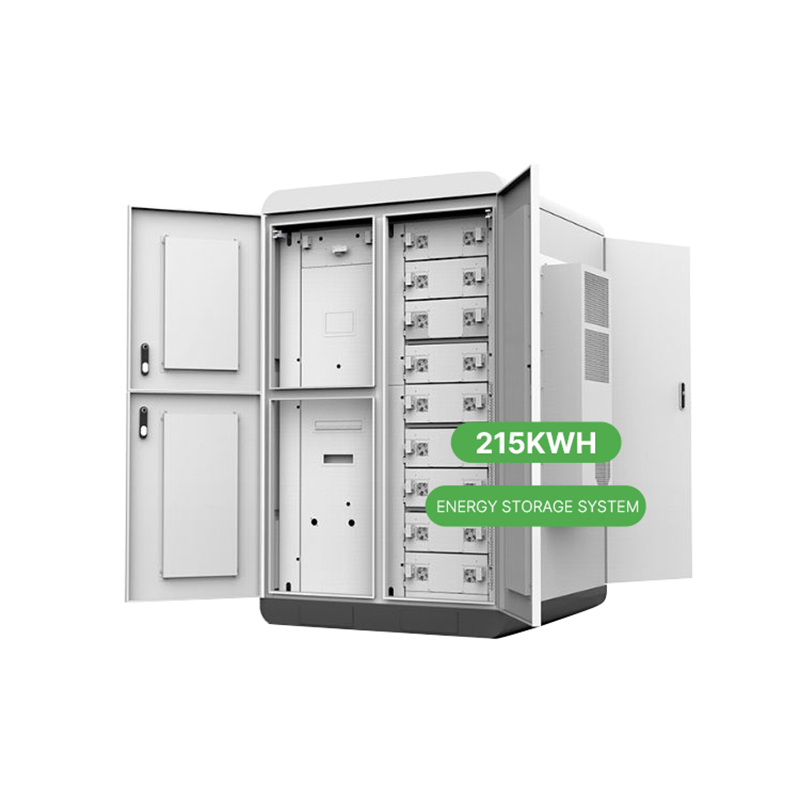

This commercial & industrial energy storage system adopts an all-in-one design concept. The cabinet is integrated with a Battery Management System (BMS), Energy Management System (EMS), modular Power Conversion System (PCS), and fire protection system. The system's capacity is up to 215 kWh and the power is up to 100 kW. The modular design allows for flexible expansion, adapting to various scenarios such as power expansion, backup power supply, and black start capabilities.

Technical Parameters

Rated Battery Capacity(kWh)	215kWh
Rated Voltage(V)	768V
Voltage Range(Vdc)	720-840V
Charge and Discharge Rate(P)	≤0.5
Max. Round Trip Efficiency	93%
DOD	95%
Cooling Strategy	Industrial Air Conditioning
Cycle Lifetime at EOL 80%	≥8000 cycles
Fire Fighting System	Perfluorohexanone
Rated Power(kW)	100
Rated AC Voltage(Vac)	380/400
AC Voltage Range	-15% ~ +10%
Size (WDH mm)	1520 * 1270 * 2117
Weight (T)	2.6
Enclosure Protection Rating	IP55
Operating Temperature Range	-20 to +55°C (>45°C derating)
Communication Interface	RS485, Ethernet
Protocol	Modbus RTU, Modbus TCP, IEC 104

Product Display

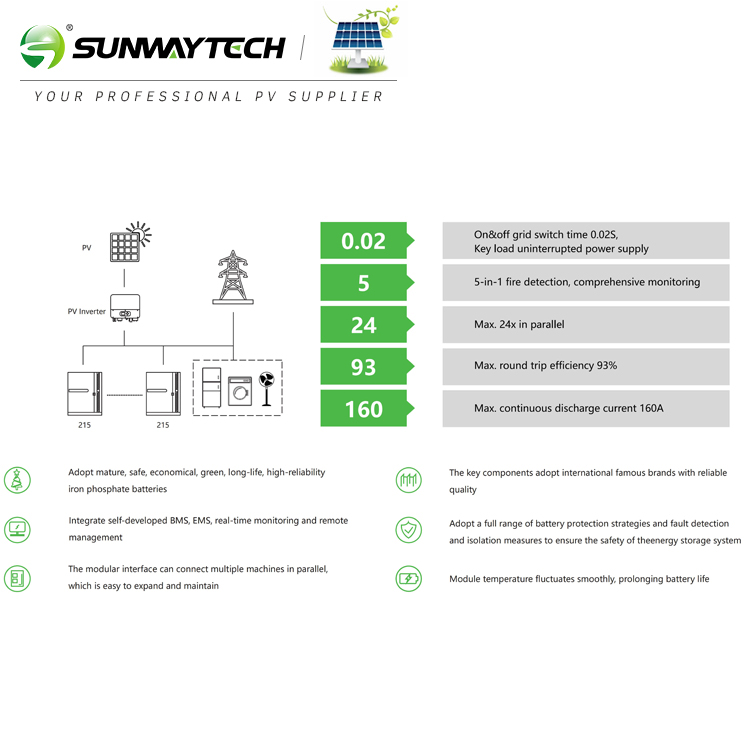

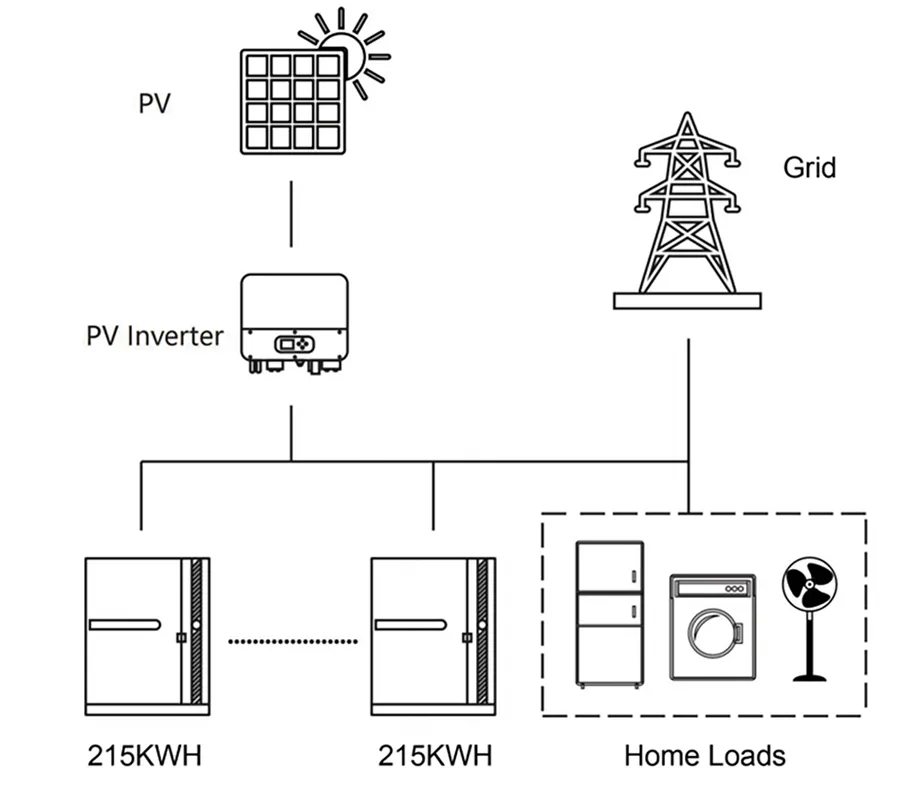

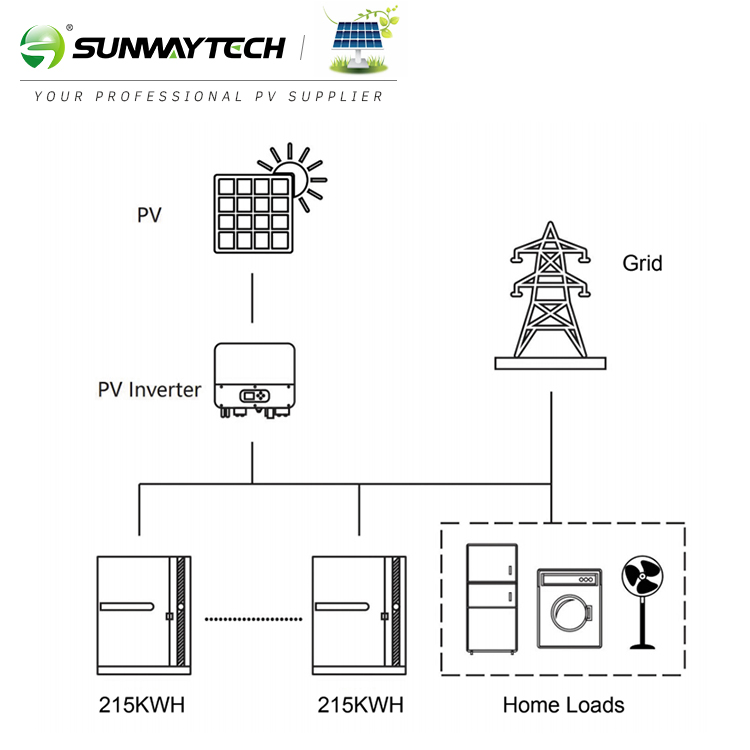

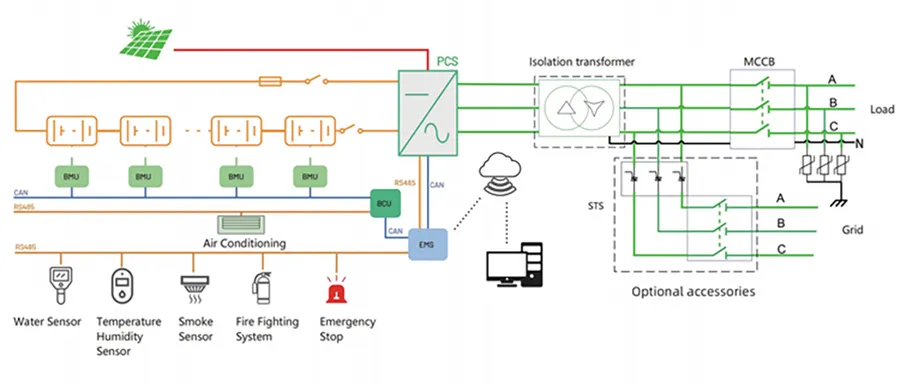

A commercial energy storage system works by storing excess energy generated by solar panels during the day. This stored energy can be used at night or during cloudy weather. The Power Conditioning System (PCS) converts DC electricity into AC electricity for appliances. The isolation transformer ensures grid safety, and the system includes MCB connections for efficient operation.

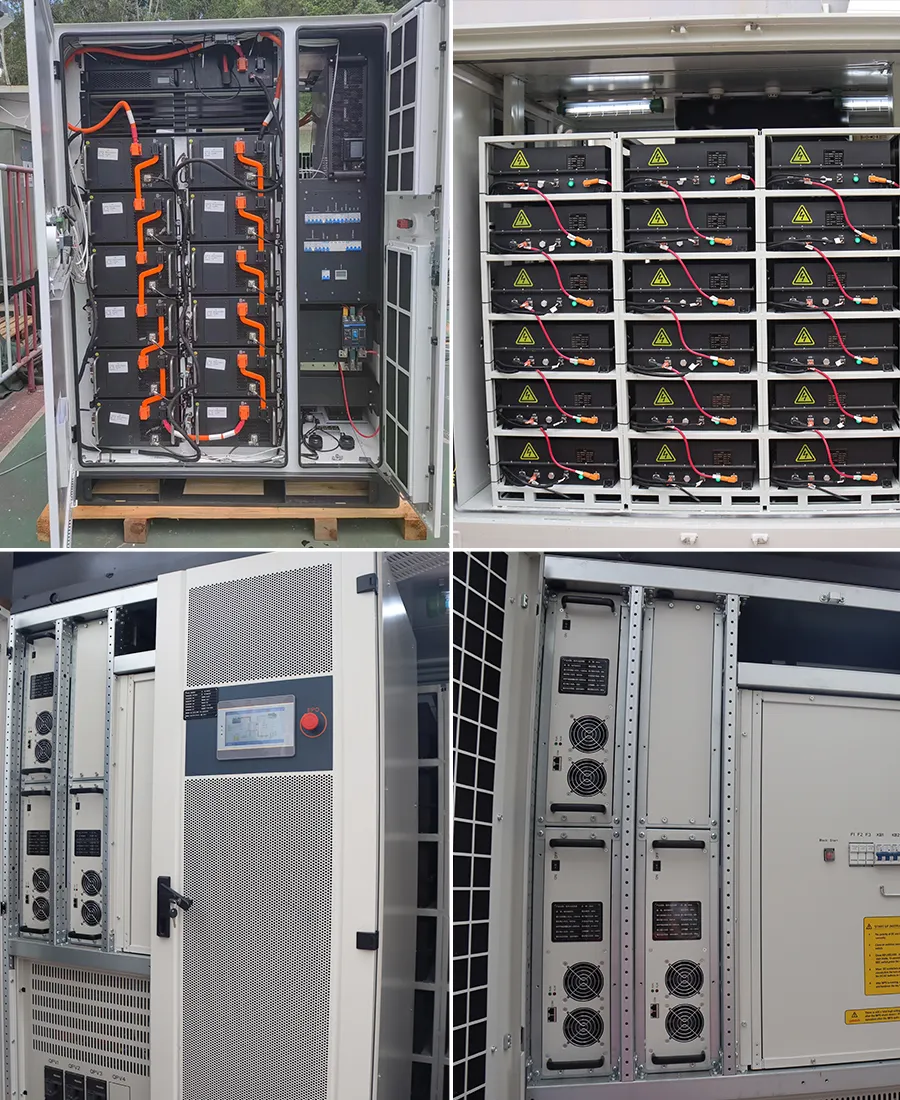

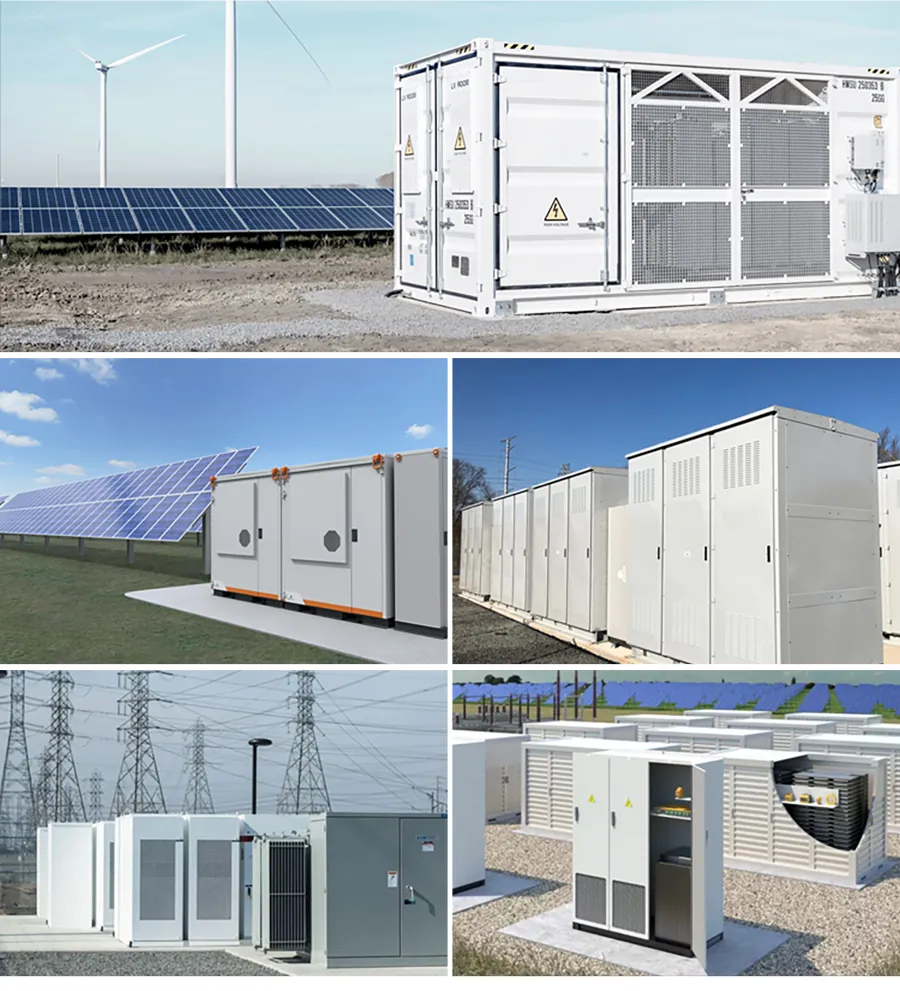

Application

Certifications

Recommend Products

Frequently Asked Questions

What is the cycle life of this energy storage system?

The system features a high-quality lithium-ion battery with a cycle life exceeding 8,000 cycles at 80% End of Life (EOL).

What kind of fire protection is integrated into the cabinet?

The system is equipped with a professional Perfluorohexanone fire suppression system to ensure maximum safety for commercial and industrial installations.

Is the system suitable for outdoor installation?

Yes, the cabinet has an IP55 enclosure protection rating and uses industrial-grade air conditioning for cooling, making it suitable for various outdoor environments.

What is the maximum round-trip efficiency?

The system achieves a high round-trip efficiency of up to 93%, minimizing energy loss during the charge and discharge process.

Can the system capacity be expanded?

Yes, the modular design allows for flexible expansion to adapt to different energy needs, including power expansion and backup requirements.

What communication protocols does the system support?

It supports standard industrial communication protocols including Modbus RTU, Modbus TCP, and IEC 104 via RS485 and Ethernet interfaces.
