20kw 20 Kw on Grid Solar Power Solutions

1 / 5

20kw 20 Kw on Grid Solar Power Solutions

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

XD-20KW

Condition

New

Certification

CE, RoHS

Application

Home, Industrial, Commercial

Solar Panel Type

Monocrystalline / Polycrystalline Silicon

Controller Type

MPPT

Load Power (W)

20kw

Battery Type

Lead Acid or Gel Battery

Inverter Type

On-Grid System

Output Voltage

AC 110V / 220V

Mounting Type

Ground, Roof, or Carport Mounting

Origin

China

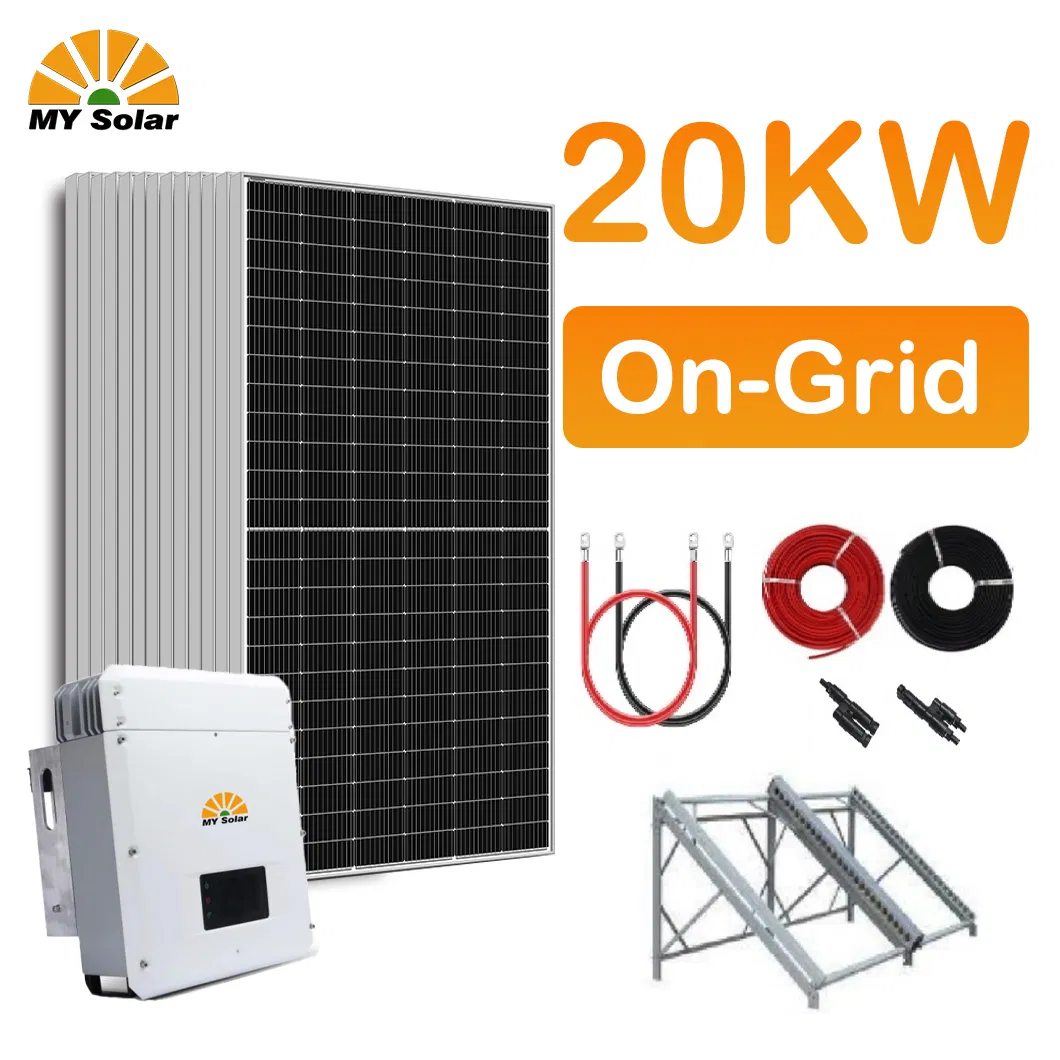

System Configuration

System	Component	Description	Qty	Unit

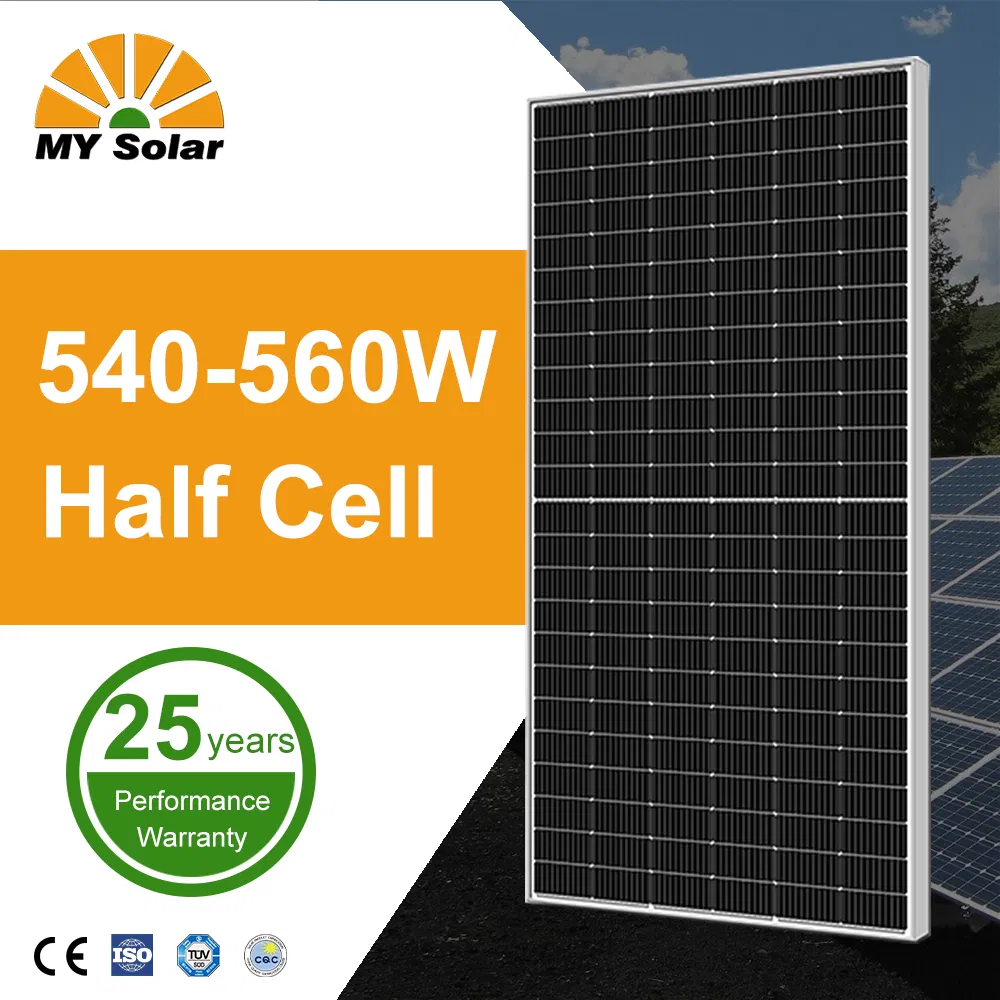

20KW Solar Power System	PV Solar Panel	550W (Vmp: 42.28V, Imp: 13.01A) Dim: 2279113435mm	36	pcs
	Grid Tied Inverter	20KW Three Phase, Efficiency: 98.6% Interfaces: RS485/WIFI, IP65	1	set
	DC Cables	4mm² (Red + Black), TUV Certified	200	meters
	Mounting Structure	Tile Roof Aluminium Type Wind: 45m/s, Snow: 2KN/m²	1	set
	MC4 Connectors	30A, 1000V DC, IP67 Waterproof	1	pairs
	Package	Wooden case for shipping protection	1	set

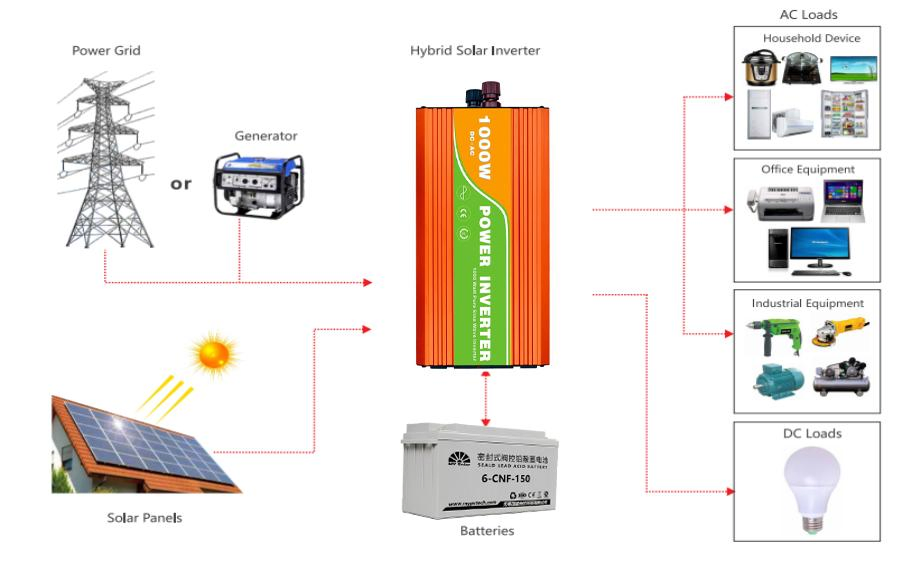

On-Grid vs Off-Grid Comparison

An off-grid solar energy system is not connected to the utility grid, whereas an on-grid (aka grid-tied) solar energy system is connected to the utility grid. This determines access to electricity, equipment needs, and billing methods.

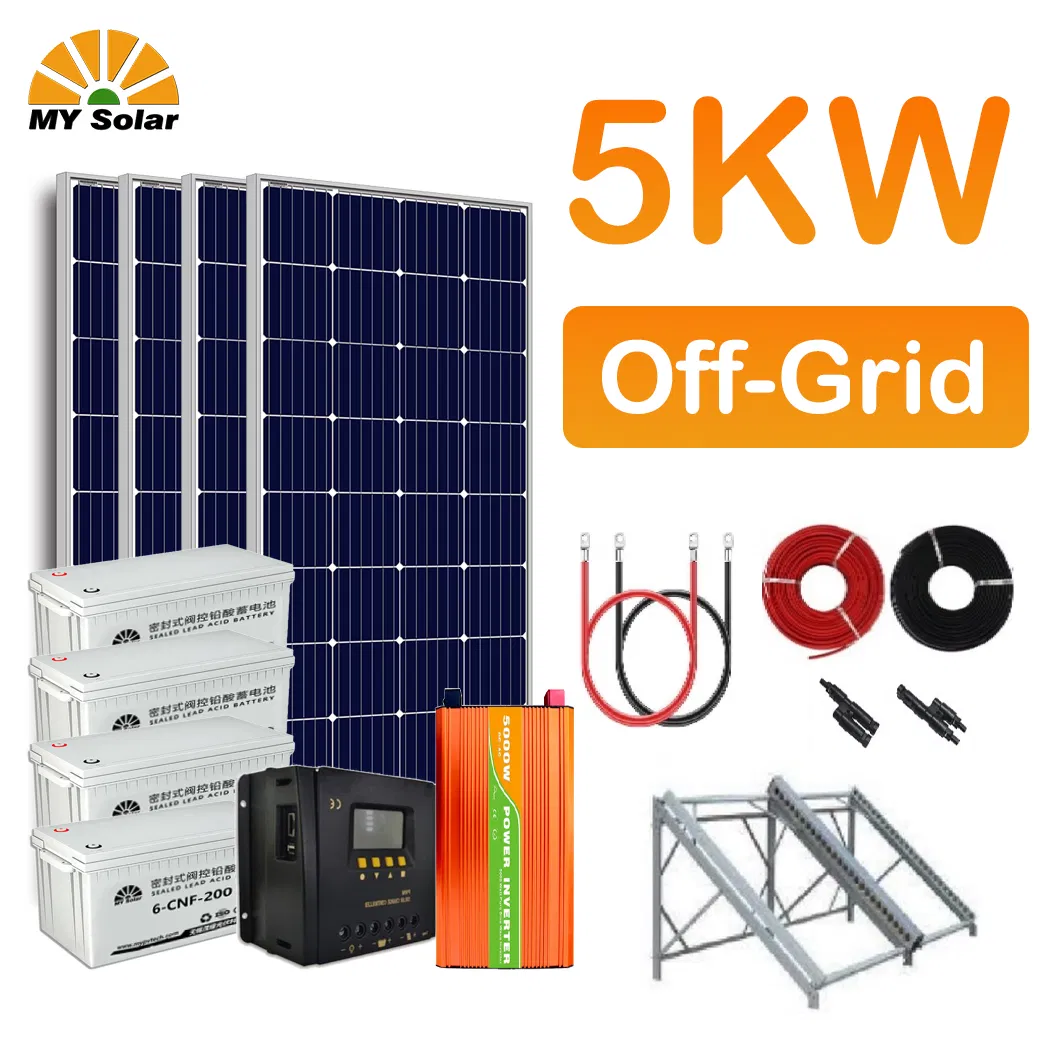

Off-Grid System Spec	Estimated Load Support
1KW	50W Fan (11h), 200W PC (2.5h), 60W TV (9h)
2KW	50W Fan (20h), 200W PC (4.5h), 60W TV (16.5h)
3KW	50W Fan (30h), 200W PC (7.5h), 60W TV (27h)
5KW	50W Fan (92h), 200W PC (16h), 2KW AC (1.5h)

Frequently Asked Questions

What are the available payment terms?

We accept T/T, L/C, PayPal, and Western Union for your convenience.

What is the expected delivery time?

Generally, it takes 15-20 days after receiving payment. The specific time depends on the items and order quantity.

Do you provide samples for quality testing?

Yes, we welcome sample orders to allow you to check the quality and performance of our components.

Can you provide OEM/ODM services?

Yes, we offer comprehensive OEM and ODM services to meet specific branding and technical requirements.

What is the main difference between On-Grid and Off-Grid systems?

On-grid systems are connected to the public utility, allowing for net metering. Off-grid systems are independent and require battery storage to provide power during non-sunny periods.

What brands of solar panels do you work with?

In addition to our own manufacturing, we cooperate with leading Tier 1 brands including Longi, JA Solar, Jinko, Trina, and Canadian Solar to provide diverse options.
