2026 Solar Pumping Irrigation System for 220VAC Submersible Pump

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

AS-PUMP-10KW

Application

Home, Industrial, Commercial

Specification

Normal, OEM

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

off-Grid Inverter

Warranty

25 Years Service Life

System Type

Home Solar Power System

Power

Electric

Type

Positive-Displacement Pump

Industry

Air Conditioning Pump

Media

Sea Water Pump

Theory

Centrifugal Pump

Conveying Medium

Water Transfer

HS Code

8501610000

Production Capacity

1.2 Gw/Year

📦 Product Description

30HP Solar Water Pump System
Items List
Item Name	Description	Unit	Quantity
Solar panel	260W / 31.2V poly	pc	136
mounting structure	Q235 material, Hot-dip zinc	set	1
PV cables	4mm2, 400m	set	1
pump inverter	Model 30000H	pc	1
Water pump	30HP	pc	1
Pump cables	3*16mm2, 200m	set	1
Safety rope	Pump Depth * 2	pc	1
Check Value	check value with connector	set	1
Other accessories	Raw material tape, MC4 connector, pump cable connector, etc	set	1

Solar power system has a wide range of applications, such offering domestic water, helping agricultural and forestry irrigation, and desertification control. It can also supply water to sea island, animal husbandry, and water treatment projects.

With the promotion of new energy utilization, recently the usage of solar water pump is increasing. You can find them in government projects, landscape architectures and fountains of city squares, parks tourist attractions, hotels and residential areas.

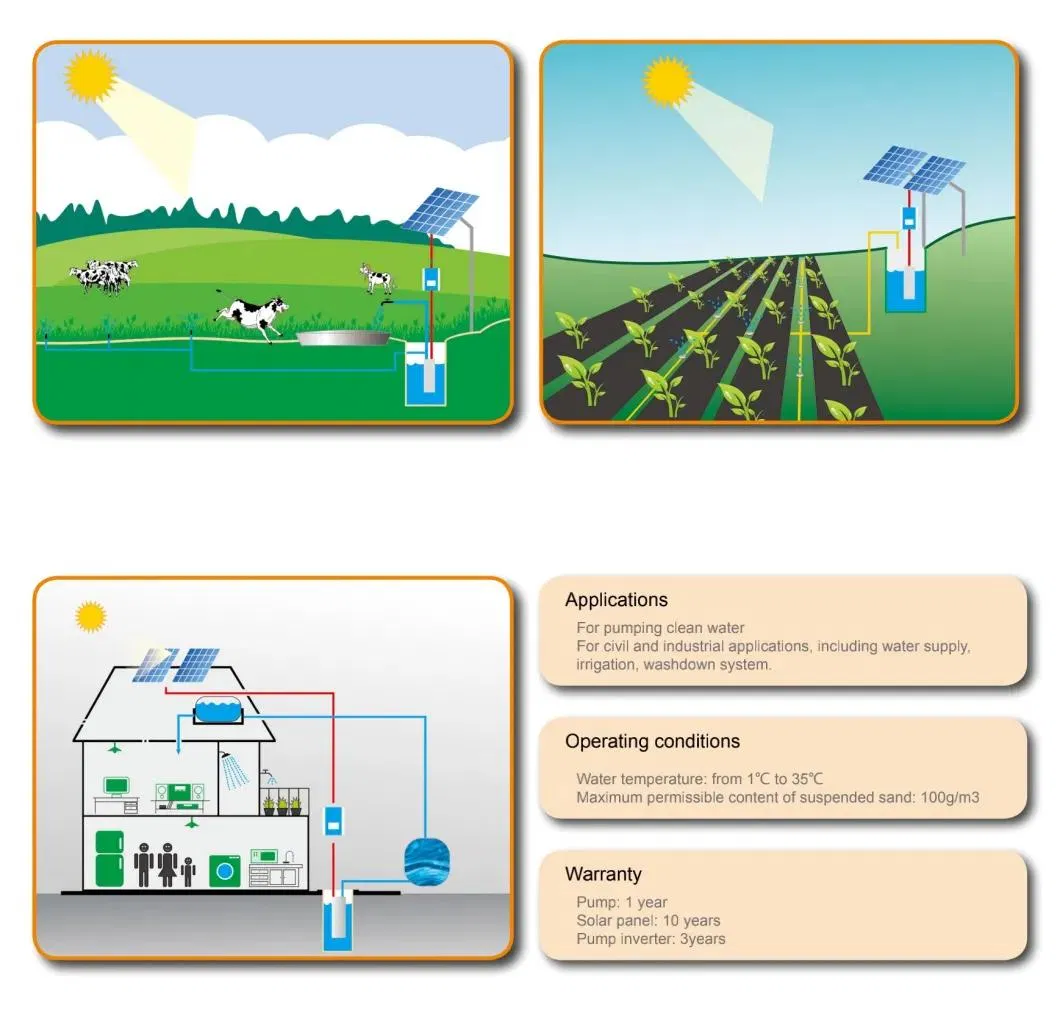

🌟 Key Applications

√. AGRICULTURAL IRRIGATION
√. ANIMAL HUSBANDRY
√. DESERTIFICATION CONTROL

Solar pump systems are high quality products designed and installed for drinking water supply, livestock watering and smaller irrigation applications without any pollution.

Solar pump systems are specially designed and manufactured to use solar power directly. No infrastructure or grid is required for site selection. Optional grid can be back-up to meet the day and night running without disturb.

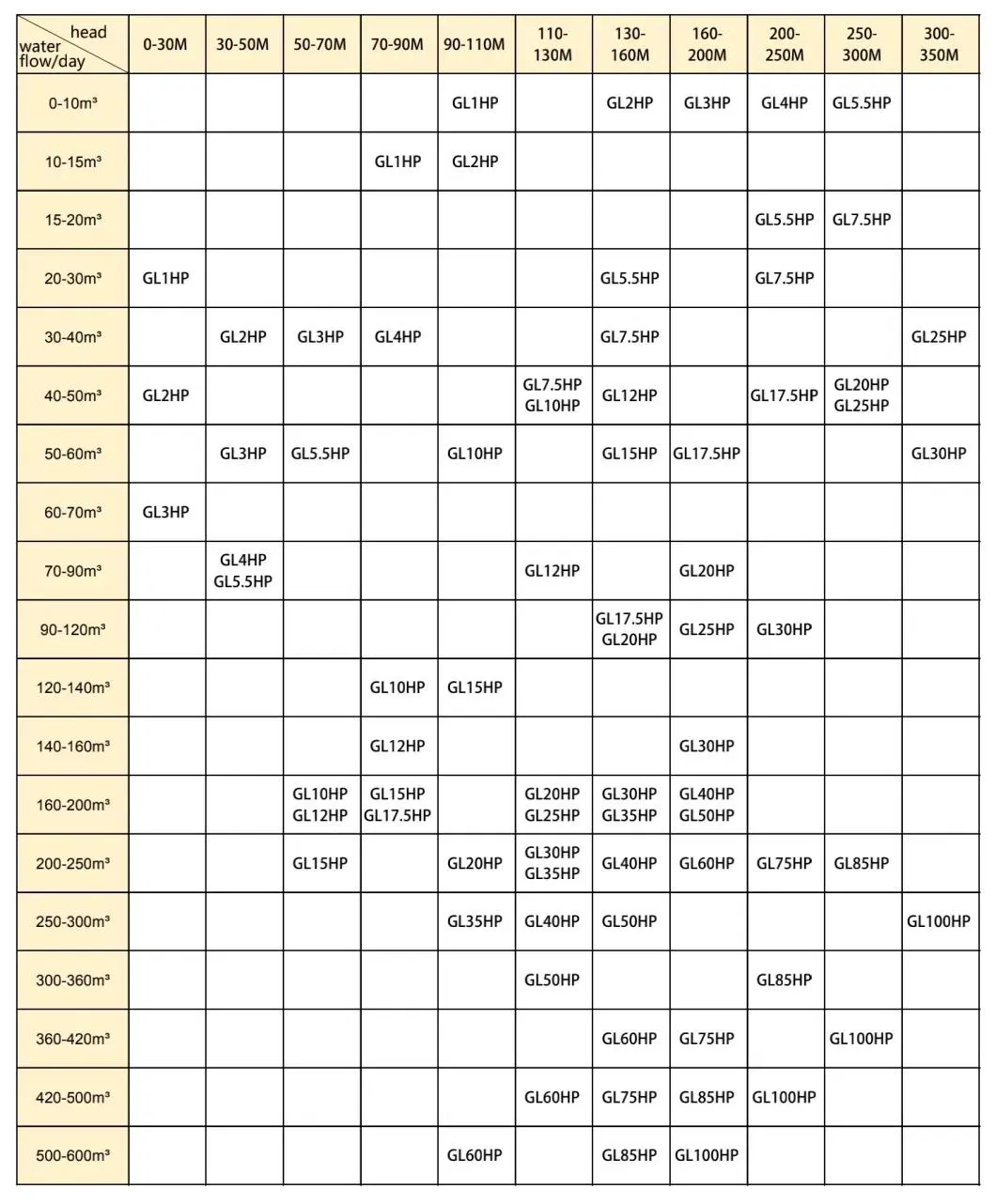

🛠️ Selection Guide

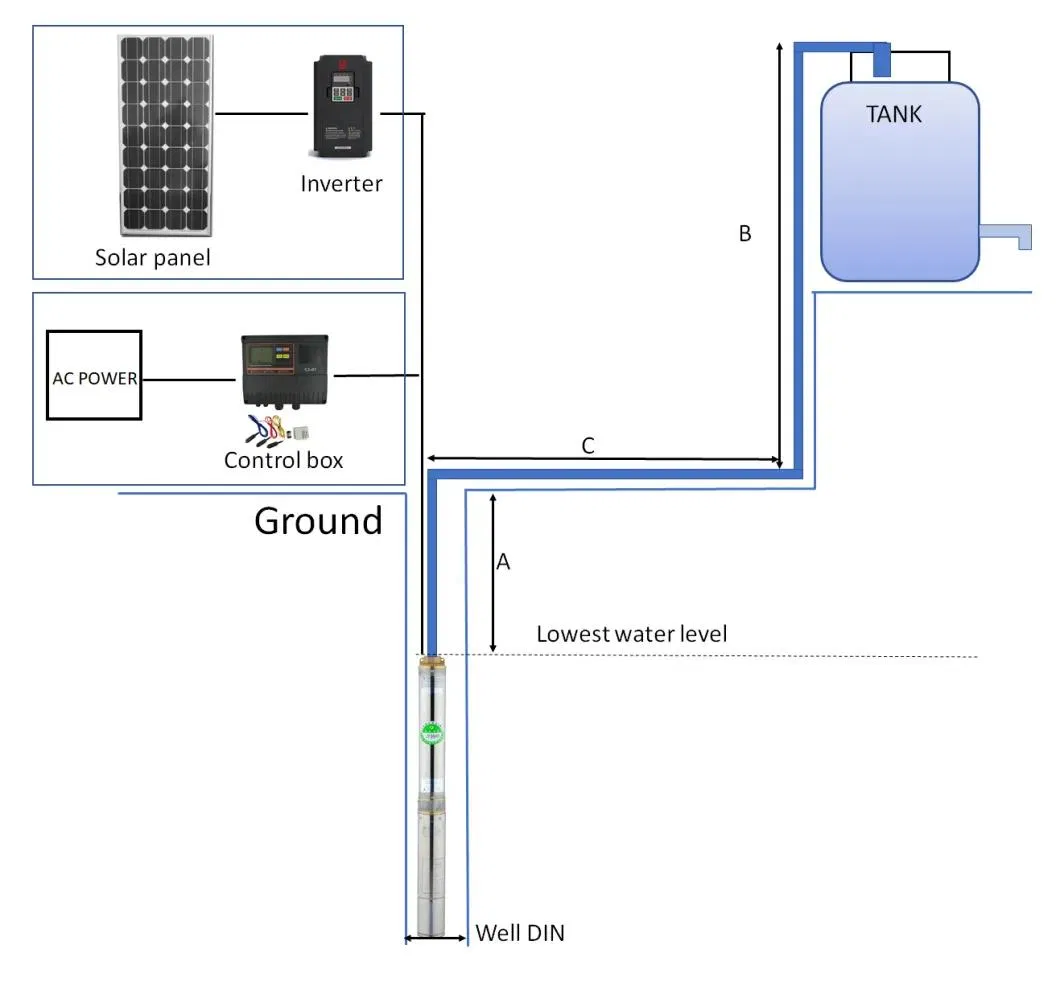

Please select the right pump based on the following information:

Where will the pump be used?
How much water discharge (liters or gallon or m3) required per day or per hour?
Do you need a submersible pump or surface pump?
If you want to pump the water from borehole (deep well), the depth of borehole?
The pipe distance from the top of borehole or river to destination tank? Is the distance slope or horizontal?
The height of tank?

📐 Technical Calculations

▶ The power of solar panel = power of pump X 1.3
▶ The use hour of Battery = The battery capacity ÷ (the machine power ÷ the battery voltage) X 0.6
▶ The battery capacity = the use hour ÷ 0.6 x (the machine power ÷ the battery voltage)

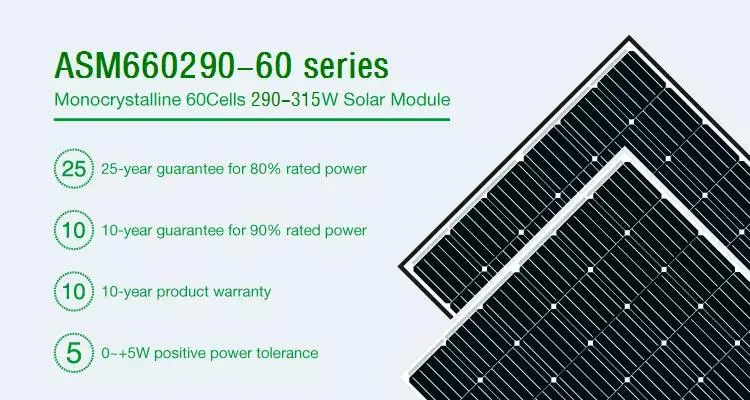

Mono Solar Panels

Peak Power Watts: 290W (ASM660290)
Maximum Power Voltage: 32.2V
Maximum Power Current: 9.02A
Open Circuit Voltage: 39.5V
Short Circuit Current: 9.55A
Dimensions: 1640×992×35 mm
Weight: 18.6 kg

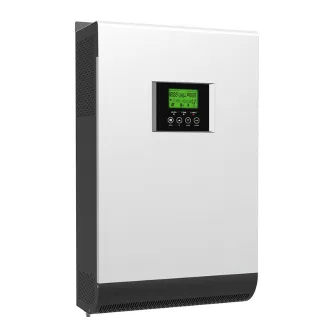

Off-Grid Inverter

Max.DC Input Power: 8.5KW
Max. DCInput Voltage: 600V
MPPT Voltage Range: 90-520V
Rated Grid Voltage: 208/240V(US); 230V(EU)
Warranty: 5-10 Years
Wifi Stick For STD, Lan & GPRS Optional.

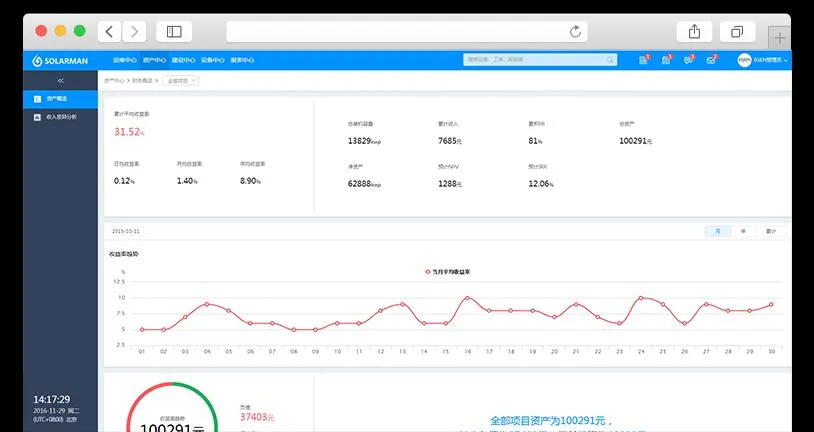

Remote Monitoring System

Data Logging Stick allows you to receive information from solar power system via web server (Wi-Fi, Lan or GPRS).
App Available for PC, IOS & Android.

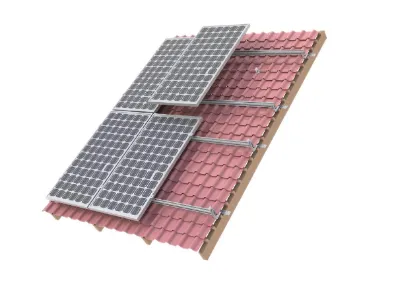

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35, 40, 45, 50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie Optional

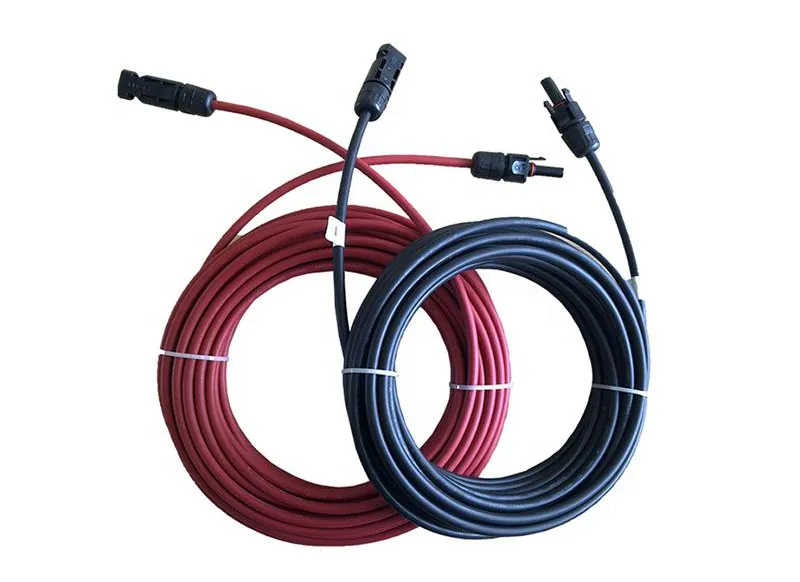

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC(UL)/1000VDC(TUV)
Rated Current: 55A, 70A
Lifetime: ≤25 Years

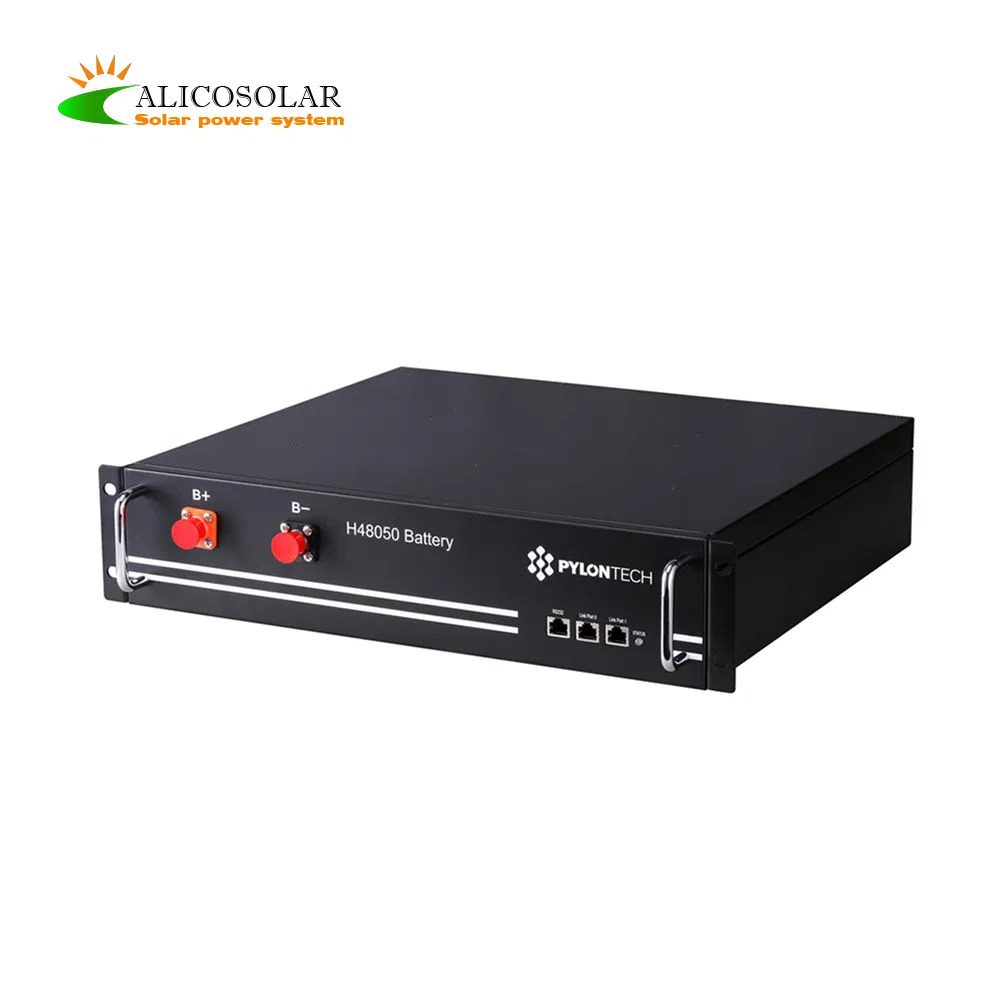

Lithium Battery

Capacity: 48V 100Ah
Dimension: 4-5U

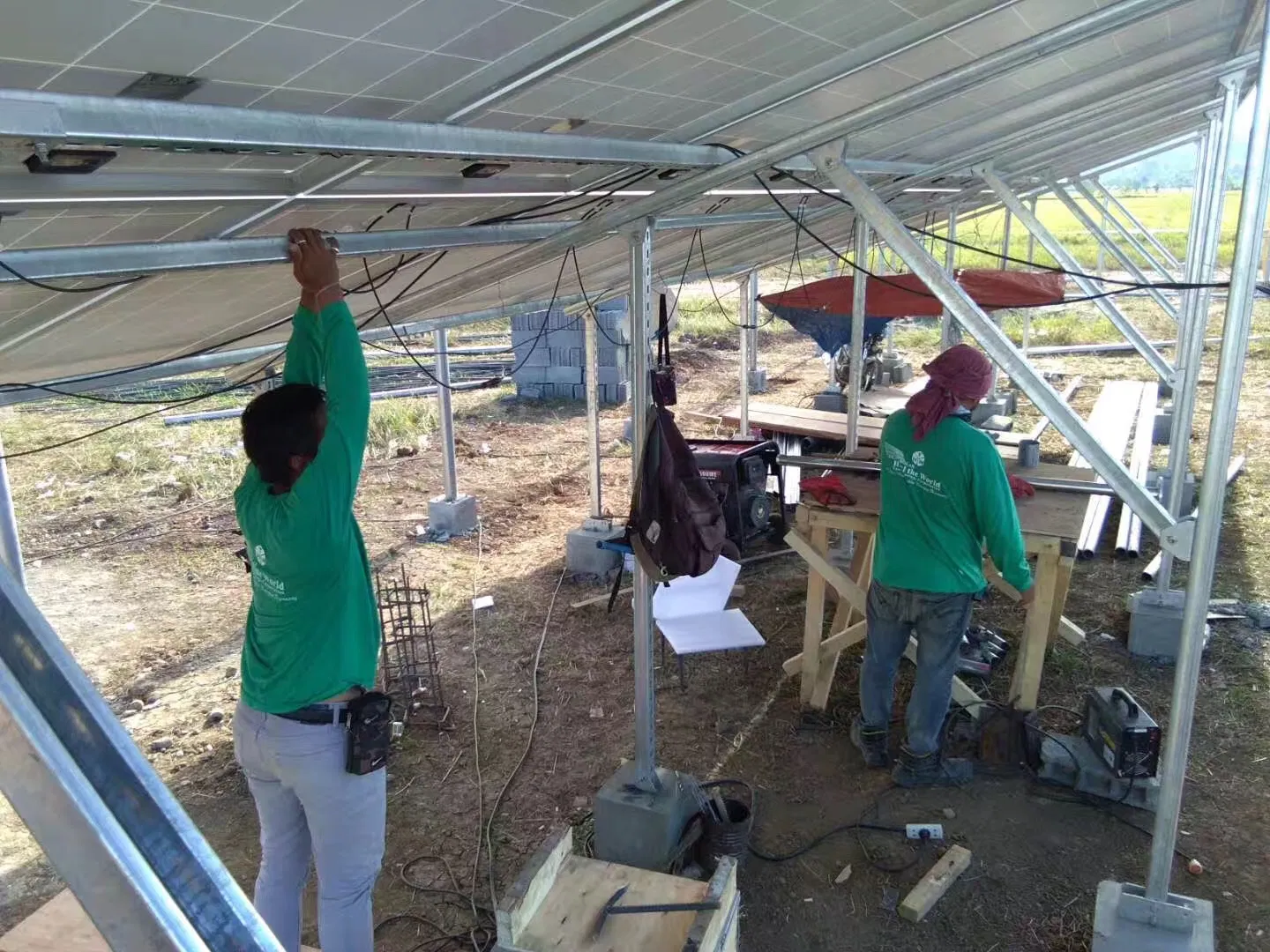

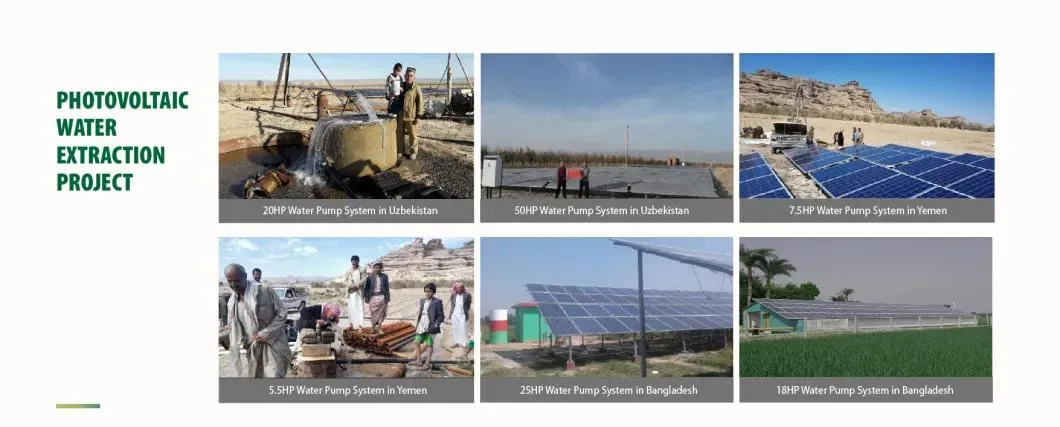

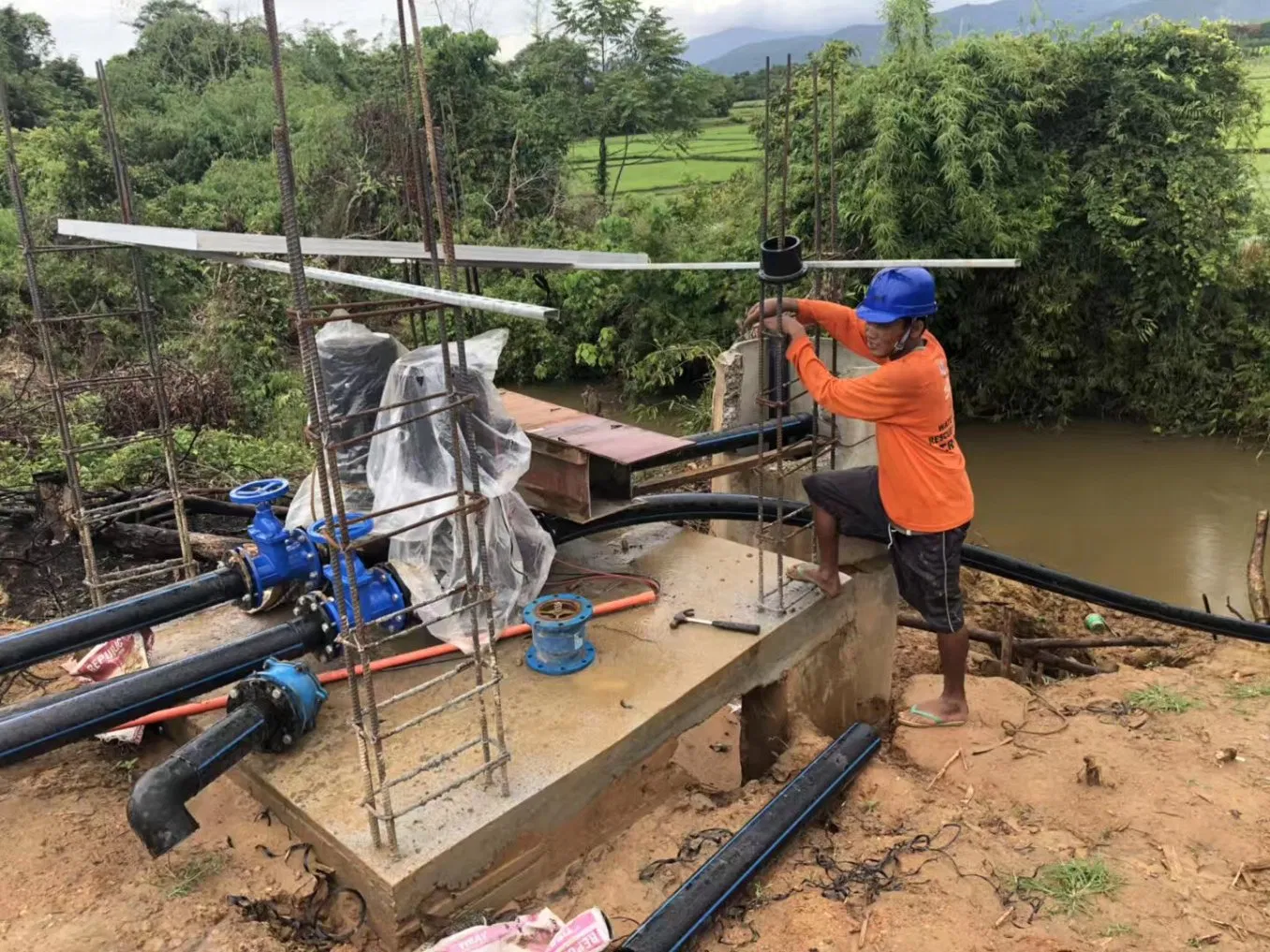

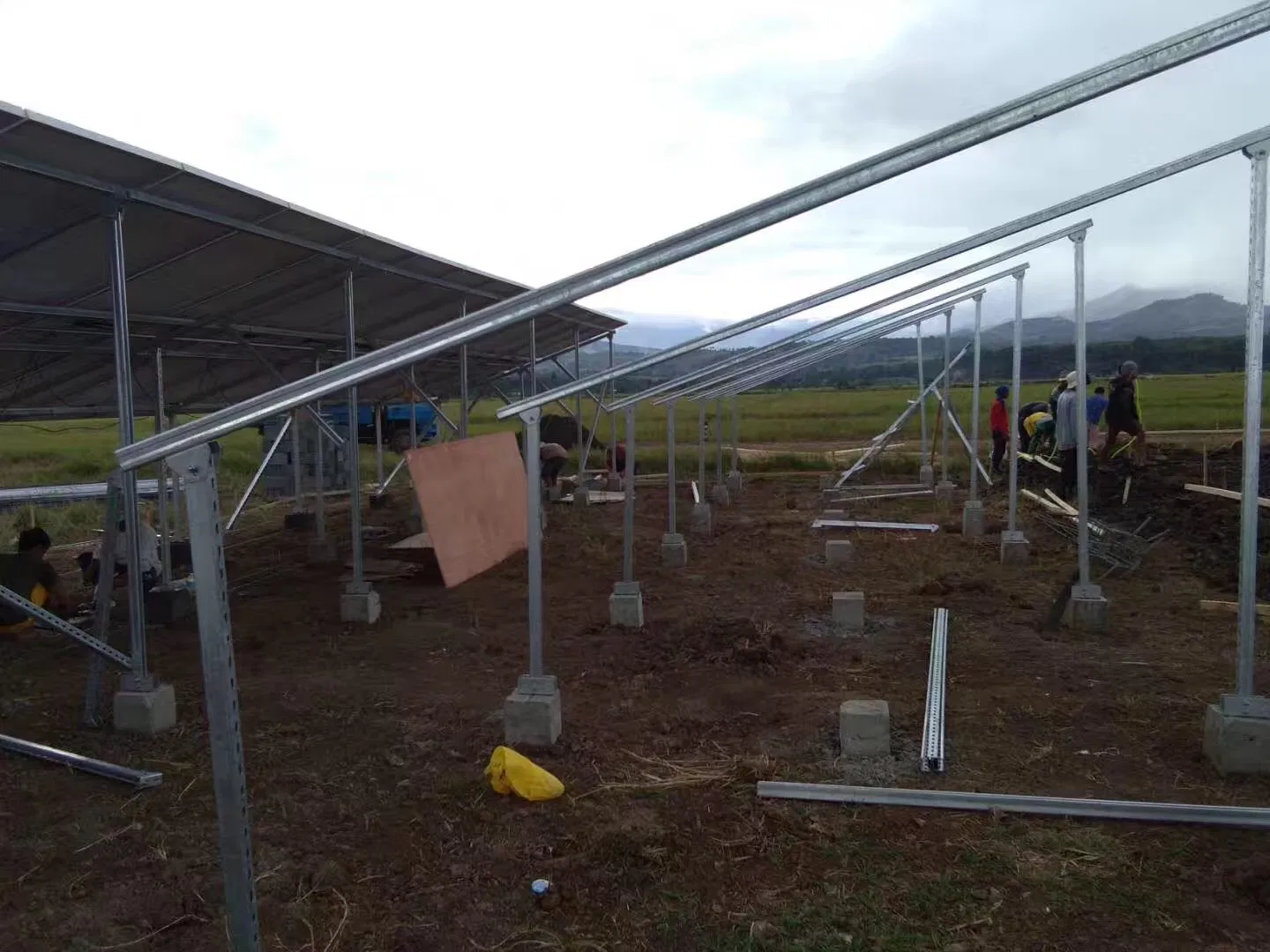

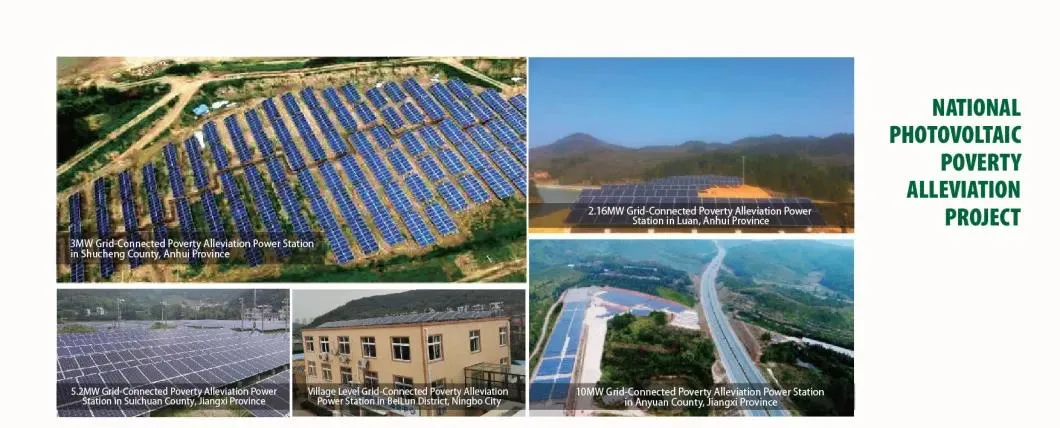

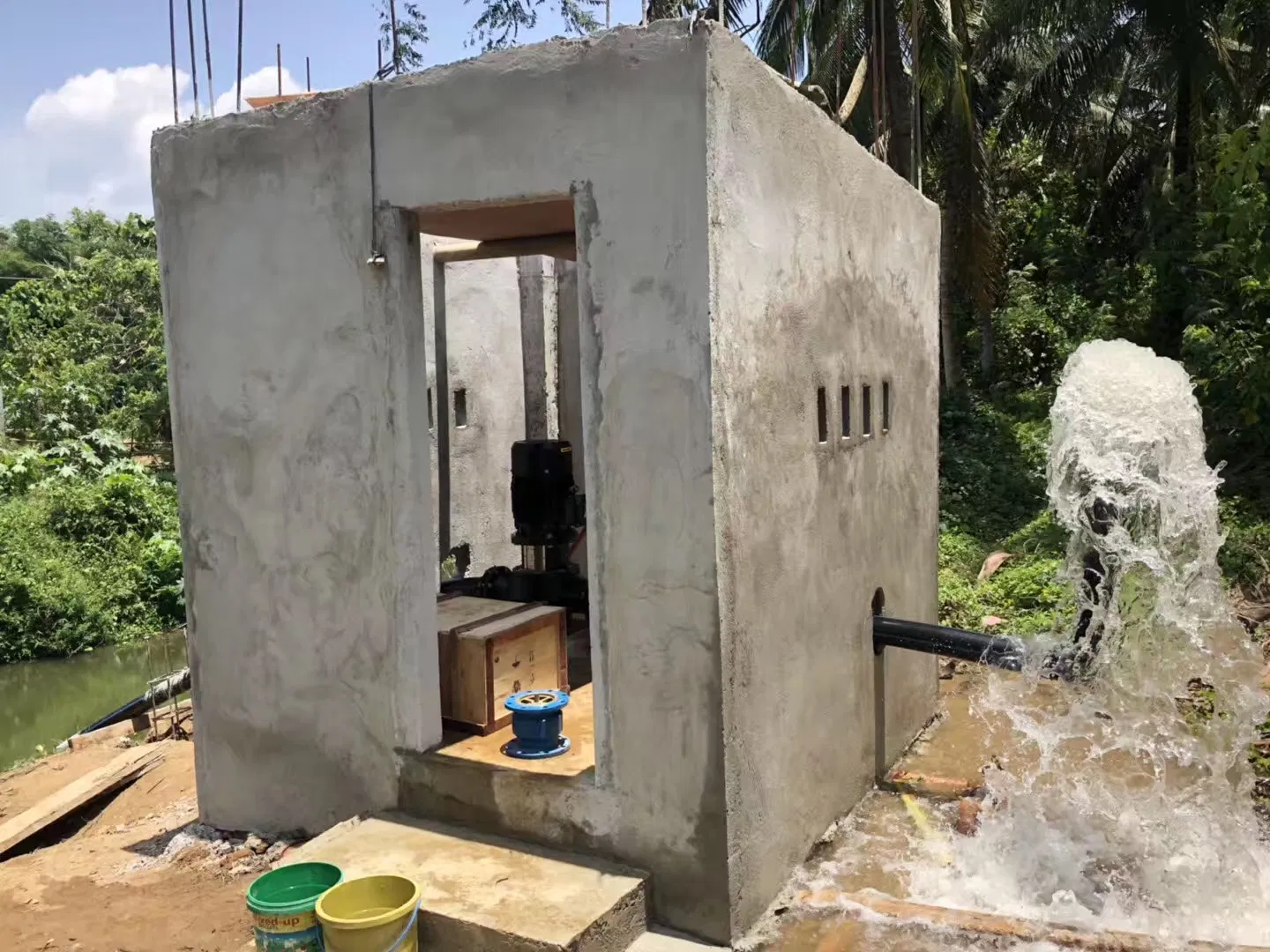

🏗️ Projects Shown

Frequently Asked Questions

1. What are the primary applications of a solar pumping system?

Solar pumping systems are widely used for domestic water supply, agricultural and forestry irrigation, animal husbandry, and desertification control. They are also suitable for city square fountains and hotels.

2. How do I determine the correct power for my solar panels?

The standard formula to calculate required solar panel power is the power of the pump multiplied by 1.3. For example, a 10KW pump would ideally require 13KW of solar panel capacity.

3. Can the solar water pump operate without a power grid?

Yes, these systems are specifically designed to use solar power directly. They are ideal for remote sites where no infrastructure or grid is available. However, an optional grid backup can be used for continuous day and night operation.

4. What information is needed to choose the right solar pump?

You need to know the daily water discharge requirements, the type of pump (submersible or surface), the borehole depth if applicable, and the horizontal/slope distance for the piping.

5. Is there a way to monitor the system remotely?

Yes, a Data Logging Stick can be used to receive information via Wi-Fi, LAN, or GPRS. You can monitor the system's performance and atmospheric conditions through a web server or mobile app available for PC, iOS, and Android.

6. How long is the expected lifespan of the system components?

Most core components like solar panels and PV cables are designed for a service life of up to 25 years. The off-grid inverters typically come with warranties ranging from 5 to 10 years depending on the region.
