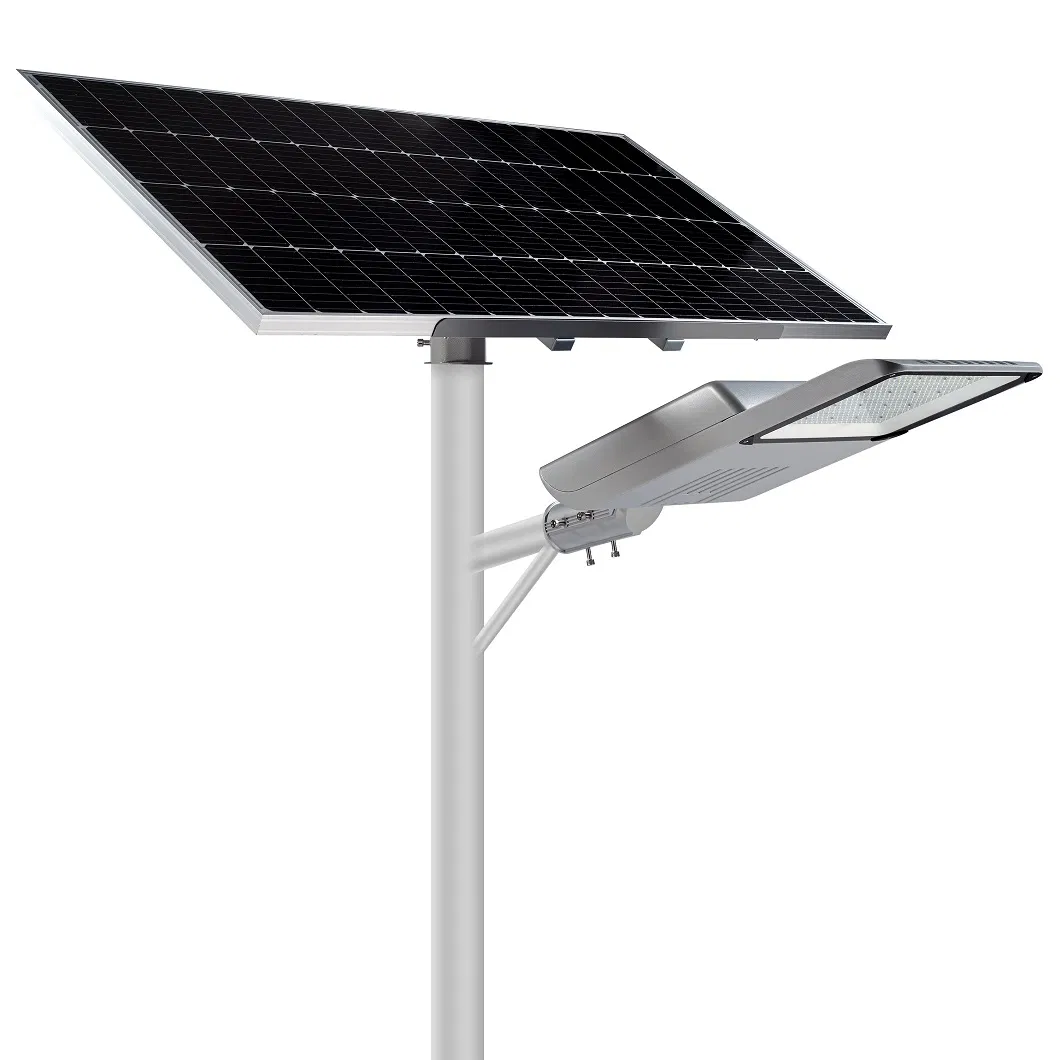

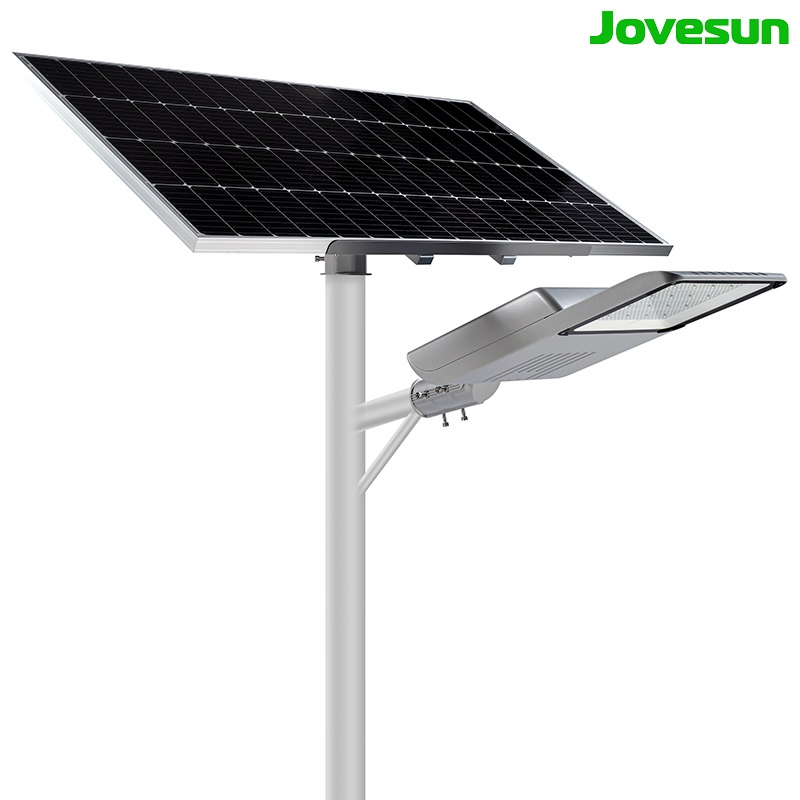

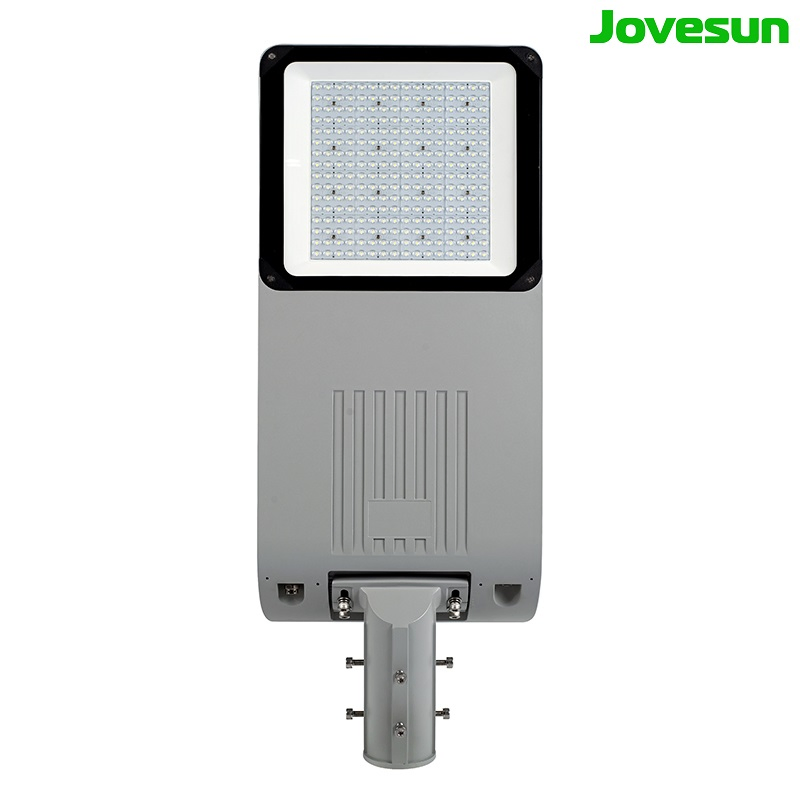

Solar street lights model M25 was made according to ISO 9001 standard, with 205Lm/W high luminous efficacy, especially for PUBLIC lighting use. Designed with an integrated fixture, combining the PV panel, Lithium battery, charge controller, and LED components together for easy installation.

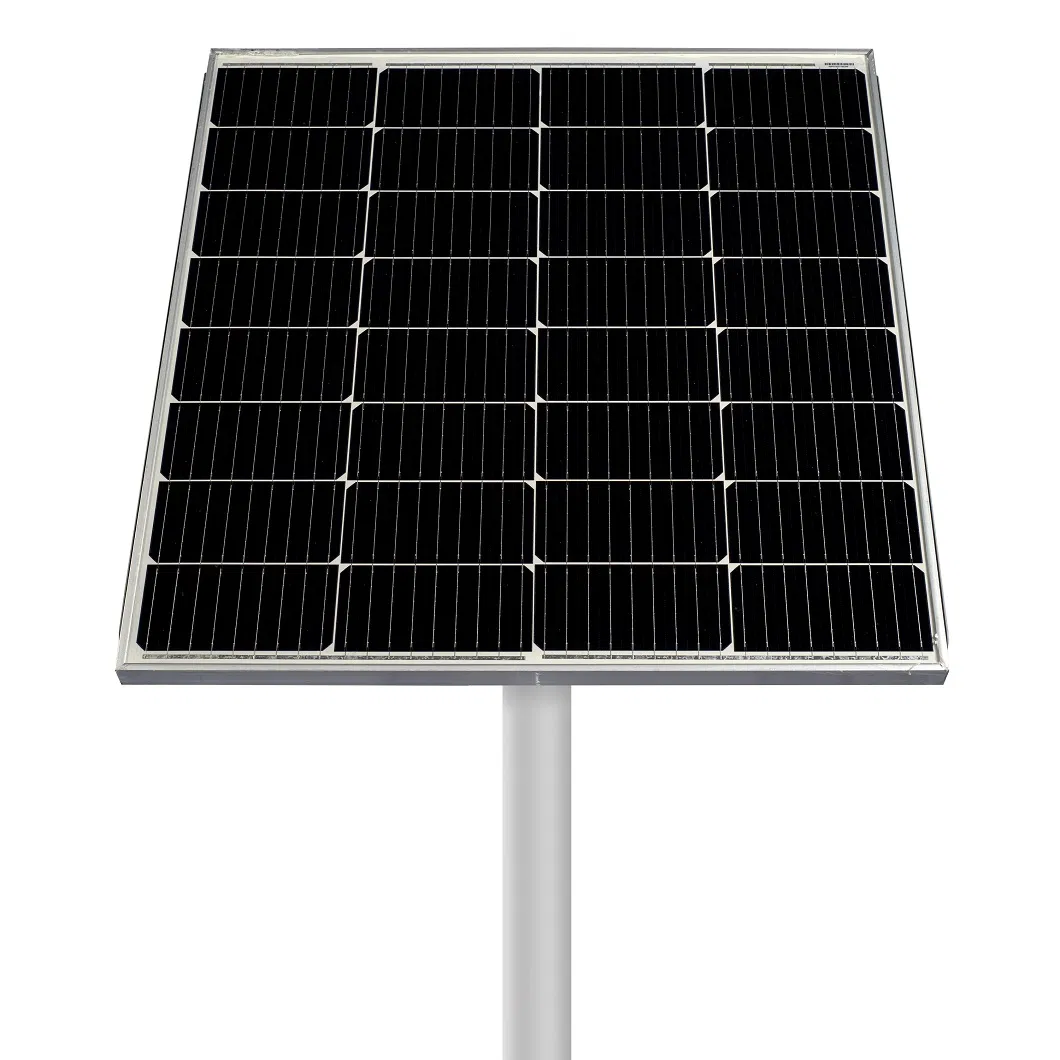

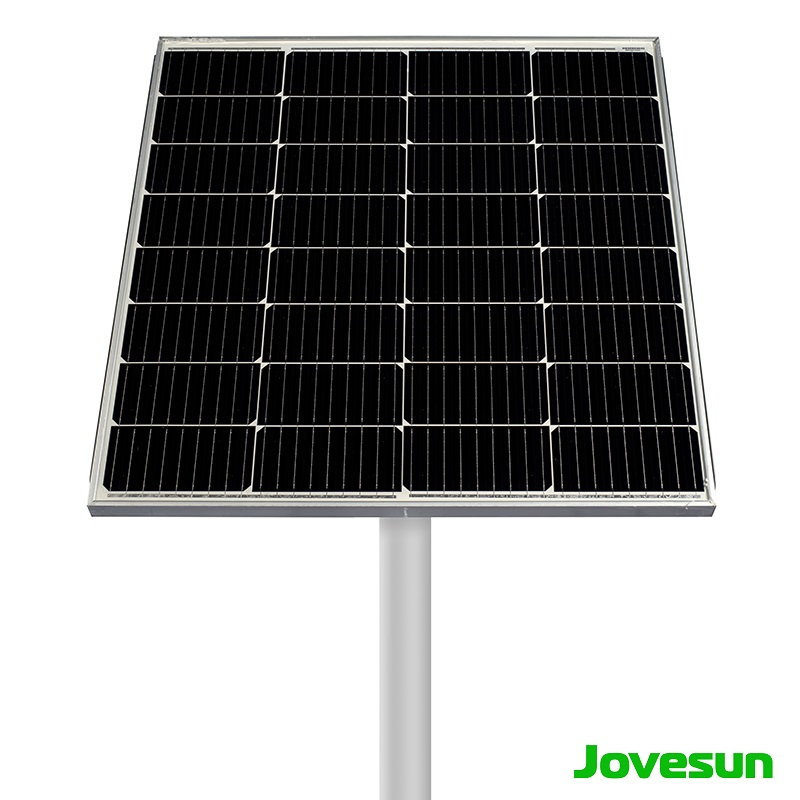

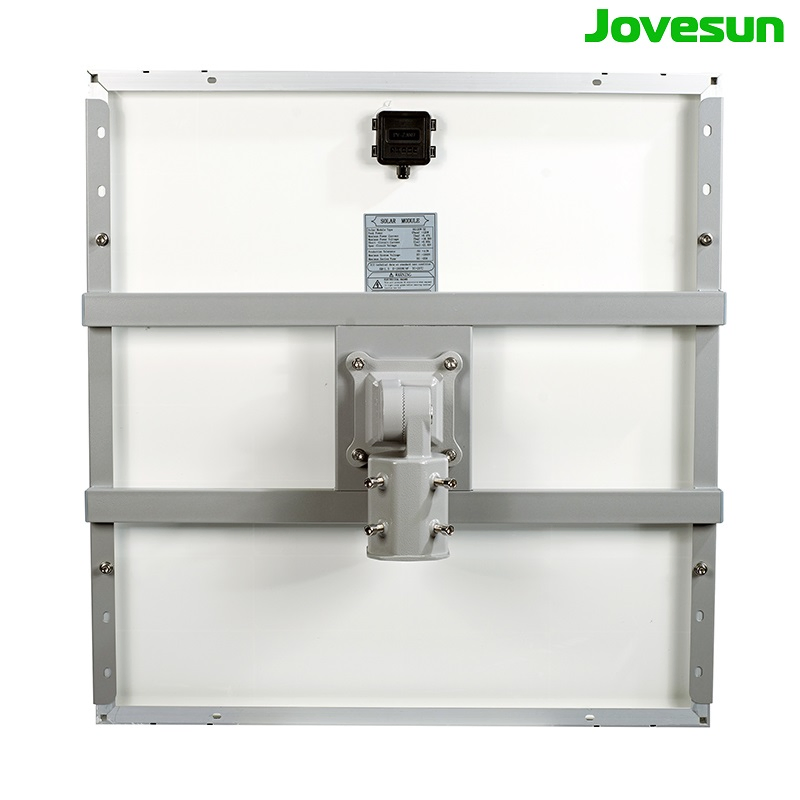

Featuring a 24% conversion Mono type solar PV panel and LiFePo4 battery with MPPT charging agreement, these lights ensure excellent charge and discharge performance. The 120watts model can be mounted up to 12 meters with a luminous flux of 52lx. Advanced LED technology and various optical lenses (Type I-V) make it suitable for expressways, highways, and area lighting.
| Parameter | M26st-50W | M26st-60W | M26st-80W | M26st-100W | M26st-120W | M26st-150W |
|---|---|---|---|---|---|---|
| Solar panel | 100Wp 18V | 120Wp 18V | 160Wp 18V | 200Wp 18V | 240Wp 18V | 300Wp 18V |
| Battery | 244Wh | 384Wh | 576Wh | 768Wh | 960Wh | 1152Wh |
| LED Chips | 3030 SMD | 3030 SMD | 3030 SMD | 3030 SMD | 3030 SMD | 3030 SMD |
| Luminous flux | 6150lm | 8200lm | 12300lm | 16400lm | 20500lm | 24600lm |
| Efficacy | 205Lm/W | |||||
| Feature | MPPT - IoT Lora - Motion Sensor | |||||
| Backup | Support 3 nights with BMS (Battery manage system) | |||||
| Mounting Height | 5-6m | 6-8m | 8-10m | 10-12m | 12-14m | 14-16m |
This model solar street light is fully certified for project tenders:

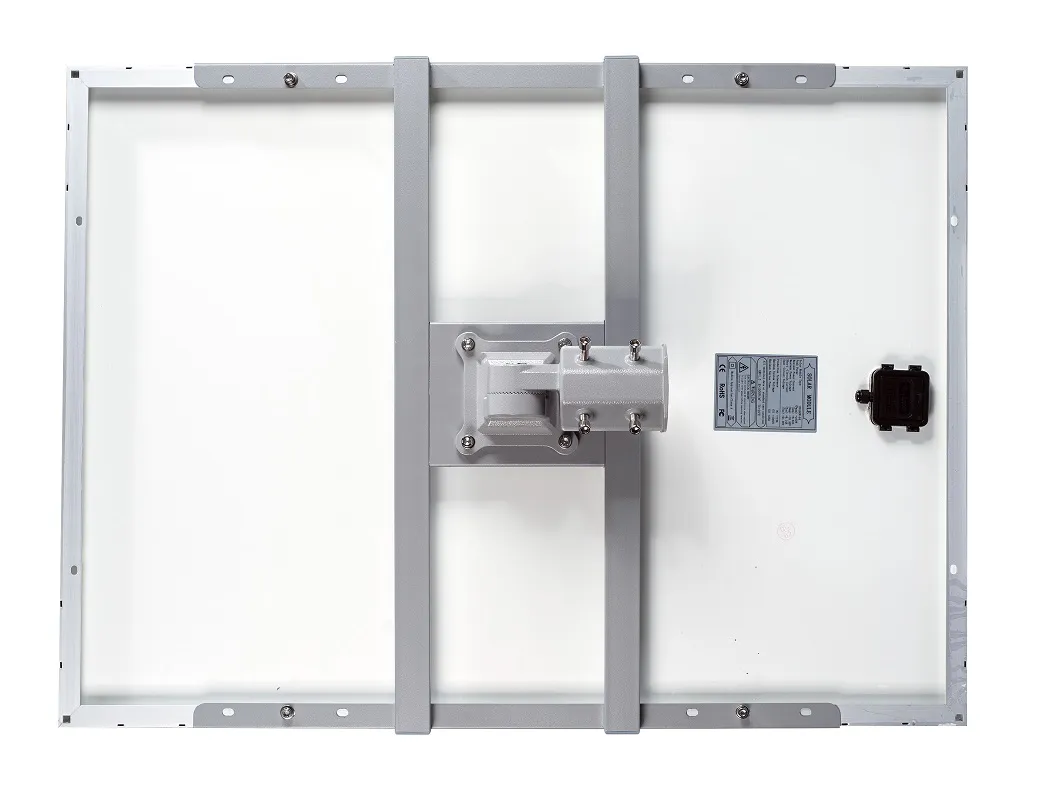

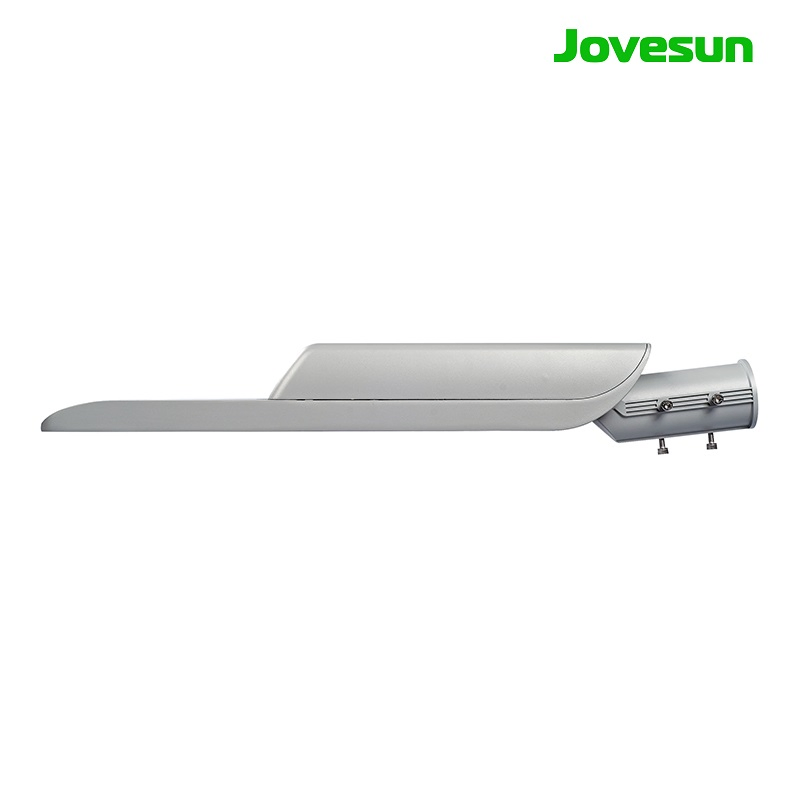

This model features a mounting tilt design, allowing for both horizontal and vertical installation. It is ideal for replacing traditional HID street lights while utilizing existing poles.
