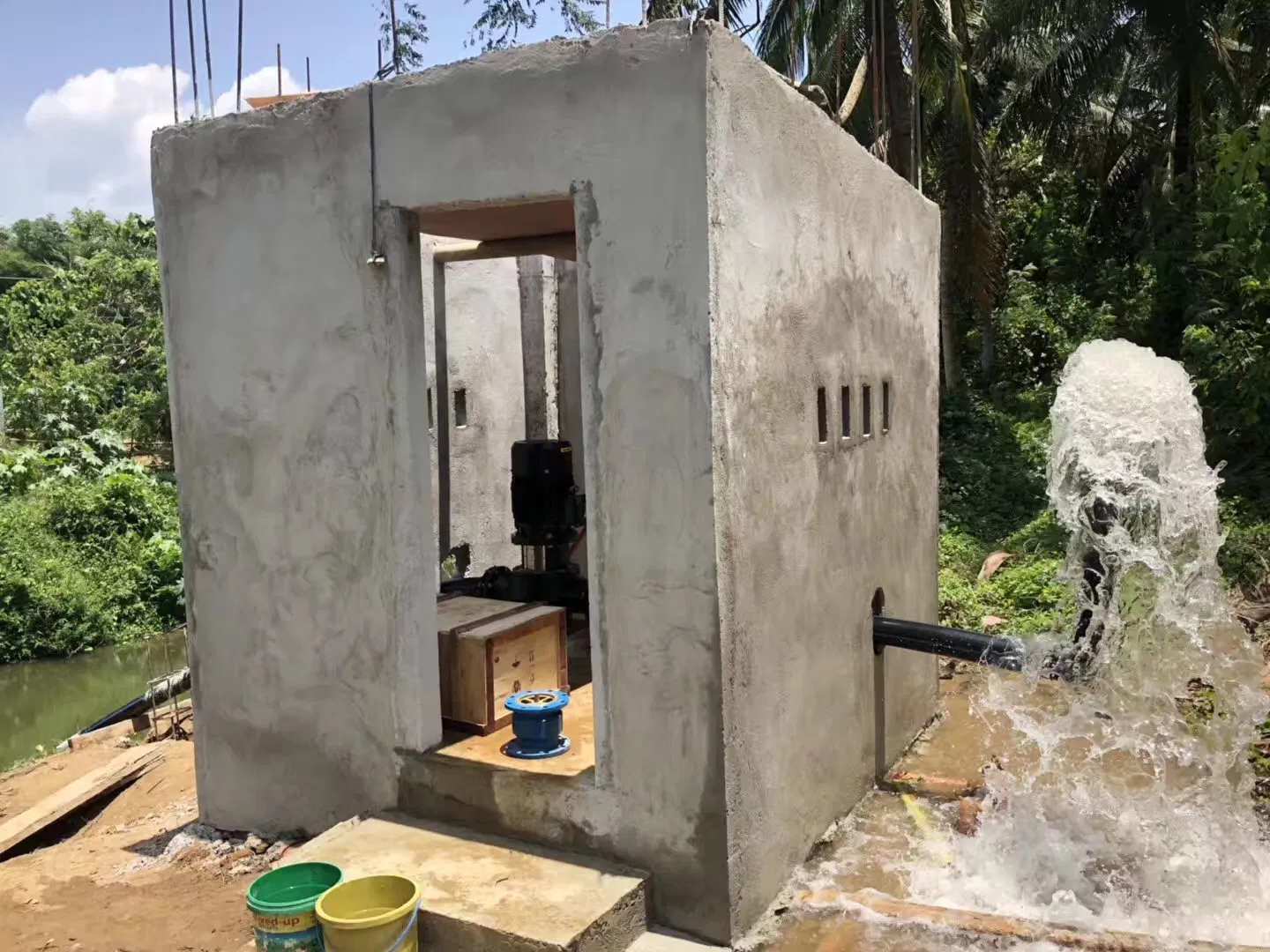

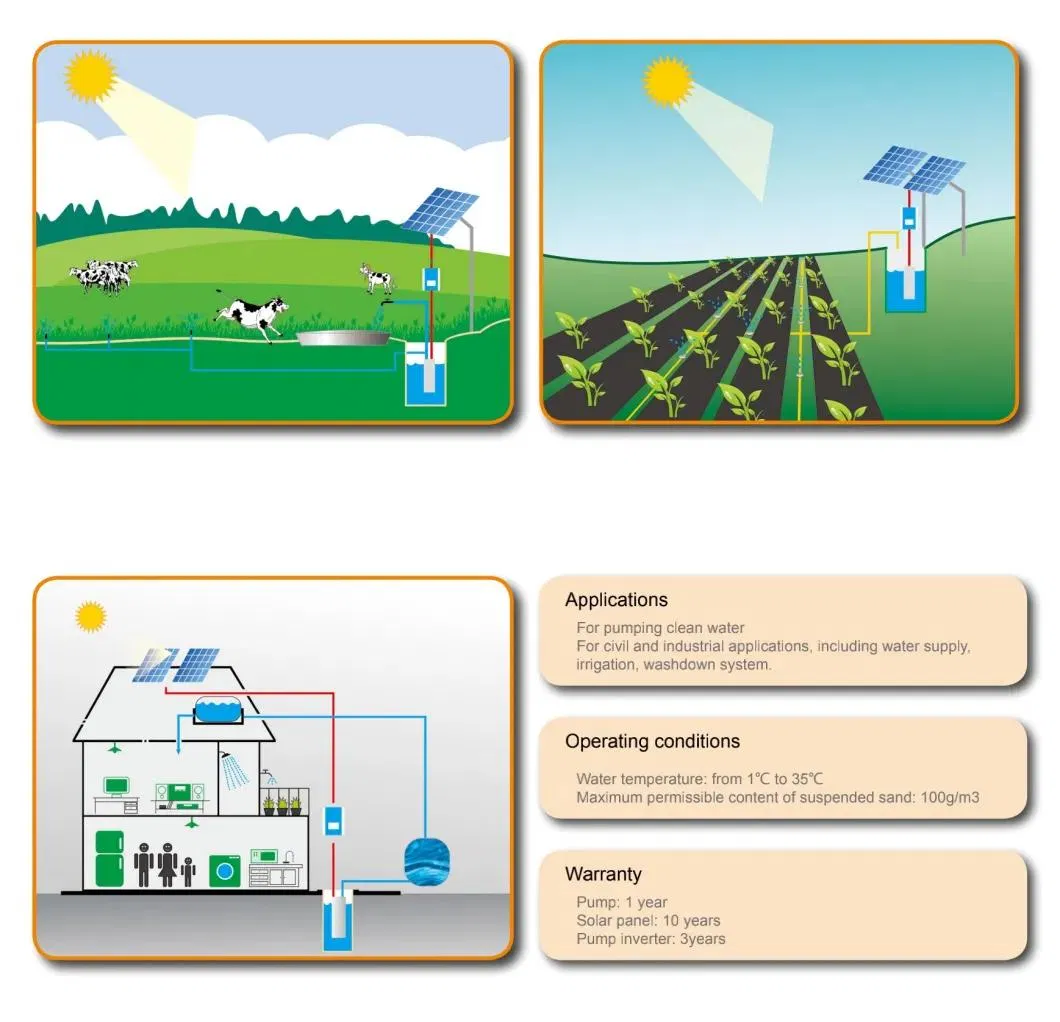

Solar power systems have a wide range of applications, such as offering domestic water, helping agricultural and forestry irrigation, and desertification control. It can also supply water to sea islands, animal husbandry, and water treatment projects.
| 30HP Solar Water Pump System Items List | |||
|---|---|---|---|
| Item Name | Description | Unit | Quantity |
| Solar panel | 260W / 31.2V poly | pc | 136 |

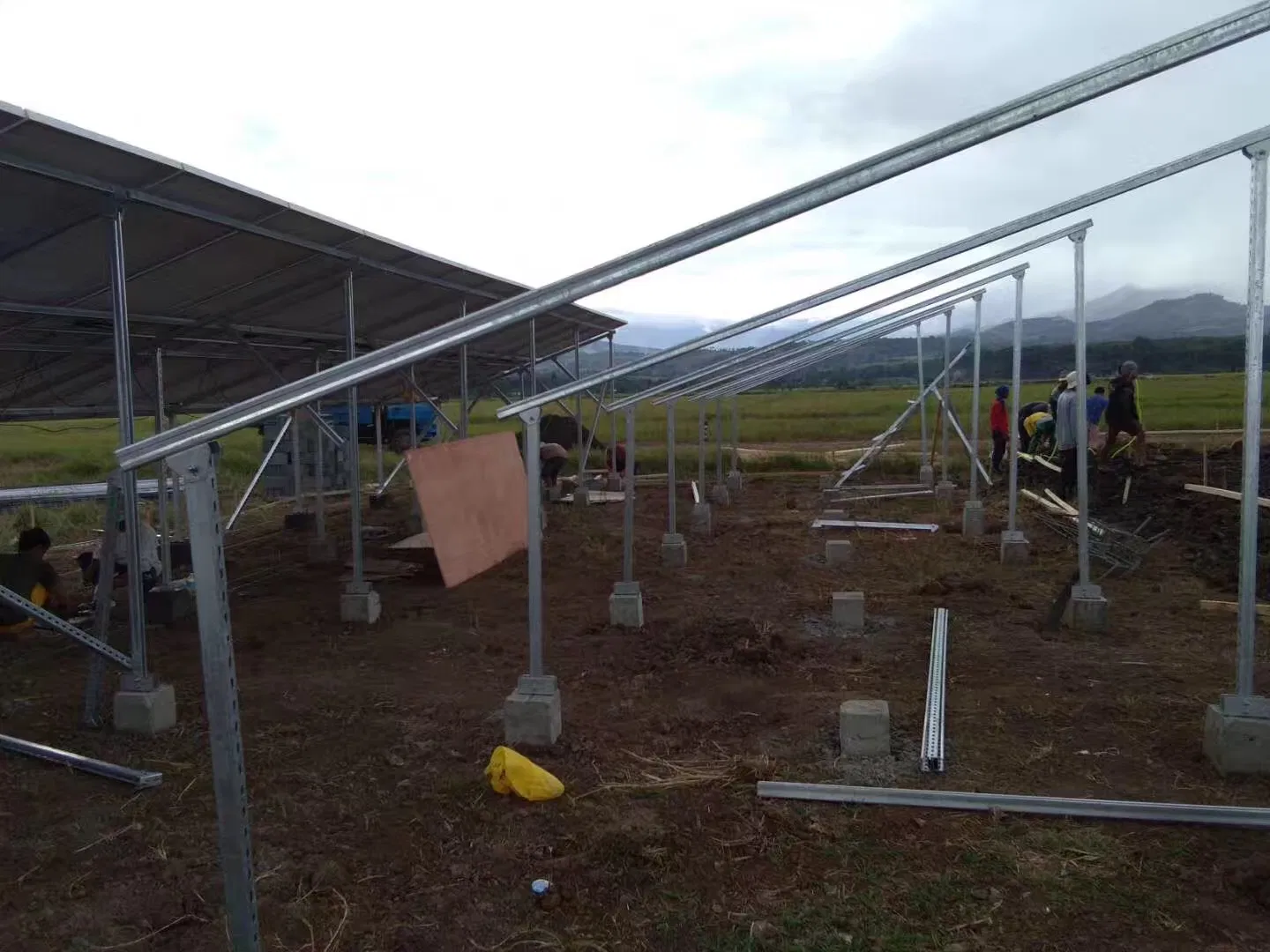

| Mounting structure | Q235 material, Hot-dip zinc | set | 1 |
| PV cables | 4mm2, 400m | set | 1 |
| Pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |
| Safety rope | Pump Depth * 2 | pc | 1 |
| Check Value | Check value with connector | set | 1 |
| Other accessories | Raw material tape, MC4 connector, etc. | set | 1 |

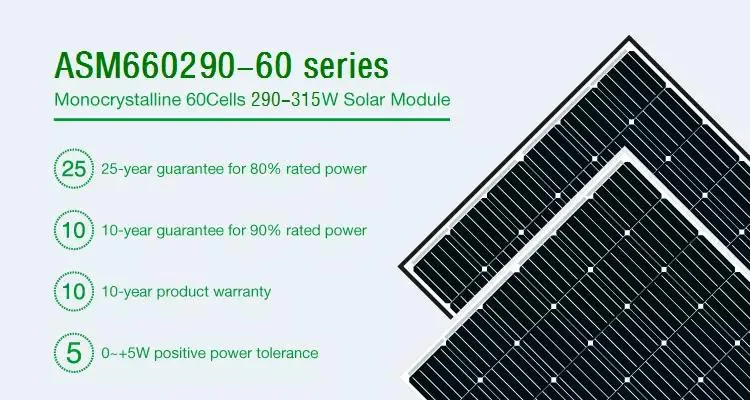

Peak Power: 290W | Voltage: 32.2V
Current: 9.02A | Dimensions: 1640×992×35 mm

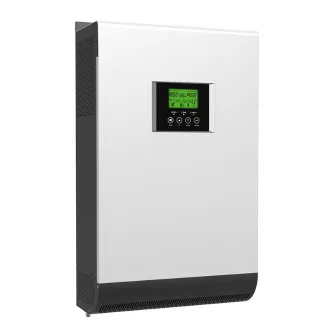

Max. DC Input: 8.5KW | Voltage: 600V
MPPT Range: 90-520V | Wifi/GPRS Optional

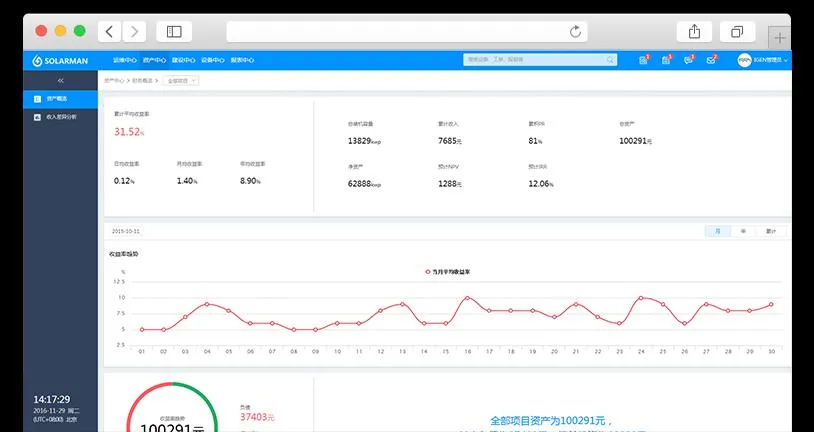

Data Logging Stick for real-time tracking via Wi-Fi, Lan or GPRS. App for PC, iOS & Android.

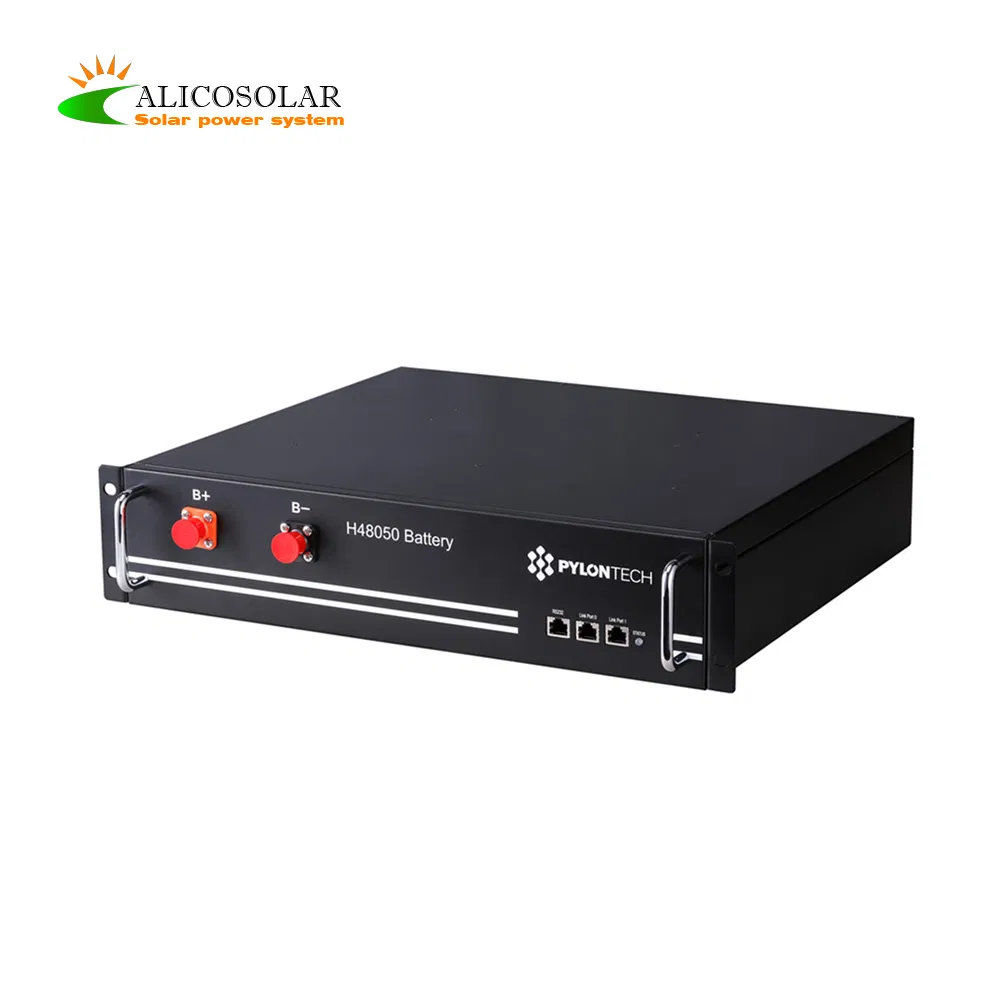

48V 100Ah Capacity
Dimension: 4-5U Standard Rack Mount

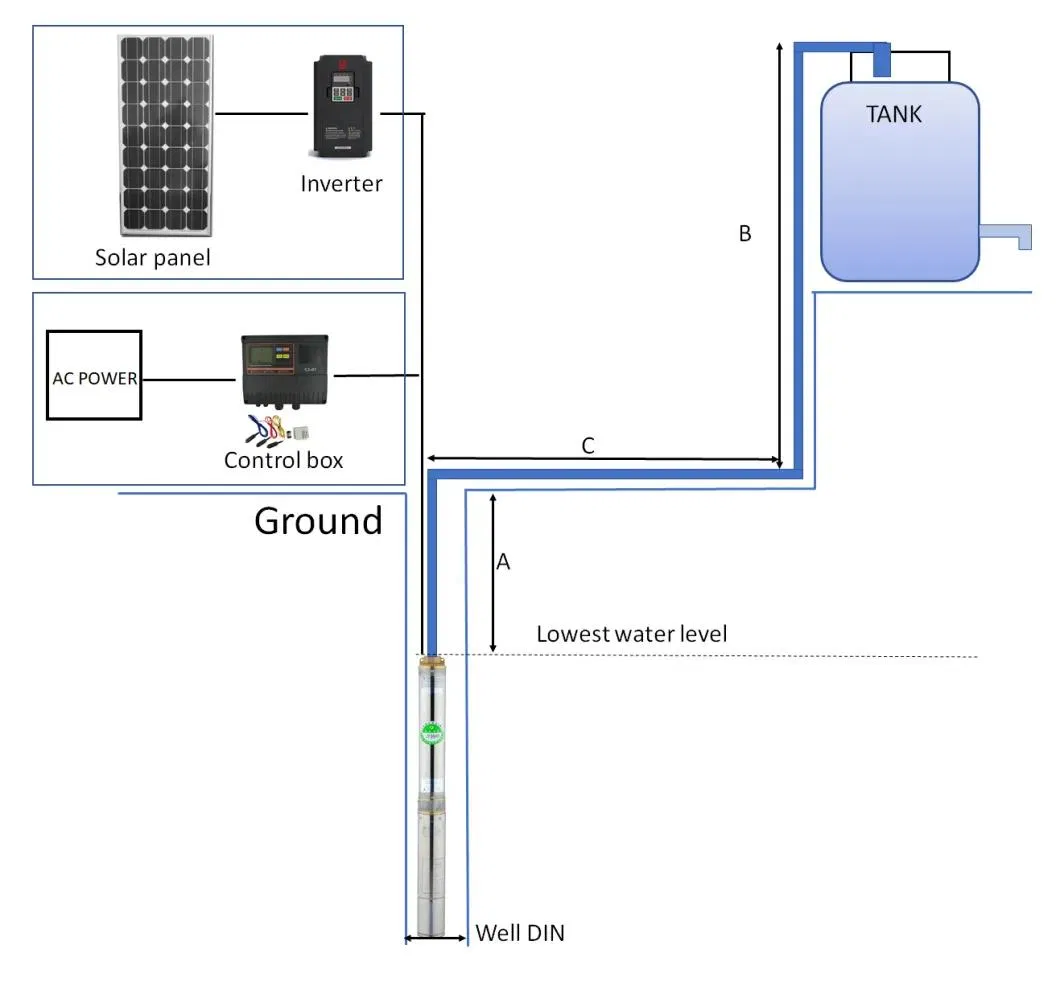

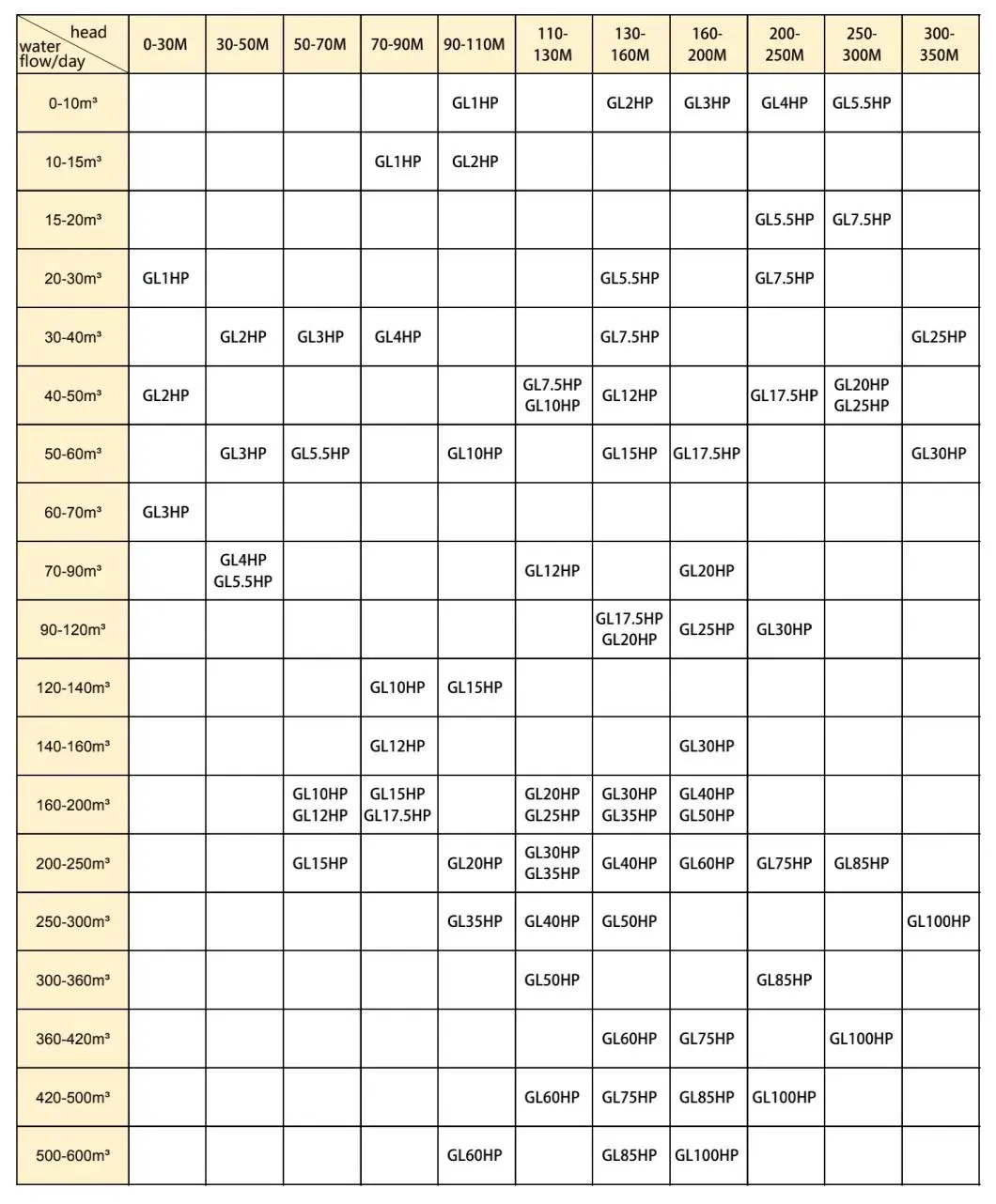

To select the right pump, please consider the following:
