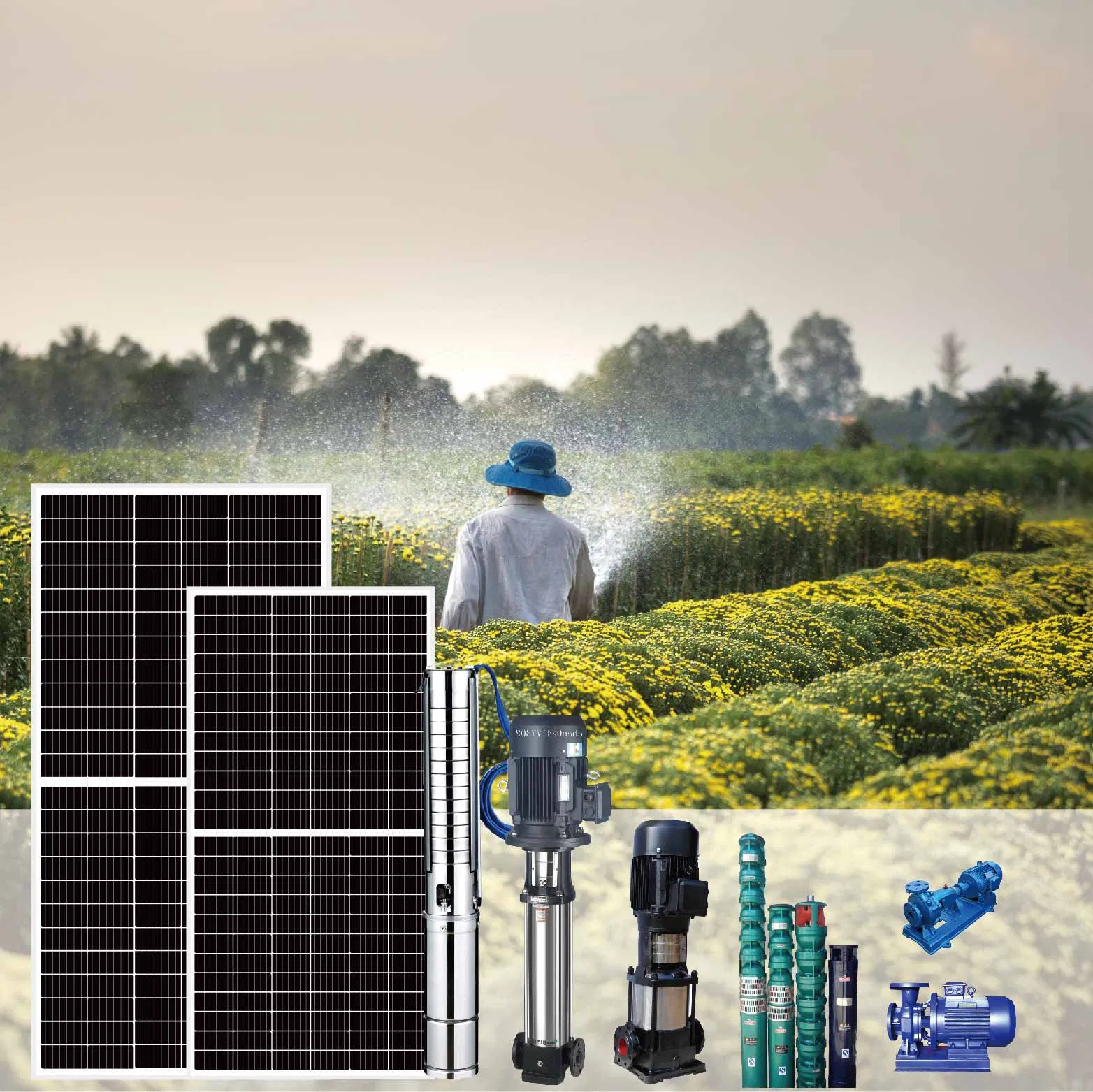

2008 3HP 1HP 0.5HP Turbin Surface Solar Water Pump Systems

Basic Information

Model NO.AS-PUMP-10KW

ApplicationHome, Industrial, Commercial

SpecificationNormal, OEM

Solar InverterOff-Grid Inverter

Warranty25 Years Service Life

System TypeHome Solar Power System

TheoryCentrifugal Pump

Conveying MediumWater Transfer

IndustryAir Conditioning Pump

OriginChina

Product Description

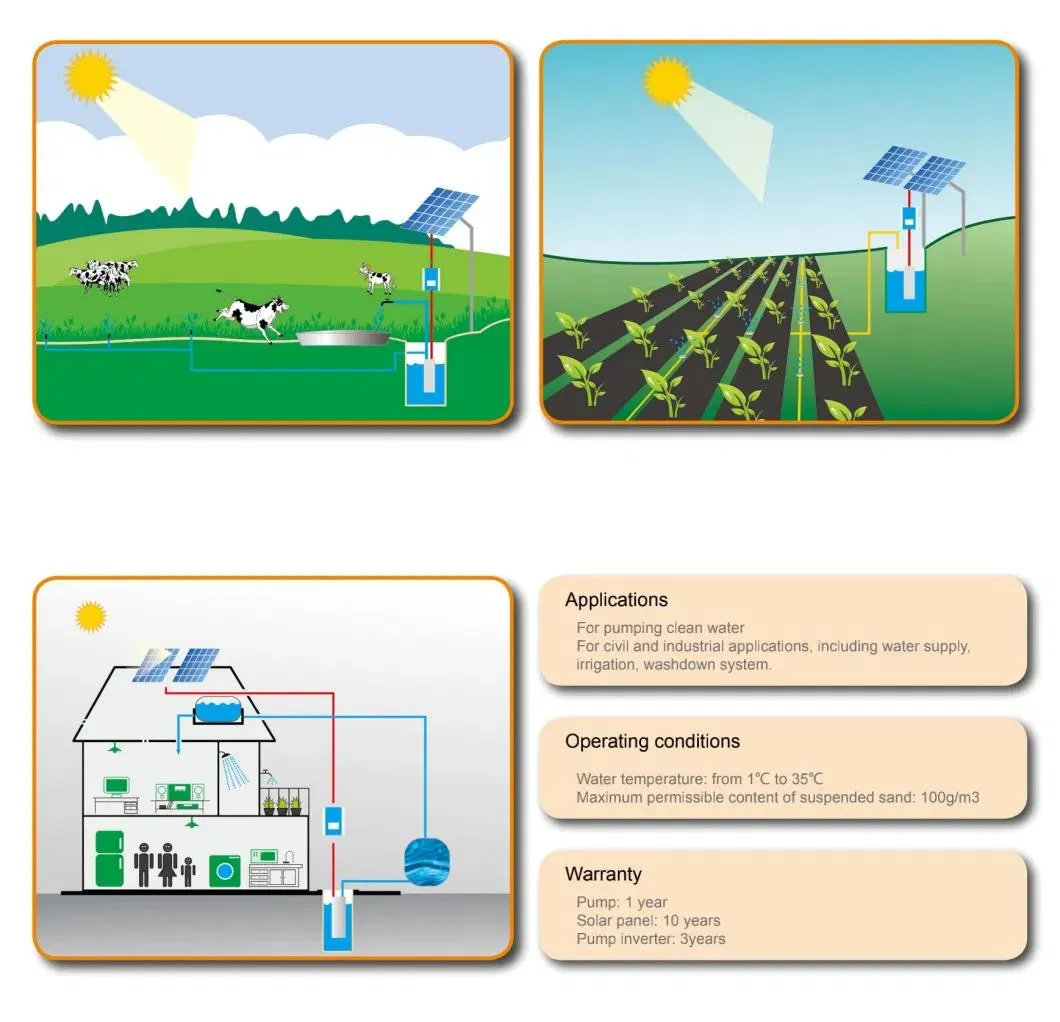

Solar power system has a wide range of applications, such offering domestic water, helping agricultural and forestry irrigation, and desertification control. It can also supply water to sea island, animal husbandry, and water treatment projects.

With the promotion of new energy utilization, recently the usage of solar water pump is increasing. You can find them in government projects, landscape architectures and fountains of city squares, parks tourist attractions, hotels and residential areas.

AGRICULTURAL IRRIGATION
ANIMAL HUSBANDRY
DESERTIFICATION CONTROL

Solar pump systems are high quality products designed and installed for drinking water supply, livestock watering and smaller irrigation applications without any pollution. They are specially designed to use solar power directly. No infrastructure or grid is required for site selection.

Product Parameters (30HP System)

Item Name	Description	Unit	Quantity
Solar panel	260W / 31.2V poly	pc	136
Mounting structure	Q235 material, Hot-dip zinc	set	1
PV cables	4mm2, 400m	set	1
Pump inverter	Model 30000H	pc	1
Water pump	30HP	pc	1
Pump cables	3*16mm2, 200m	set	1
Safety rope	Pump Depth * 2	pc	1
Check Value	With connector	set	1
Other accessories	Raw material tape, MC4, cable connector	set	1

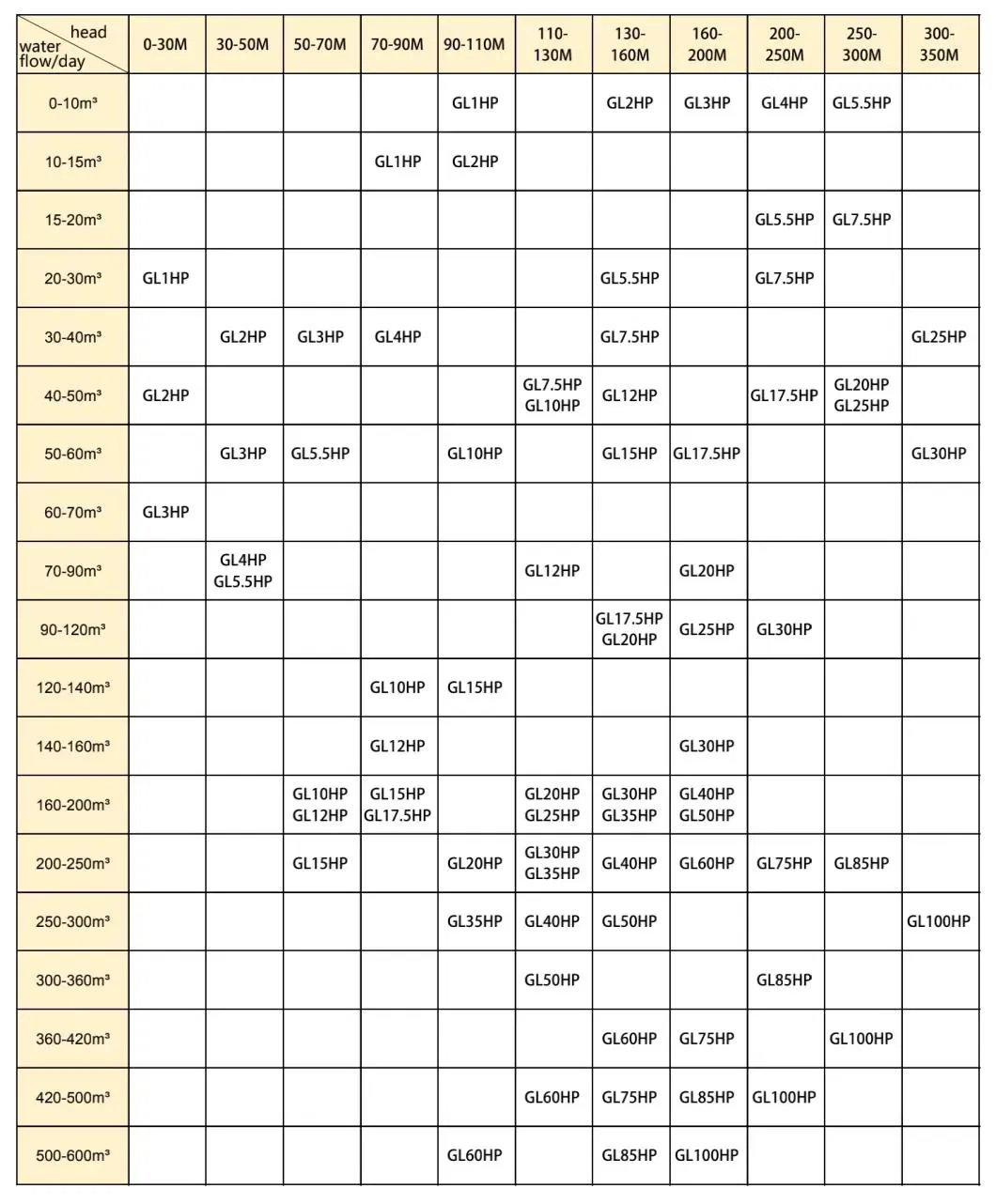

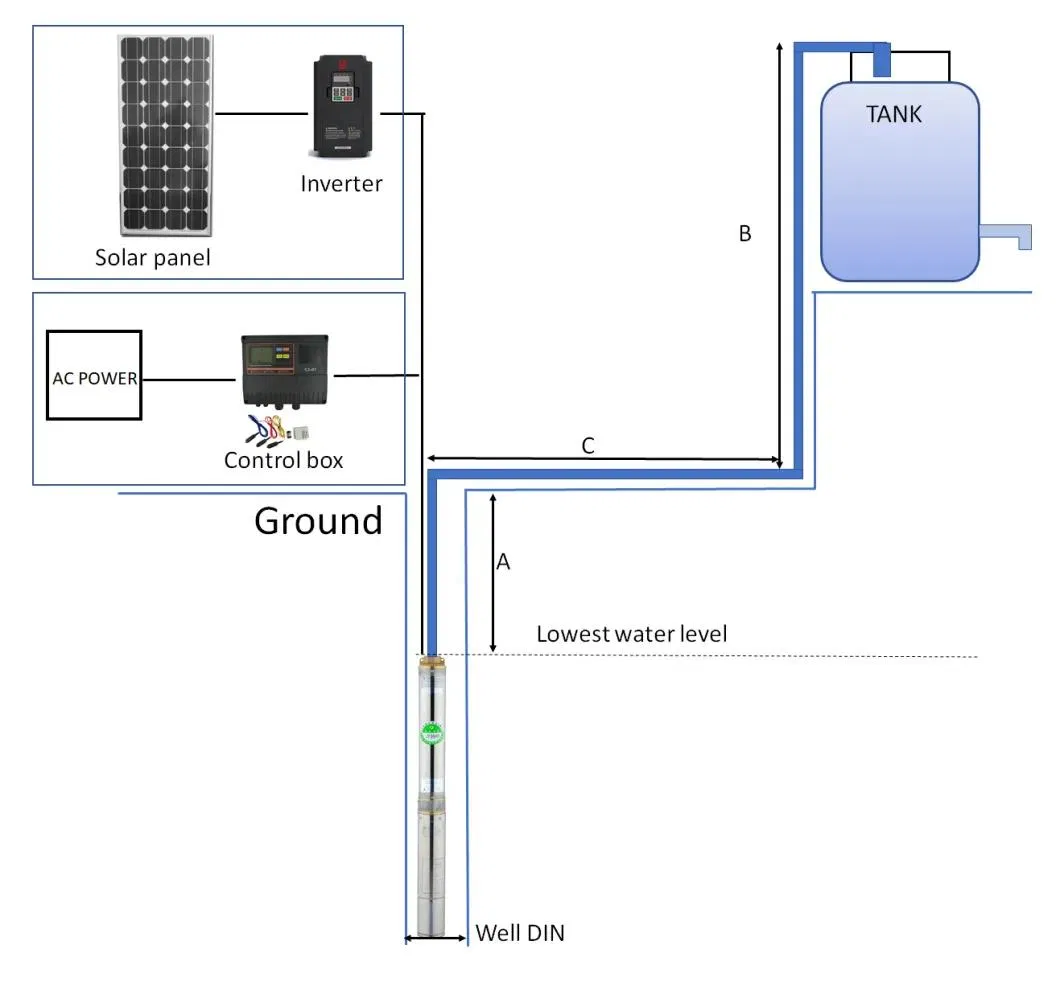

Selection Guide & Requirements

Please provide the following information to select the right pump:

Where will the pump be used?
How much water discharge (liters/gallon/m3) required per day or per hour?
Do you need a submersible pump or surface pump?
If using a borehole (deep well), what is the depth?
Pipe distance from top of borehole/river to destination tank (slope or horizontal)?
The height of the tank?

System Components

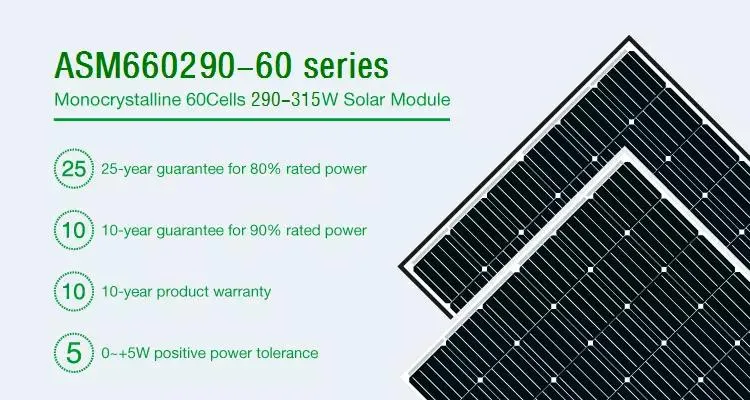

Mono Solar Panels

Peak Power: 290W
Max Voltage: 32.2V
Dimensions: 1640×992×35 mm
Weight: 18.6 kg

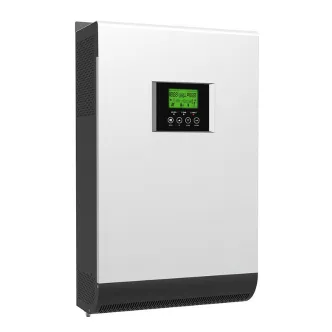

Off-Grid Inverter

Max. DC Input: 8.5KW
Input Voltage: 600V
MPPT Range: 90-520V
Monitoring: Wifi/Lan/GPRS Optional

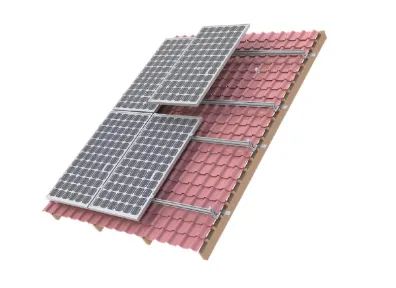

PV Mounting System

Material: AI6005 & SUS304 Bolt
Clamps: 35-50mm
Components: Rails, Splice Kits, L Foot, Ground Clips

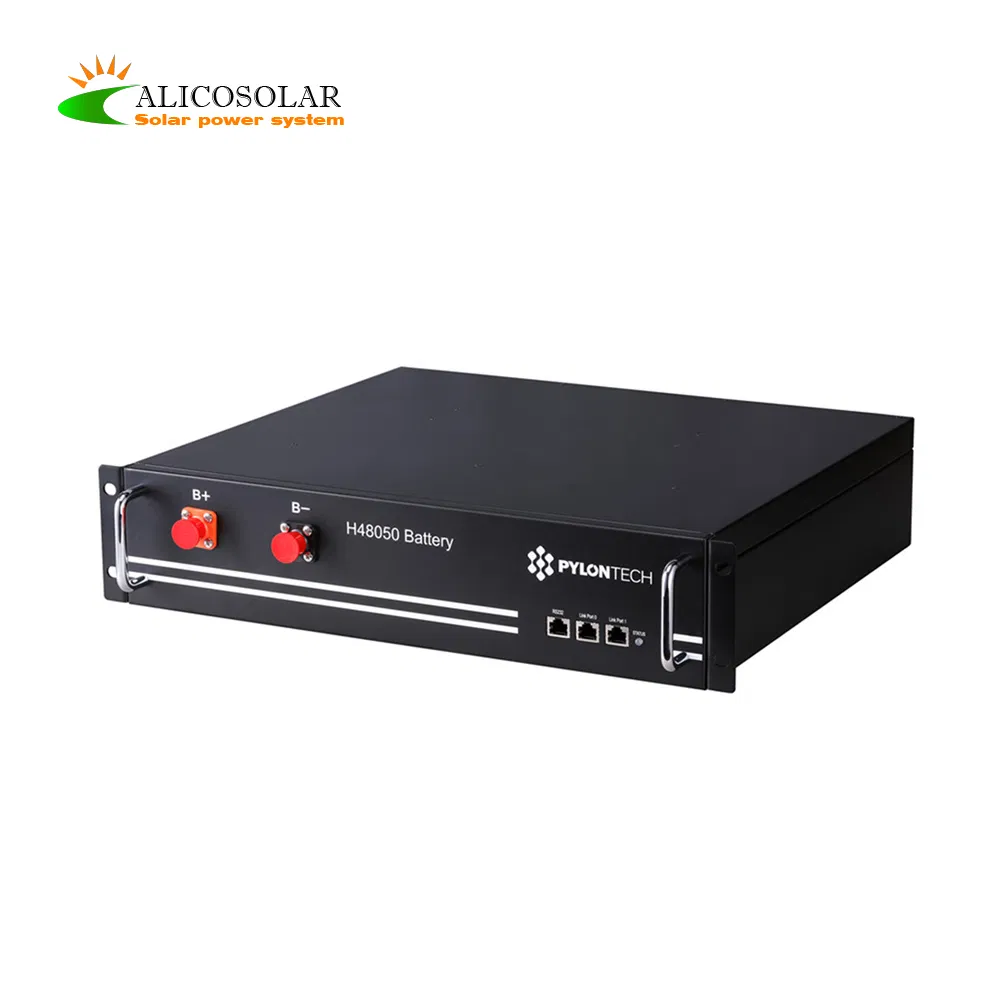

Lithium Battery

Specification: 48V 100Ah
Dimension: 4-5U standard rack mount

Calculation Formulas

Solar Panel Power: Power of pump X 1.3

Battery Use Hour: Capacity ÷ (Machine power ÷ Battery voltage) X 0.6

Required Battery Capacity: Use hour ÷ 0.6 x (Machine power ÷ Battery voltage)

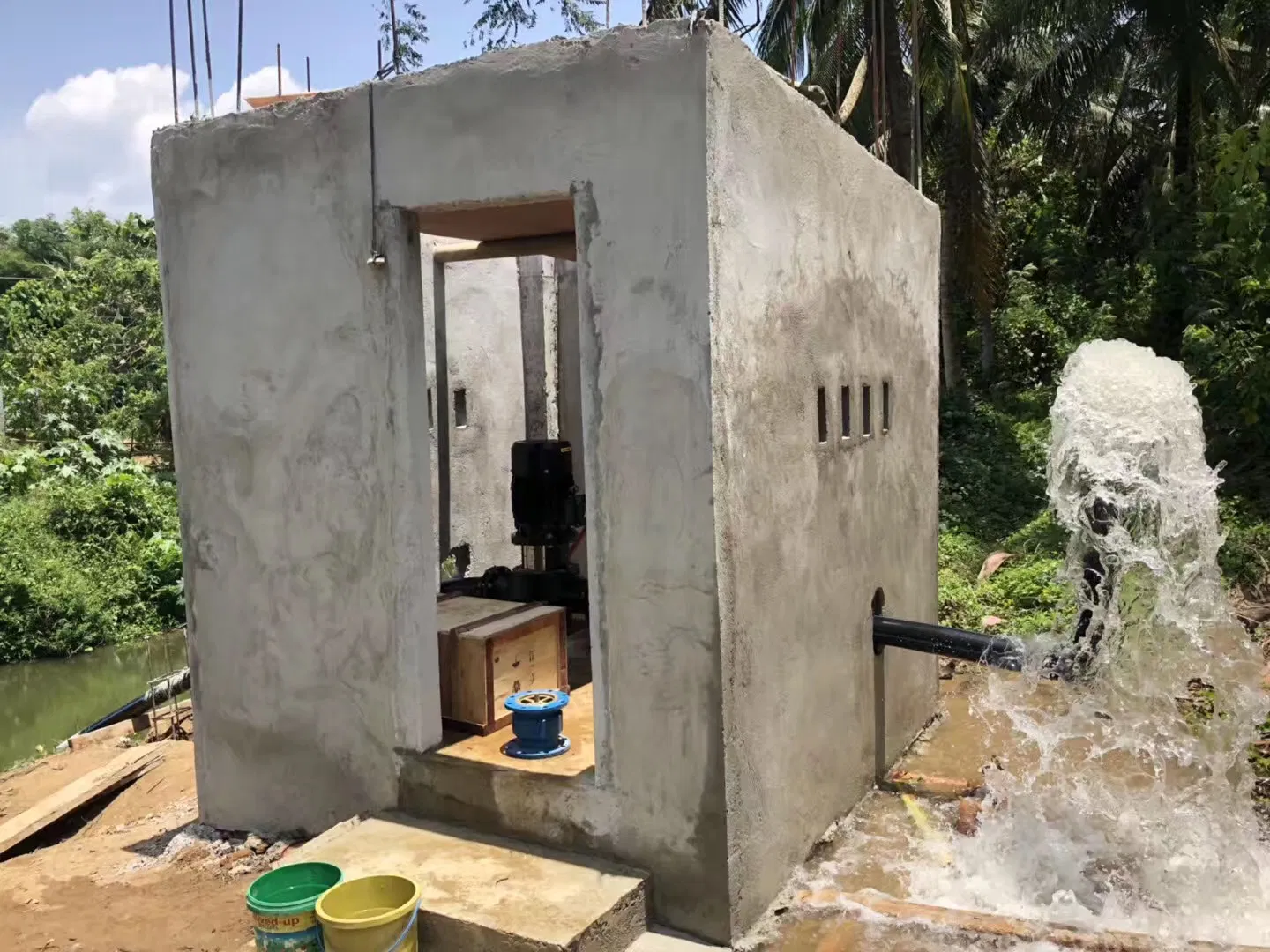

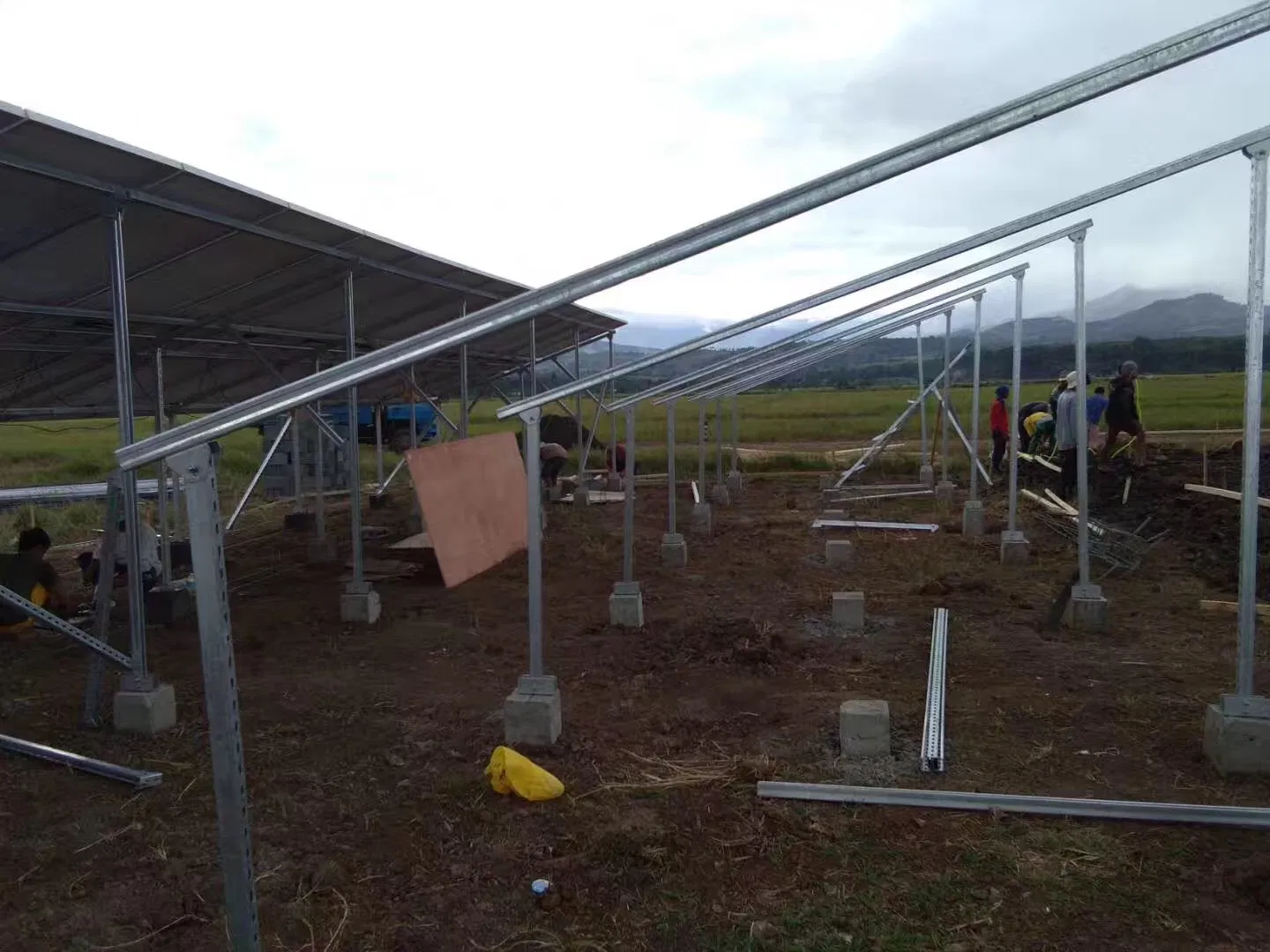

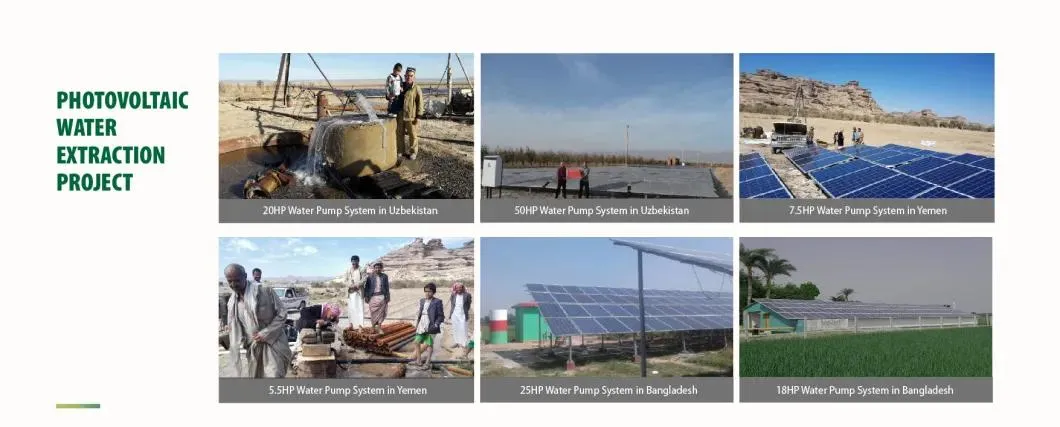

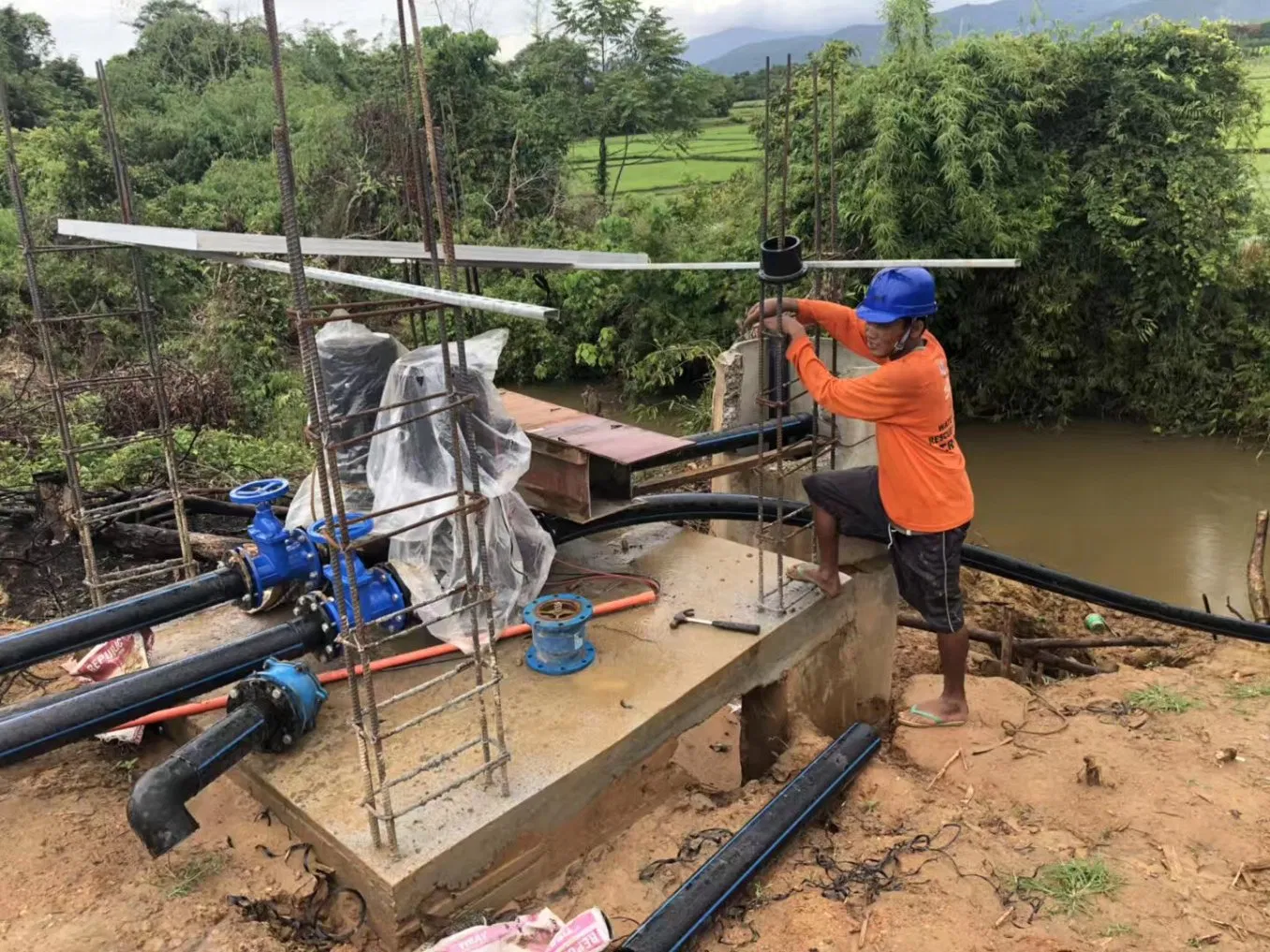

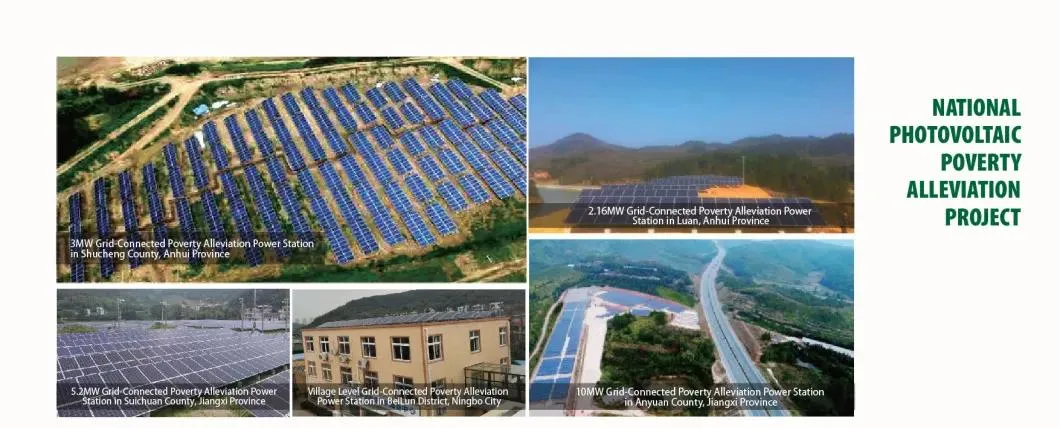

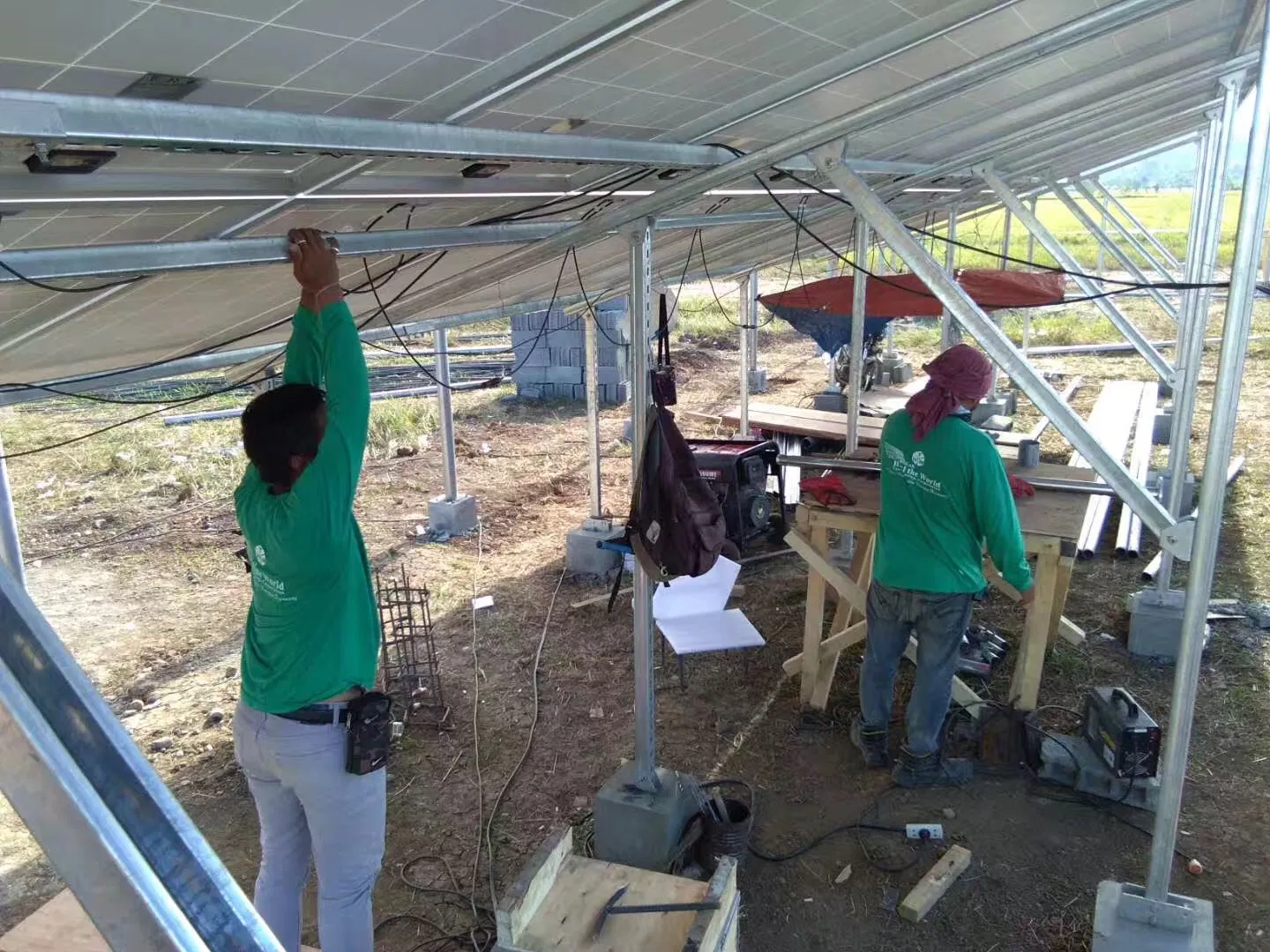

Projects Shown

Frequently Asked Questions

1. What are the primary applications for solar water pump systems?

Solar water pumps are widely used for agricultural irrigation, livestock watering, desertification control, domestic water supply, and landscape features like city fountains and park attractions.

2. How do I calculate the correct solar panel power for my pump?

A general rule is that the solar panel power should be approximately 1.3 times the power of the pump (Power of solar panel = Power of pump X 1.3).

3. What information is needed to get a custom pump recommendation?

To select the right pump, we need to know the daily water requirement, the application type (submersible or surface), the borehole depth if applicable, and the distance/height the water needs to be transferred.

4. Can I monitor the solar pump system remotely?

Yes, our systems include remote monitoring options using data logging sticks accessible via Wi-Fi, Lan, or GPRS, with apps available for PC, iOS, and Android.

5. What is the typical service life and warranty of these systems?

Our solar systems are designed for a 25-year service life. Specific components like inverters may offer 5 to 10-year warranties depending on the region.

6. Does the system require a power grid to operate?

No, these are off-grid systems designed to run directly on solar power. However, an optional grid back-up can be integrated to ensure 24/7 operation if needed.
