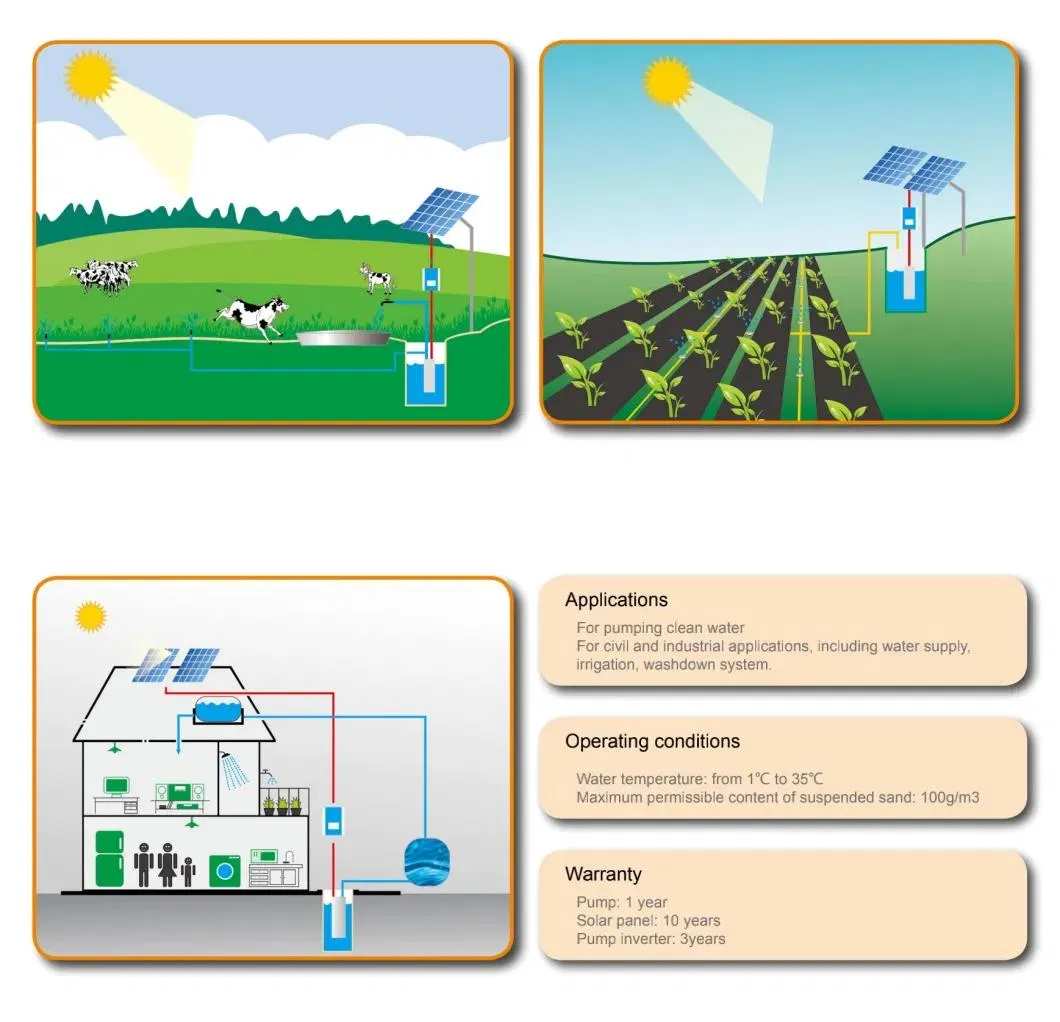

Solar power systems have a wide range of applications, offering domestic water solutions, agricultural and forestry irrigation, and desertification control. These systems are ideal for providing water to sea islands, animal husbandry operations, and various water treatment projects.

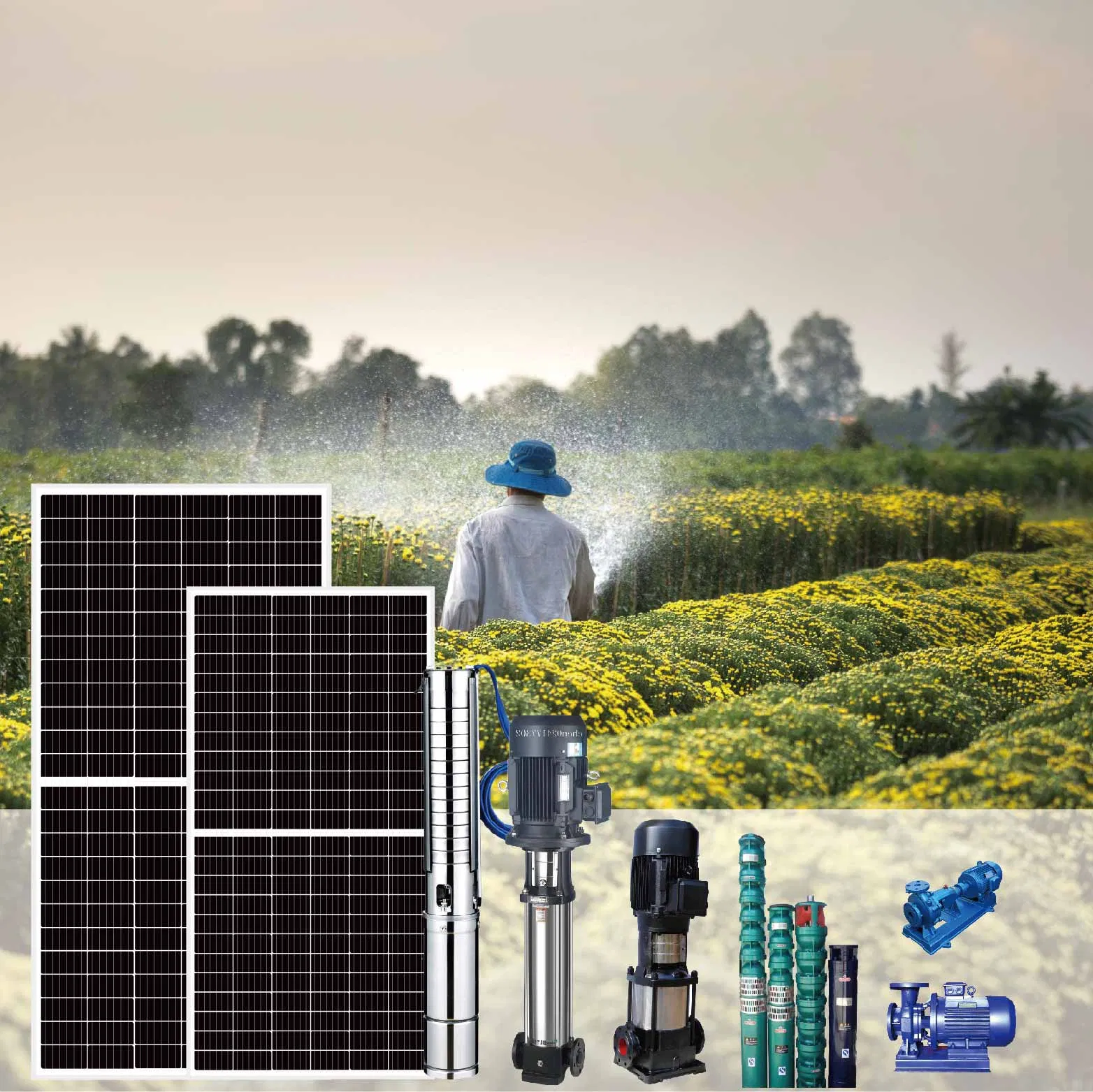

Solar pump systems are high-quality solutions designed for drinking water supply and livestock watering without pollution. They are specifically engineered to utilize solar power directly, requiring no existing infrastructure or grid connection for installation. An optional grid back-up can be integrated for 24/7 operation.
| Item Name | Description | Unit | Quantity |
|---|---|---|---|
| Solar panel | 260W / 31.2V poly | pc | 136 |
| Mounting structure | Q235 material, Hot-dip zinc | set | 1 |
| PV cables | 4mm2, 400m | set | 1 |
| Pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |
| Safety rope | Pump Depth * 2 | pc | 1 |
| Check Valve | Check valve with connector | set | 1 |
| Other accessories | M C4 connector, cable connectors, etc | set | 1 |

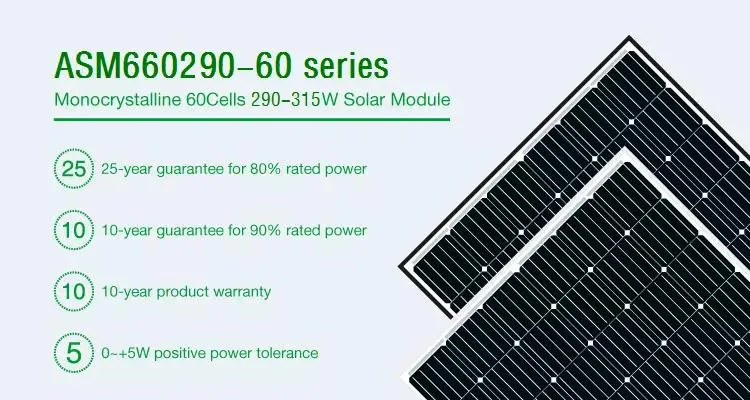

Peak Power: 290W
Max Power Voltage: 32.2V
Dimensions: 1640×992×35 mm
Weight: 18.6 kg

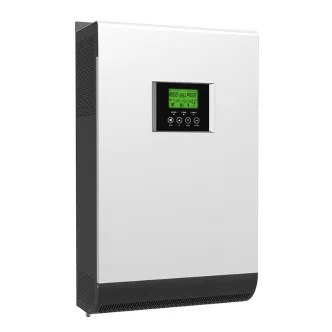

Max. DC Input: 8.5KW
Max. DC Voltage: 600V
MPPT Range: 90-520V

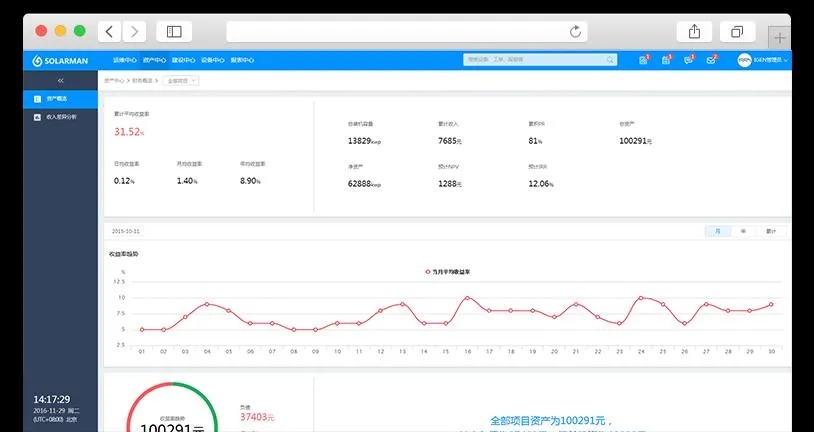

Monitoring: Wifi/GPRS Optional
Real-time data logging via Wi-Fi/GPRS. Compatible with PC, iOS, and Android to keep you informed about system performance anywhere.

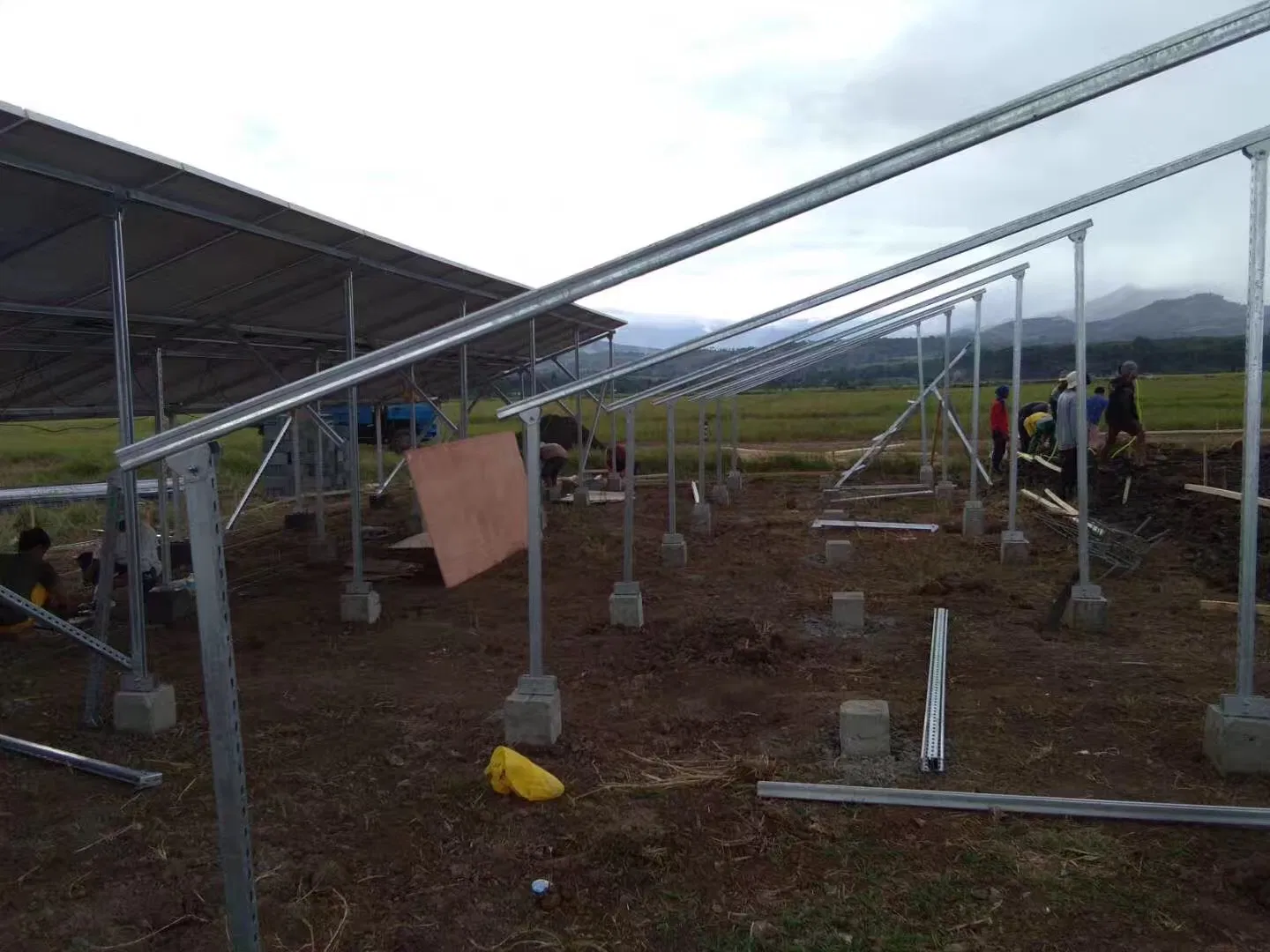

Aluminum AI6005 & SUS304 bolts. Includes mid/end clamps, L-feet, and ground clips for stable installation.

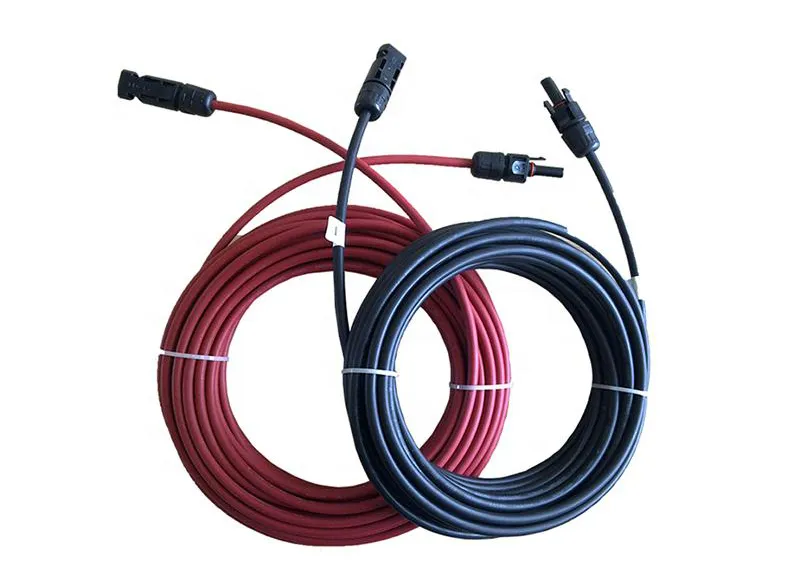

Cross Section: 4mm2 / 6mm2
Rated Voltage: 1000VDC (TUV)
Lifetime: ≤25 Years

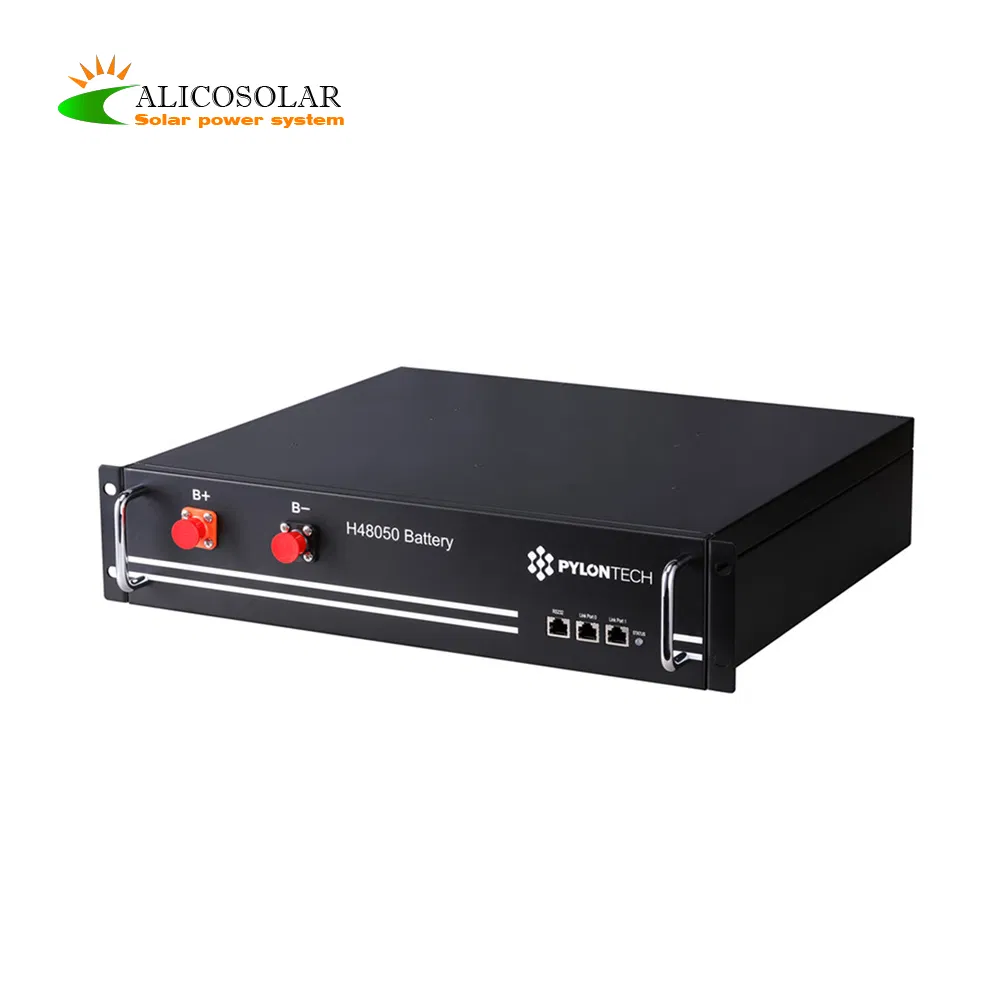

Specification: 48V 100Ah
Dimension: 4U-5U standard rack size for energy storage.
