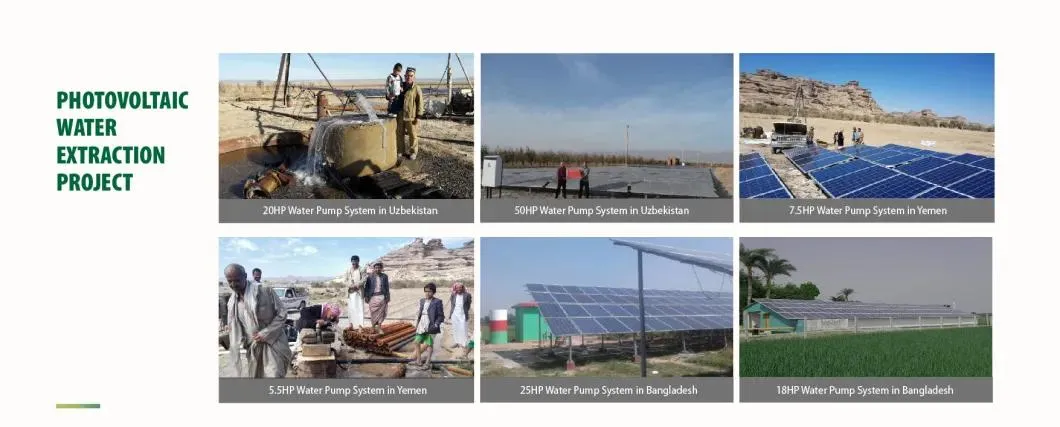

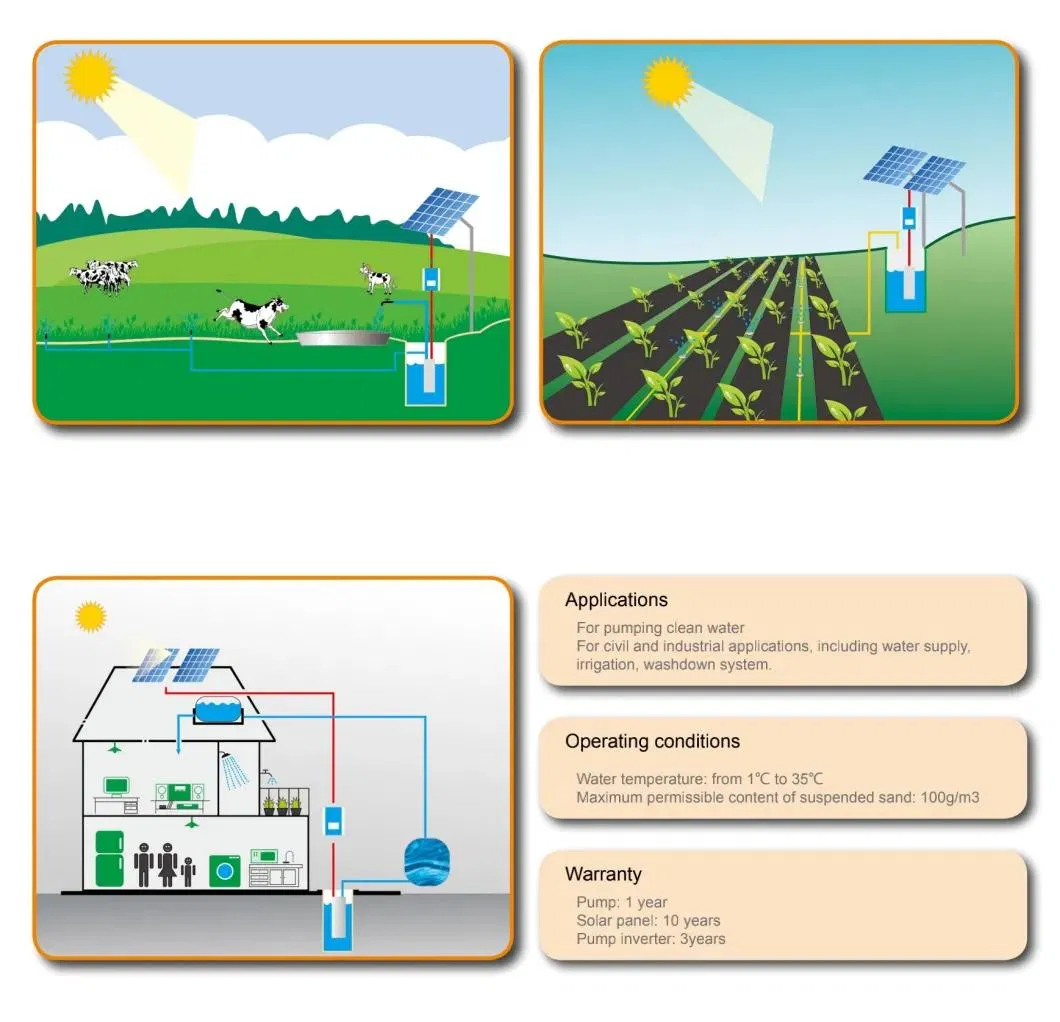

Solar power systems offer a wide range of applications, providing domestic water, agricultural irrigation, and desertification control. These systems are ideal for sea islands, animal husbandry, and water treatment projects. With the rise of renewable energy, solar water pumps are increasingly used in government projects, landscapes, city squares, and residential areas.
Our pump systems are high-quality solutions for clean drinking water and livestock watering without pollution. They are designed for site selection flexibility as no grid infrastructure is required, though grid backup is available for 24/7 operation.
| Item Name | Description | Unit | Quantity |
|---|---|---|---|
| Solar panel | 260W / 31.2V poly | pc | 136 |

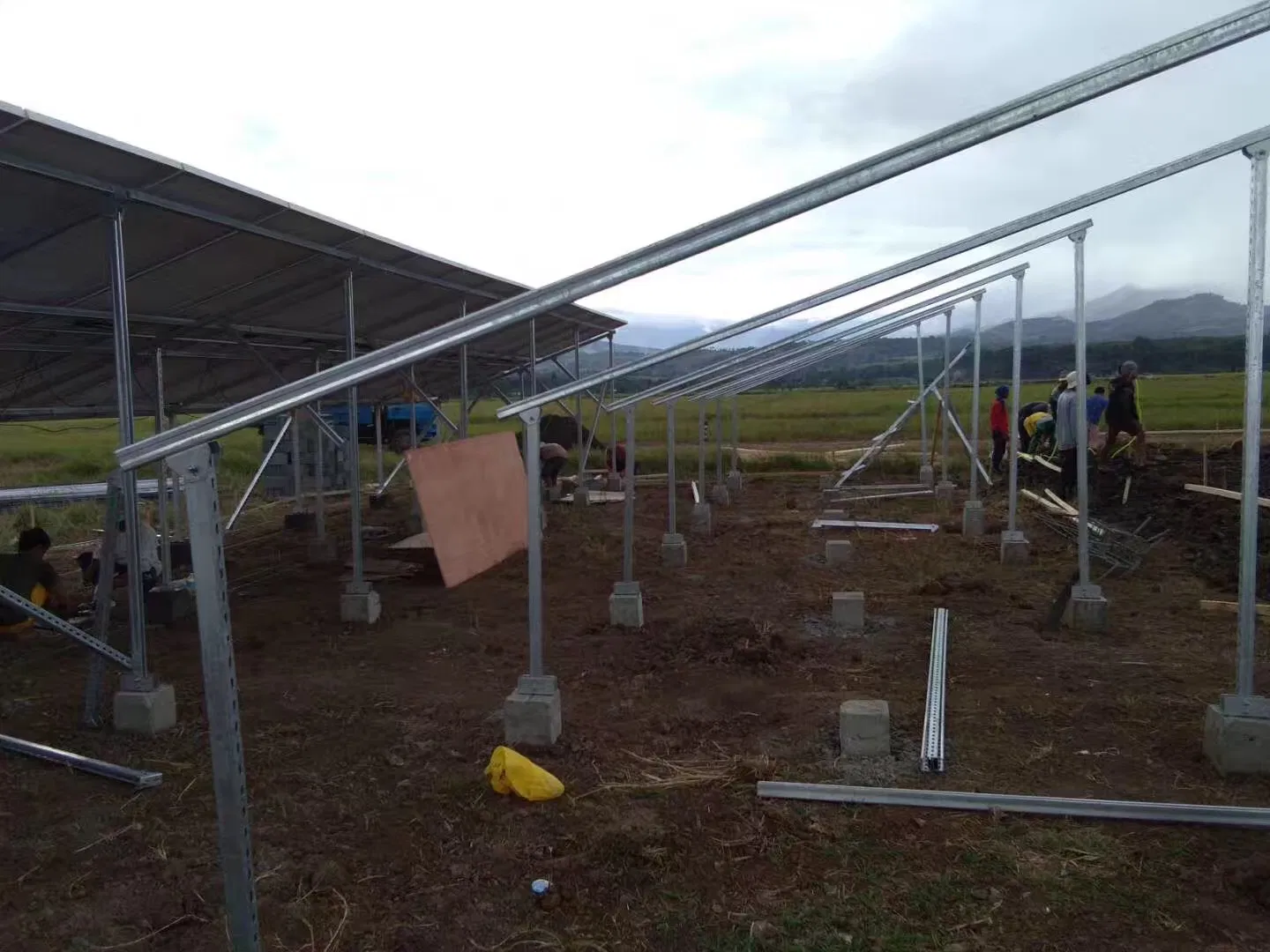

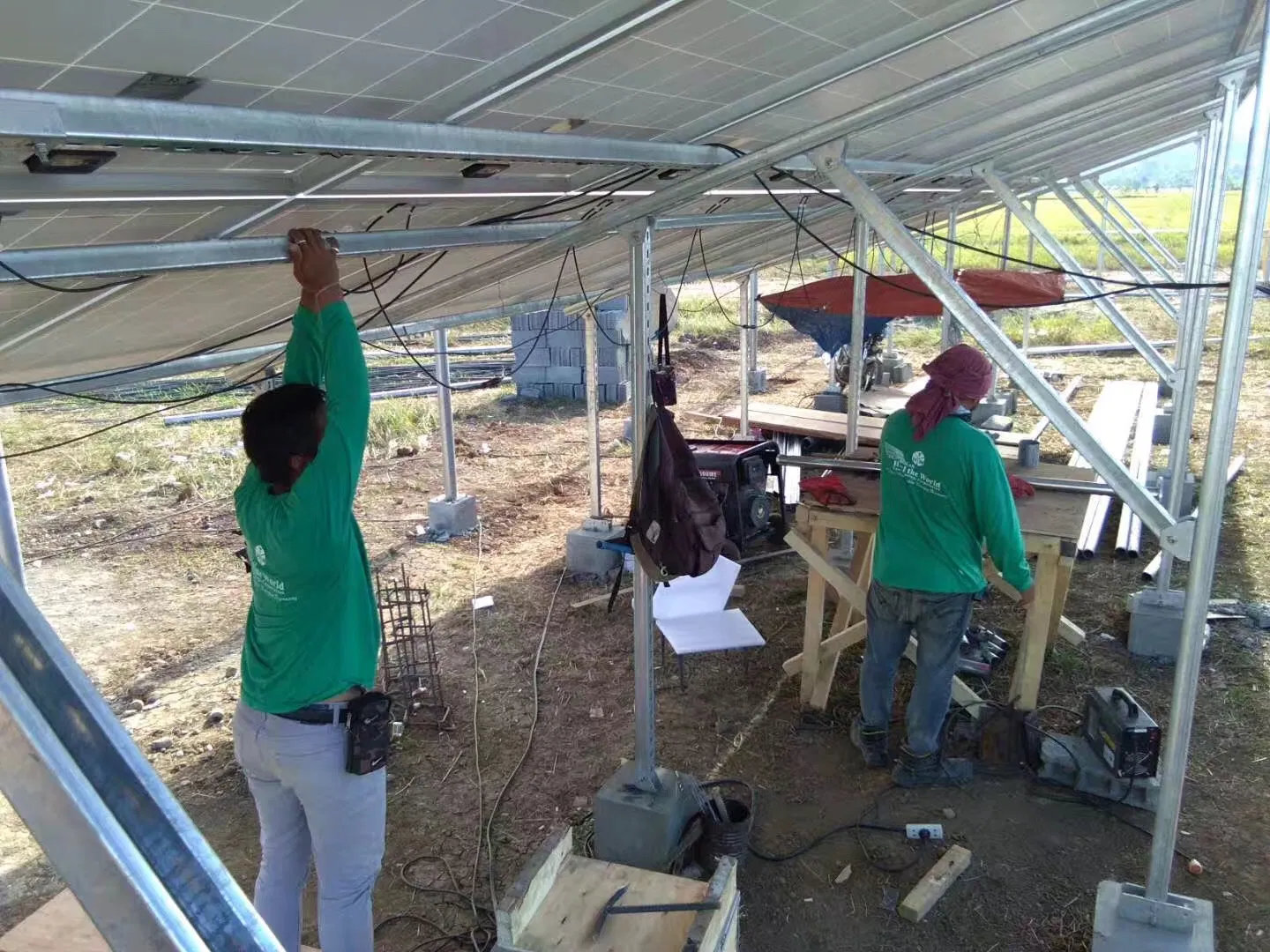

| Mounting structure | Q235 material, Hot-dip zinc | set | 1 |
| PV cables | 4mm2, 400m | set | 1 |
| Pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |
| Safety rope | Pump Depth * 2 | pc | 1 |
| Check Value | With connector | set | 1 |
| Accessories | MC4, connectors, etc | set | 1 |
Peak Power: 290W | Voltage: 32.2V | Current: 9.02A
Dimensions: 1640×992×35 mm | Weight: 18.6 kg

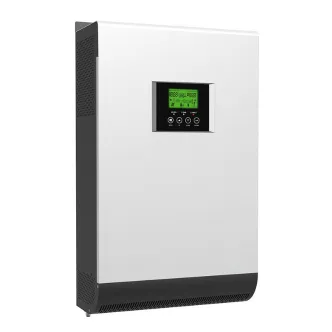

Max. DC Input: 8.5KW | Voltage Range: 90-520V
Rated Grid Voltage: 208/240V / 230V
Wifi Stick included for remote monitoring.

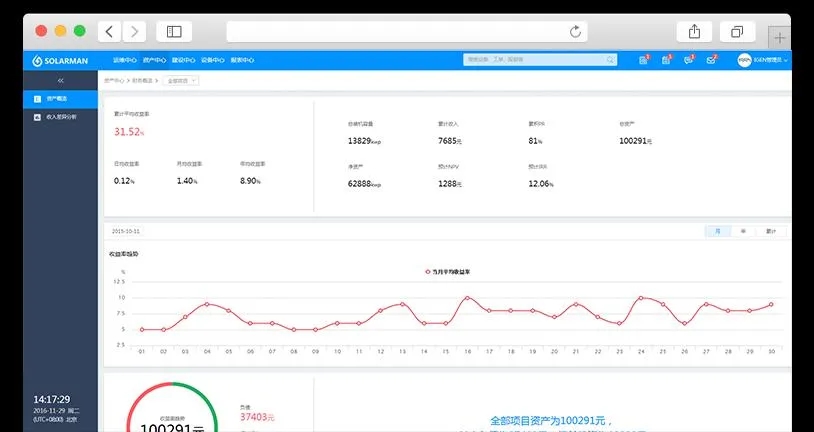

Data logging via Wi-Fi/GPRS. Stay informed about PV system status and atmospheric conditions via PC, iOS, or Android app.

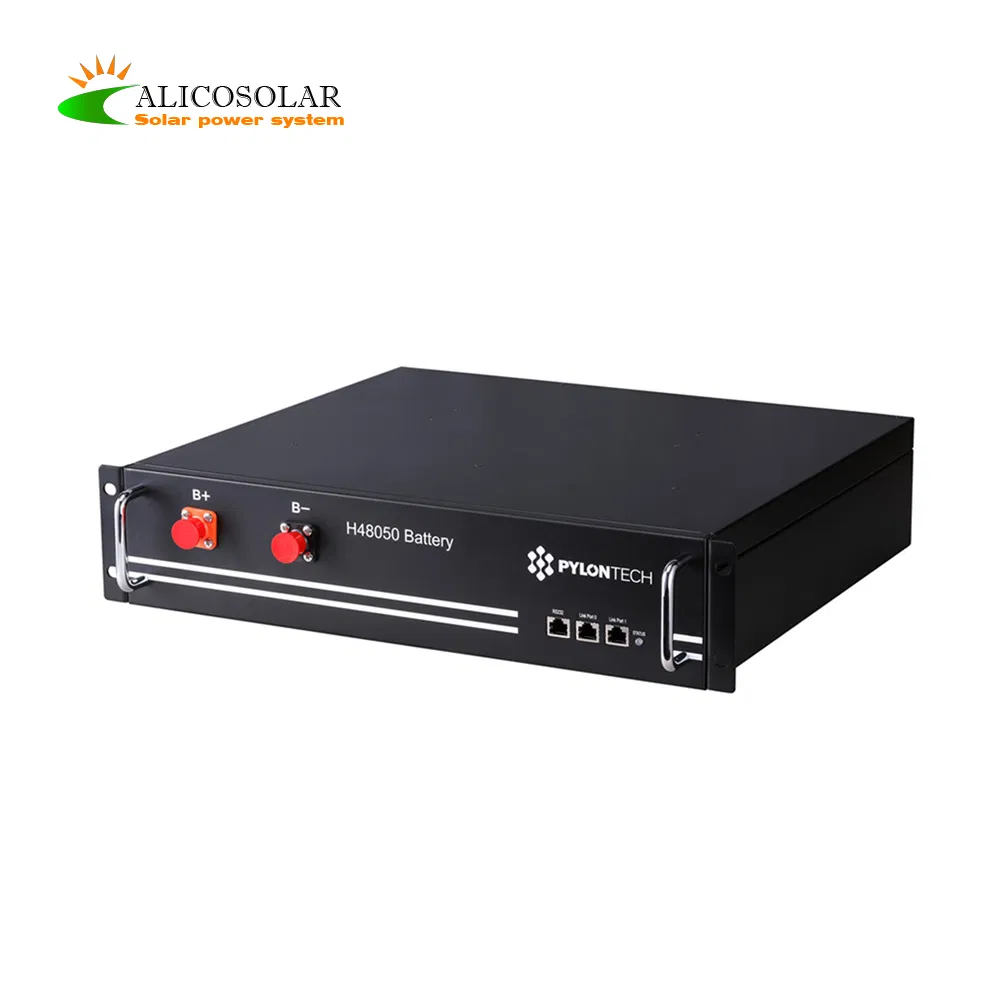

Specification: 48V 100Ah
Standard 4-5U Dimension for easy rack mounting.
