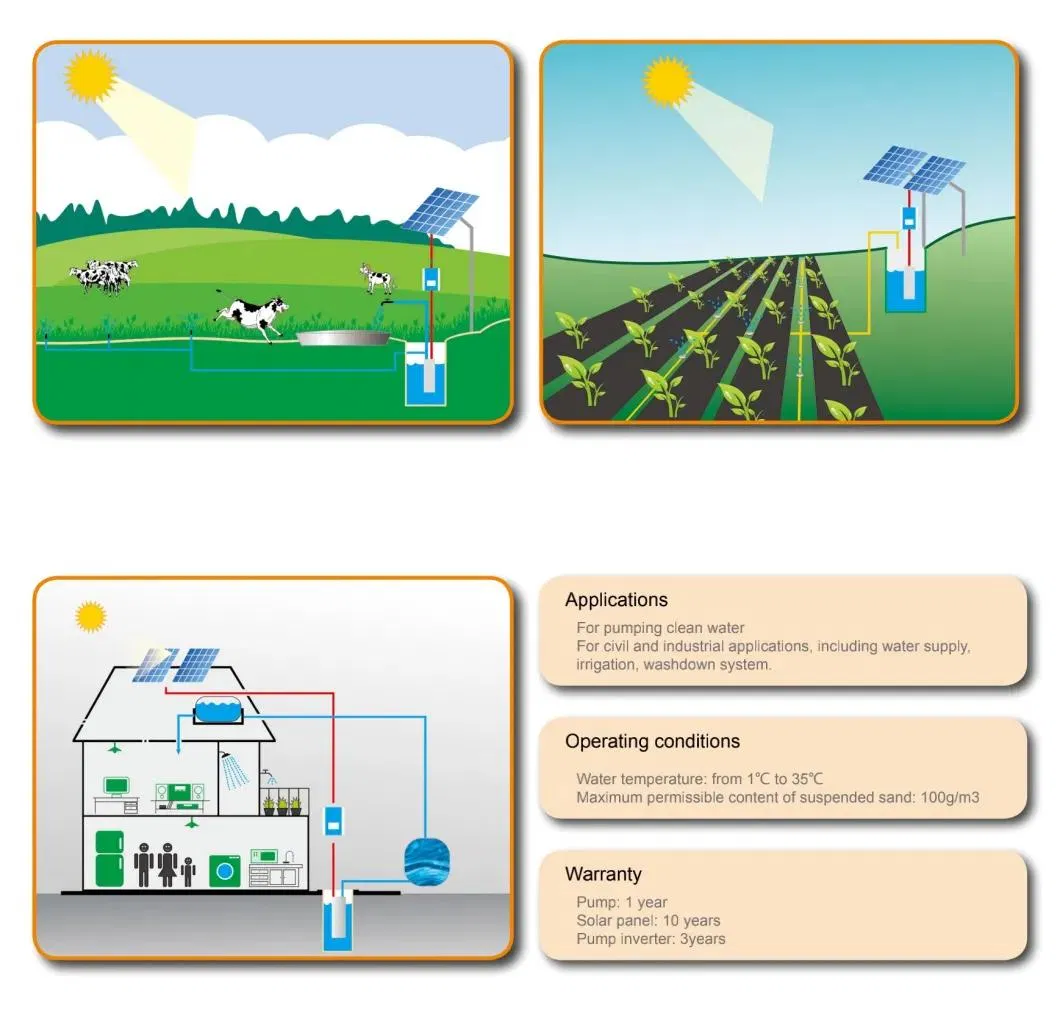

Solar power systems offer a wide range of applications, including domestic water supply, agricultural and forestry irrigation, and desertification control. These systems are ideal for water treatment projects, animal husbandry, and providing water to remote islands.

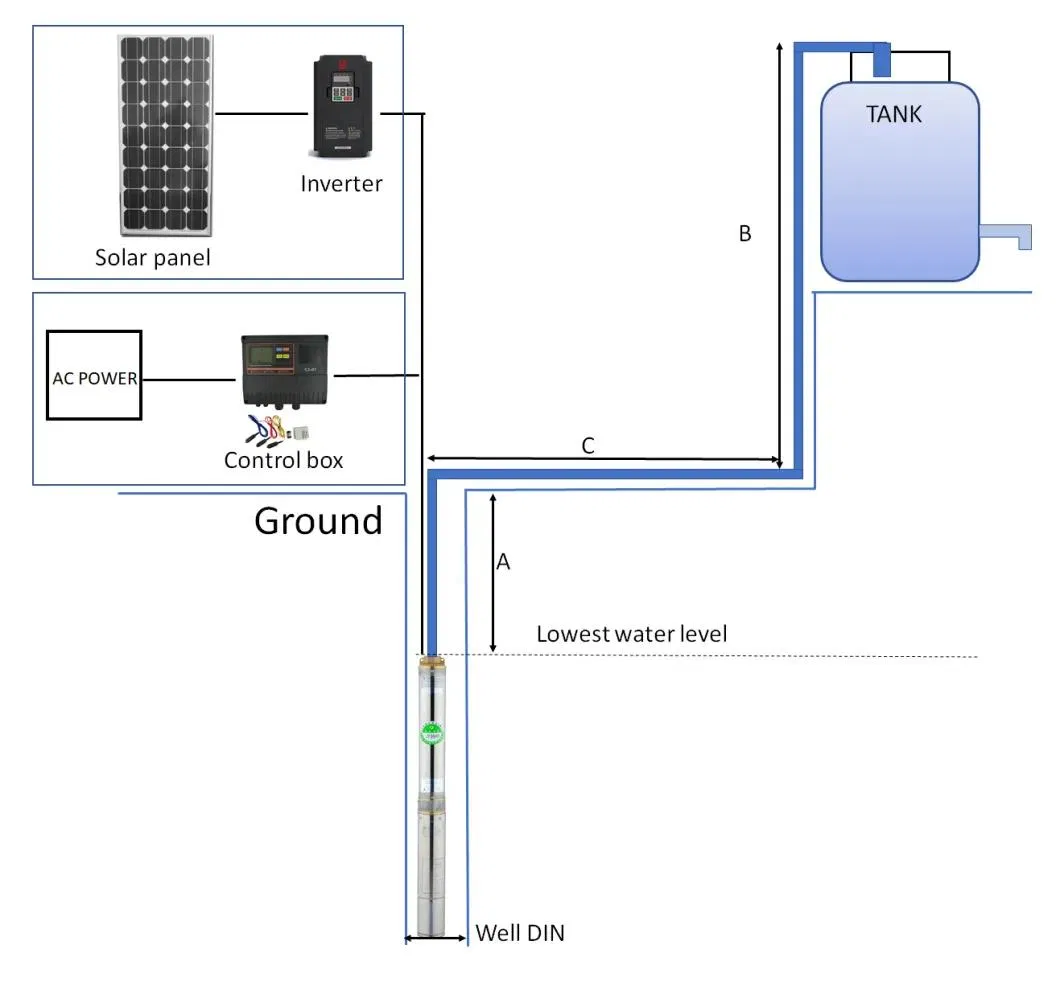

Designed for clean operation without pollution, solar pump systems utilize solar power directly, requiring no existing grid infrastructure. An optional grid backup can be integrated for 24/7 operation. The system includes high-efficiency PV modules, a specialized inverter, and a motor-integrated pump for simple installation and low ownership costs.
| Item Name | Description | Unit | Quantity |
|---|---|---|---|
| Solar panel | 260W / 31.2V poly | pc | 136 |
| Mounting structure | Q235 material, Hot-dip zinc | set | 1 |
| PV cables | 4mm2, 400m | set | 1 |
| Pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |
| Safety rope | Pump Depth * 2 | pc | 1 |
| Check Valve | Check valve with connector | set | 1 |
Solar Panel Power: Pump Power × 1.3
Battery Run Time: Capacity ÷ (Machine Power ÷ Voltage) × 0.6

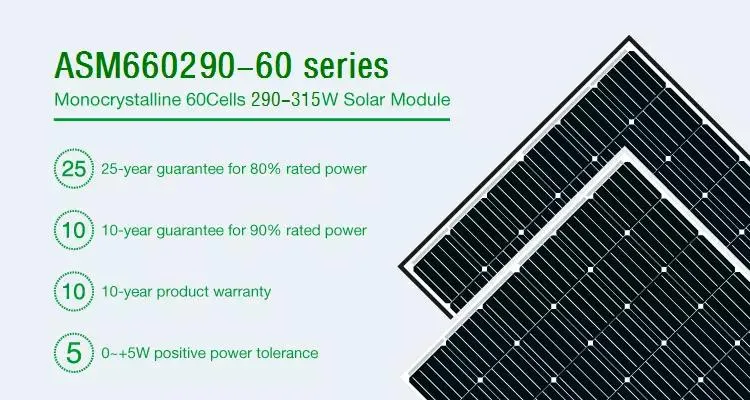

Peak Power: 290W
Max Voltage: 32.2V
Dimensions: 1640×992×35 mm

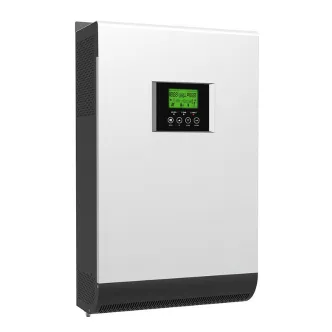

Max DC Input: 8.5KW
MPPT Range: 90-520V

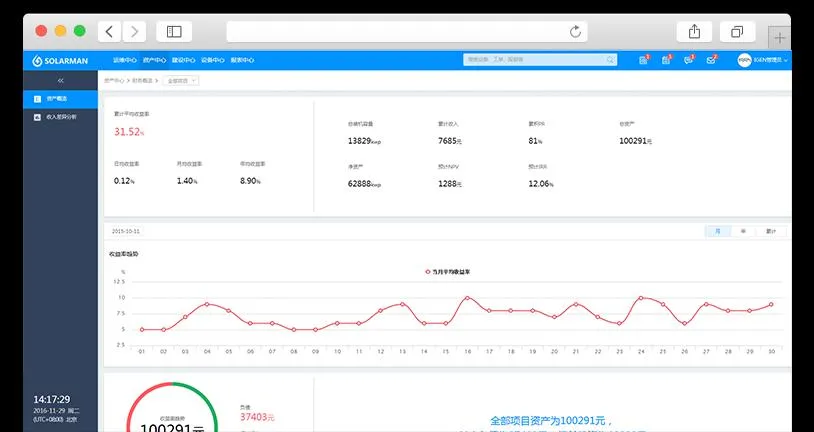

Optional Wifi/GPRS monitoring
Data logging via Wi-Fi/GPRS.
Available on PC, iOS, and Android.

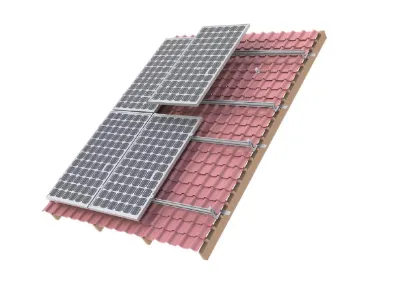

Aluminum 6005 & SUS304 bolts.
Adjustable for various roof/ground types.

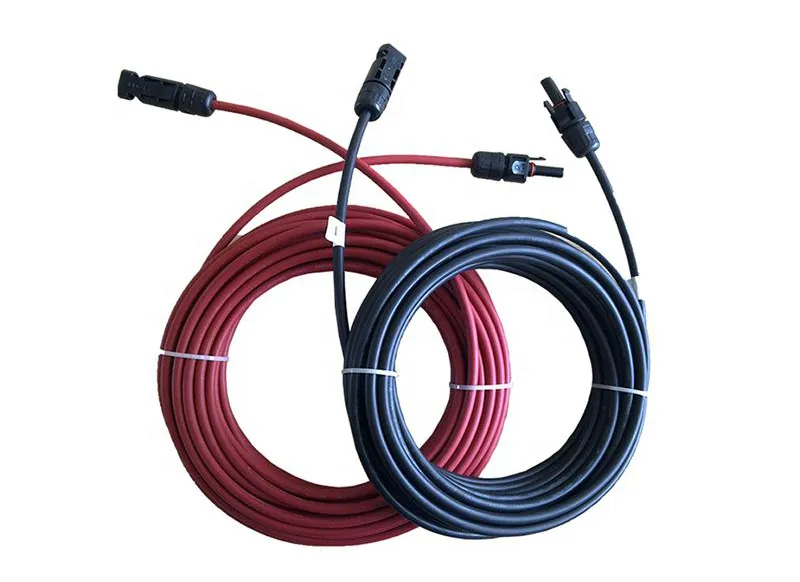

Cross Section: 4mm2 / 6mm2
TUV/UL Rated
Lifespan: Up to 25 Years

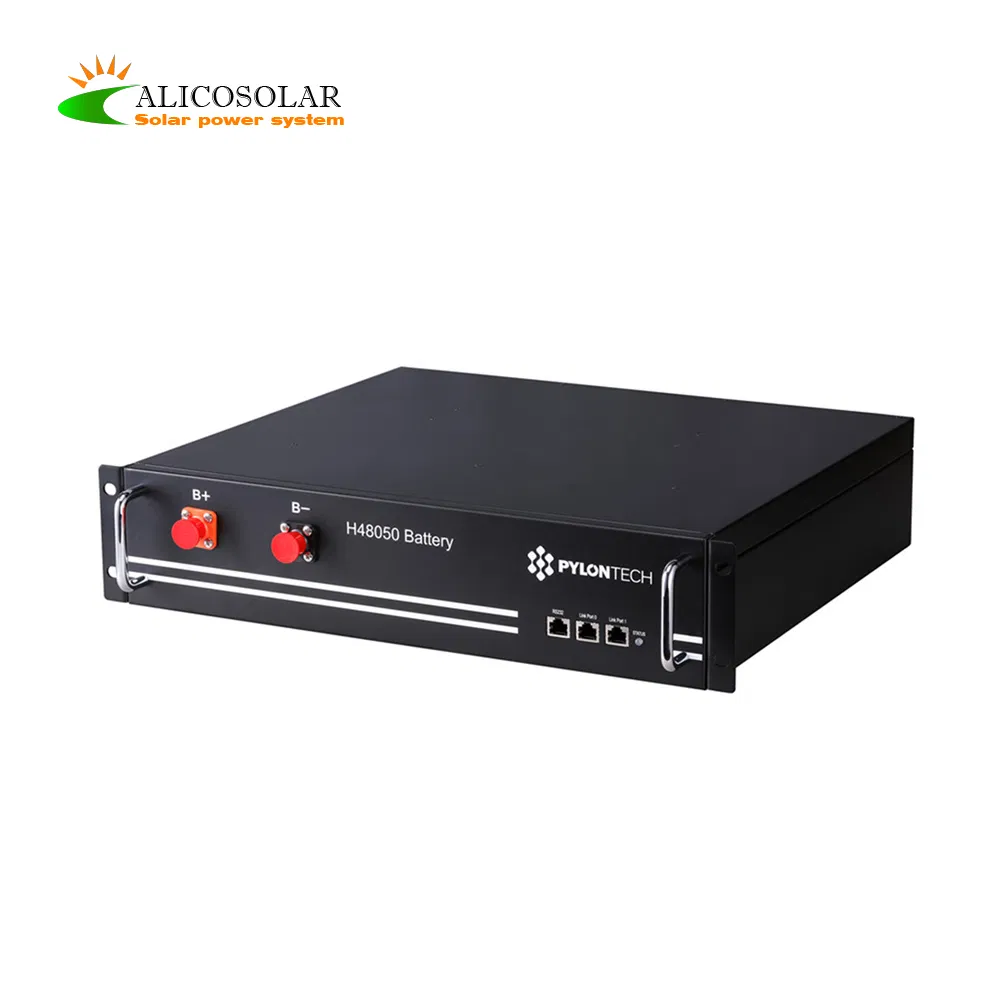

48V 100Ah
Compact 4U/5U dimension
High cycle life for energy storage
