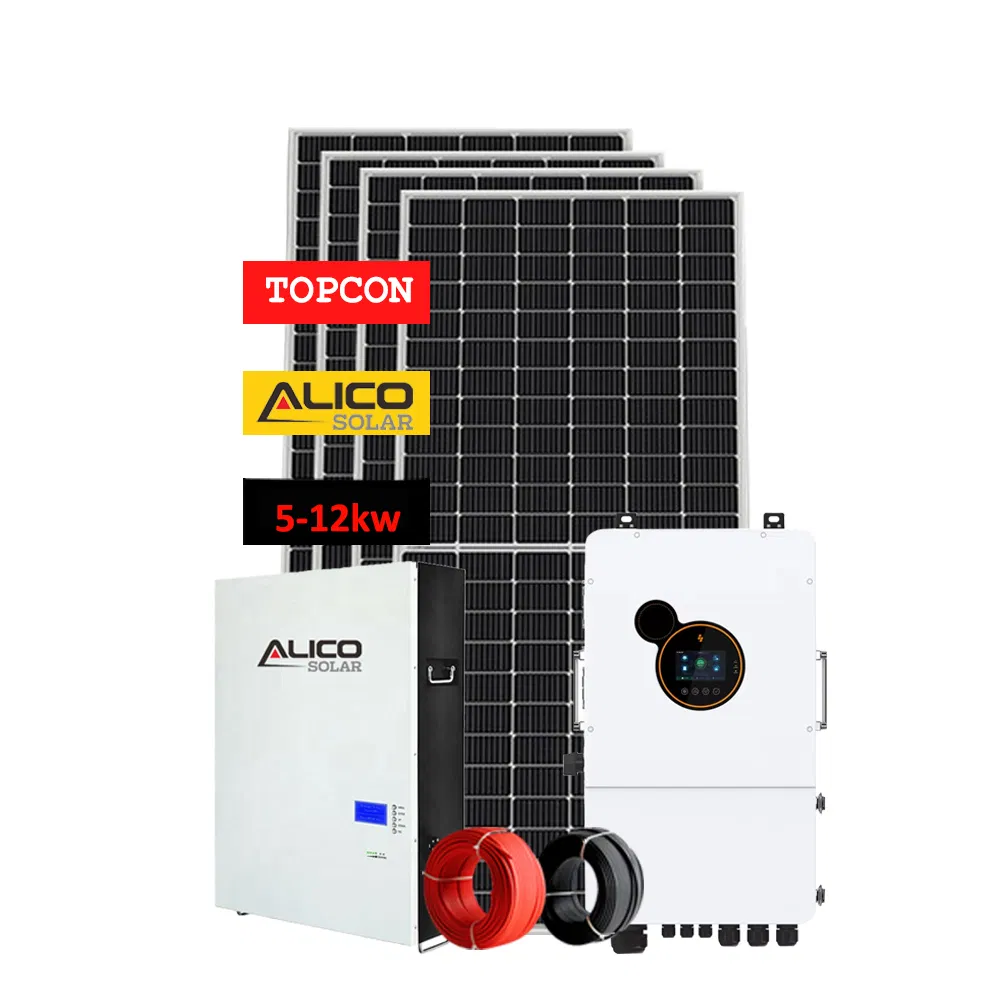

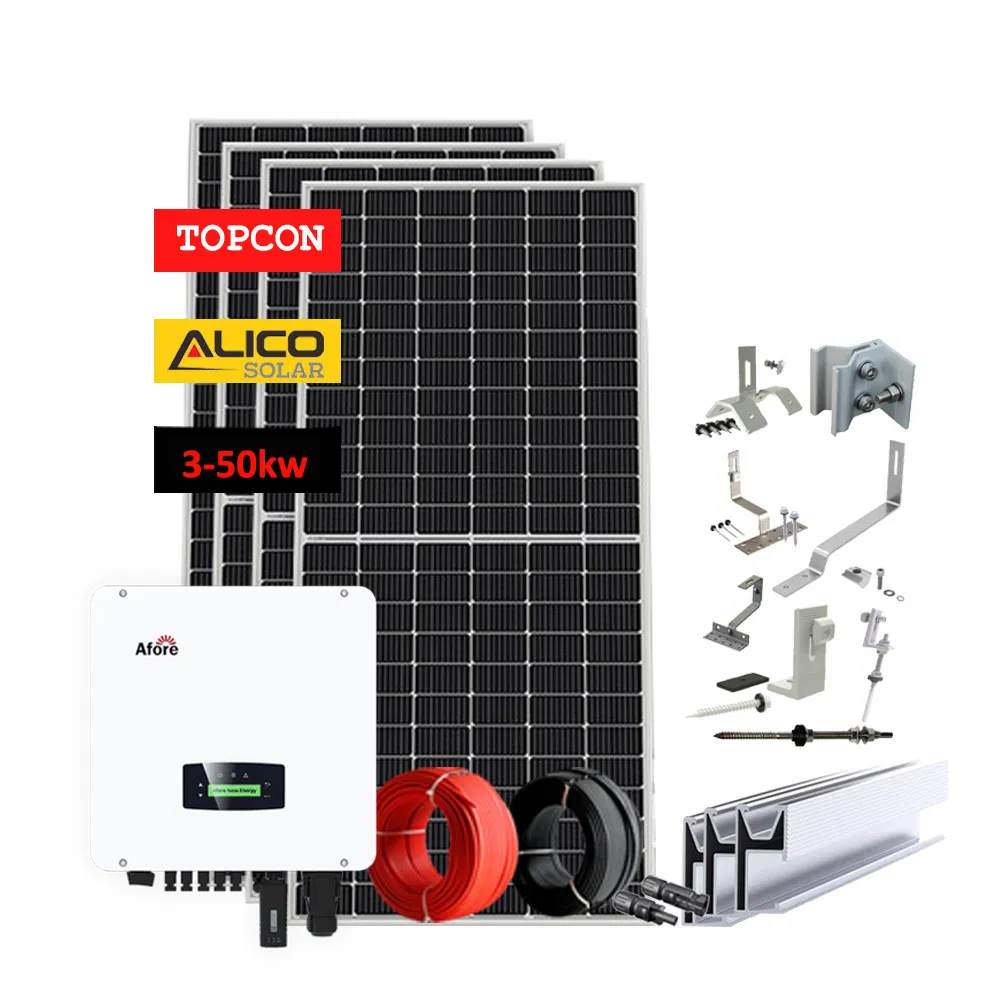

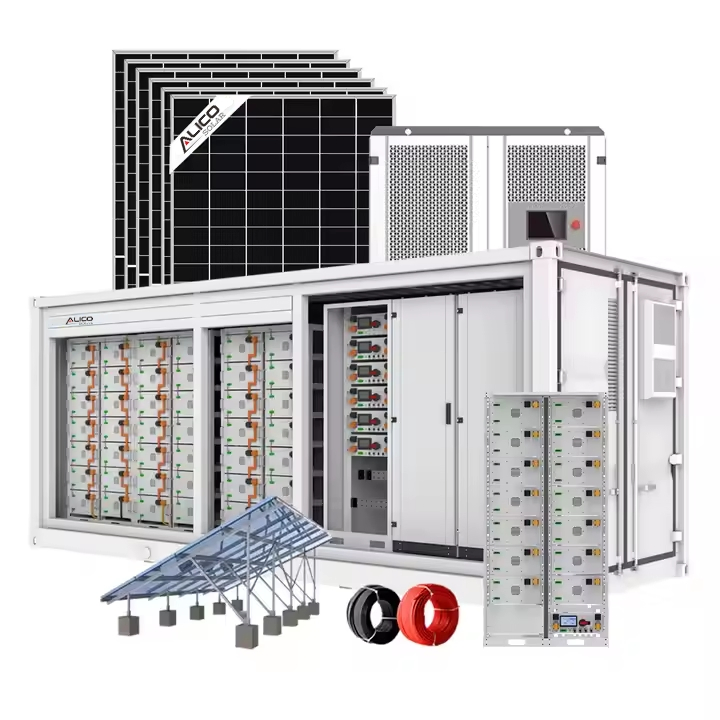

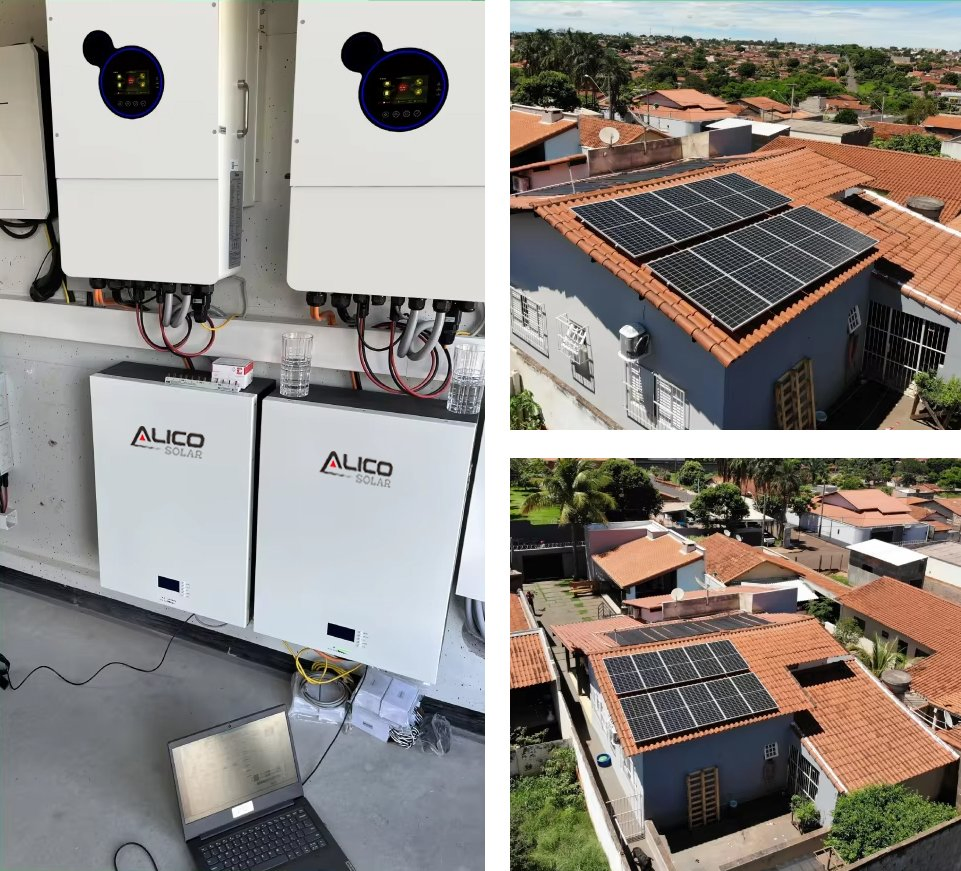

10kw Hybrid on Grid Home Potovoltaic Solar System 10kVA with PV Solar Panel Module LiFePO4 Lithium-Ion Battery Energy Storage Solar Grid Til Inverter

1 / 5

10kw Hybrid on Grid Home Potovoltaic Solar System 10kVA with PV Solar Panel Module LiFePO4 Lithium-Ion Battery Energy Storage Solar Grid Til Inverter

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.

AS-ON-10K

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, OEM

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

Grid-Tied Inverter

System Type

Home Energy Storage System

Solar Panel

Mono N-Type Hjt

Battery

Gel or Lithium Battery or No

Package Size

4100.00cm * 3200.00cm * 1800.00cm

Gross Weight

2000.000kg

⚙️

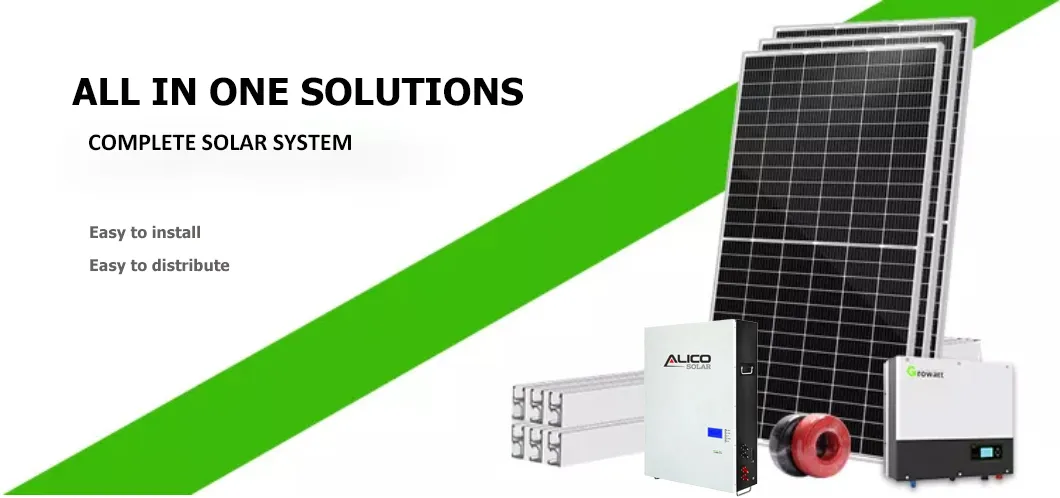

On Grid System Configuration

Name	Description	Quantity
Solar Panel	Mono 550W 72HF Cells PV Module	24-1250 Pieces
DC Disconnect Switch	IP66 1000VDC 16A	2 Set
On Grid Inverter	10KW to 500kw	1 Set
AC Disconnect Switch	IP 66 1000VDC 32A	1 Set
DC Cable	4mm2	200 - 2000 Meters
MC4 Connector	4mm2 1000VDC	10-1000 Pairs
Mounting System	Standards Pitched Roof (Customized Optional)	1 Set
PV Tools	Wire Cable Cutter & Stripper, Disassembly Tool	1 Set

💡

Technical Components

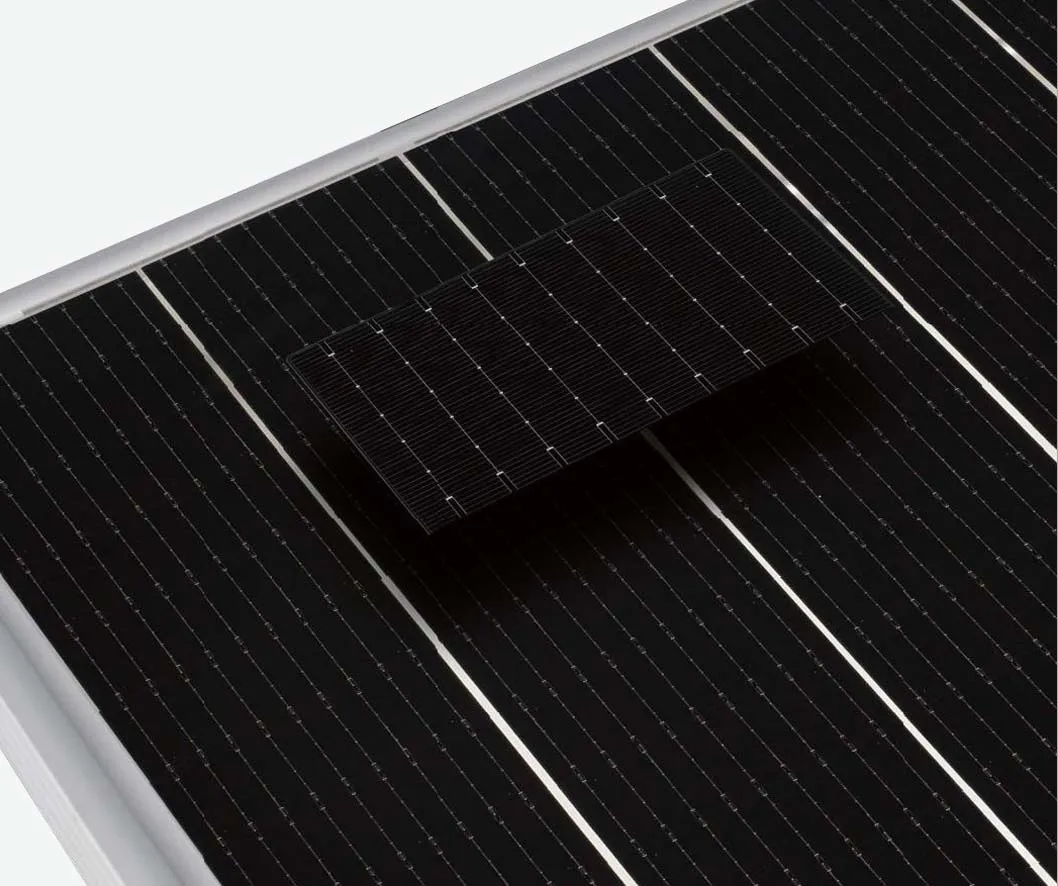

Mono Solar Panels

Peak Power Watts: 480W
Maximum Power Voltage: 49.2V
Maximum Power Current: 9.02A
Open Circuit Voltage: 42.8V
Short Circuit Current: 11.2A

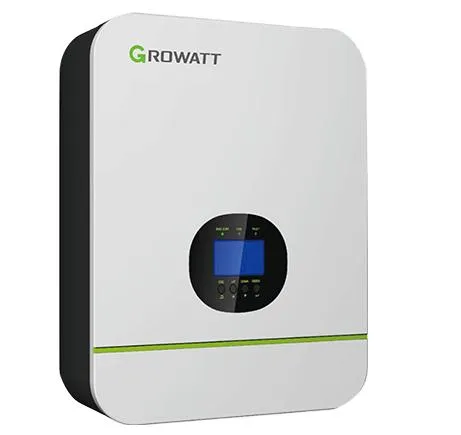

5-125KW On-Grid Inverter

Rated Grid Voltage: 208/240V(US); 230V(EU)
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.

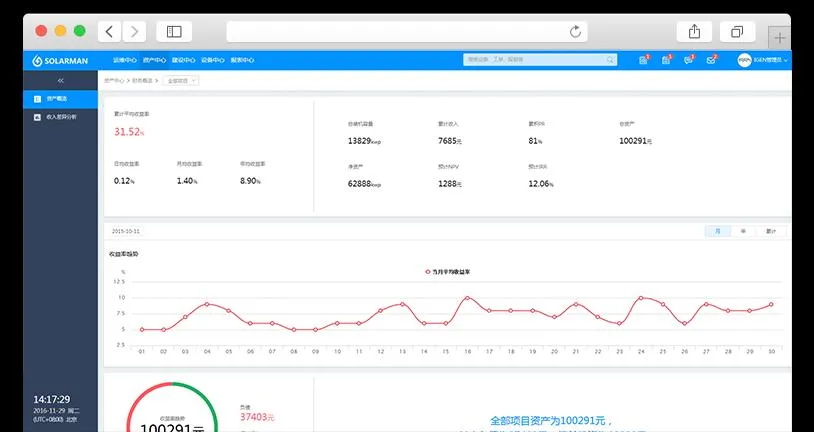

Remote Monitoring System

Data Logging Stick allows you to receive information from solar power system via web server (Wi-Fi, Lan or GPRS). App available for PC, iOS & Android.

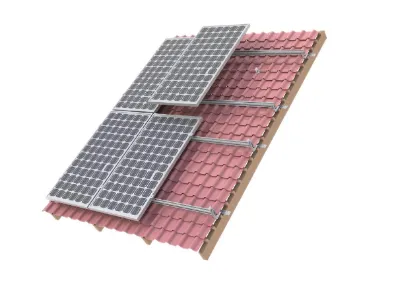

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt. Mid & End Clamps: 35,40,45,50mm. L Foot Asphalt Shingle Mount & Hanger Bolt Optional.

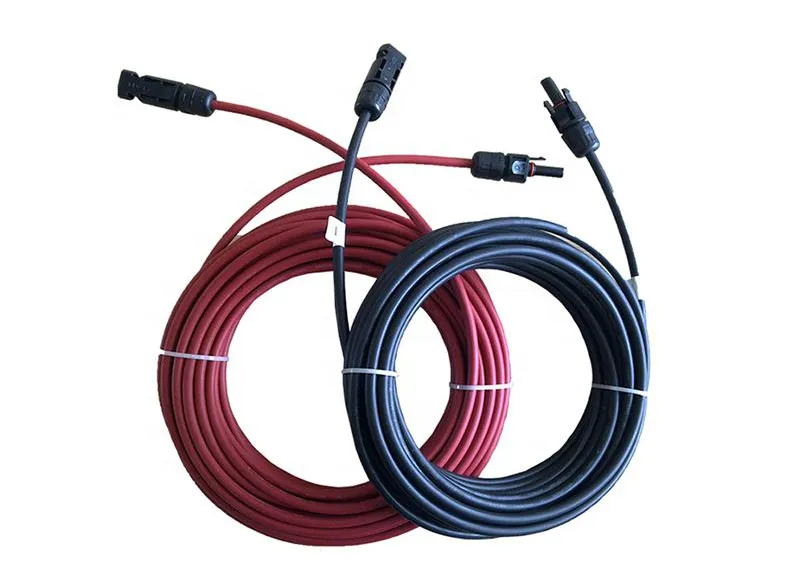

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional. Rated Voltage: 600VDC/1000VDC (TUV). Lifetime: ≤25 Years. Colors: Black (STD), Red (Optional).

📦

Packaging & Shipping

🏗️

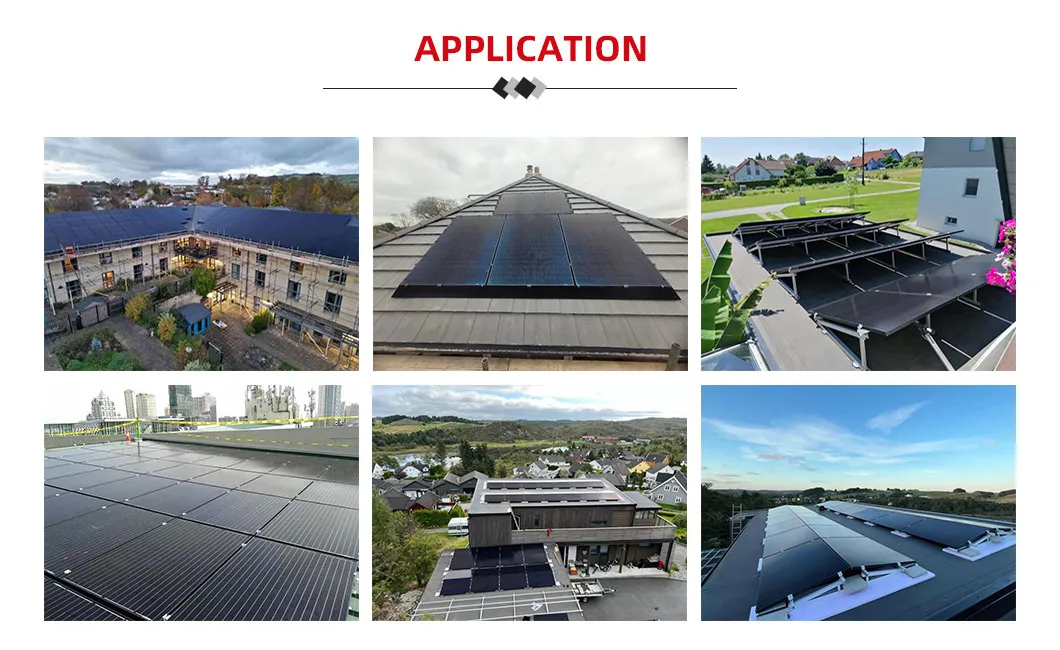

Projects Shown

12MW Commercial Metal Roof Solar Plant

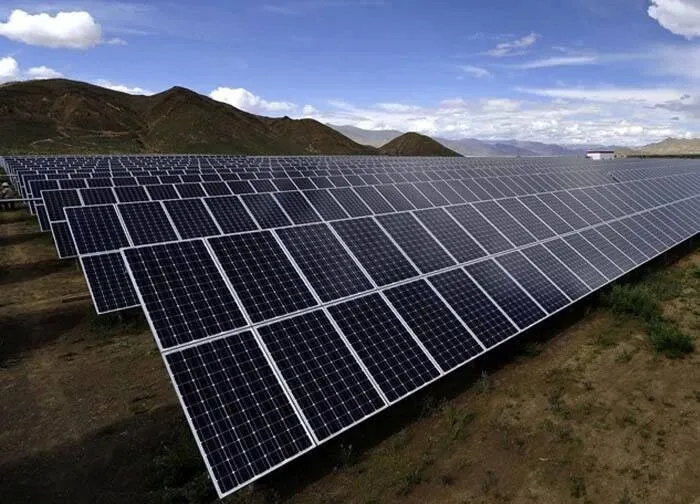

20MW Ground Solar Plant

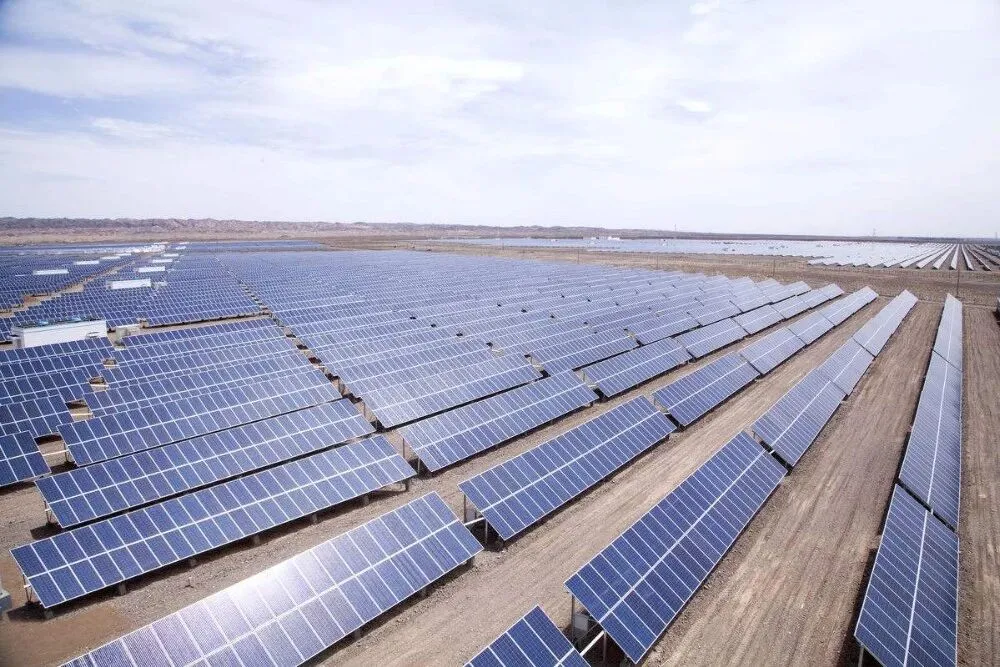

50MW Solar Plant

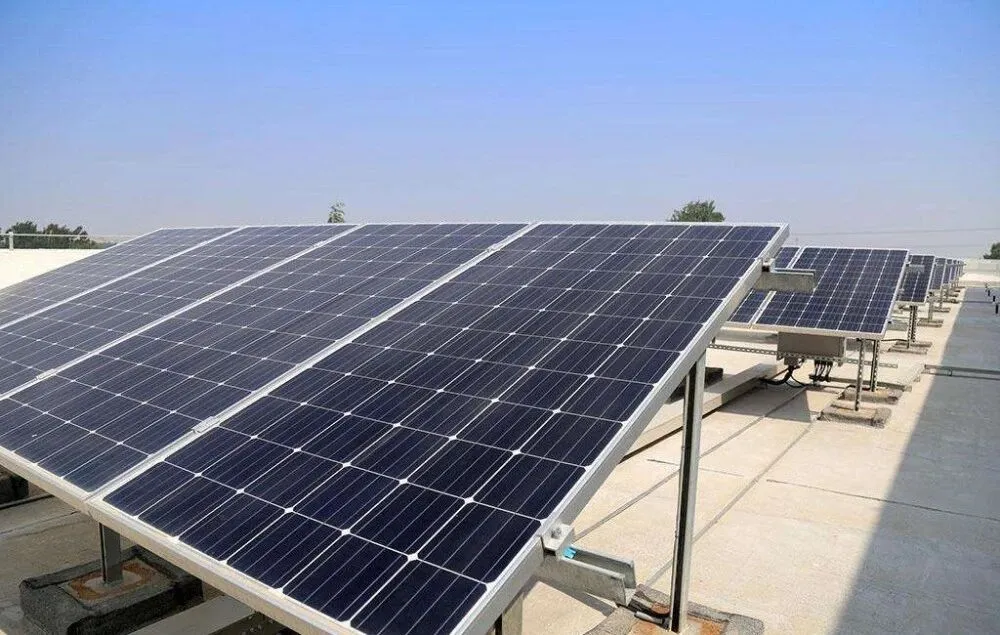

20KW Solar Plant

❓

Frequently Asked Questions

What are the main applications for this 10kW system?

This system is versatile and can be used for residential homes, industrial facilities, and commercial buildings looking to reduce energy costs.

What is the typical lifespan of the solar panels?

The Mono solar panels are designed for long-term durability with a service life typically reaching up to 25 years or more.

Does the system support remote monitoring?

Yes, the system includes a data logging stick that allows monitoring via Wi-Fi, LAN, or GPRS through dedicated apps for iOS, Android, and PC.

What kind of mounting surfaces are compatible?

The system supports various mounting solutions, including standard pitched roofs, asphalt shingles, and ground-based installations.

Is the system scalable?

Yes, while this configuration is for 10kW, the grid-tied inverters and components can be customized for systems ranging from 5kW up to 500kW.
