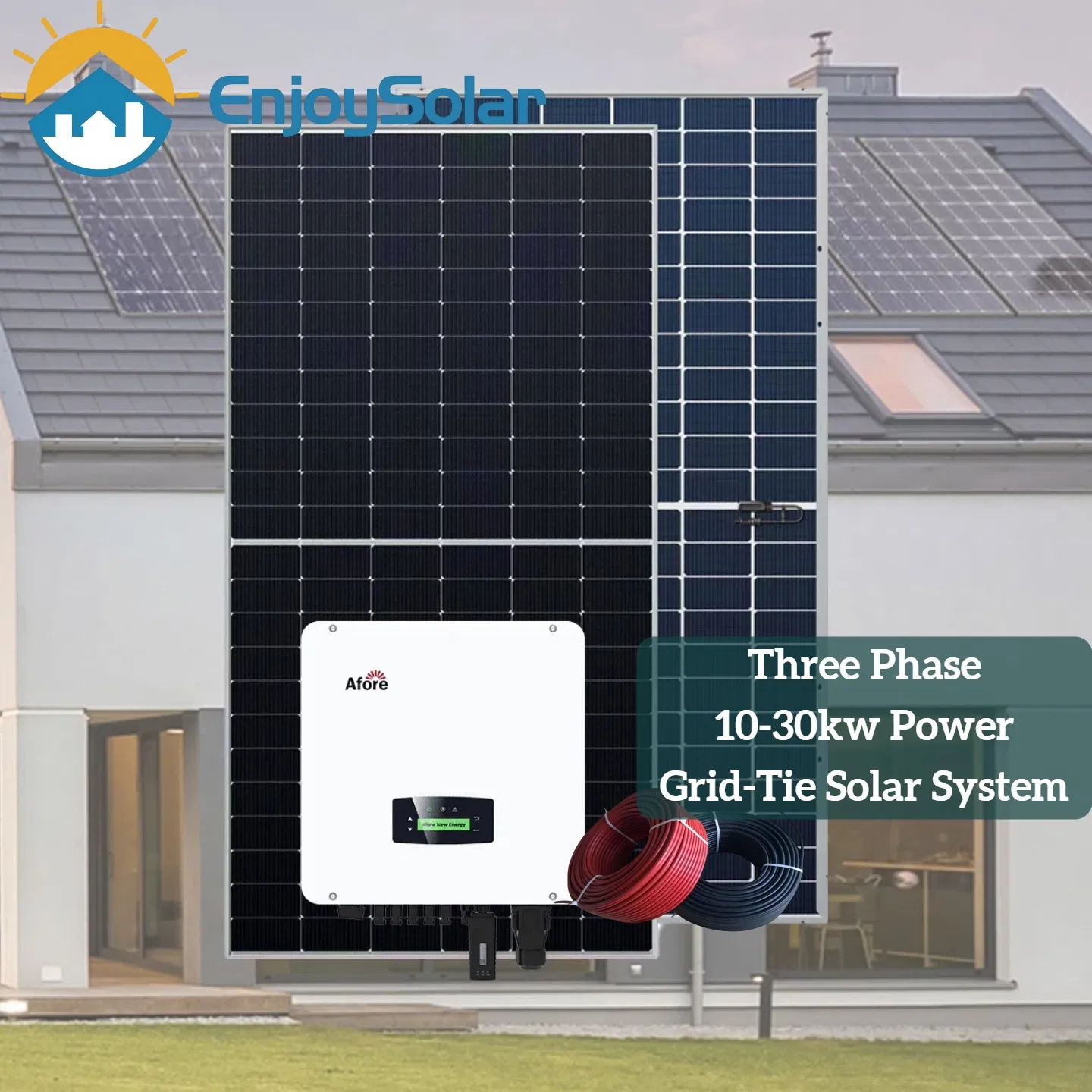

10kVA String Inverter System 12kVA 15kVA Grid-Tied Solar Energy System Kit for Residential Solar Project with Remote Monitor

1 / 5

10kVA String Inverter System 12kVA 15kVA Grid-Tied Solar Energy System Kit for Residential Solar Project with Remote Monitor

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

ES10K-ON

Certification

ISO, CE, TUV

Application

Home, Industrial, Commercial

Product Power

10kW

Solar Panel Type

Mono Perc, Topcon, Hjt

Inverter Type

Grid-Tied

Output Voltage

220V/280V; 230V/300V; 240V/415V

Design Life

30 Years

Monitor

WiFi, Bluetooth, RS485, Can

Mounting Material

Steel, Iron, Aluminum

Product Description

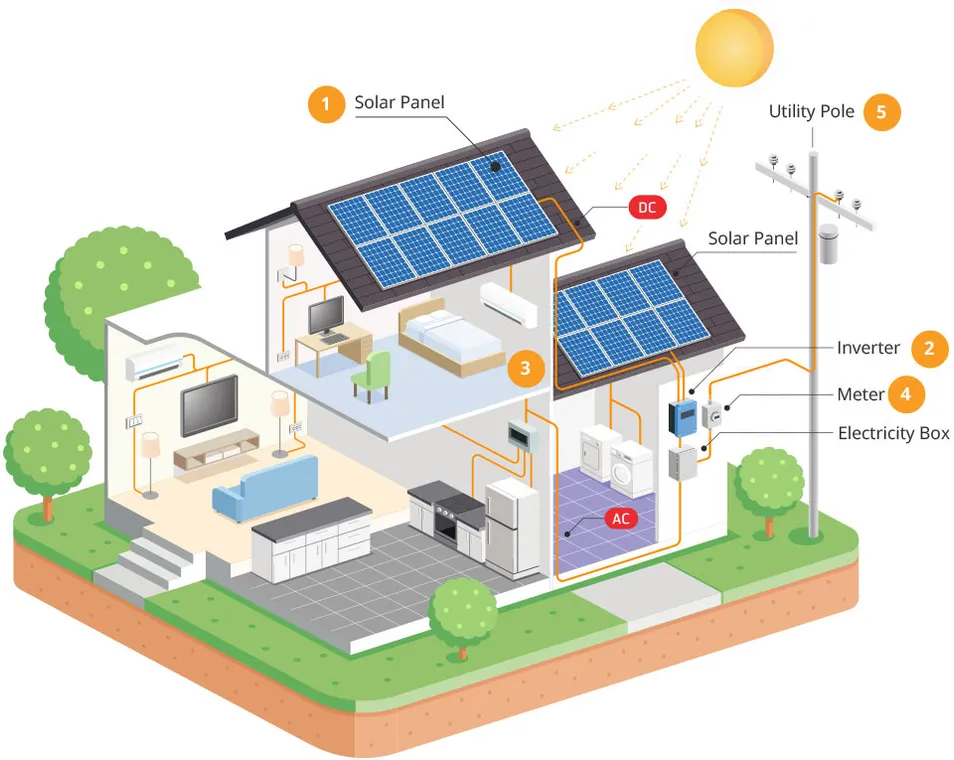

How an On-Grid Solar System Works?

⚡
Solar Panel Generation: Converts sunlight into DC electricity.
🔄
Inverter: Converts DC into AC electricity for home and business use.
🌐
Grid Connection: Fed into home system; excess energy sent to the utility grid.
📊
Net Metering: Tracks energy used vs. energy sent back for utility credits.

Specifications

System Configurations for 10KW-30KW Grid-Tie Solar Solutions
System Model	ES10KW-ON	ES20KW-ON	ES30KW-ON
AC Output Power	10KW	20KW	30KW
Solar Panels	610W Panel * 18 Units	610W Panel * 34 Units	610W Panel * 50 Units
Grid-Tie Inverter	10KW 3P	20KW 3P	30KW 3P

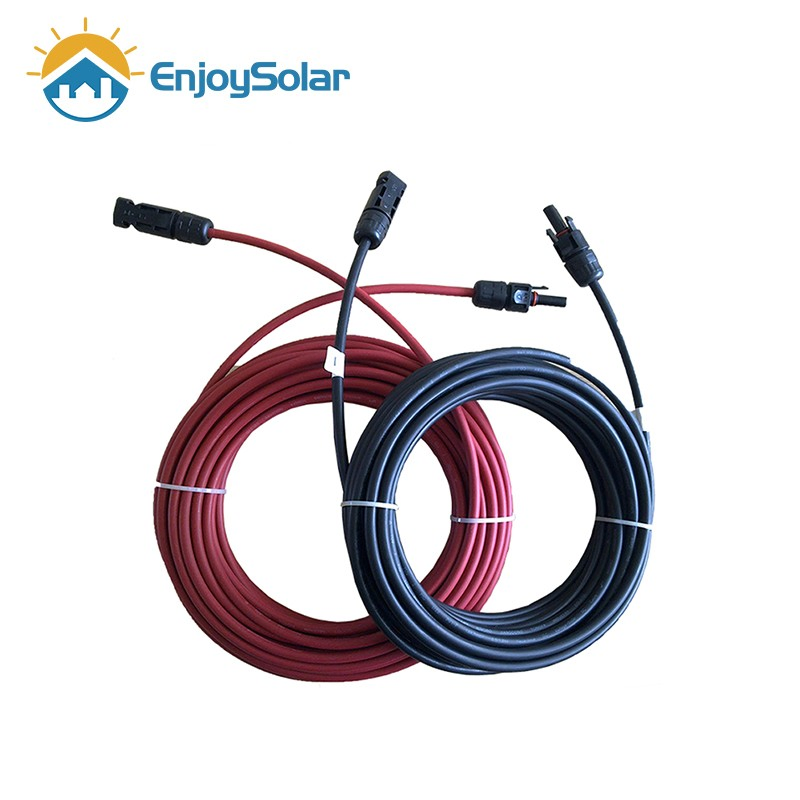

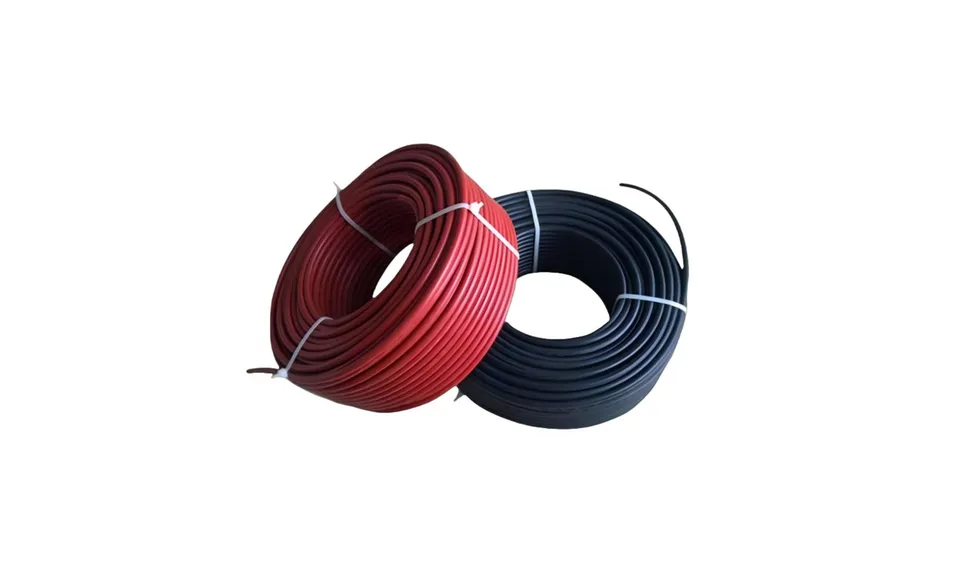

PV Cables (4mm2)	100M * 2 units	100M * 4 units	100M * 6 units
PV Connectors	4 Pairs	8 Pairs	12 Pairs

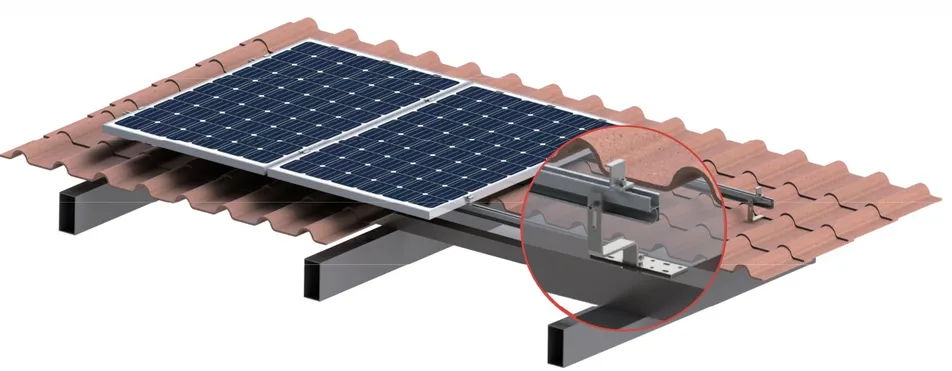

Mounting Kits	Customized based on installation site

* Configurations can be customized upon request.

Key Components

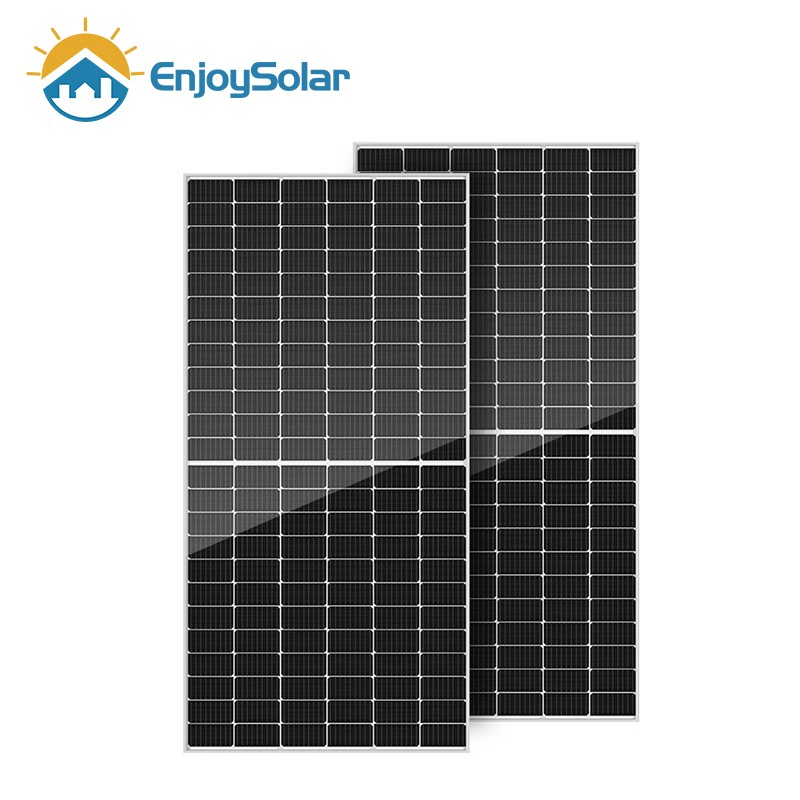

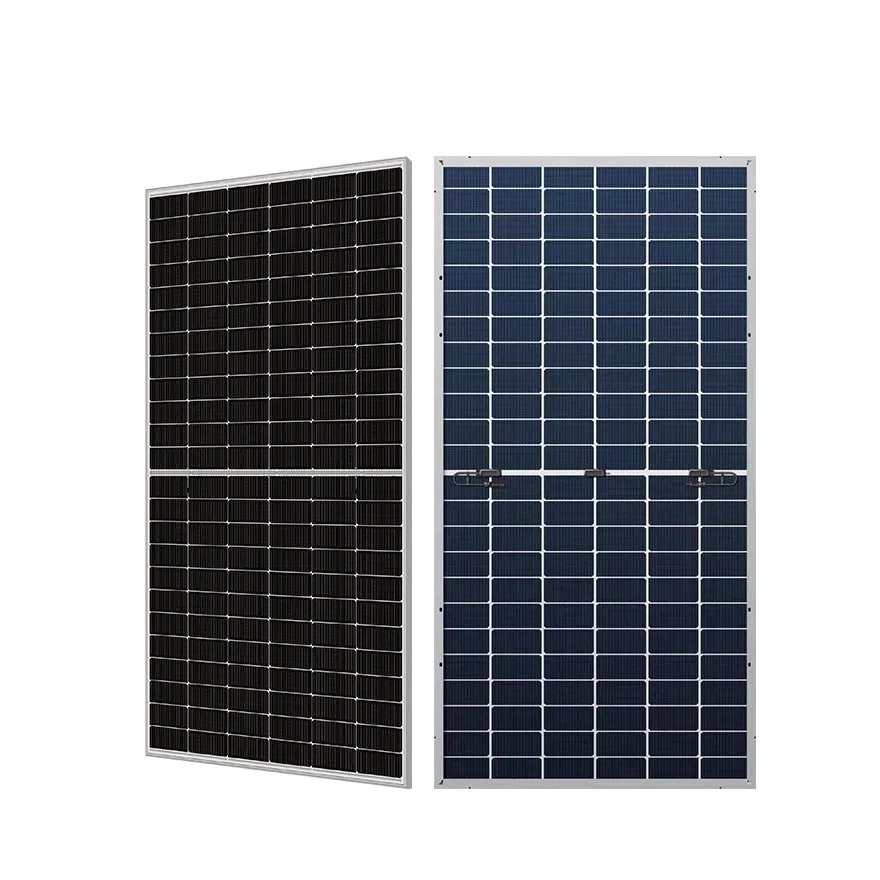

Topcon Solar Panel

Model: ES610M-72PH | Peak Power: 610Wp
Open Circuit Voltage (Voc): 51.32V | Max Power Voltage (Vmp): 42.78V
Dimensions: 2278*1134*30mm | Weight: 31.5kg

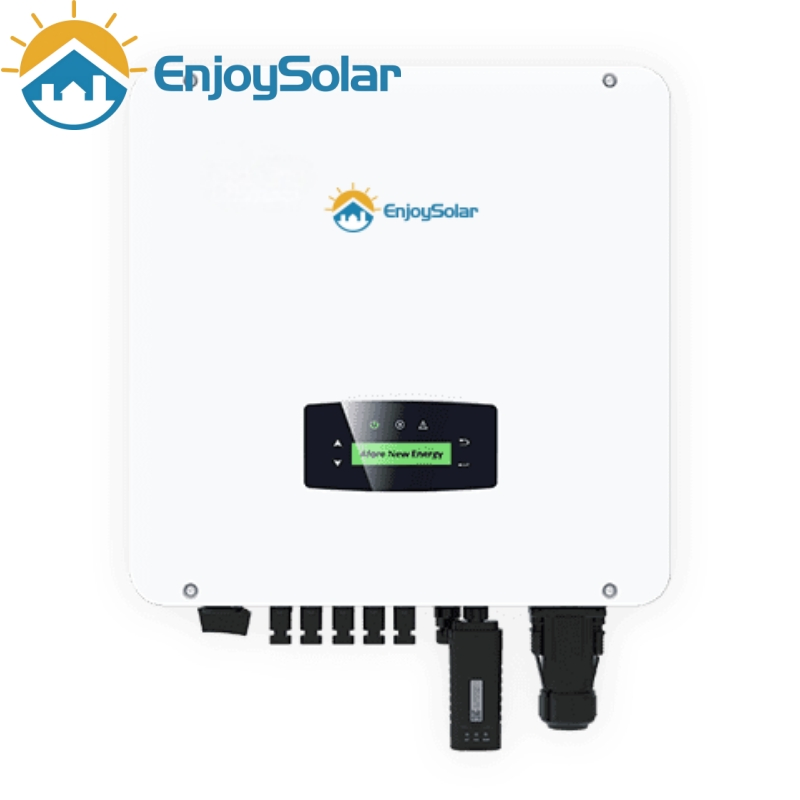

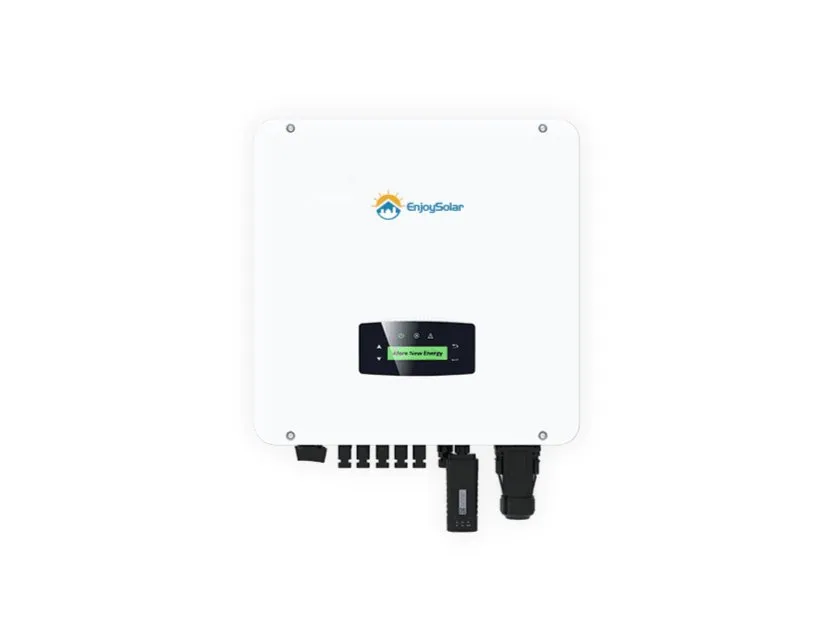

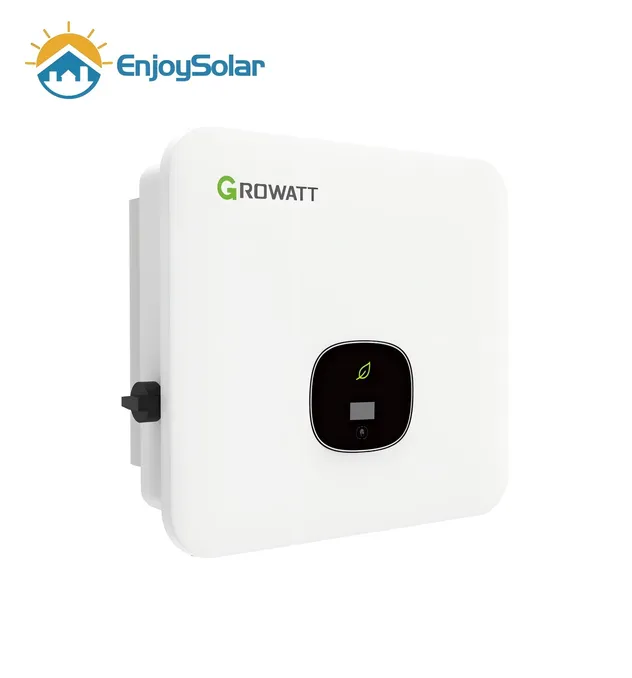

Grid-Tie Solar Inverter

✓ Max efficiency up to 99.75%
✓ Up to 10 MPPTs for optimal performance
✓ Remote firmware upgrade support
✓ Low startup voltage & wide range

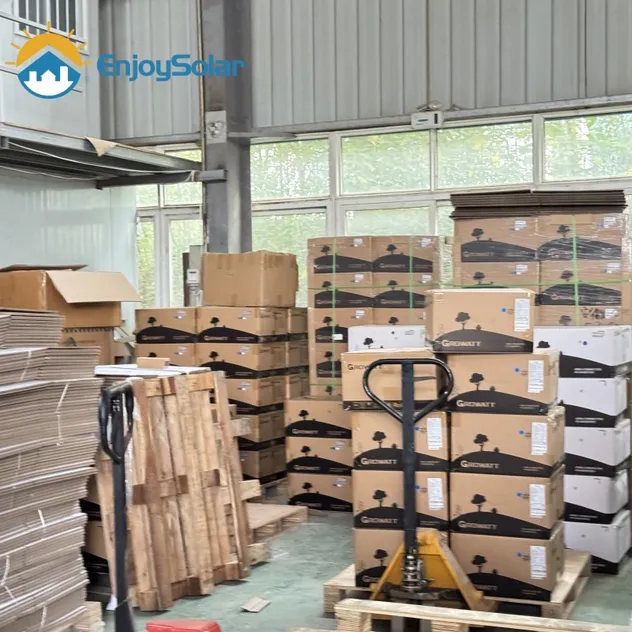

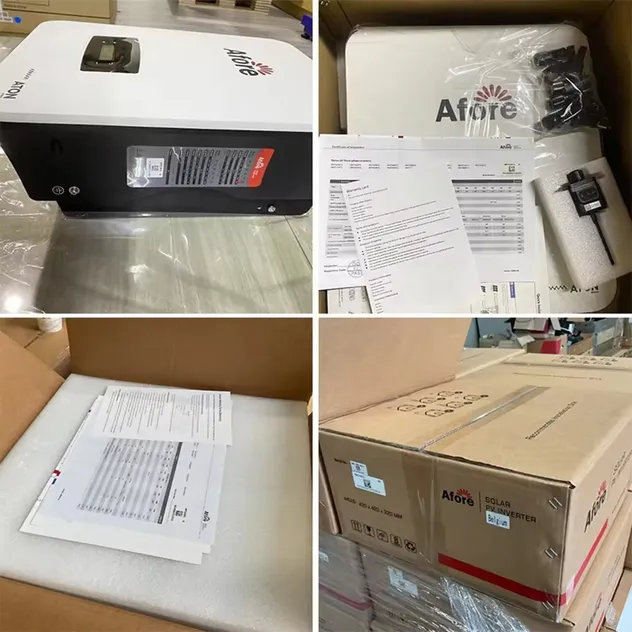

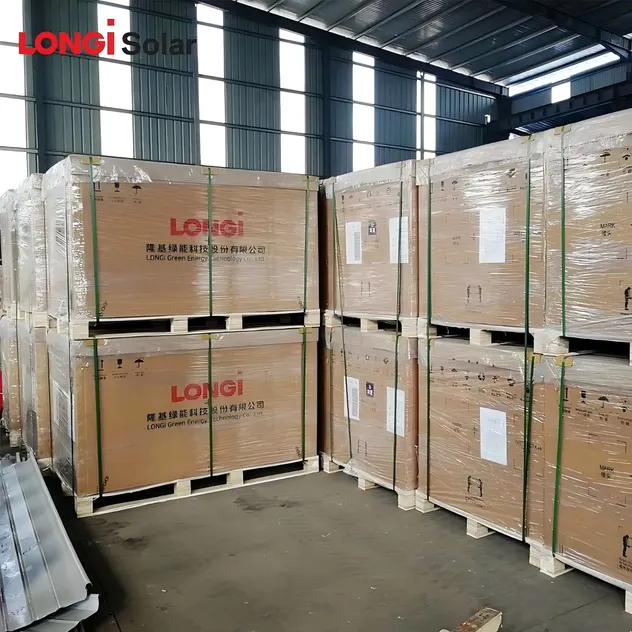

Packaging & Shipping

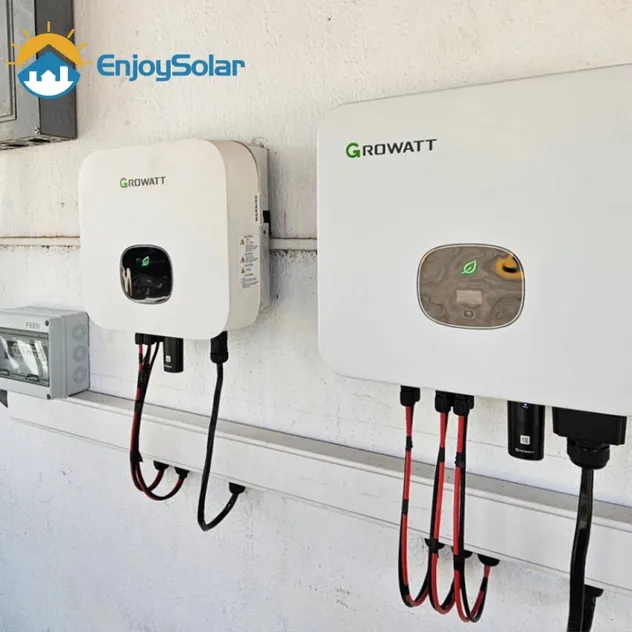

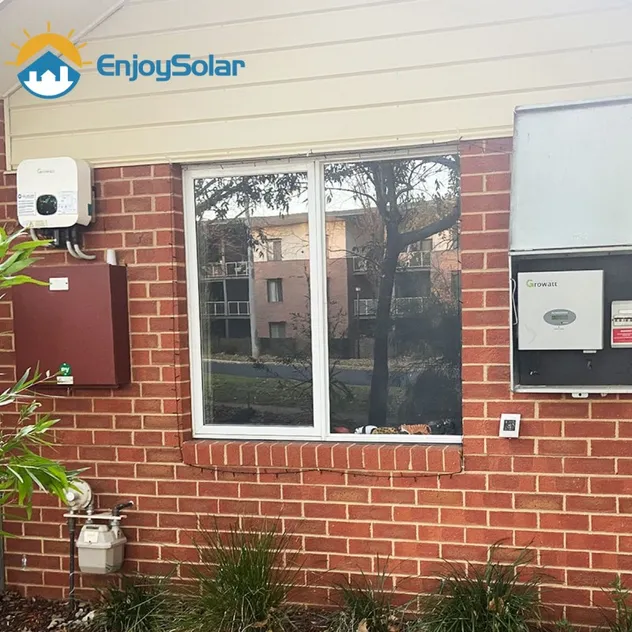

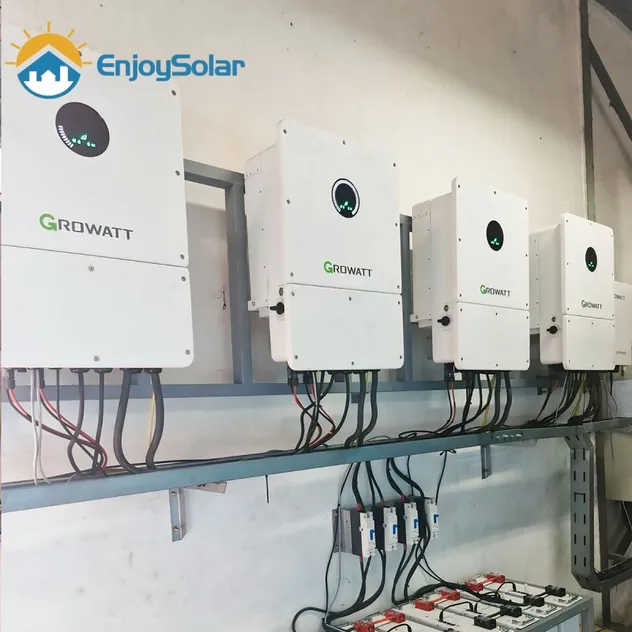

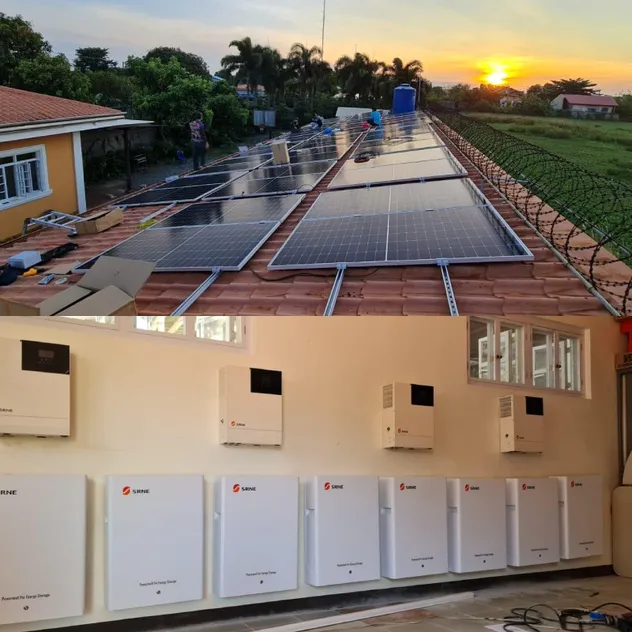

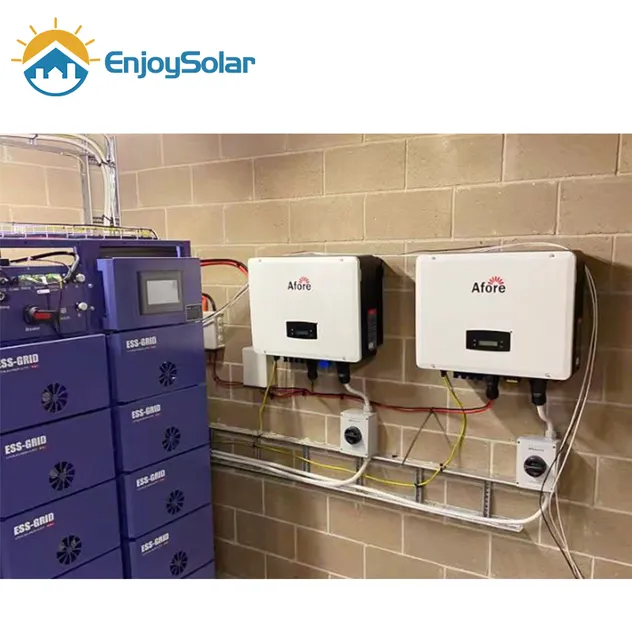

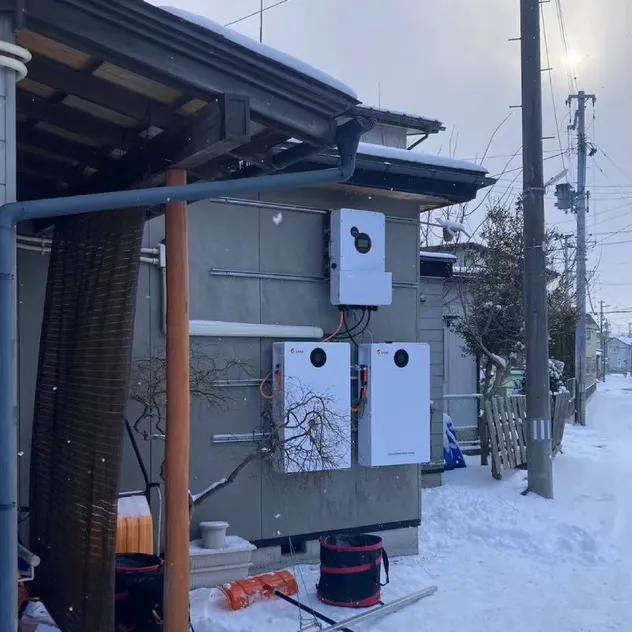

Global Projects

Hot Sale Products

Frequently Asked Questions

❓ What is an On-Grid Solar System?

An on-grid (or grid-tie) solar system is connected to the local utility grid. It allows you to use solar energy first and pull from the grid when needed. Any excess energy generated is sent back to the grid, often earning you credits through net metering.

❓ How long is the expected lifespan of this system?

The system is designed for a 30-year operational life. The solar panels typically come with a 25-year linear power warranty, and the inverters are built for long-term industrial and residential use.

❓ Can I monitor my energy production remotely?

Yes, the system supports WiFi, Bluetooth, and RS485 monitoring. You can track real-time power generation and system health via a smartphone app or computer.

❓ Is the mounting structure suitable for my roof?

Absolutely. The mounting kits are fully customized based on your specific installation site, whether it's a flat roof, pitched tile roof, asphalt shingles, or a ground-mounted setup.

❓ What happens during a power outage?

For safety reasons, standard grid-tie inverters automatically shut down during a grid failure to prevent "islanding" and protect utility workers. If you require power during outages, we recommend looking into our hybrid or off-grid solutions.

❓ Do these systems have international certifications?

Yes, all core components including panels and inverters are certified by ISO, CE, and TUV, ensuring they meet global safety and performance standards.
